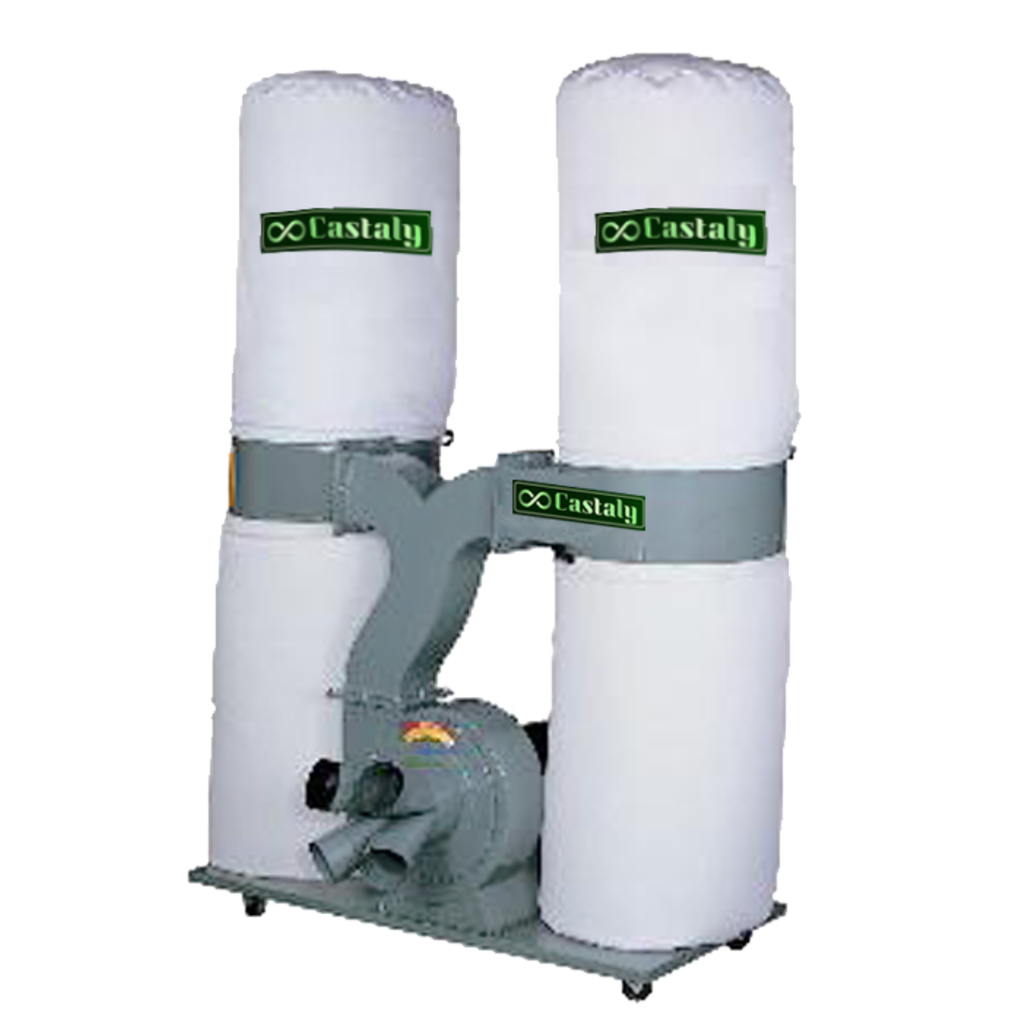

Castaly 5 HP Dust Collector Applications
- Cabinet and furniture manufacturing plants
- Production woodworking facilities
- Panel saws, planers, shapers, and wide belt sanders
- Central dust collection for multiple machines
Ideal for growing shops that need more airflow and higher capacity than 1 HP or 3 HP systems.
Castaly 5 HP Dust Collector Specifications
| Model | DC-535 |
|---|---|
| Motor | 5 HP (3 Phase) |
| Fan Diameter | 14" |
| Static Pressure | 13 |
| Air Capacity | 2,900 CFM |
| Sound Rating | 70 – 85 dB |
| Main Connection | 8" × 1 |
| Secondary Connections | 4" × 4 |
| Bottom Bag Capacity | 18 CUFT |
| Bag Diameter | 19-3/4" |
| Top Bag Length | 59" or 118" |
| Bottom Bag Length | 48" |
| Machine Height | 115" or 174" |
| Net Weight | 310 lbs |
| Gross Weight | 360 lbs |
Castaly 5 HP Dust Collector Performance & Construction
- Radial-fin type steel impeller for maximum airflow efficiency.
- Heavy-duty 5 HP motor delivers powerful and stable suction.
- Two top filter bags and two bottom collection bags for improved separation and capacity.
- Larger impeller and extended top filter bags enhance chip and dust capture.
- Steel spring clamps secure bags tightly to prevent dust leakage.
- Low sound levels help maintain a comfortable working environment.
- Vehicle casters allow mobility within the shop floor.
- Optional 5-micron replacement bags available for finer dust filtration.
Why Choose the Castaly 5 HP Dust Collector
- 2,900 CFM airflow for demanding production environments.
- Large 18 CUFT bottom bag capacity for extended operation.
- Dual-bag filtration system for improved efficiency.
- Durable steel construction and industrial-grade motor.
- Flexible height options to fit your workspace.
The Castaly 5 HP Dust Collector delivers professional-grade dust extraction, making it an excellent solution for shops expanding into higher production capacity.
