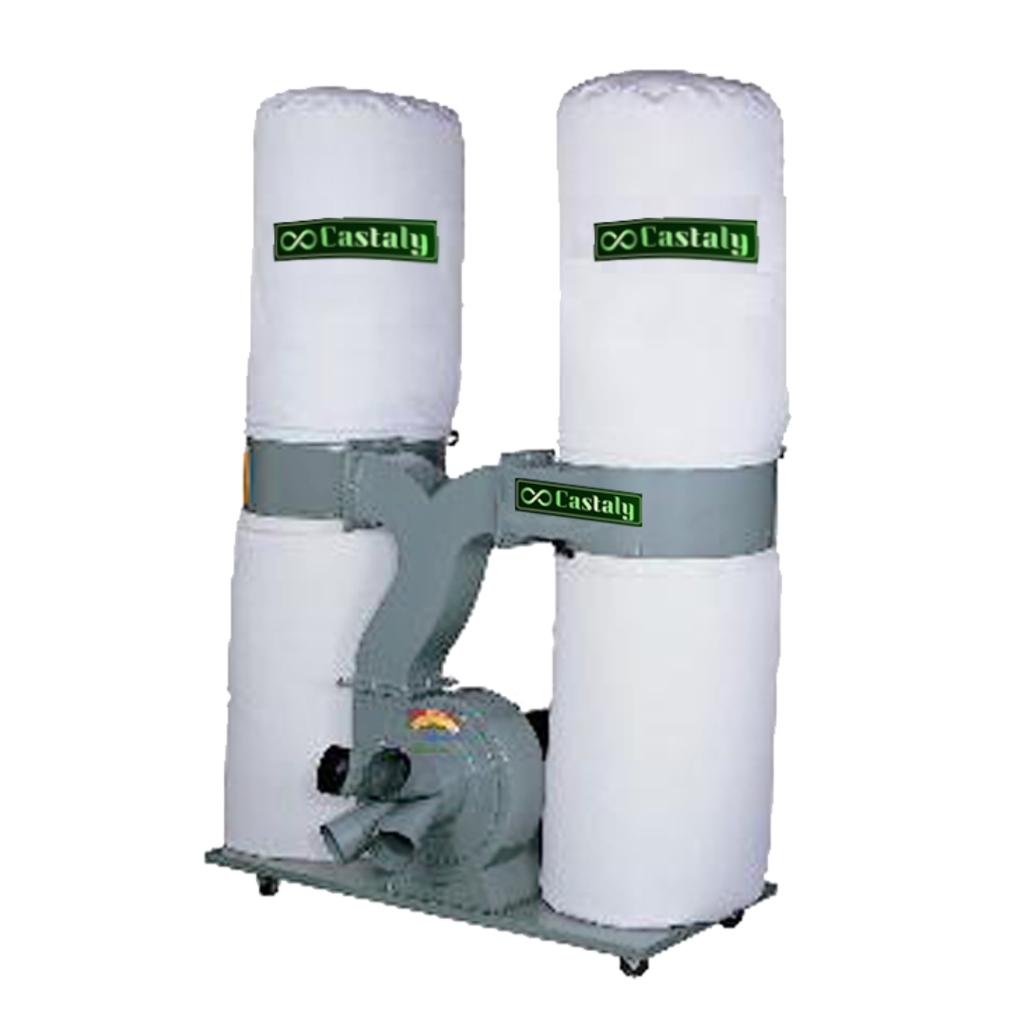

Castaly 3 HP Dust Collector Applications
- Cabinet and furniture manufacturing shops
- Mid-size woodworking production facilities
- Table saws, planers, jointers, shapers, and sanders
- Multi-machine dust collection setups
Ideal for shops requiring higher airflow capacity than entry-level collectors while remaining portable.
Castaly 3 HP Dust Collector Specifications
| Model | DC-102 |
|---|---|
| Motor | 3 HP (1PH or 3PH) |
| Voltage | 110 / 230V |
| Fan Diameter | 13-1/2" |
| Static Pressure | 11.5 |
| Air Capacity | 2,100 CFM |
| Sound Rating | 75 – 90 dB |
| Primary Connection | 6" × 1 |
| Secondary Connections | 4" × 3 |
| Top Bag Diameter | 19-3/4" |
| Top Bag Length | 49" |
| Bottom Bag Length | 32" |
| Machine Height | 95" |
| Net Weight | 170 lbs |
| Gross Weight | 190 lbs |
Castaly 3 HP Dust Collector Performance & Construction
- Radial-fin type steel impeller for maximum airflow efficiency.
- Heavy-duty 3 HP motor for powerful and consistent suction.
- Two top filter bags and two bottom collection bags for improved dust separation.
- Larger impeller and extended filter bags for enhanced sawdust and chip collection.
- Steel spring clamps securely fasten bags to prevent dust leakage.
- Low sound levels for improved workshop comfort.
- Equipped with vehicle casters for portability.
- Optional replacement or 5-micron bags available for fine dust filtration.
Why Choose the Castaly 3 HP Dust Collector
- 2,100 CFM airflow suitable for multiple machines.
- Dual-bag filtration system for efficient dust capture.
- Durable steel impeller and heavy-duty motor construction.
- Flexible voltage and phase options.
- Portable design with industrial-level performance.
The Castaly 3 HP Dust Collector delivers professional-grade dust extraction, making it a dependable choice for growing woodworking operations and production shops.
