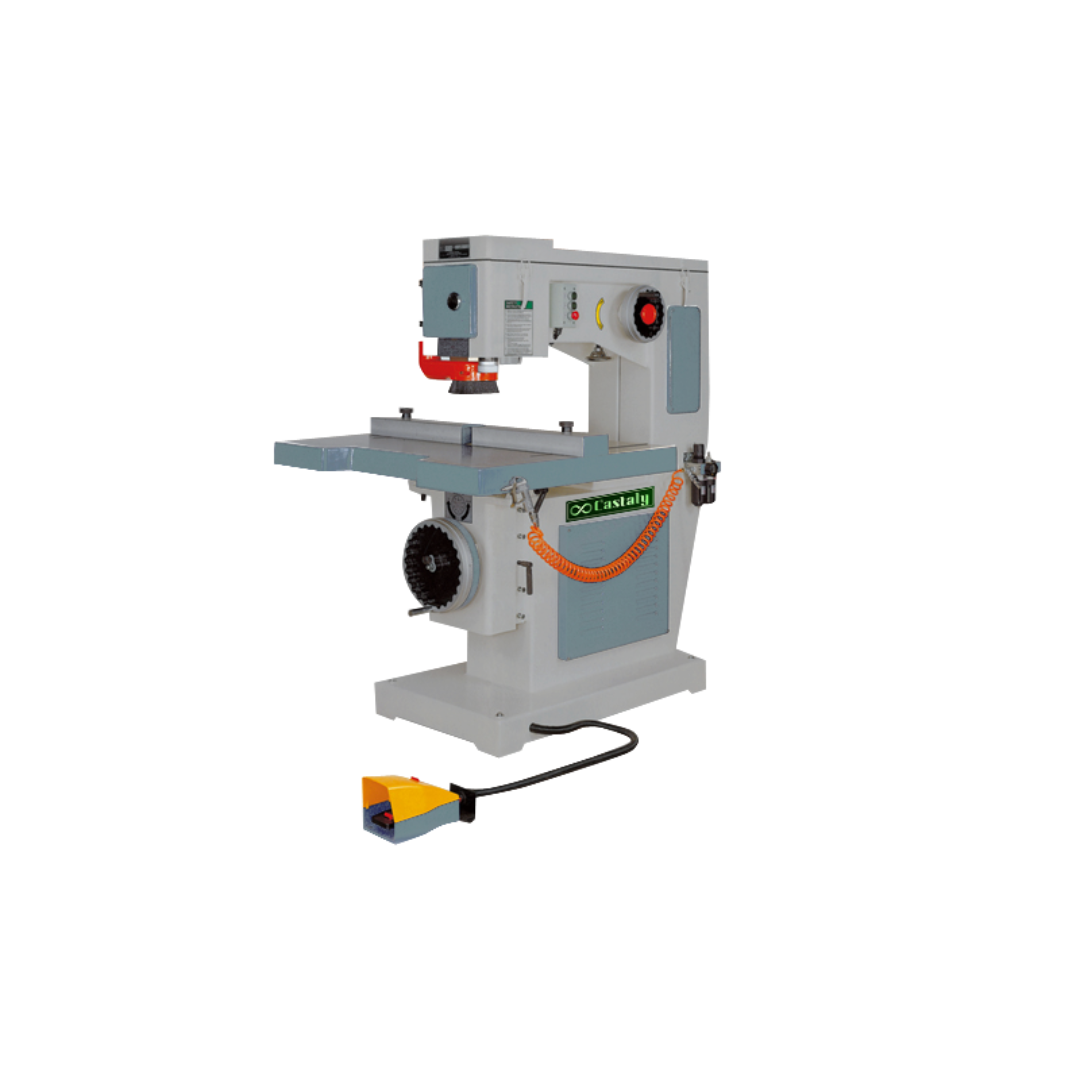

Castaly 28" Sliding Head Router RT-725 Applications
- Large template and pattern routing operations
- Furniture and chair component production
- Architectural millwork and curved part shaping
- Industrial contour cutting and duplication
- High-volume custom woodworking manufacturing
Built for heavy-duty routing applications requiring extended throat clearance and maximum stability.
Castaly 28" Sliding Head Router RT-725 Specifications
| Model | RT-725 |
|---|---|
| Chuck to Table Top (Max.) | 8" |
| Throat Clearance | 28-1/2" |
| Drive Motor | 5 HP, 3 Phase, 230V |
| Vertical Lift of Table | 5" |
| Table Size | 27-1/2" × 35-1/2" |
| Table Tilting Angle | 0° – 45° |
| Spindle Stroke | 3-1/2" |
| Depth End Stop | Adjustable |
| Spindle Speeds | 10,000 / 20,000 RPM |
| Collet Sizes | 1/4", 1/8", 1/2", 5/8" |
| Net Weight | 1,540 lbs |
| Gross Weight | 1,760 lbs |
Castaly 28" Sliding Head Router RT-725 Performance & Construction
- Oversized hand wheel allows smooth and effortless raising and lowering of the table for precise height control.
- Rigid cast iron base and frame provide maximum structural stability and vibration resistance.
- Precision ground cast iron table ensures a flat, durable work surface for consistent routing accuracy.
- Pneumatic vertical spindle travel operated by foot pedal for controlled, efficient cutting cycles.
- Dynamically balanced spindle manufactured from heat-treated chrome-molybdenum alloy steel for strength and long service life.
- Precision high-speed sealed bearings deliver smooth rotation and long-term durability.
- Three-position adjustable working depth system enables quick depth changes by rotating the depth release device.
- Adjustable belt tension system simplifies maintenance and ensures optimal power transmission.
- Spindle journal oil cup provides automatic lubrication for extended spindle life.
- Integrated dust suction chute mounted at the spindle end for improved chip extraction and a cleaner workspace.
- Tilt-capable working table (0°–45°) supports angled routing and specialized shaping applications.
Why Choose the Castaly 28" Sliding Head Router RT-725
- Powerful 5 HP motor for demanding industrial routing tasks.
- Large 28-1/2" throat clearance for oversized workpieces.
- Dual spindle speeds (10,000 / 20,000 RPM) for versatile performance.
- Heavy-duty 1,540 lb construction for superior stability.
- Pneumatic spindle control and precision depth adjustment for efficient operation.
The Castaly 28" Sliding Head Router RT-725 combines industrial power, precision engineering, and heavy-duty construction—making it an ideal solution for woodworking facilities requiring large-capacity routing with consistent, high-speed performance.
