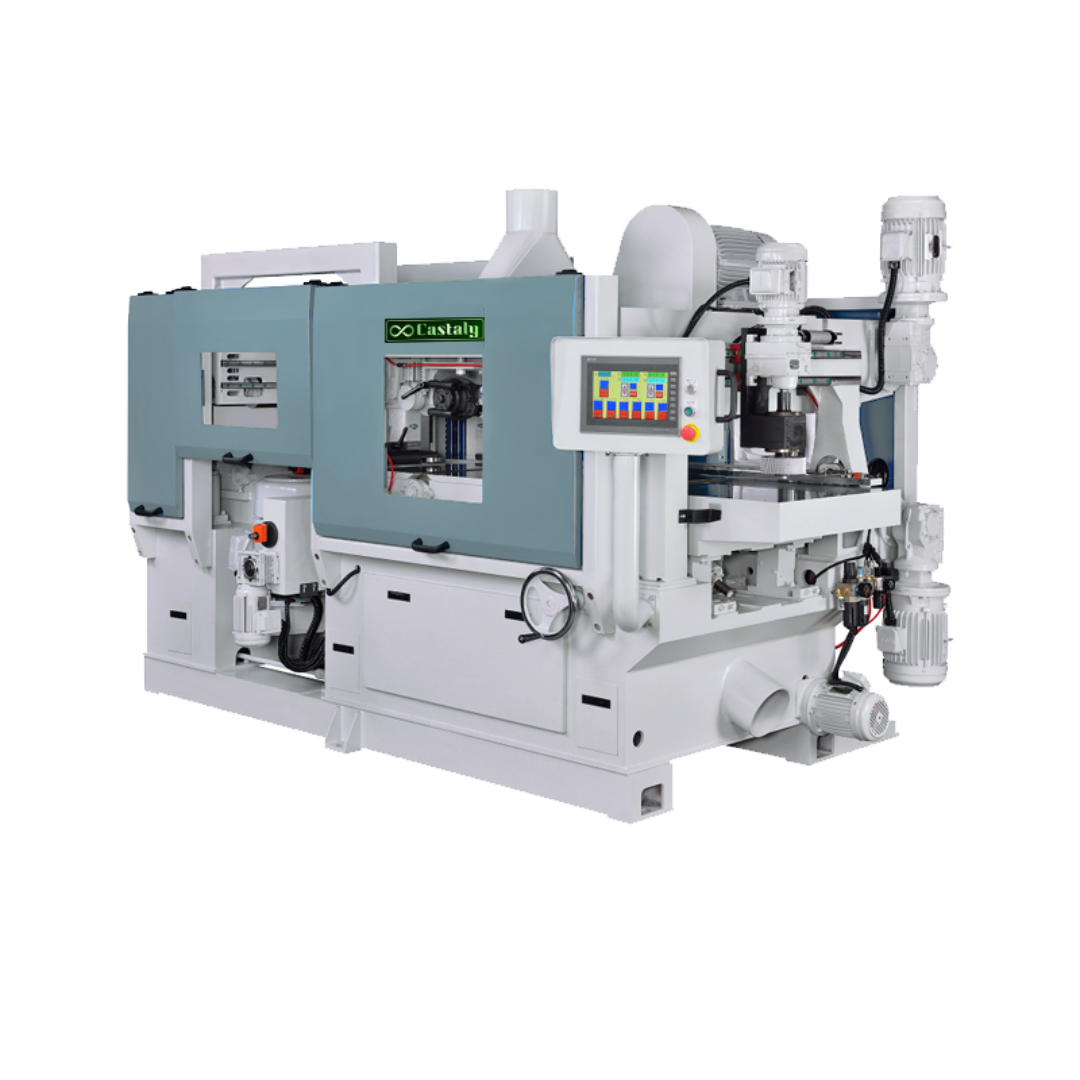

Castaly 25-1/2” x 6” Four Side Planer WP-4S2C-650 Specifications
| Model | WP-4S2C-650 |
|---|---|
| Working Width | 2-3/4" – 25-1/2" |
| Working Thickness | 3/4" – 6" |
| Feed Speed | 18 – 66 FPM (Variable) |
| Top Spindle Motor | 15 HP (Option 20 HP) |
| Bottom Spindle Motor | 20 HP (Option 25 HP) |
| Right Spindle Motor | 15 HP (Option 20 HP) |
| Left Spindle Motor | 20 HP (Option 25 HP) |
| Feed Motors | 10 HP × 2 |
| Spindle Diameter | 60 mm |
| Spindle Stroke | 5" |
| Dust Outlet | 6" × 4 |
| Machine Dimensions | 110" × 91" × 94" |
| Machine Weight | 18,600 lbs |
Castaly 25-1/2” x 6” Four Side Planer WP-4S2C-650 Performance & Construction

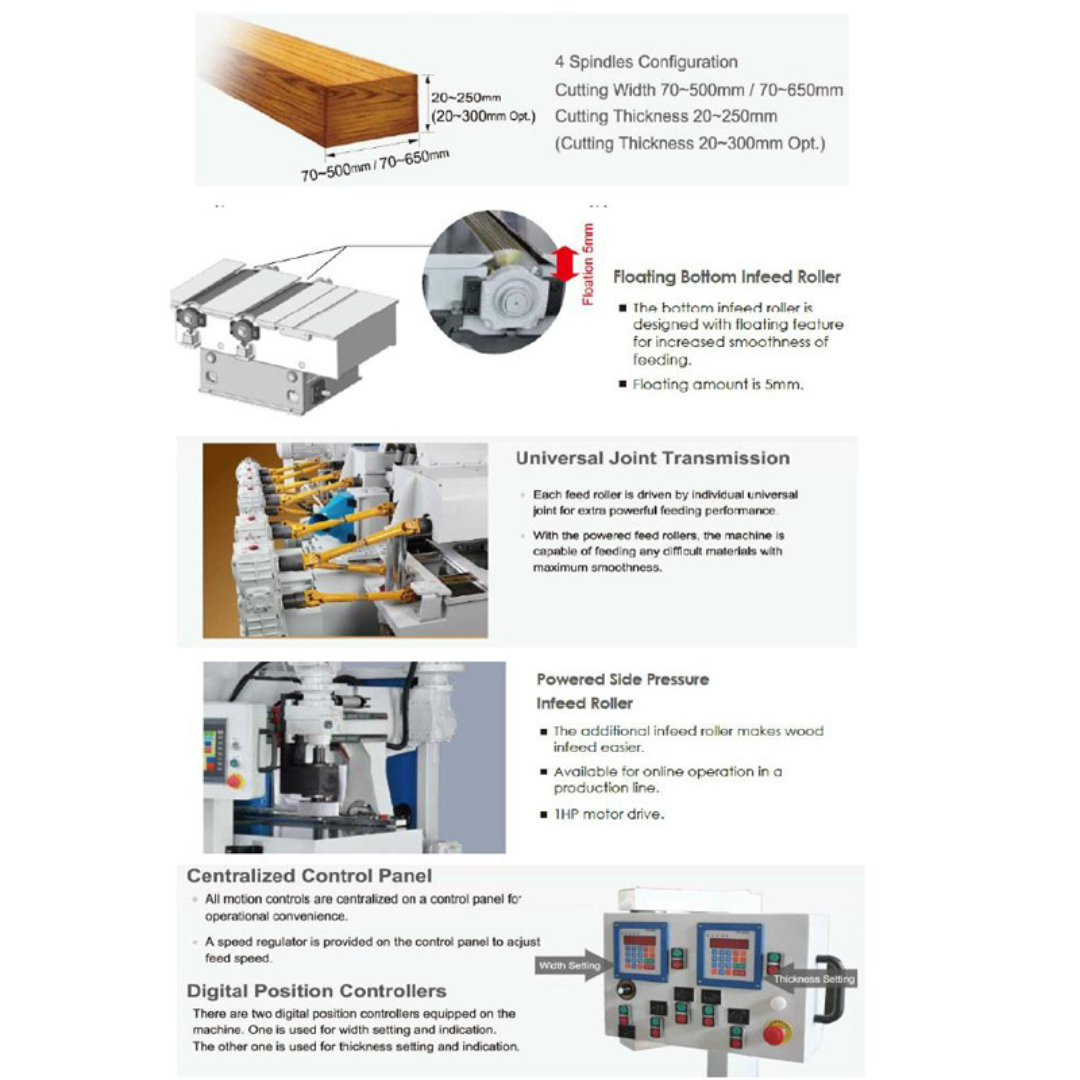

- Automatic Digital Controller for precise automatic thickness and width adjustment, reducing setup time.

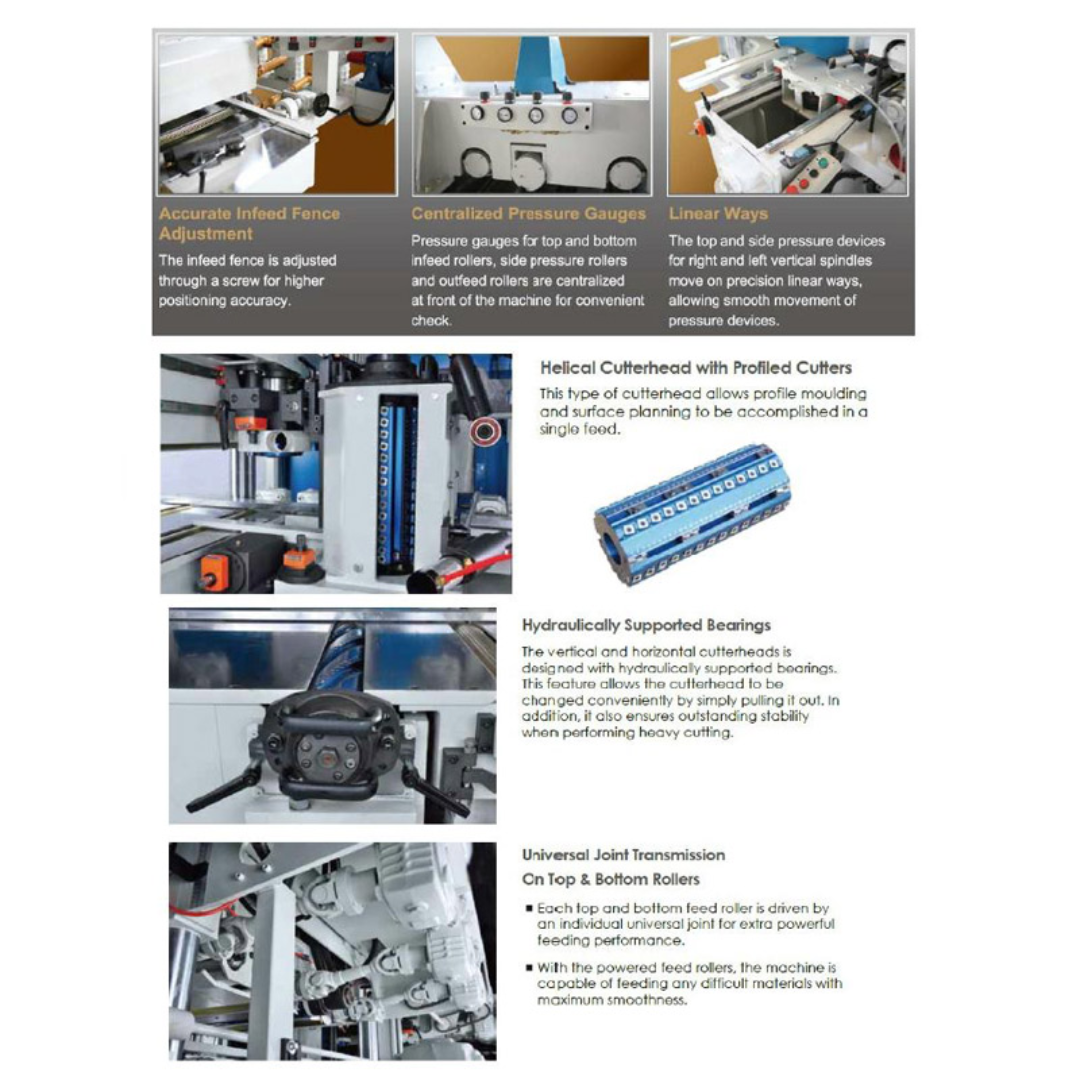

- Rigid Alloy Steel Spindles with Outboard Bearing Support ensure vibration-free power transfer and accurate cutting.
- Spindle Height Adjustment via Precision Rack & Pinion Gears for smooth and repeatable positioning.
- Spiral Insert Cutterhead Design (Standard) allows fast insert changes, reduced downtime, and superior finish quality.
- Precision-Balanced Cutterheads deliver chatter-free planing regardless of feed rate or material hardness.
- Heavy-Duty Feed Conveyor with Metal Spikes holds stock firmly to the worktable for consistent, smooth finishes.
- Floating Power Feed Rollers driven by geared transmission and heavy-duty universal joints for even feeding.
- Variable Speed Inverter Control enables optimized feed rates (18–66 FPM) based on depth of cut and material type.
- Precision Ground & Chrome-Plated Worktable polished to mirror finish for wear resistance and easy maintenance.
- Heavy-Duty Cast Iron Frame dampens vibration and ensures long-term structural stability.
- Powerful Industrial Motors provide maximum cutting capacity across all four spindles.
- Removable Bottom Cutterhead for convenient knife replacement.
- Quick Access Upper Cutterhead requiring only removal of the upper dust chute for knife changes.
- Auto Material Thickness Device minimizes setup time and improves efficiency.
- Sealed Long-Life Precision Bearings enhance durability and reduce maintenance.
Why Choose the Castaly 25-1/2” x 6” Four Side Planer WP-4S2C-650
- Wide 25-1/2" capacity for large production applications.
- Heavy-duty 18,600 lb construction for industrial stability.
- Digital automatic adjustment reduces downtime and increases productivity.
- Spiral insert cutterheads for superior finish and easy maintenance.
- High horsepower multi-spindle configuration for demanding workloads.
The Castaly 25-1/2” x 6” Four Side Planer WP-4S2C-650 is built for high-output manufacturing environments that require precision control, maximum power, and reliable long-term performance in four-side planing and moulding operations.
