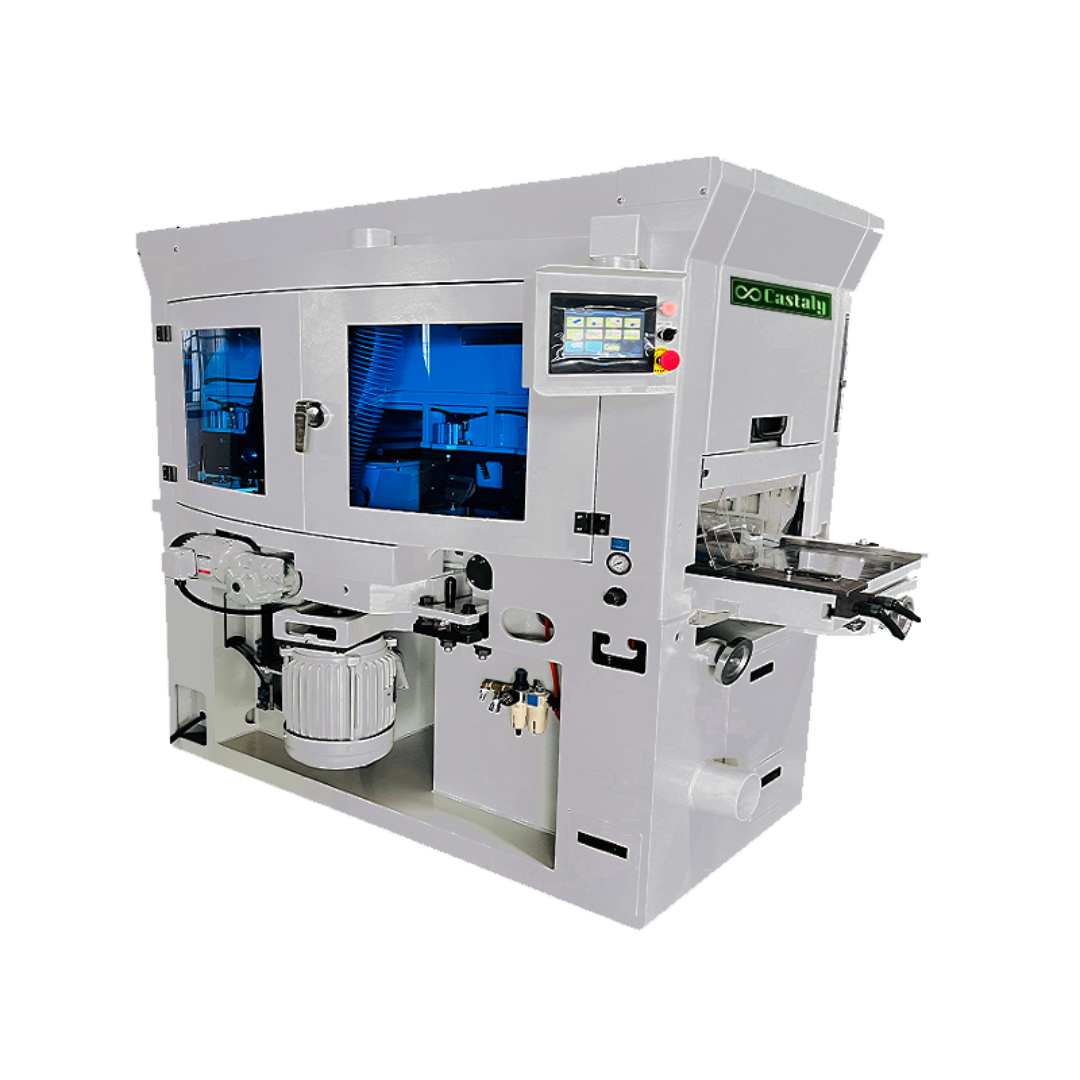

Castaly 20” x 5” Four Side Planer / Moulder WP-20L-V4 Working Capacities
| Working Width | 3/4" – 20" |
|---|---|
| Working Height | 3/8" – 5" (WP-20L5) / up to 8" (WP-20L8) |
| Maximum Length | Unlimited (Minimum 20" recommended) |
| Maximum Cutting Depth | Top & Bottom Heads: 1/2" • Side Heads: 1" |
| Feed Speed | 20 – 65 FPM (Variable by VFD) |
Castaly 20” x 5” Four Side Planer / Moulder WP-20L-V4 Motor & Feed System
| Top Cutter Motor | 15 HP – 5,000 RPM |
|---|---|
| Bottom Cutter Motor | 15 HP – 5,000 RPM |
| Right Side Cutter Motor | 10 HP – 5,000 RPM |
| Left Side Cutter Motor | 10 HP – 5,000 RPM |
| Feed Motors | (2) × 2 HP VFD Motors |
| Feed Configuration | Top Infeed & Outfeed Powered Rolls • 4 Bottom Infeed Idle Rolls • 4 Bottom Outfeed Idle Rolls |

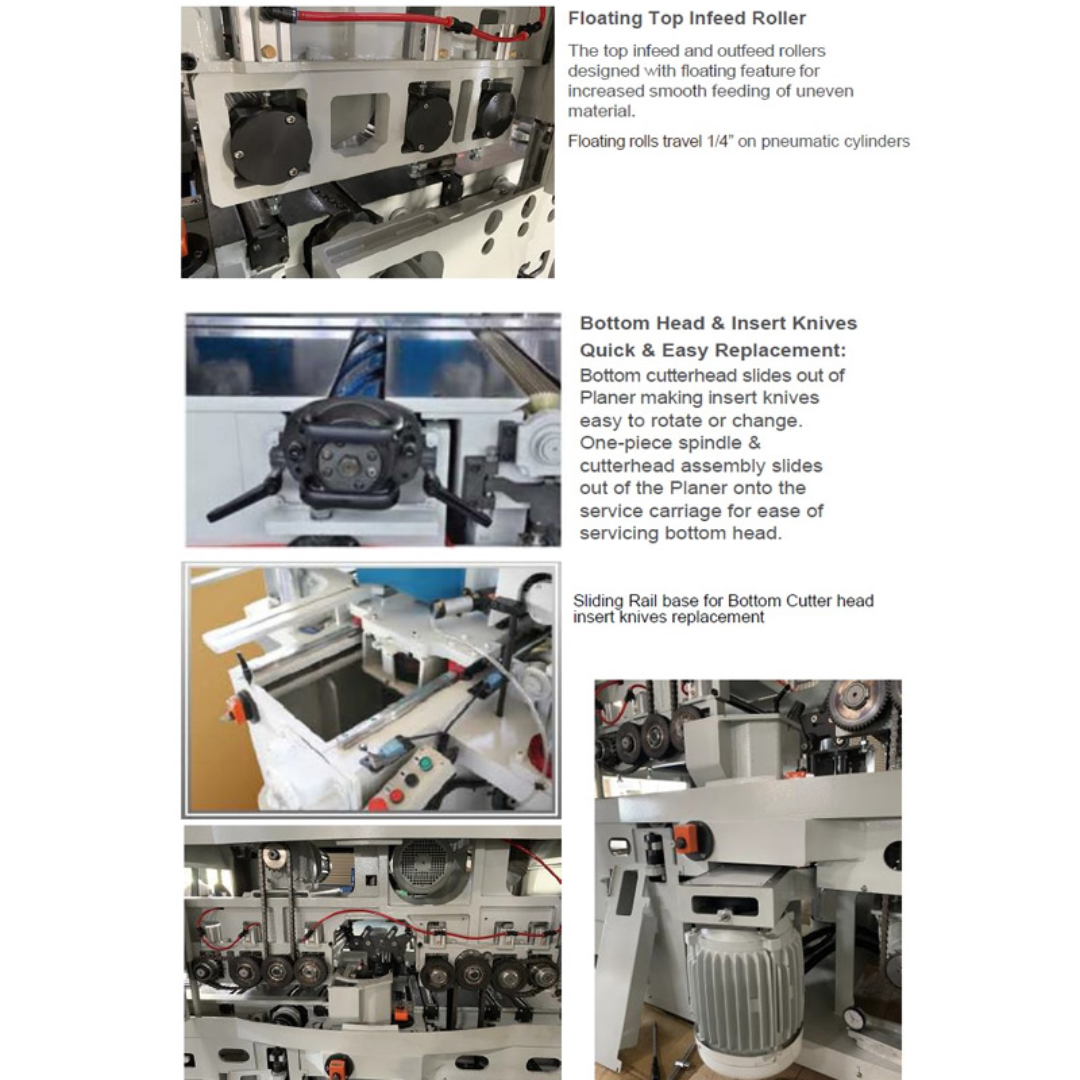

Top powered feed rolls are air-cylinder loaded and floating for smooth, positive feeding and consistent finish quality.
Castaly 20” x 5” Four Side Planer / Moulder WP-20L-V4 Cutterhead Configuration

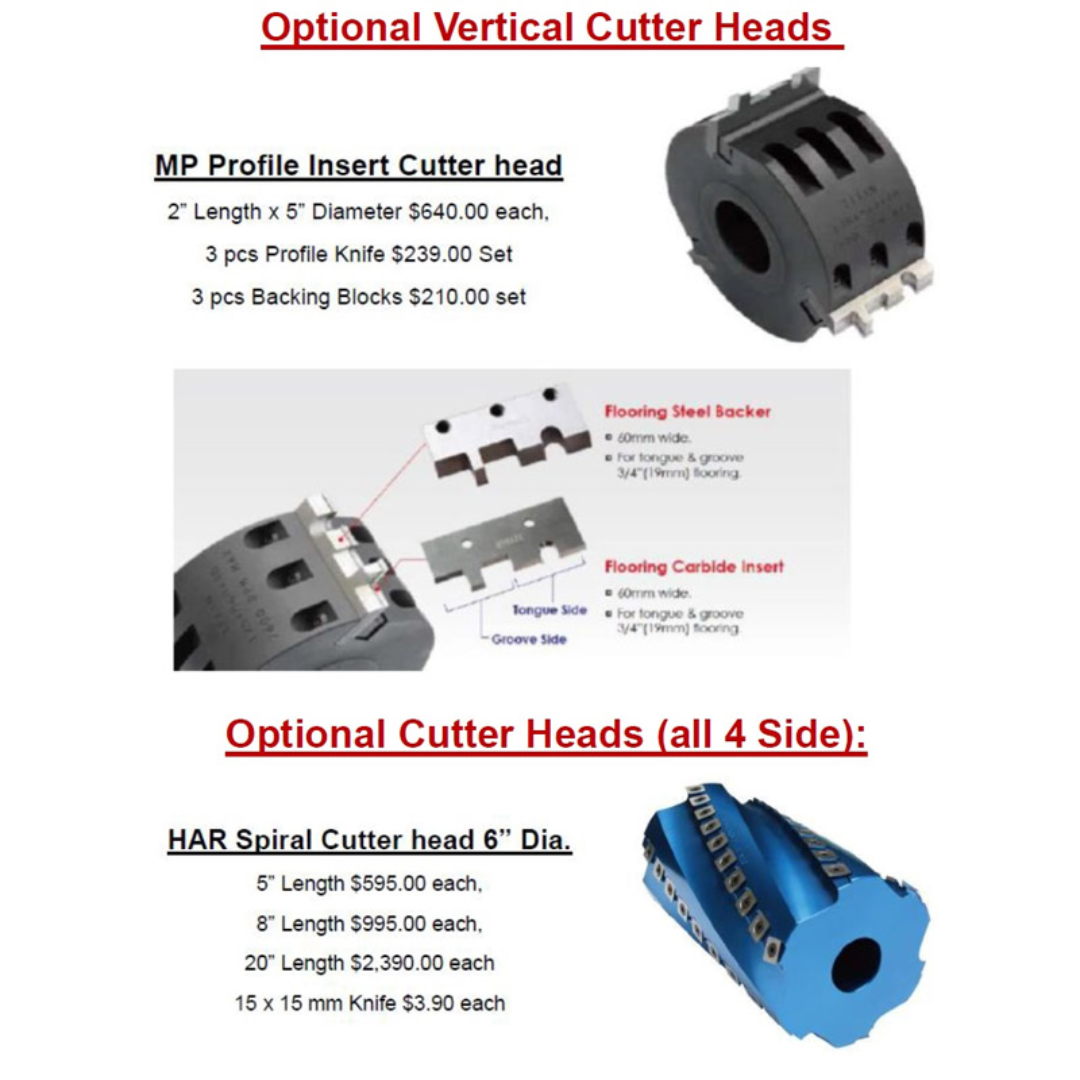

- Horizontal Top & Bottom Heads supplied standard with Slip-On HAR Series Spiral/Profile Cutterheads.
- Profile Knives combined with Carbide Inserts 15 × 15 mm × 3°.
- Maximum Depth of Cut 1/2" with standard 5" O.D. shaft (60 mm).
- Vertical Left & Right Heads with HAR Series profile heads (40 mm spindle arbor diameter).
- Vertical Cutting Circle 6" – 7" with maximum 1" depth of cut.

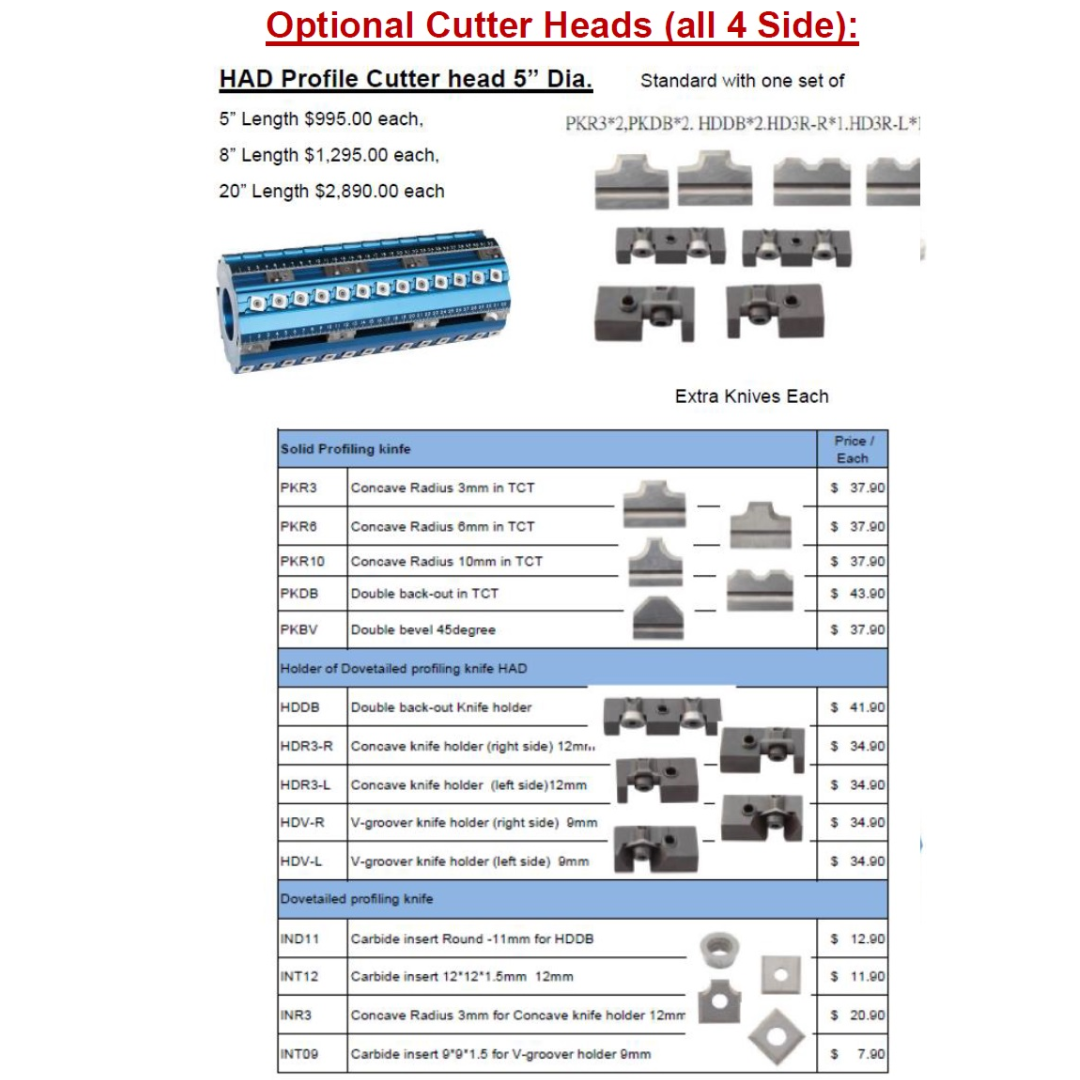

- Optional profile cutter heads available for custom tooling applications.

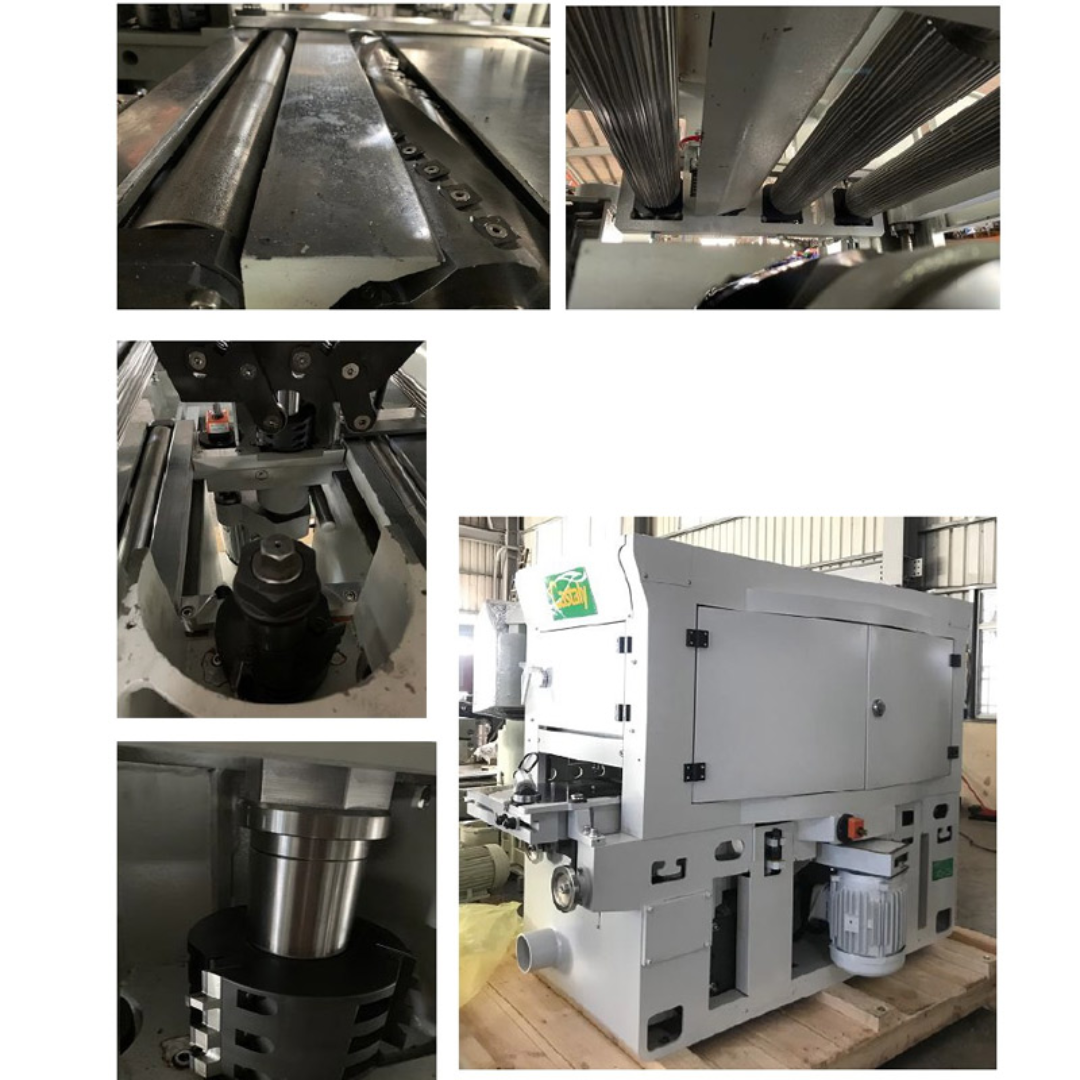

- All cutterheads precision balanced for smooth, chatter-free performance.
Castaly 20” x 5” Four Side Planer / Moulder WP-20L-V4 Performance & Construction
- Touch Screen HMI Control with digital positioning for width, thickness, and variable feed speed adjustments.
- Automatic Top Spindle Height Adjustment entered directly via touch screen interface.
- Hard Chrome-Plated Worktable precision ground and polished for long life and smooth feeding.
- Floating Bottom Infeed Rolls for positive, even feeding during rough or finish planing.
- Heavy-Duty Spindle Assemblies designed for durability and superior finish quality.
- Overhead Assembly supported by four hard-chromed polished posts and precision screws for accurate positioning.
- Massive Sheet Metal Frame absorbs vibration for improved surface finish and extended bearing life.
- Exclusive See-Through Top Guard enhances safety and visibility.
- Motor Control Center with under-voltage and overload protection.
- UL and CSA Labeled Electrical Components for compliance and operational safety.
Castaly 20” x 5” Four Side Planer / Moulder WP-20L-V4 Machine Dimensions
| Machine Length | 76" |
|---|---|
| Machine Width | 52" |
| Machine Height | 71" |
| Machine Weight | 4,920 lbs |
Why Choose the Castaly 20” x 5” Four Side Planer / Moulder WP-20L-V4
- Up to 20" wide 4-side planing capacity.
- Powerful 15 HP top and bottom cutter motors.
- Digital automatic positioning for faster setup and changeover.
- Spiral/profile cutterhead flexibility for S2S, S4S, and profile applications.
- Heavy-duty construction with precision-ground, chrome-plated surfaces.
The Castaly 20” x 5” Four Side Planer / Moulder WP-20L-V4 delivers precision control, high horsepower performance, and industrial durability—making it an ideal solution for professional woodworking operations requiring consistent, high-quality four-side planing and moulding.
