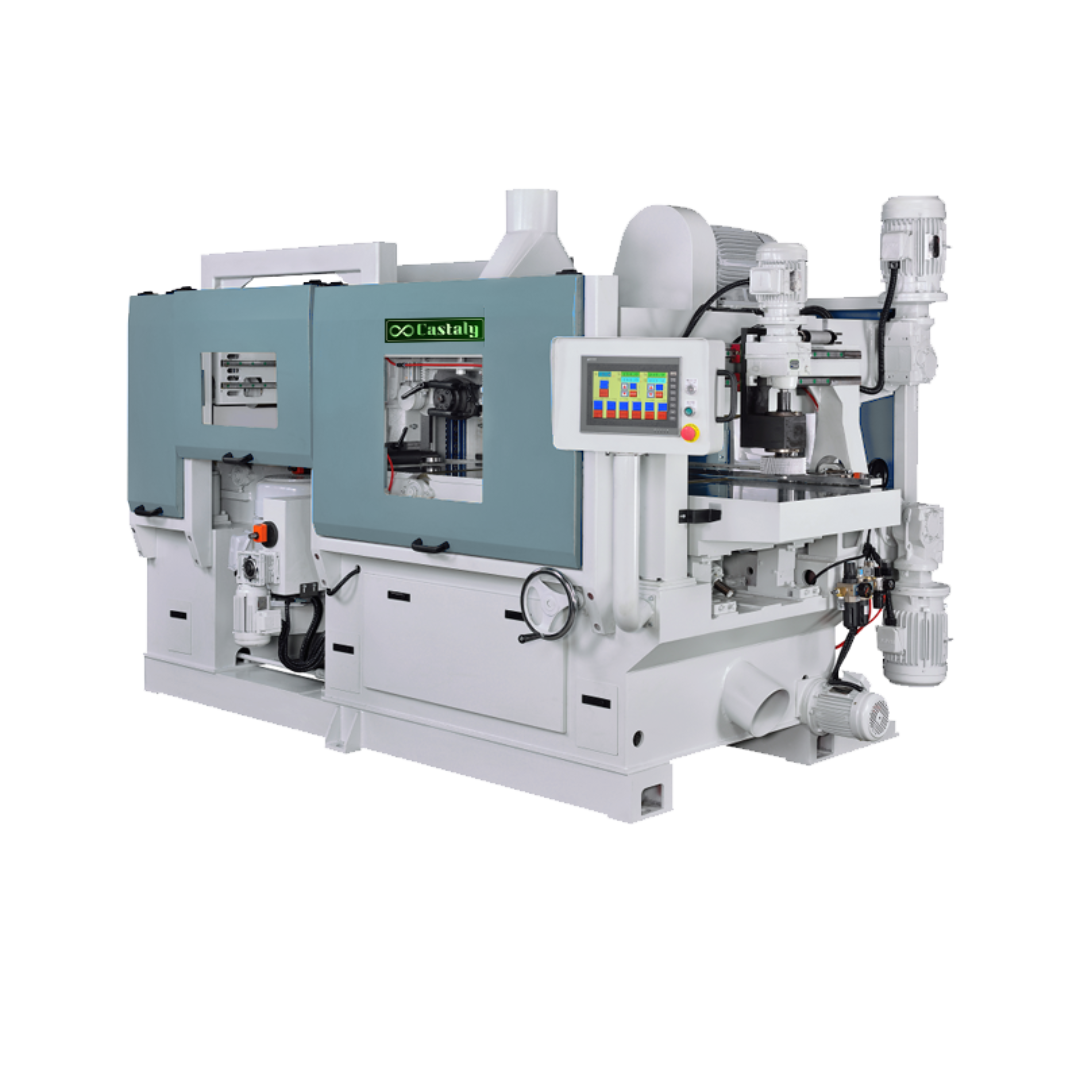

Castaly 19-5/8” x 6” Four Side Planer / Moulder WP-4S2C-500 Specifications
| Model | WP-4S2C-500 |
|---|---|
| Working Width | 2-3/4" – 19-5/8" |
| Working Thickness | 3/4" – 6" |
| Feed Speed (Variable) | 18 – 66 FPM |
| Bottom Cutter Motor | 10 HP (Option 15 HP) |
| Top Cutter Motor | 15 HP (Option 20 HP) |
| Left Cutter Motor | 10 HP (Option 15 HP) |
| Right Cutter Motor | 15 HP (Option 20 HP) |
| Feed Motors | 7.5 HP × 2 |
| Horizontal Cutter Diameter | 5" |
| Vertical Cutter Diameter | 5" – 6" |
| All 4 Cutter Shafts | 60 mm Diameter |
| Insert Cutter Knife Size | 15 × 15 × 2.5 mm |
| Dust Hood Outlet | 6" × 4 |
| Machine Size | 110" × 86" × 94" |
| Machine Weight | 15,200 lbs |
Castaly 19-5/8” x 6” Four Side Planer / Moulder WP-4S2C-500 Performance & Construction

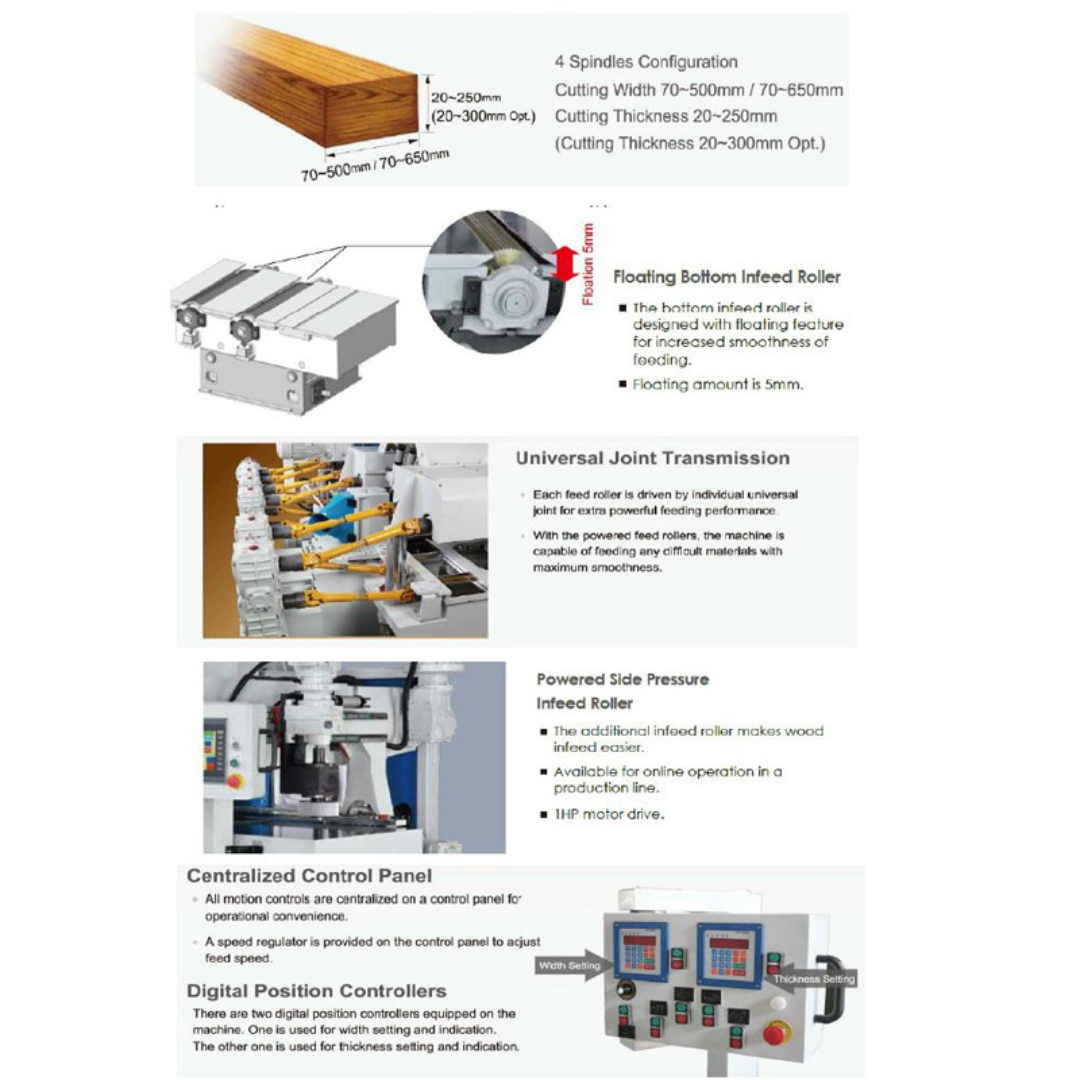

- Automatic Digital Controller enables precise automatic thickness and width adjustment to reduce setup time and improve productivity.
- Rigid Alloy Steel Spindles with Outboard Bearing Support provide accurate, vibration-free power transfer for smooth cutting.
- Spindle Height Adjustment via Precision Rack & Pinion ensures repeatable and accurate positioning.
- Precision Ground & Chrome-Plated Worktable polished to a mirror finish for wear resistance, easy cleaning, and long service life.
- Heavy-Duty Feed Conveyor with Metal Spikes firmly secures stock to the worktable for consistent, high-quality finishing.
- Floating Power Feed Rollers driven by a geared transmission box and heavy-duty universal joints for smooth, even feeding.
- Variable Speed Inverter Control allows feed rate adjustment (18–66 FPM) based on material hardness, depth of cut, and width.
- Heavy-Duty Cast Iron Frame dampens vibration and ensures long-term structural stability.
- Powerful Industrial Motors provide maximum cutting capacity across all four spindles.

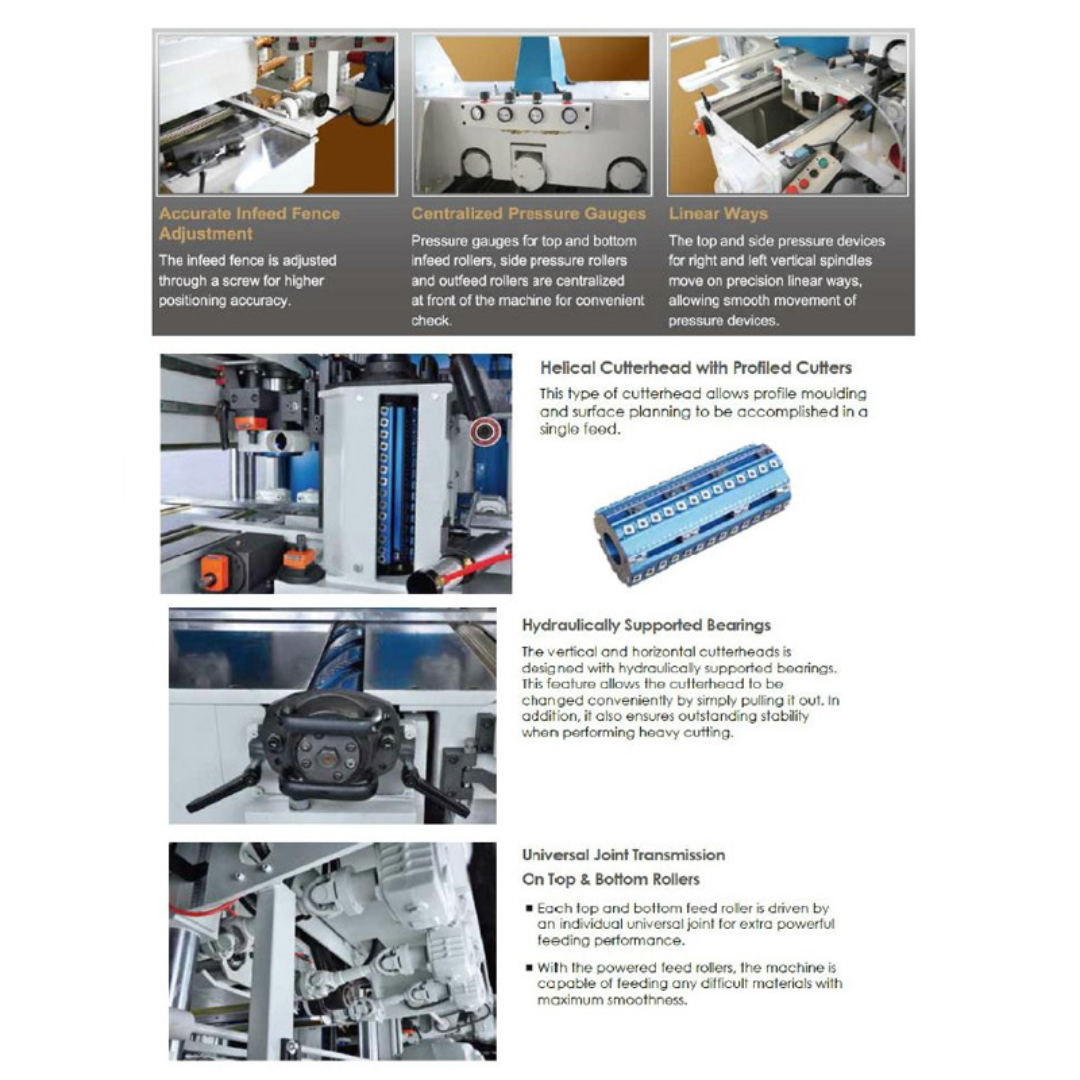

- Spiral Insert Cutterheads (Standard) allow fast insert changes, reduced downtime, and improved surface finish.
- Precision Balanced Cutterheads ensure chatter-free planing regardless of feed speed or material density.
- Removable Bottom Cutterhead for convenient knife changes.
- Quick Access Upper Cutterhead requiring only removal of the upper dust chute for maintenance.
- Auto Material Thickness Device minimizes setup time and simplifies cutterhead height adjustment.
- Sealed Long-Life Precision Bearings enhance durability and reduce maintenance requirements.
Why Choose the Castaly 19-5/8” x 6” Four Side Planer / Moulder WP-4S2C-500
- Wide 19-5/8" capacity in a compact industrial footprint.
- Digital automatic adjustment for faster production changeovers.
- Heavy-duty 15,200 lb construction for maximum stability.
- Spiral insert cutterheads for superior finish and efficiency.
- Flexible motor configurations to match production demands.
The Castaly 19-5/8” x 6” Four Side Planer / Moulder WP-4S2C-500 is engineered for professional woodworking operations requiring precision control, powerful multi-spindle performance, and dependable long-term durability in four-side moulding and planing applications.
