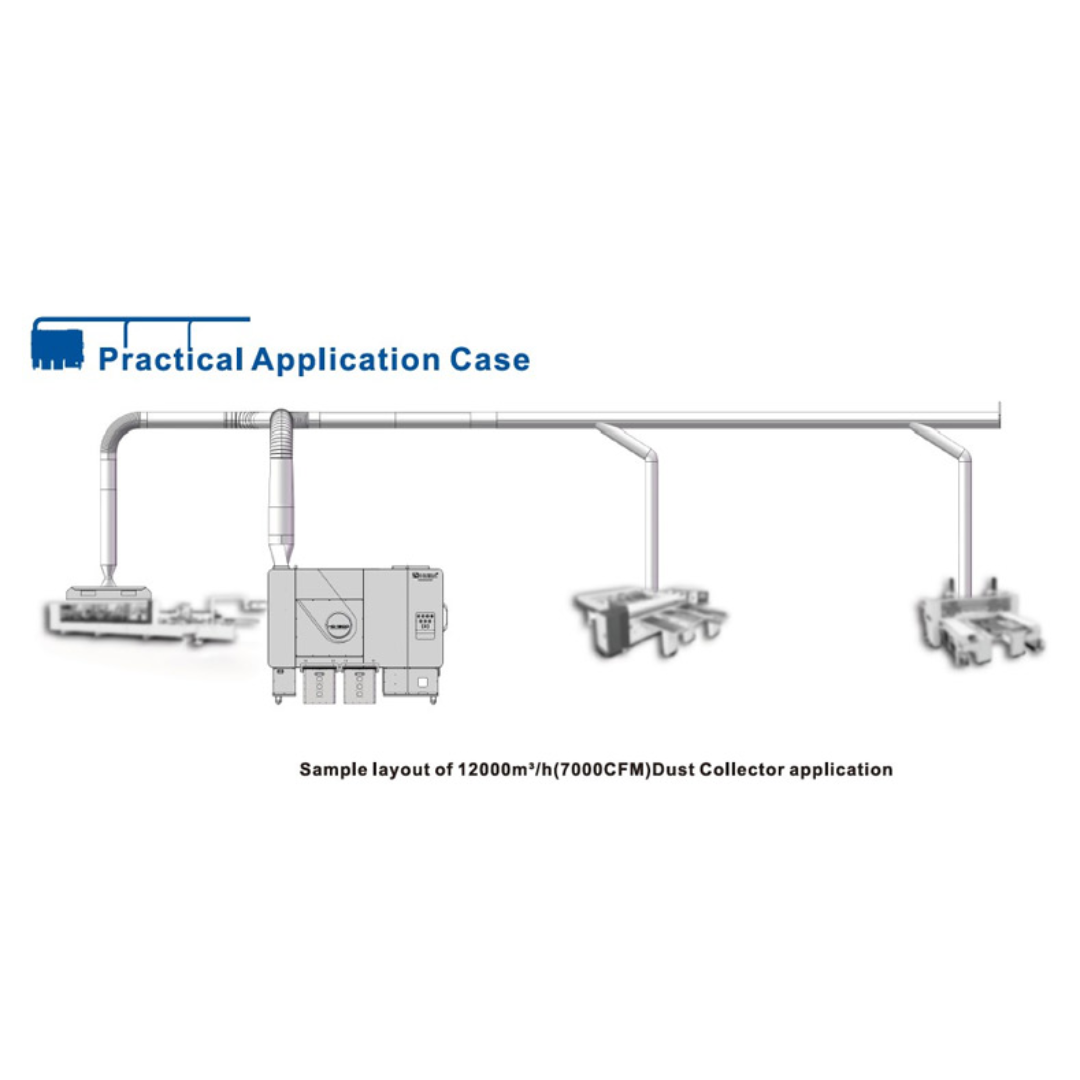

Castaly DC-HD1200-OD 15 HP Outdoor Air-Jet Dust Collector Applications
- Cabinet and kitchen manufacturing plants
- Furniture production facilities
- CNC routing, sanding and shaping departments
- Wood molding and finishing operations
- Metallurgy and chemical processing industries
Designed for facilities that require centralized outdoor dust extraction with stable airflow and low emission output.
Castaly DC-HD1200-OD 15 HP Outdoor Air-Jet Dust Collector Specifications
| Model | DC-HD1200-OD |
|---|---|
| Air Capacity | 7,000 CFM |
| Motor Power | 15 HP |
| Sound Rating | 73 – 80 dB |
| Static Pressure | >12 InH₂O |
| Inlet Diameter | 18" |
| Auto Cleaning Air-Jet Valves | 2 Sets |
| Filter Cartridge Size | 325 mm Dia × 1000 mm |
| Cartridge Quantity | 16 Units |
| Rotary Air-Lock Valve | 1 Unit |
| Differential Pressure Transmitter | 1 Set |

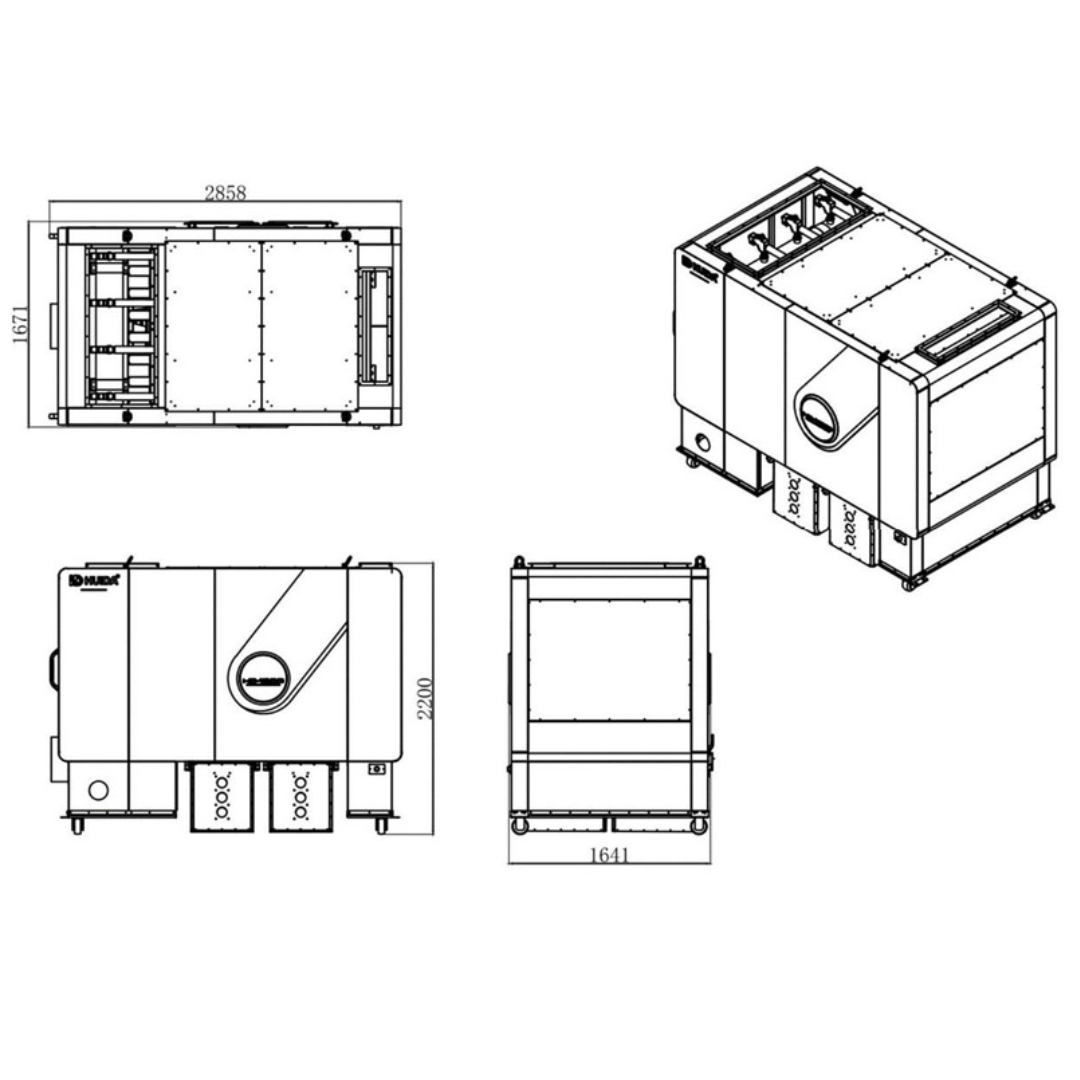

| Machine Size | 113" L × 65" W × 171" H |

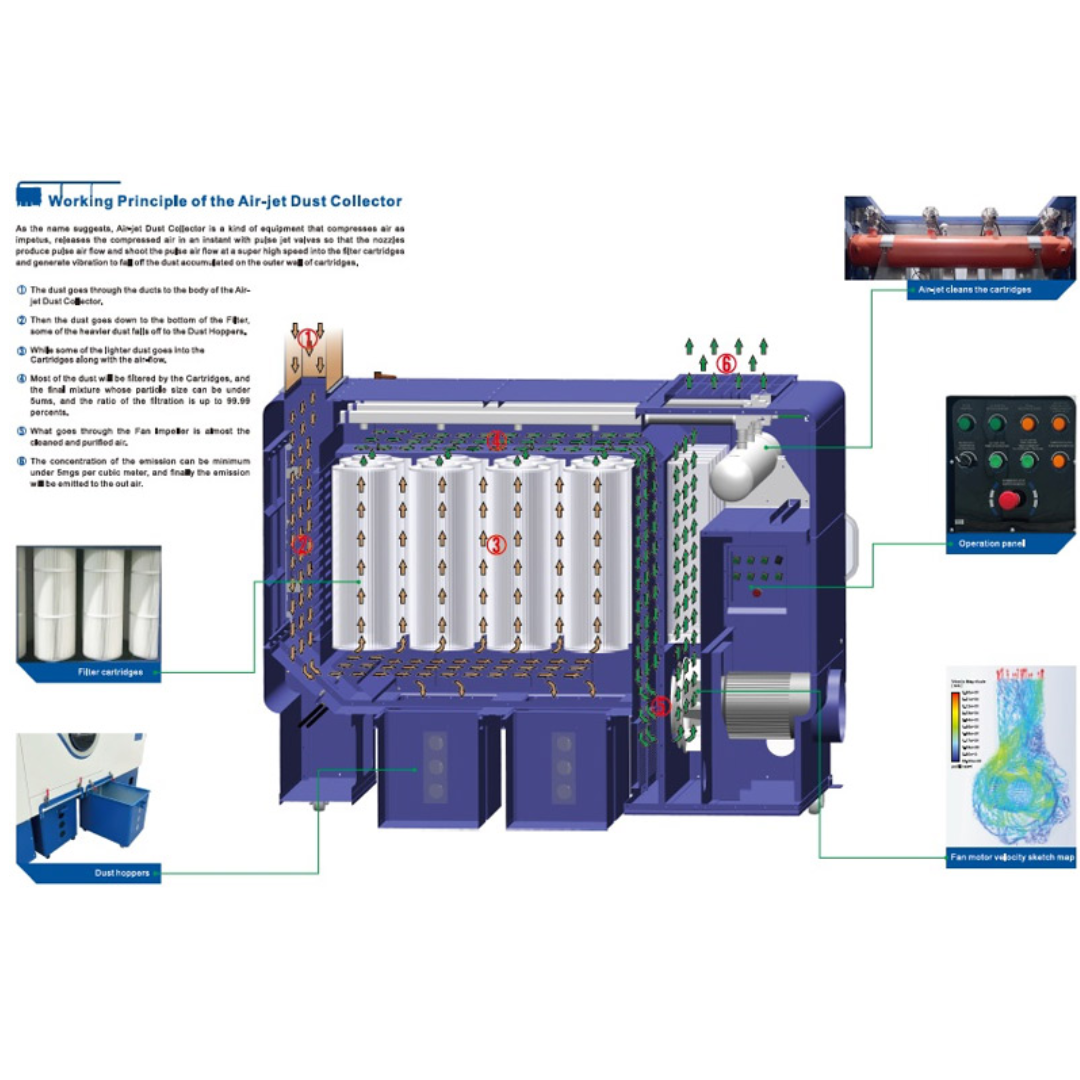

Castaly DC-HD1200-OD 15 HP Outdoor Air-Jet Dust Collector Pulse Jet Cleaning System
The Castaly DC-HD1200-OD 15 HP Outdoor Air-Jet Dust Collector uses compressed air released through pulse jet valves to generate high-speed bursts of air. These bursts create vibration inside the filter cartridges, dislodging accumulated dust and allowing it to fall into the collection hoppers.
- Dust enters through ductwork into the collector body.
- Heavier particles fall into the bottom hoppers.
- Fine dust travels into the cartridges with airflow.
- Cartridges filter particles smaller than 5 microns.
- Filtration efficiency up to 99.99%.
- Emission concentration can be under 5 mg per cubic meter.
Castaly DC-HD1200-OD 15 HP Outdoor Air-Jet Dust Collector Engineering & Compliance
- CE certified (including ATEX directives), UL and GB approved.
- 2mm galvanized zinc sheet with anti-static surface treatment.
- PLC and VFD components from Mitsubishi, Schneider, Siemens, Rockwell and Omron.
- Heavy-duty steel construction for outdoor industrial installation.
- Dust-cleaning ratio up to 99% with high operational safety standards.
Why Choose the Castaly DC-HD1200-OD 15 HP Outdoor Air-Jet Dust Collector
- 7,000 CFM airflow for mid-to-large production facilities.
- Advanced pulse-jet self-cleaning filtration.
- Low emission output and compliance with strict standards.
- Industrial-grade components for long service life.
- Designed for safe and efficient outdoor dust management.
The Castaly DC-HD1200-OD 15 HP Outdoor Air-Jet Dust Collector delivers reliable, high-efficiency dust filtration for industrial environments that demand performance and compliance.
