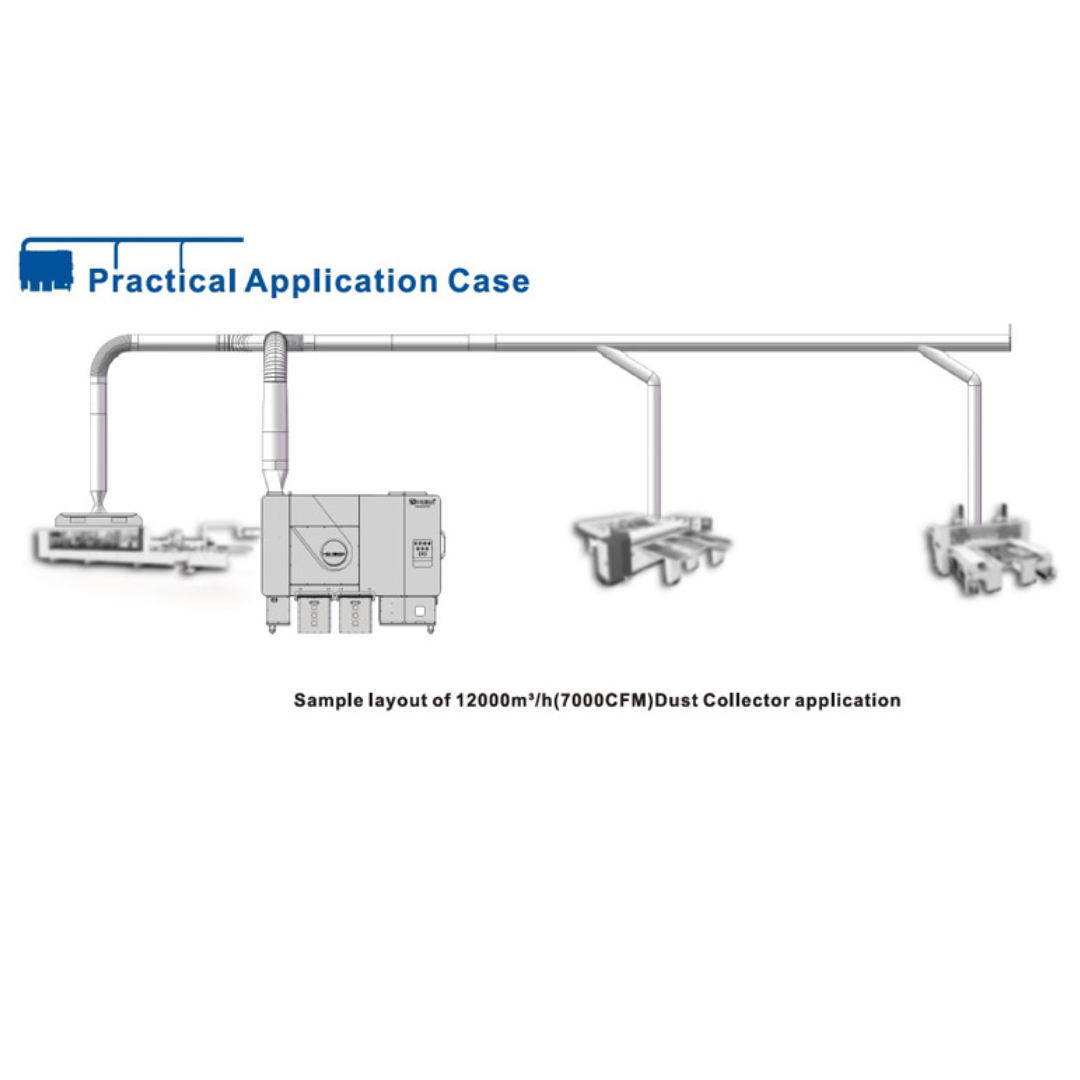

Castaly 10 HP Outdoor Enclosure House Canisters Dust Collector Applications
- Cabinet and millwork production shops
- Furniture manufacturing facilities
- CNC routers, sanders, and panel saw operations
- Molding and finishing departments
- Industrial processing environments requiring centralized dust extraction
Ideal for facilities requiring efficient outdoor dust collection with stable airflow and controlled emissions.
Castaly 10 HP Outdoor Enclosure House Canisters Dust Collector Specifications
| Model | DC-HD800-OD |
|---|---|
| Air Capacity | 4,700 CFM |
| Impeller Motor Power | 10 HP |
| Sound Rating | 73 – 80 dB |
| Static Pressure | >12 InH₂O |
| Inlet Diameter | 16" |
| Auto Cleaning Air-Jet Valves | 2 Sets |
| Filter Cartridge Size | 325 mm Dia × 1000 mm |
| Cartridge Quantity | 12 Units |
| Rotary Air-Lock Valve | 1 Unit |
| Differential Pressure Transmitter | 1 Set |
| Manual Water Extinguisher | 1 Set |

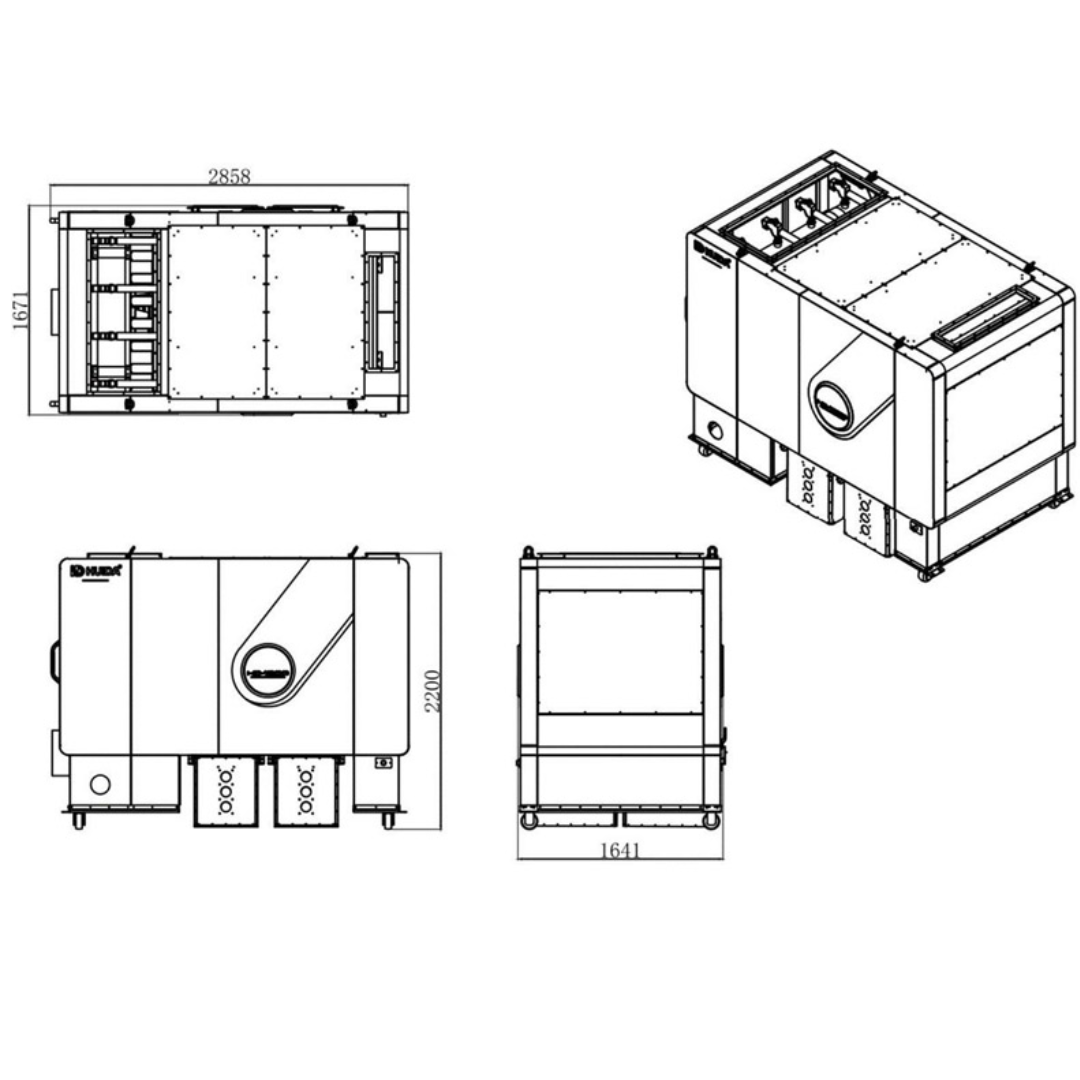

| Machine Size | 113" L × 65" W × 171" H |

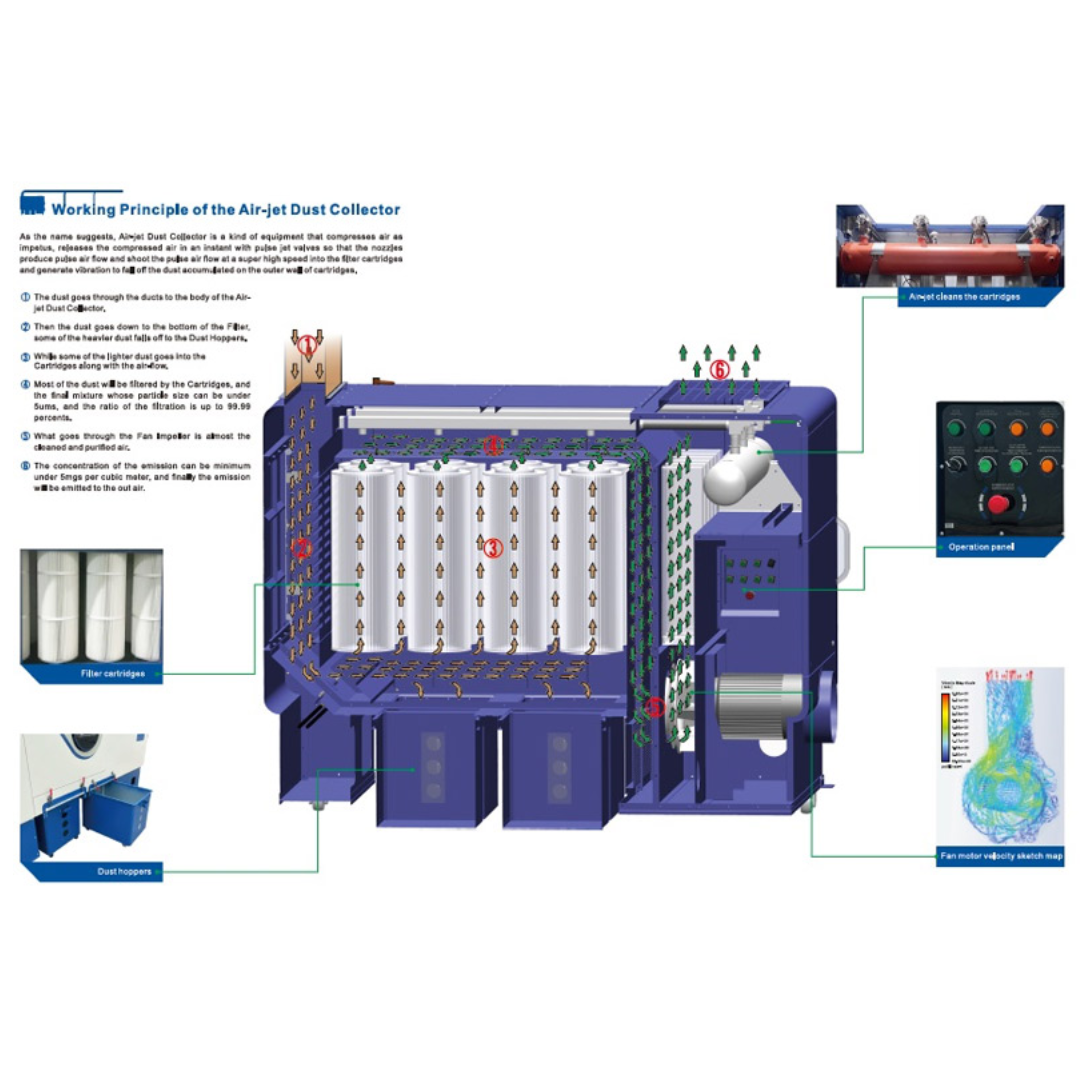

Castaly 10 HP Outdoor Enclosure House Canisters Dust Collector Pulse Jet Cleaning System
The Castaly 10 HP Outdoor Enclosure House Canisters Dust Collector uses compressed air released through pulse jet valves to create high-speed air bursts inside the filter cartridges. These bursts generate vibration that dislodges accumulated dust from the outer surface of the cartridges.
- Dust travels through ducting into the collector housing.
- Heavier particles drop into the bottom dust hoppers.
- Fine particles enter filter cartridges with airflow.
- Cartridges filter particles smaller than 5 microns.
- Filtration efficiency up to 99.99%.
- Emission concentration can be under 5 mg per cubic meter.
Castaly 10 HP Outdoor Enclosure House Canisters Dust Collector Engineering & Compliance
- CE certified (including ATEX directives), UL and GB approved standards.
- 2mm galvanized zinc sheet with anti-static spray surface treatment.
- PLC, VFD, and electrical components from Mitsubishi, Schneider, Siemens, Rockwell, Omron and Phoenix.
- Heavy-duty steel enclosure for outdoor installation.
- Dust-cleaning ratio up to 99% with high operational safety standards.
Castaly 10 HP Outdoor Enclosure House Canisters Dust Collector Available Options
- Automatic Water Extinguisher System
- Combustible Dust & ATEX Safety Package
- Extended HMI Controller
Why Choose the Castaly 10 HP Outdoor Enclosure House Canisters Dust Collector
- 4,700 CFM airflow for mid-size operations.
- Advanced pulse-jet auto-cleaning technology.
- Low emissions and high filtration efficiency.
- Premium global-brand electrical components.
- Built for safe, compliant, and reliable outdoor dust management.
The Castaly 10 HP Outdoor Enclosure House Canisters Dust Collector provides reliable, high-efficiency filtration for industrial facilities requiring professional-grade dust control and safety compliance.
