California Air Tools SP-9413 (110v 60hz) 1.0 Hp Ultra Quiet & Oil-Free Pump/Motor Applications
- Replacement motor-pump for California Air Tools air compressors
- Industrial and workshop compressed air systems
- Automotive service and repair facilities
- Woodworking, finishing, and pneumatic tool operations
- Applications requiring low-noise air compression environments
Ideal for users needing a quiet, low-maintenance replacement pump with extended duty cycles and reliable airflow performance.
California Air Tools SP-9413 (110v 60hz) 1.0 Hp Ultra Quiet & Oil-Free Pump/Motor Specifications
| Model | SP-9413 |
|---|---|
| Motor Power | 1.0 HP |
| Voltage | 110V / 60 Hz |
| Airflow @ 40 PSI | 3.10 CFM |
| Airflow @ 90 PSI | 2.20 CFM |
| Maximum Pressure | 120 PSI |
| Noise Level | 60 dB |
| Motor Speed | 1680 RPM |
| Amperage | 8.5 Amps |
| Port Size | 1/4" |

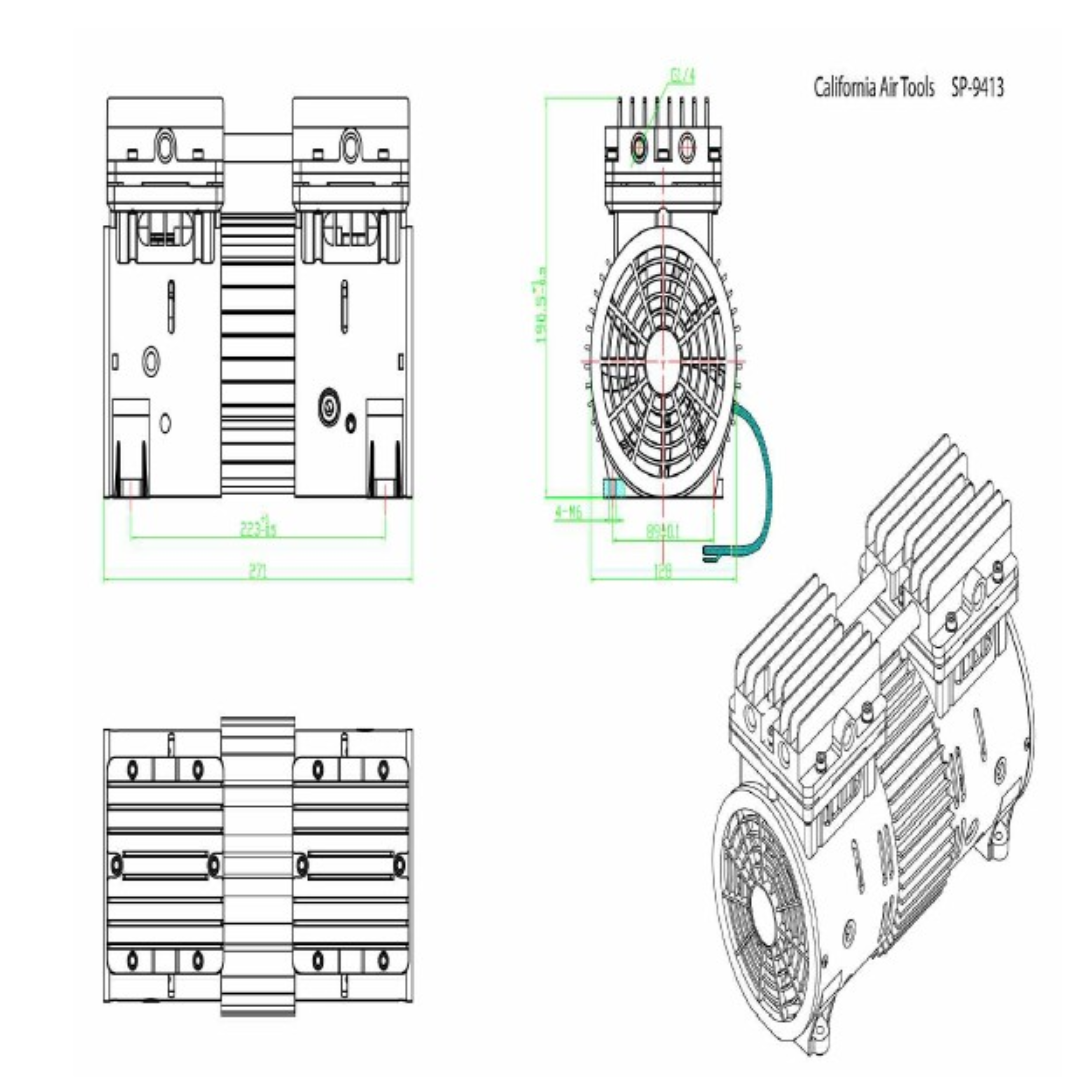

| Dimensions (L × W × H) | 13" × 4.75" × 9.5" |
| Weight | 21 lbs |
| Duty Cycle Design | Extended Run Capability |
| Lifecycle Before Service | 3000+ Hours |
| Certification | ETL |
| Warranty | 1 Year Limited |
California Air Tools SP-9413 (110v 60hz) 1.0 Hp Ultra Quiet & Oil-Free Pump/Motor Performance & Construction
- Ultra Quiet Operation (60 dB) significantly reduces workplace noise compared to conventional compressors.

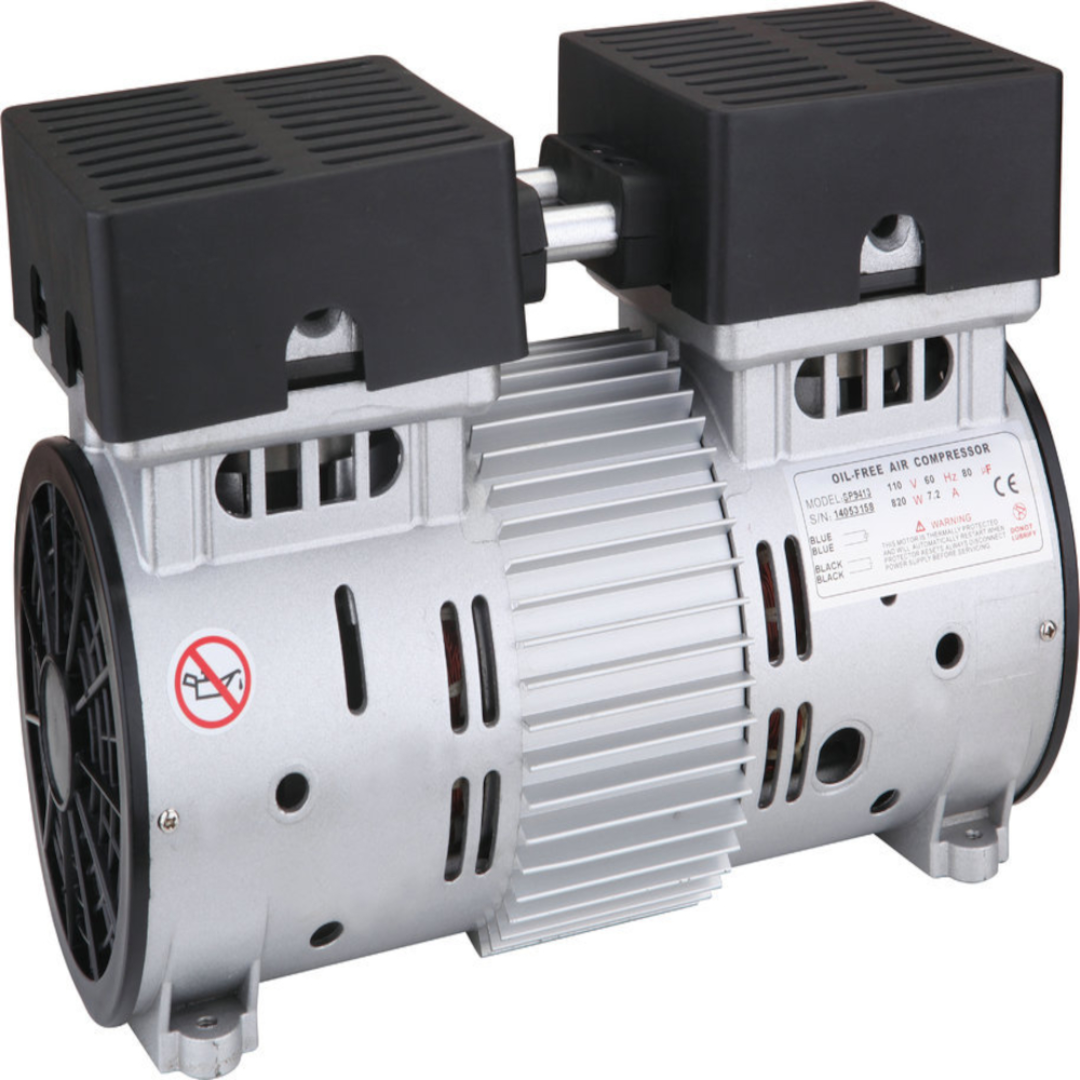

- Oil-Free Dual Piston Pump System ensures cleaner air output and eliminates the need for oil maintenance.
- Low RPM Motor (1680 RPM) reduces wear, vibration, and heat buildup for longer operational life.
- Enhanced Heat Dissipation Design allows cooler operation and improved durability during extended use.
- High Duty Cycle Engineering supports longer continuous run times without performance degradation.
- Thermal Overload Protection safeguards the motor from overheating and electrical damage.
- Low Amp Draw (8.5 Amps) improves energy efficiency and reduces electrical load requirements.

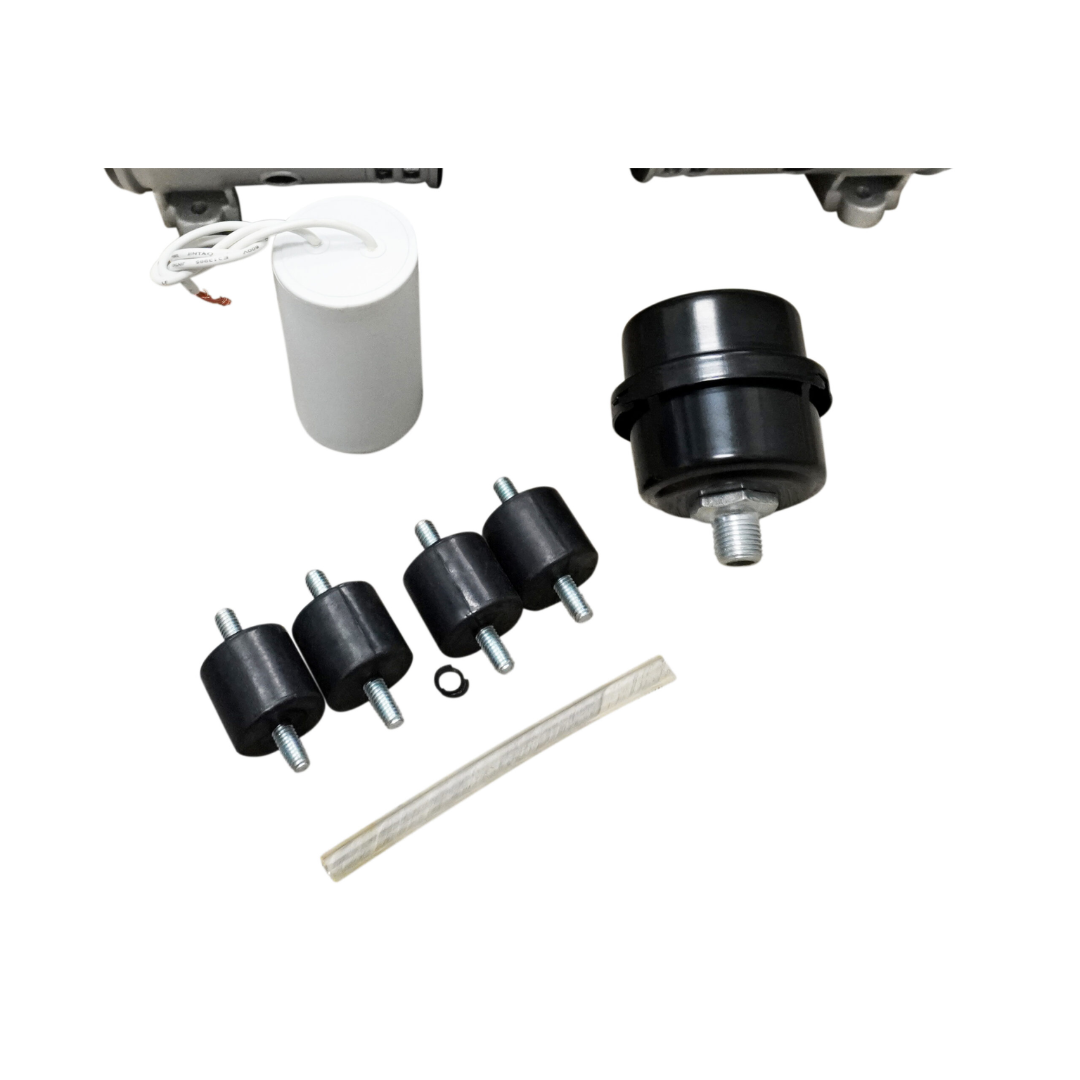

- Complete Installation Kit includes capacitor, air filter, and four shock struts for vibration reduction.
California Air Tools SP-9413 (110v 60hz) 1.0 Hp Ultra Quiet & Oil-Free Pump/Motor Compatibility & Installation
- Compatible with multiple California Air Tools models including CAT-2010A, CAT-4610, CAT-8010, CAT-10010, and more.
- Designed as a direct replacement motor-pump for existing compressor systems.
- Requires proper installation with an unloader and/or bleeder valve.
- Check valve configuration is essential to prevent motor damage.
- Professional mechanical and electrical knowledge recommended for non-standard applications.
NOTE: This unit is a replacement motor-pump only and is not a complete air compressor system.
California Air Tools SP-9413 (110v 60hz) 1.0 Hp Ultra Quiet & Oil-Free Pump/Motor Maintenance Requirements
- Replace the attached 1 HP air filter every 2 years under normal conditions.
- Replace annually in dusty or high-contamination environments.
- Regular inspection ensures optimal airflow and extended equipment life.
Why Choose the California Air Tools SP-9413 (110v 60hz) 1.0 Hp Ultra Quiet & Oil-Free Pump/Motor
- Extremely quiet 60 dB operation ideal for indoor and professional environments.
- Oil-free system reduces maintenance, cost, and contamination risk.
- Durable dual piston design with 3000+ hour lifecycle before service.
- Efficient, low-speed motor enhances longevity and reliability.
- Engineered for high performance with extended duty cycles.
The California Air Tools SP-9413 (110v 60hz) 1.0 Hp Ultra Quiet & Oil-Free Pump/Motor delivers a powerful combination of quiet performance, durability, and low maintenance—making it an ideal replacement solution for demanding air compressor systems.
