California Air Tools OLF-3500 6.5 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 3-Phase) 91441 Applications
- Replacement motor-pump for industrial air compressors
- High-demand manufacturing and production environments
- Automotive and heavy-duty workshop operations
- Applications requiring continuous high airflow output
- Facilities utilizing 3-phase electrical systems
Designed for industrial users requiring high CFM output, durability, and reliable continuous operation.

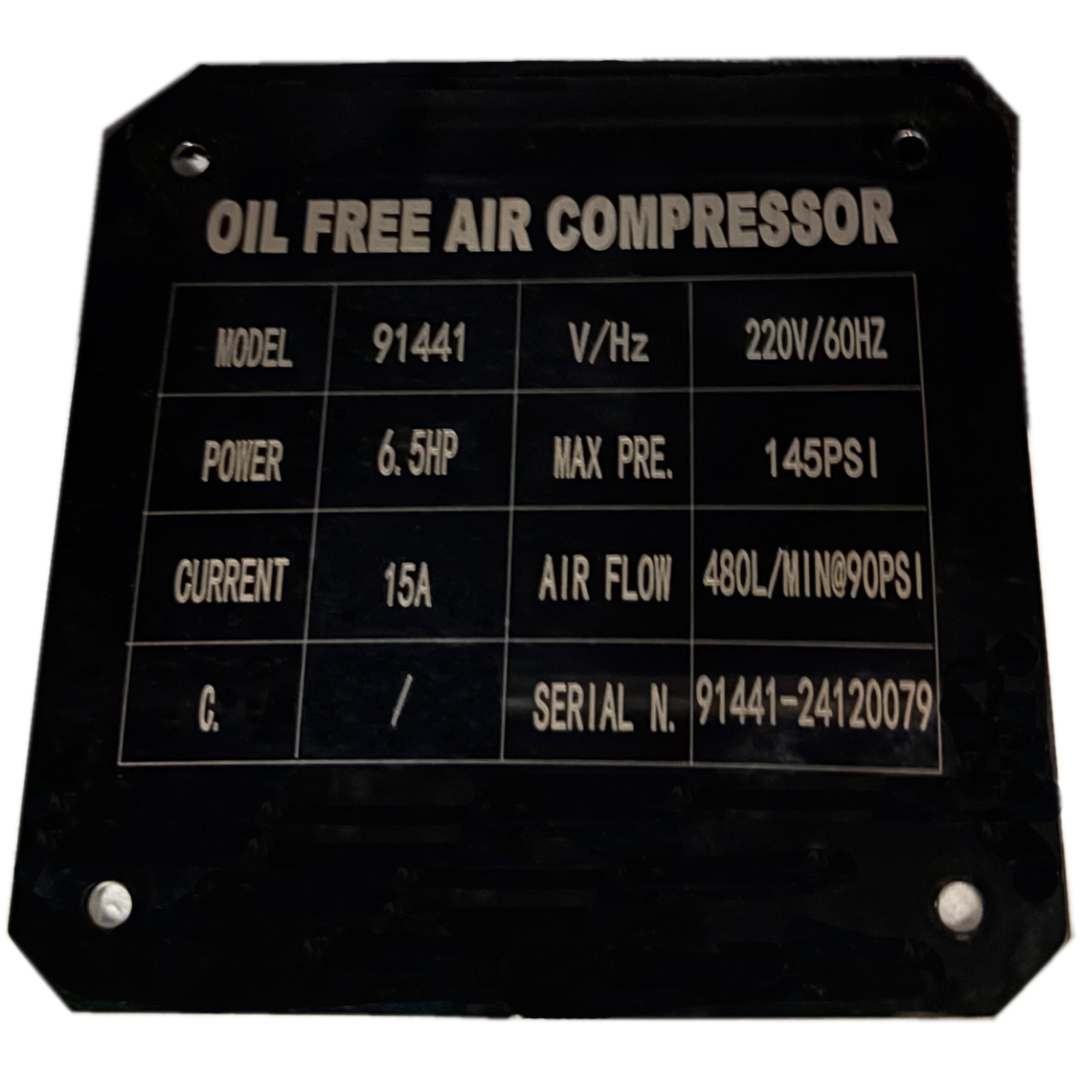

California Air Tools OLF-3500 6.5 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 3-Phase) 91441 Specifications
| Motor Power | 6.5 HP (Running / Rated) |
|---|---|
| Air Flow @ 40 PSI | 20.00 CFM |
| Air Flow @ 90 PSI | 17.00 CFM |
| Maximum Pressure | 145 PSI |
| Voltage | 208/220V, 60Hz, 3-Phase (200–250 VAC Range) |
| Noise Level | 85 dB |
| Amperage | 15.0 Amps |
| Motor Speed | 1700 RPM |
| Output | 480 L/min @ 90 PSI |
| Weight | 58 lbs |

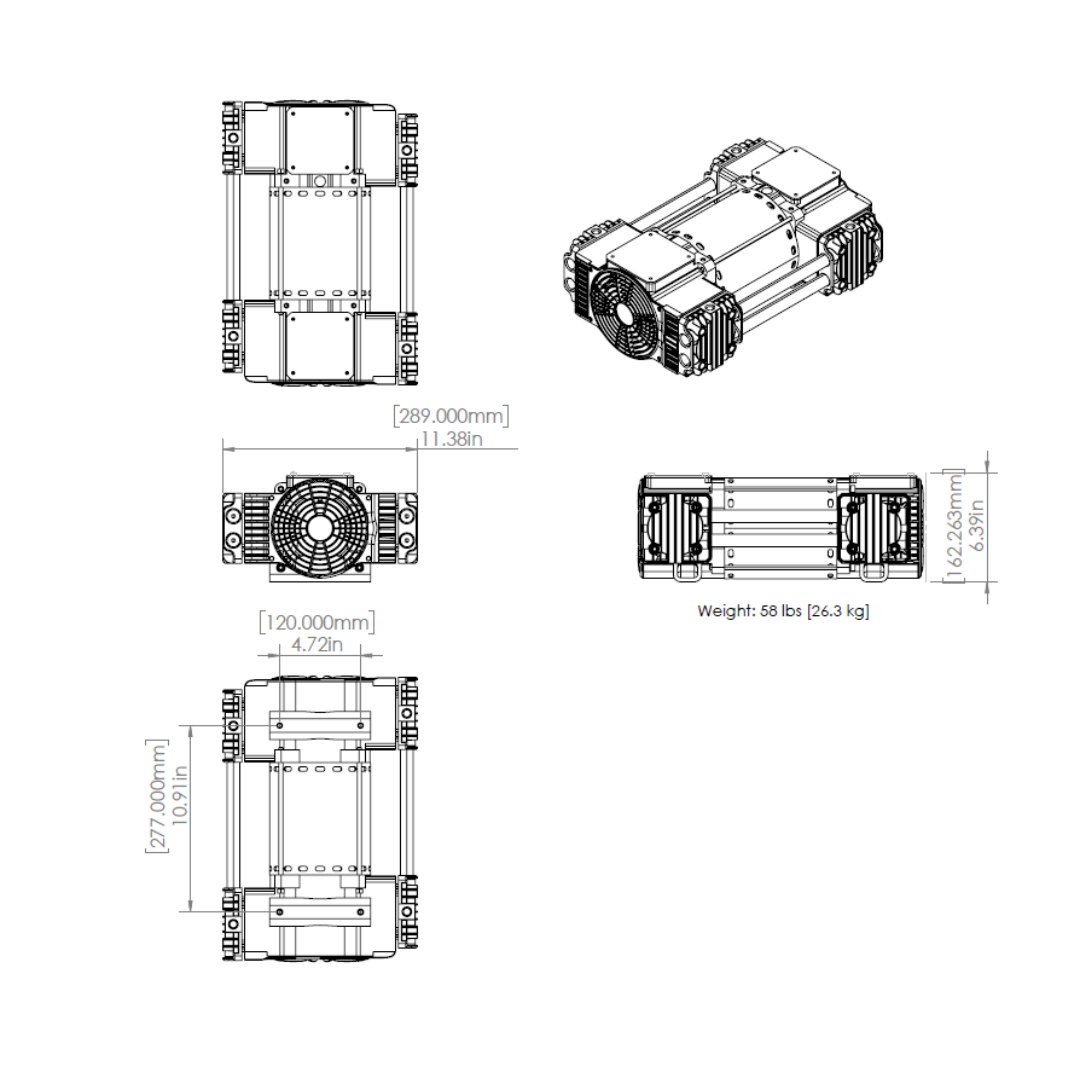

| Dimensions (L × W × H) | 11.5″ × 6.5″ × 6.4″ |
| Certification | ETL Certified |
| Warranty | 1 Year Limited Warranty |
| Part Number | 91441 |
California Air Tools OLF-3500 6.5 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 3-Phase) 91441 Performance & Construction
- High airflow performance delivers 20.00 CFM @ 40 PSI and 17.00 CFM @ 90 PSI for demanding applications.
- Oil-free pump system provides clean air and eliminates maintenance associated with oil lubrication.
- Low RPM operation (1700 RPM) reduces wear, vibration, and extends motor lifespan.
- Ultra quiet operation (85 dB) minimizes noise in industrial environments.
- 3-phase power system ensures stable, efficient operation for heavy-duty applications.
- Thermal overload protection safeguards against overheating and electrical damage.

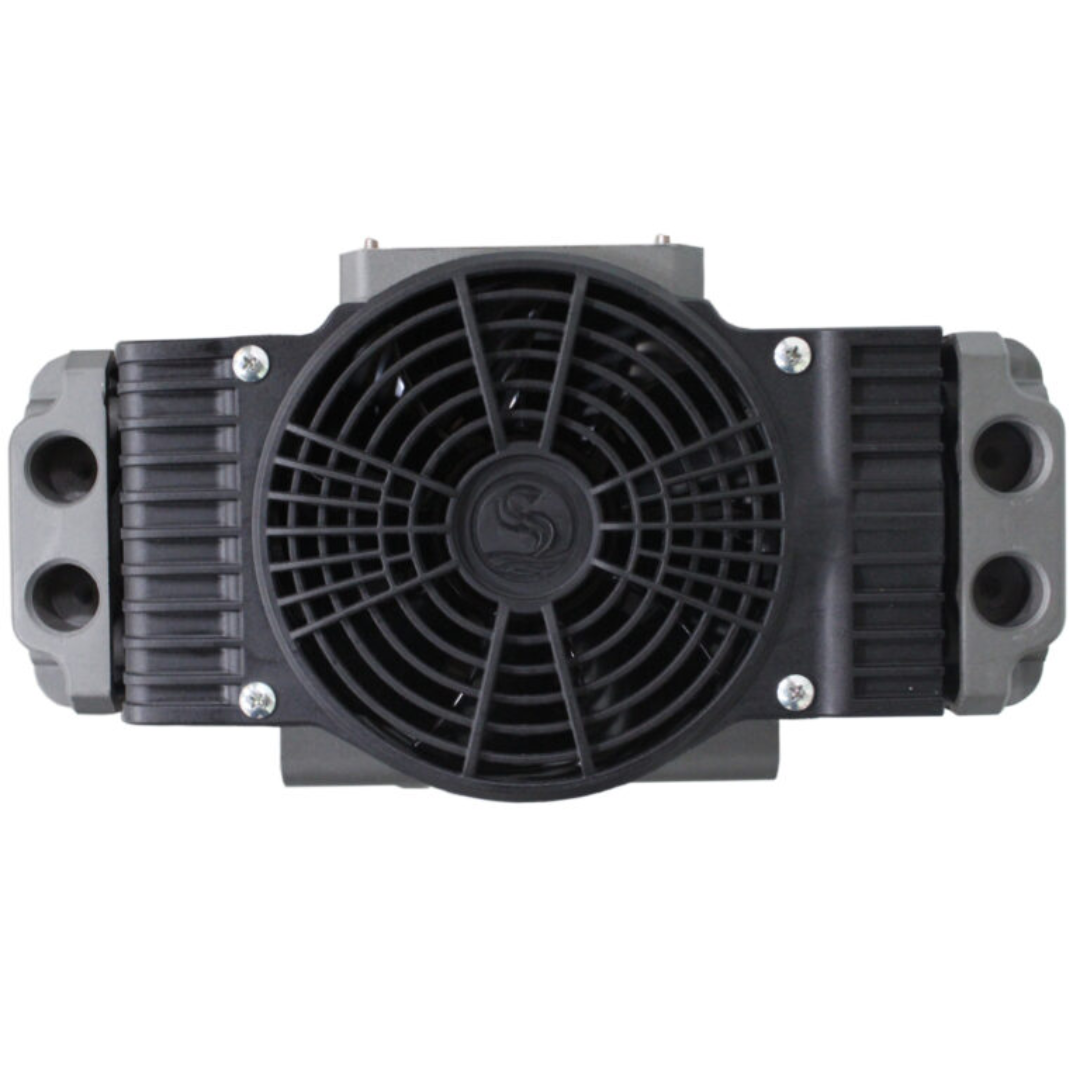

- Efficient heat dissipation reduces operating temperatures and improves durability.
- Low vibration design enhances stability and reduces mechanical stress.
California Air Tools OLF-3500 6.5 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 3-Phase) 91441 Compatibility
- Directly supports: CAT-60065C (60 Gallon, 6.5 HP, 220V 3-Phase)
- Compatible with select California Air Tools and third-party compressor systems (modifications may be required)
Designed for direct installation on supported models and adaptable to various industrial compressor systems.

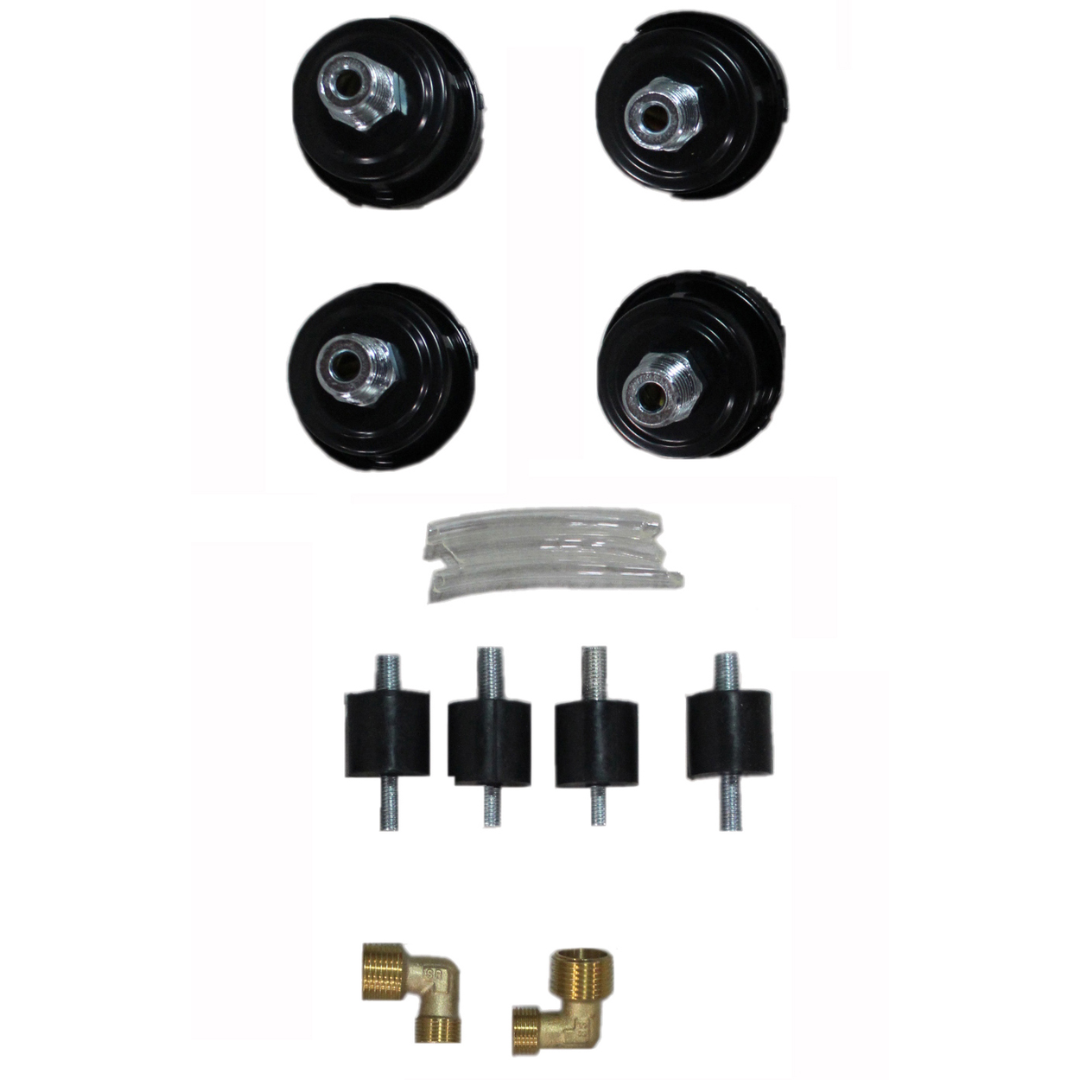

California Air Tools OLF-3500 6.5 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 3-Phase) 91441 Included Components
- (4) 2.0 HP Air Filters
- (4) 4″ Air Intake Tubes
- (4) Shock Struts
Complete installation-ready package designed for efficient setup and long-term operation.
California Air Tools OLF-3500 6.5 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 3-Phase) 91441 Maintenance
- Replace piston seals every 2000 operating hours (Part #91457-4p)
- Replace air filters every 1–2 years depending on environment (Part #90260)
- Maintain proper airflow and clean intake components regularly
Routine maintenance ensures consistent performance, extended lifespan, and optimal airflow output.
California Air Tools OLF-3500 6.5 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 3-Phase) 91441 Installation & Safety
- This unit is a replacement motor-pump only and not a complete air compressor.
- Requires proper installation with an unloader valve and/or bleeder valve.
- A check valve must be properly configured to prevent pressure buildup on pistons.
- Professional installation is recommended for non-standard or third-party systems.
- Regulated output pressure cannot exceed default 90 PSI setting.
Improper installation may result in damage—ensure correct configuration for safe and reliable operation.
Why Choose the California Air Tools OLF-3500 6.5 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 3-Phase) 91441
- Exceptional airflow output for industrial applications.
- Ultra quiet performance for its power class.
- Oil-free design for clean air and reduced maintenance.
- Durable construction with long service life.
- Reliable compatibility with high-capacity compressor systems.
The California Air Tools OLF-3500 6.5 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 3-Phase) 91441 is a powerful, efficient, and low-maintenance solution for high-demand compressed air systems.
