California Air Tools OLF-2800 3.0 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 1-Phase) 91440 Applications
- Replacement motor-pump for high-capacity air compressors
- Industrial and commercial compressed air systems
- Automotive and manufacturing environments
- Applications requiring high airflow and consistent pressure
- Workshops needing quieter compressor operation
Designed for demanding environments where high airflow, durability, and reduced noise are critical.

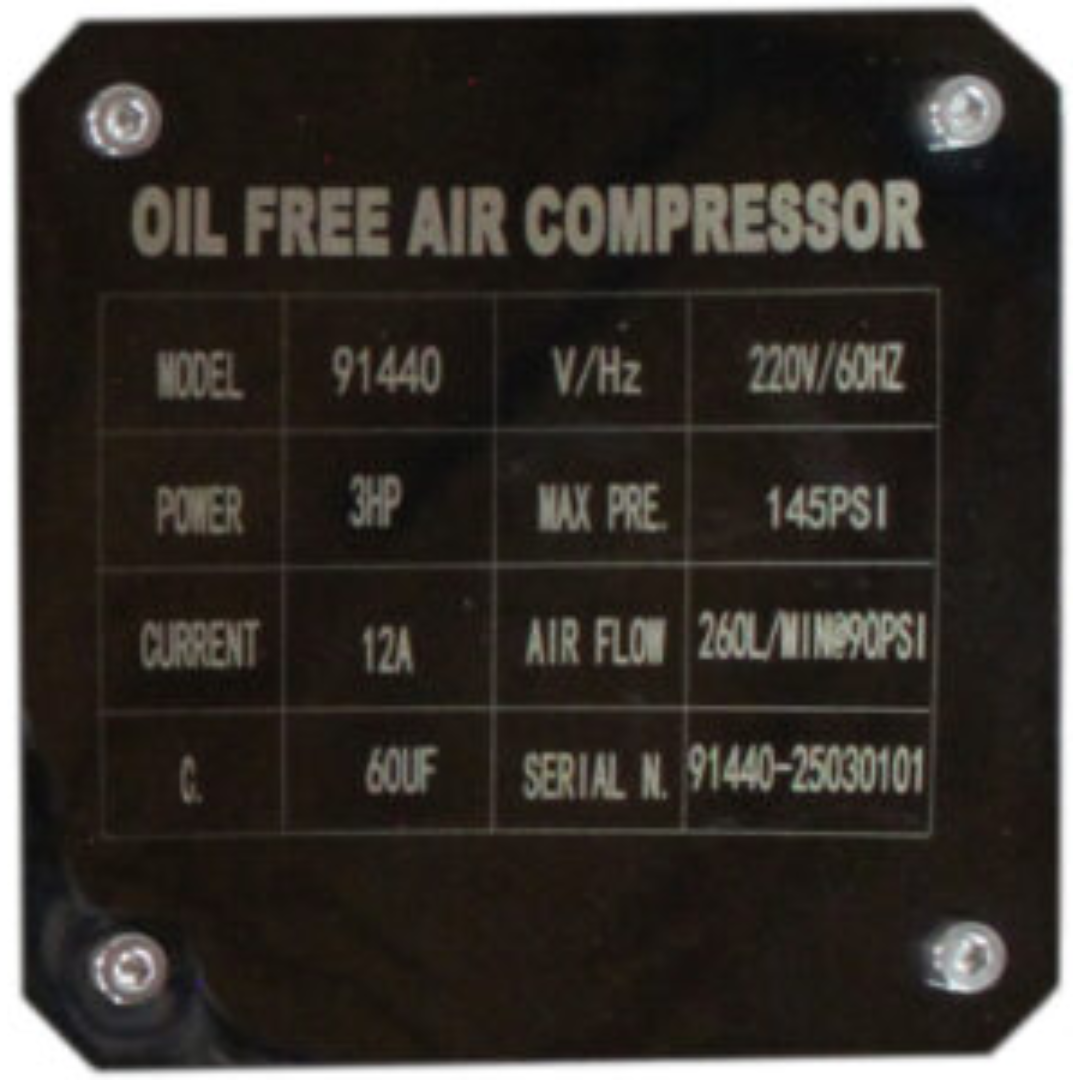

California Air Tools OLF-2800 3.0 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 1-Phase) 91440 Specifications
| Motor Power | 3.0 HP |
|---|---|
| Air Flow @ 40 PSI | 10.00 CFM |
| Air Flow @ 90 PSI | 8.40 CFM |
| Maximum Pressure | 145 PSI |
| Voltage | 208/220V, 60Hz, Single Phase (200–250 VAC Range) |
| Noise Level | 75 dB |
| Amperage | 12.0 Amps |
| Capacitance | 60 uF |
| Motor Speed | 1680 RPM |
| Output | 260 L/min @ 90 PSI |
| Weight | 58 lbs |

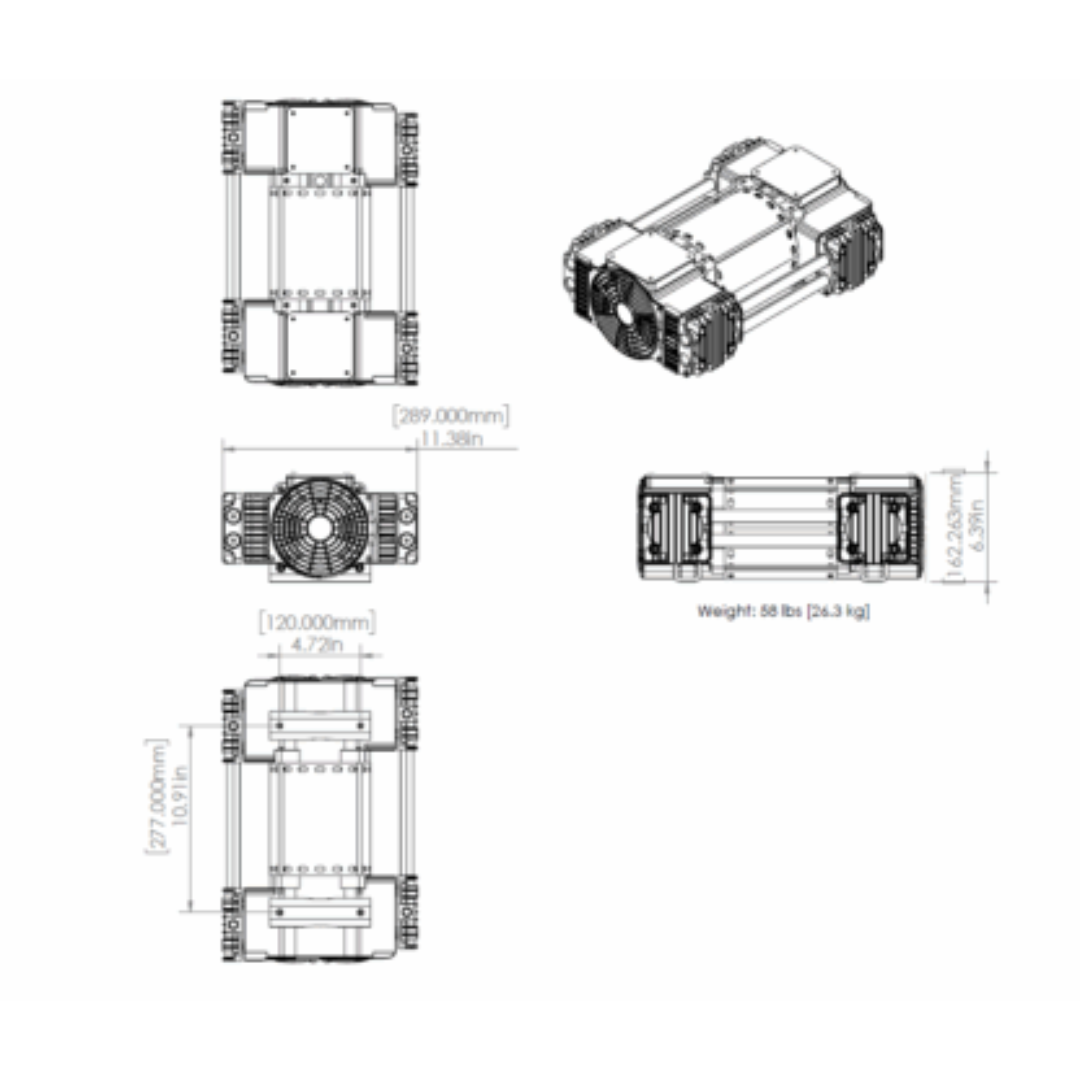

| Dimensions (L × W × H) | 11.5″ × 6.5″ × 6.4″ |
| Certification | ETL Certified |
| Warranty | 1 Year Limited Warranty |
| Part Number | 91440 |
California Air Tools OLF-2800 3.0 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 1-Phase) 91440 Performance & Construction
- Ultra quiet operation (75 dB) significantly reduces noise in work environments.
- Oil-free pump system delivers clean air and eliminates maintenance associated with oil changes.
- High airflow output provides 10.00 CFM @ 40 PSI and 8.40 CFM @ 90 PSI for demanding applications.
- Low RPM operation (1680 RPM) minimizes wear, heat buildup, and vibration.
- Thermal overload protection protects the motor from overheating and electrical damage.
- Efficient heat dissipation improves performance and extends motor lifespan.
- Low vibration design enhances stability and reduces mechanical stress.
- Wide temperature usability supports cold starts without oil-related limitations.
California Air Tools OLF-2800 3.0 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 1-Phase) 91440 Compatibility
- Directly supports: CAT-80060C (80 Gallon, 6 HP)
- Compatible replacement for multiple California Air Tools compressor models including:
- CAT-4620AC-22060, CAT-10020C-22060, CAT-10020CAD-22060
- CAT-15020C-22060, CAT-20020-22060, CAT-20020AD-22060
- CAT-20040 Series, CAT-20060 Series, CAT-60040 Series
- CAT-60040DSMADC and additional legacy compressor models
Designed for direct fit on select models and adaptable to a wide range of California Air Tools compressor systems.

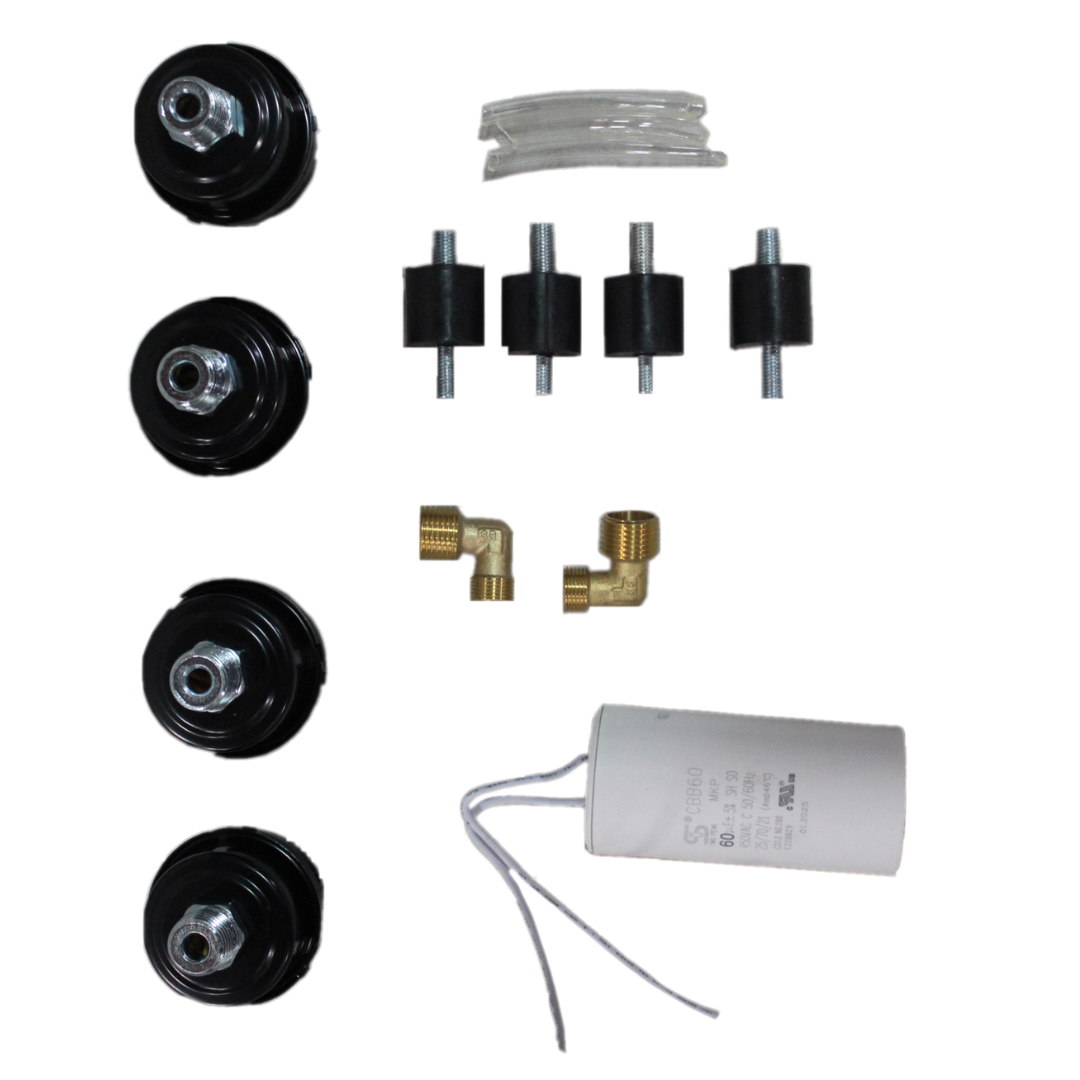

California Air Tools OLF-2800 3.0 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 1-Phase) 91440 Included Components
- (1) 60 uF Start Capacitor
- (4) 2.0 HP Air Filters
- (4) 4″ Air Intake Tubes
- (4) Shock Struts
Complete installation-ready package designed for efficient setup and long-term performance.
California Air Tools OLF-2800 3.0 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 1-Phase) 91440 Maintenance
- Replace piston seals every 2000 operating hours (Part #91457-4p)
- Replace air filters every 1–2 years depending on environment (Part #90260)
- Maintain clean intake airflow for optimal performance
Routine maintenance ensures maximum efficiency, extended lifespan, and consistent air output.
California Air Tools OLF-2800 3.0 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 1-Phase) 91440 Installation & Safety
- This unit is a replacement motor-pump only and not a complete air compressor.
- Requires proper installation with an unloader valve and/or bleeder valve.
- A check valve must be properly configured to prevent pressure buildup on pistons.
- Professional installation is recommended for non-standard applications.
- Regulated output pressure cannot exceed default 90 PSI setting.
Improper installation may result in damage—ensure correct system configuration for safe and reliable operation.
Why Choose the California Air Tools OLF-2800 3.0 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 1-Phase) 91440
- High airflow performance for demanding industrial applications.
- Ultra quiet design reduces workplace noise.
- Oil-free system for cleaner air and lower maintenance.
- Durable construction with extended service life.
- Compatible with a wide range of California Air Tools compressors.
The California Air Tools OLF-2800 3.0 Hp Ultra Quiet & Oil-Free Motor Pump (208/220v 60hz 1-Phase) 91440 delivers powerful, reliable, and low-maintenance performance for high-demand compressed air systems.
