California Air Tools MP-100LF (110v 60hz) 1.0 Hp Motor-Pump – Long Life Applications
- Replacement motor-pump for California Air Tools air compressors
- Workshops and garages requiring quiet compressor operation
- Indoor environments where low noise is critical
- Pneumatic tool operation including nailers, staplers, and light-duty air tools
- Custom compressor builds and repair applications
Designed for users needing a quiet, long-lasting replacement motor-pump with reliable airflow performance.
California Air Tools MP-100LF (110v 60hz) 1.0 Hp Motor-Pump – Long Life Specifications
| Motor Power | 1.0 HP (Running / Rated), 2.0 HP Peak |
|---|---|
| Air Flow @ 40 PSI | 4.00 CFM |
| Air Flow @ 90 PSI | 3.00 CFM |
| Maximum Pressure | 125 PSI |
| Voltage | 110V / 60Hz |
| Noise Level | 60 dB |
| Amperage | 7.6 Amps |
| Pump Type | Oil-Free Dual Piston |
| Ports | 1/4″ |
| Motor Speed | 1400 RPM |
| Weight | 25 lbs |

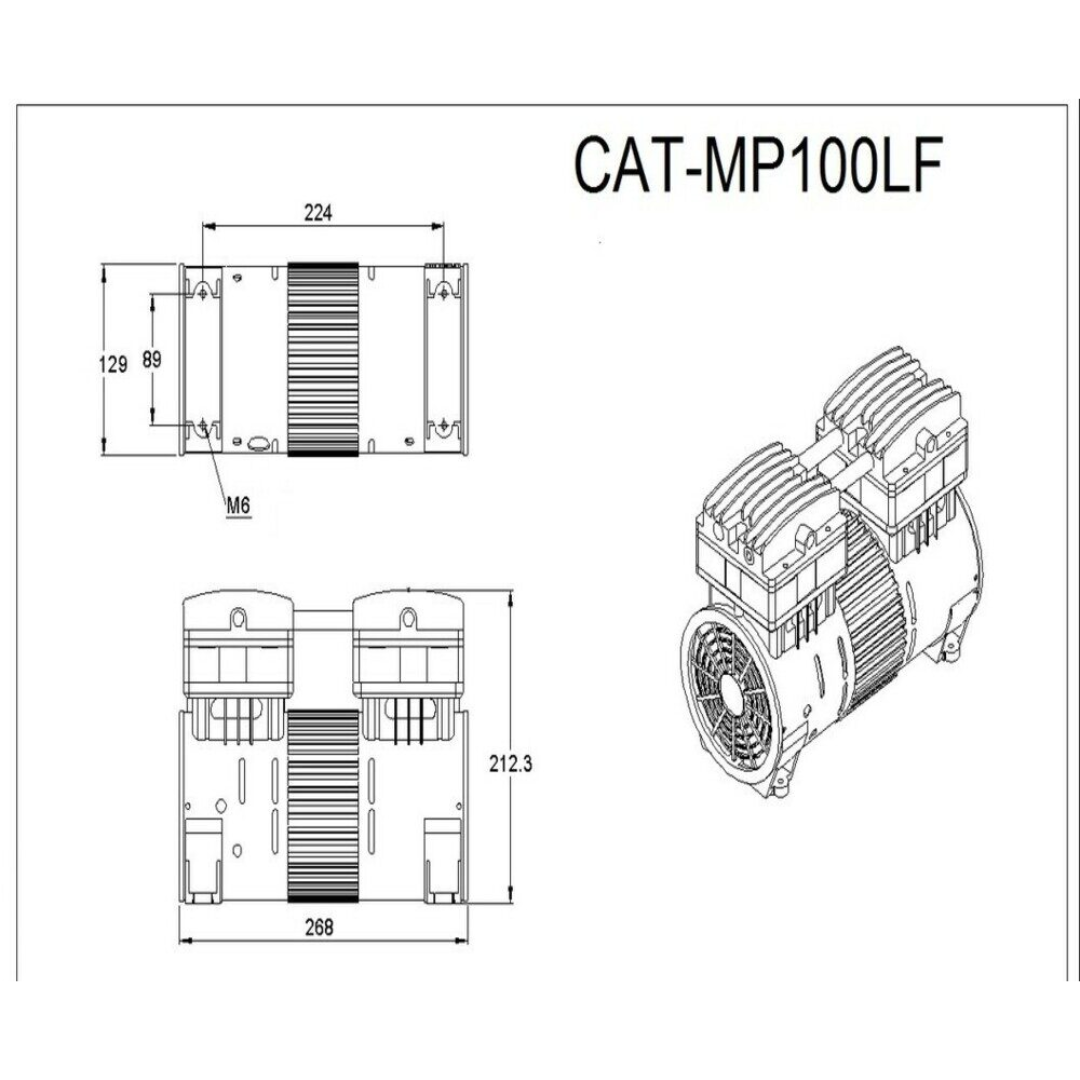

| Dimensions (L × W × H) | 10.5″ × 5.5″ × 8.5″ |
| Life Cycle | Minimum 4000 Hours (Average 6000 Hours) |
| Warranty | 1 Year Limited Warranty |
California Air Tools MP-100LF (110v 60hz) 1.0 Hp Motor-Pump – Long Life Performance & Construction

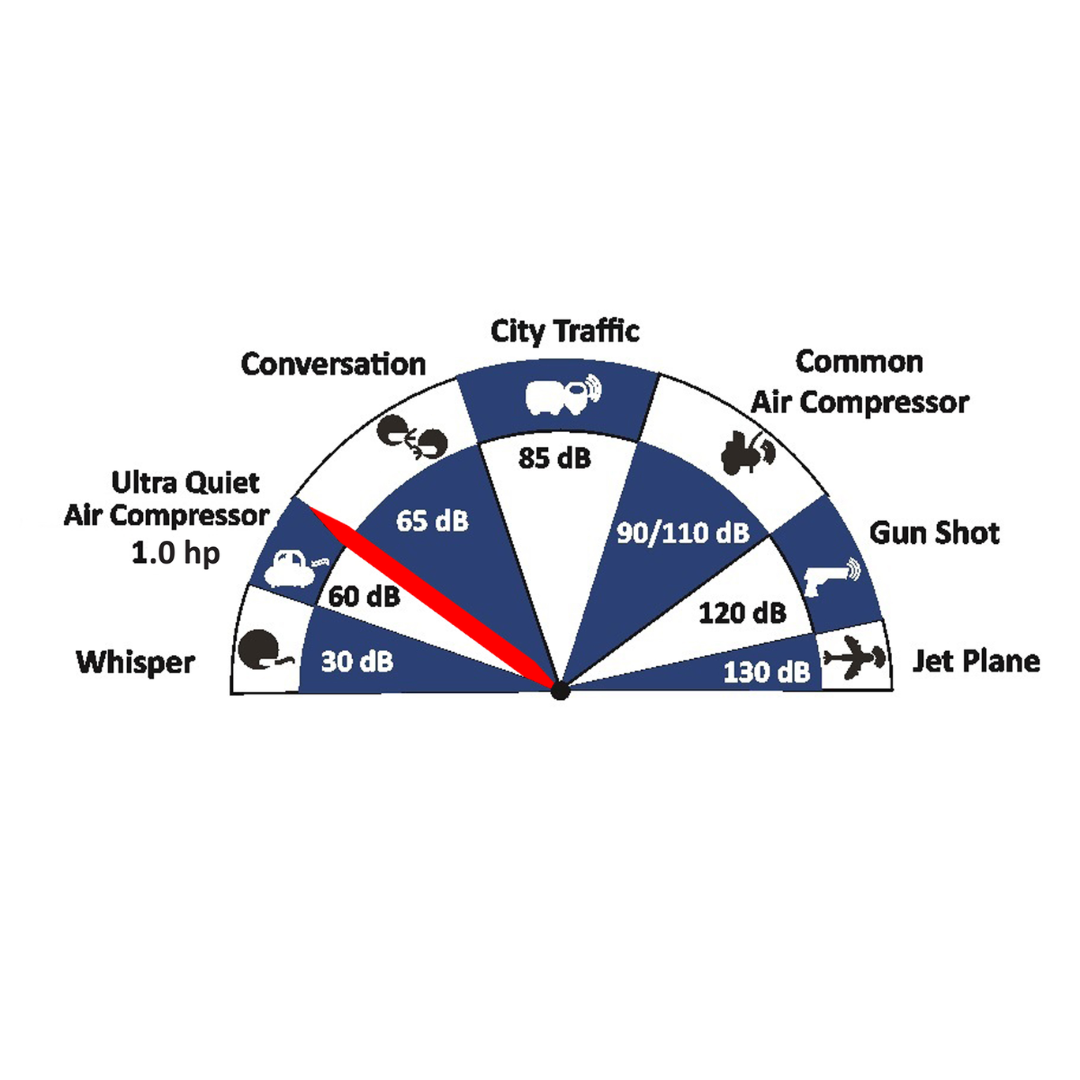

- Ultra quiet operation (60 dB) makes it one of the quietest motor-pumps in the industry.

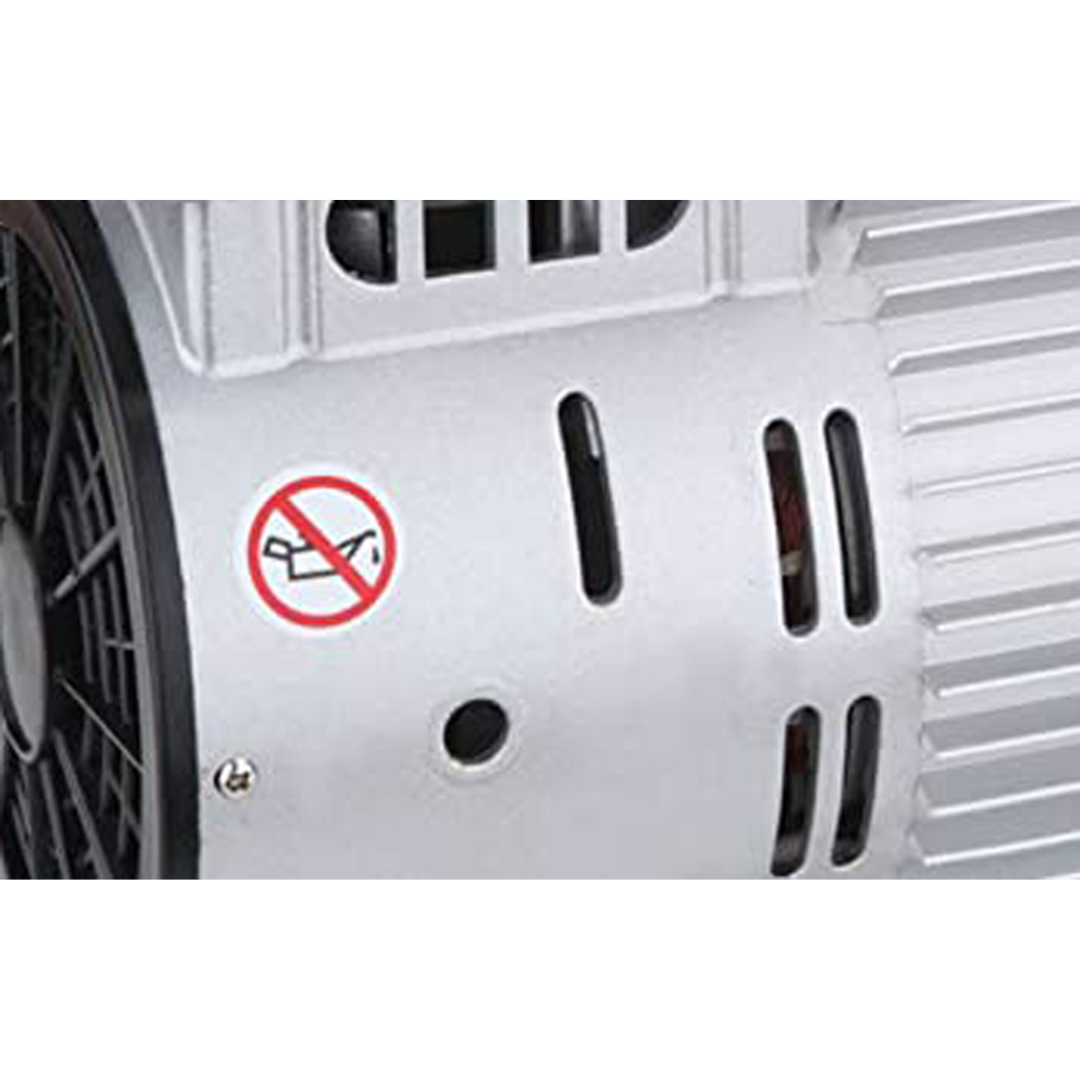

- Oil-free dual piston pump system delivers cleaner air and reduces maintenance requirements.
- High efficiency airflow produces up to 25% more air compared to similar 1.0 HP motors.
- Low RPM operation (1400 RPM) reduces noise, vibration, and wear for longer service life.
- Extended lifespan with minimum 4000 hours before wear and average life up to 6000 hours.
- Thermal overload protection safeguards the motor from overheating and electrical damage.
- Low amp draw (7.6 amps) improves energy efficiency and reduces power consumption.

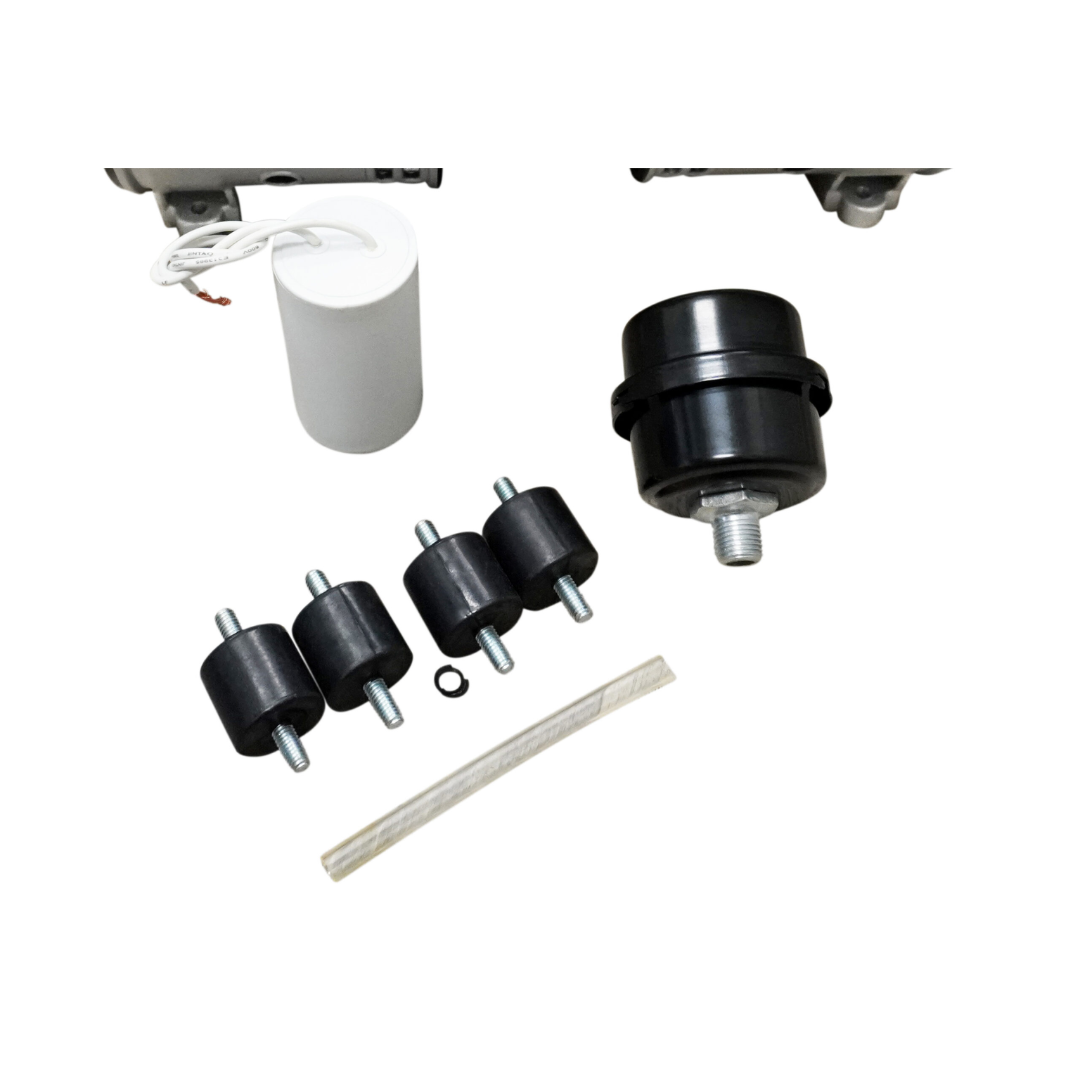

- Complete installation package includes capacitor, air filter, and (4) shock struts.
California Air Tools MP-100LF (110v 60hz) 1.0 Hp Motor-Pump – Long Life Compatibility
- CAT-2010ALFC, CAT-2010ALFCAD
- CAT-4610ALFC, CAT-4610ALFCAD
- CAT-6010LFC, CAT-6010ALFCAD
- CAT-8010ALFC, CAT-8010ALFCAD
- CAT-10010ALFC, CAT-10010ALFCAD
- CAT-8010SPC, CAT-8010SPCAD
- CAT-8010DSPC, CAT-8010DSPCAD
Specifically designed to integrate seamlessly with a wide range of California Air Tools air compressor models.
California Air Tools MP-100LF (110v 60hz) 1.0 Hp Motor-Pump – Long Life Installation & Safety
- This unit is a replacement motor-pump only and not a complete air compressor.
- Requires proper installation with an unloader valve and/or bleeder valve.
- A check valve must be properly configured to prevent pressure buildup on pistons.
- Improper installation may result in motor damage.
- Professional mechanical and electrical knowledge is recommended for non-standard applications.
Correct installation is critical to ensure performance, safety, and longevity of the motor-pump.
Why Choose the California Air Tools MP-100LF (110v 60hz) 1.0 Hp Motor-Pump – Long Life
- Ultra quiet 60 dB operation for noise-sensitive environments.
- Long-lasting oil-free dual piston system with up to 6000 hours lifespan.
- High airflow output with improved efficiency over comparable models.
- Low maintenance and reduced operating costs.
- Designed for reliable replacement and upgrade applications.
The California Air Tools MP-100LF (110v 60hz) 1.0 Hp Motor-Pump – Long Life is a premium replacement solution delivering quiet operation, extended durability, and dependable air performance for a wide range of compressor systems.
