California Air Tools CAT-33000 LVLP Spray Gun with Gravity Feed Cup (Brand New)

Name: California Air Tools CAT-33000 LVLP Spray Gun with Gravity Feed Cup (Brand New)
Brand: California Air Tools
SKU: Spray Gun CAT-33000
Price: 34.99 USD
Availability: InStock

★★★★★

Iron Line Verified

Authorized Dealer: California Air Tools

Official Partner

IN STOCK & RECEIVE IN 5-7 DAYS

SKU: Spray Gun CAT-33000

Price:

$34.99

Quantity:

Financing as low as ~$0 / month (60 mo. terms) Estimate your payment

We pay your sales tax! (IL excluded) 📦

Share this product

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered Fast

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

LVLP Technology • Precision Control • Lightweight Design

California Air Tools CAT-33000 LVLP Spray Gun with Gravity Feed Cup (Brand New)

The California Air Tools CAT-33000 LVLP Spray Gun with Gravity Feed Cup (Brand New) is a professional-grade low volume low pressure (LVLP) spray gun engineered for precision, efficiency, and reduced air consumption. Designed for automotive, industrial, marine, and woodworking applications, this spray gun delivers smooth, even finishes while minimizing overspray and material waste. Its lightweight aluminum construction and advanced control features make it an ideal solution for both professionals and serious DIY users.

California Air Tools CAT-33000 LVLP Spray Gun with Gravity Feed Cup (Brand New) Applications

Automotive painting and refinishing
Industrial coating and finishing applications
Marine surface treatments and protective coatings
Woodworking projects including furniture and cabinetry
Application of lacquers, enamels, stains, and urethanes

Ideal for users seeking high-quality finishes with reduced overspray and efficient material usage.

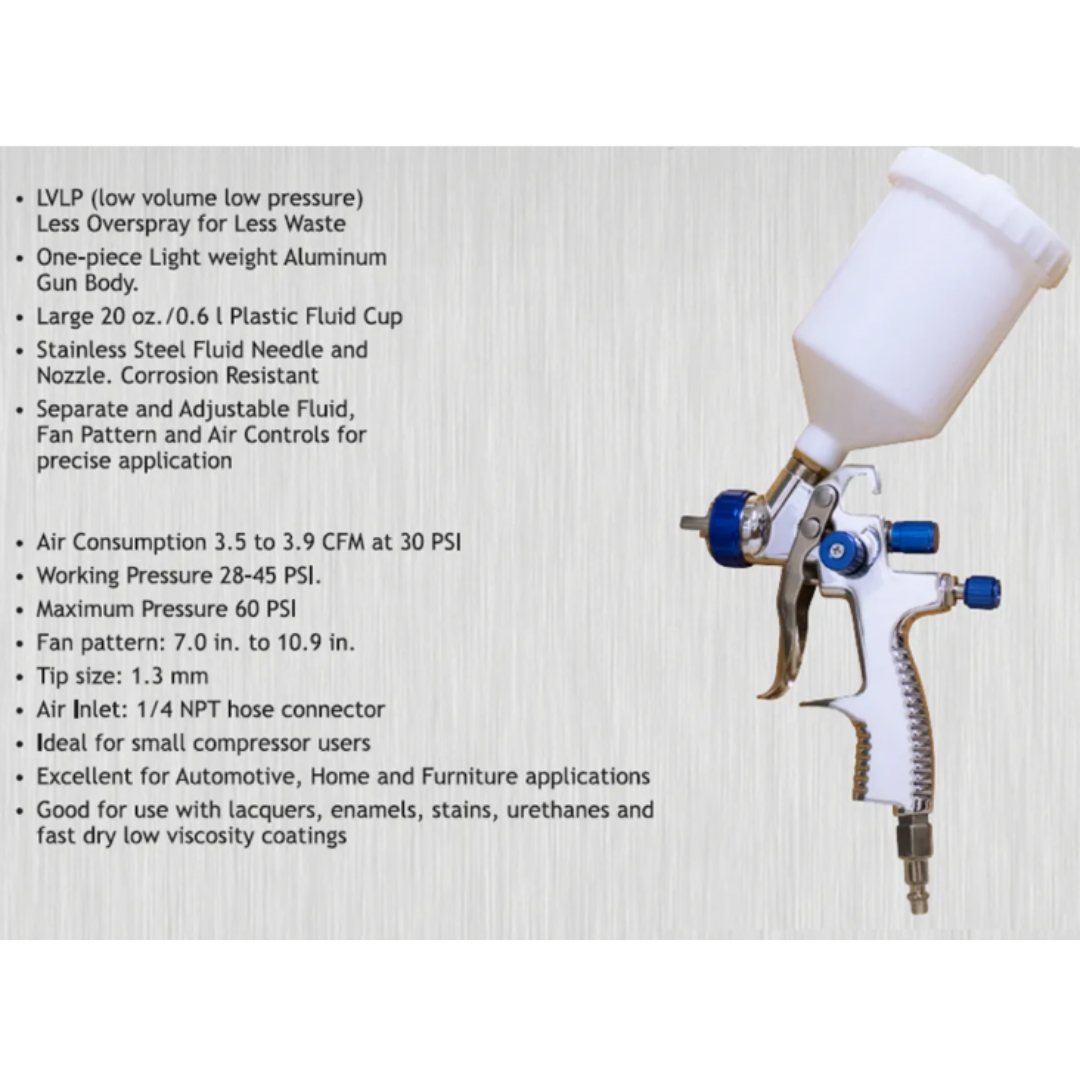

California Air Tools CAT-33000 LVLP Spray Gun with Gravity Feed Cup (Brand New) Specifications

Model	CAT-33000
Spray Type	LVLP (Low Volume Low Pressure)
Nozzle Size	1.3 mm
Optional Nozzles	1.5 mm – 2.0 mm
Air Inlet	1/4"
Fluid Cup Capacity	20 oz / 600 cc / 0.6 L
Fluid Cup Thread	M16 × 1.5
Pattern Width	7" – 10.9"
Air Consumption	3.5 – 3.9 CFM @ 30 PSI
Working Pressure	28 – 45 PSI
Maximum Pressure	60 PSI
Body Material	Lightweight Aluminum
Weight	19 oz (Approx. 1 lb)
Dimensions (L × W × H)	6" × 4" × 13"

California Air Tools CAT-33000 LVLP Spray Gun with Gravity Feed Cup (Brand New) Performance & Construction

LVLP Technology reduces air consumption, allowing use with smaller air compressors.
Reduced Overspray Design improves material efficiency and minimizes waste.
One-Piece Aluminum Body provides durability while remaining lightweight for extended use.
Stainless Steel Fluid Needle and Nozzle resists corrosion and ensures long-lasting performance.

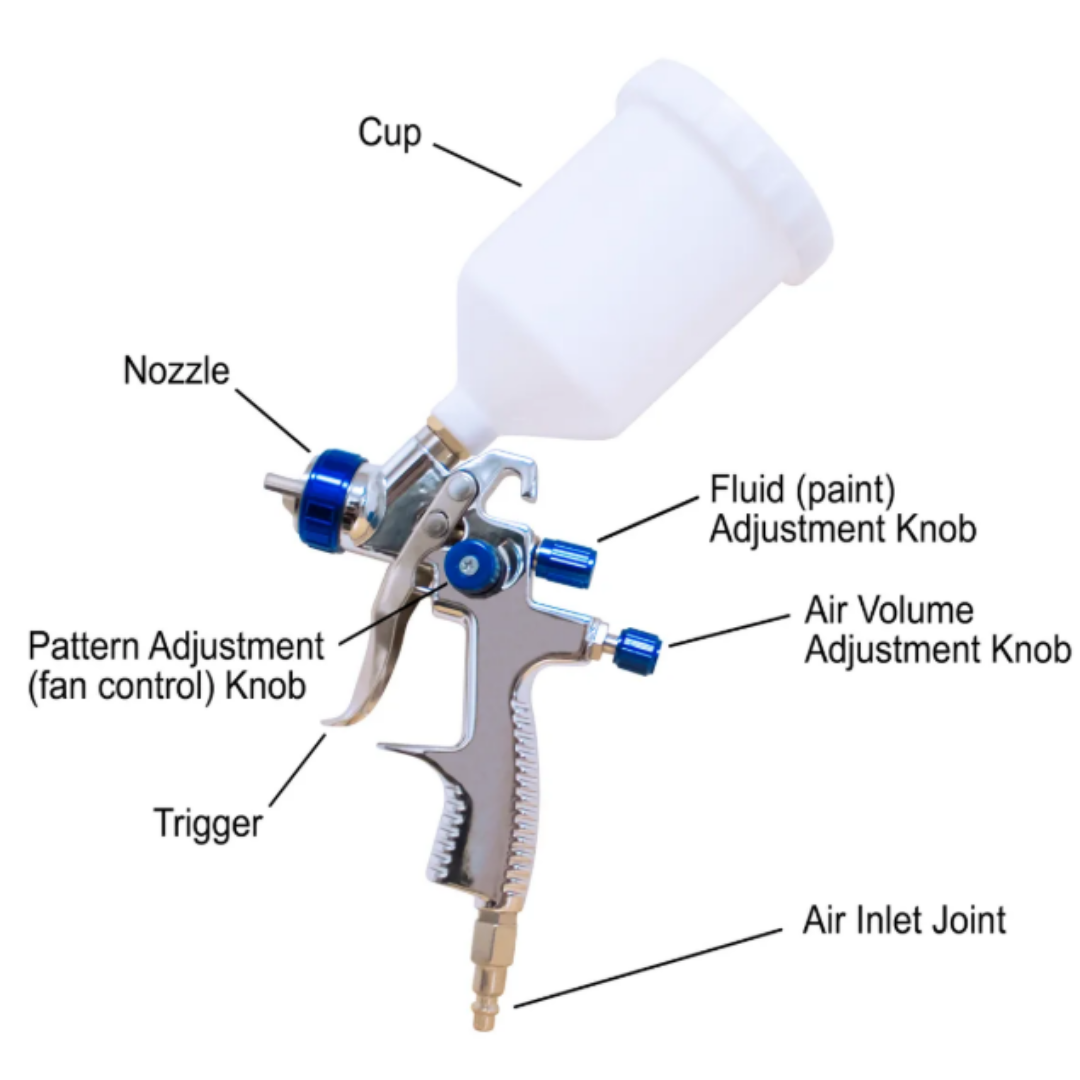

Adjustable Fluid, Fan, and Air Controls allow precise spray pattern tuning and consistent finishes.
Wide Spray Pattern (7"–10.9") enables faster coverage of large surfaces.
Large Capacity Gravity Feed Cup supports longer spray sessions without frequent refilling.

California Air Tools CAT-33000 LVLP Spray Gun with Gravity Feed Cup (Brand New) Usage Recommendations

Optimized for low-viscosity coatings such as lacquers, stains, enamels, and urethanes.
For heavier coatings like latex, satin, and primers, use larger nozzle sizes (1.7 mm – 2.0 mm).
Recommended to use a 2 HP air compressor for thicker coating applications.
Maintain proper pressure settings for optimal atomization and finish quality.

For heavy-duty coatings, consider upgrading to the CAT-33000K kit with larger nozzle sizes to prevent clogging and ensure smooth application.

Why Choose the California Air Tools CAT-33000 LVLP Spray Gun with Gravity Feed Cup (Brand New)

Efficient LVLP design reduces air consumption and overspray.
Lightweight and ergonomic for extended use without fatigue.
Precision controls deliver professional-quality finishes.
Versatile for automotive, woodworking, marine, and industrial applications.
Durable construction with corrosion-resistant components.

The California Air Tools CAT-33000 LVLP Spray Gun with Gravity Feed Cup (Brand New) offers a perfect balance of precision, efficiency, and ease of use—making it a reliable choice for achieving high-quality finishes across a wide range of applications.

Key Information

Order Cutoff Time: 2:00 PM EST
Order Handling Time: 1–3 business days (Monday–Friday)
Transit Time: 1–7 business days (Monday–Friday)
Total Estimated Delivery Time: 3–11 business days (Monday–Friday)
Shipping Availability: Free Shipping On some Items In The Contiguous United States only

For more information Click Here

Request Expert Consultation

Our tool specialists are ready to help you find the perfect solution for your specific application.

CAPITAL ACCESS

EQUIPMENT FINANCING

AVAILABLE

Preserve cash flow with up to 60 month financing.

Job Site Proven

Trusted by Facilities and manufacturing centers

JLT #180A-M2 Pneumatic Panel Flattener Customer review image

Travis Farwell | Farwell's Fine Woodworking Field Verified

I hope this helps

"I have attached the pictures of how I use my panel flattener. I hope this helps."

JLT #180A-M2 Pneumatic Panel Flattener

Mike Yaross Field Verified

Just what I needed

"Saw works great. Just what I needed. You may want to update the specs though. It says 110v but it’s 220v. I don’t think it will an 10” saw blade either. Haven’t tried but I don’t think it’s set up for one like it says. Ordering process was nice and easy. Thank you."

Castaly 12" Radial Arm Saw RS-612

FRANCISCO, Shop Manager Field Verified

Built for 24/7 Production

"Got the JLT #717C for our shop and it’s an absolute beast for narrow stile doors. The 2-second squaring cycle is legit—we’re easily pushing 100+ perfect doors a day now without stressing over glue joint alignment. Setup is super fast with the pin system, and the heavy-duty build takes daily abuse without losing accuracy."

JLT #717C Cabinet Door Clamp

JLT Pressurized A8 Glue Tank for PVA Glue PIZ.9001 in shop

Lincoln Lakes Ind | Lincoln Lakes Industries LLC Field Verified

Thanks for the service!

"Here are 2 pictures of the glue tank in our shop. I hesitated to send anything as it is not in its final place but perhaps it's good enough for you. We are using it for our drawer box station and assembly station. Thanks for the service!"

JLT Pressurized A8 Glue Tank for PVA Glue PIZ.9001

Gedalya Glauber Field Verified

Purchased Machine for Partner

"I purchased this machine for our partner in China to use. We had some issues but we were able to get them fixed thanks to iron line tools."

Virutex CE53S Edge Lipping Planer for Perfect Flush Edges 5300199

Virutex TWOO AB200 Corded Dowel Jointer (120V) 7900799 vertical dowel joint cutting on panel surface ensuring precise alignment and repeatable results

David & Joyce West Field Verified

I know this will meet my requirements

"haven't had a chance to use it but it looks like a well built product have a few projects down the road and I know this will meet my requirements. so hats off to your team! David"

Virutex TWOO AB200 Corded Dowel Jointer (120V) 7900799

Virutex AU93 Double Edge Trimmer And Scraper + RC21E Manual End Trimmer SET 2800086 complete edge finishing tool set shown with dual edge trimmer and manual end trimmer.

Stuart Casterlin | Stuart Casterlin Custom Cabinets and Fine Woodworking, Inc. Field Verified

Both Tools Work Great

"Both tools work great and are real time savers . The two tools that I received from your company were replacements for the exact same tools that I've used for the past years, I think its safe to say 20+ years. Extremely pleased with product and service."

Virutex AU93 Double Edge Trimmer And Scraper + RC21E Manual End Trimmer SET 2800086

Bradley Cole, CB Anderson Shutter Co Field Verified

They are just what we needed

"We use these clamps daily, and they're very helpful for our work. We are always happy to support a small business."

JLT #812B Clamp Design

California Air Tools 10020DCAD-22060 2.0 Hp Ultra Quiet Oil-Free 10 Gallon Air Compressor angled view with dual piston pump

Mike T., Shop Manager Field Verified

Quiet, Fast, and Totally Worth It

"Bought this California Air Tools compressor for the shop and it’s an absolute game changer. It’s incredibly quiet—you can actually have a normal conversation right next to it without yelling. It fills up fast, keeps up with all our nailers and blowguns with zero issues, and the oil-free pump means no maintenance. If you're tired of loud, annoying compressors ruining the vibe on your floor, grab this bad boy. Worth every penny."

Jet 16" x 40" Engine Lathe: Geared Head, 230 V 3 Phase, 3-1/8" Spindle Bore Dia, 25 to 1,800 RPM JT9-321381

Mark D. | Machine Shop Foreman Field Verified

Heavy Duty & Precise

"Brought this Jet 16" x 40" Engine Lathe into the shop recently and it’s an absolute beast. The 3-1/8" spindle bore is exactly what we needed for turning larger bar stock, and the geared head runs incredibly smooth from 25 all the way up to 1,800 RPM. It handles our heavy daily metalwork without breaking a sweat, and you can see how solid the build is right in the photo. If you need a reliable 3-phase lathe that holds tight tolerances all day, grab this bad boy. Worth every penny."

Jet Tools Lathe

Euroboor ECO.100S+/TD Magnetic Drilling Machine angled side view with control panel and magnetic base

Martin Aguilar | KSU Corp Field Verified

ECO.100S+/T mag drill at KSU Corp

"Its been doing great thank you."

ECO.100S+/T Magnetic Drill

Euroboor TCT 1" Depth Annular Cutter tungsten carbide tipped annular cutter designed for high-performance drilling in hard steel and abrasive materials.

LEKS KAMIHIRA Field Verified

Yep we got the cutter

"Yep we got the cutter. We haven’t used it, the project we purchased it for has ended. Shipping was fast and I had no issues getting my order"

Euroboor TCT 1" Depth Annular Cutter

Virutex Hand-Held Hot Air Edgebander Set AG52F AG98F AU93 RC21E 5200199 showing complete kit with edgebander, tape roll holder, and accessories

Jesse Pegorsch Field Verified

The edge bender is working great!

"The edge bender is working great! I’ll keep you in mind next time I need something for my shop"

Virutex Hand-Held Hot Air Edgebander Set AG52F: AG98F + AU93 + RC21E 5200199

California Air Tools 91335 Gasket for 255C pressure pot replacement sealing ring close-up view

Francisco Clemente | Wood Artist Field Verified

Everything Arrived Safe

"Yes, everything arrived safe in Texas, the home of a family who gladly sent the CAT 91335 Gasket to me"

Industrial Grade IronLine X1

Virutex Wheel Cutter Set of 2 Wheel Cutters for Laminate and Veneer 1527075 in retail packaging showing replacement cutting wheels

Bryce Bamsey Field Verified

Thanks for checking in.

"I believe they are working well judging by none of the guys have said anything about them other than a thank you for swapping them out for them hahah. So thanks for checking in."

Virutex Wheel Cutter Set Of 2 Wheel Cutters For Laminate And Veneer 1527075

Virutex hard metal metric lock mortising bits for FC116U lock mortiser

Lindolfo Araujo | Quality trim work LLC Field Verified

The Virutex mortising bits in Avondale

"They are doing great."

Virutex mortising bits

Jesse Browning Field Verified

Figured it out

"I had issues initially with the order but iron line tools helped me figure it out and sent me another Handheld Gluer. Very good service."

Virutex EM125T Handheld Gluer With Upper Roller 2500300

Frequently Asked Questions for California Air Tools

LVLP stands for Low Volume Low Pressure. On the California Air Tools CAT-33000, this means the gun uses only about 3.5 to 3.9 CFM at 30 PSI, reducing air consumption and overspray.

Yes. The CAT-33000 is designed for automotive painting and refinishing, and its adjustable fluid, fan, and air controls help produce smooth, even finishes.

The CAT-33000 has a working pressure range of 28 to 45 PSI and a maximum pressure of 60 PSI. Keeping pressure in the proper range helps give good atomization and finish quality.

Its LVLP design lets it run on smaller compressors, since it uses about 3.5 to 3.9 CFM at 30 PSI through a 1/4 inch air inlet. A 2 HP compressor is recommended for thicker coatings.

With its standard 1.3 mm nozzle, it is best suited to lacquers, stains, enamels, and urethanes. Heavier coatings such as latex, satin, and primers need a larger 1.7 mm to 2.0 mm nozzle, which comes in the CAT-33000K kit.

The gravity feed cup holds 20 oz (600 cc). The gun itself weighs about 19 oz and has a one-piece aluminum body with a stainless steel needle and nozzle.
