California Air Tools CALAIR 80050BD 80 Gal 5.0 hp One-Stage Oil-Lubricated Belt Driven Air Compressor Applications
- Automotive repair shops and service bays
- Industrial manufacturing and assembly lines
- Warehouses and maintenance facilities
- HVLP painting, spraying, and air brushing systems
- Framing, roofing, finish, and brad nailing operations
- Heavy-duty cutting, grinding, drilling, and bolting
- Impact wrenching, inflation, and general shop air supply
Built for professionals who require high airflow output and continuous-duty reliability in demanding work environments.

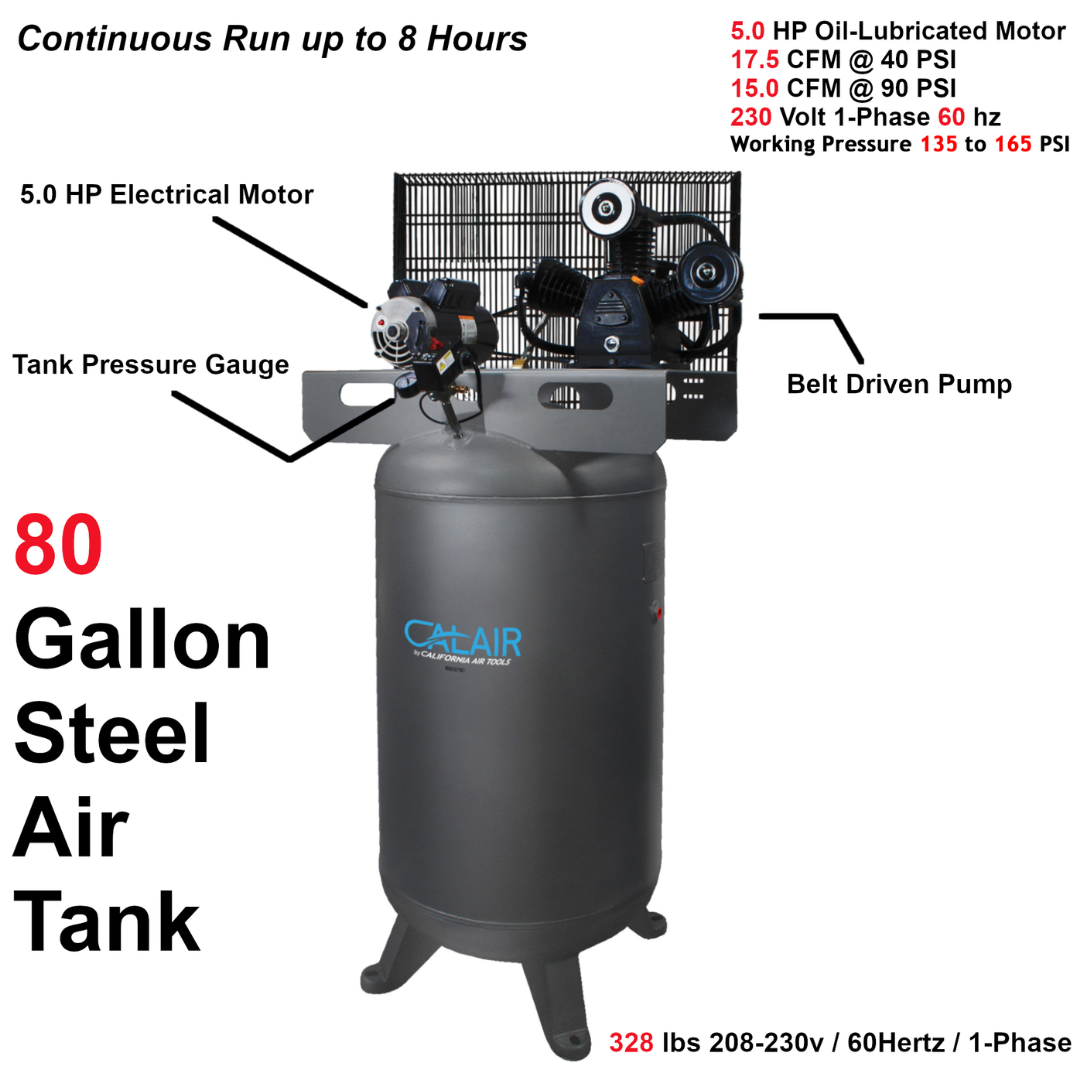

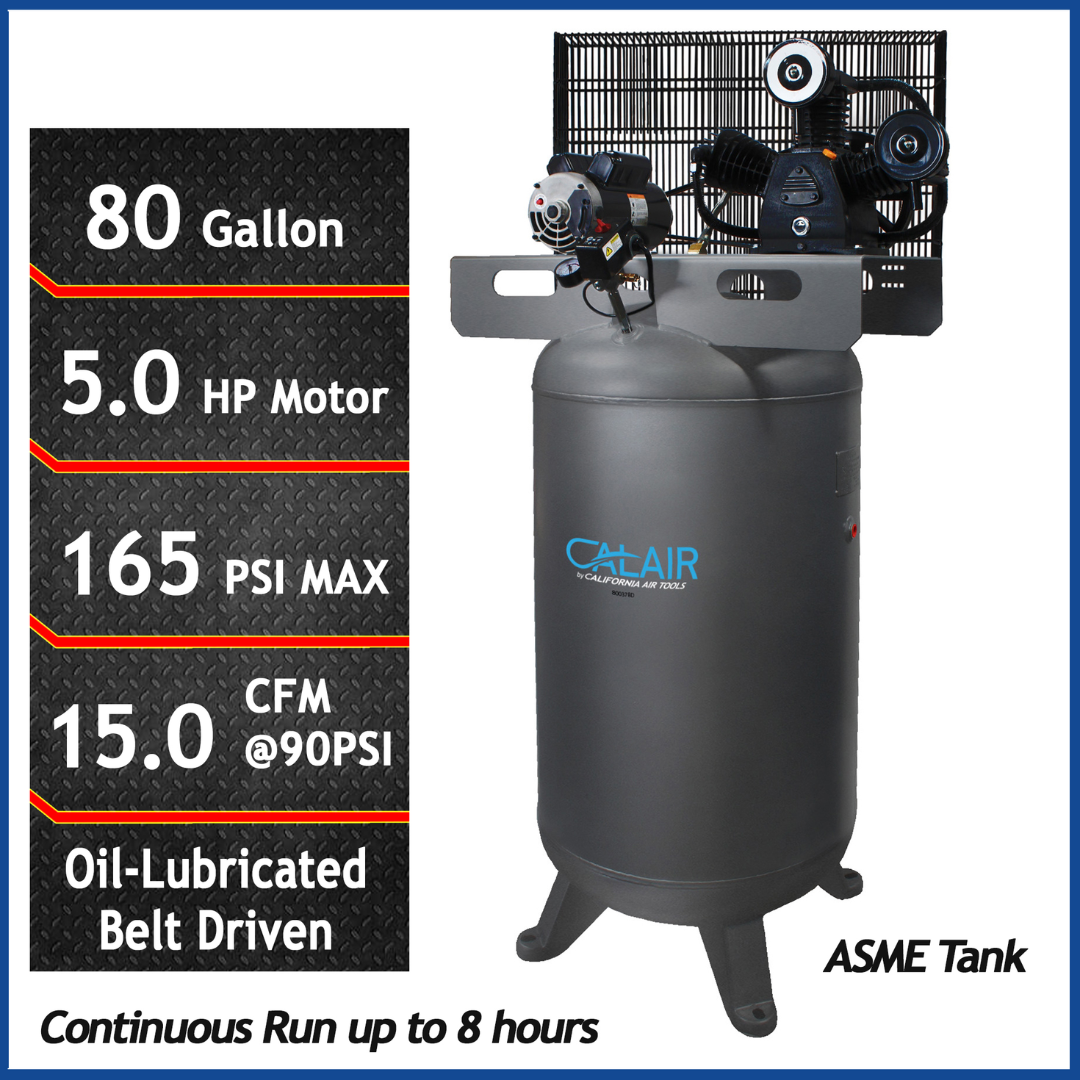

California Air Tools CALAIR 80050BD 80 Gal 5.0 hp One-Stage Oil-Lubricated Belt Driven Air Compressor Specifications
| Model | CALAIR 80050BD |
|---|---|
| Motor | 5.0 HP Electric Motor (1072 RPM) |
| Voltage | 208V – 230V / 60 Hz / Single Phase |
| Amperage | 24 Amps |
| Pump Type | Single-Stage, 3-Cylinder, Oil-Lubricated Belt-Driven |
| Air Tank Capacity | 80 Gallon ASME Certified Steel Tank |
| CFM @ 90 PSI | 15.0 CFM |
| CFM @ 40 PSI | 17.5 CFM |
| Working Pressure | 135 – 165 PSI |
| Maximum Tank Pressure | 165 PSI |
| Noise Level | 90 dB |
| Output Port | 1/2" NPT |

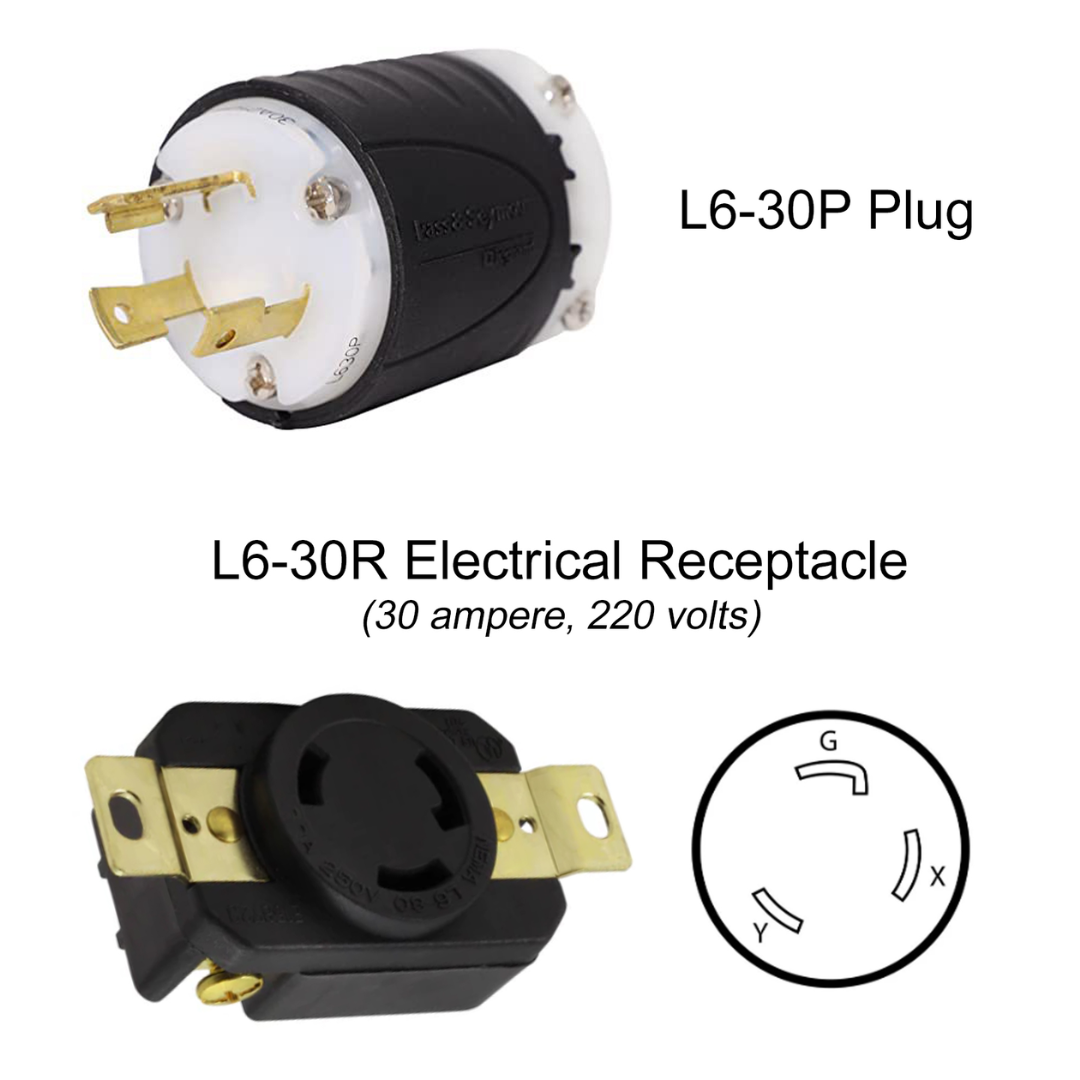

| Plug Type | NEMA L6-30P |
| Dimensions (L × W × H) | 35" × 28" × 68" |
| Weight | 328 lbs |
California Air Tools CALAIR 80050BD 80 Gal 5.0 hp One-Stage Oil-Lubricated Belt Driven Air Compressor Performance & Construction
- Continuous Duty Operation: Designed for up to 8 hours of continuous runtime at 90 PSI for production-level workloads.

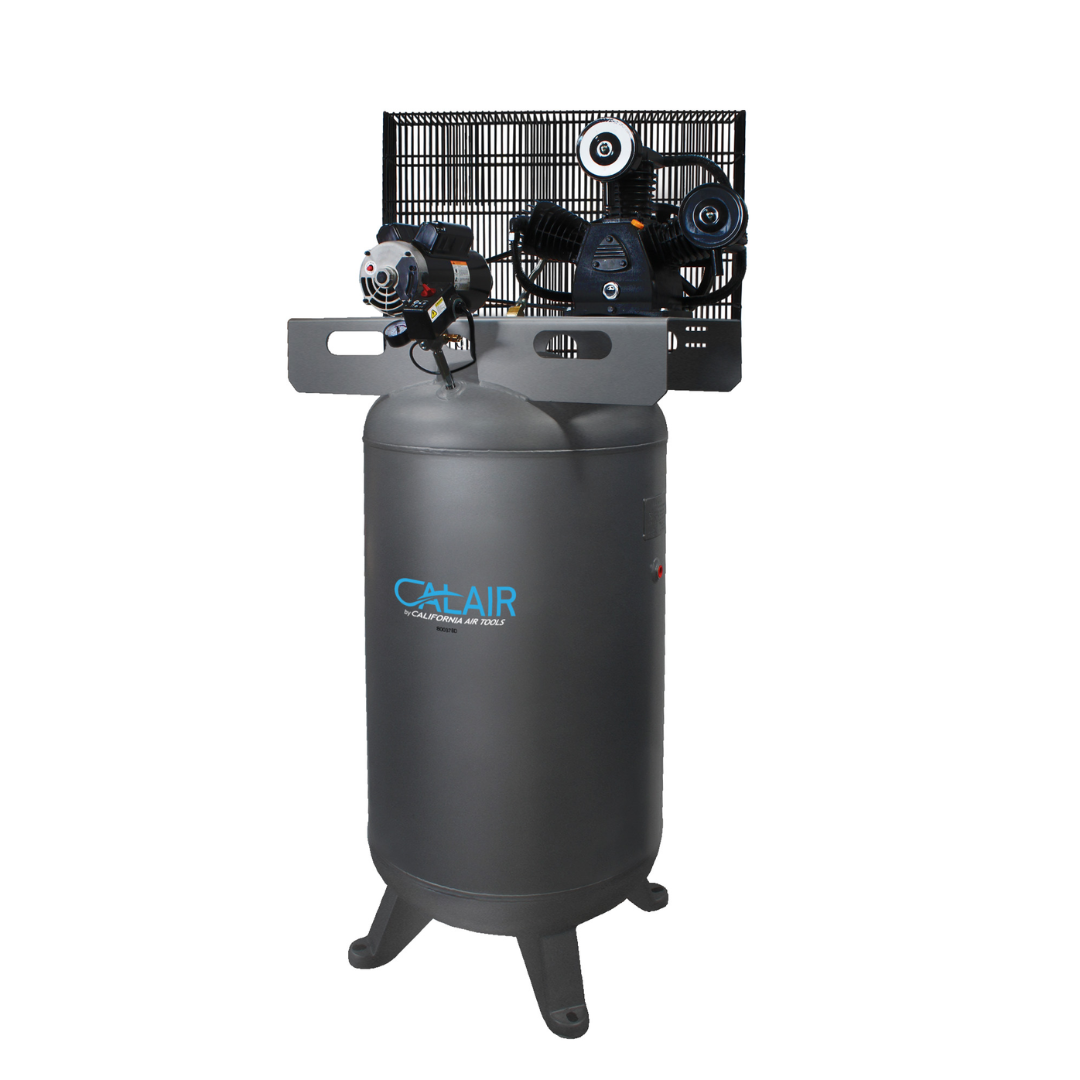

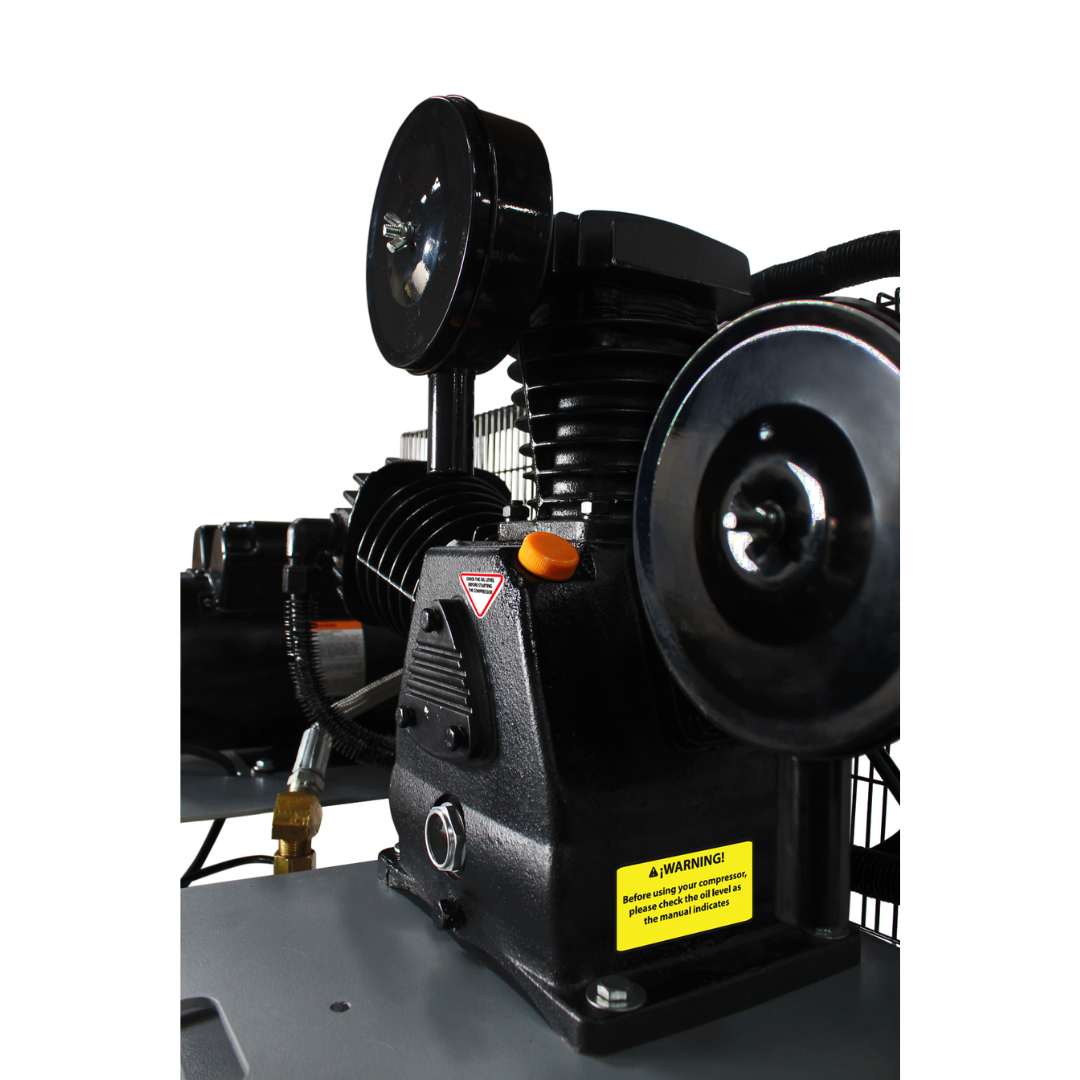

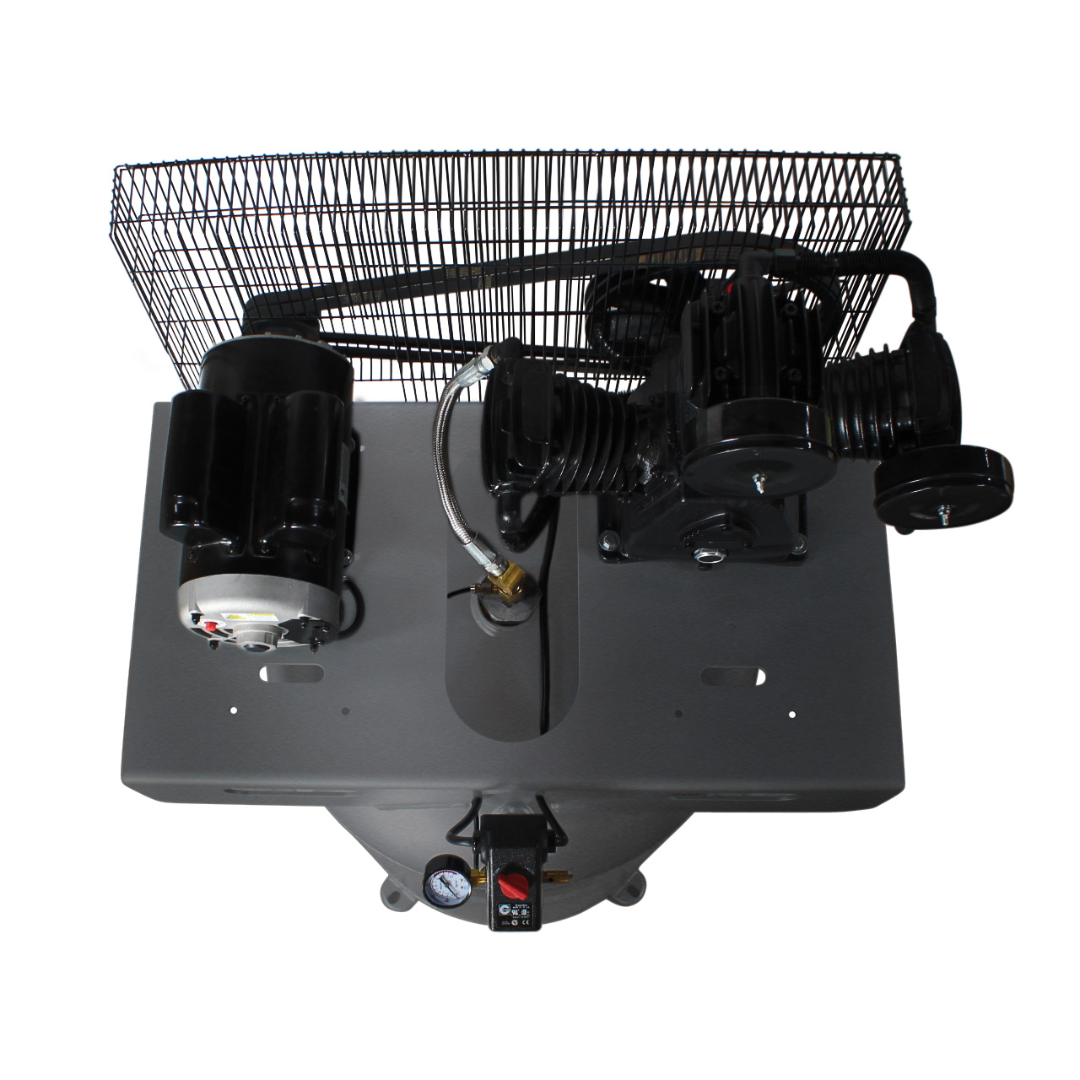

- High-Performance Pump System: Three-cylinder oil-lubricated belt-driven pump ensures efficient cooling, reduced wear, and stable airflow.

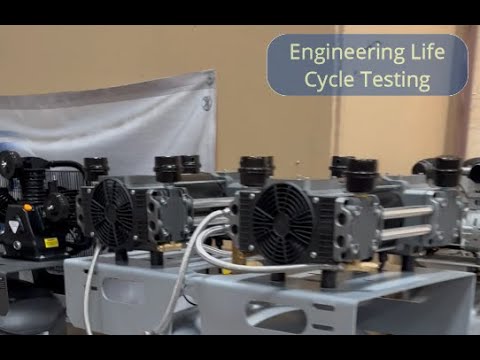

- Extended Pump Life: Engineered for 5,000 to 10,000 hours of operation before service intervals.

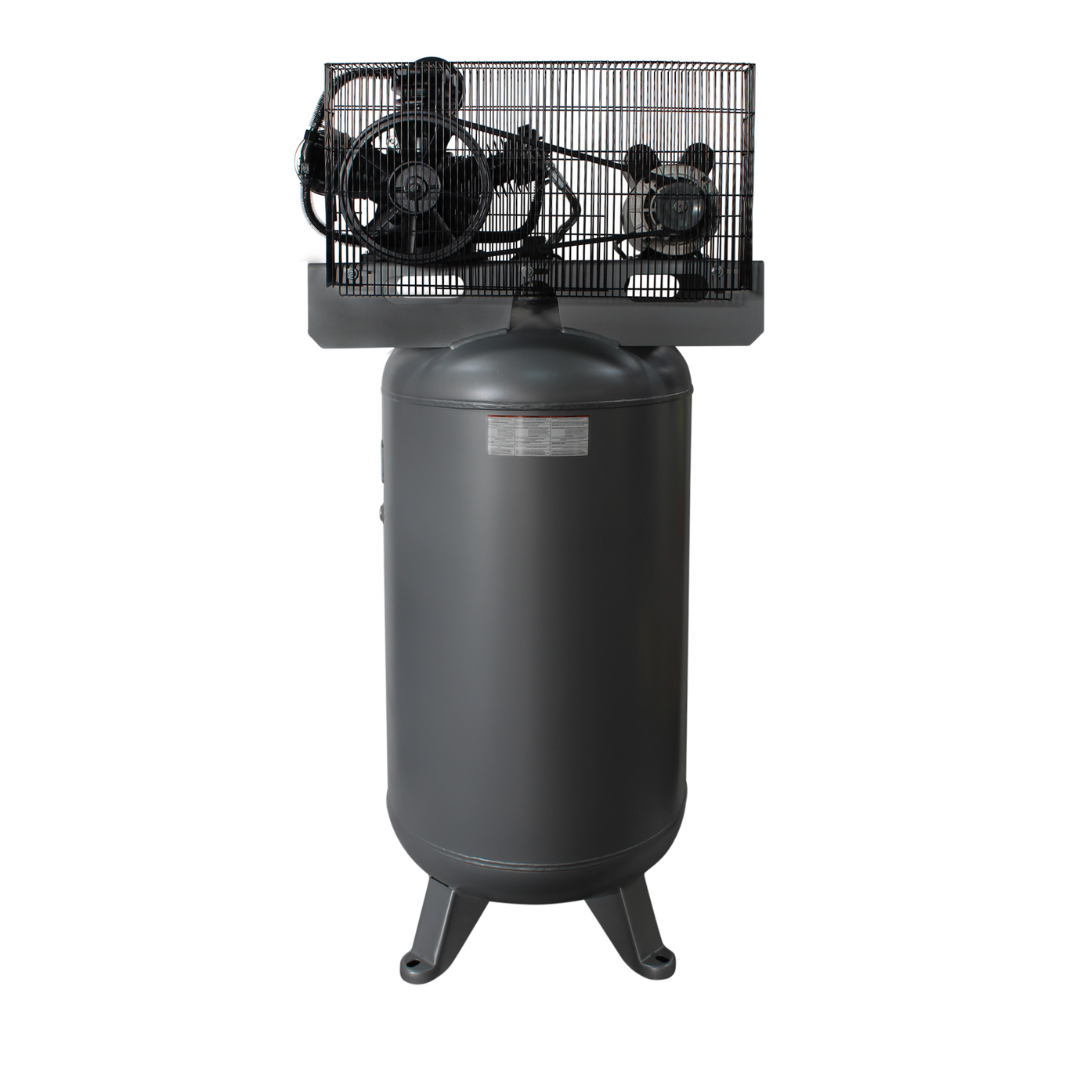

- Large Capacity Tank: 80-gallon ASME certified steel tank provides consistent air storage for uninterrupted operation.
- Fast Recovery & Fill Times: Recovers from 135 PSI to 165 PSI in just 1 minute 19 seconds and fills tank in approximately 7 minutes 50 seconds.

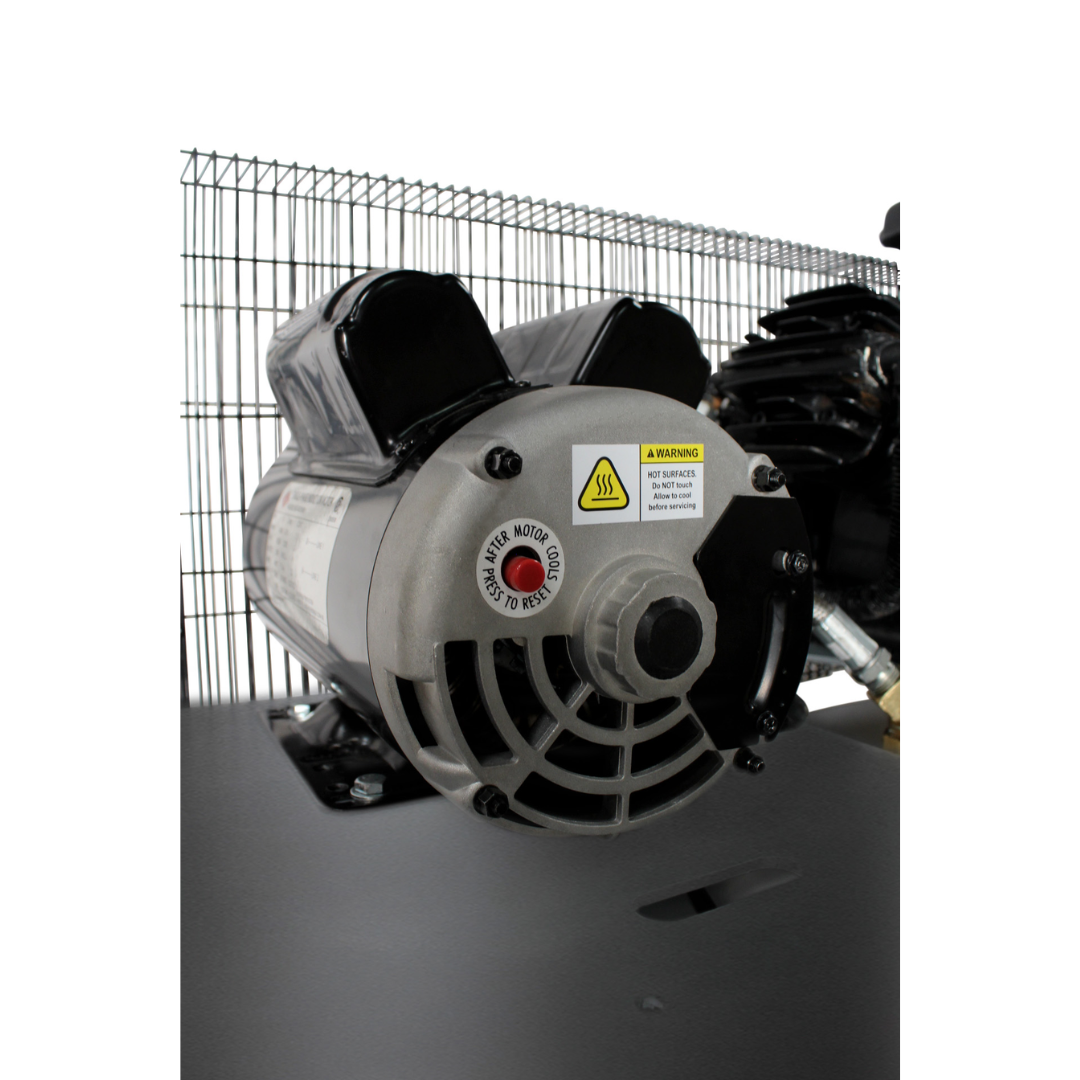

- Thermal Overload Protection: Built-in motor protection trips at 135°C to prevent overheating and extend equipment life.

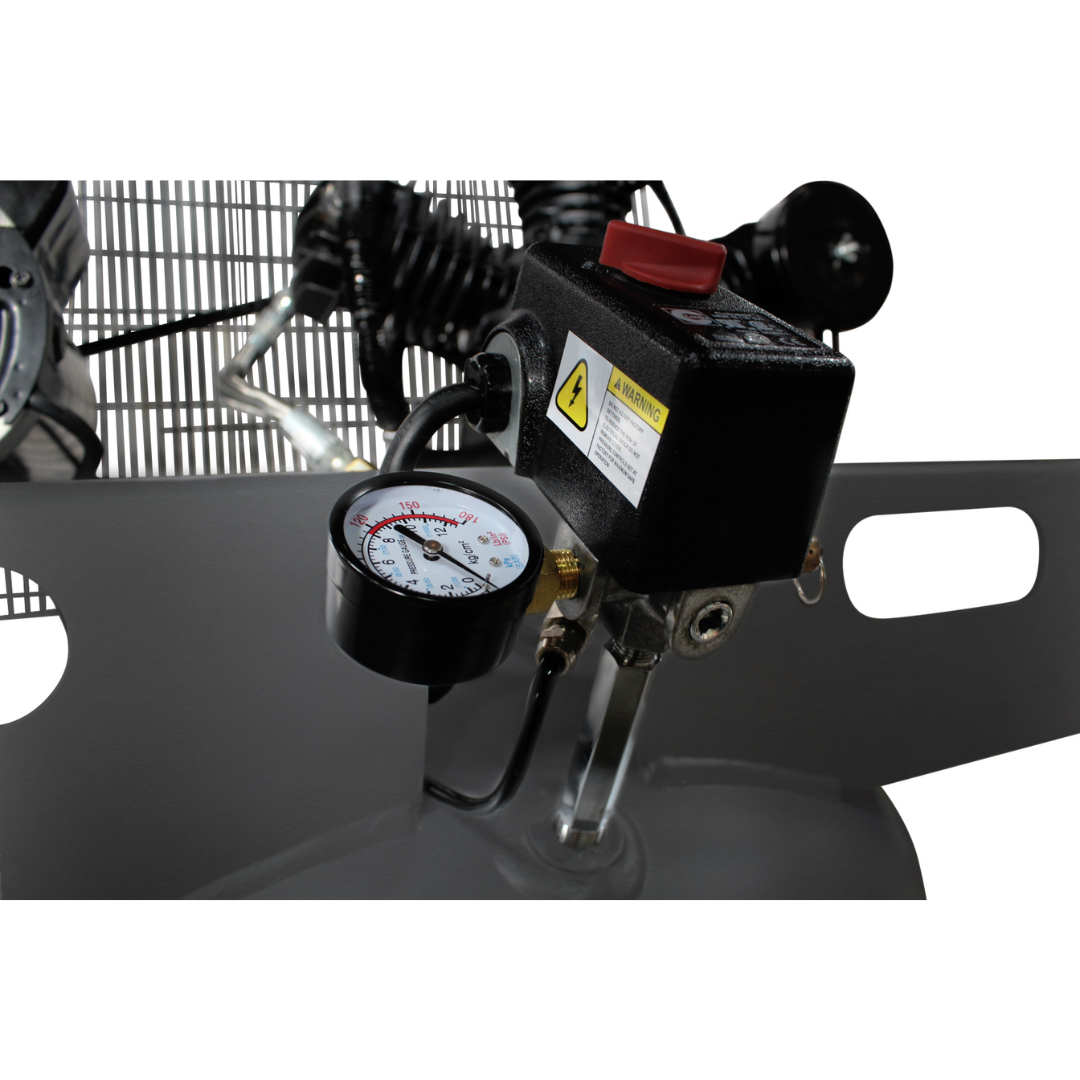

- Industrial Controls & Monitoring: Equipped with pressure gauge, power switch, and pressure control system.

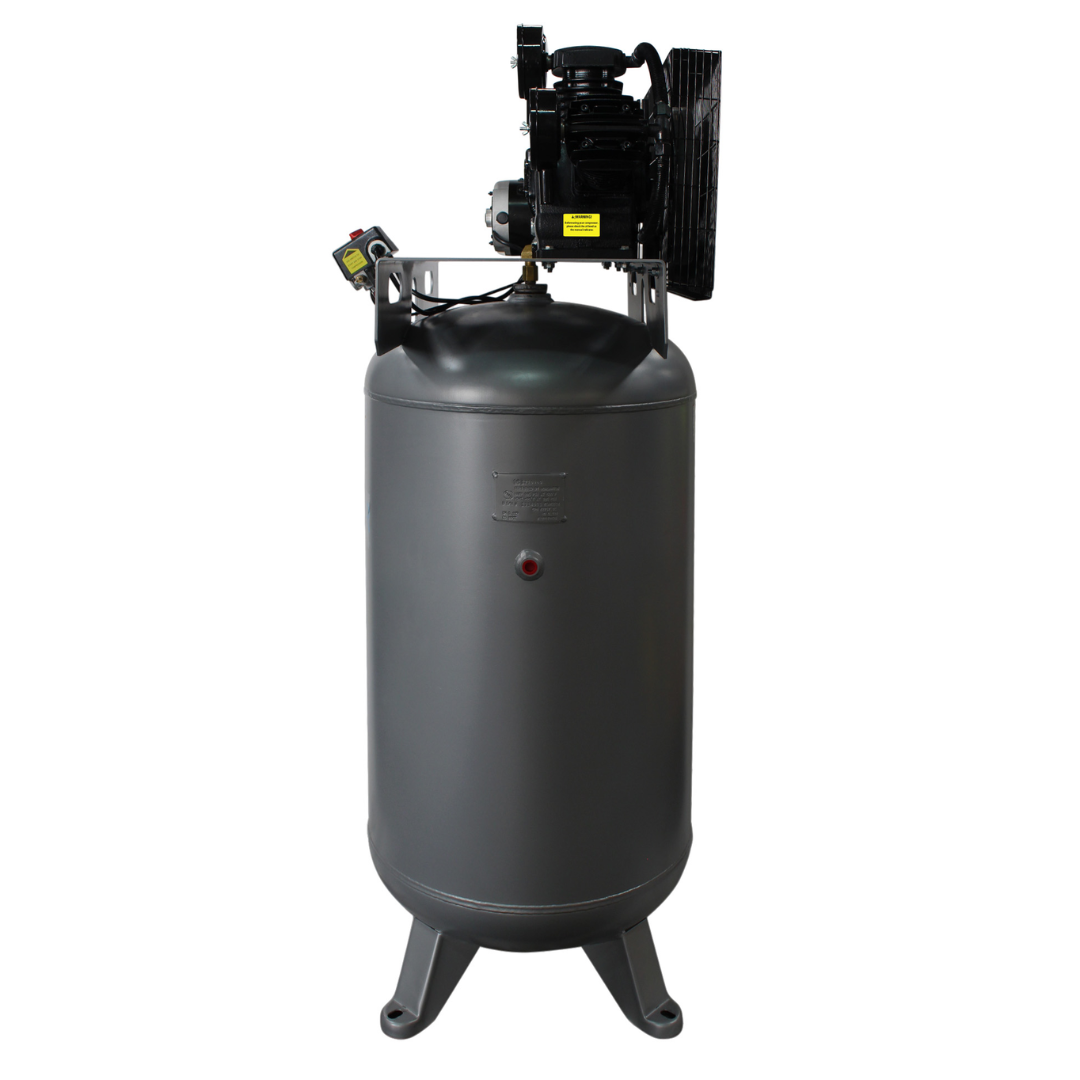

- Heavy-Duty Construction: Designed for rugged commercial and industrial environments with stable base and durable components.
- Safety Features: Includes manual drain valve and 200 PSI safety relief valve for safe operation.
Why Choose the California Air Tools CALAIR 80050BD 80 Gal 5.0 hp One-Stage Oil-Lubricated Belt Driven Air Compressor
- High airflow output up to 15.0 CFM @ 90 PSI for demanding tools and equipment.
- Continuous-duty design supports extended work cycles without performance loss.
- Durable oil-lubricated pump system ensures long operational lifespan.
- Large 80-gallon tank supports consistent pressure and reduced cycling.
- Built for commercial and industrial users requiring reliable compressed air systems.
The California Air Tools CALAIR 80050BD 80 Gal 5.0 hp One-Stage Oil-Lubricated Belt Driven Air Compressor delivers powerful, consistent airflow and rugged durability, making it an ideal solution for professionals who depend on reliable air performance every day.
