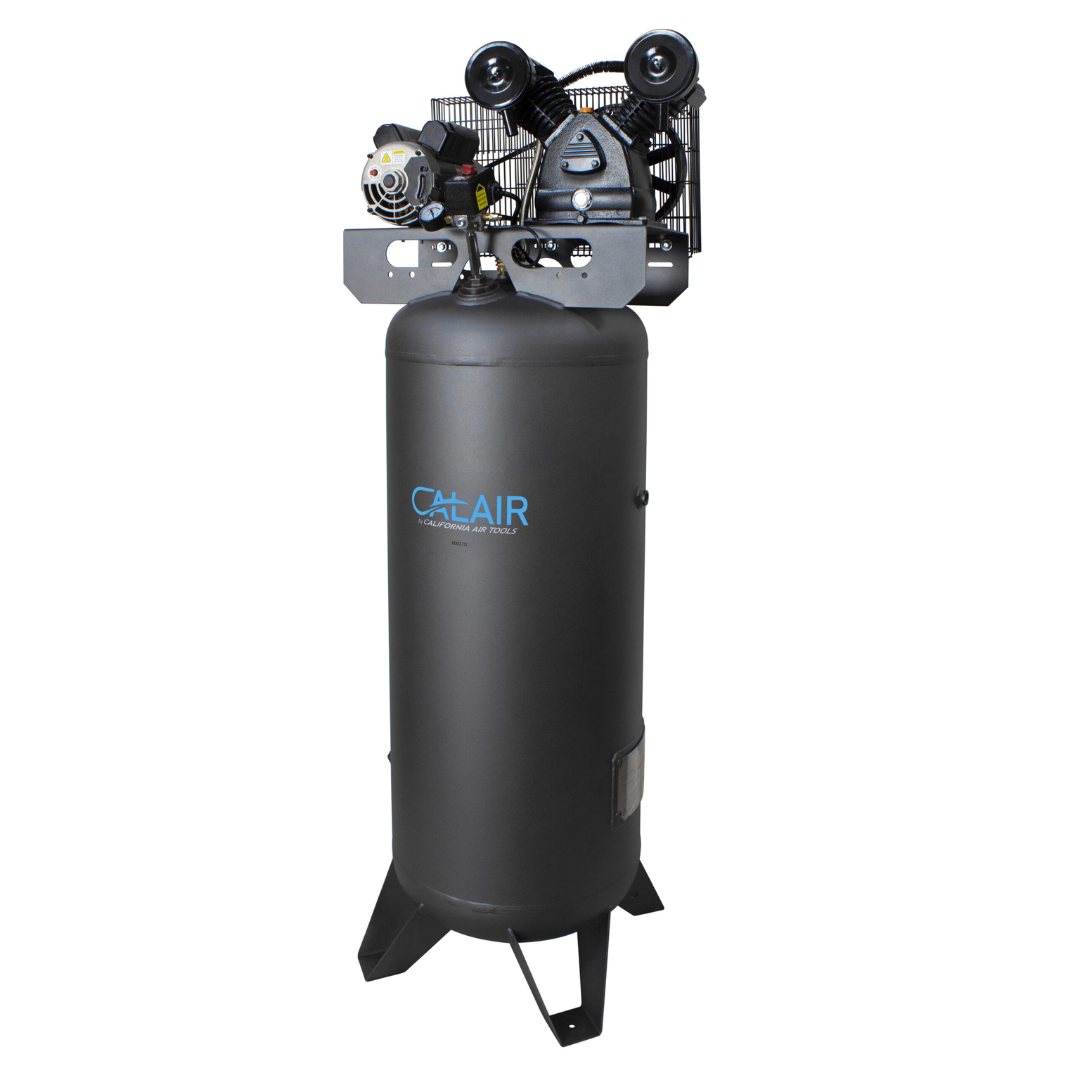

California Air Tools CALAIR 60037BD 60 Gal 3.7 hp One-Stage Oil-Lubricated Belt Driven Air Compressor Applications
- Automotive shops and maintenance facilities
- Manufacturing plants and warehouse operations
- Air brushing, spraying, and HVLP painting systems
- Framing, finish, roofing, and brad nailing applications
- Grinding, drilling, cutting, and bolting operations
- Inflation, stapling, hobby work, and general shop use
Ideal for professionals and businesses requiring reliable, continuous airflow for extended operation cycles.
California Air Tools CALAIR 60037BD 60 Gal 3.7 hp One-Stage Oil-Lubricated Belt Driven Air Compressor Specifications

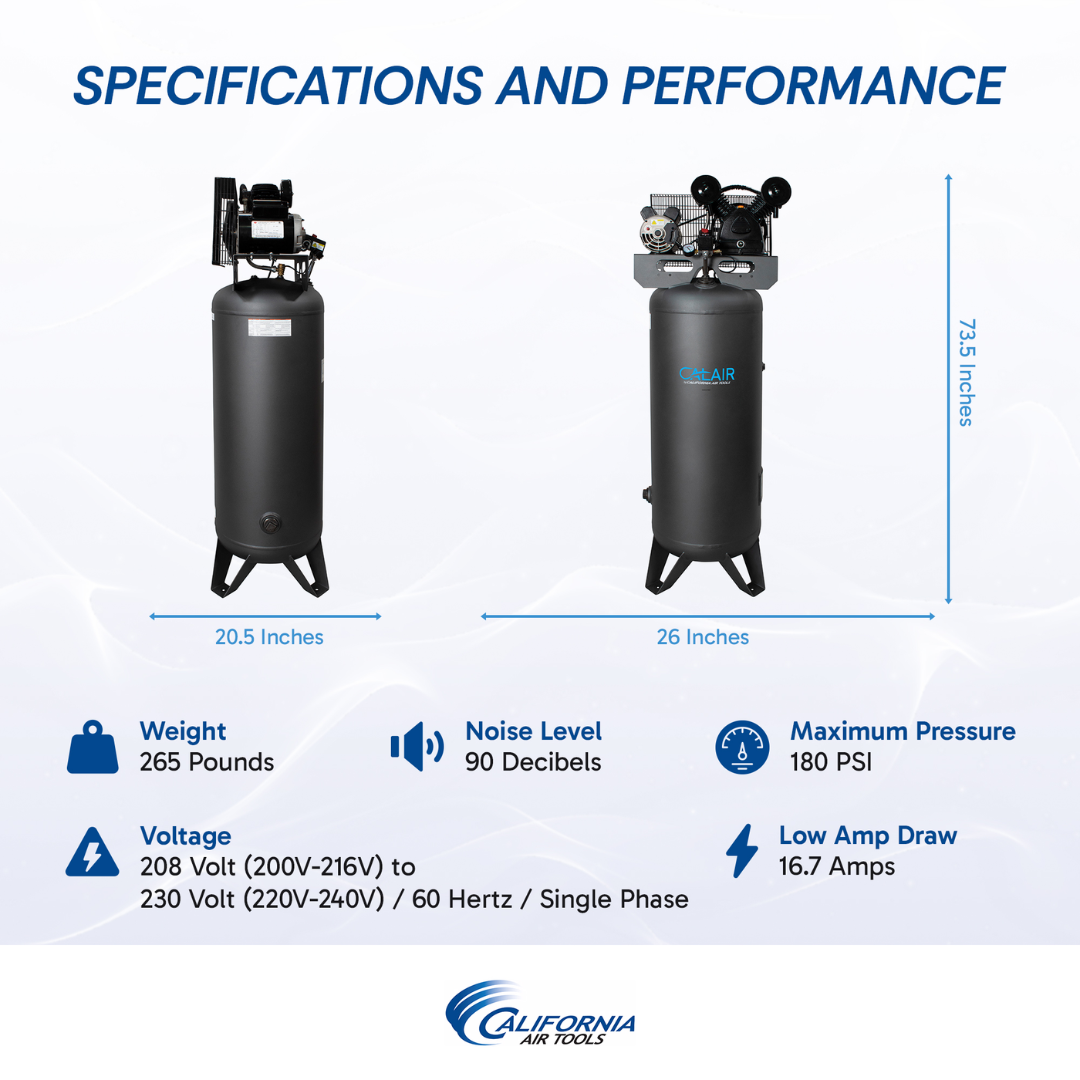

| Model | CALAIR 60037BD |
|---|---|
| Motor | 3.7 HP Electric Motor (Single Phase) |
| Voltage | 208V – 230V / 60 Hz |
| Amperage | 16.7 Amps |
| Pump Type | Single-Stage, 2-Cylinder, Oil-Lubricated Belt-Driven |
| Air Tank Capacity | 60 Gallon ASME Certified Steel Tank |
| CFM @ 90 PSI | 11.5 CFM |
| CFM @ 40 PSI | 13.6 CFM |
| Working Pressure | 125 – 155 PSI |
| Maximum Tank Pressure | 180 PSI |
| Noise Level | 90 dB |
| Output Port | 1/2" NPT |

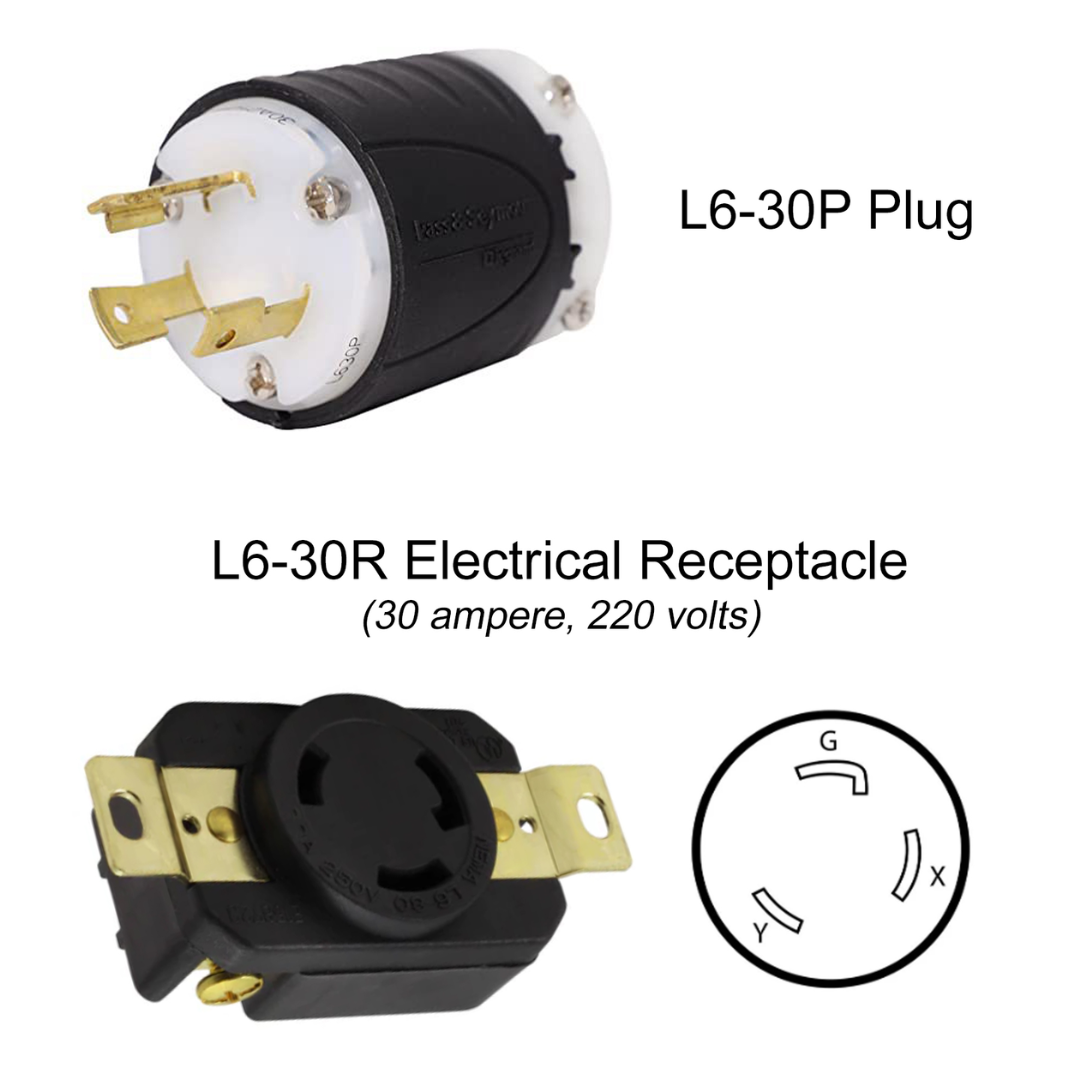

| Plug Type | NEMA L6-30P |
| Dimensions (L × W × H) | 26" × 20.5" × 73.5" |
| Weight | 265 lbs |

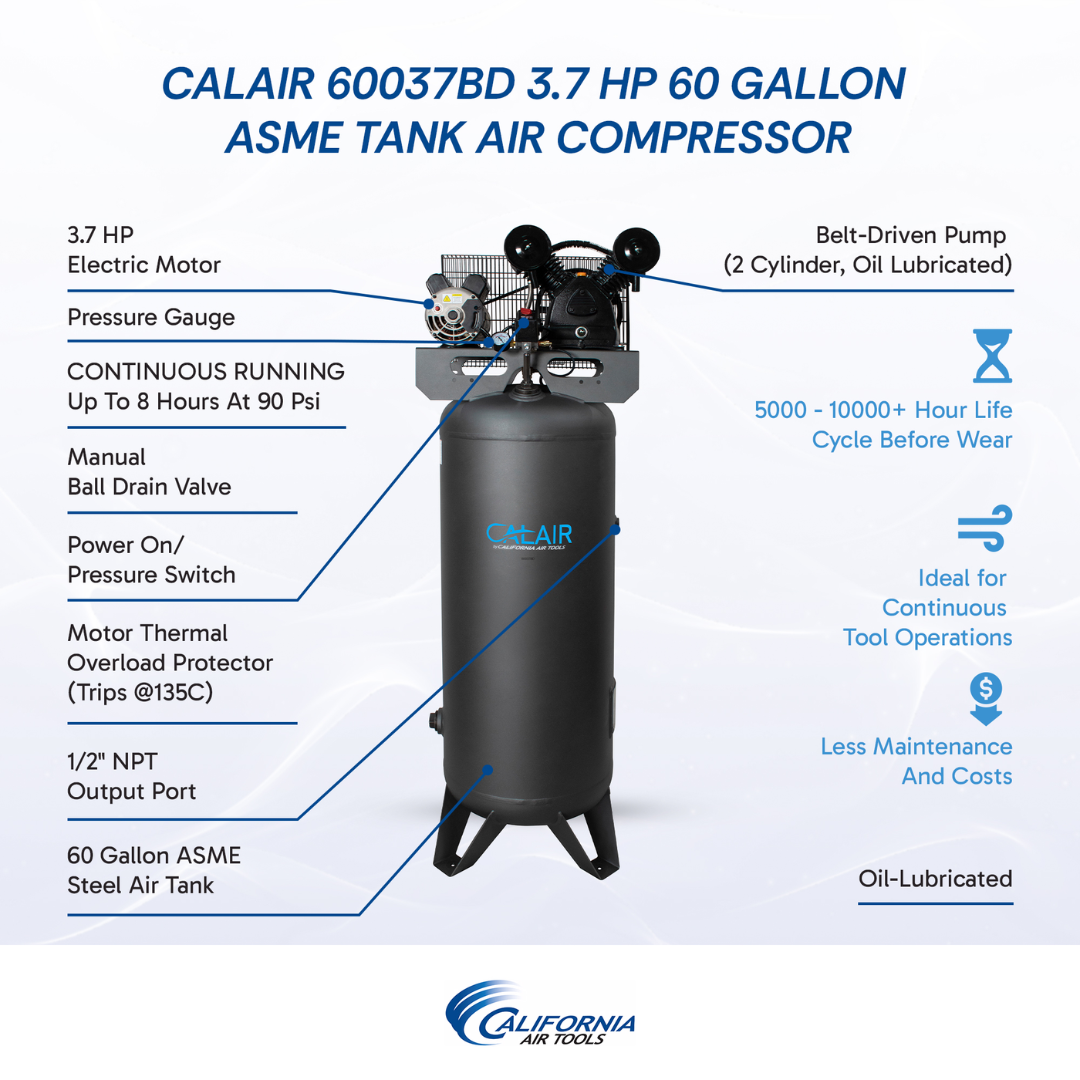

California Air Tools CALAIR 60037BD 60 Gal 3.7 hp One-Stage Oil-Lubricated Belt Driven Air Compressor Performance & Construction
- Continuous Run Capability: Designed to operate up to 8 hours continuously (10-hour max), ideal for production environments.

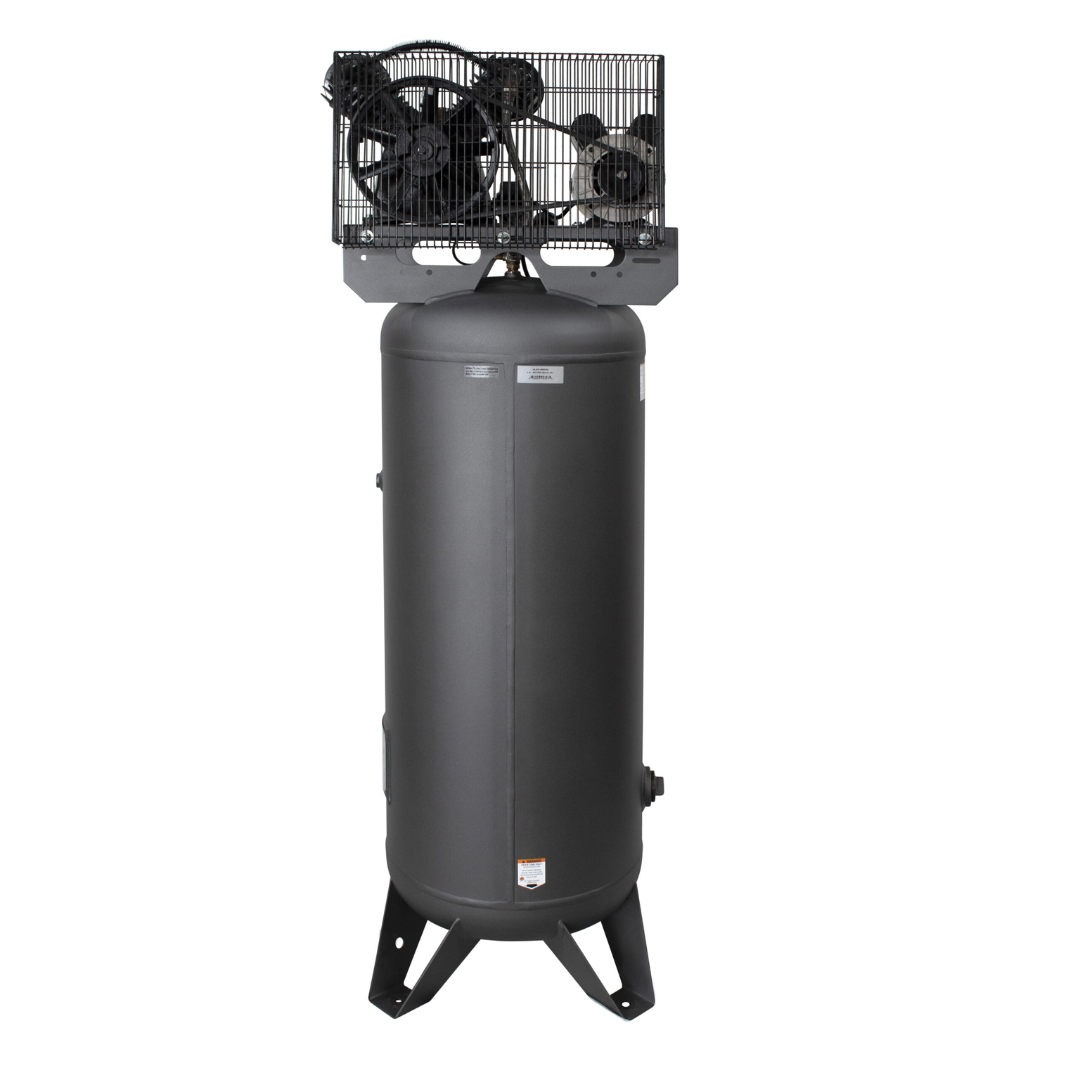

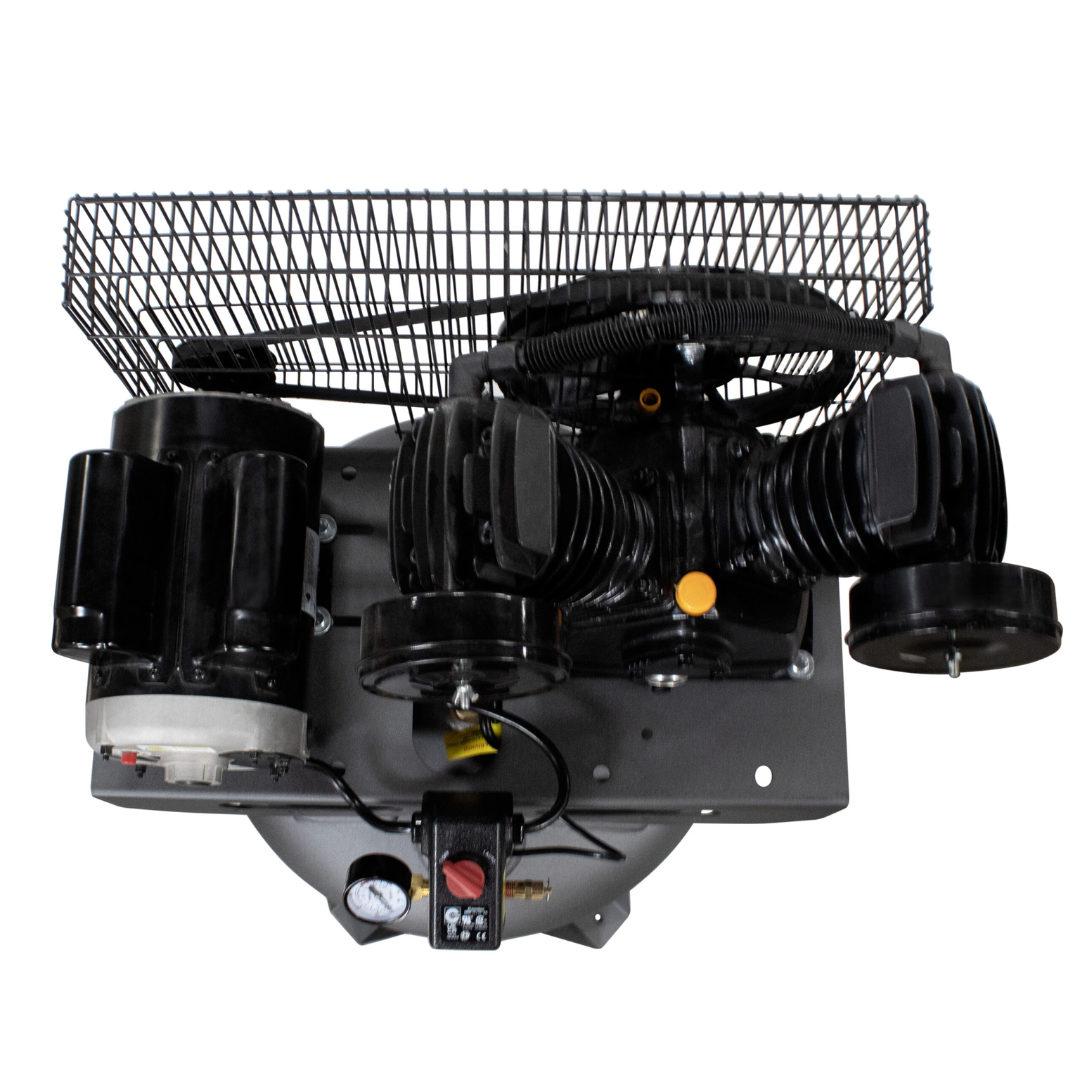

- Heavy-Duty Belt-Driven Pump: Oil-lubricated dual-cylinder system ensures efficient cooling, reduced wear, and extended service life.

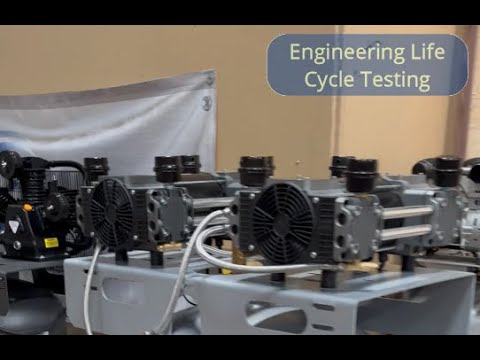

- Long Pump Life: Engineered for 5,000 to 10,000 hours of operation before maintenance is required.

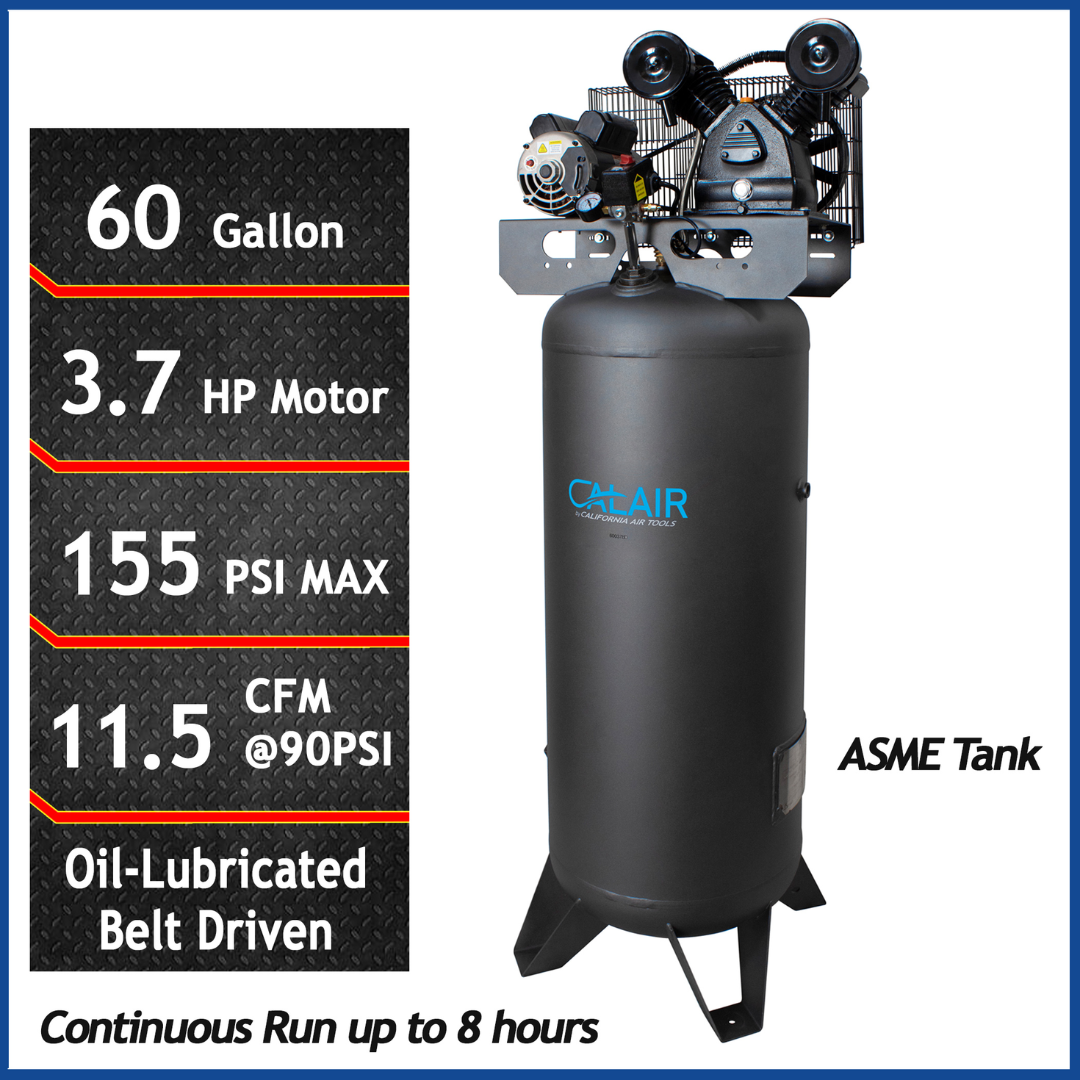

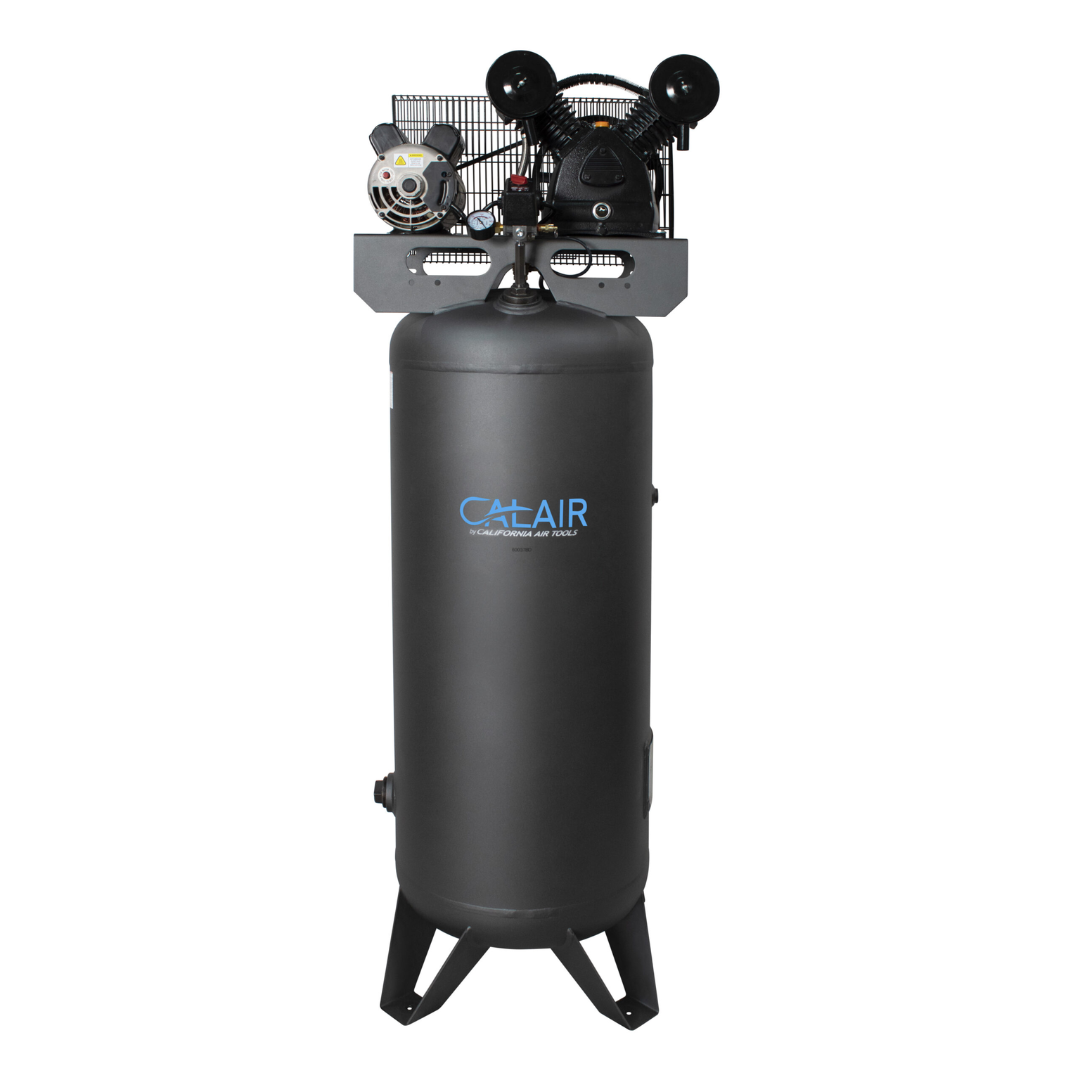

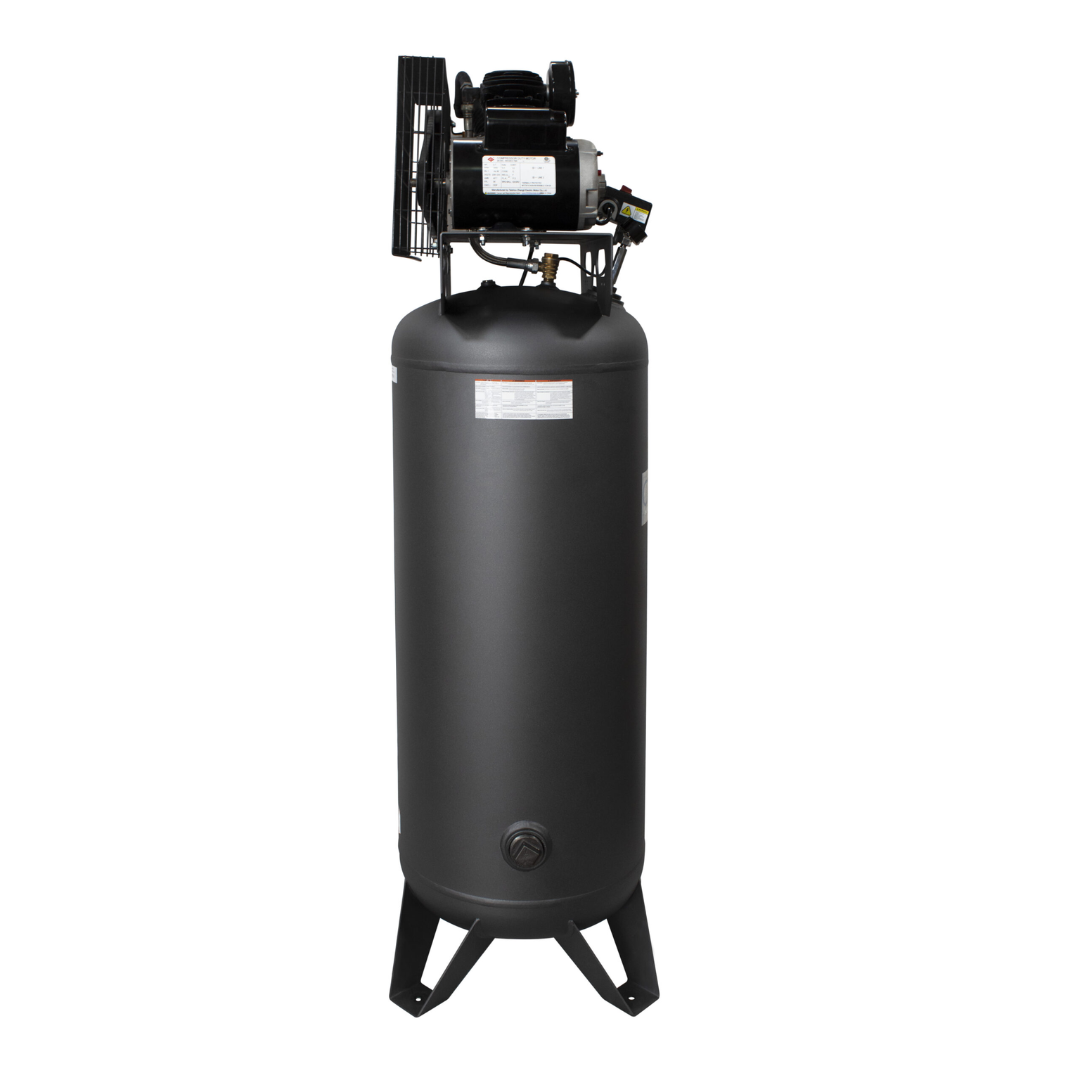

- ASME Certified Steel Tank: 60-gallon vertical tank provides ample air storage and meets safety standards.
- Fast Recovery Performance: Recovers from 125 PSI to 155 PSI in just 1 minute 37 seconds.
- Quick Fill Time: Fills tank from empty to full (155 PSI) in approximately 6 minutes 52 seconds.
- Thermal Overload Protection: Motor protection system trips at 135°C to prevent overheating.

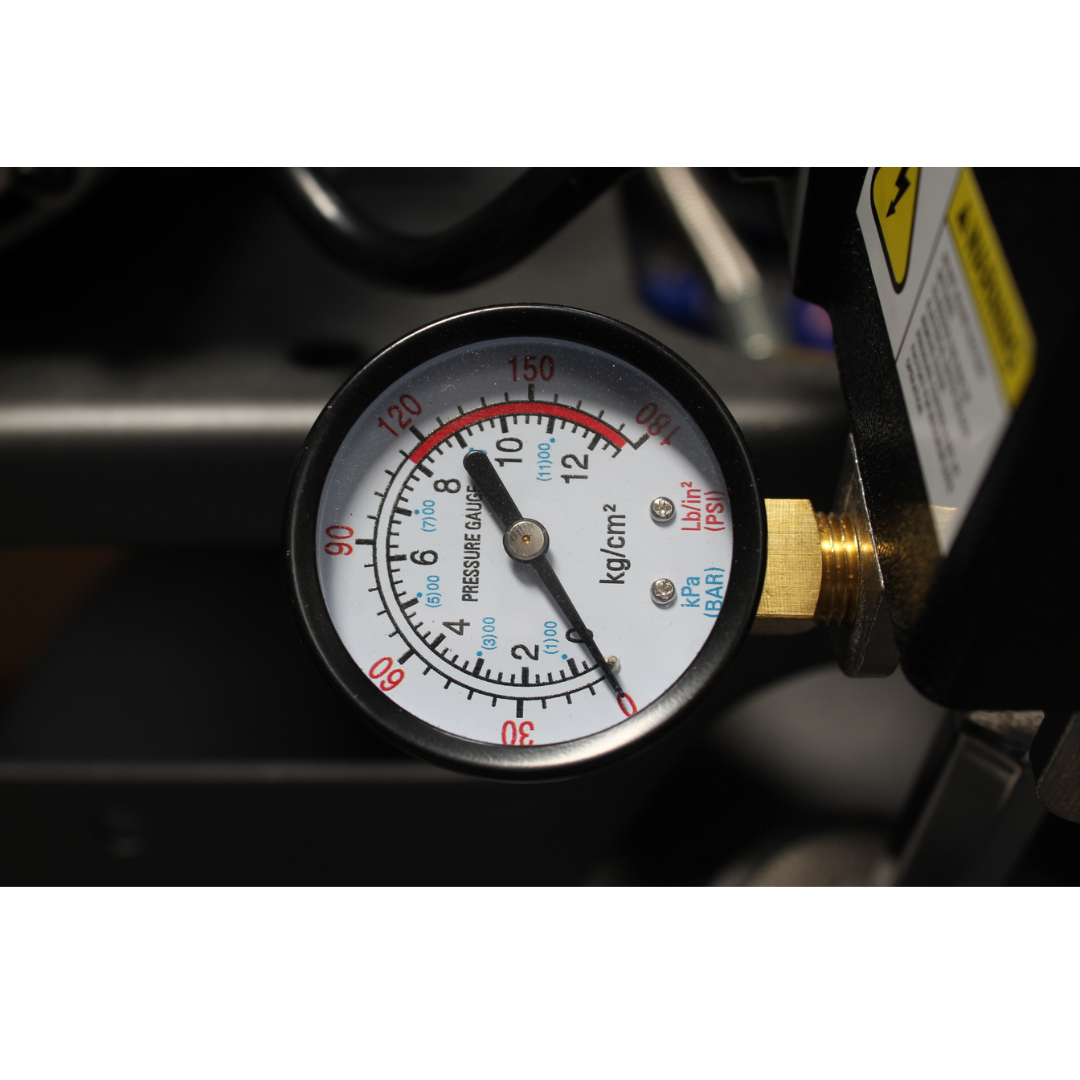

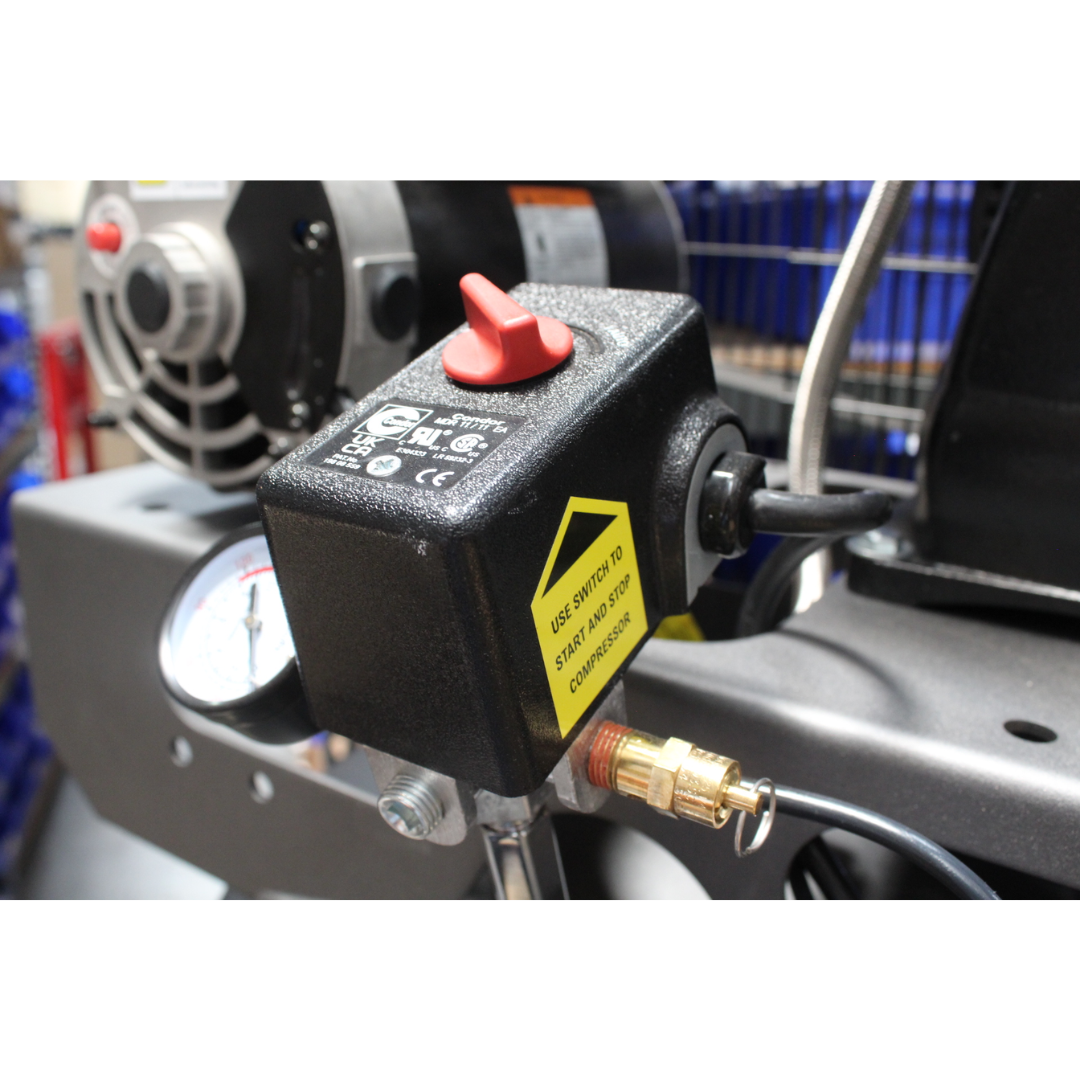

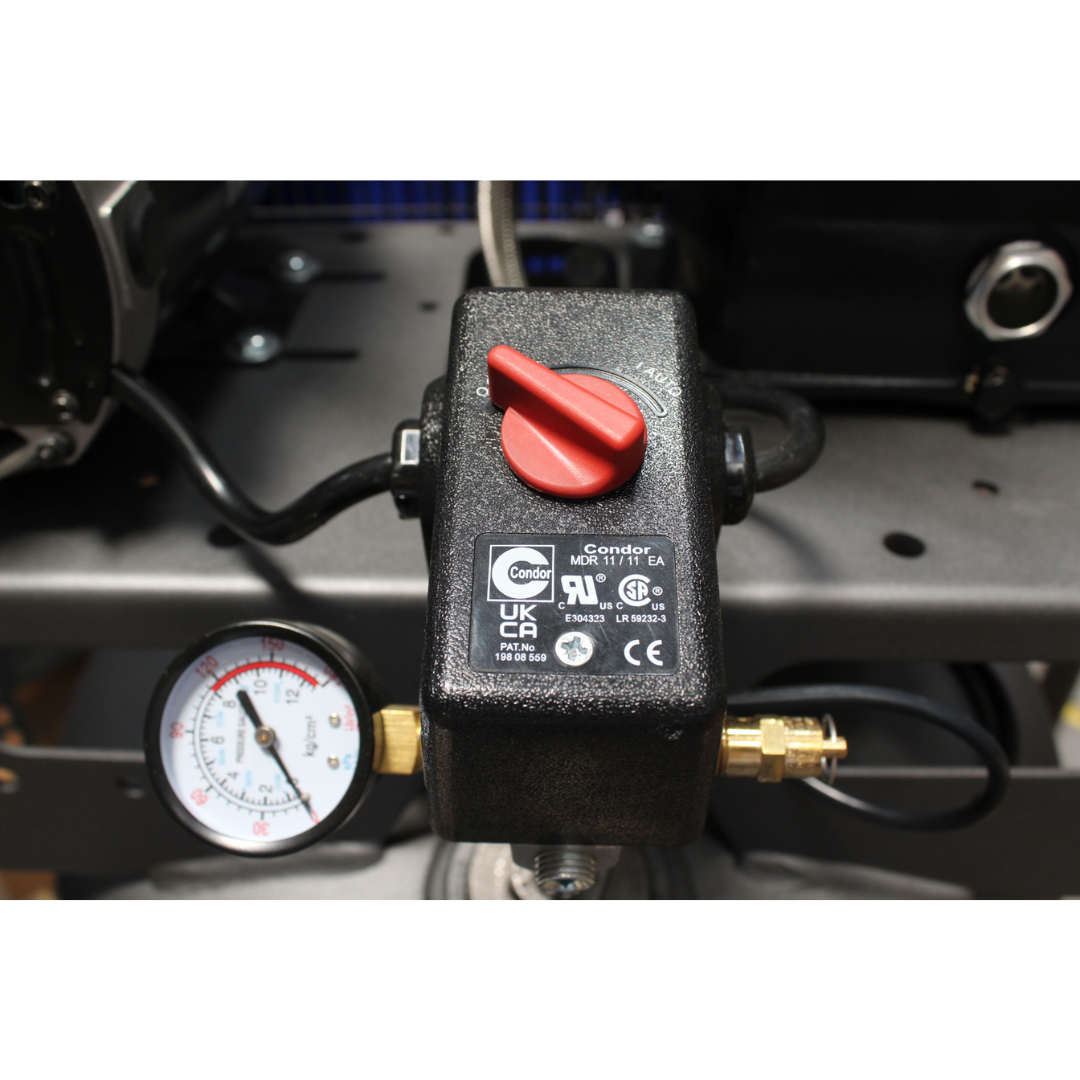

- Industrial Controls: Includes pressure gauge, power switch, and pressure switch for precise operation.

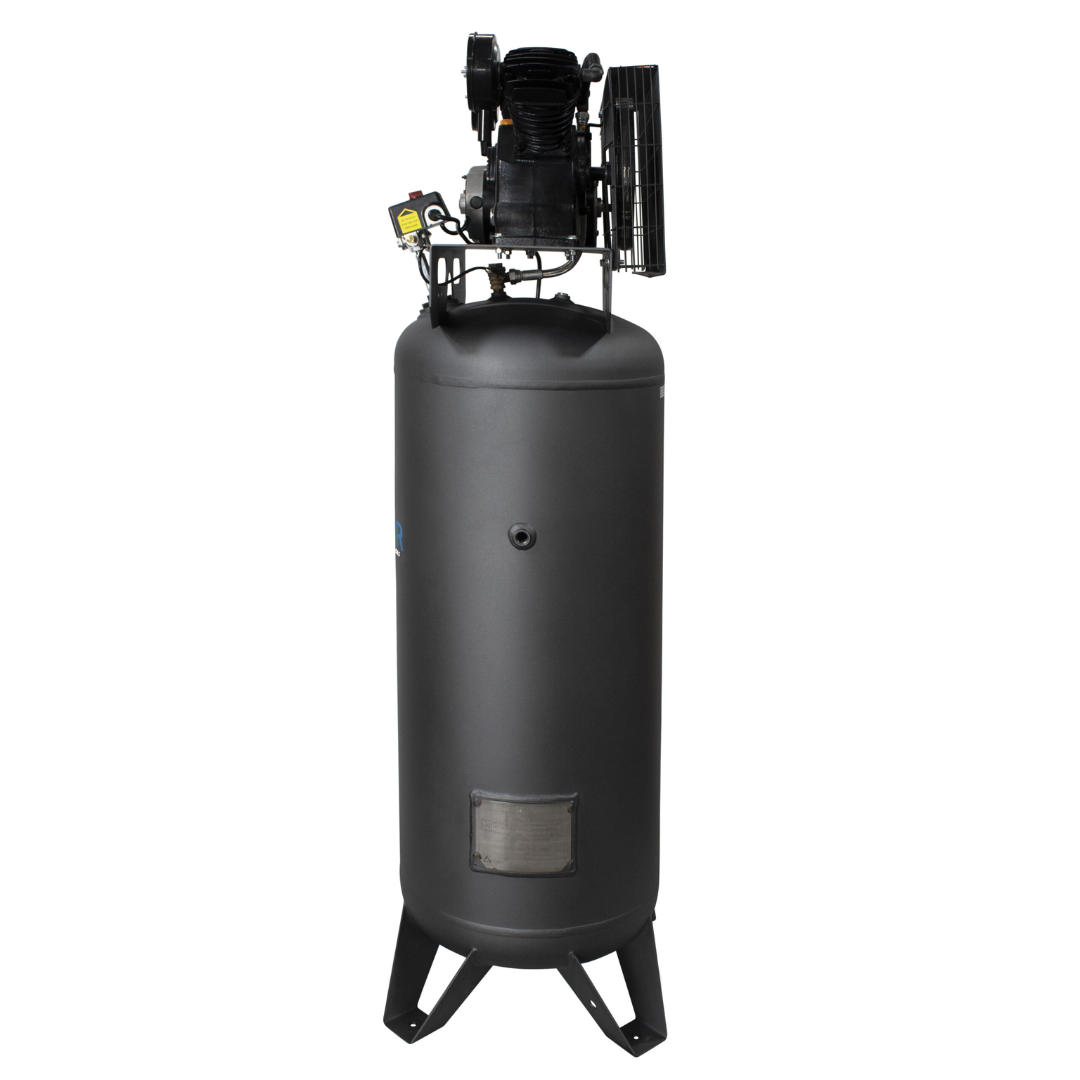

- Durable Construction: Built for commercial environments with stable base and heavy-duty components.
- Manual Drain & Safety Valve: Equipped with manual ball drain valve and 200 PSI safety relief valve.
Why Choose the California Air Tools CALAIR 60037BD 60 Gal 3.7 hp One-Stage Oil-Lubricated Belt Driven Air Compressor
- Continuous-duty performance for extended work cycles.
- High airflow output up to 11.5 CFM @ 90 PSI for demanding tools.
- Durable oil-lubricated pump with long operational lifespan.
- Large ASME-certified tank for consistent air supply.
- Designed for commercial reliability in workshops and industrial settings.
The California Air Tools CALAIR 60037BD 60 Gal 3.7 hp One-Stage Oil-Lubricated Belt Driven Air Compressor is built for professionals who need dependable airflow, long runtime capability, and rugged construction for daily operational demands.
