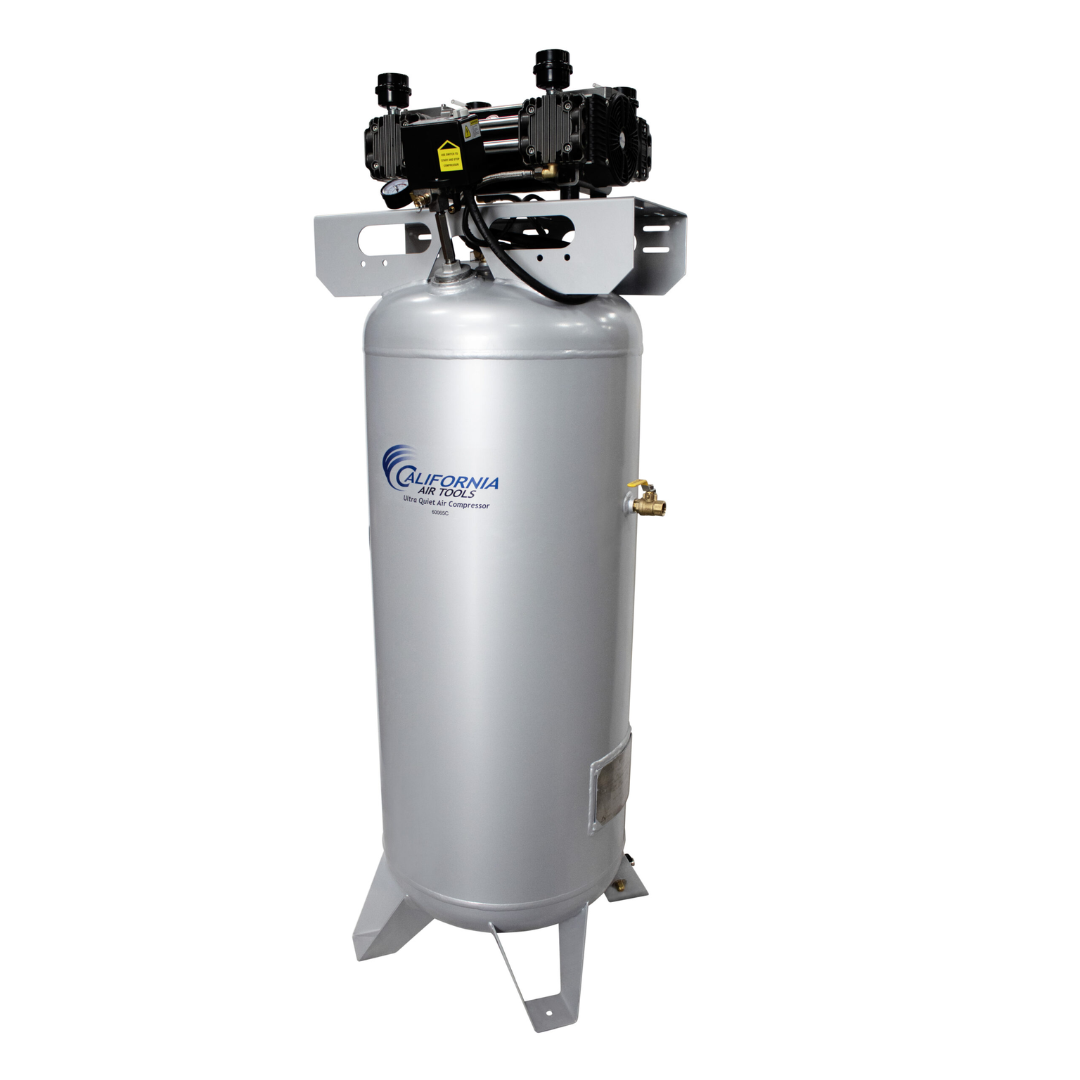

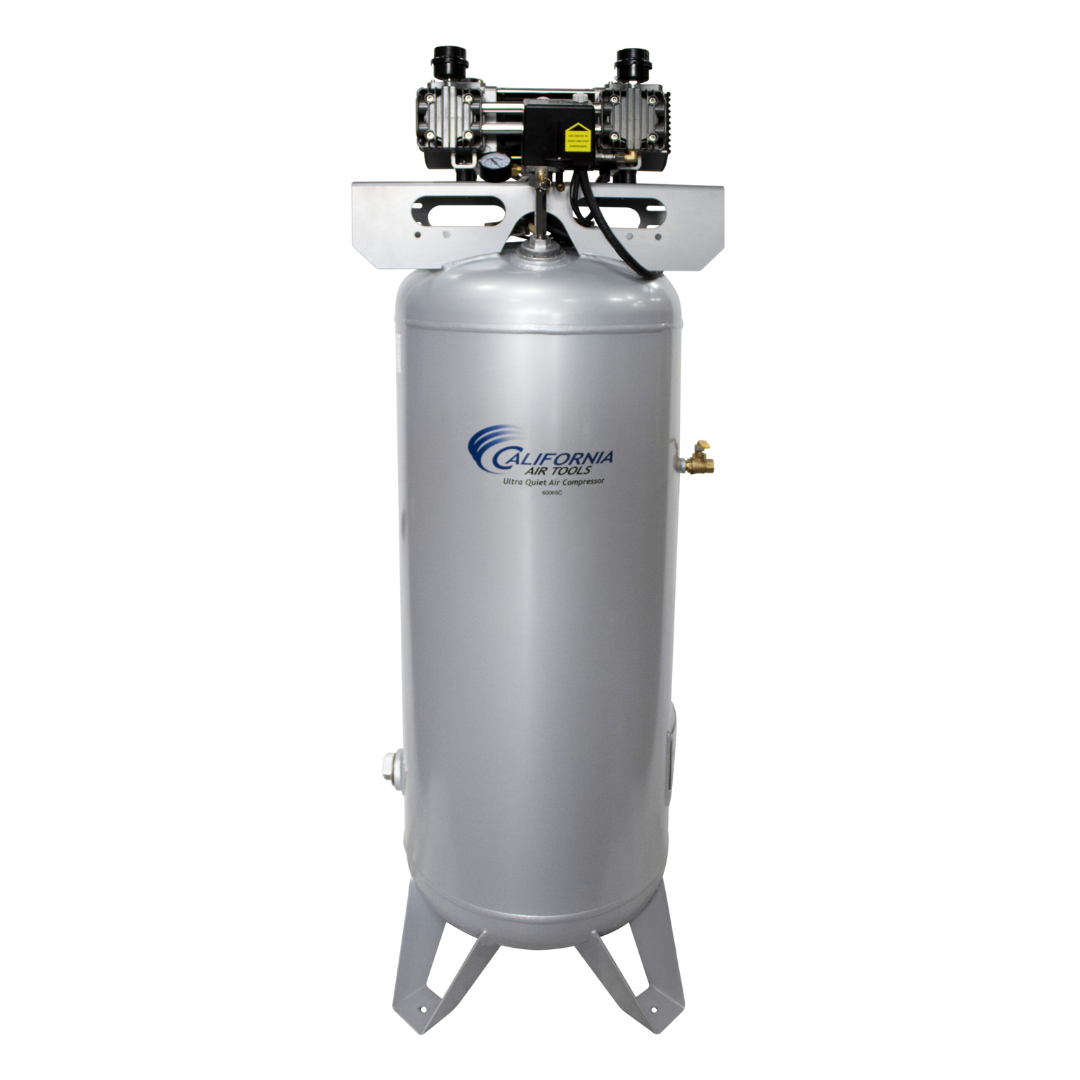

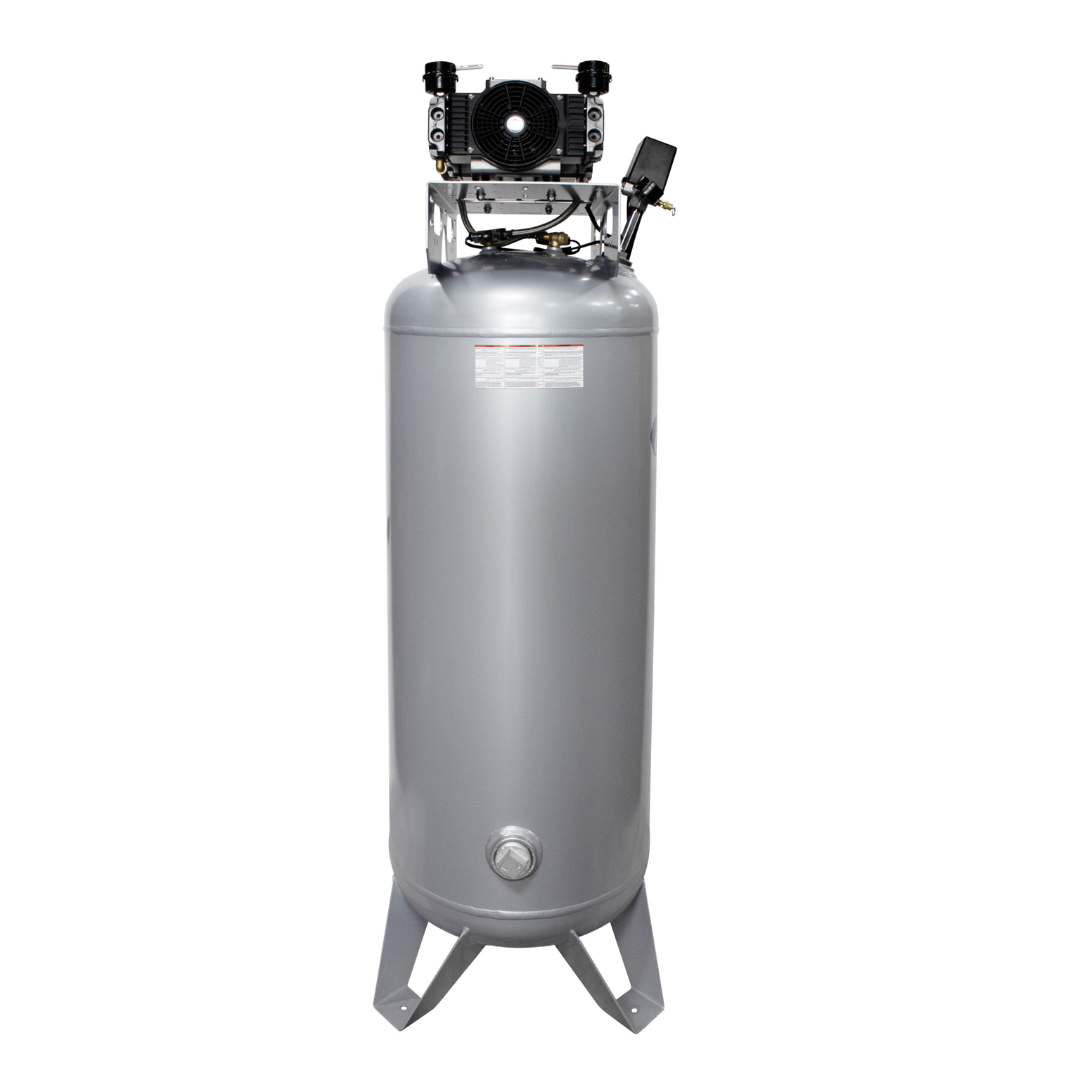

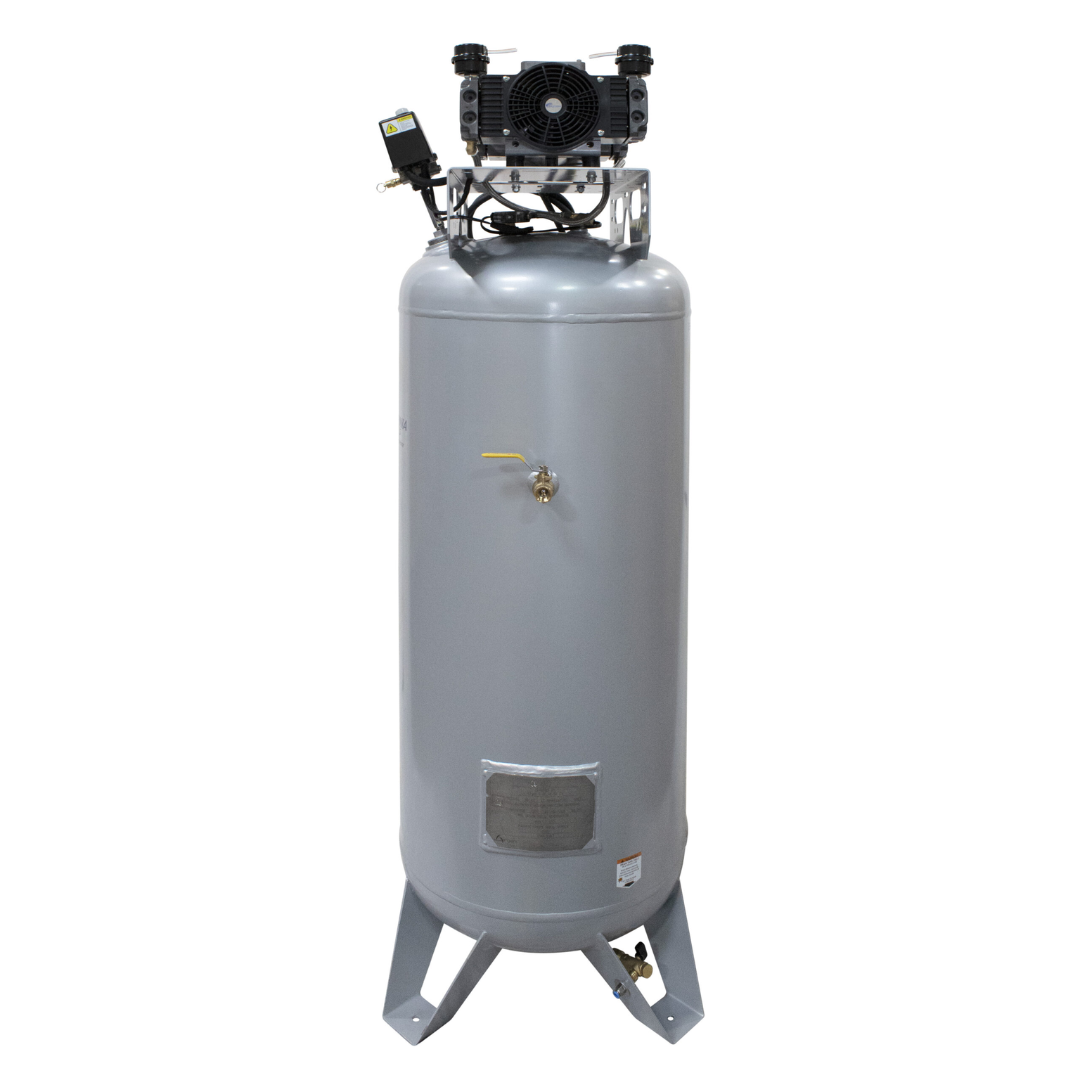

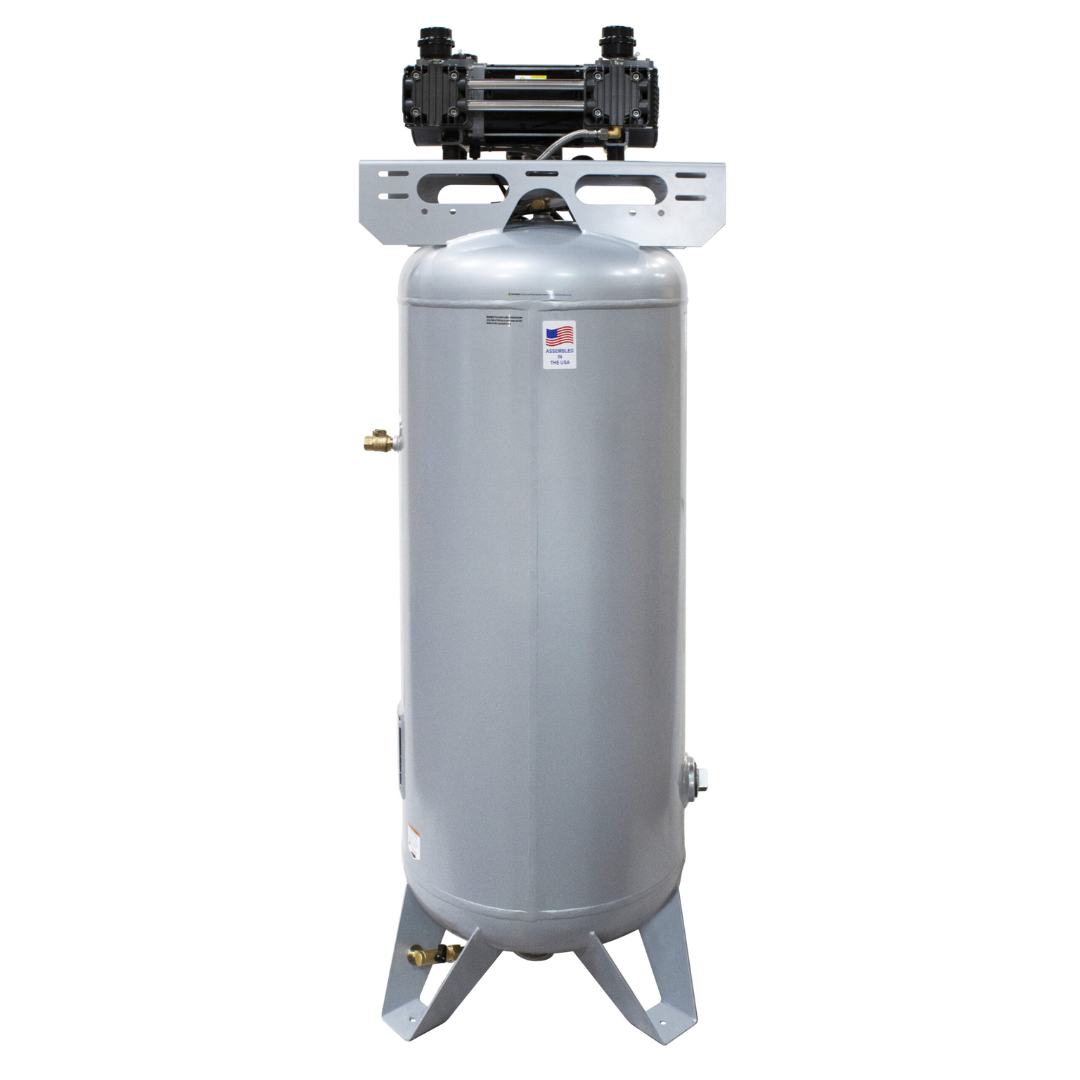

CALIFORNIA AIR TOOLS 60065C Powerful 6.5 Hp Ultra Quiet & Oil-Free 60 Gallon ASME Air Compressor Applications
- Industrial manufacturing and production facilities
- Automotive service and heavy-duty repair shops
- CNC machining, fabrication, and assembly lines
- Commercial workshops and maintenance departments
- Applications requiring high CFM airflow with 3-phase power
Ideal for demanding environments that require continuous airflow, durability, and reliable 3-phase operation.
CALIFORNIA AIR TOOLS 60065C Powerful 6.5 Hp Ultra Quiet & Oil-Free 60 Gallon ASME Air Compressor Specifications
| Model | 60065C |
|---|---|
| Motor Power | 6.5 HP (Rated/Running) |

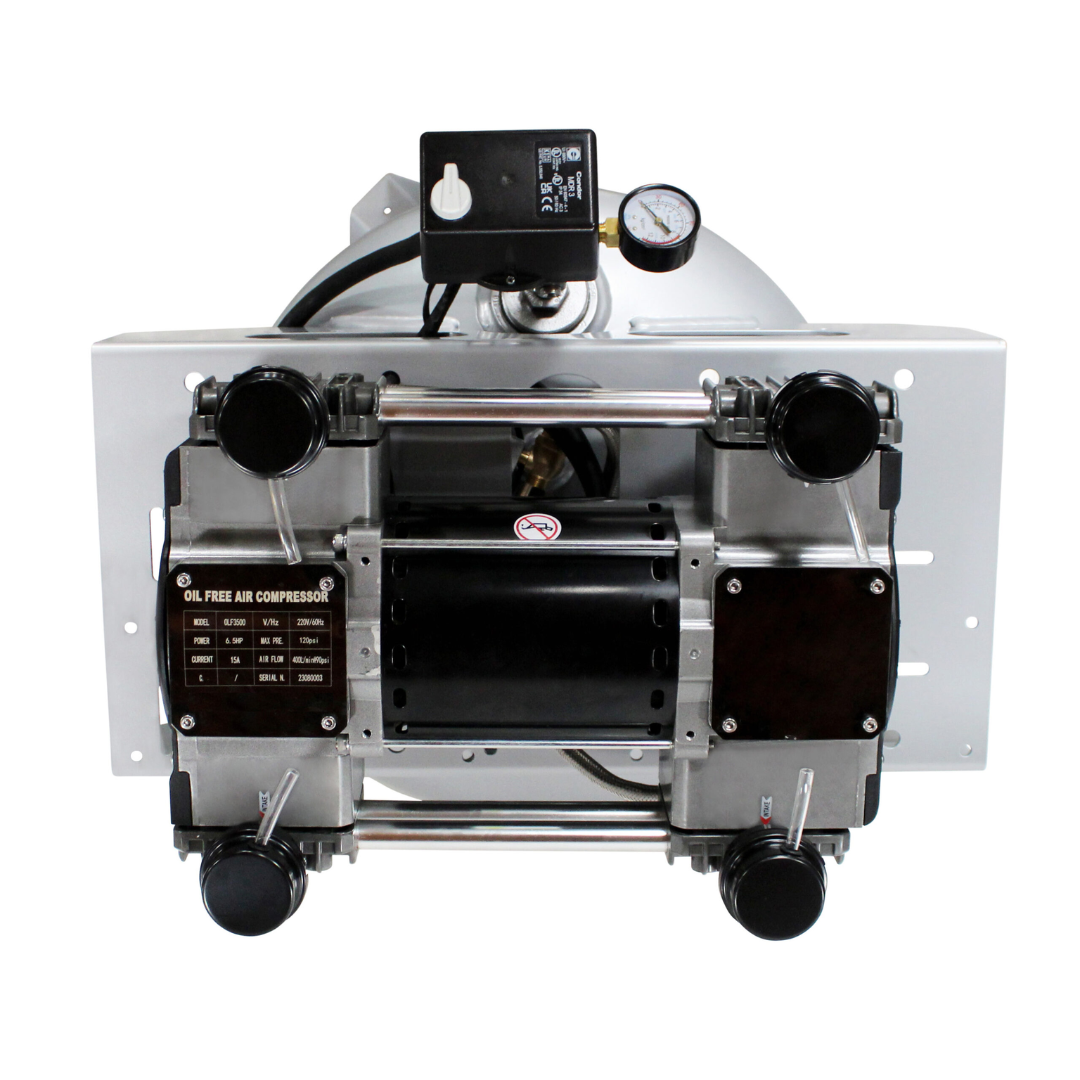

| Motor Type | OLF-3500 Oil-Free Motor/Pump |

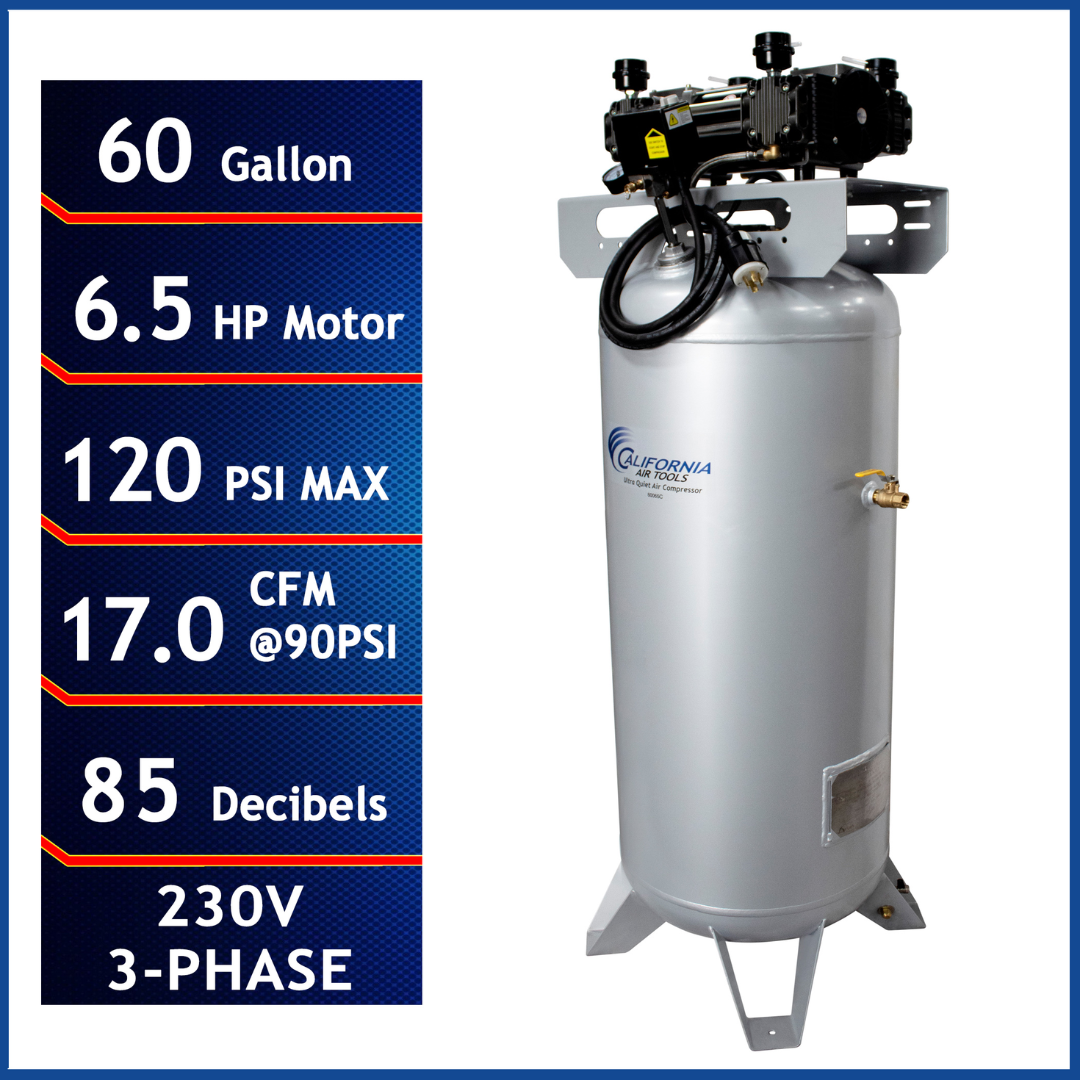

| Tank Size | 60 Gallon ASME Certified Steel |
| Air Flow @ 40 PSI | 20.0 CFM |
| Air Flow @ 90 PSI | 17.0 CFM |
| Maximum Pressure | 120 PSI |
| Noise Level | 85 dB (Ultra Quiet Class) |
| Voltage | 208–230V / 60Hz / 3-Phase |
| Amperage | 15 Amps |
| Recommended Breaker | 20 Amp |
| Duty Cycle | 70/30 |
| Tank Fill Time | 191 Seconds |
| Recovery Time | 35 Seconds (92 PSI to 120 PSI) |
| Tank Rating | 155 PSI ASME Certified |
| Air Outlet | 1/2" NPT Female Port |

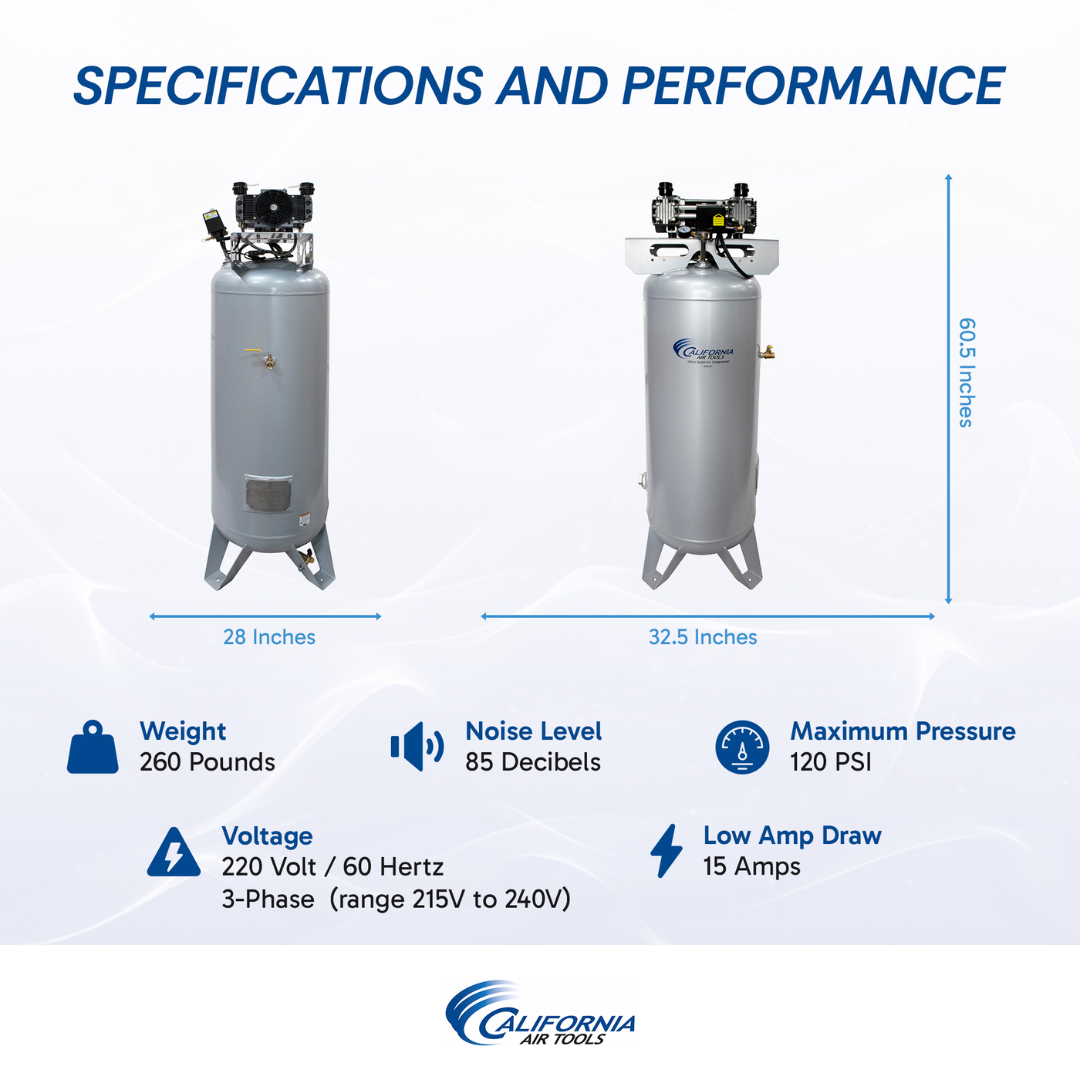

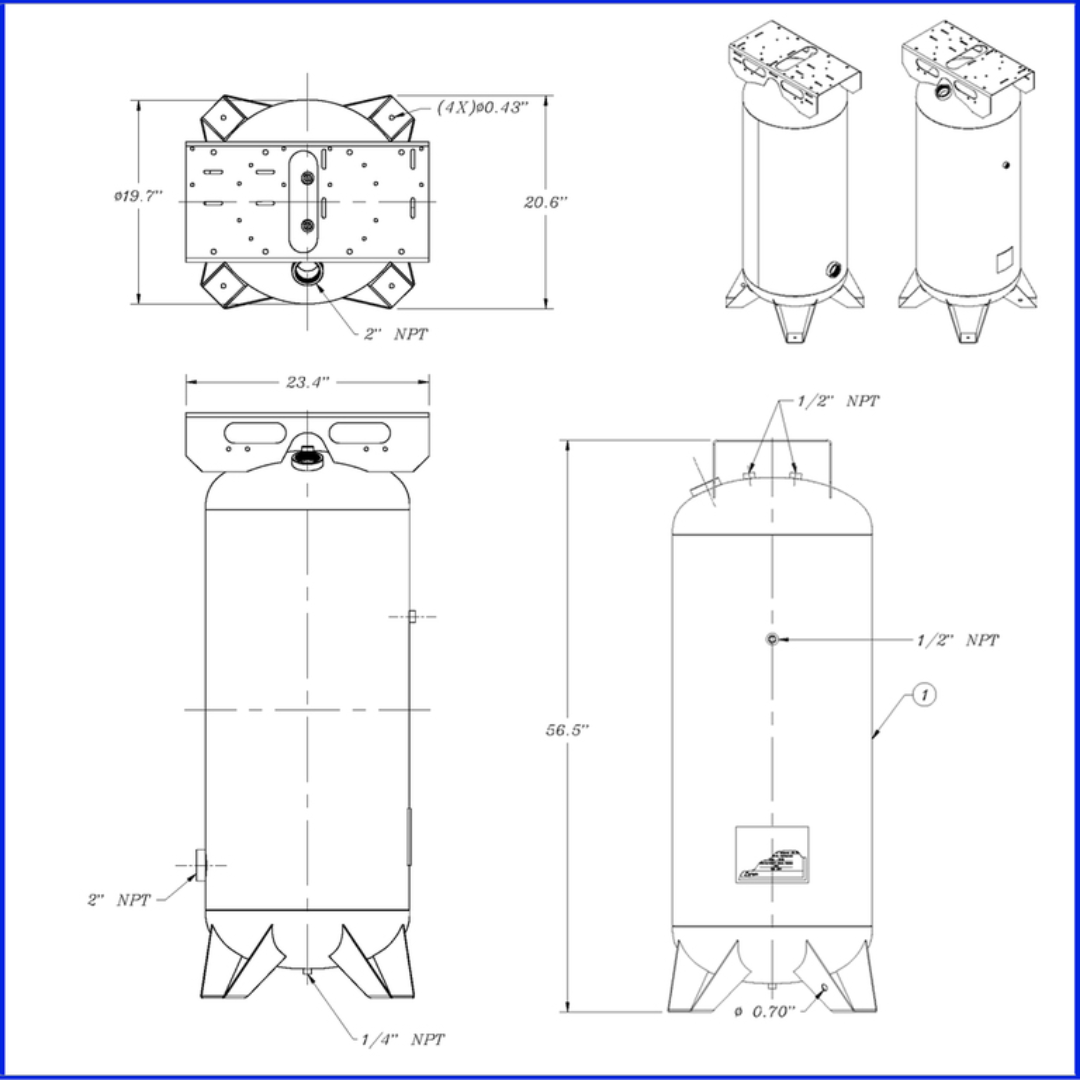

| Dimensions (L × W × H) | 32.5" × 28" × 60.5" |
| Weight | 260 lbs |

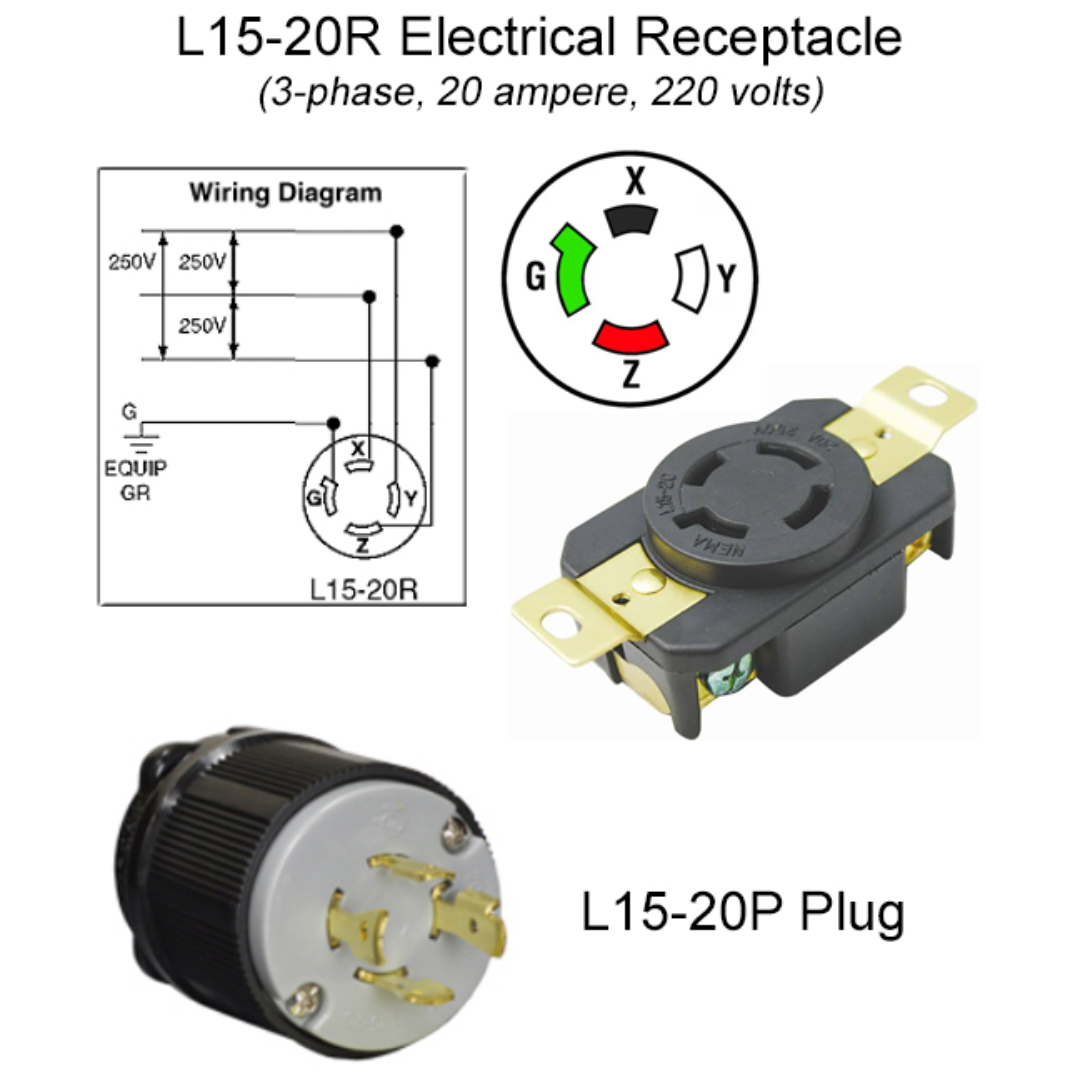

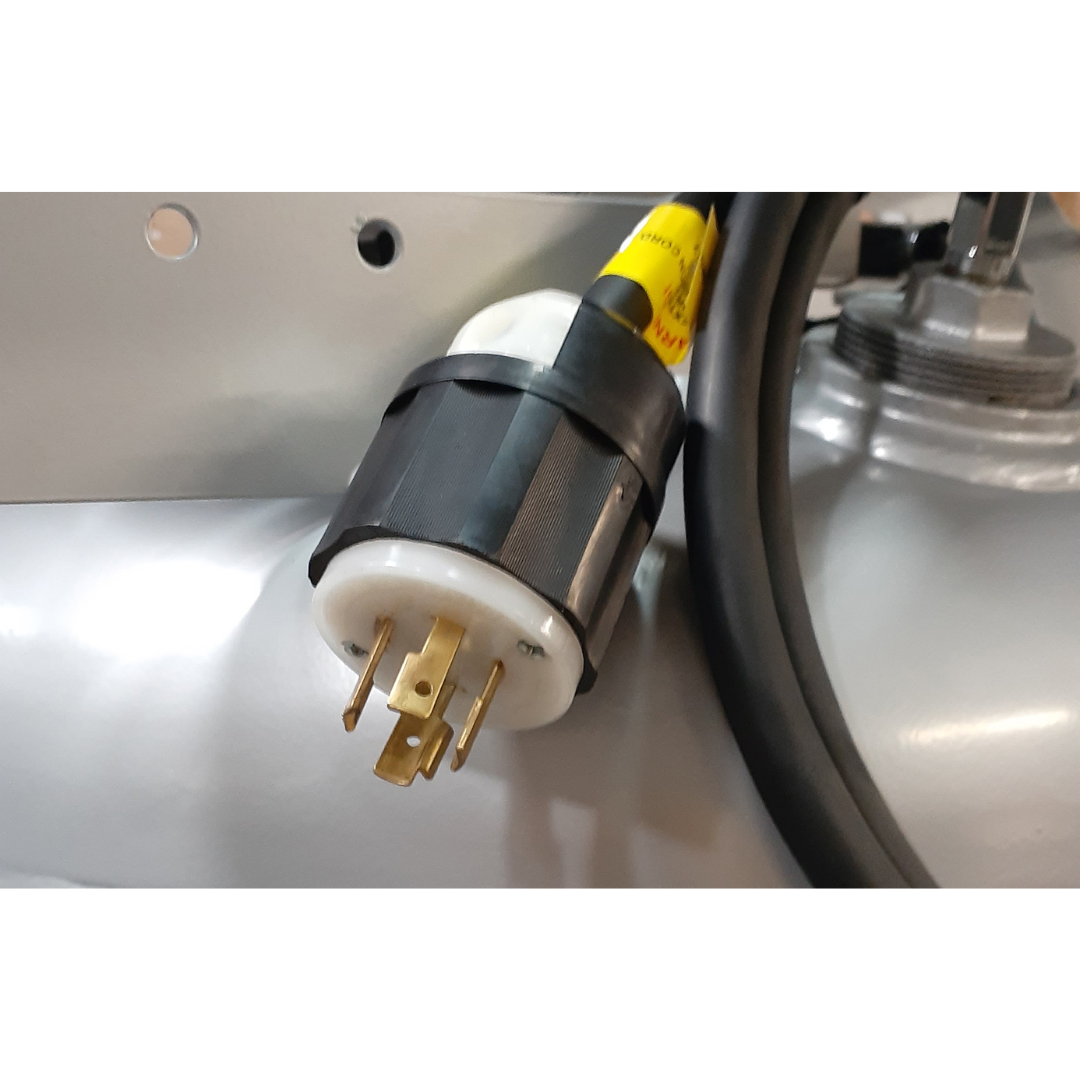

| Plug Type | NEMA L15-20P (7 ft cord) |

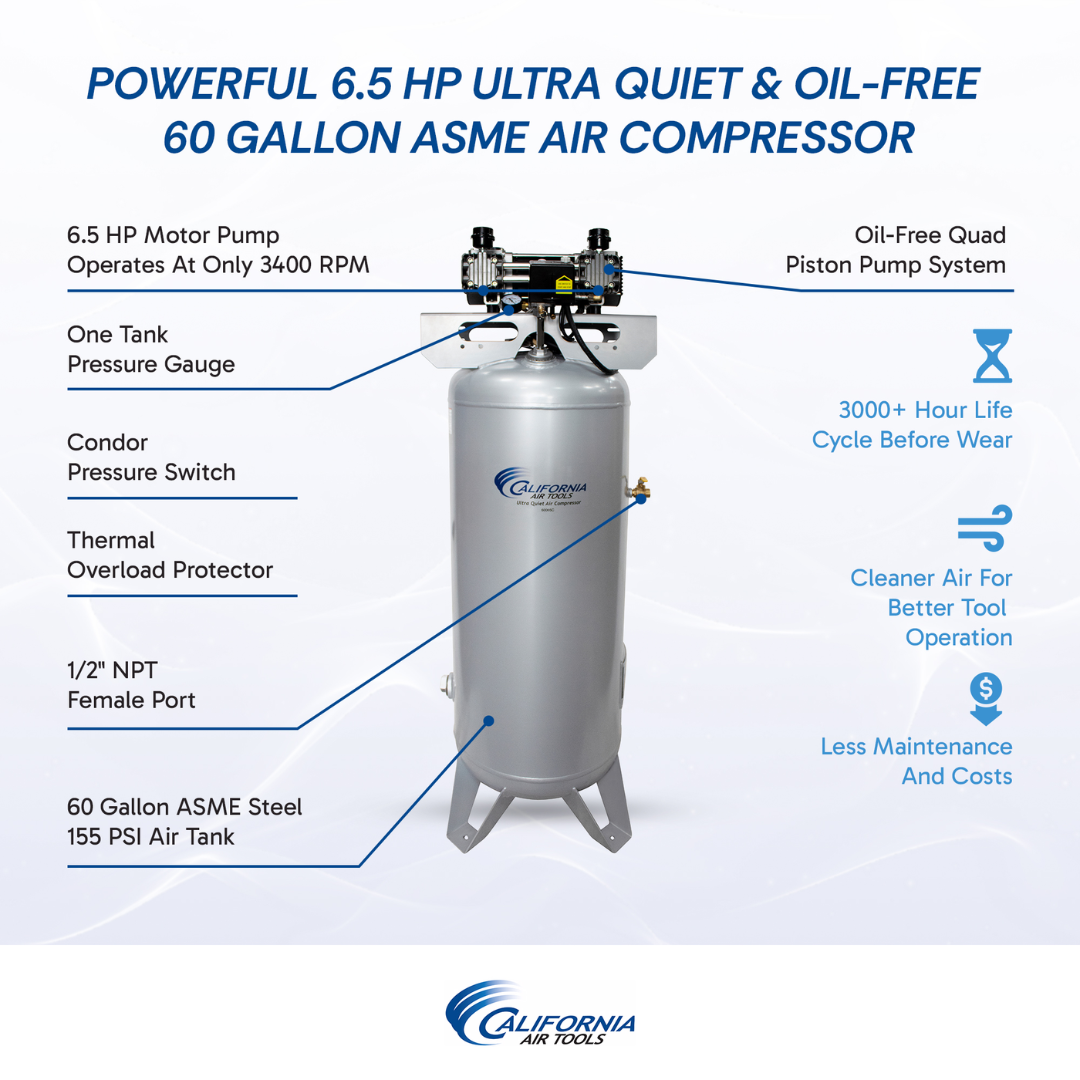

CALIFORNIA AIR TOOLS 60065C Powerful 6.5 Hp Ultra Quiet & Oil-Free 60 Gallon ASME Air Compressor Performance & Construction
- High Output 6.5 HP Motor – Delivers up to 20.0 CFM for demanding industrial applications.
- Ultra Quiet Performance (85 dB) – Operates significantly quieter than comparable 6.5 HP compressors.

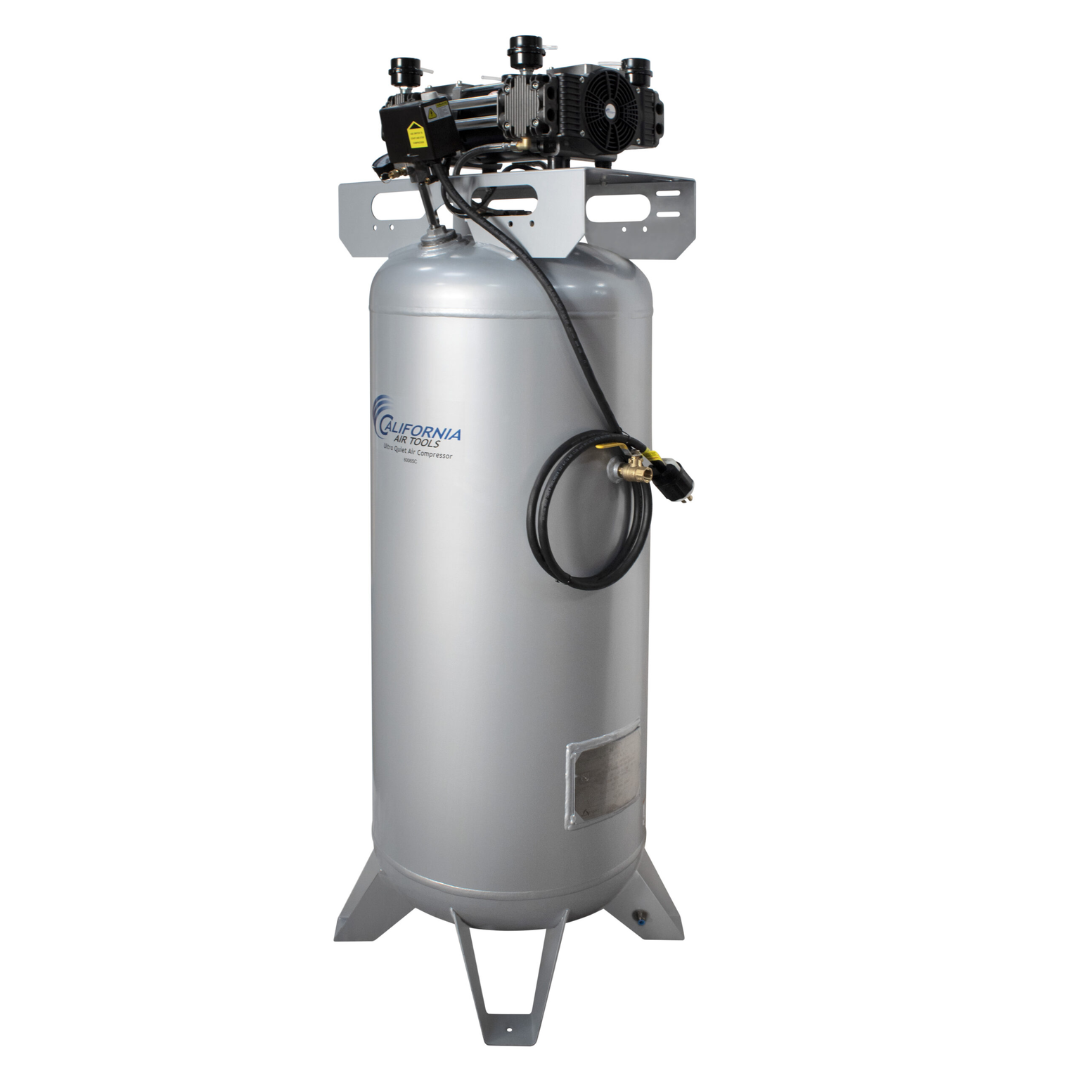

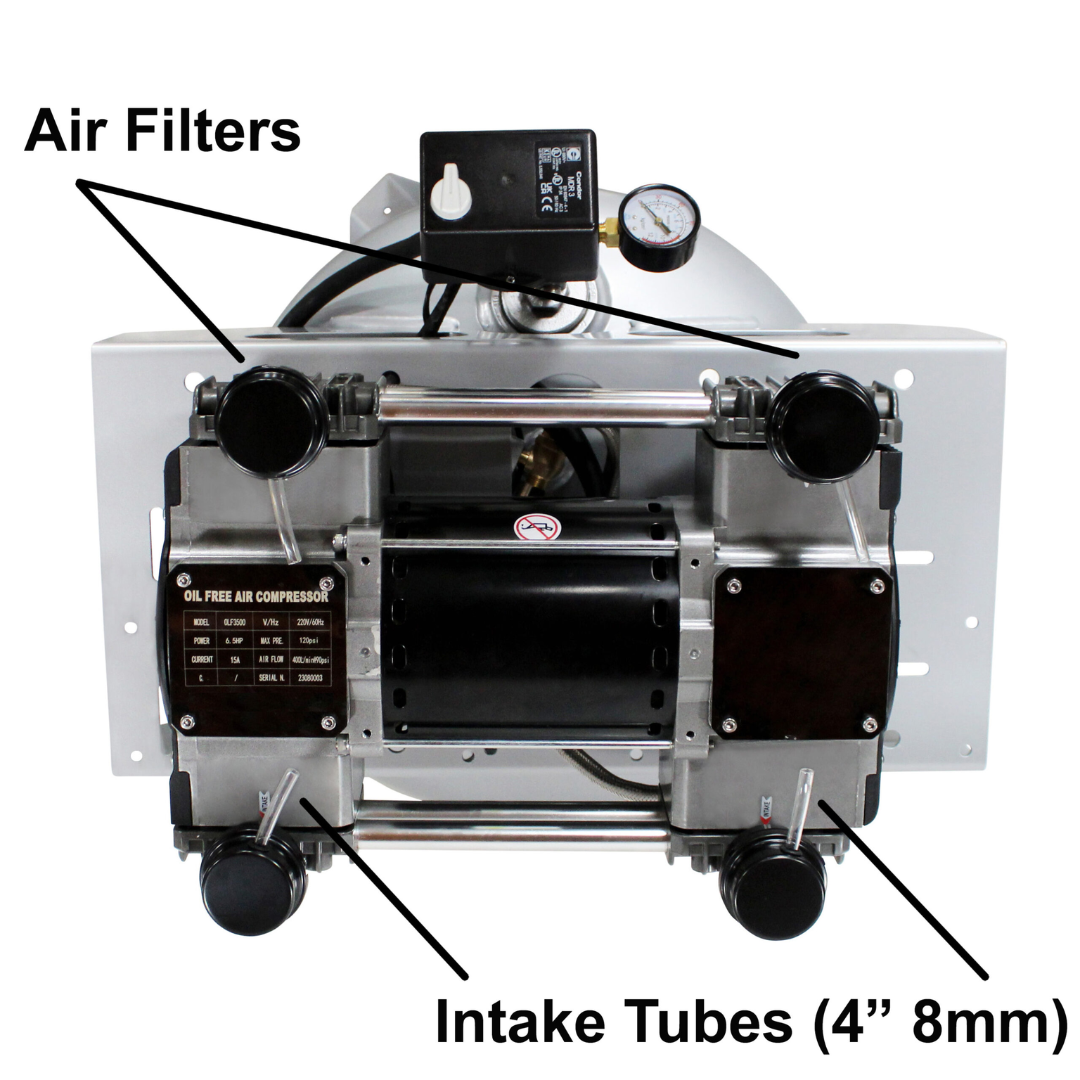

- Oil-Free Dual Piston Pump – Produces clean air while reducing maintenance and eliminating oil contamination.

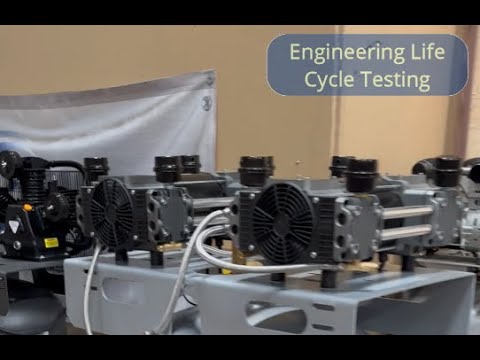

- Extended Pump Life – Engineered for 3000+ hours of operation, doubling lifespan of many standard compressors.
- 3-Phase Power System – Provides consistent, efficient operation for industrial environments.
- Low RPM Operation (1700 RPM) – Reduces wear, vibration, and heat buildup.
- Heavy-Duty ASME Steel Tank – 60-gallon tank rated to 155 PSI for durability and safety.

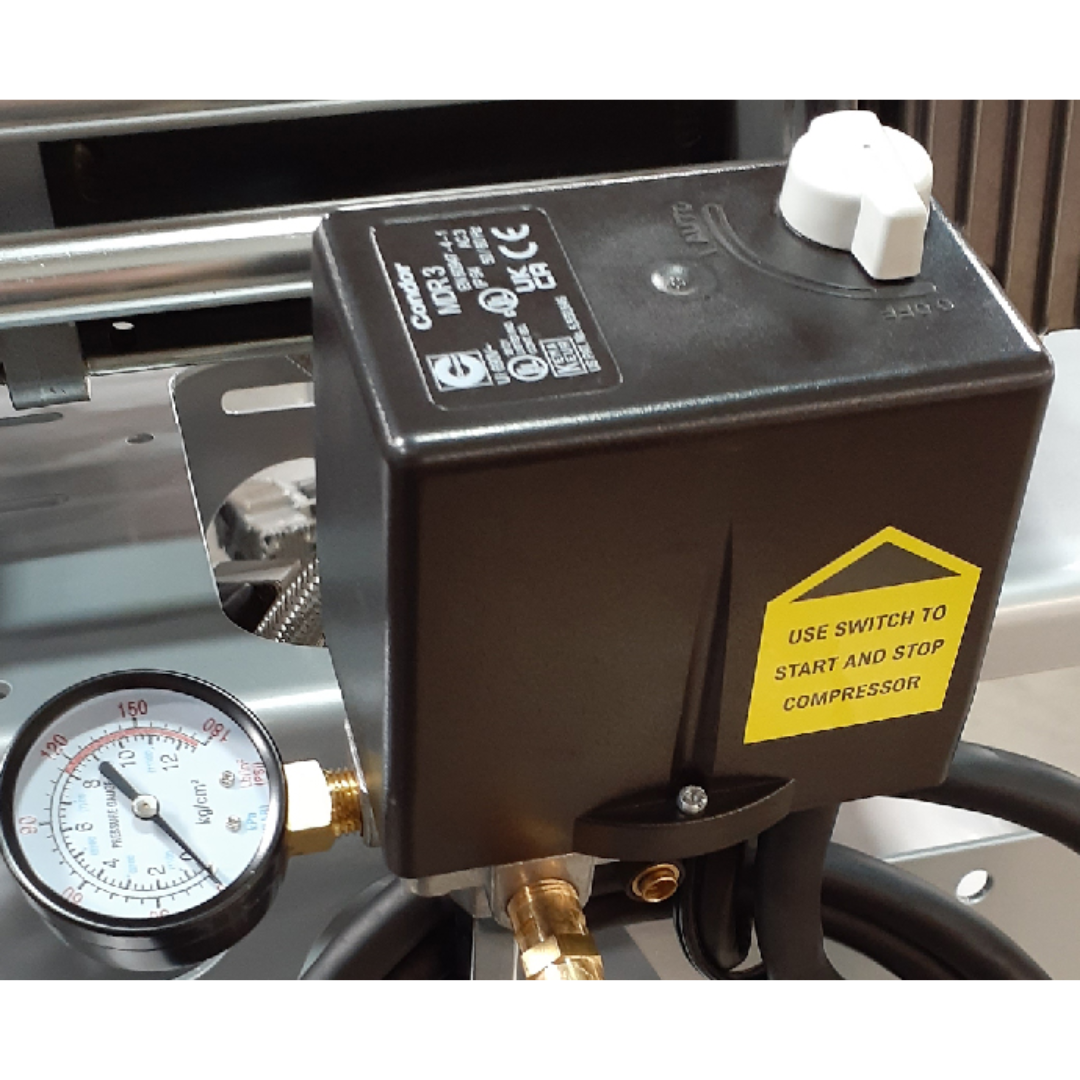

- Condor Pressure Switch – Ensures reliable system control and pressure management.
- Thermal Overload Protection – Protects motor from overheating and electrical damage.

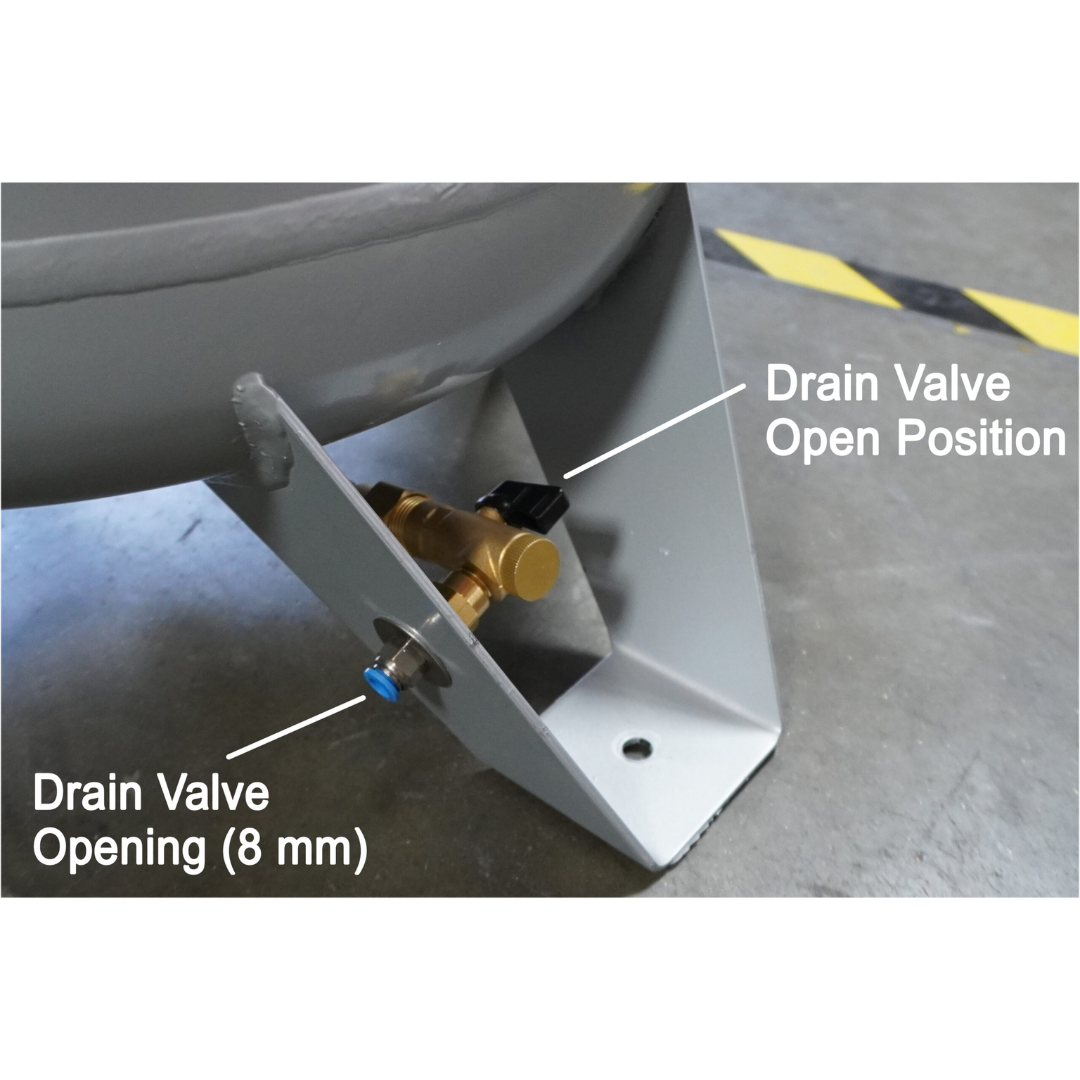

- Manual Drain Valve with Strainer – Allows easy removal of moisture and contaminants from the tank.
- Efficient Heat Dissipation – Lower operating temperatures improve component longevity.

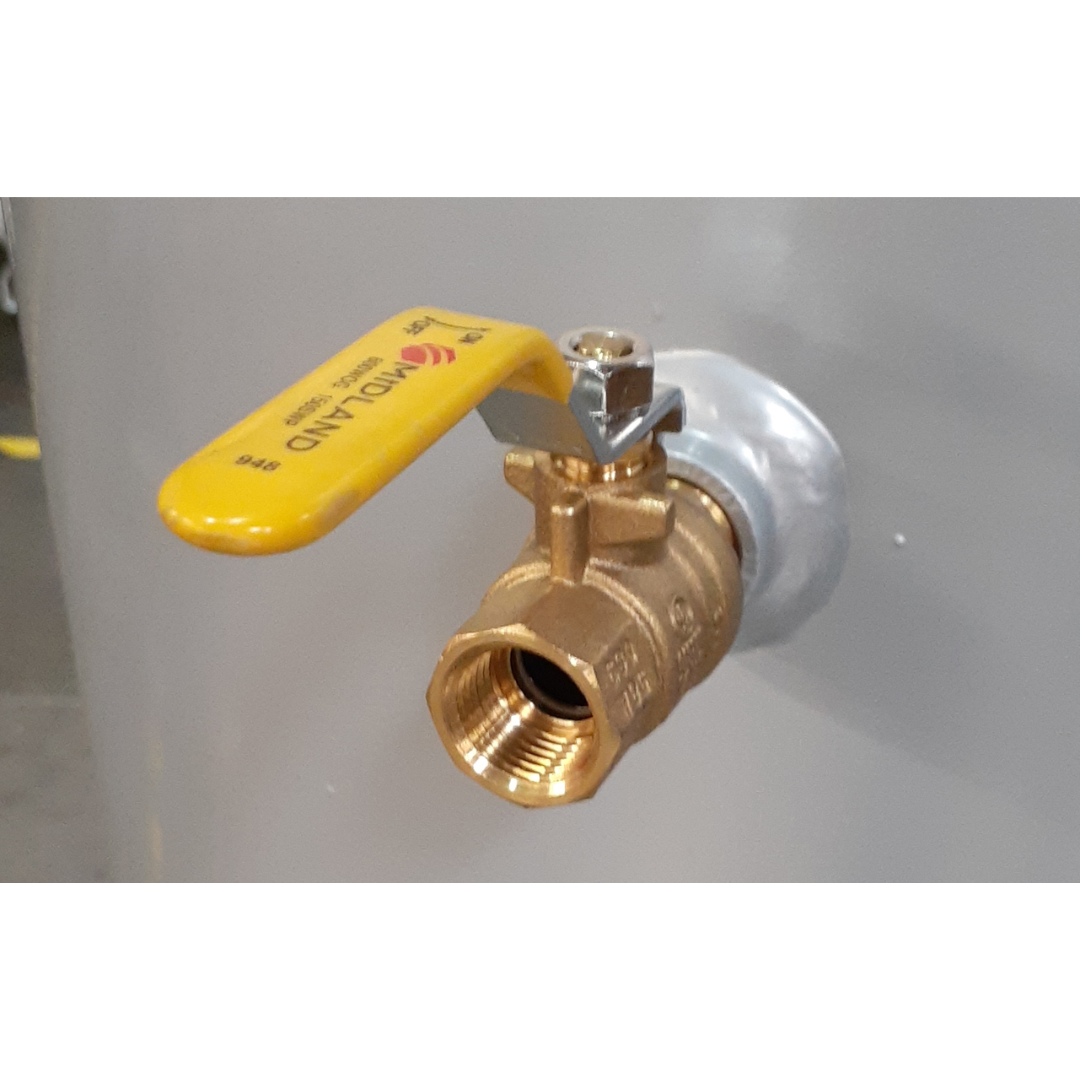

- Industrial Connection – 1/2" NPT outlet supports higher airflow delivery (no regulator included).
Why Choose the CALIFORNIA AIR TOOLS 60065C Powerful 6.5 Hp Ultra Quiet & Oil-Free 60 Gallon ASME Air Compressor
- High CFM output for demanding industrial and commercial applications.
- Reliable 3-phase power for continuous operation.
- Ultra-quiet design reduces workplace noise.
- Oil-free system minimizes maintenance and operating costs.
- Durable ASME-certified tank ensures long-term performance and safety.
The CALIFORNIA AIR TOOLS 60065C Powerful 6.5 Hp Ultra Quiet & Oil-Free 60 Gallon ASME Air Compressor is a powerful, industrial-grade solution designed for professionals who need high airflow, durability, and quieter operation in demanding work environments.
