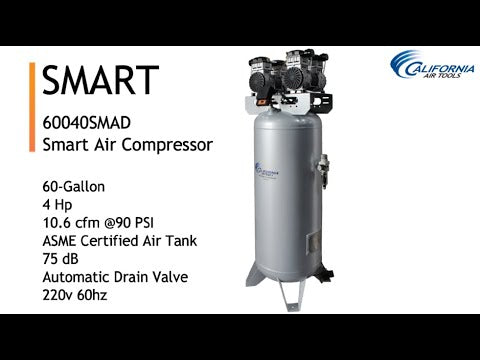

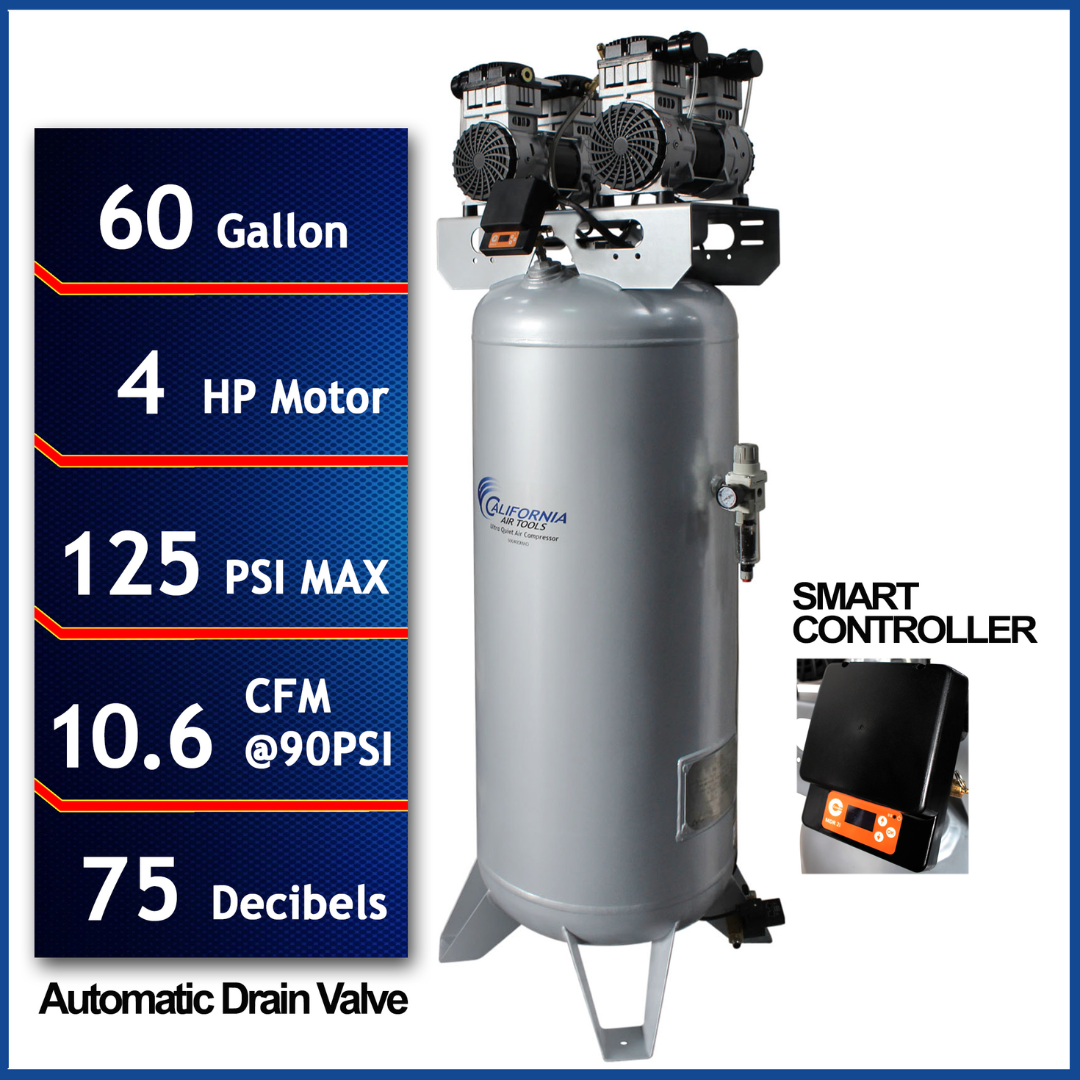

CALIFORNIA AIR TOOLS 60040SMAD Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 60 Gallon ASME Stationary Air Compressor Applications
- Automotive shops and service centers
- Manufacturing and production facilities
- Woodworking and fabrication environments
- Garages and professional workshops
- Industrial compressed air systems requiring remote monitoring
Ideal for users who need powerful airflow combined with smart monitoring capabilities and ultra-quiet performance.
CALIFORNIA AIR TOOLS 60040SMAD Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 60 Gallon ASME Stationary Air Compressor Specifications
| Model | 60040SMAD |
|---|---|
| Motor Power | 4.0 HP (Rated/Running) |
| Pump Type | Oil-Free Dual Piston |
| Tank Size | 60 Gallon Steel ASME Certified |
| Air Flow @ 40 PSI | 12.80 CFM |
| Air Flow @ 90 PSI | 10.60 CFM |
| Maximum Pressure | 125 PSI |
| Working Pressure | 90–120 PSI (Adjustable) |
| Noise Level | 75 dB (Ultra Quiet) |
| Voltage | 220V / 60Hz / Single Phase |
| Amperage | 14 Amps |
| Duty Cycle | 70/30 |
| Tank Fill Time | 6 Minutes 30 Seconds |
| Recovery Time | 2 Minutes (95 PSI to 125 PSI) |

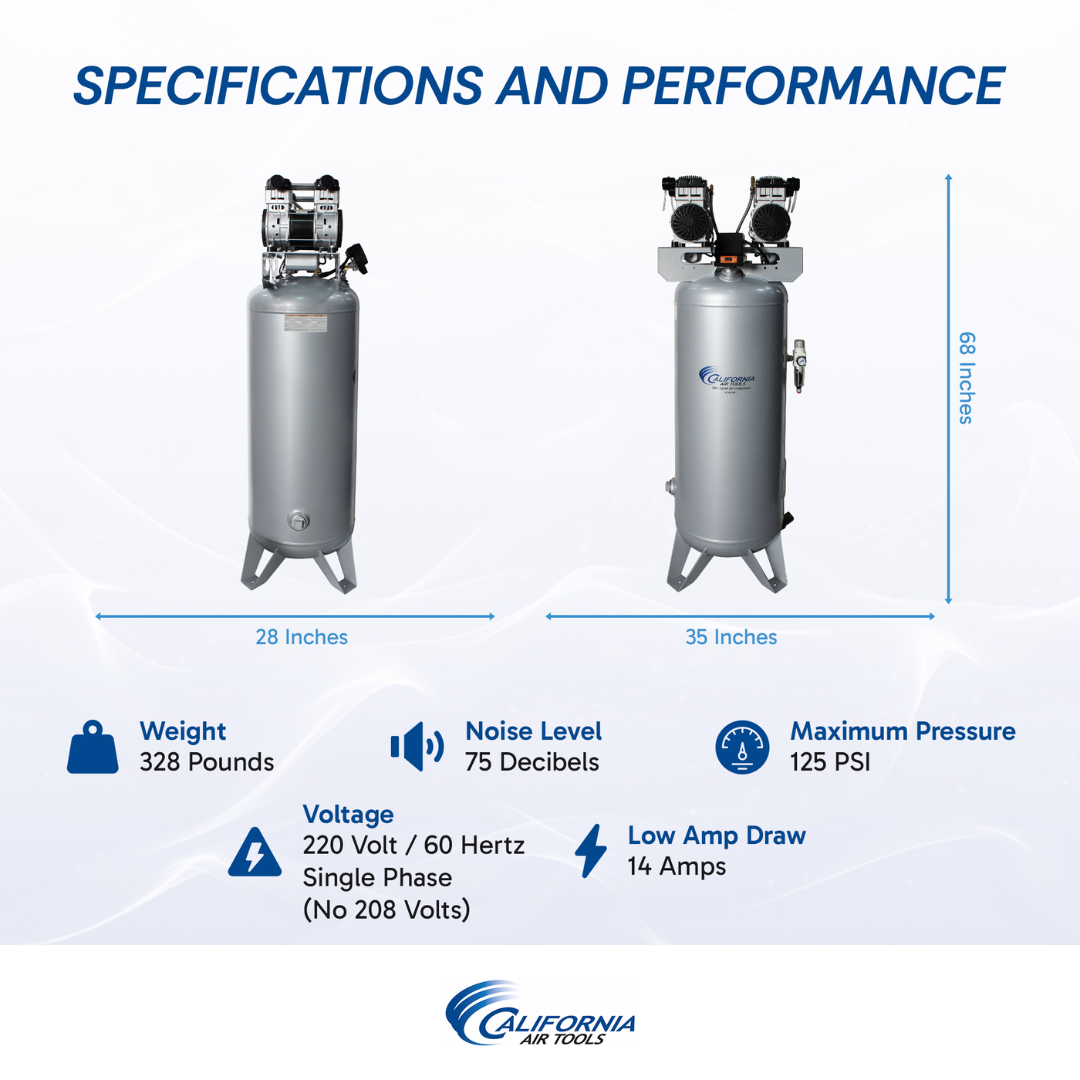

| Dimensions (L × W × H) | 35" × 28" × 68" |
| Weight | 328 lbs |

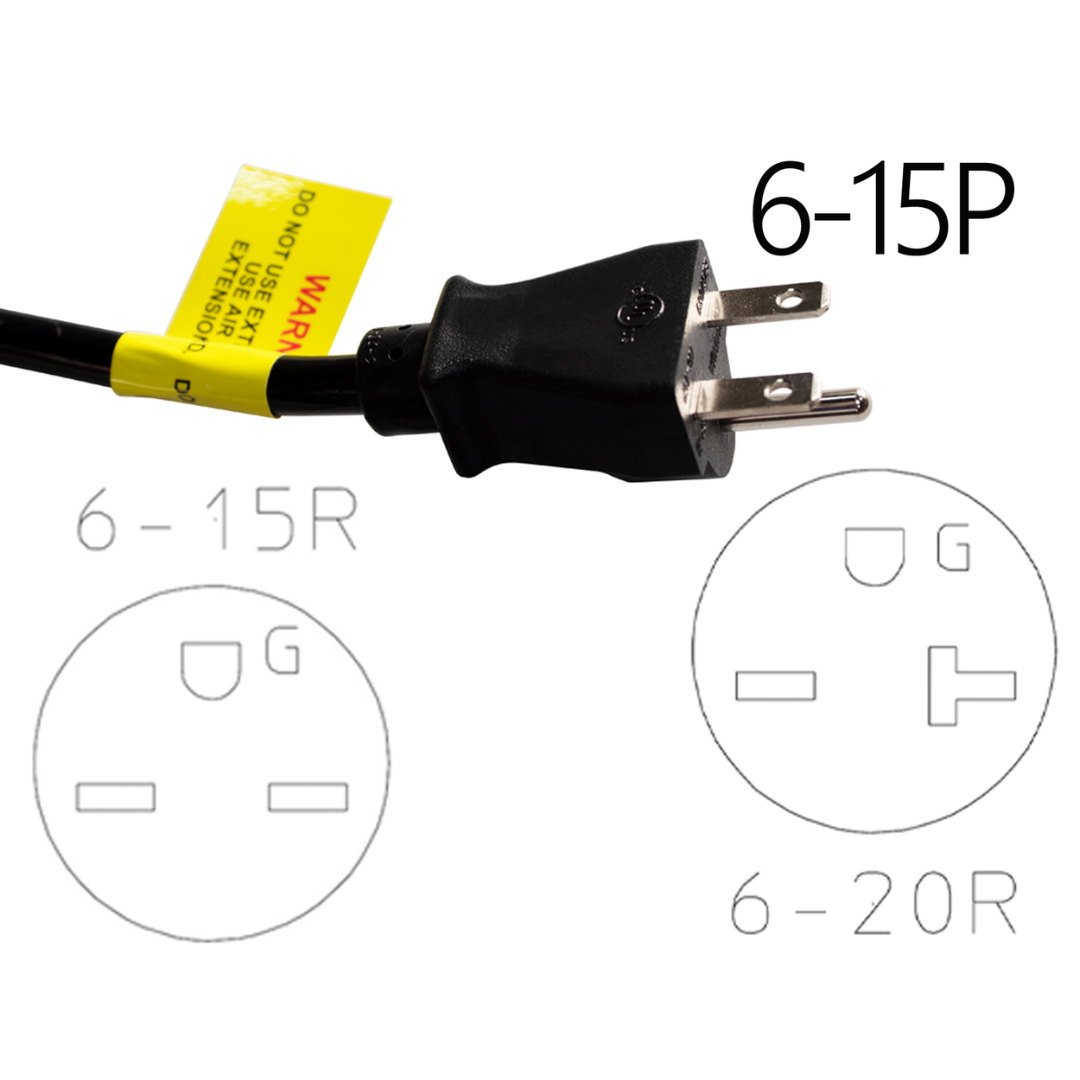

| Plug Type | NEMA 6-15P |

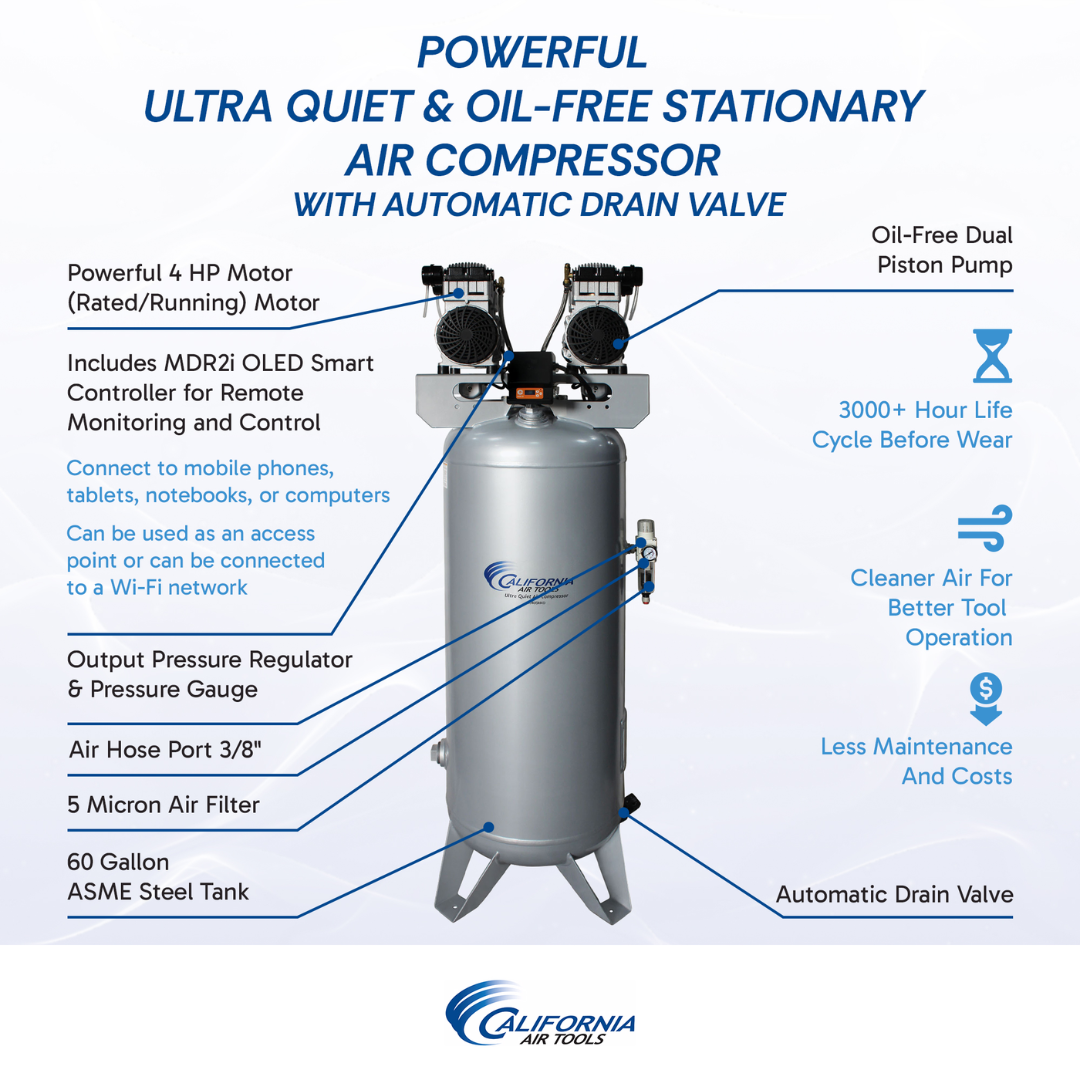

CALIFORNIA AIR TOOLS 60040SMAD Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 60 Gallon ASME Stationary Air Compressor Performance & Construction

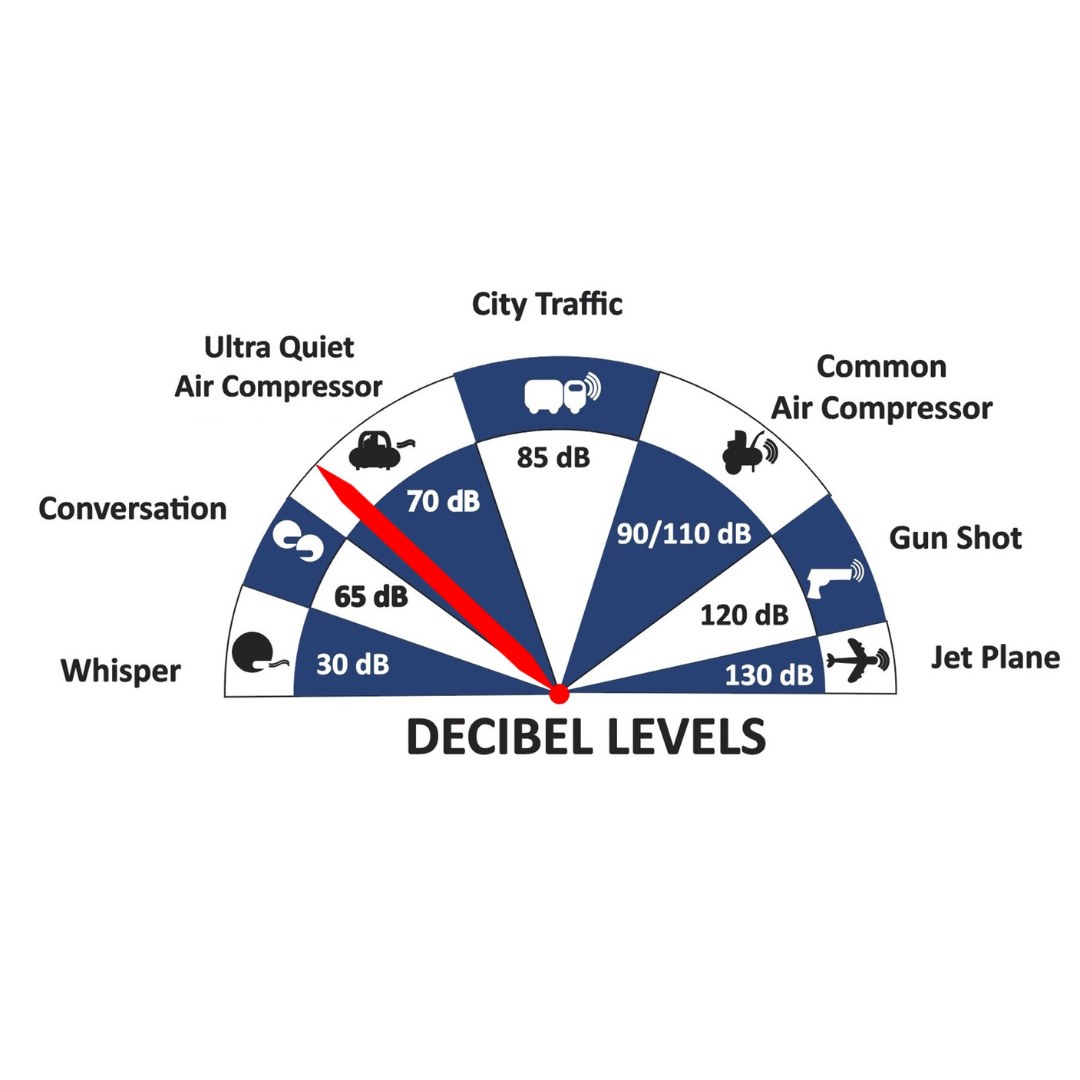

- Ultra Quiet Operation (75 dB) – Designed for noise-sensitive environments without sacrificing performance.

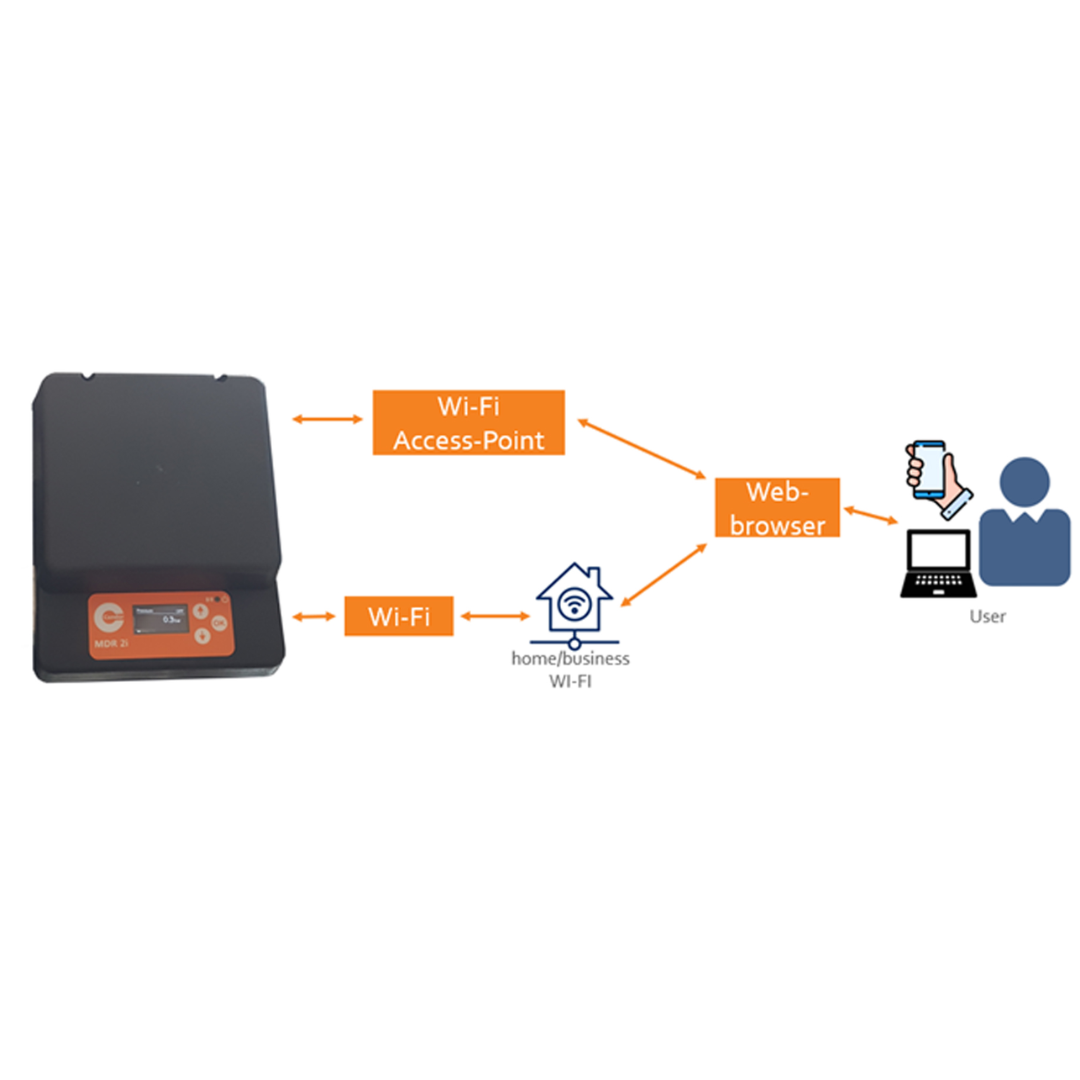

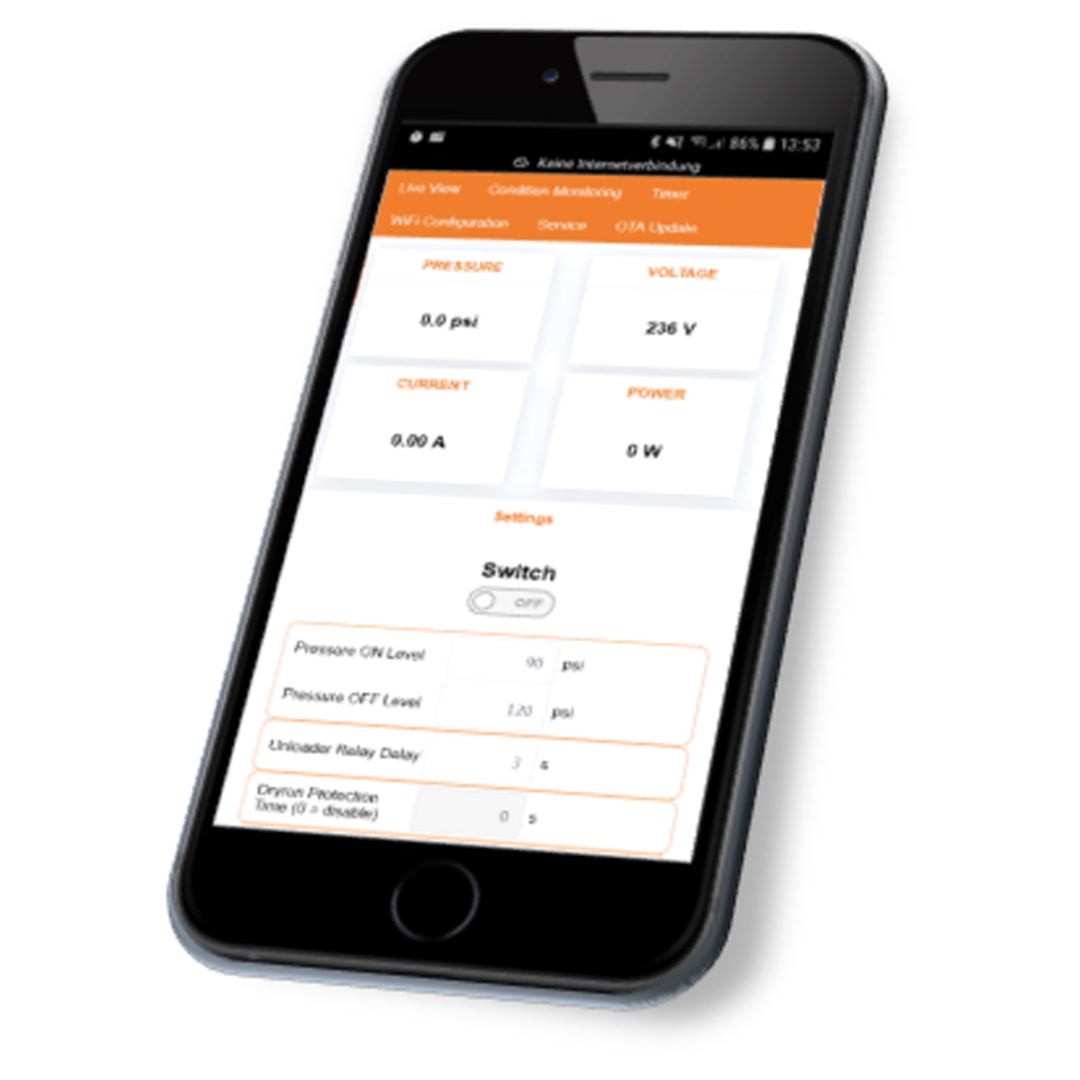

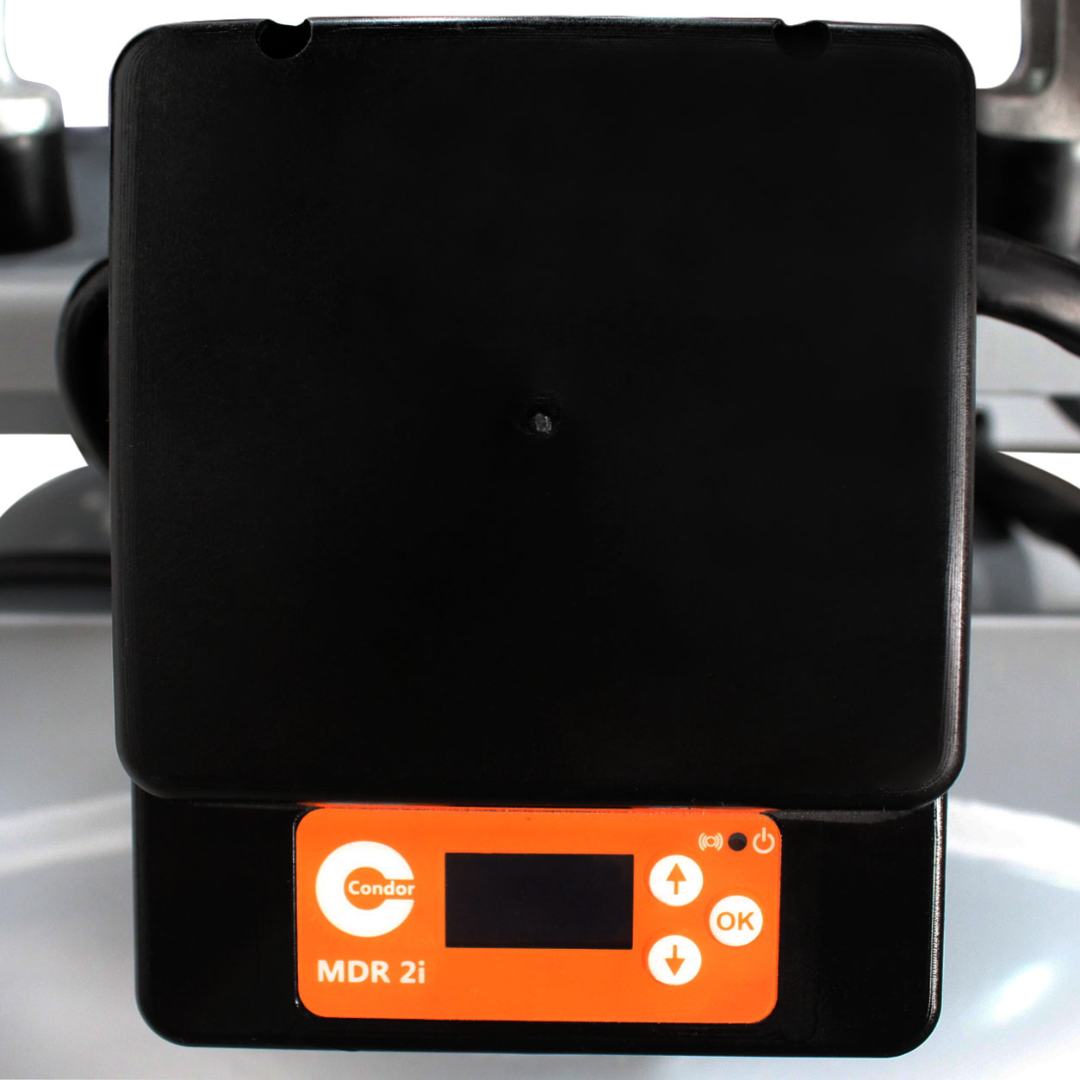

- SMART MDR2i OLED Controller – Provides remote monitoring, programmable settings, and system control via connected devices.

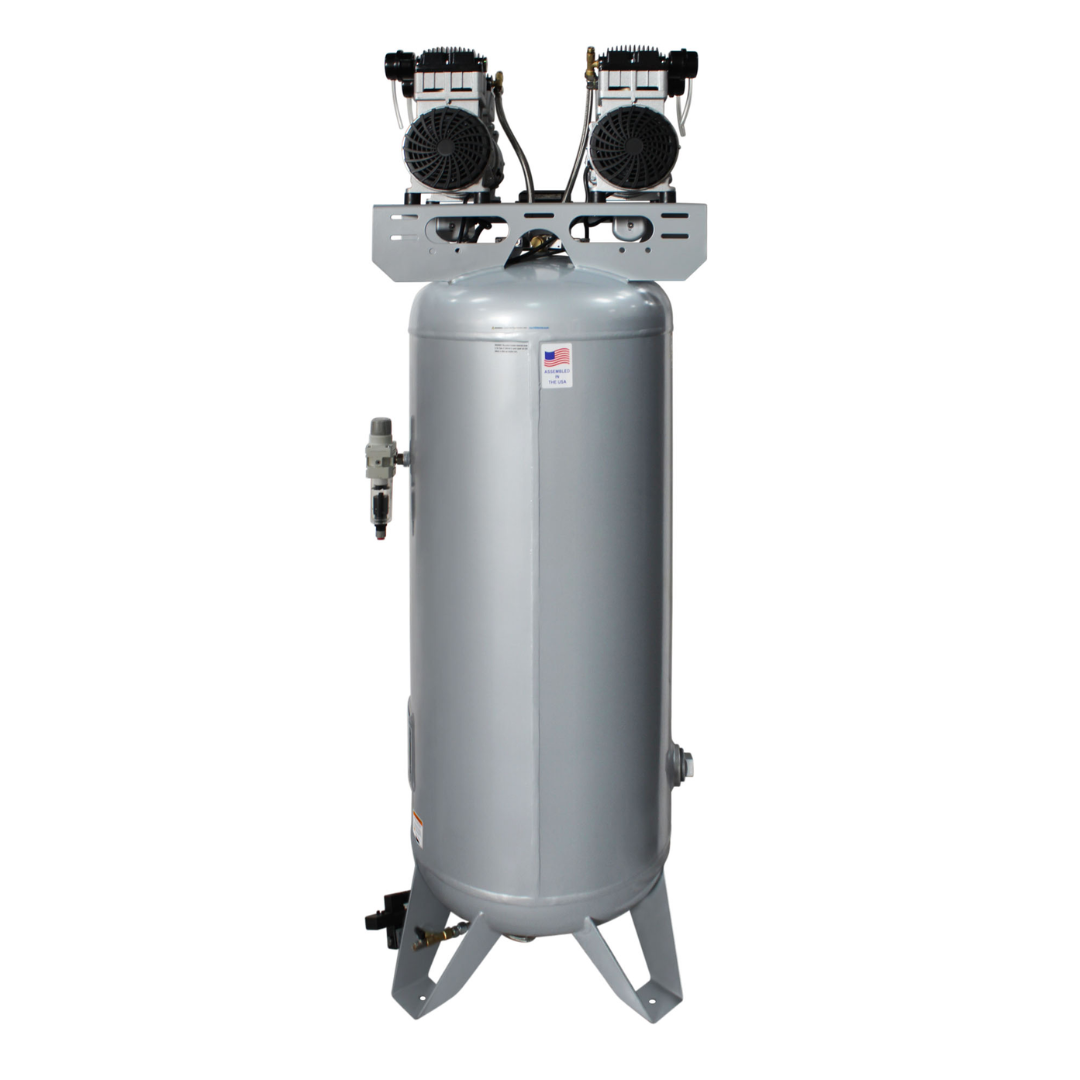

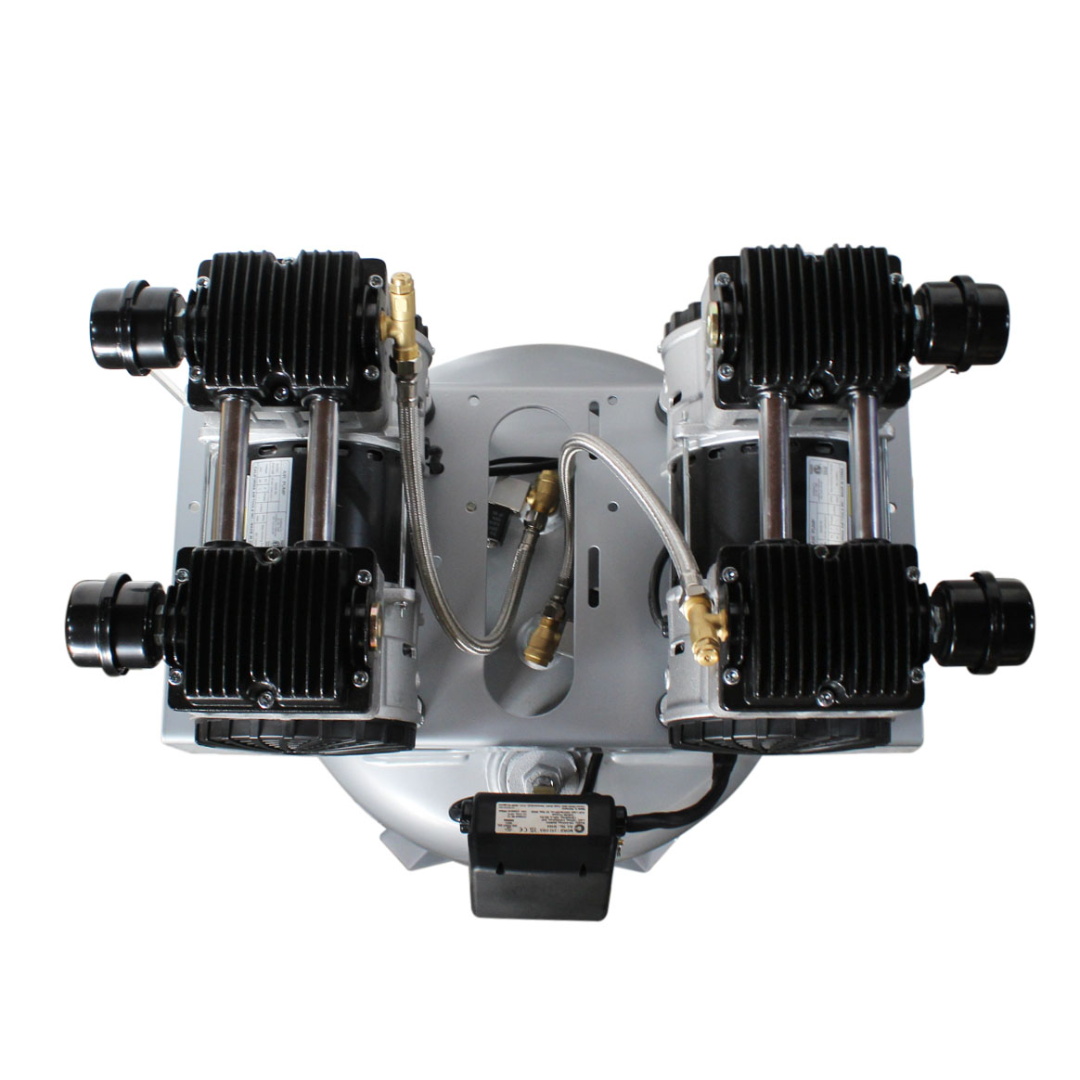

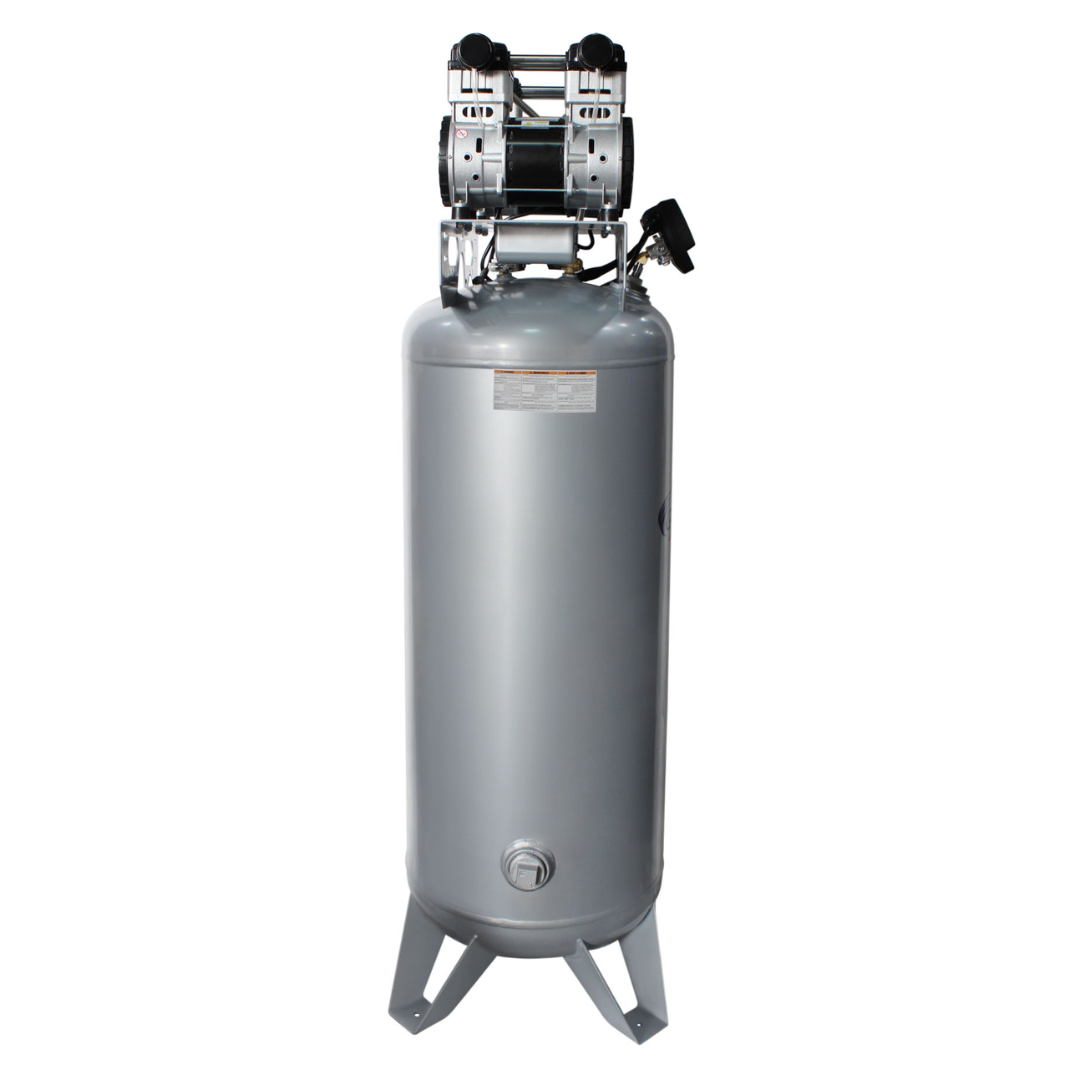

- Oil-Free Dual Piston Pump – Delivers clean air with reduced maintenance and eliminates oil contamination.
- Extended Pump Life – Engineered for over 3000 hours of operation before service.

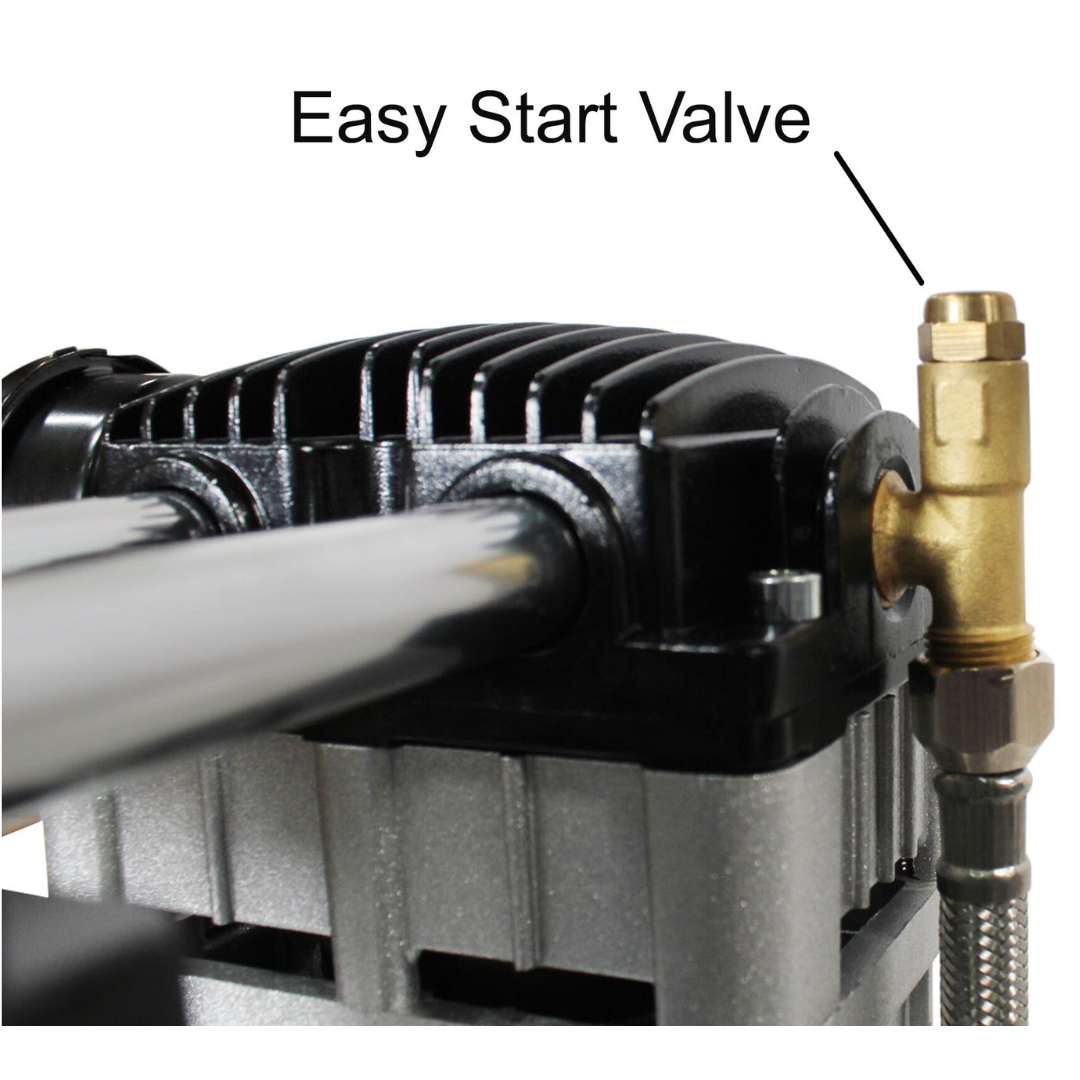

- Easy Start Valve Technology – Reduces starting amperage and ensures smooth startup, even in cold conditions.

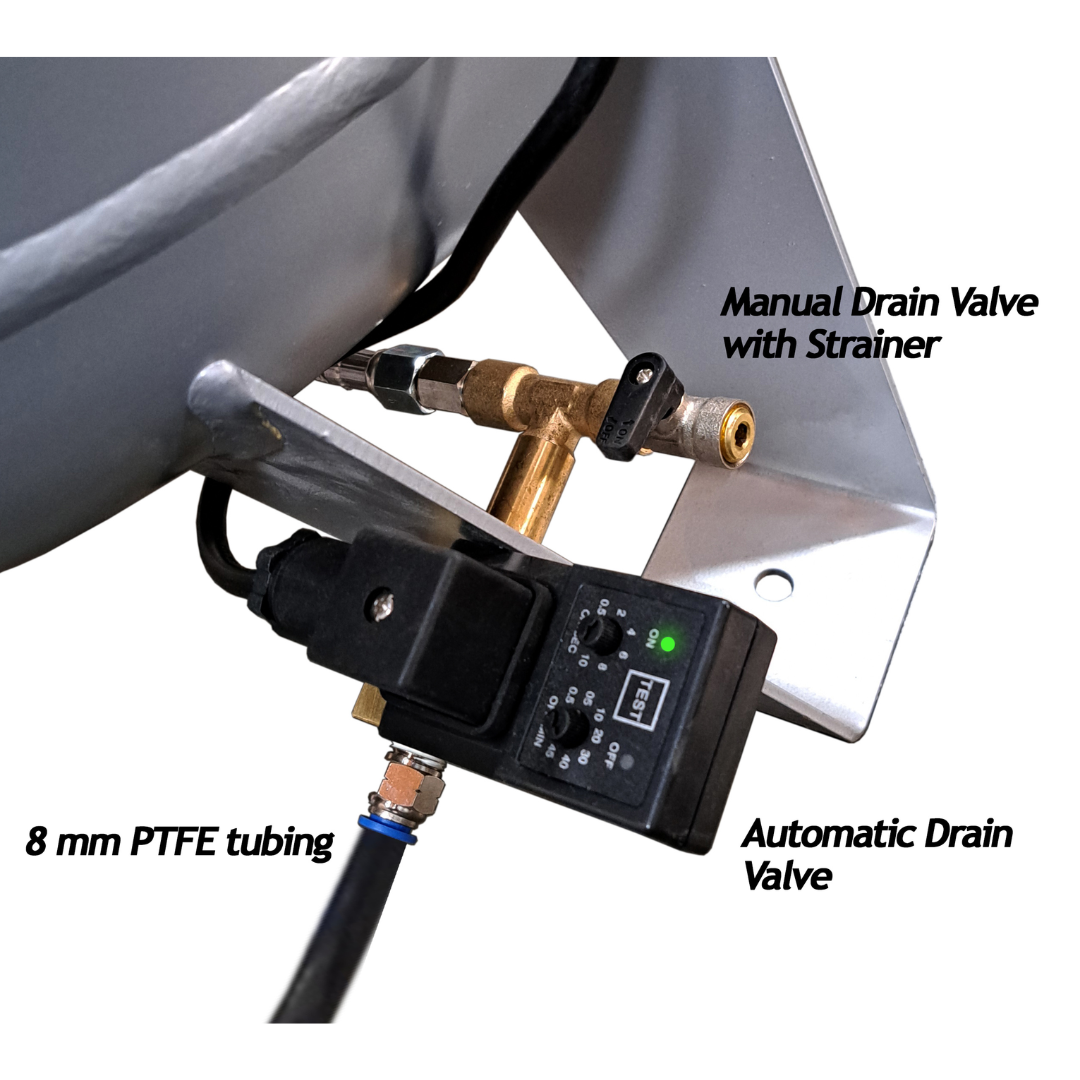

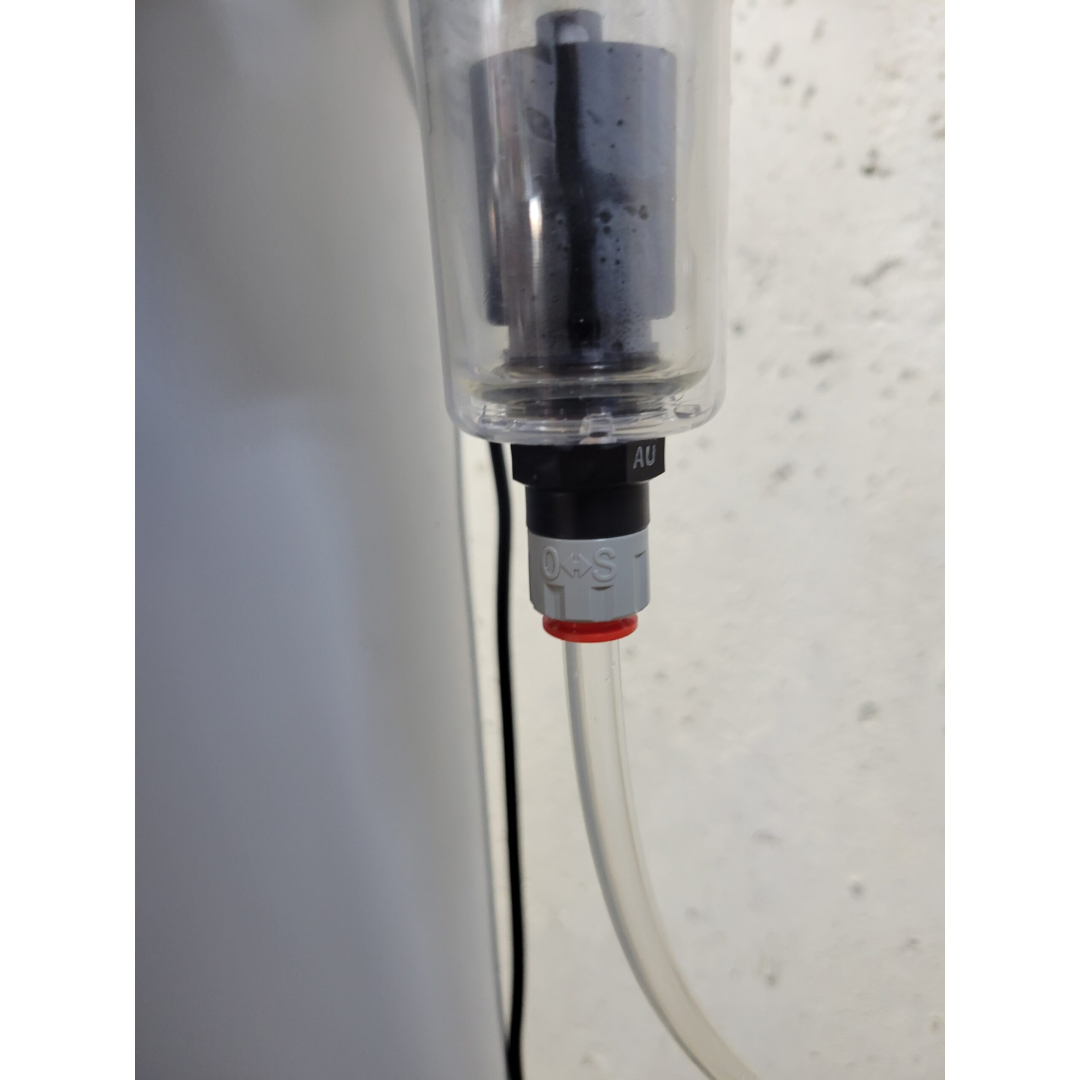

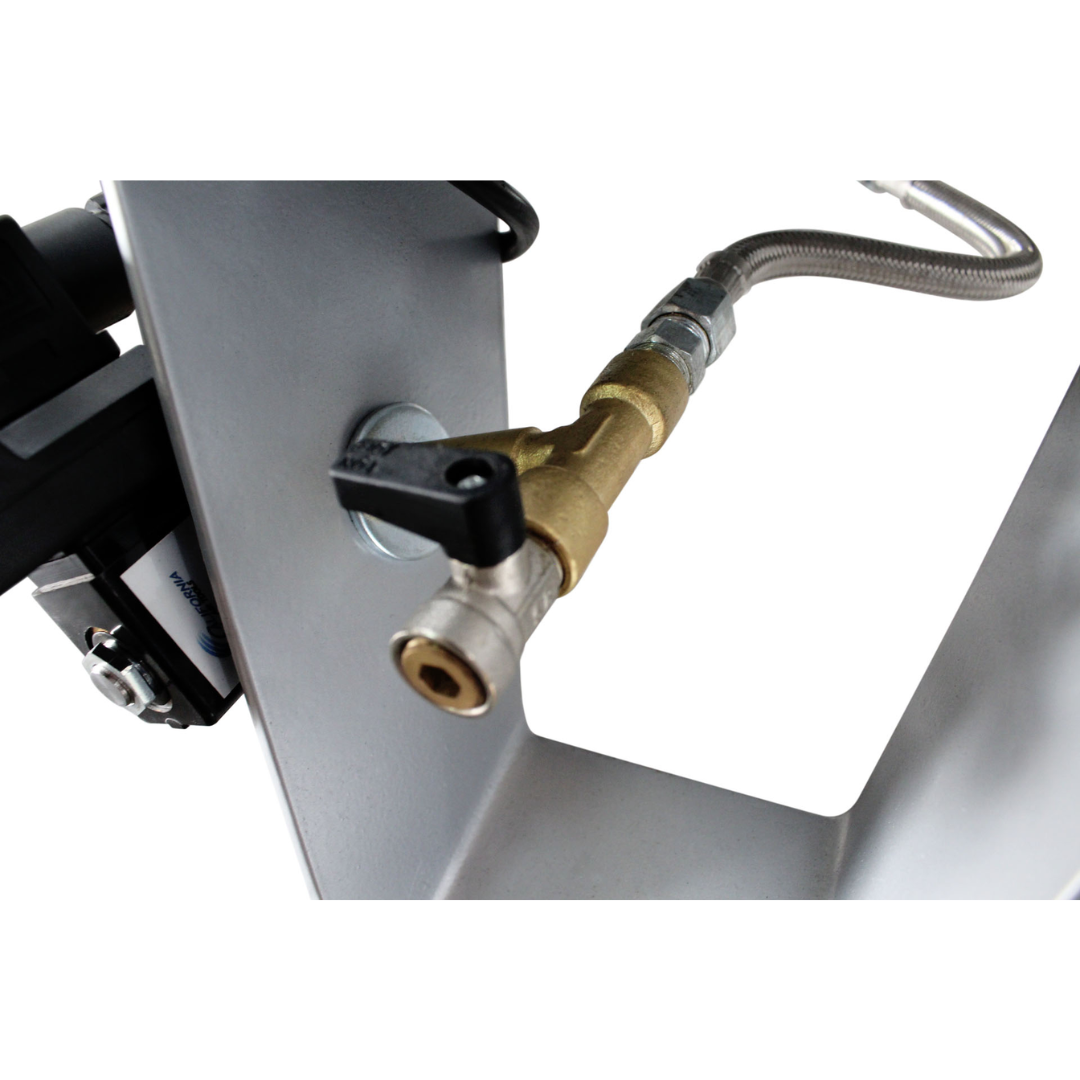

- Automatic Drain Valve (EZ-1) – Eliminates manual draining with programmable timing for efficient moisture removal.

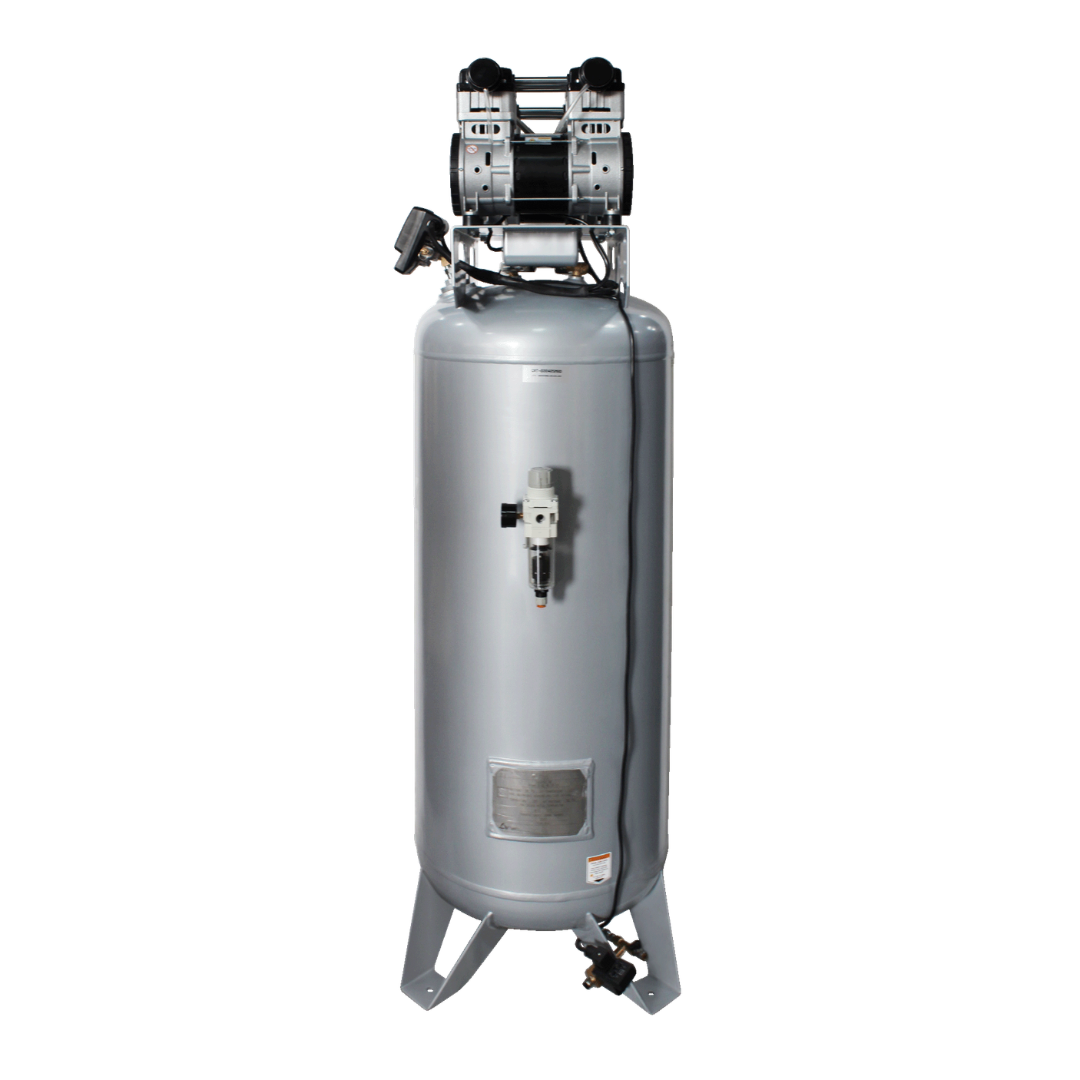

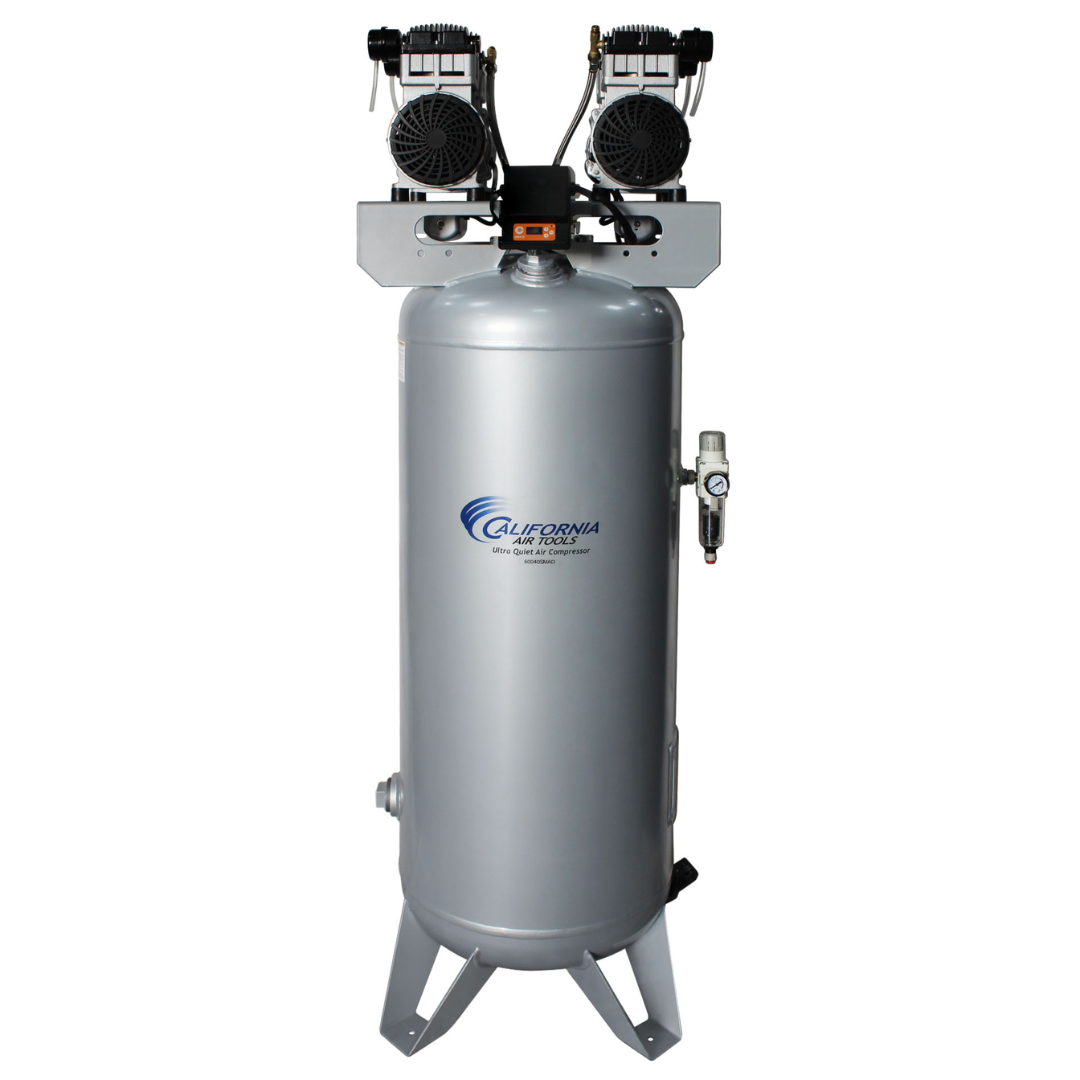

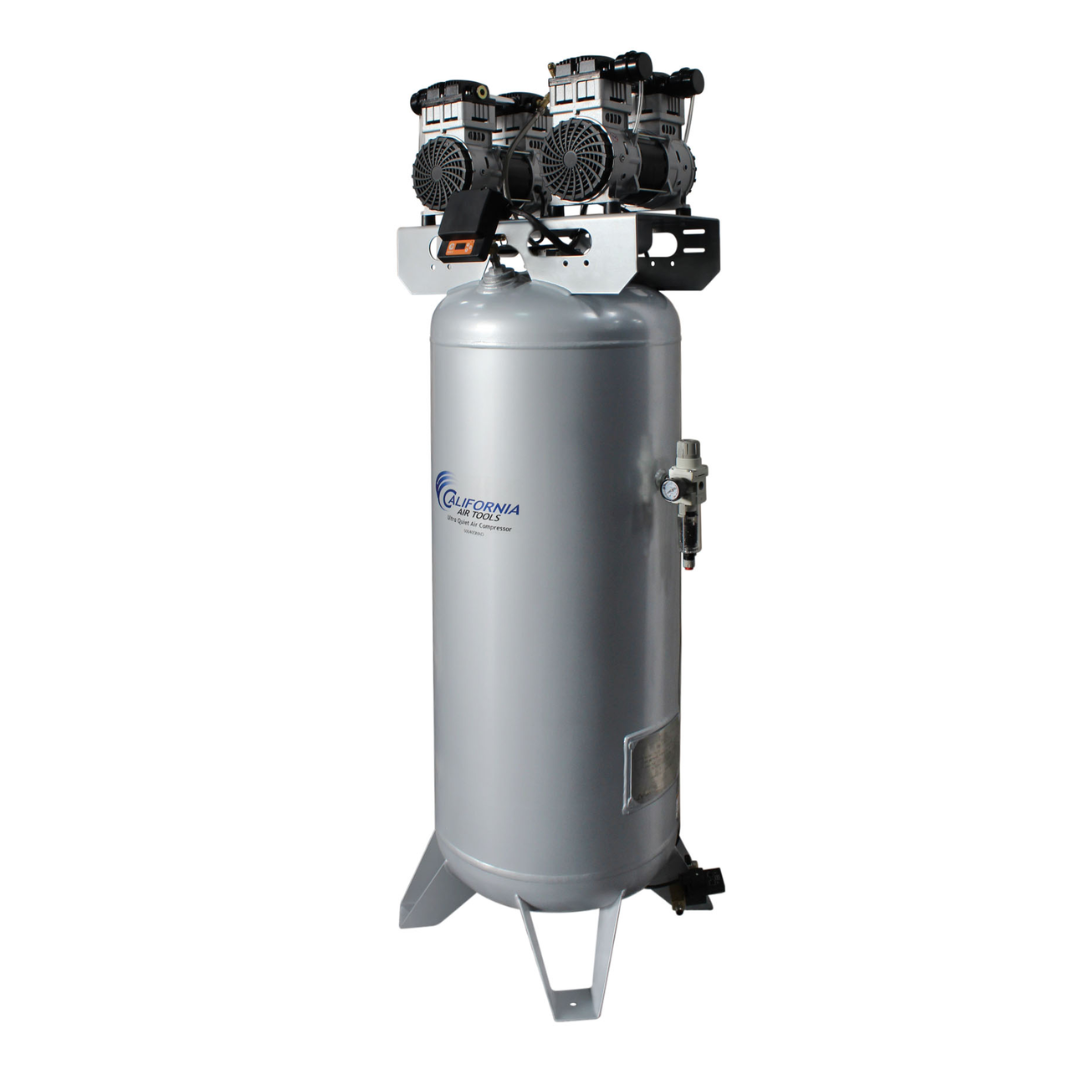

- Heavy-Duty ASME Steel Tank – 60-gallon vertical tank designed for durability and commercial-grade use.
- Thermal Overload Protection – Prevents overheating and protects internal components.

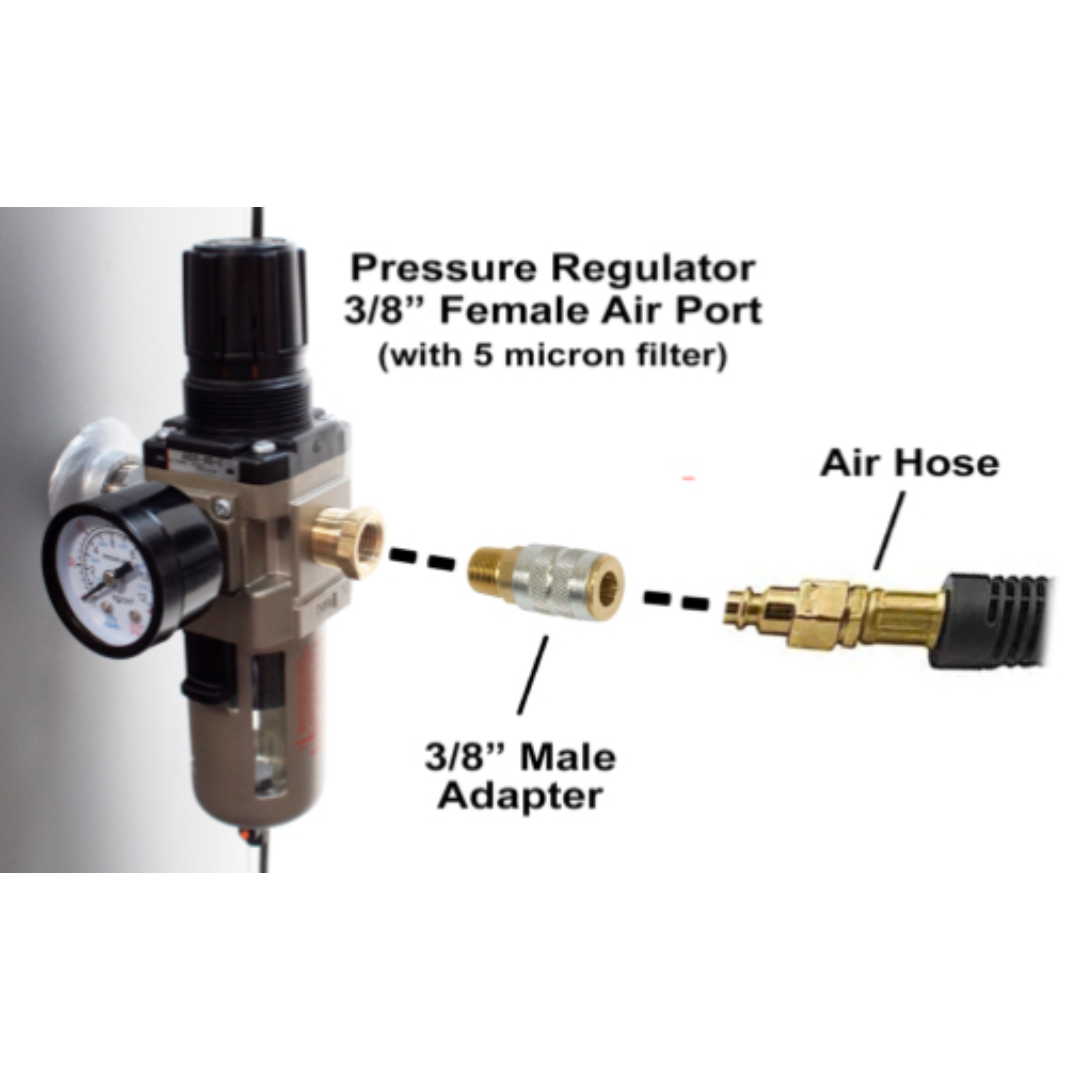

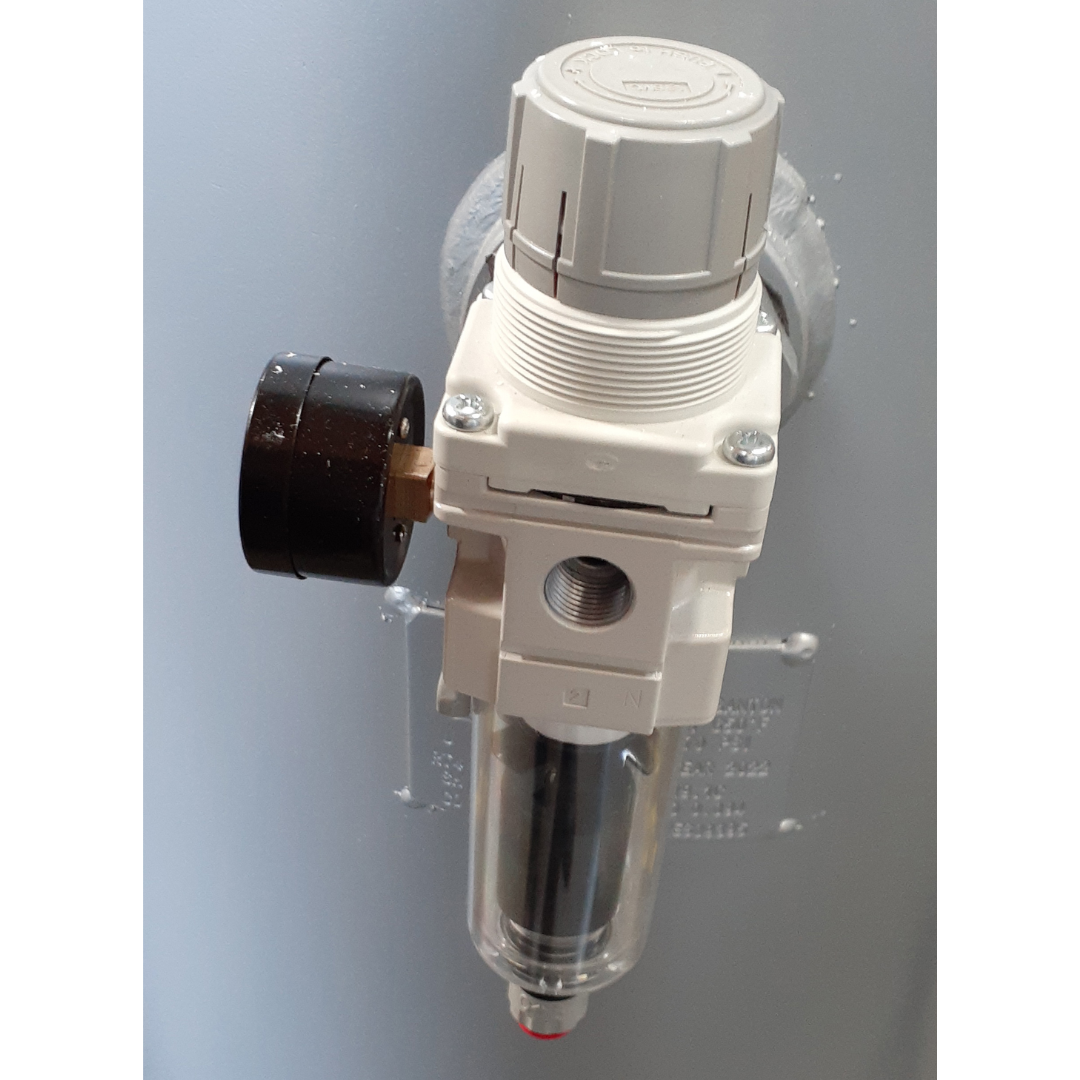

- Integrated Filtration System – Includes 5-micron air filter and regulator for cleaner compressed air.
- Low Amp Draw – Energy-efficient 14-amp operation reduces electrical demand.
- Cold Start Capability – Oil-free design allows reliable startup in varying temperature conditions.
- Condor Pressure Switch – Ensures consistent and reliable pressure control.
Why Choose the CALIFORNIA AIR TOOLS 60040SMAD Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 60 Gallon ASME Stationary Air Compressor
- Combines powerful 4.0 HP airflow with ultra-quiet operation.
- SMART controller enables remote monitoring and system customization.
- Oil-free design reduces maintenance and operating costs.
- Automatic drain valve simplifies operation and protects the tank.
- Durable ASME-certified construction for long-term commercial use.
The CALIFORNIA AIR TOOLS 60040SMAD Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 60 Gallon ASME Stationary Air Compressor with Automatic Drain Valve is a high-performance, intelligent solution built for professionals who need quiet, reliable, and low-maintenance compressed air systems.
