CALIFORNIA AIR TOOLS 60040DSMADC Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 60 Gallon Air Compressor Applications
- Dental clinics and medical air systems requiring ultra-clean dry air
- Bio-tech laboratories and precision instrumentation environments
- Milling, CNC machining, and manufacturing facilities
- Packaging, food service, and restaurant operations
- General engineering and industrial compressed air applications
Ideal for environments where moisture-free, oil-free, and low-noise compressed air is critical to equipment performance and product quality.

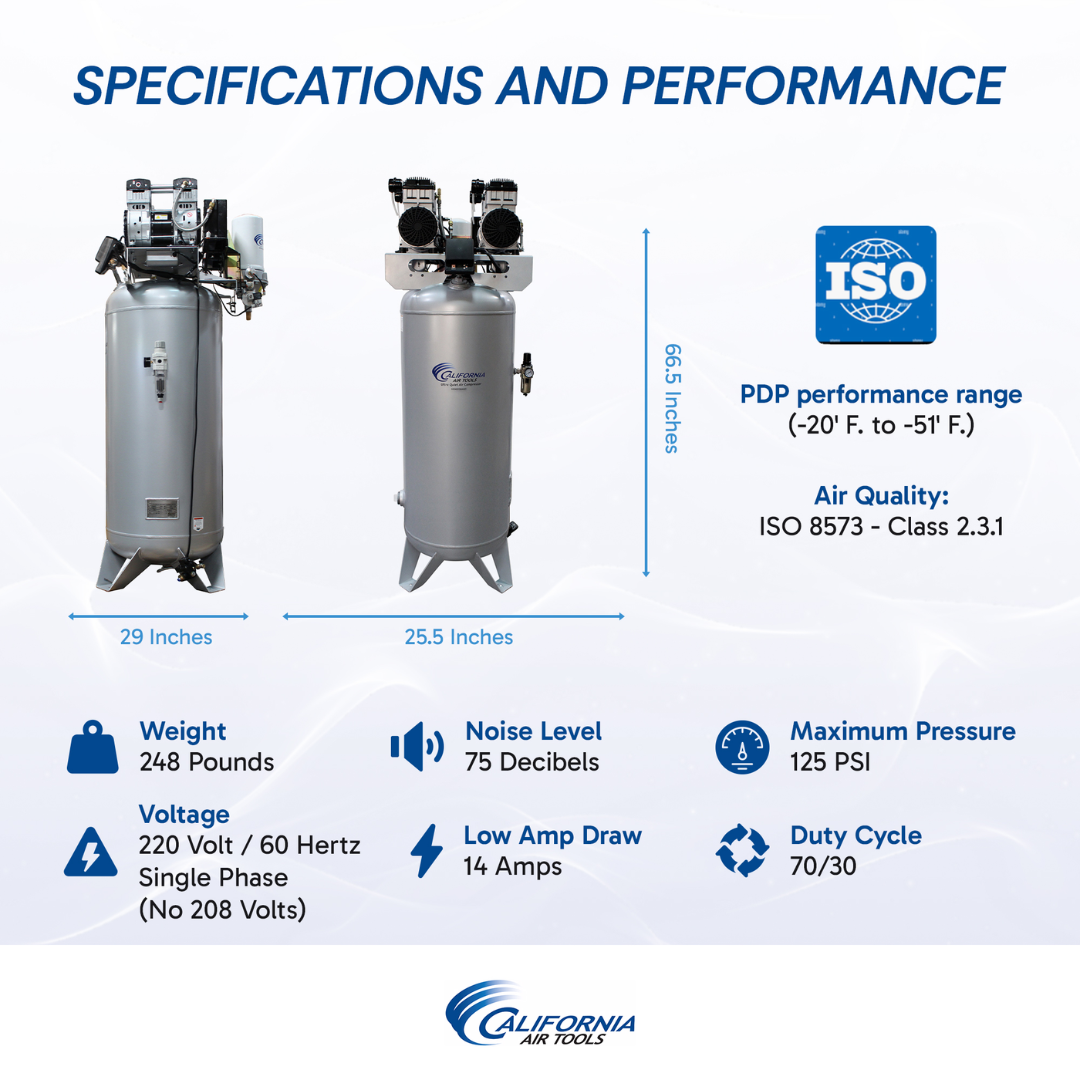

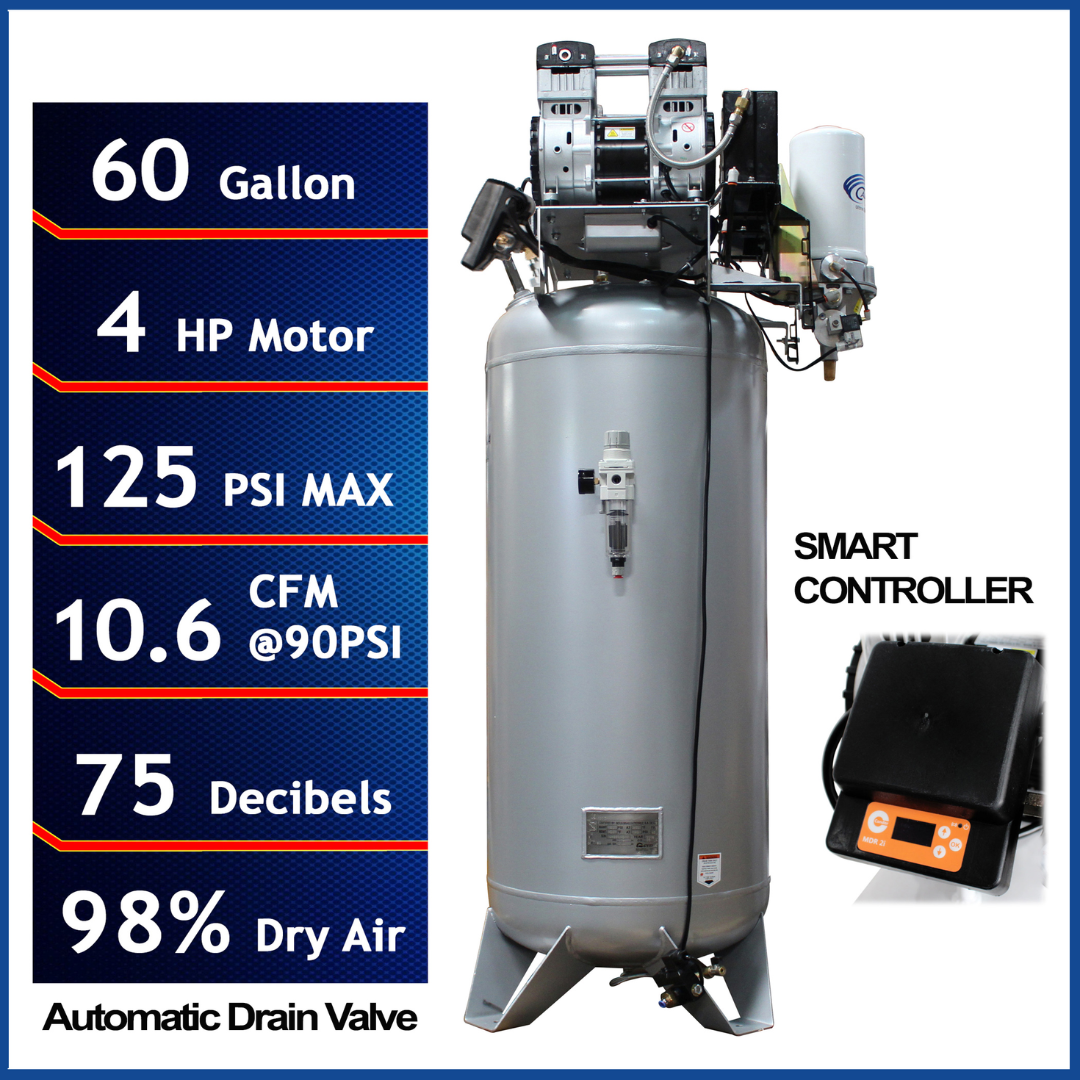

CALIFORNIA AIR TOOLS 60040DSMADC Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 60 Gallon Air Compressor Specifications
| Model | 60040DSMADC |
|---|---|
| Motor Power | 4.0 HP (Rated/Running) |
| Tank Size | 60 Gallon Steel ASME Certified |
| Air Flow @ 40 PSI | 12.80 CFM |
| Air Flow @ 90 PSI | 10.60 CFM |
| Maximum Pressure | 125 PSI |
| Working Pressure | 90–120 PSI (Adjustable) |
| Noise Level | 75 dB (Ultra Quiet) |
| Voltage | 220V / 60Hz / Single Phase |
| Amperage | 14 Amps |
| Air Drying System | 98% Efficiency with Aftercooler |
| Air Quality | ISO 8573 Class 2.3.1 |
| Dew Point Performance | -20°F to -51°F PDP |
| Tank Fill Time | 6 Minutes 30 Seconds |
| Recovery Time | 2 Minutes (95 PSI to 125 PSI) |

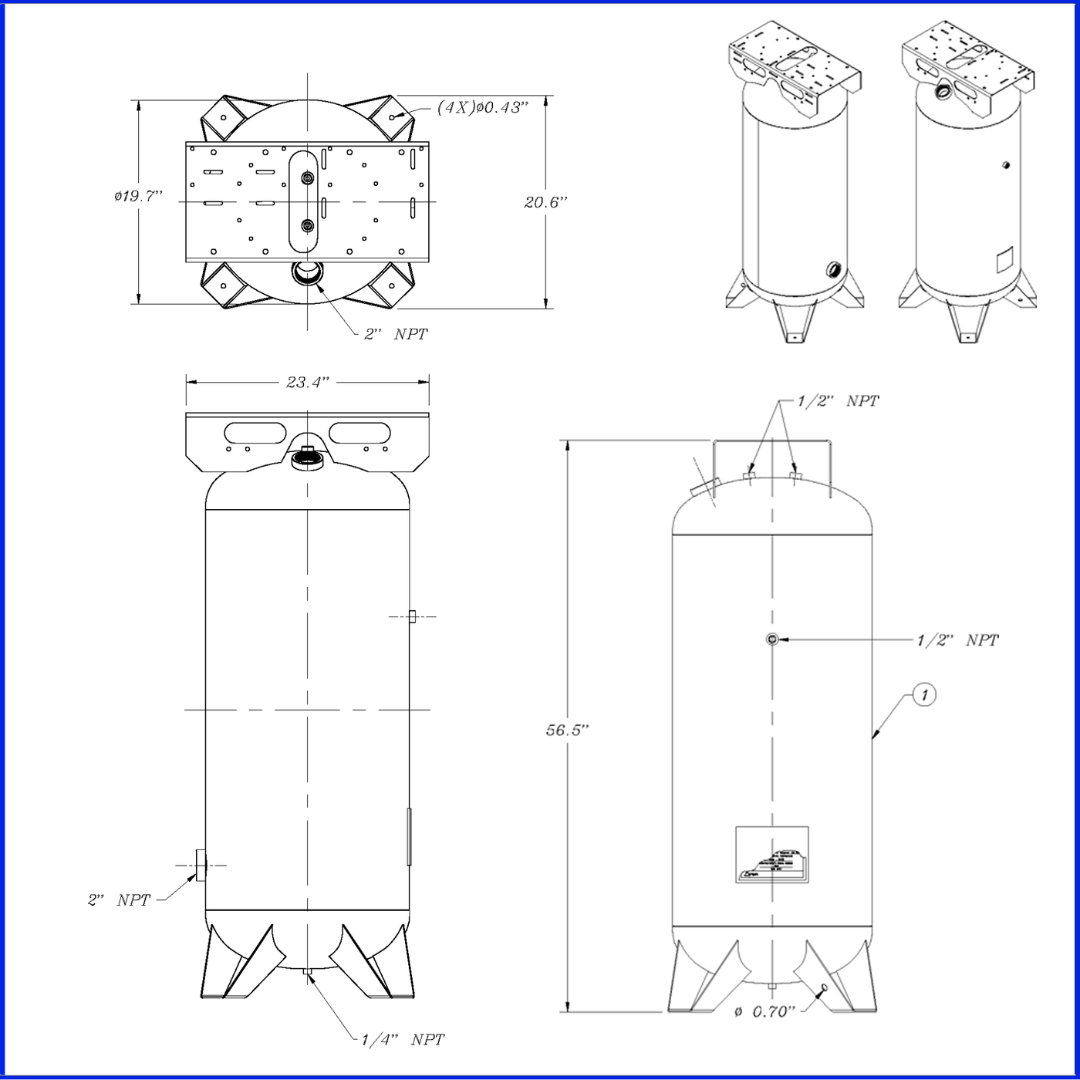

| Dimensions (L × W × H) | 25.5" × 29" × 66.5" |
| Weight | 248 lbs |

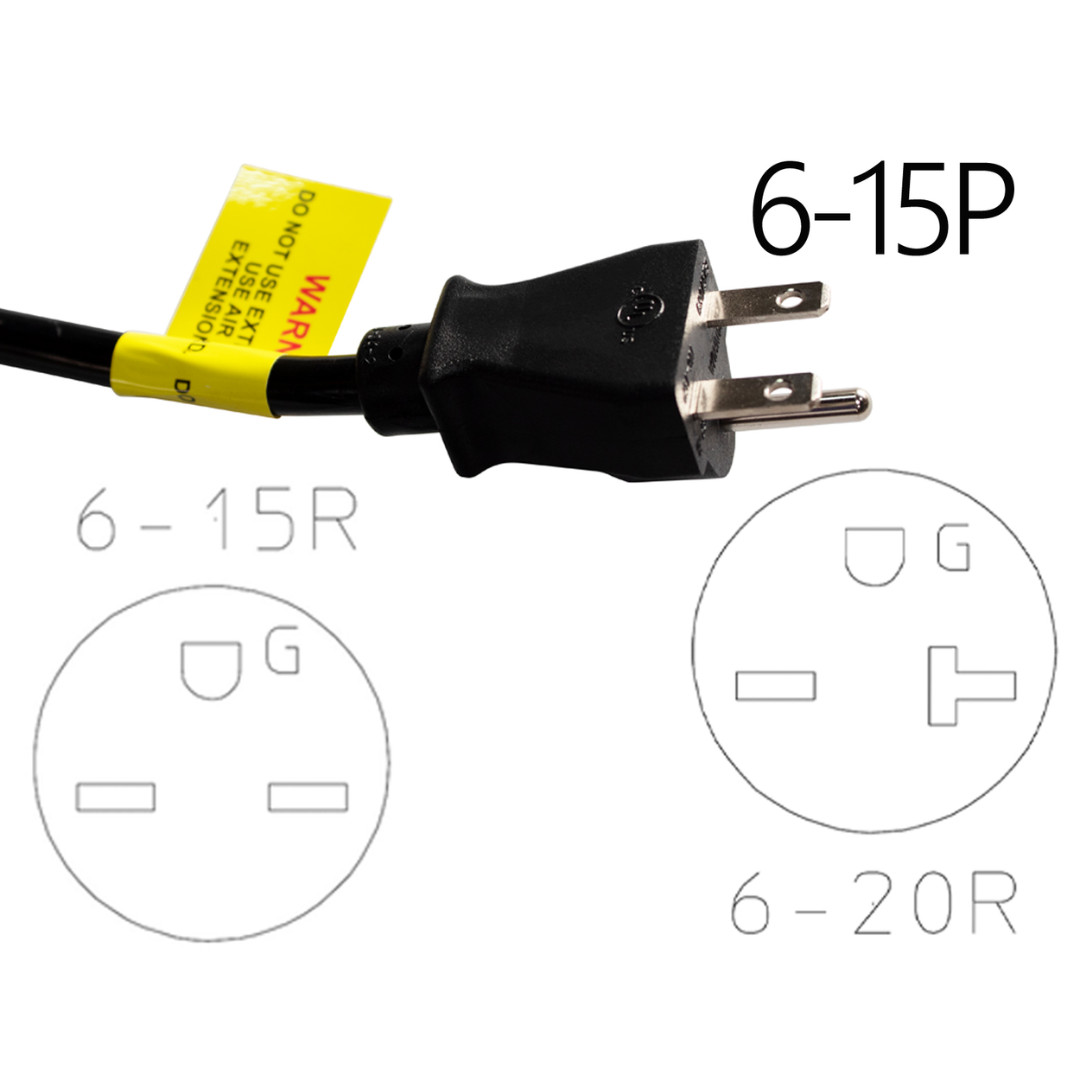

| Plug Type | NEMA 6-15P (Compatible with 6-15R & 6-20R) |

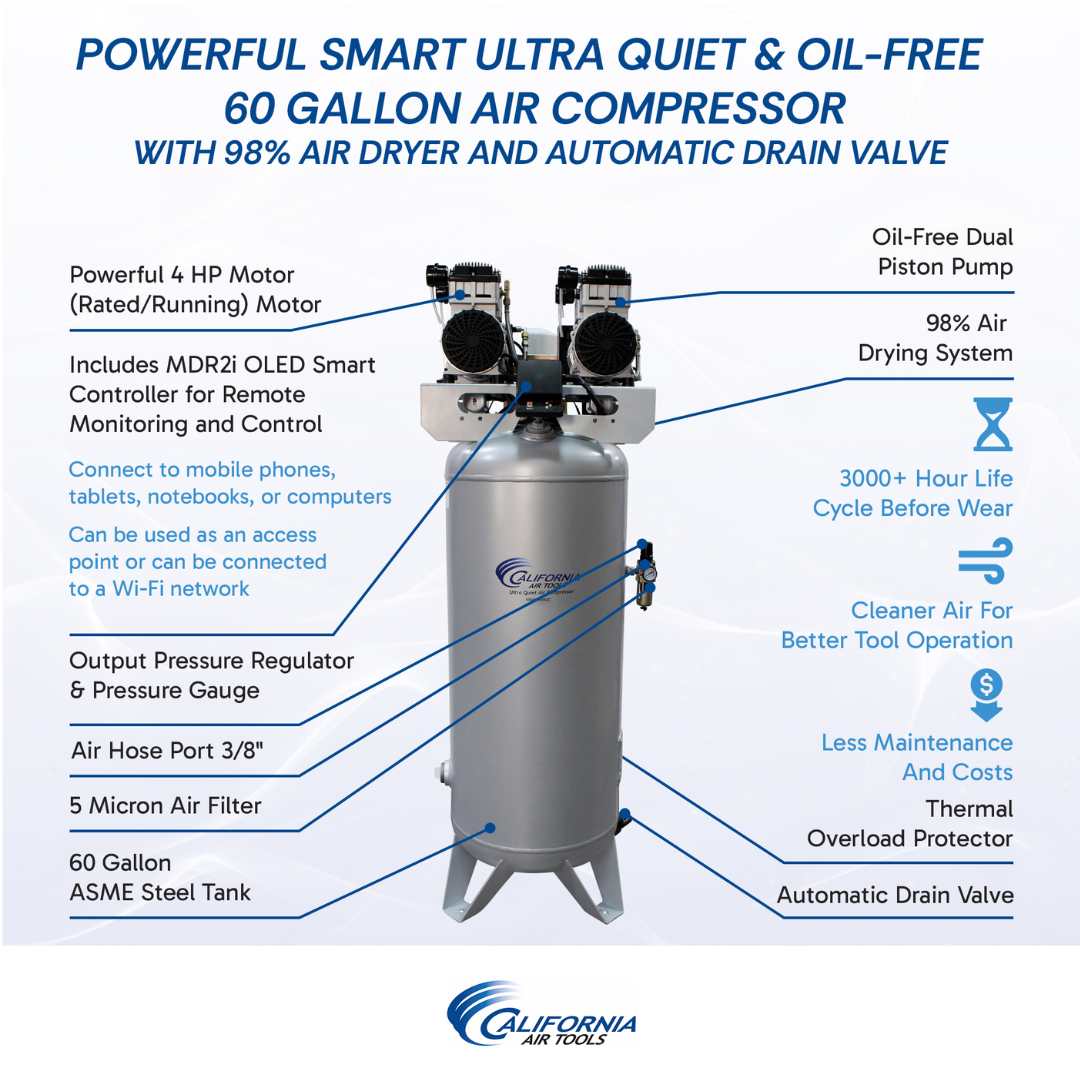

CALIFORNIA AIR TOOLS 60040DSMADC Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 60 Gallon Air Compressor Performance & Construction

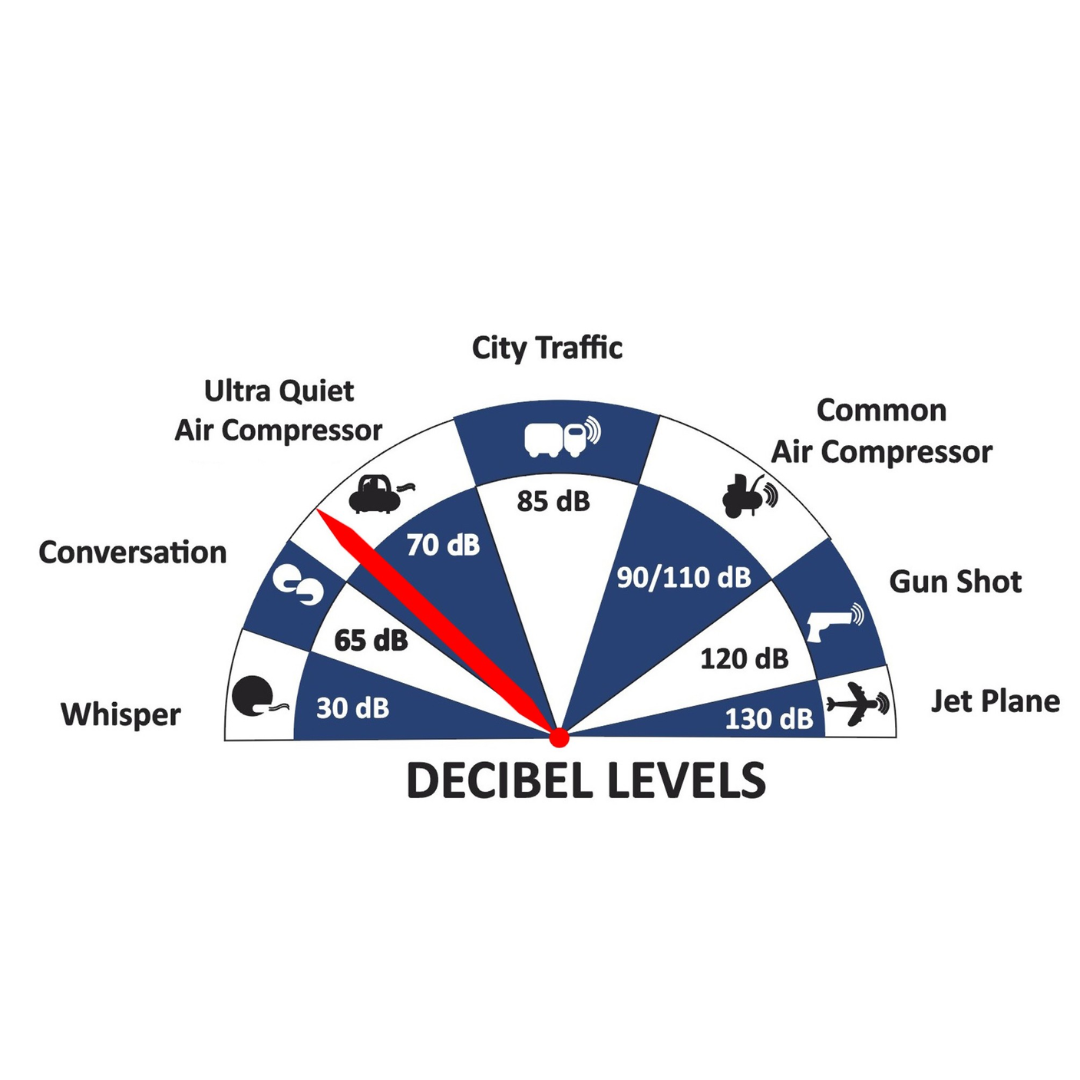

- Ultra Quiet Operation (75 dB) – One of the quietest compressors in its class, ideal for indoor and noise-sensitive environments.
- Dual 2.0 HP Oil-Free Motors – Operate at 1680 RPM for reduced wear, lower heat, and extended service life.

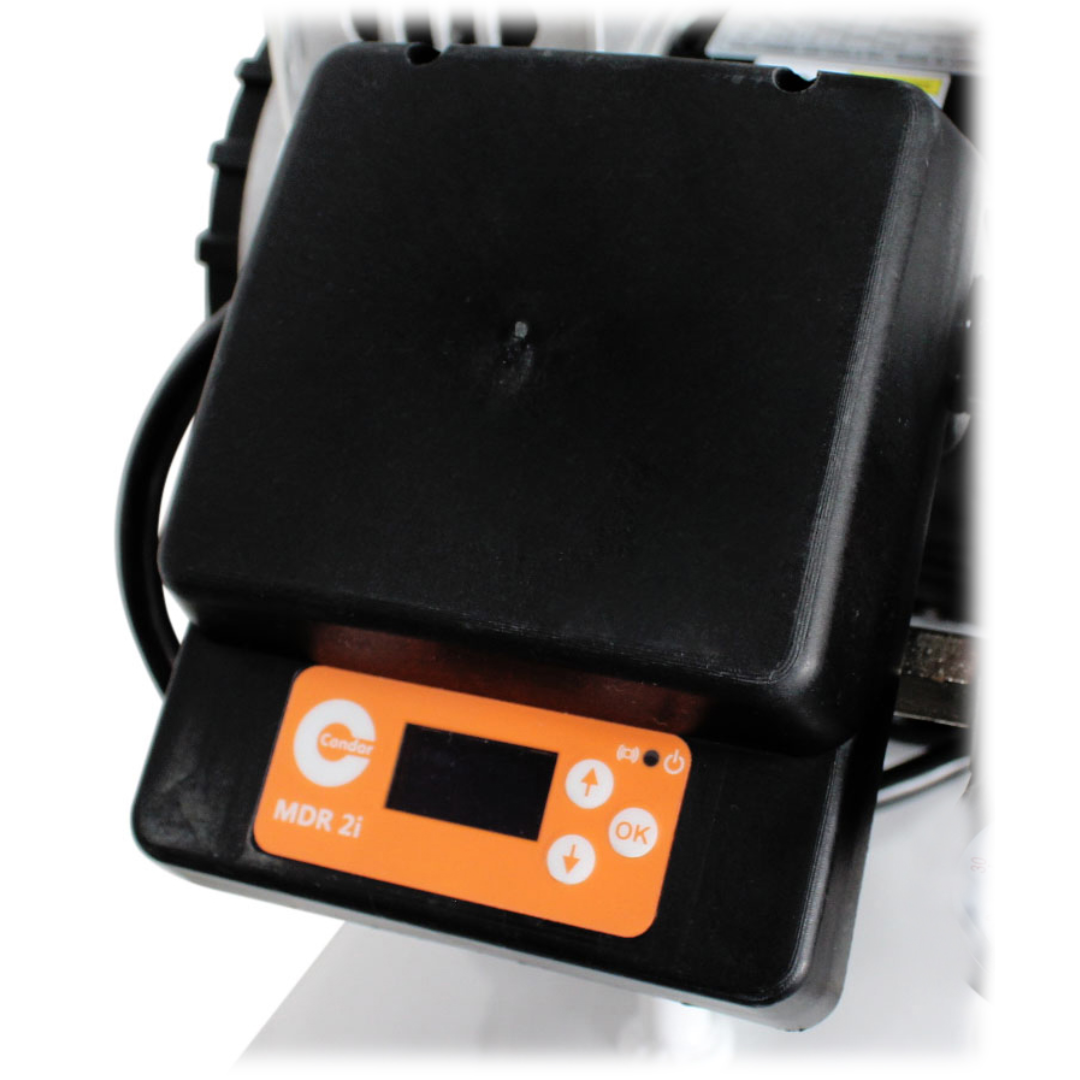

- SMART MDR2i OLED Controller – Enables remote monitoring, programmable pressure settings, auto drain timing, and Wi-Fi connectivity.

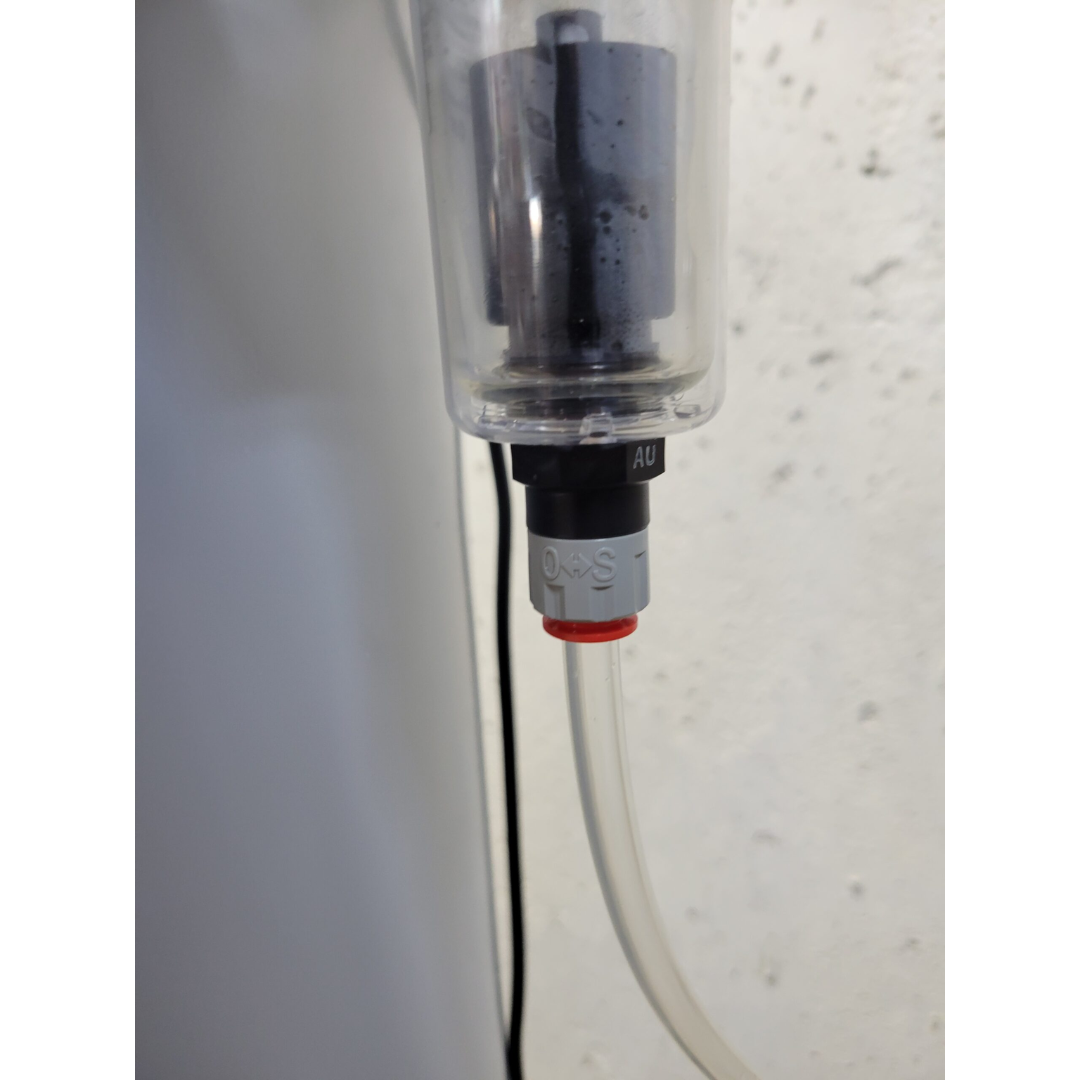

- 98% Air Dryer System – Integrated aftercooler and molecular sieve desiccant cartridge removes moisture for ultra-dry air output.
- Spin-On Dryer Cartridge – Easy replacement design with 2-year service life for reduced maintenance downtime.
- ISO 8573 Class 2.3.1 Air Quality – Ensures clean, dry air suitable for precision and sensitive equipment.

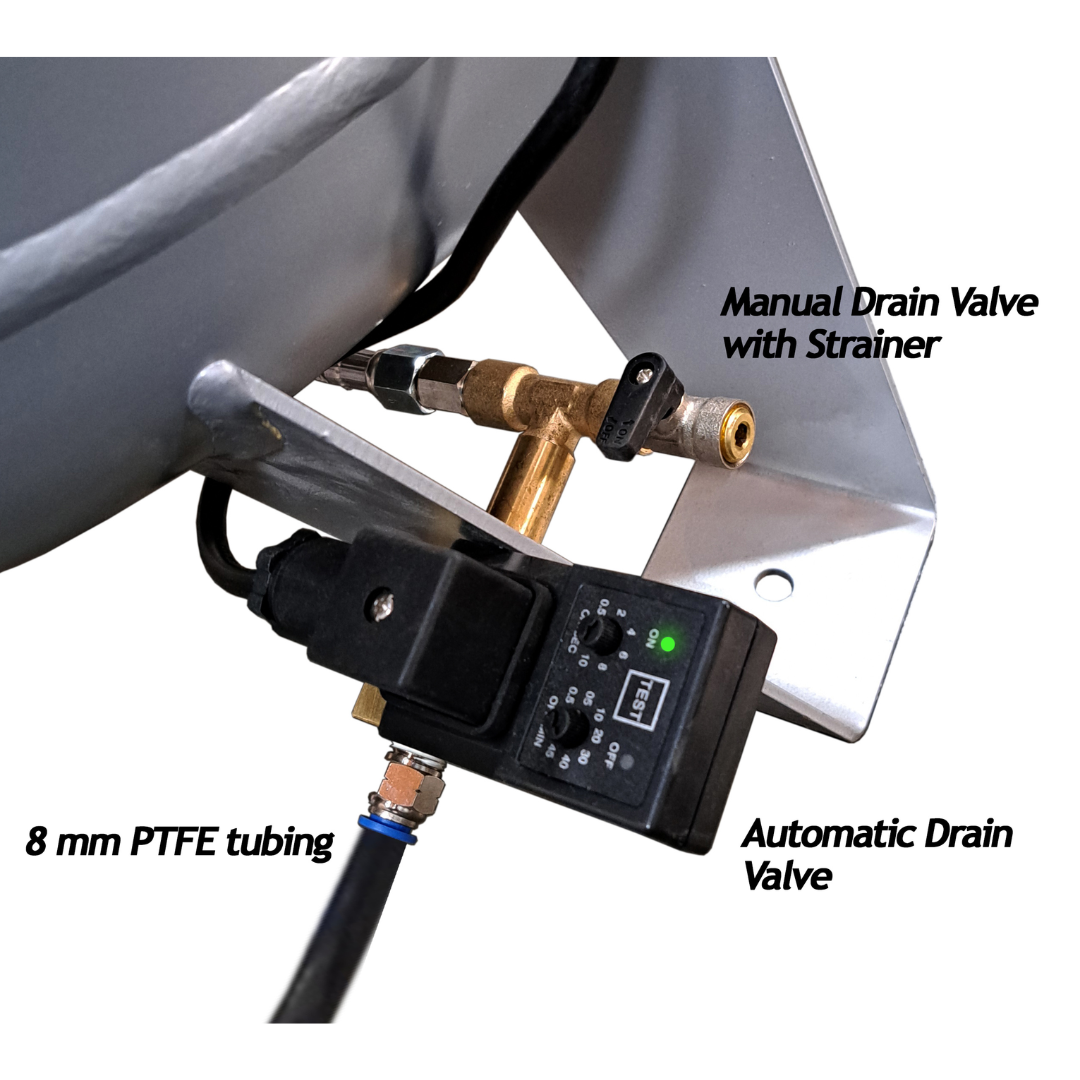

- Automatic Drain Valve (EZ-1) – Programmable system eliminates manual tank draining and prevents moisture buildup.

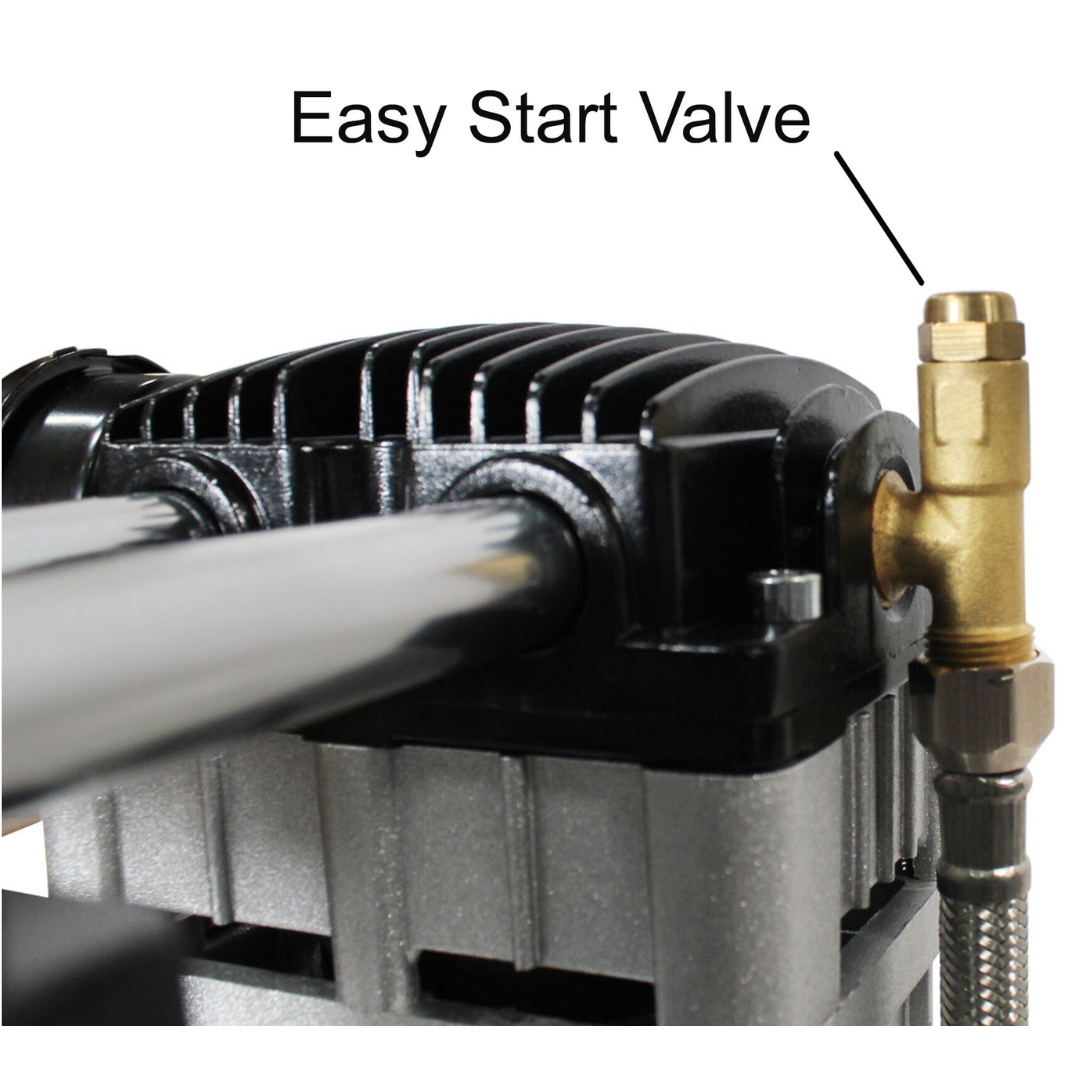

- Easy Start Valve Technology – Reduces startup amperage and allows reliable operation in cold conditions.

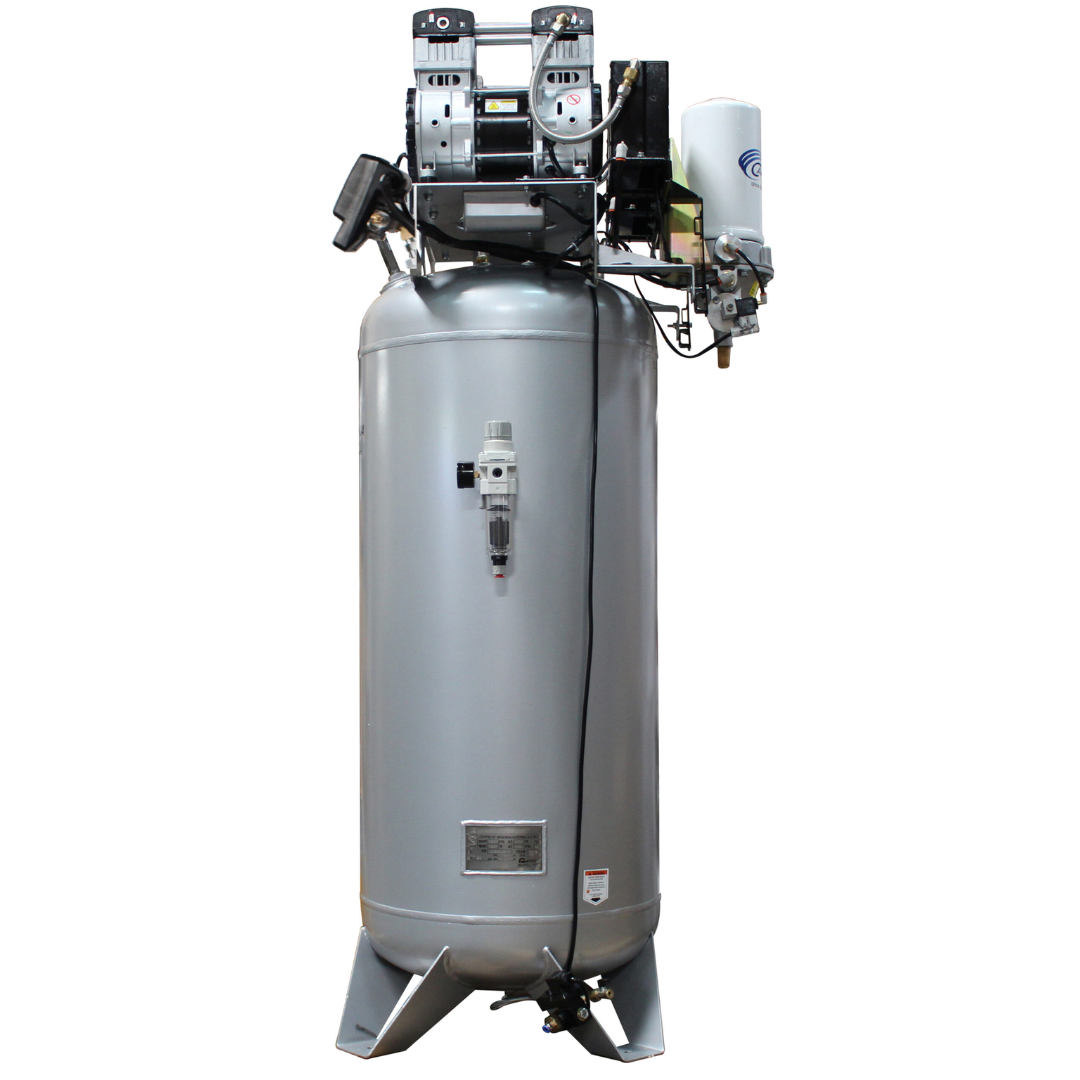

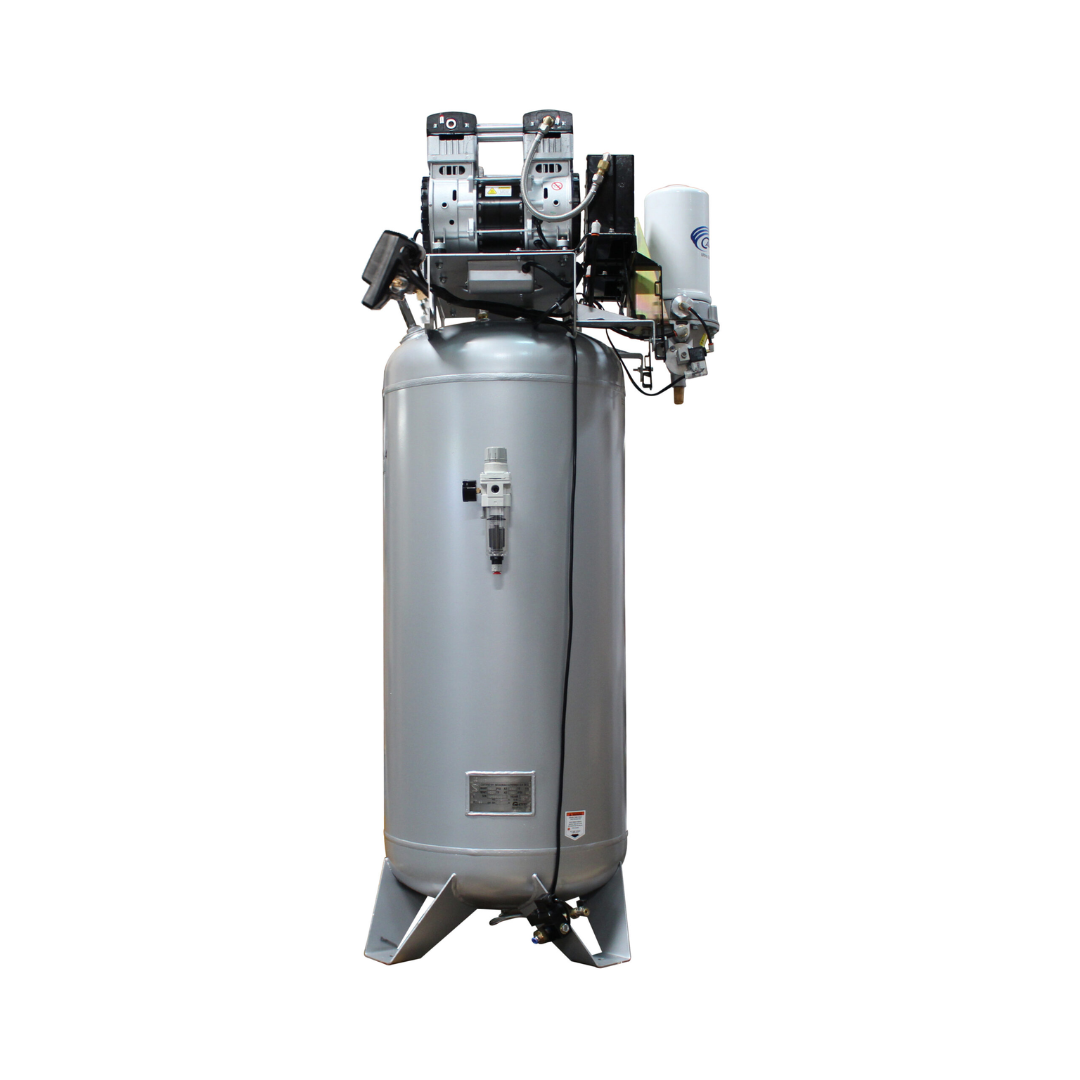

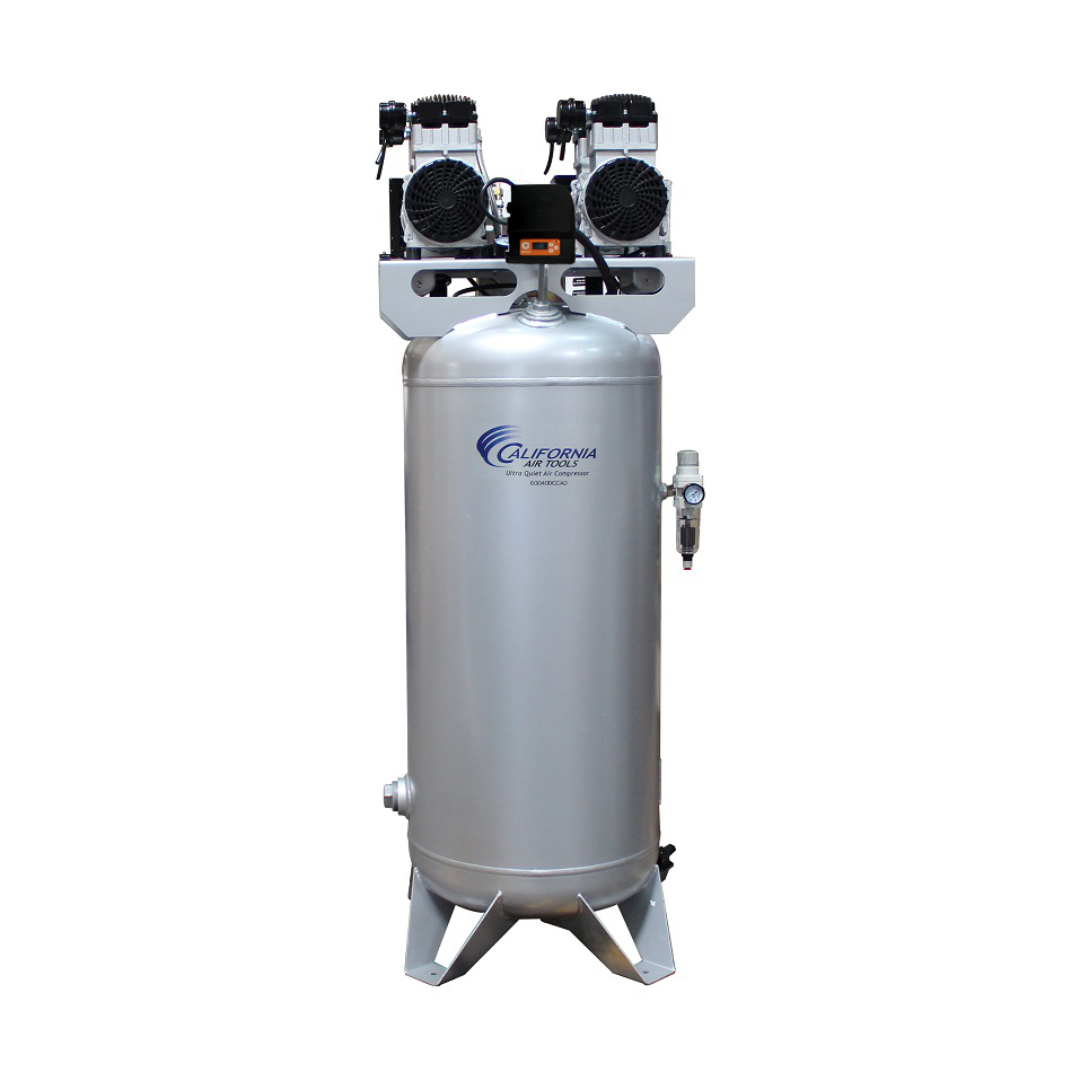

- Heavy-Duty Steel Tank – 60-gallon ASME-certified vertical tank optimized for shop and industrial use.
- Extended Pump Life – Designed for over 3000 hours of operation with 30% longer lifespan before service.

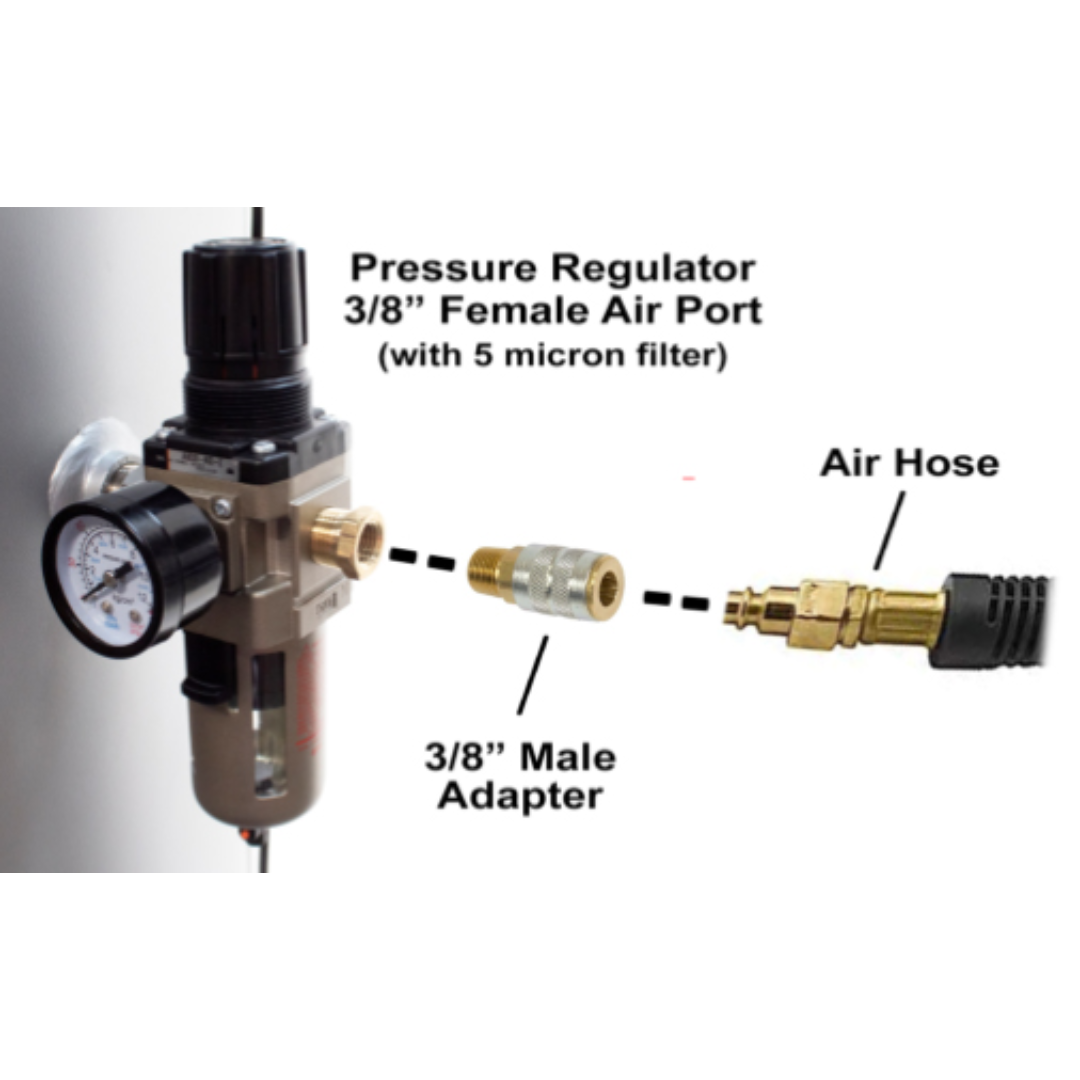

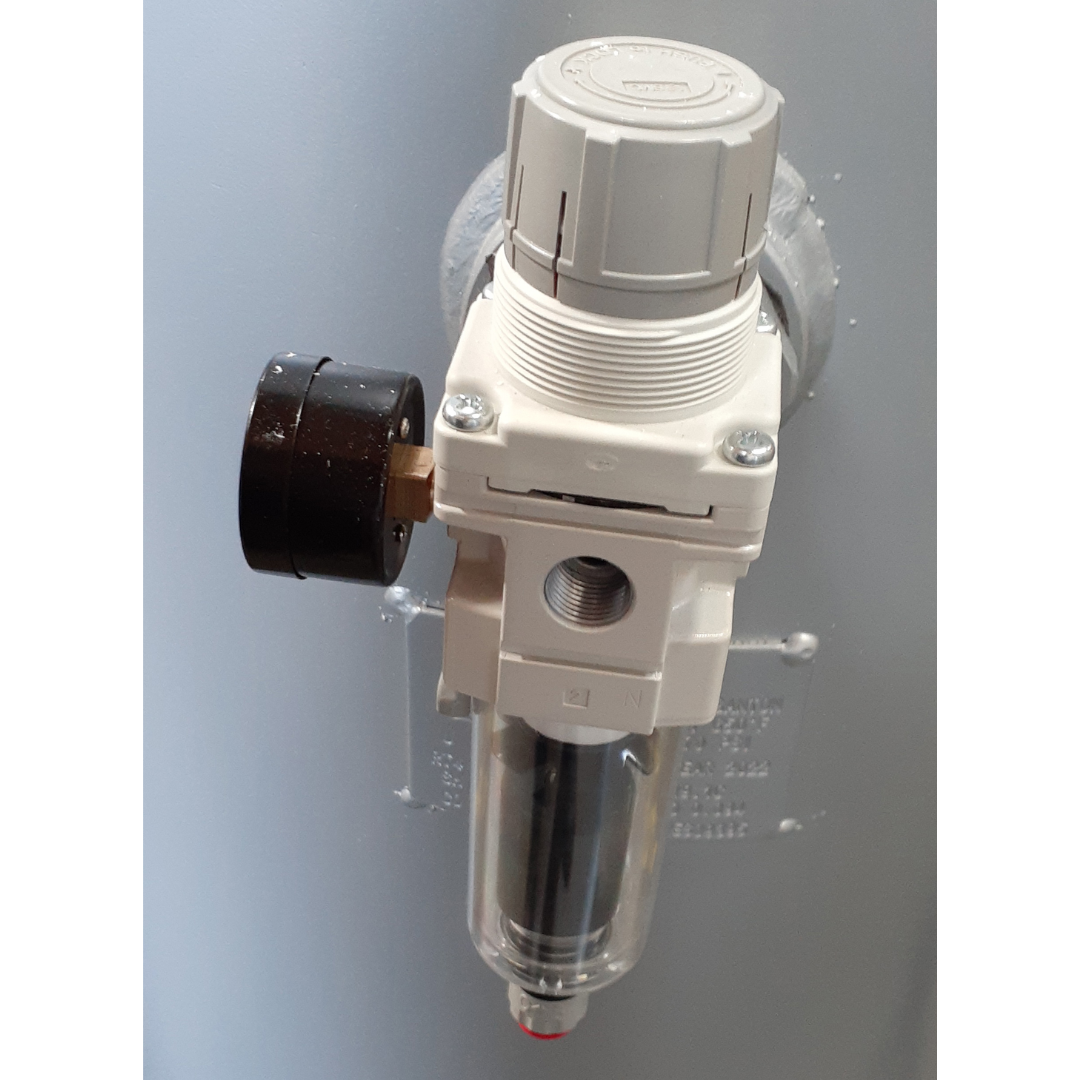

- Advanced Filtration System – Includes dual 0.01 micron prefilters and 5-micron regulator for superior air purity.
- Thermal Overload Protection – Protects motor from overheating and electrical damage.
Why Choose the CALIFORNIA AIR TOOLS 60040DSMADC Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 60 Gallon Air Compressor
- Delivers powerful 4.0 HP performance with ultra-quiet 75 dB operation.
- Provides 98% dry, oil-free air for sensitive and high-precision applications.
- Equipped with intelligent SMART controller for remote access and full system control.
- Low maintenance design with extended pump life and easy service components.
- Reliable, energy-efficient operation with reduced heat and wear.
The CALIFORNIA AIR TOOLS 60040DSMADC Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 60 Gallon Air Compressor with 98% Air Dryer and Automatic Drain Valve is the ultimate solution for professionals who need clean, dry, quiet, and intelligently controlled compressed air in demanding environments.
