CALIFORNIA AIR TOOLS 60040DCADC Powerful 4.0 Hp Ultra Quiet, Ultra Dry & Oil-Free Air Compressor Applications
- Dental, surgical, and medical air systems
- Clean rooms and laboratory environments
- Bio-tech, pharmaceutical, and precision manufacturing
- CNC machining, milling, and industrial automation
- Food processing, packaging, and restaurant operations
Best suited for applications requiring ultra-dry, oil-free compressed air with strict air quality standards and minimal noise.

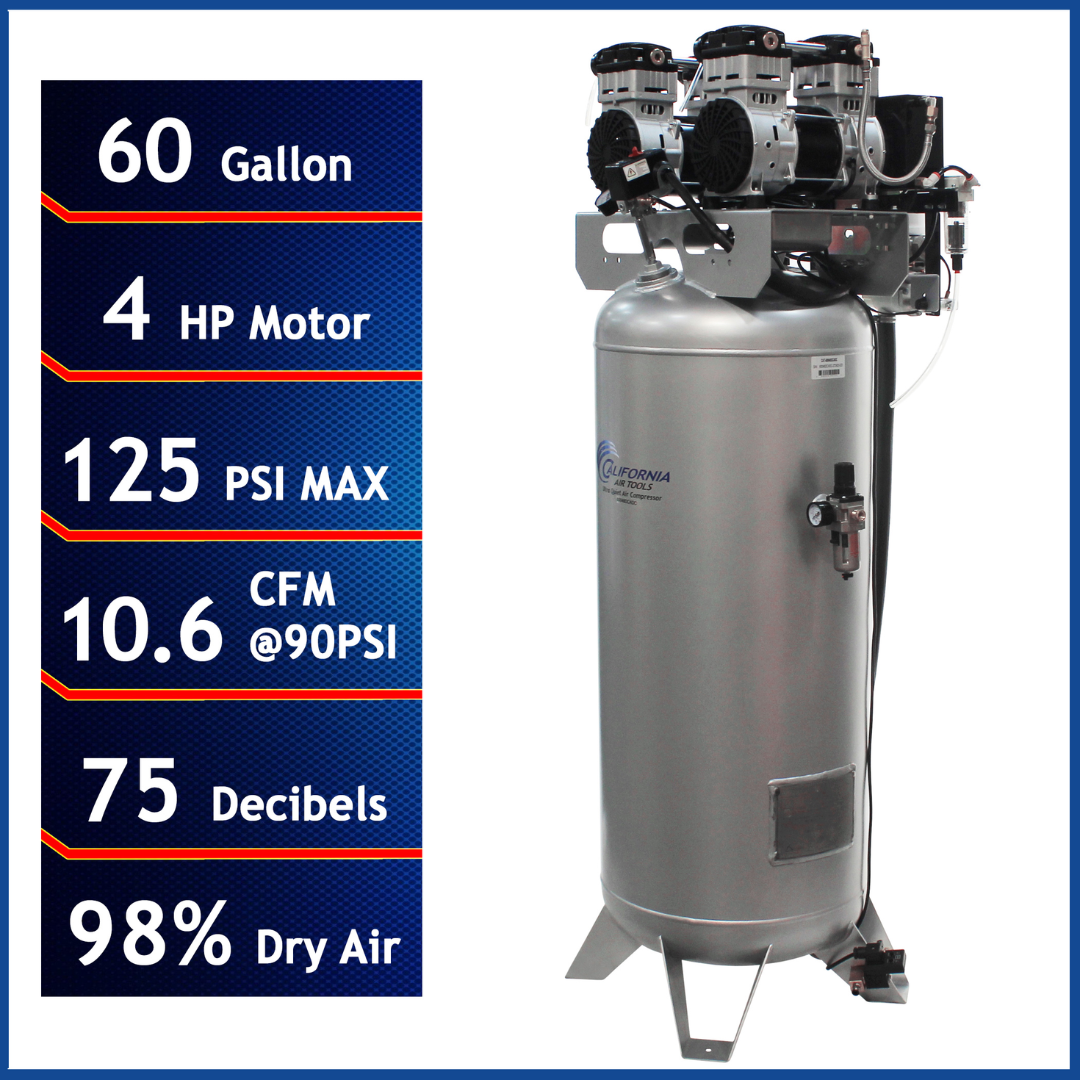

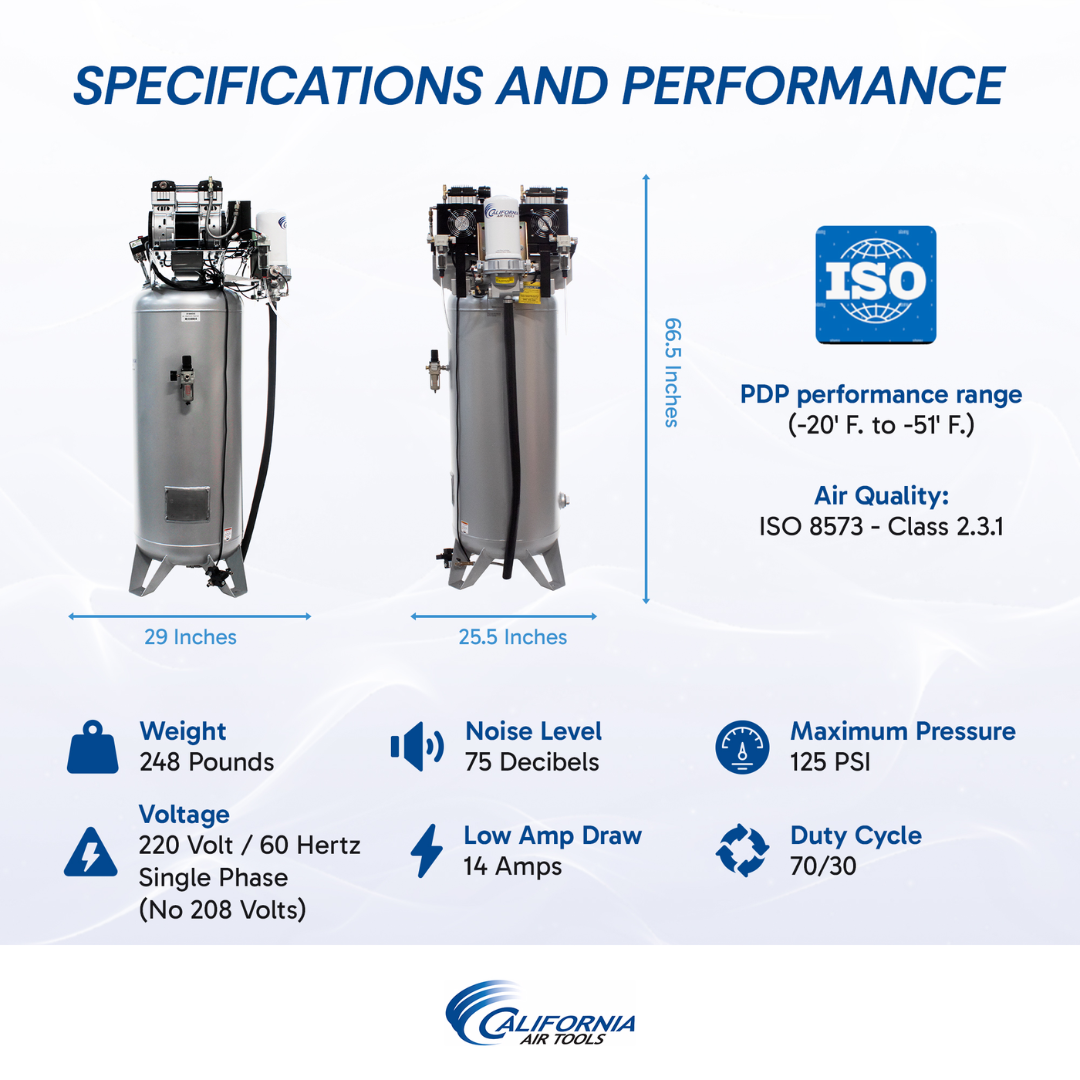

CALIFORNIA AIR TOOLS 60040DCADC Powerful 4.0 Hp Ultra Quiet, Ultra Dry & Oil-Free Air Compressor Specifications
| Model | 60040DCADC |
|---|---|
| Motor Power | 4.0 HP (Rated/Running) |
| Motor Type | Twin 2.0 HP SP Series Motors |
| Tank Size | 60 Gallon ASME Certified Steel |
| Air Flow @ 40 PSI | 12.80 CFM |
| Air Flow @ 90 PSI | 10.60 CFM |
| Maximum Pressure | 125 PSI |

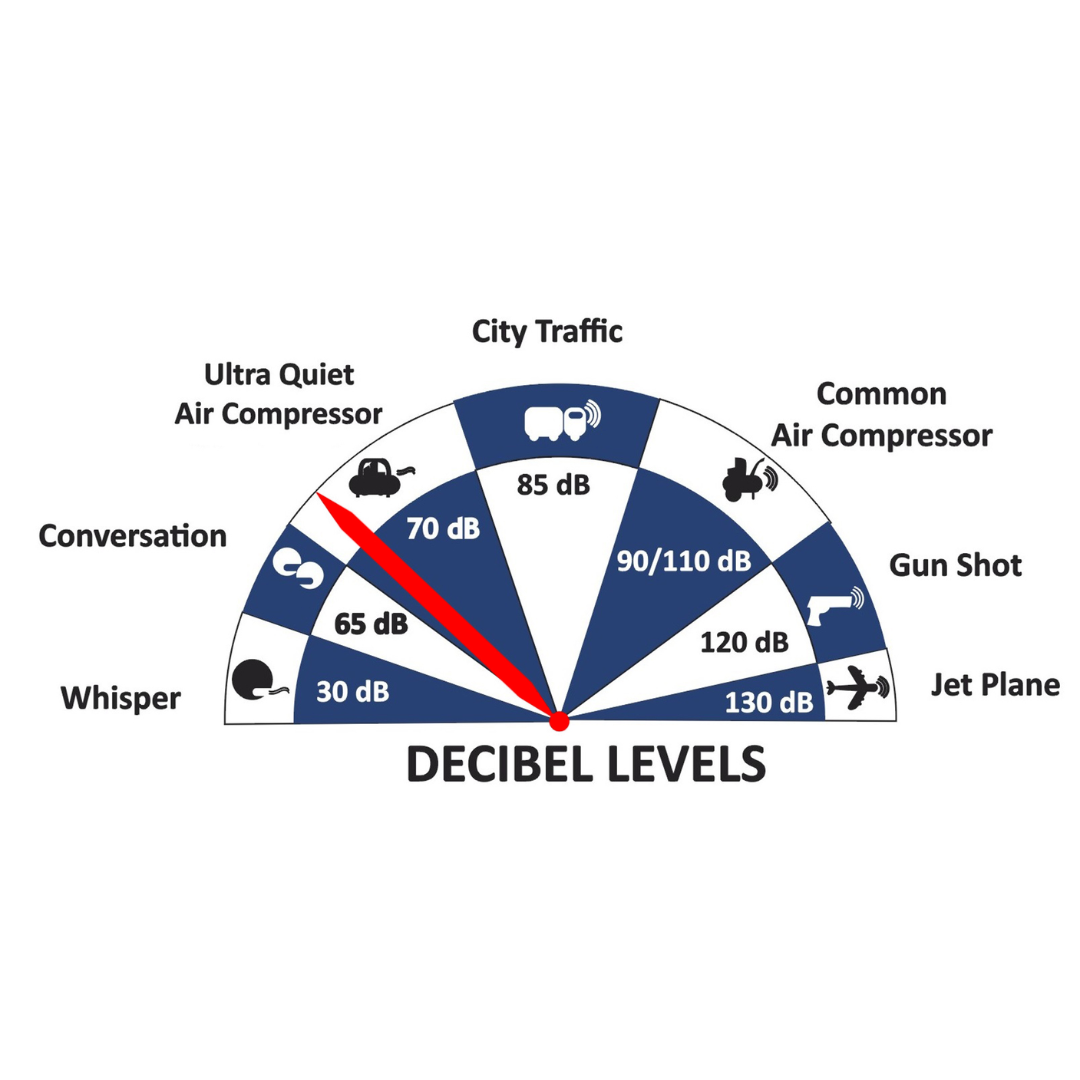

| Noise Level | 75 dB (Ultra Quiet) |
| Voltage | 220V / 60Hz / Single Phase |
| Amperage | 14 Amps |
| Air Drying System | Up to 98% Dry Air with Aftercooler & Cartridge Dryer |
| Air Quality | ISO 8573 Class 2.3.1 |
| Dew Point Performance | -20°F to -51°F PDP |
| Duty Cycle | 70/30 |
| Tank Fill Time | 6 Minutes 30 Seconds |
| Recovery Time | 2 Minutes (95 PSI to 125 PSI) |
| Dimensions (L × W × H) | 27" × 31" × 66.5" |
| Weight | 241 lbs |

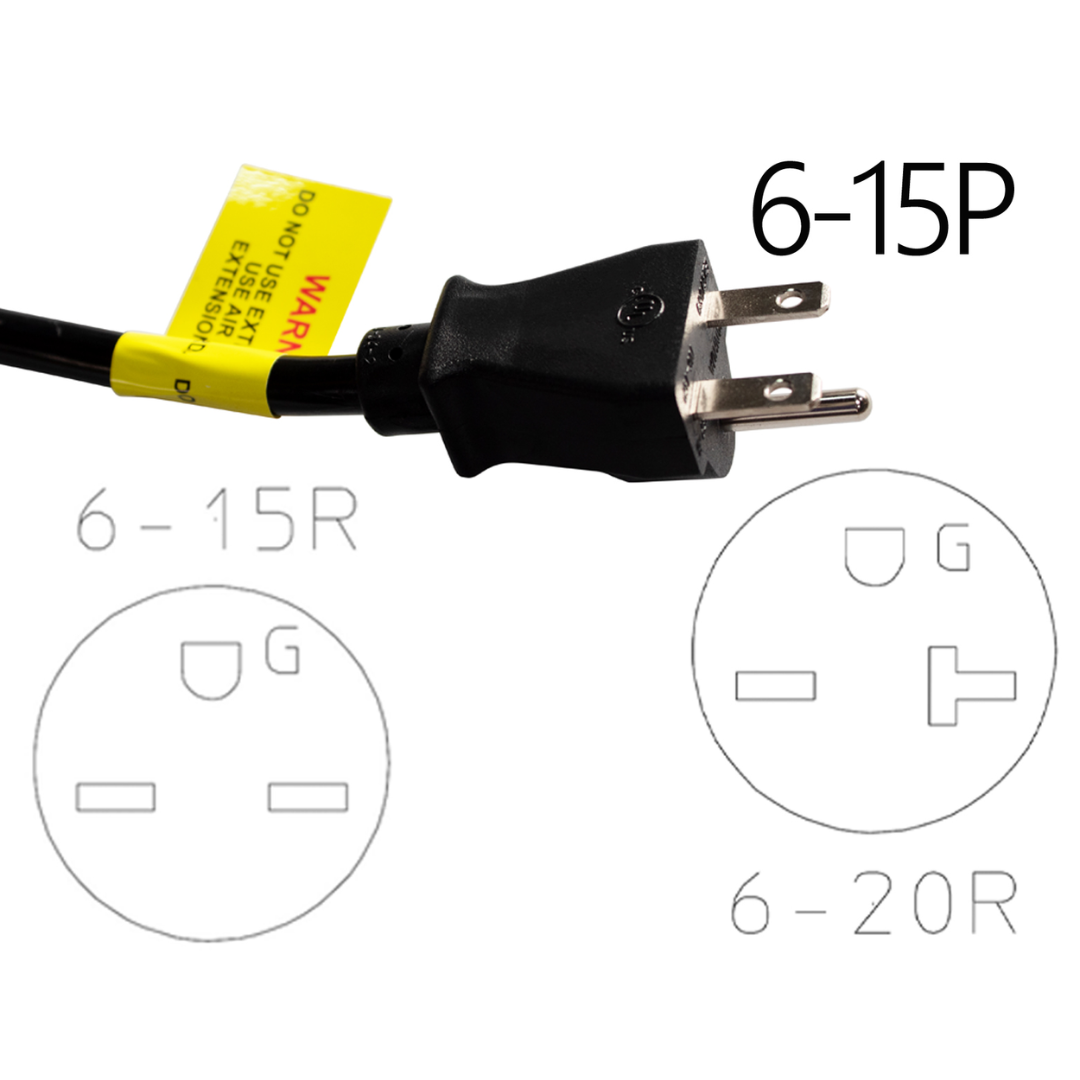

| Plug Type | NEMA 6-15P |

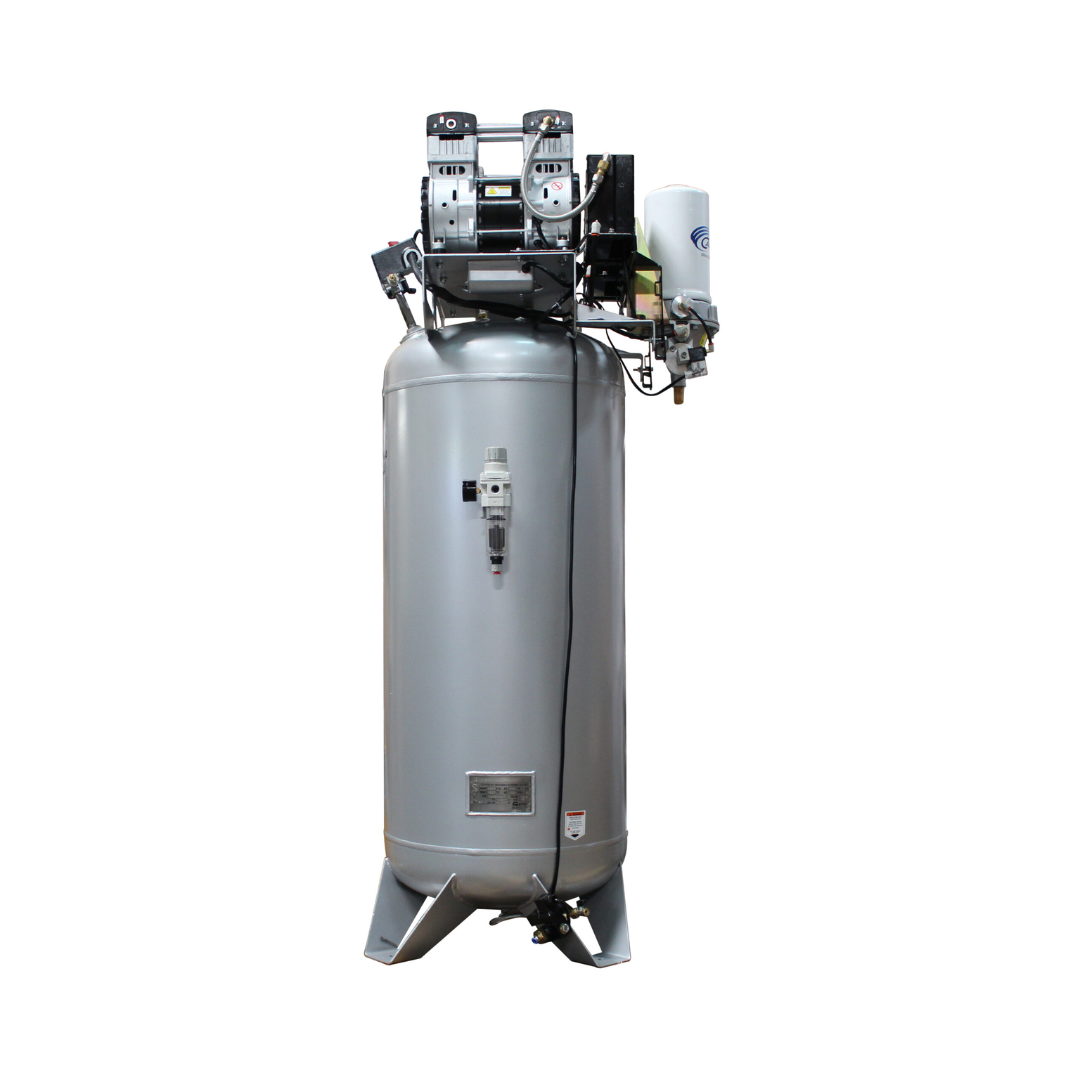

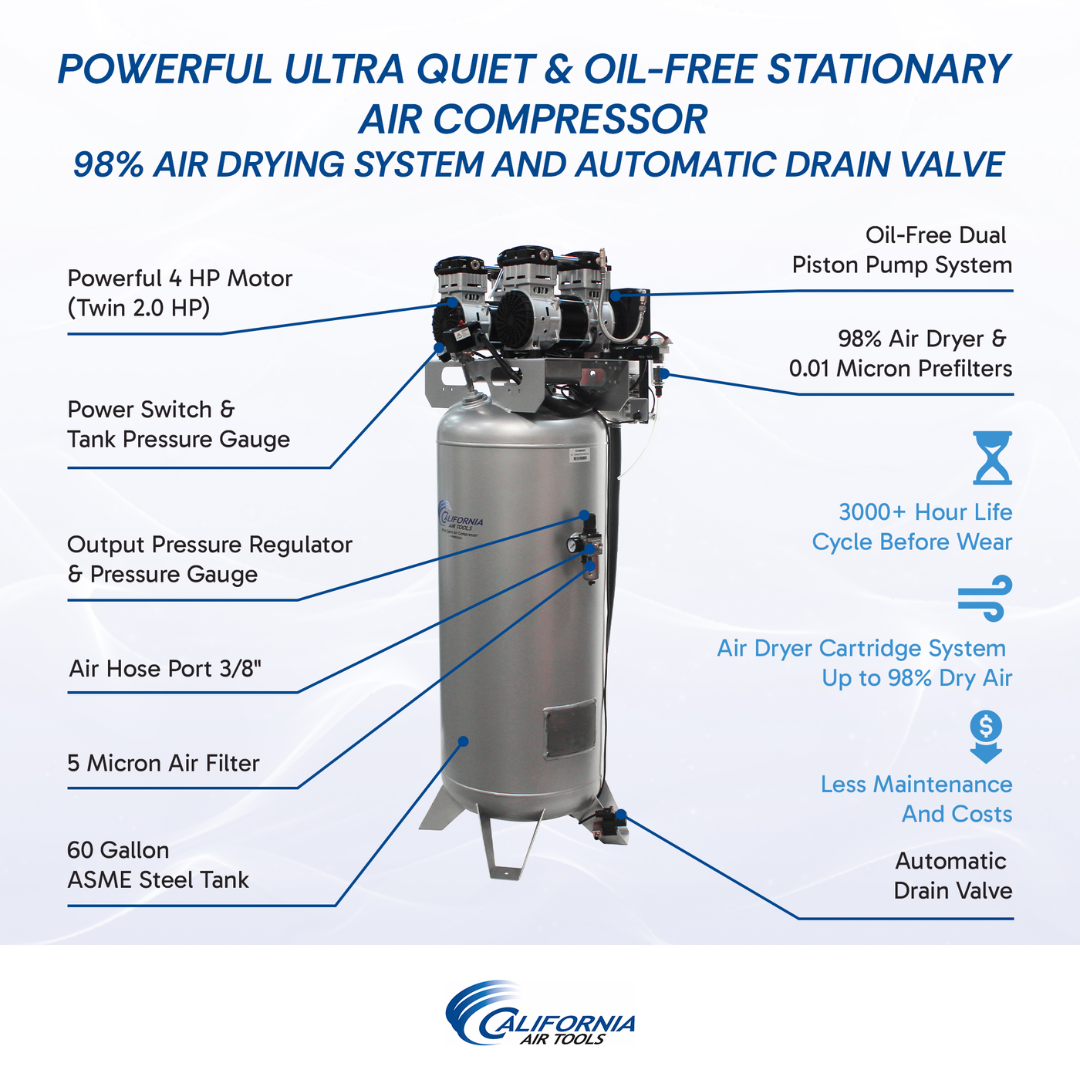

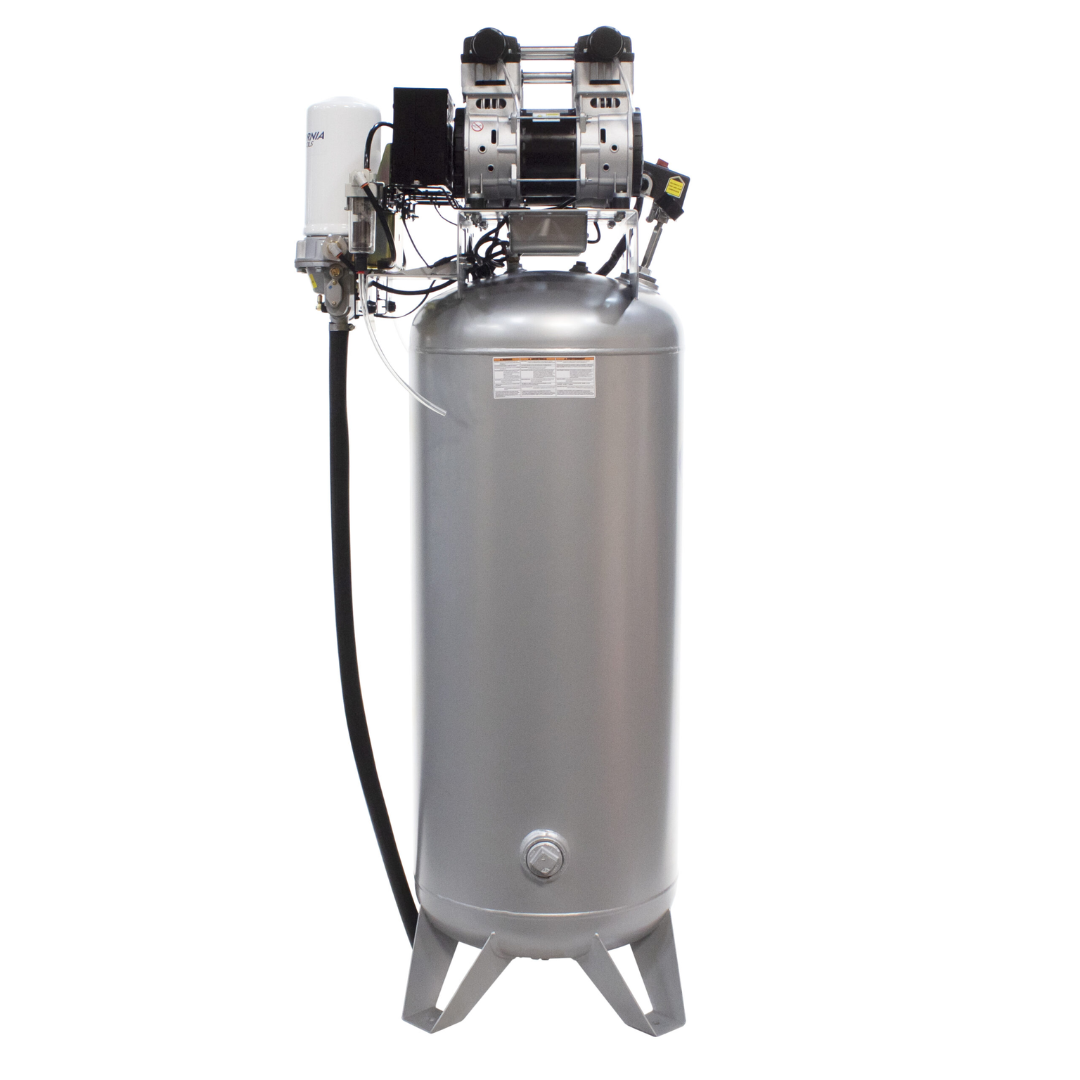

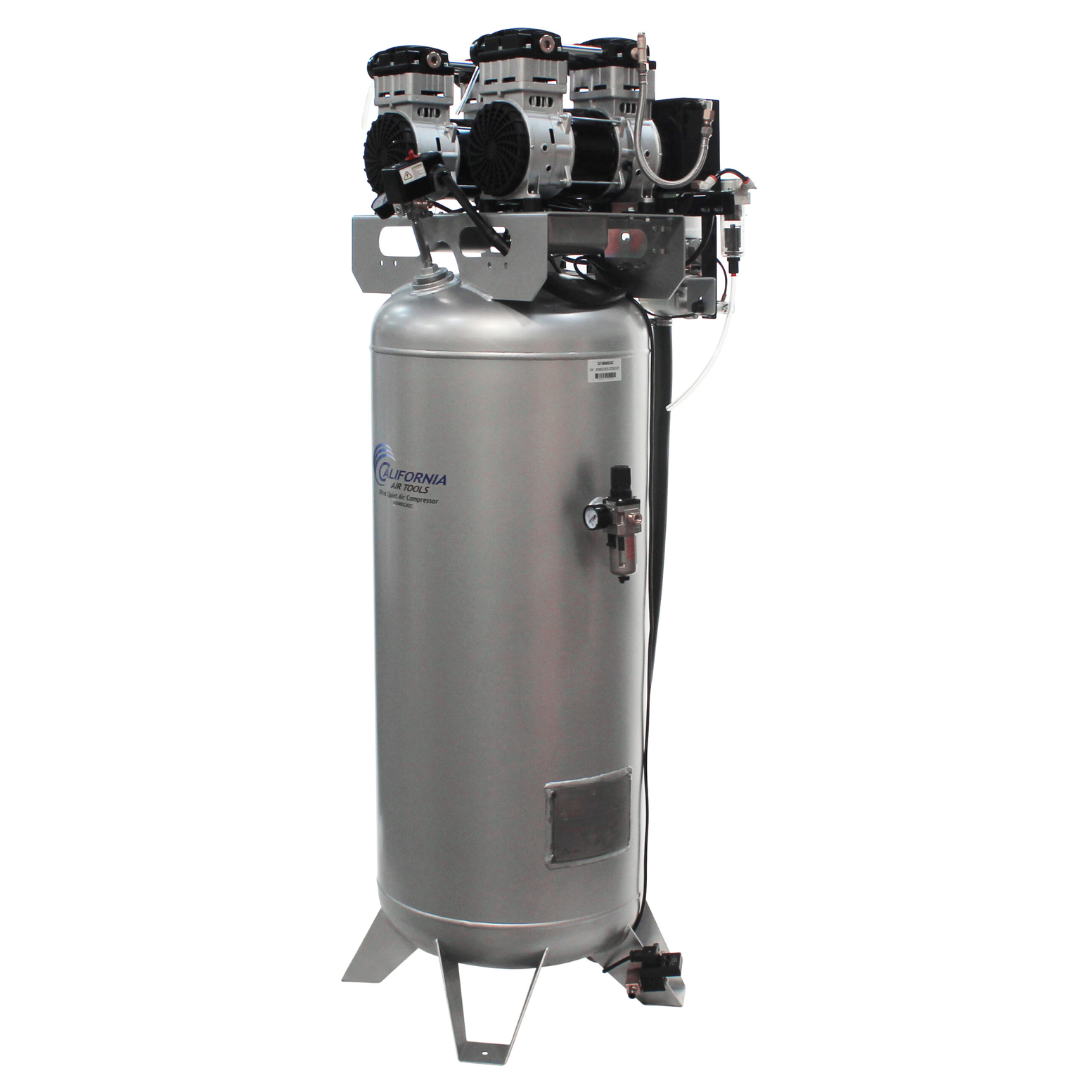

CALIFORNIA AIR TOOLS 60040DCADC Powerful 4.0 Hp Ultra Quiet, Ultra Dry & Oil-Free Air Compressor Performance & Construction
- Ultra Quiet Operation (75 dB) – One of the quietest compressors available, ideal for indoor and controlled environments.

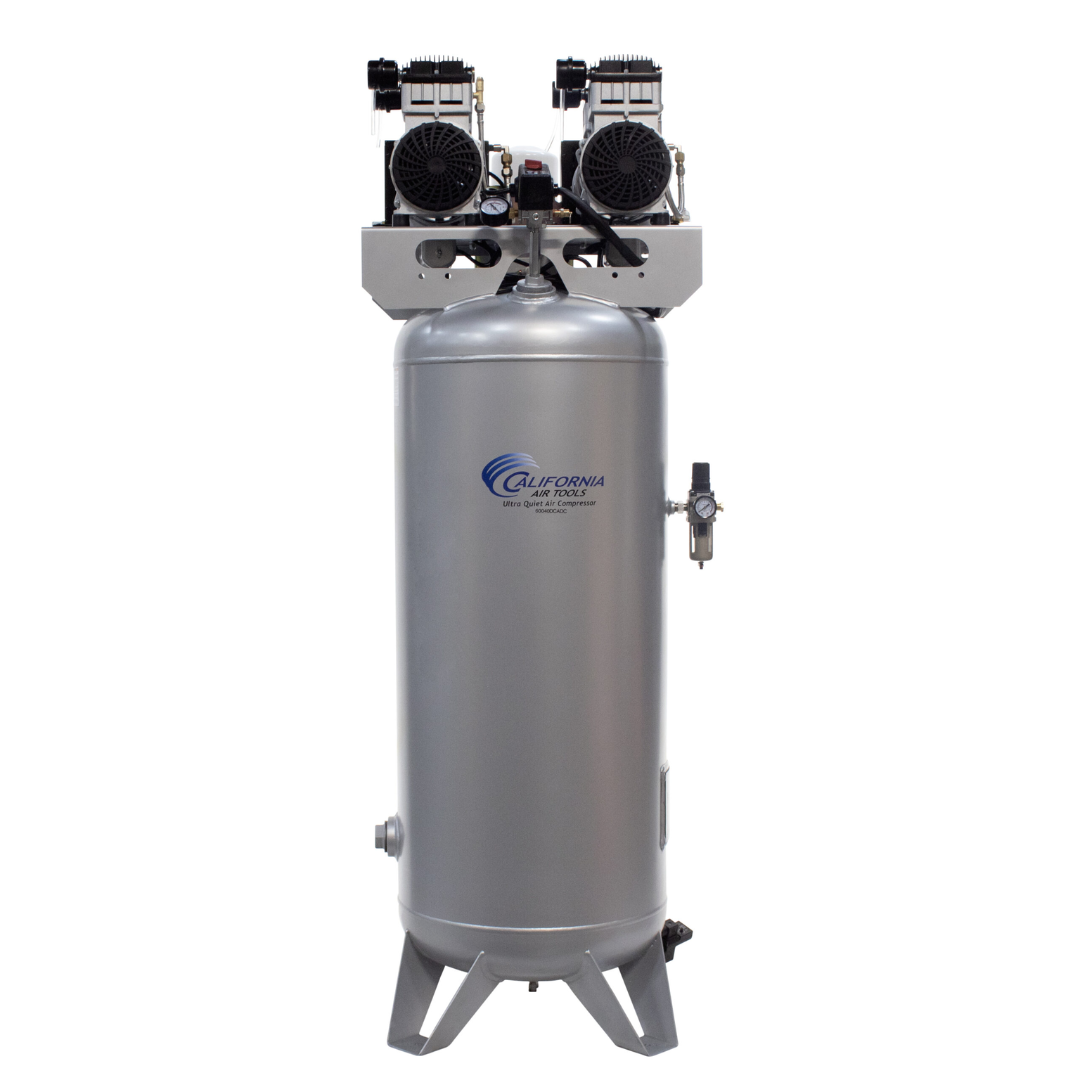

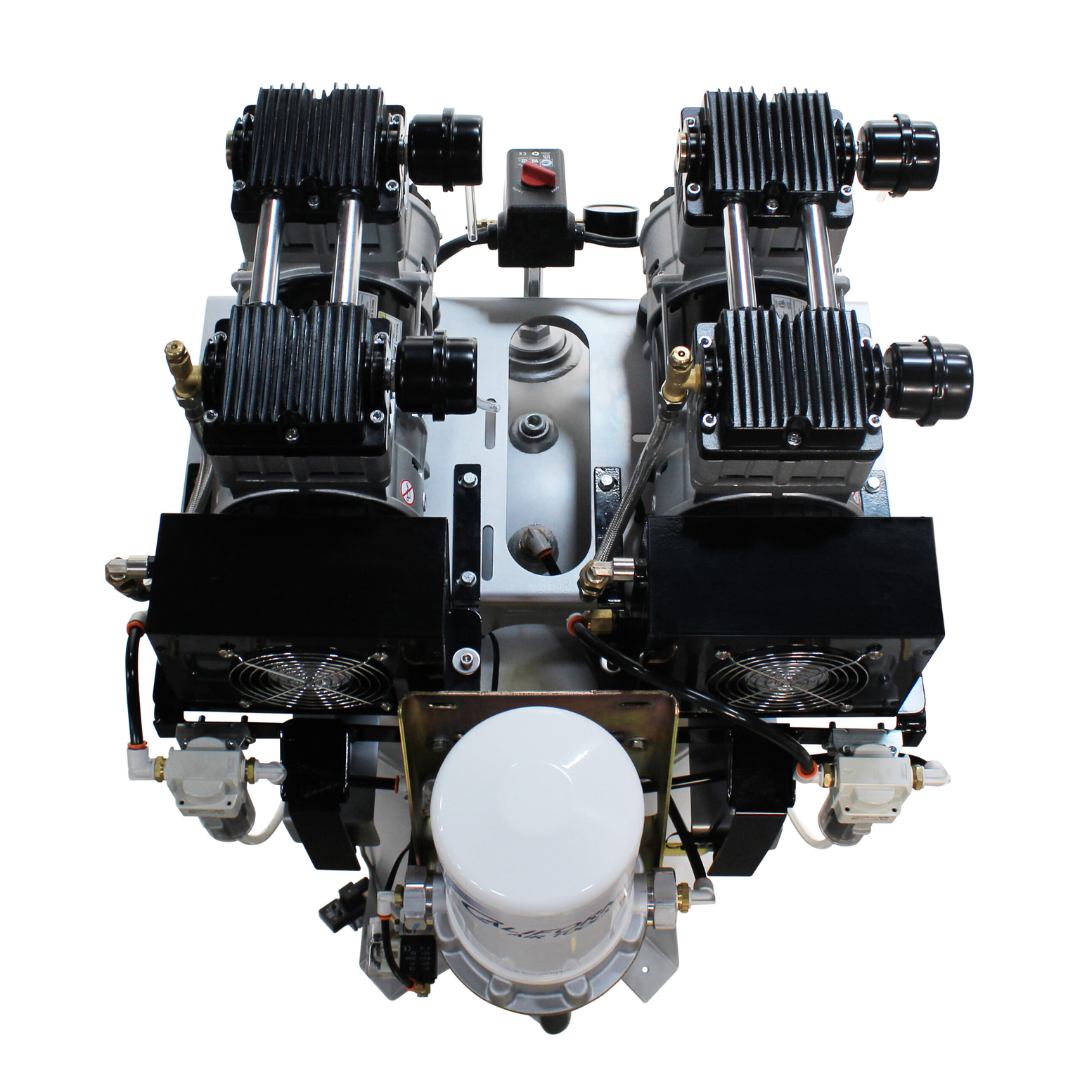

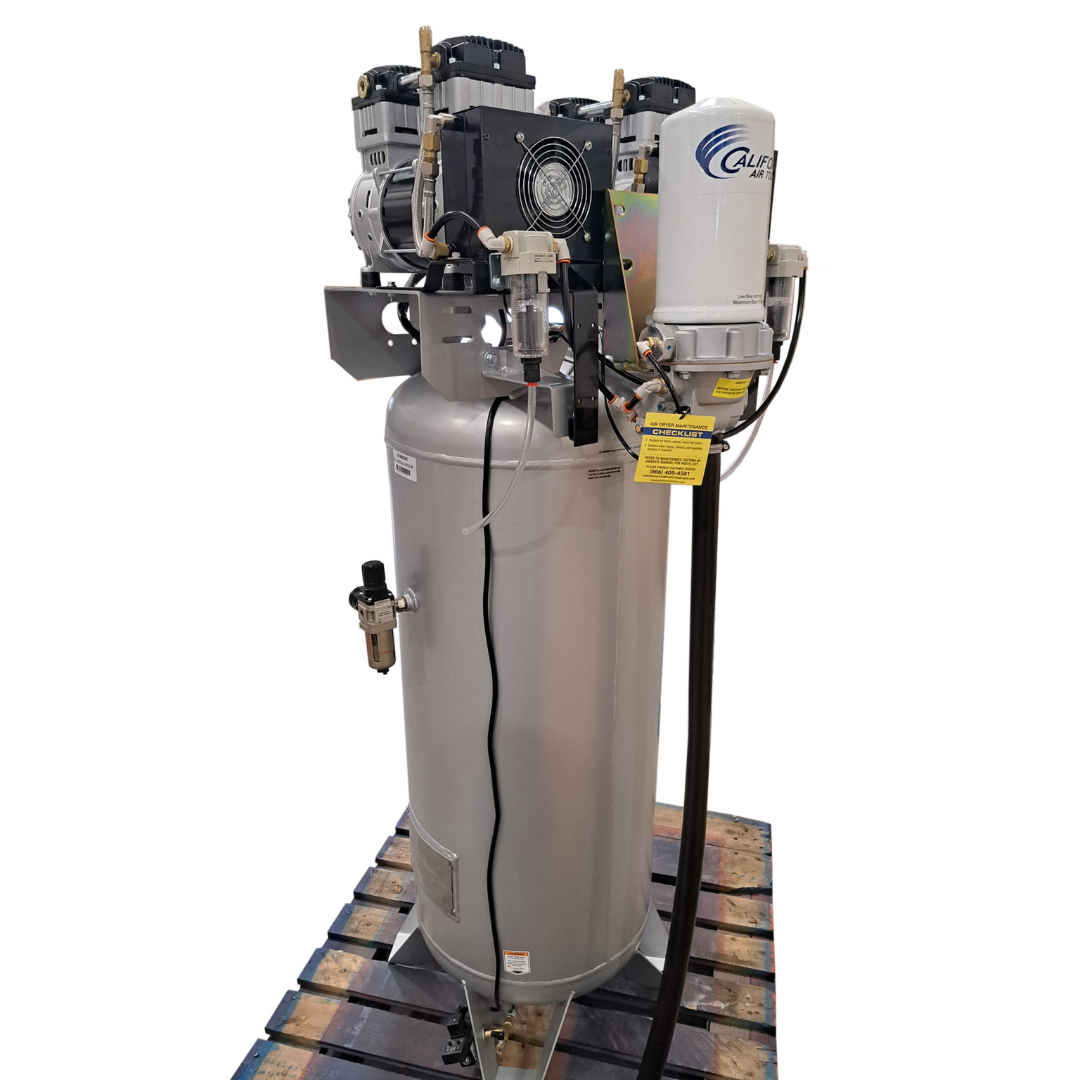

- Dual 2.0 HP Motors – Low-speed 1680 RPM operation minimizes vibration, heat, and mechanical wear.

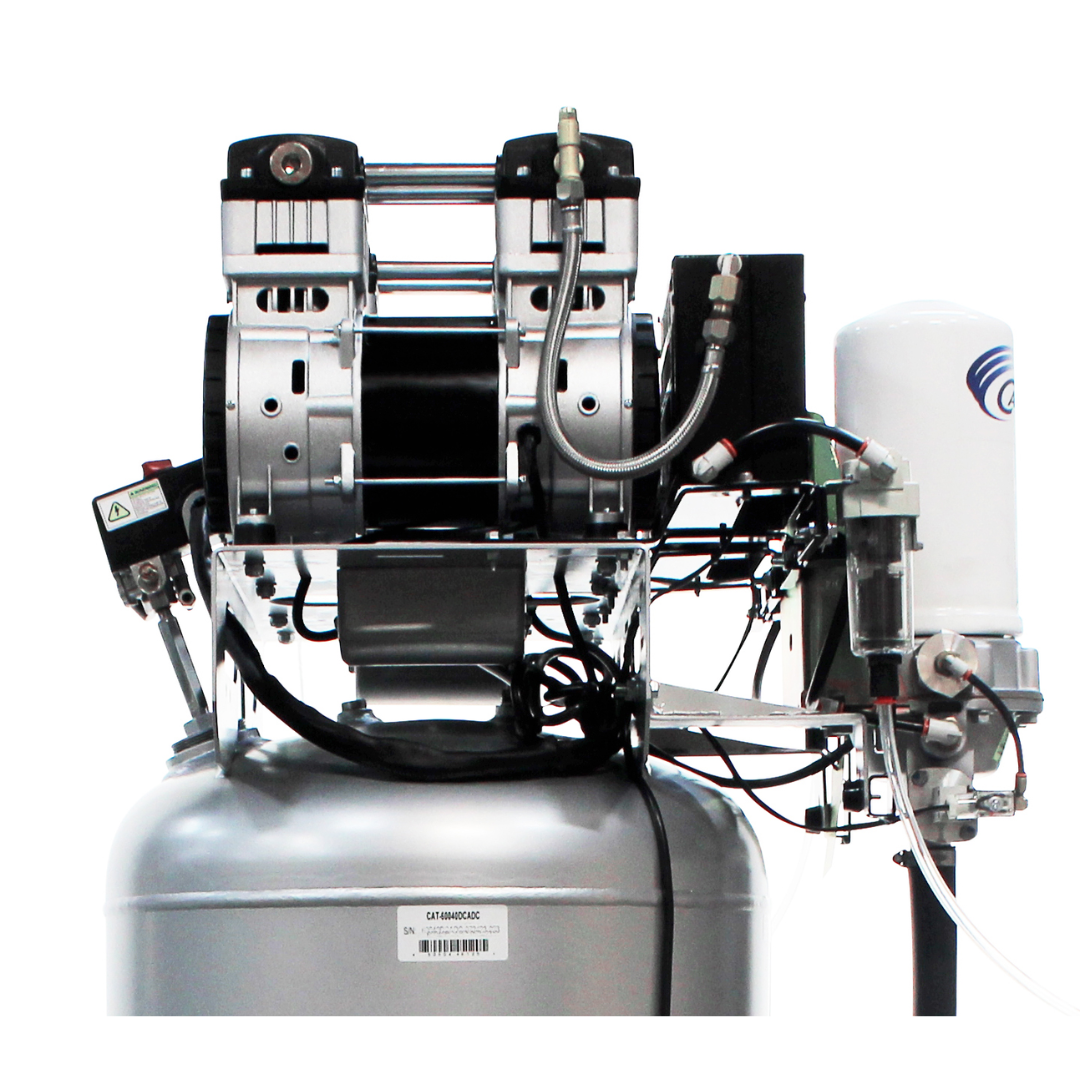

- Oil-Free Dual Piston Pump – Provides clean, contaminant-free air with reduced maintenance and extended reliability.
- Extended Pump Life – Engineered for over 3000 hours of operation before service.

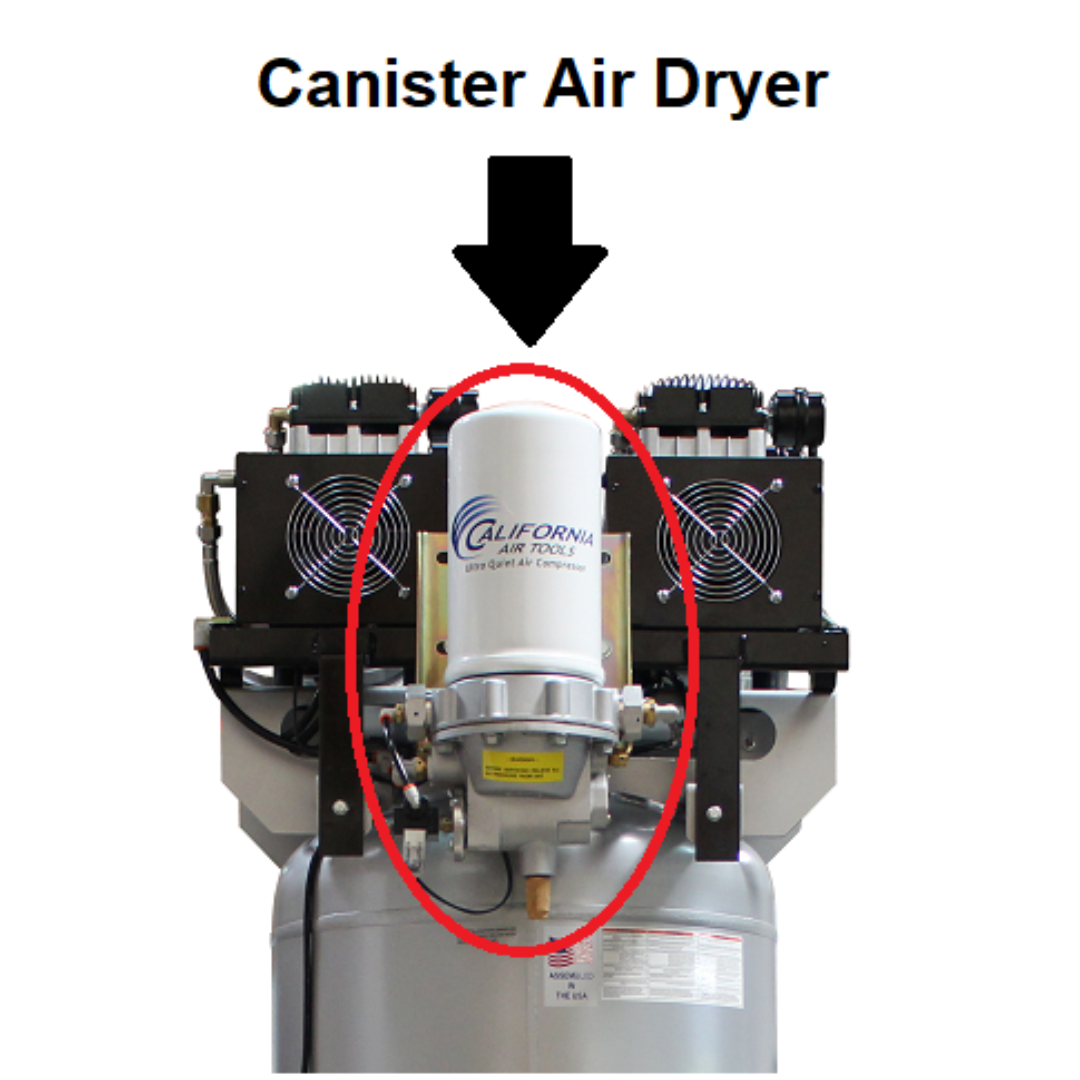

- 98% Air Drying System – Advanced aftercooler and cartridge dryer remove nearly all moisture from compressed air.
- ISO 8573 Class 2.3.1 Compliance – Ensures high-quality air suitable for sensitive and regulated applications.
- Low Dew Point Performance – Achieves PDP range from -20°F to -51°F for ultra-dry air delivery.

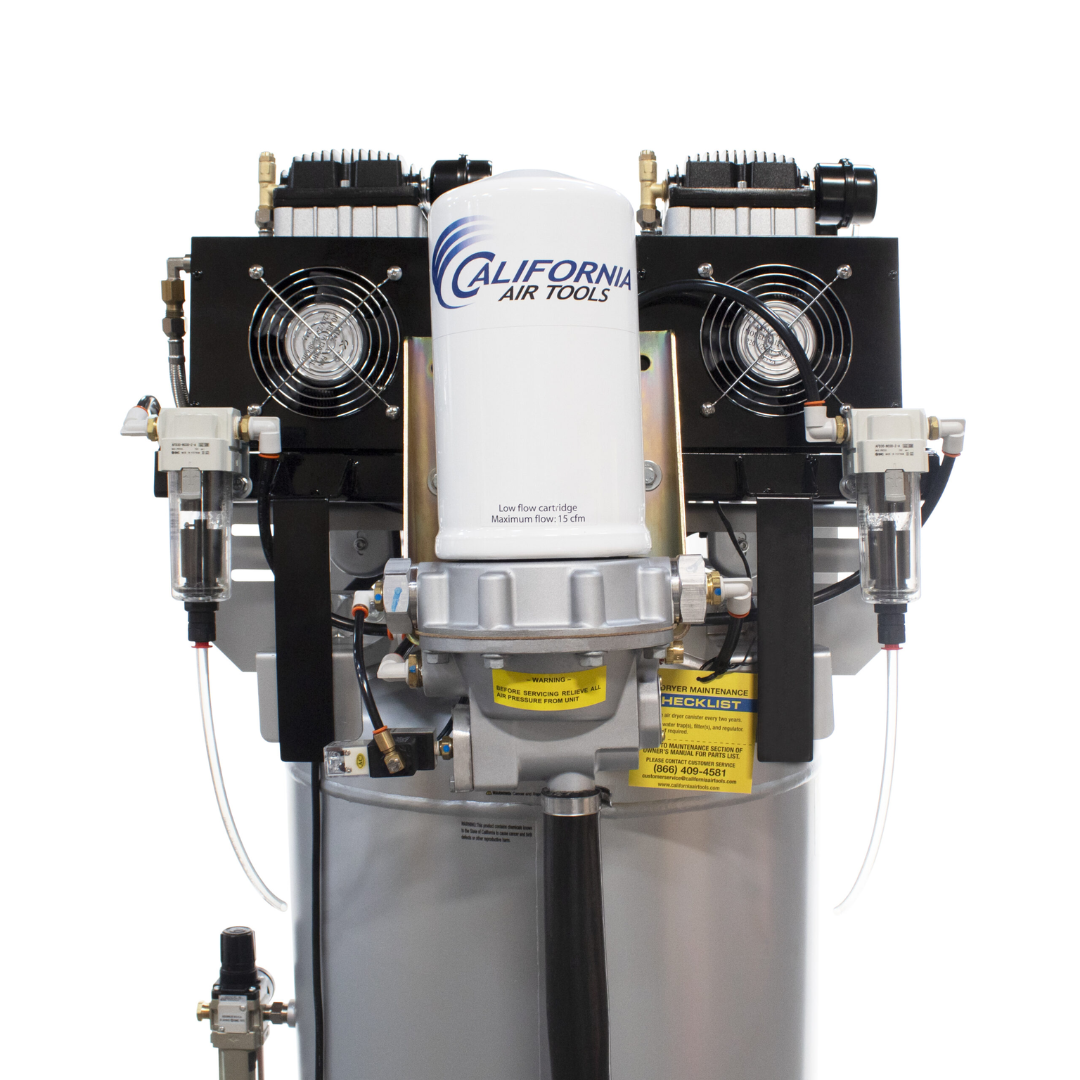

- Spin-On Dryer Cartridge – Easy maintenance with replaceable molecular sieve desiccant cartridge (2-year lifespan).

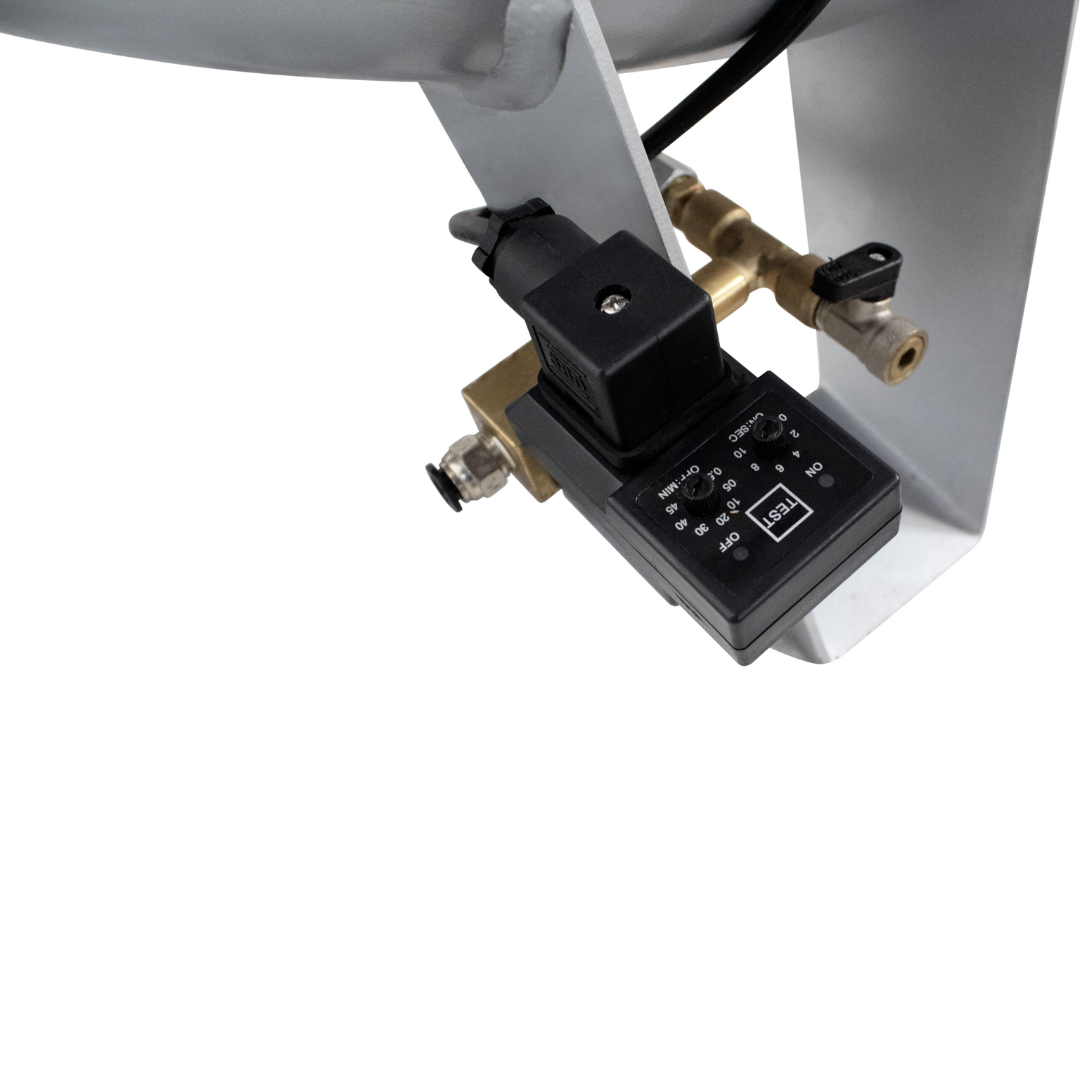

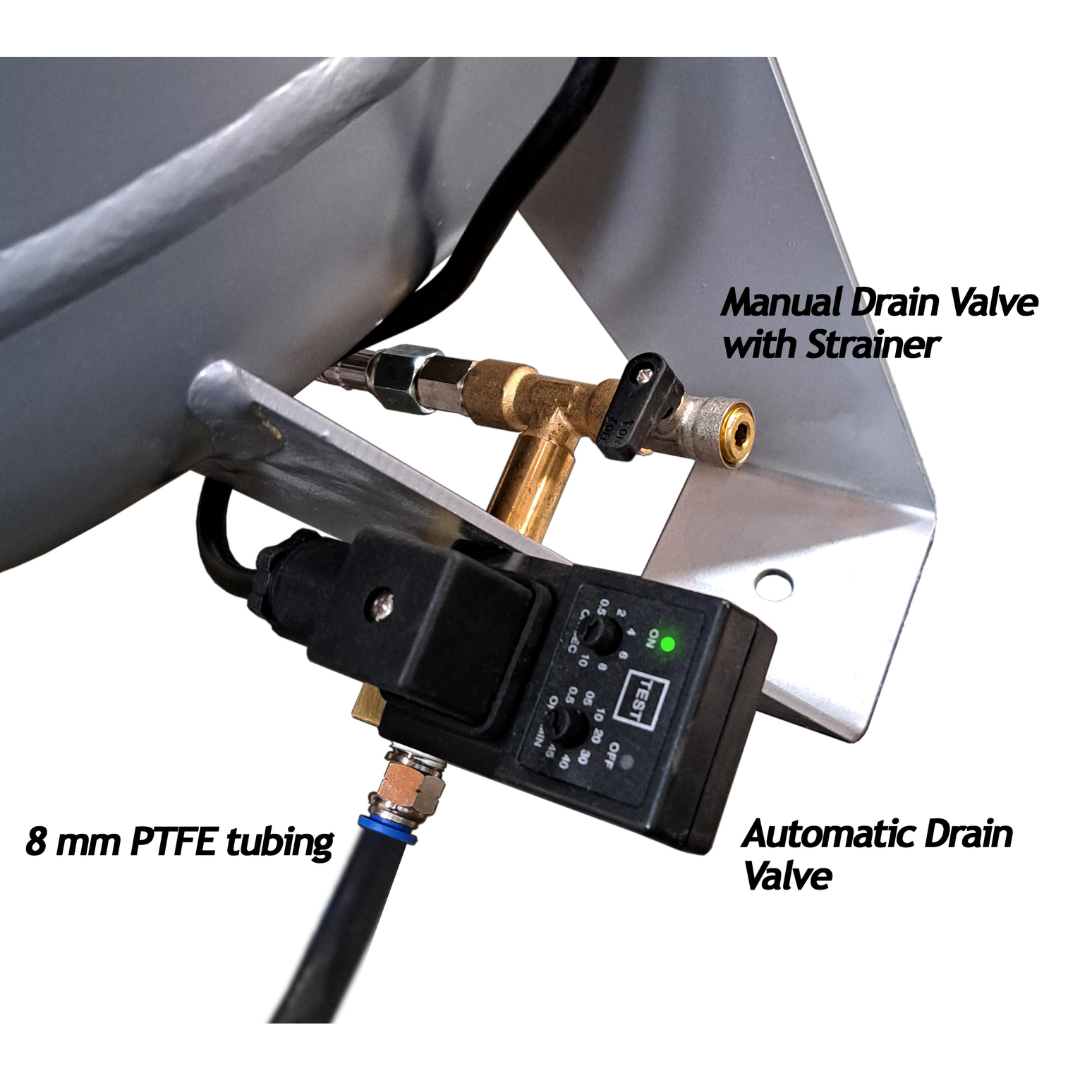

- Automatic Drain Valve (EZ-1) – Eliminates manual tank draining with programmable moisture removal cycles.

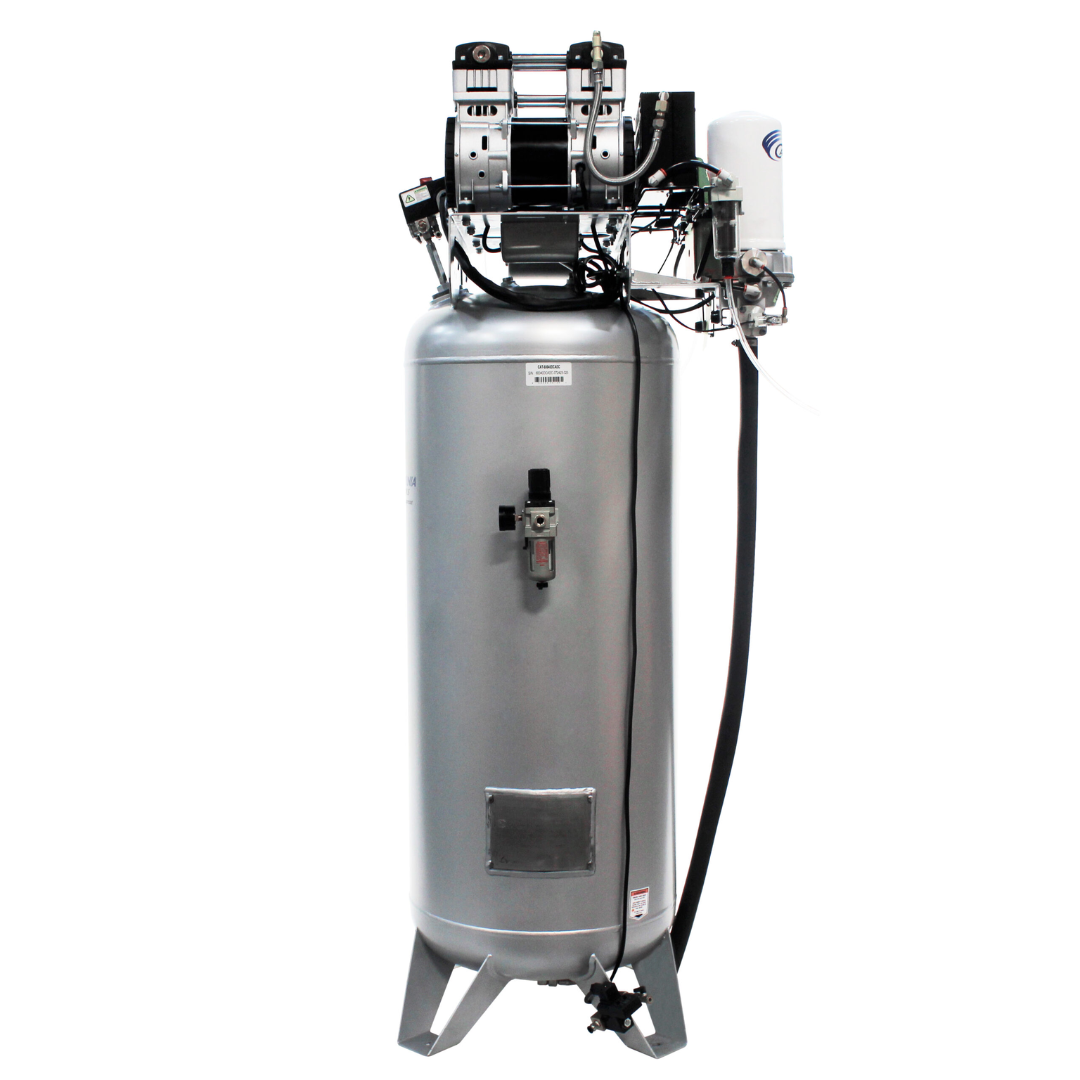

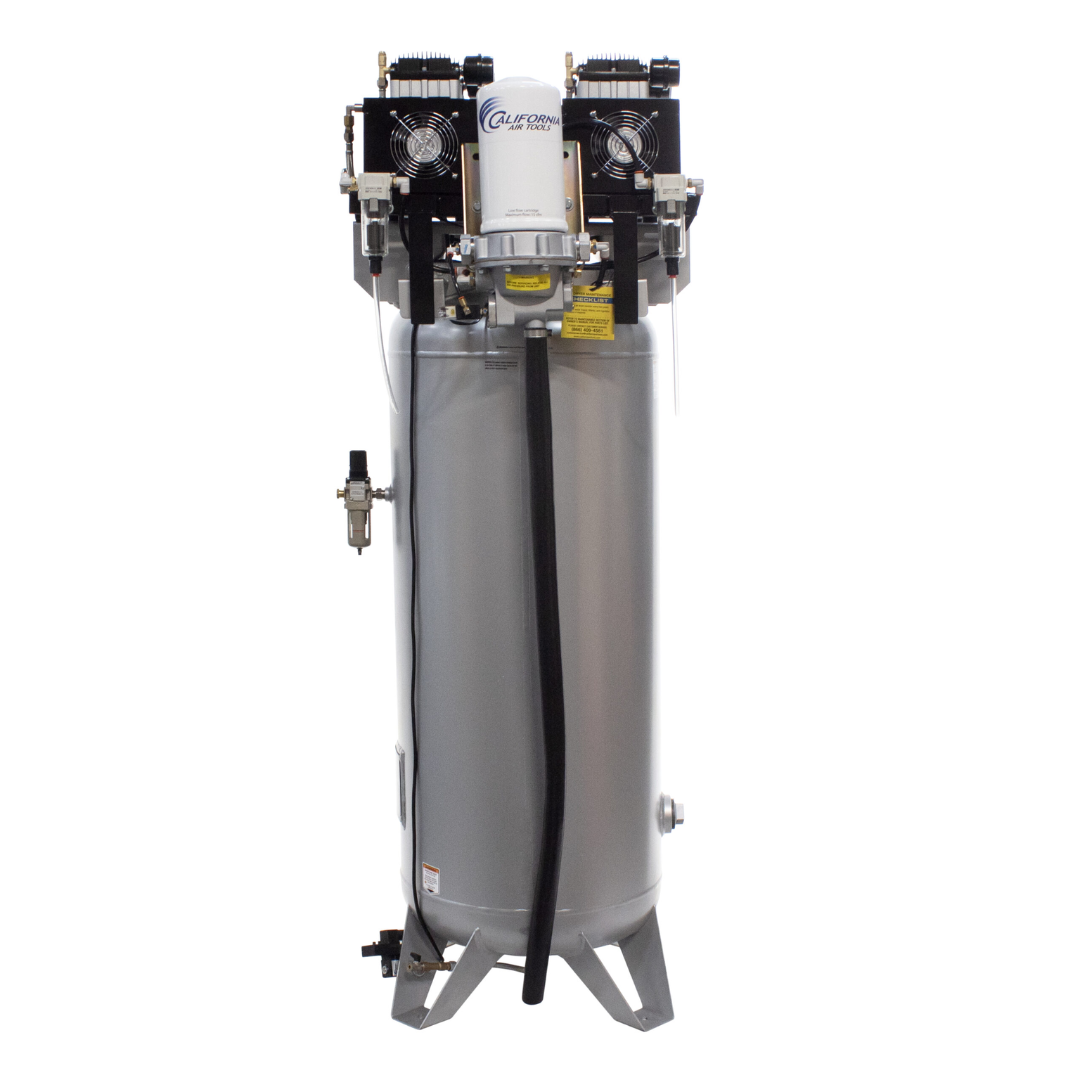

- Heavy-Duty ASME Steel Tank – 60-gallon vertical tank built for durability and commercial-grade performance.

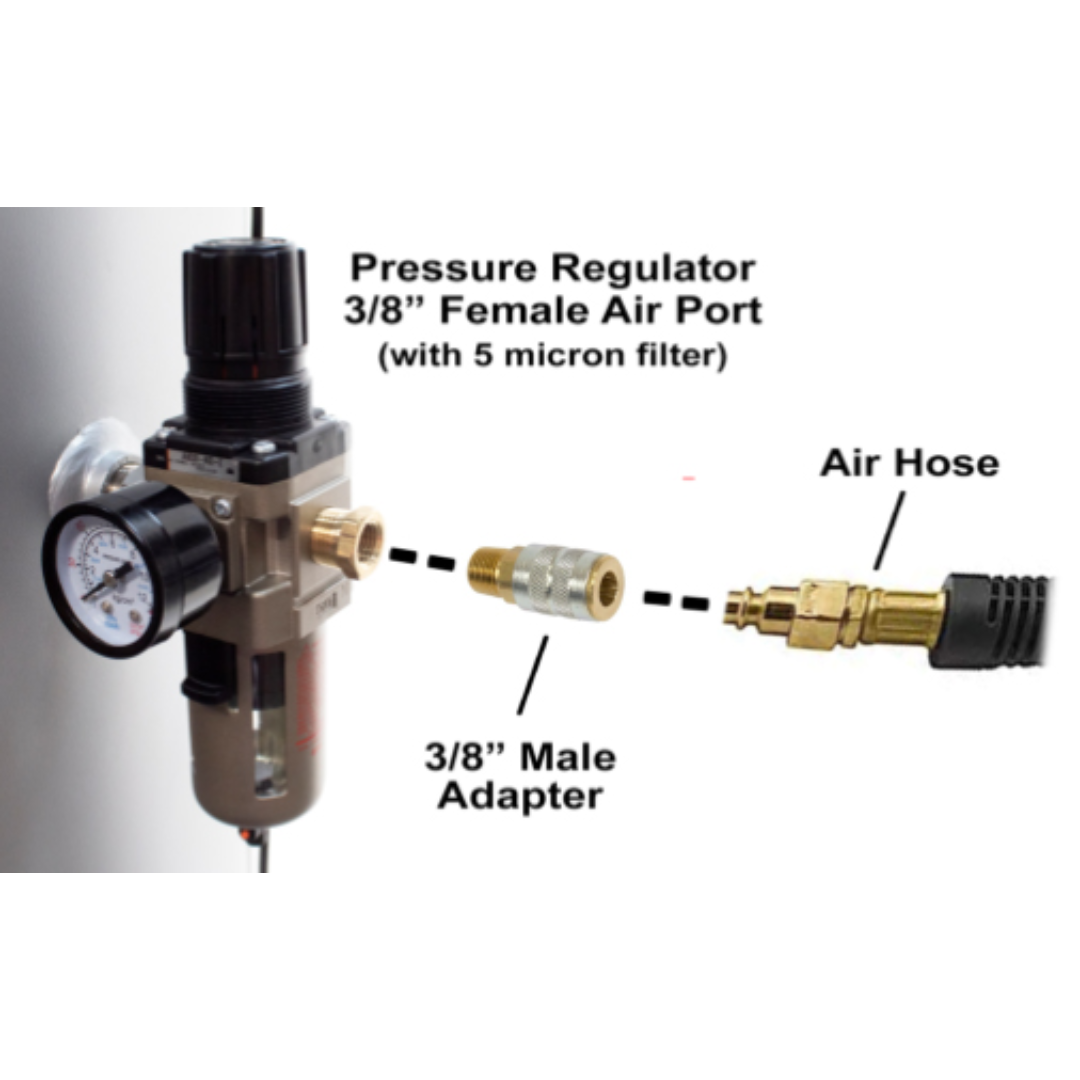

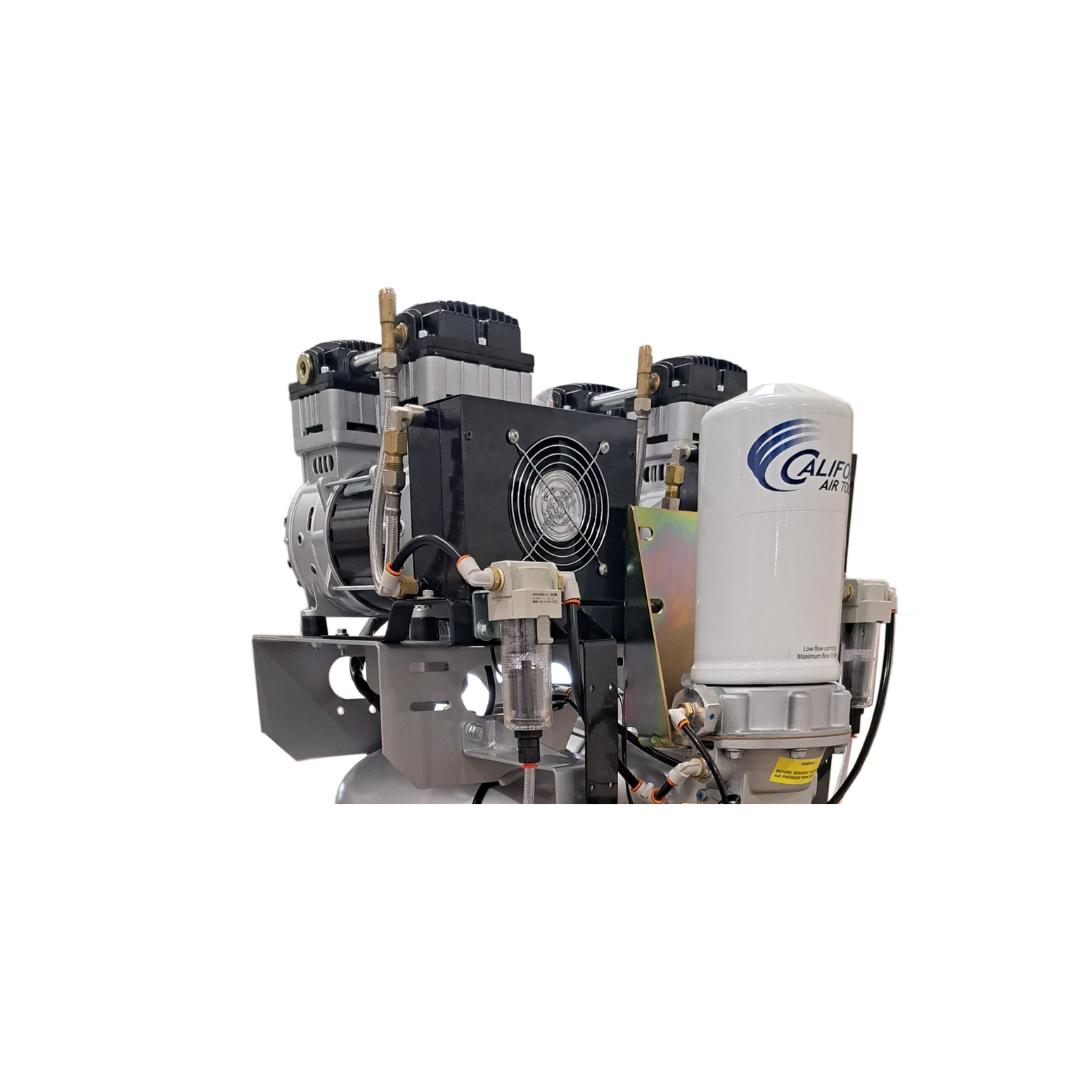

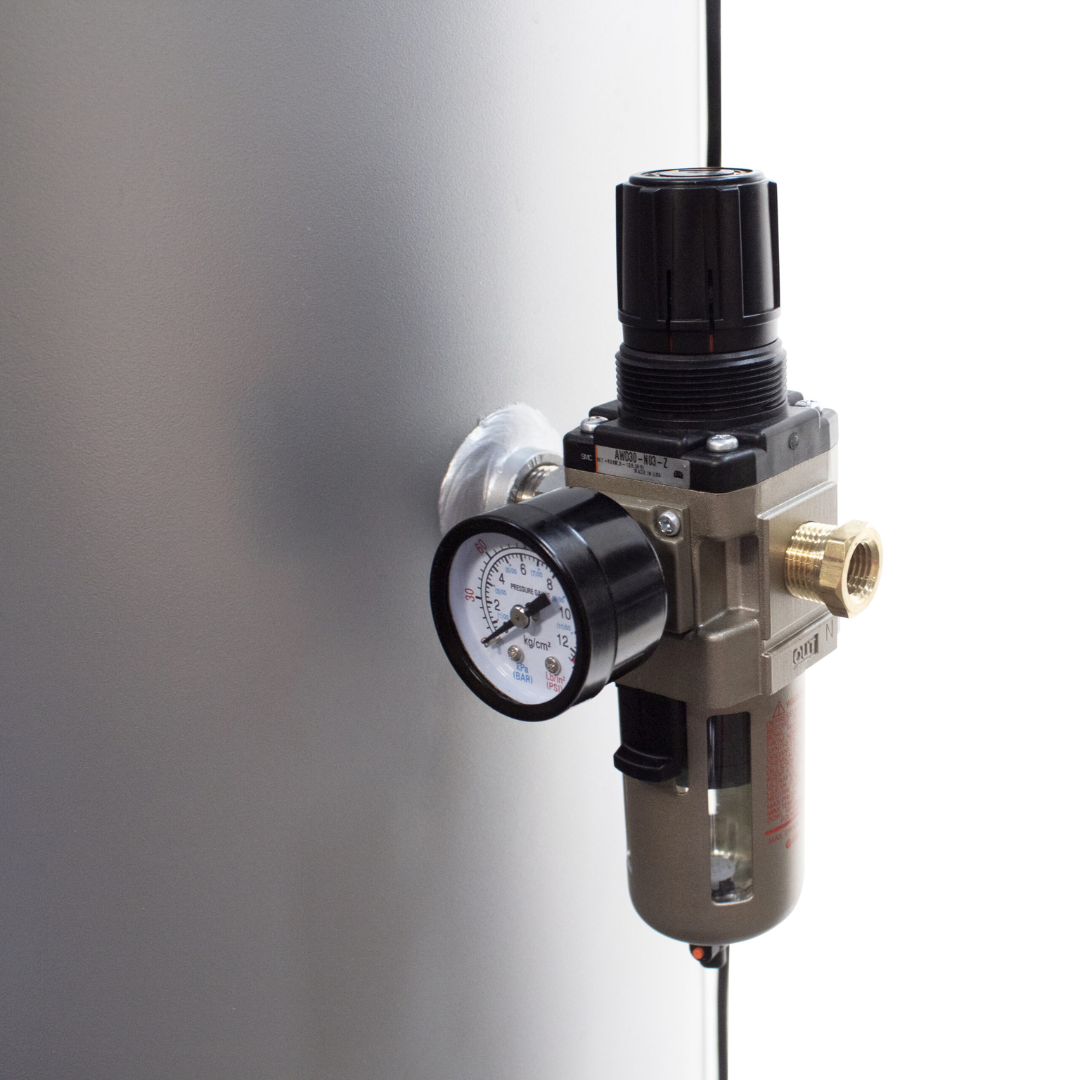

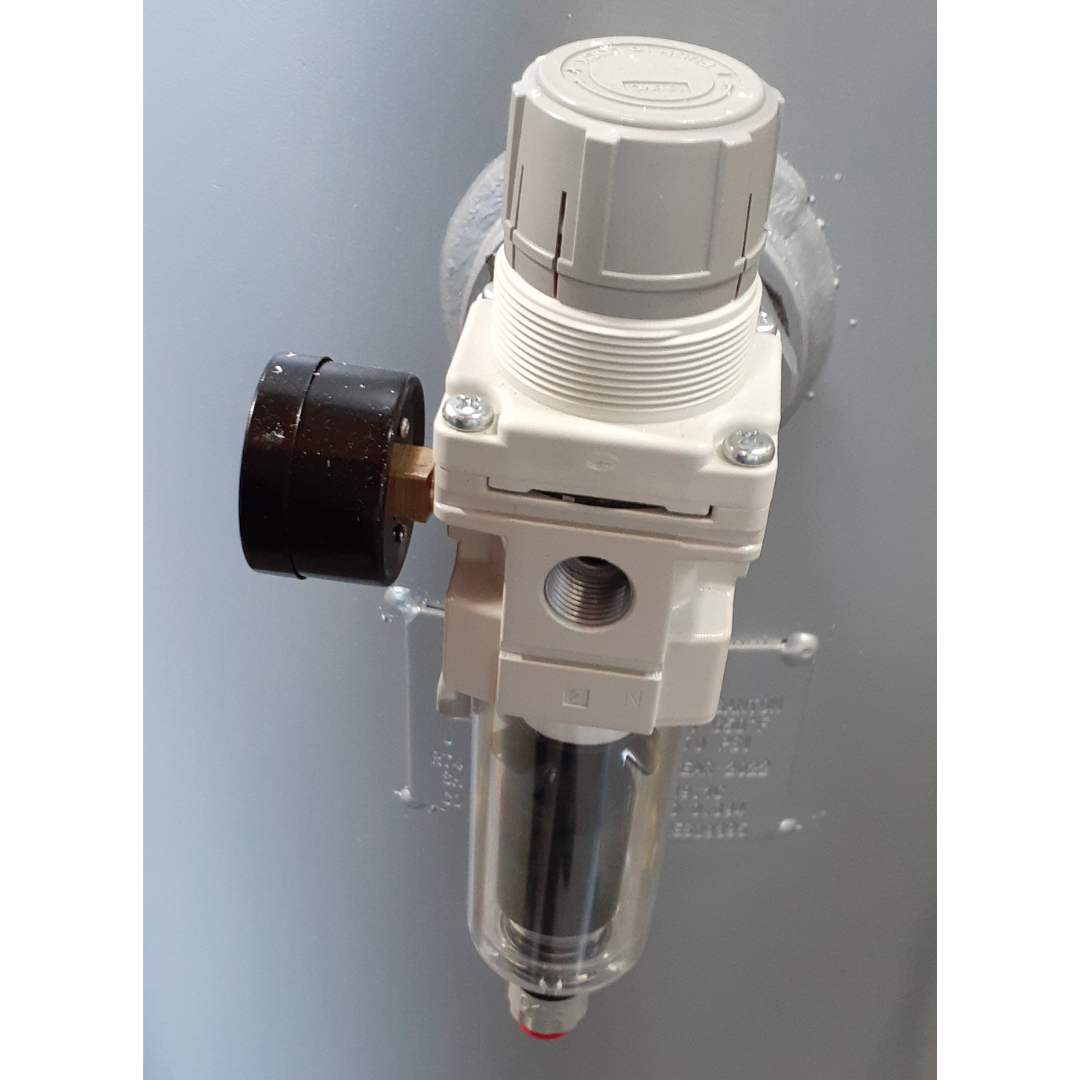

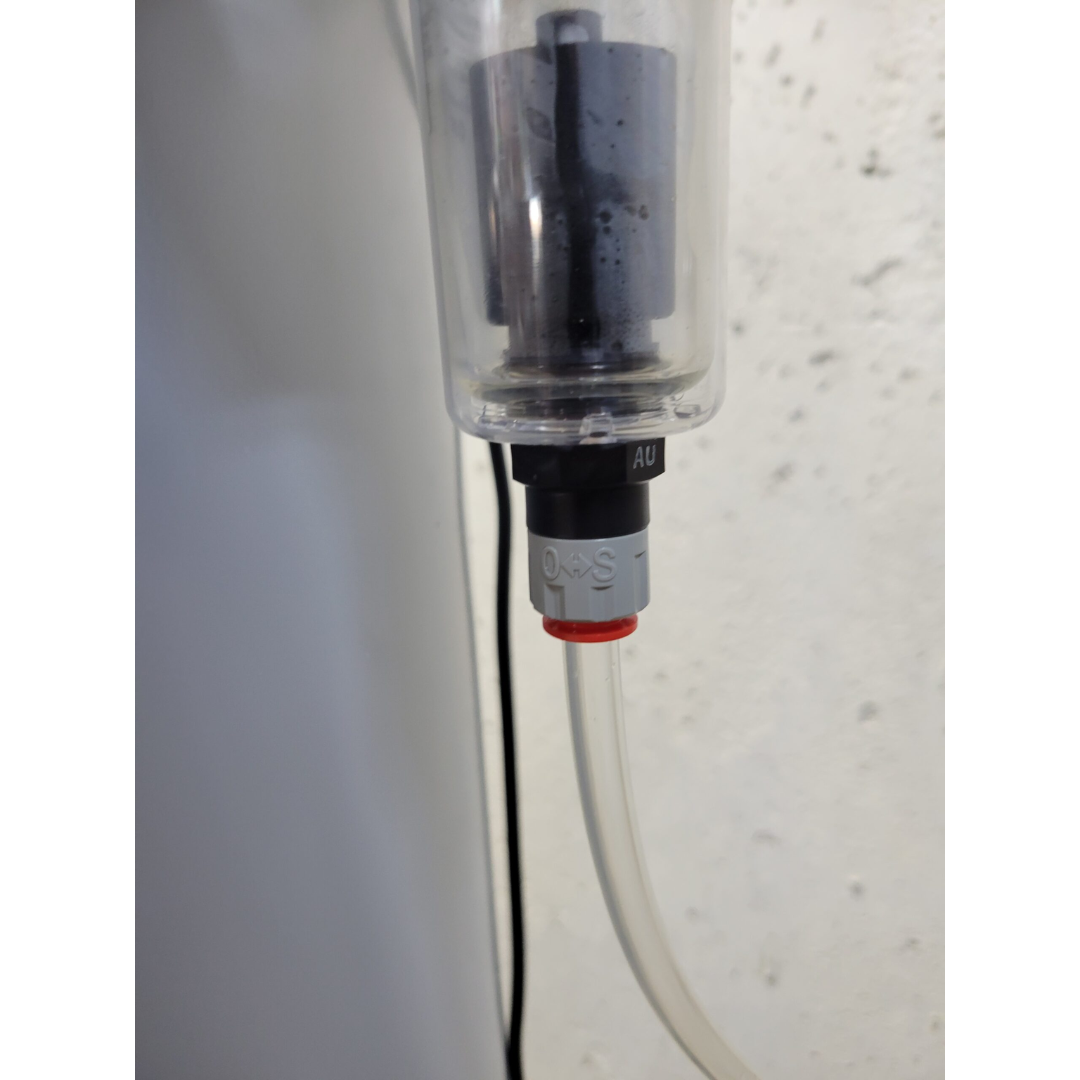

- Advanced Filtration System – Includes dual 0.01 micron prefilters and 5-micron regulator for superior air purity.
- Thermal Overload Protection – Protects motor from overheating and electrical faults.
- Low Amp Draw – Efficient 14-amp operation reduces power consumption.
- Cold Start Capability – Oil-free system ensures reliable startup in low-temperature environments.
Why Choose the CALIFORNIA AIR TOOLS 60040DCADC Powerful 4.0 Hp Ultra Quiet, Ultra Dry & Oil-Free Air Compressor
- Delivers up to 98% dry, oil-free compressed air for critical applications.
- Ultra-quiet performance improves working conditions and usability.
- ISO-certified air quality supports medical, laboratory, and precision industries.
- Low maintenance design with extended service intervals.
- Durable ASME-certified tank ensures safe and long-term operation.
The CALIFORNIA AIR TOOLS 60040DCADC Powerful 4.0 Hp Ultra Quiet, Ultra Dry & Oil-Free Air Compressor with 98% Drying System and Automatic Drain Valve is the ideal solution for professionals who demand maximum air purity, quiet operation, and reliable long-term performance.
