CALIFORNIA AIR TOOLS 60040CAD Powerful 4.0 Hp Ultra Quiet & Oil-Free 60 Gallon ASME Stationary Air Compressor Applications
- Automotive shops and general repair facilities
- Manufacturing and fabrication environments
- Woodworking and metalworking operations
- Garages, workshops, and maintenance departments
- Contractor and industrial compressed air systems
Ideal for users seeking a balance of high airflow, ultra-quiet performance, and reduced maintenance in continuous-use environments.

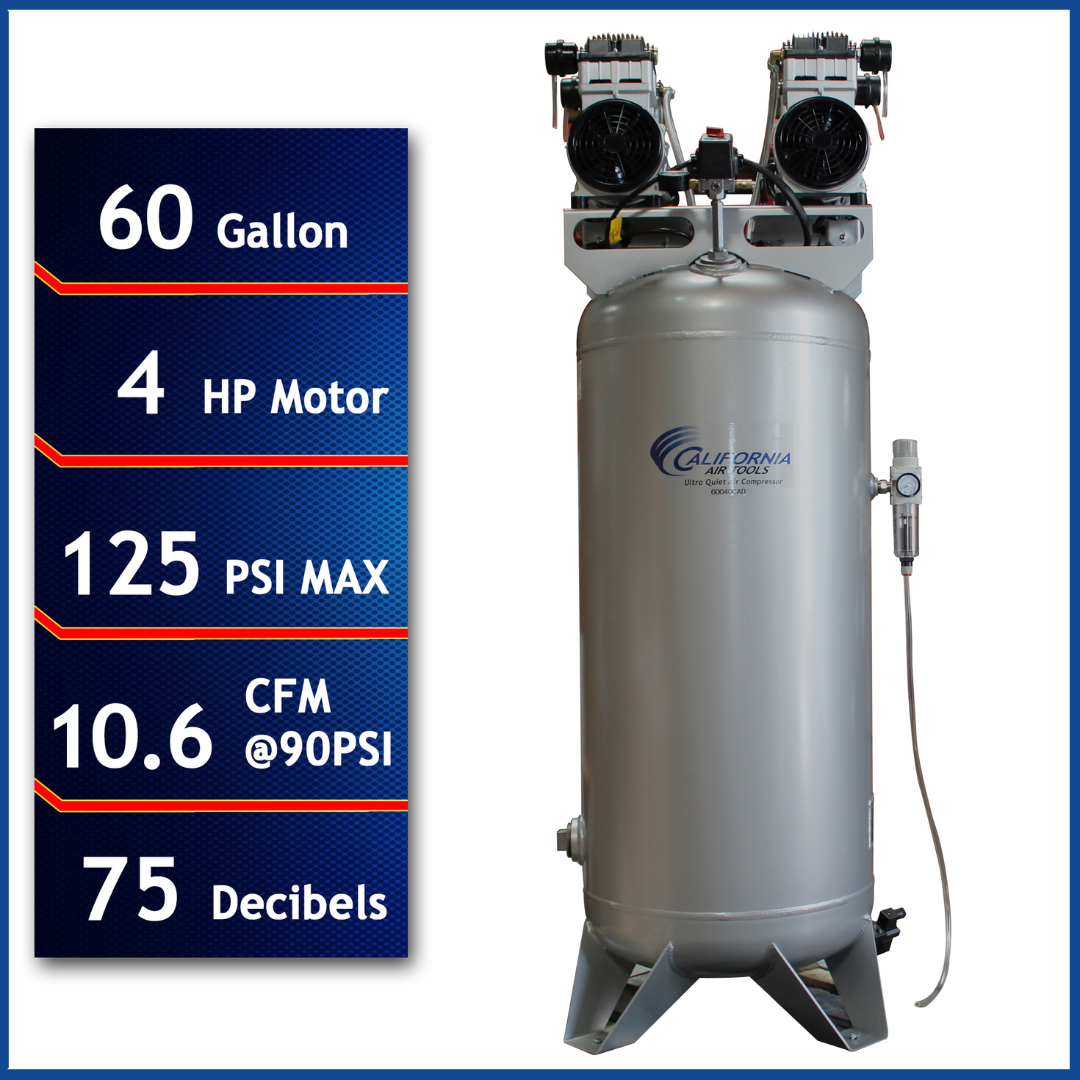

CALIFORNIA AIR TOOLS 60040CAD Powerful 4.0 Hp Ultra Quiet & Oil-Free 60 Gallon ASME Stationary Air Compressor Specifications
| Model | 60040CAD |
|---|---|
| Motor Power | 4.0 HP (Rated/Running) |
| Motor Type | Twin 2.0 HP SP Series Motors |
| Tank Size | 60 Gallon Steel ASME Certified |
| Air Flow @ 40 PSI | 12.80 CFM |
| Air Flow @ 90 PSI | 10.60 CFM |
| Maximum Pressure | 125 PSI |
| Noise Level | 75 dB (Ultra Quiet) |
| Voltage | 220V / 60Hz / Single Phase |
| Amperage | 14 Amps |
| Pump Type | Oil-Free Dual Piston |
| Pump Life | 3000+ Hours Before Wear |
| Duty Cycle | 70/30 |
| Tank Fill Time | 6 Minutes 30 Seconds |
| Recovery Time | 2 Minutes (95 PSI to 125 PSI) |

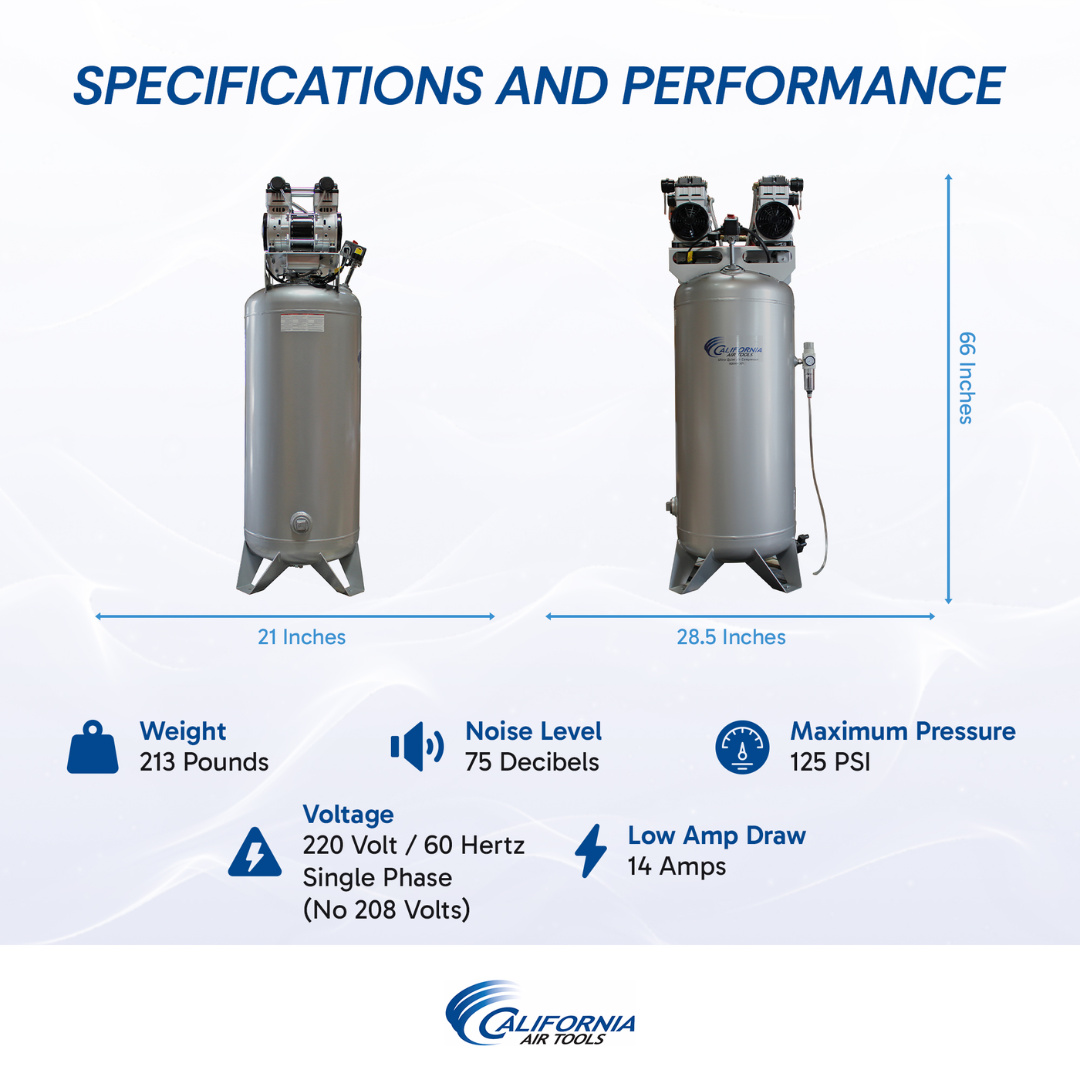

| Dimensions (L × W × H) | 21" × 29" × 66" |
| Weight | 213 lbs |

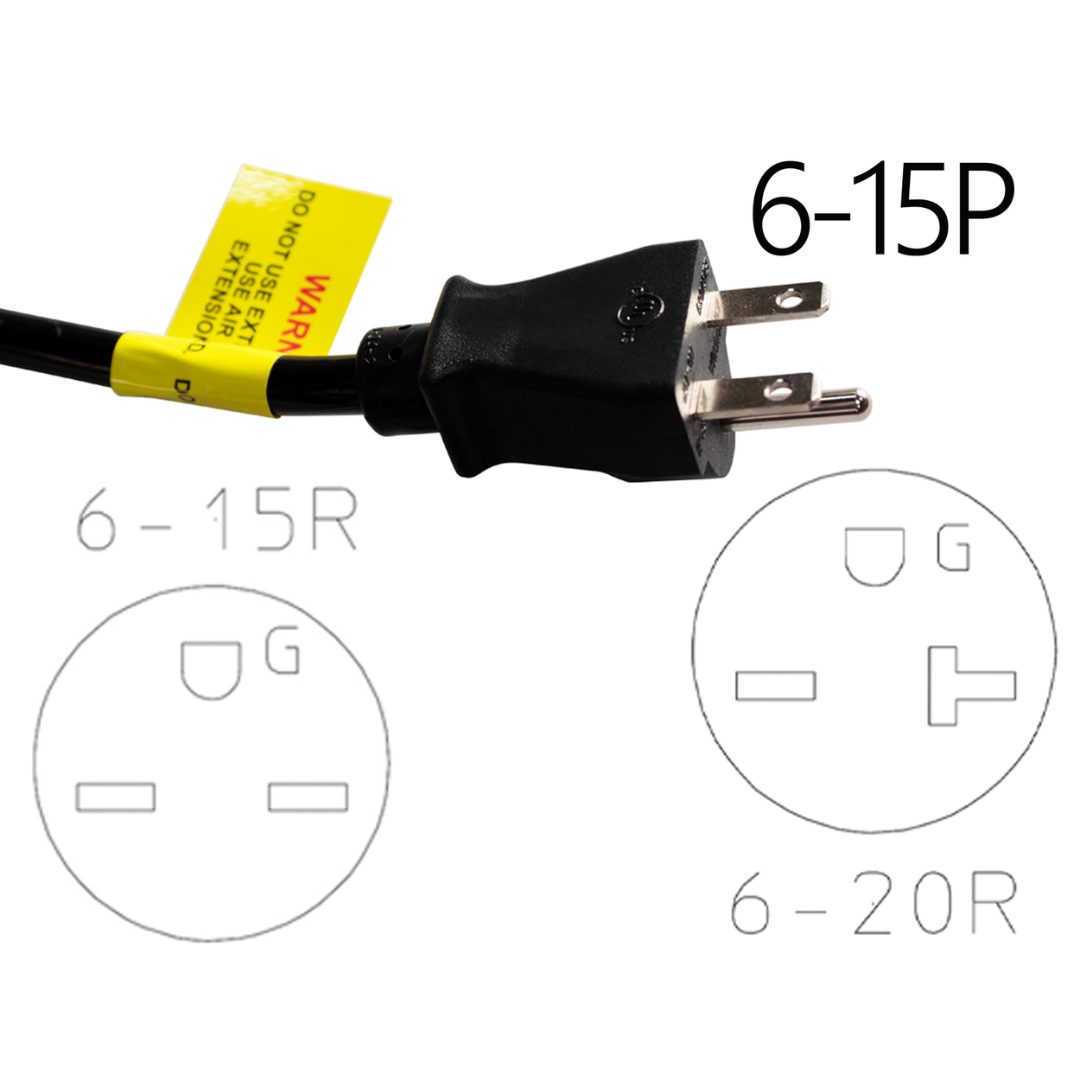

| Plug Type | NEMA 6-15P |
| Certification | ASME Certified for Commercial Use |

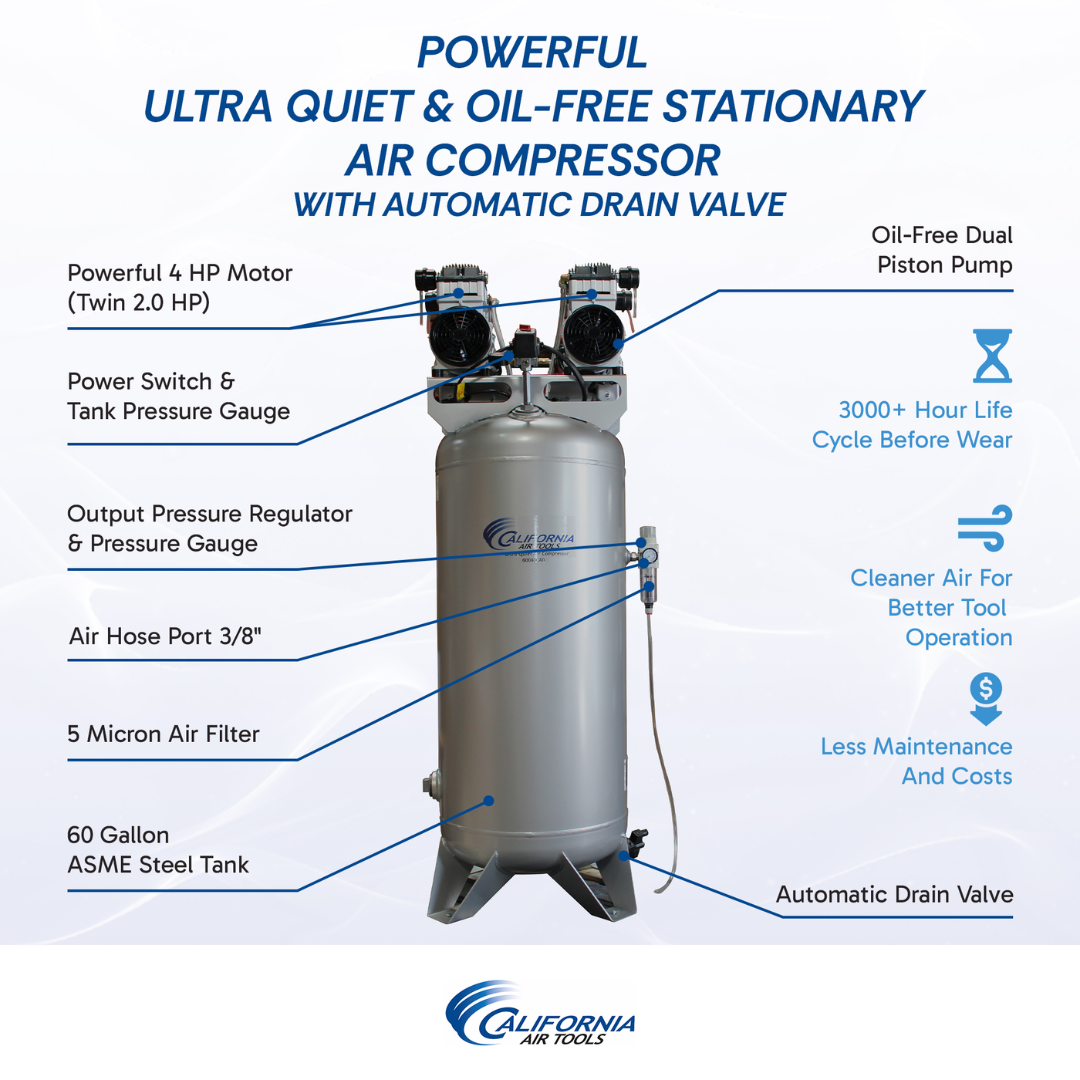

CALIFORNIA AIR TOOLS 60040CAD Powerful 4.0 Hp Ultra Quiet & Oil-Free 60 Gallon ASME Stationary Air Compressor Performance & Construction

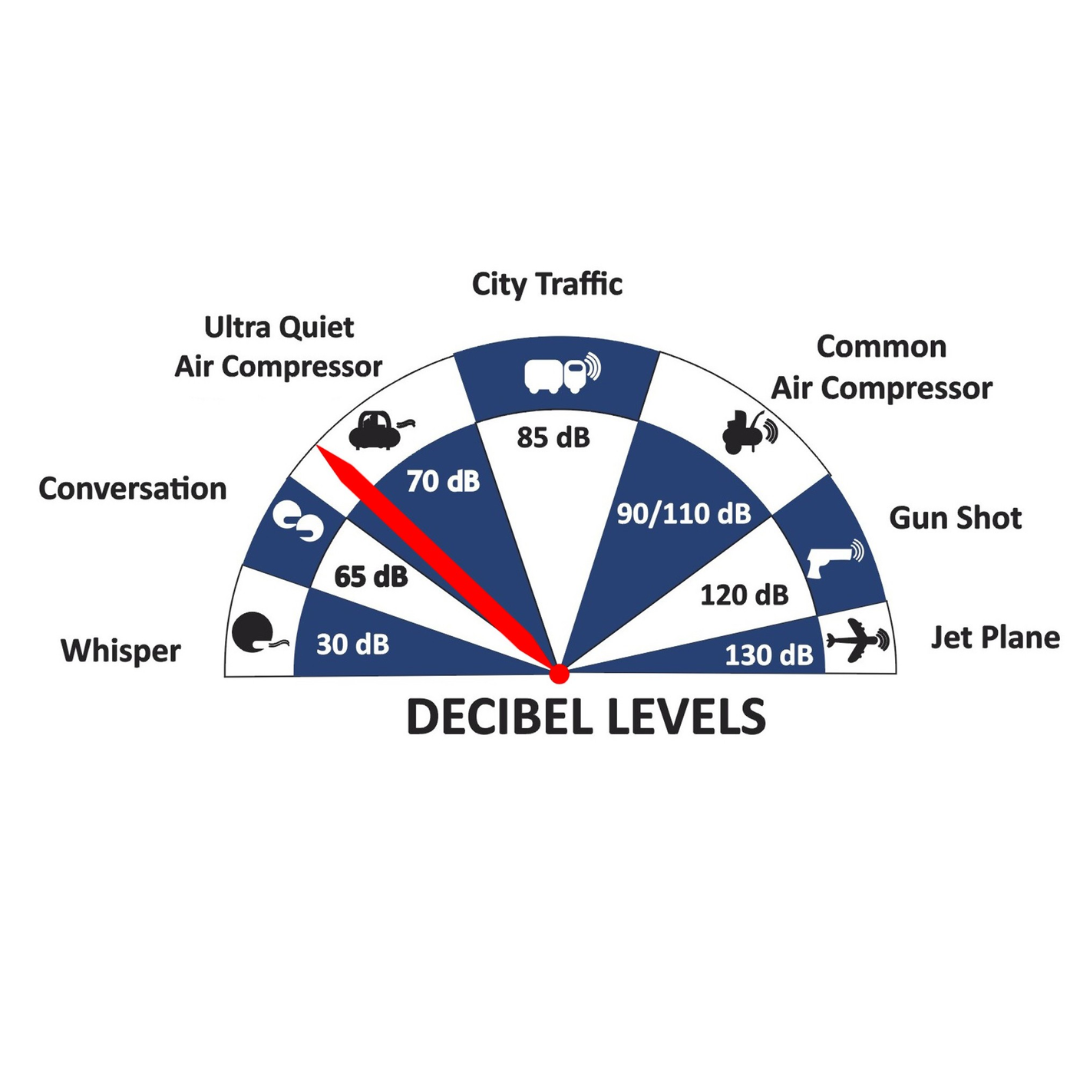

- Ultra Quiet Operation (75 dB) – Designed to be one of the quietest compressors in its class, ideal for indoor and shared workspaces.

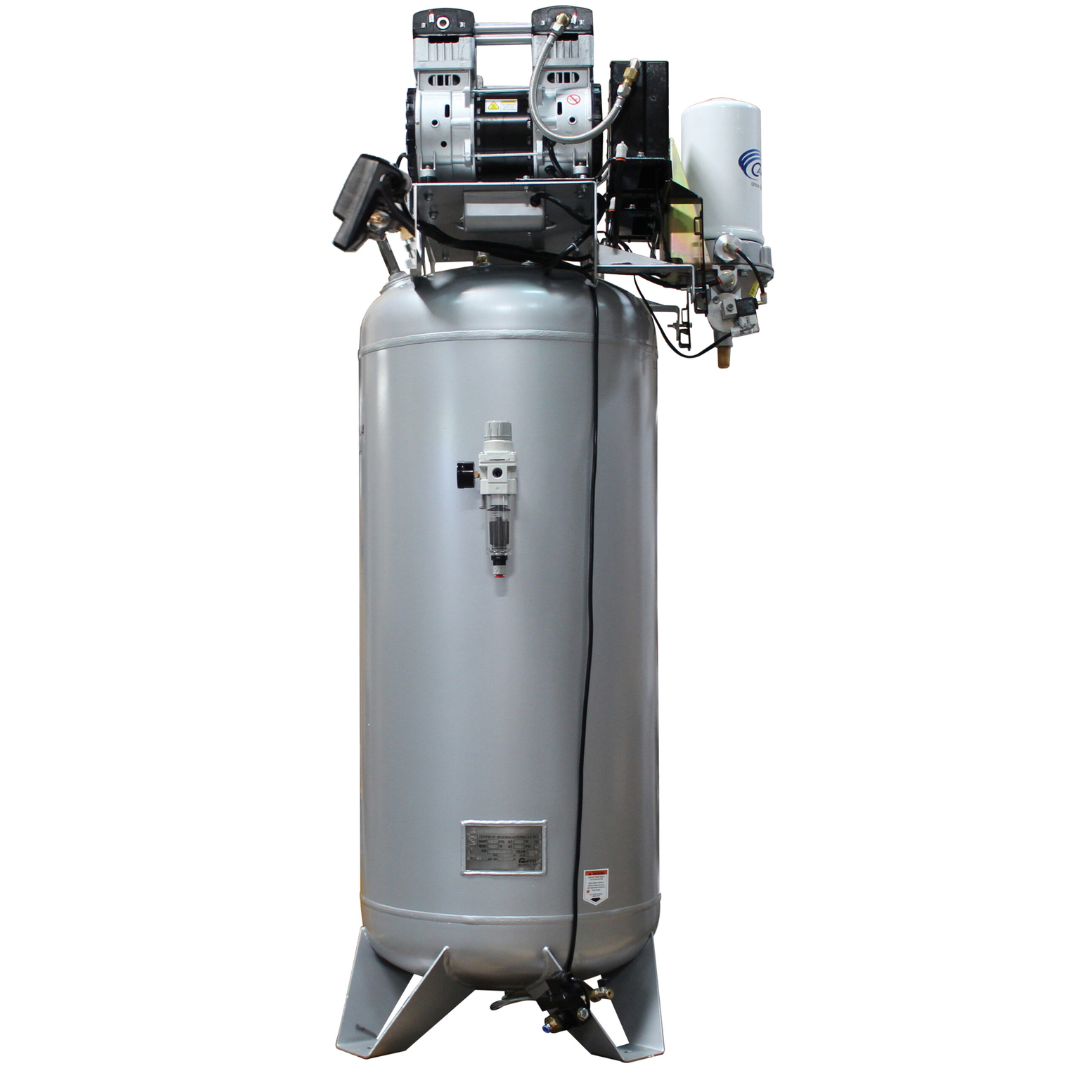

- Dual 2.0 HP Motors – Operate at low 1680 RPM for reduced vibration, less wear, and longer service life.

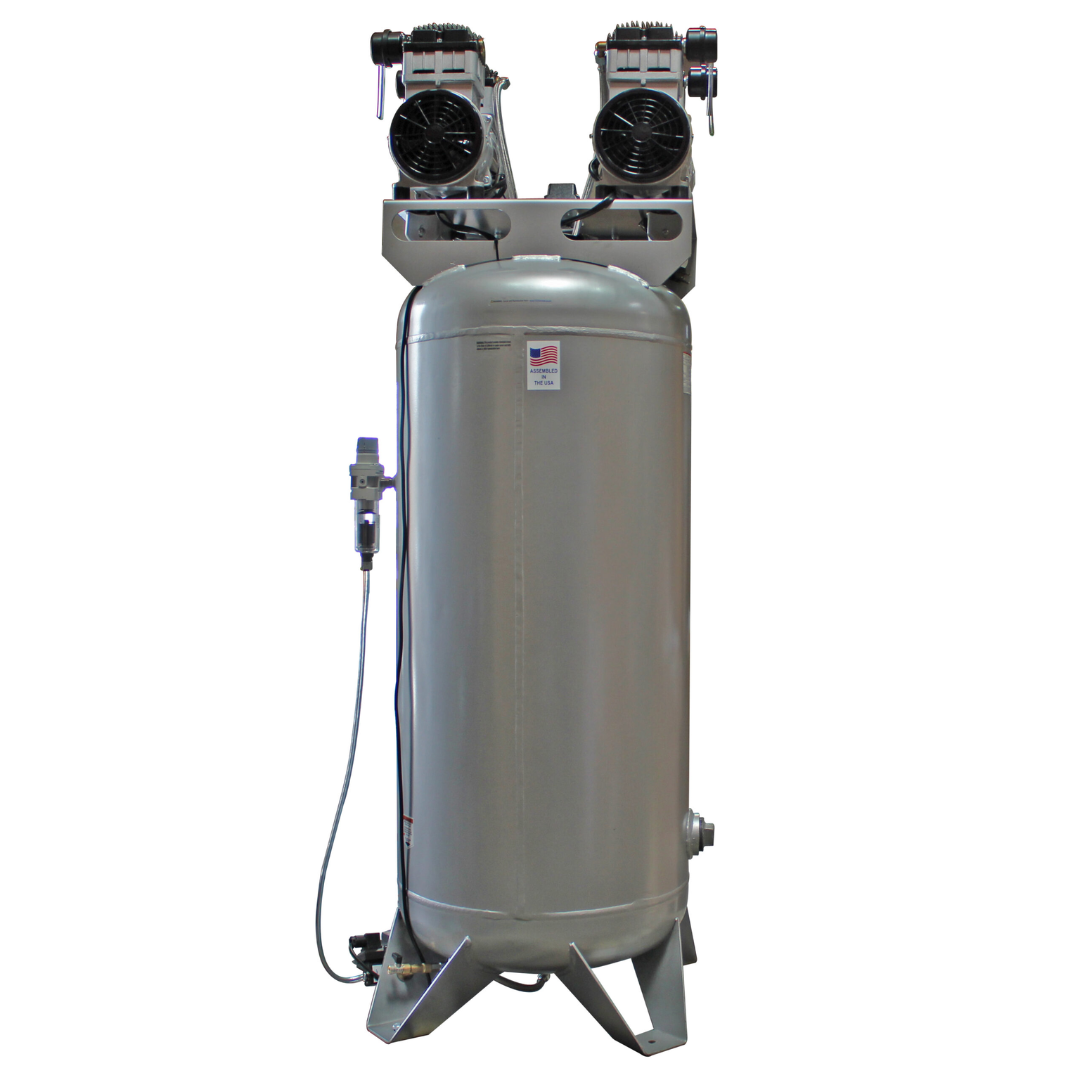

- Oil-Free Dual Piston Pump – Eliminates oil contamination while reducing maintenance and operating costs.
- Extended Pump Life – Engineered for over 3000 hours of operation, significantly exceeding typical compressor lifespans.

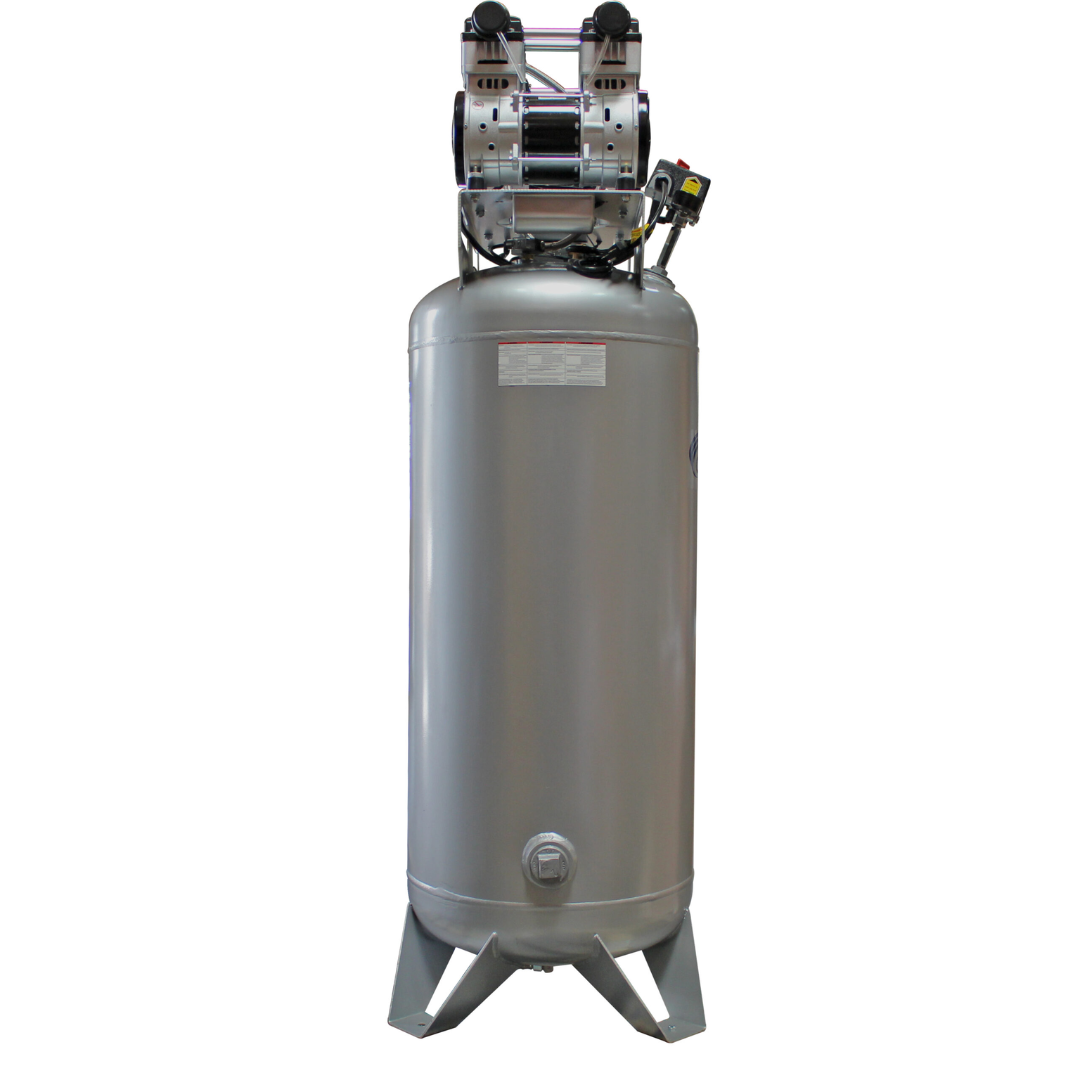

- 60 Gallon ASME Steel Tank – Heavy-duty vertical tank provides consistent air supply for demanding applications.

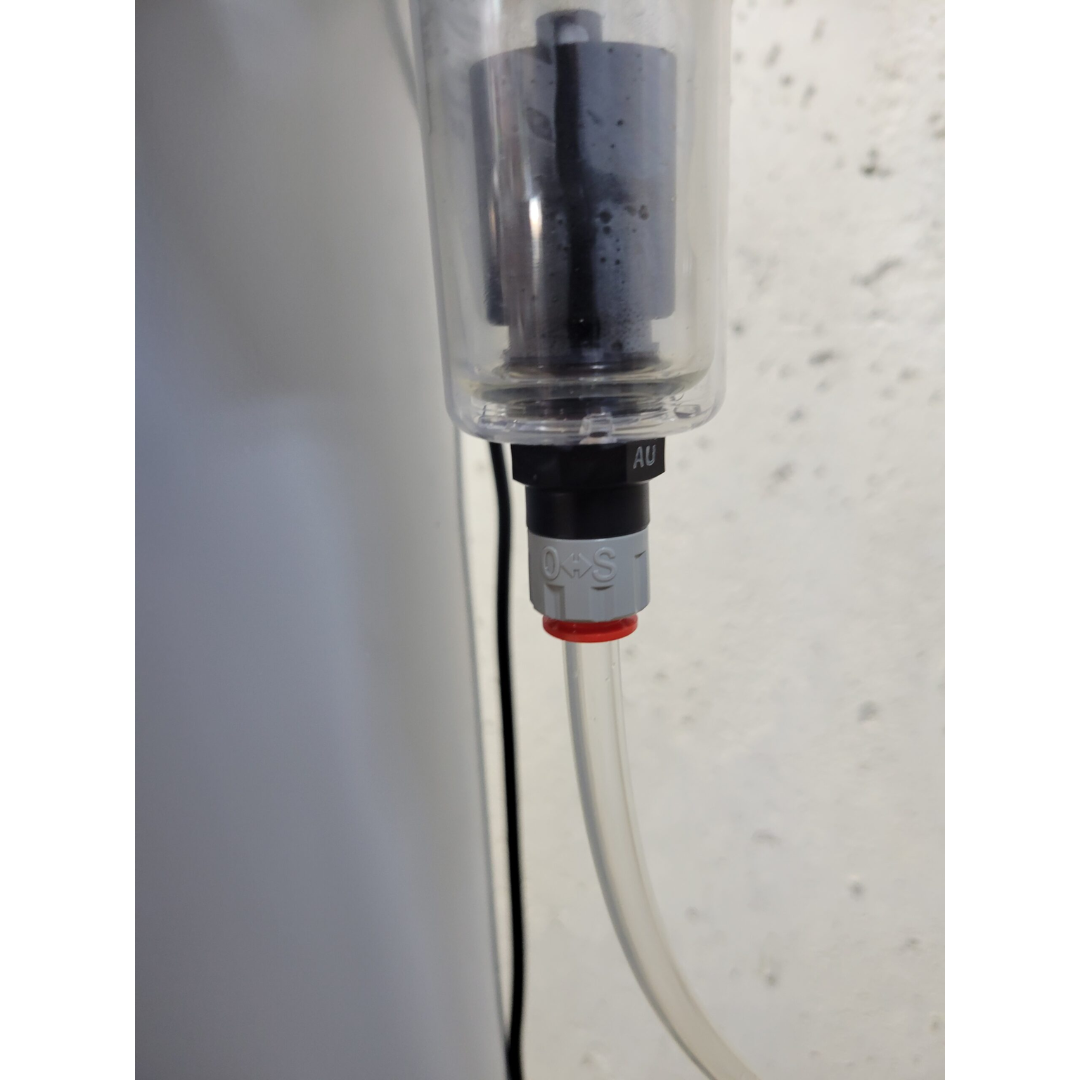

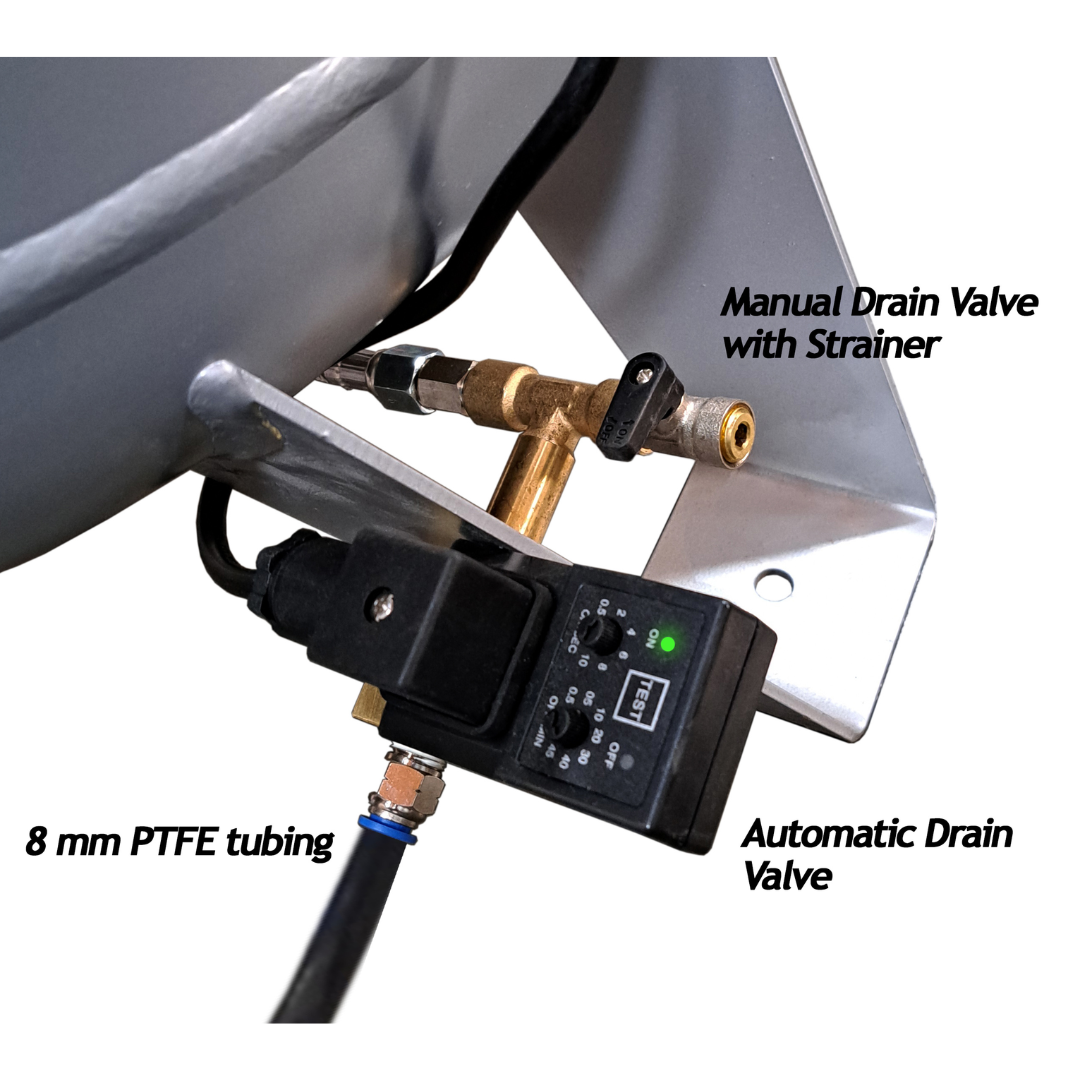

- Automatic Drain Valve (EZ-1) – Factory-installed system removes moisture automatically, eliminating manual draining.
- Thermal Overload Protection – Safeguards motor from overheating and electrical damage.
- Condor Pressure Switch – Ensures reliable pressure regulation and system control.
- Dual Pressure Gauges – Allows accurate monitoring of tank and output pressure.

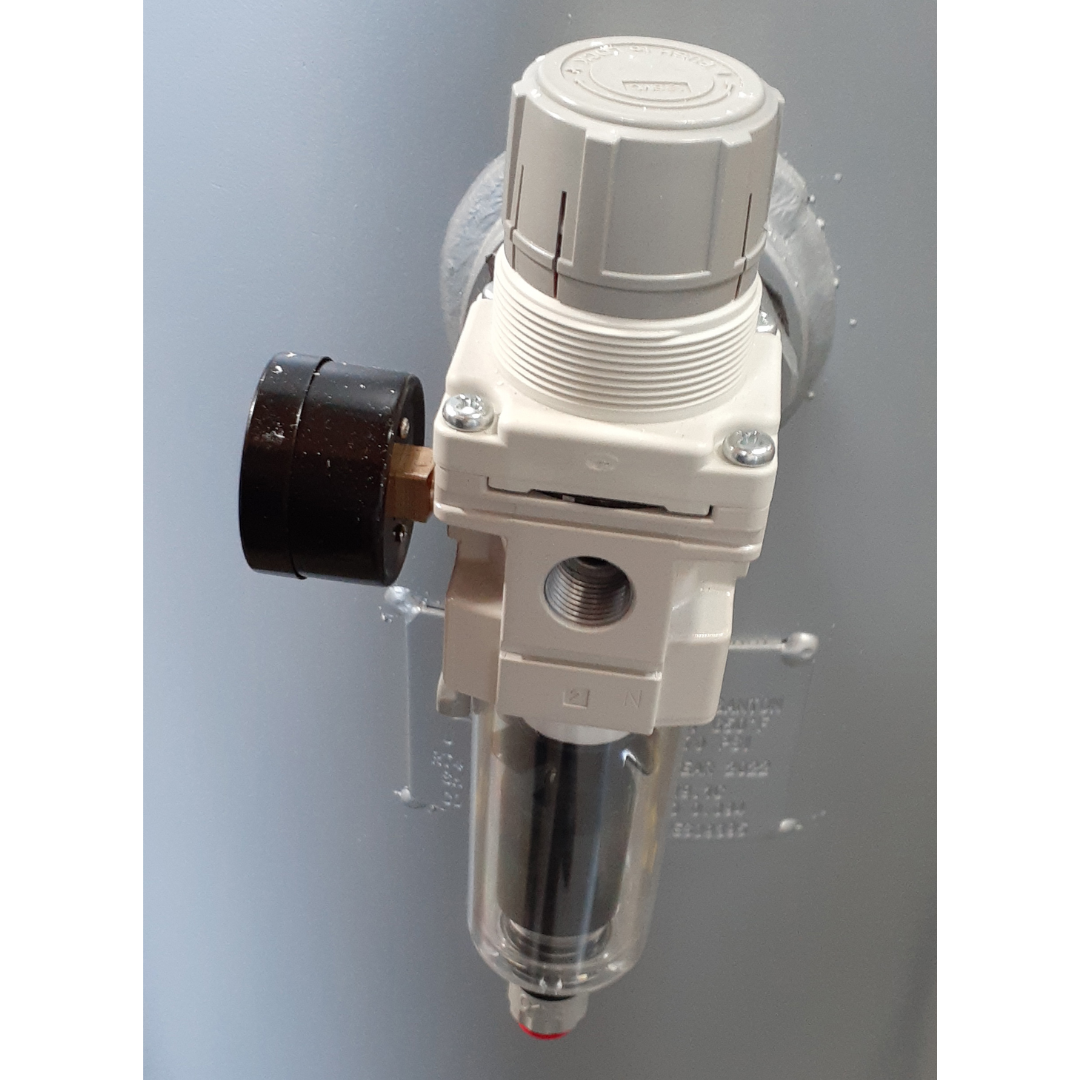

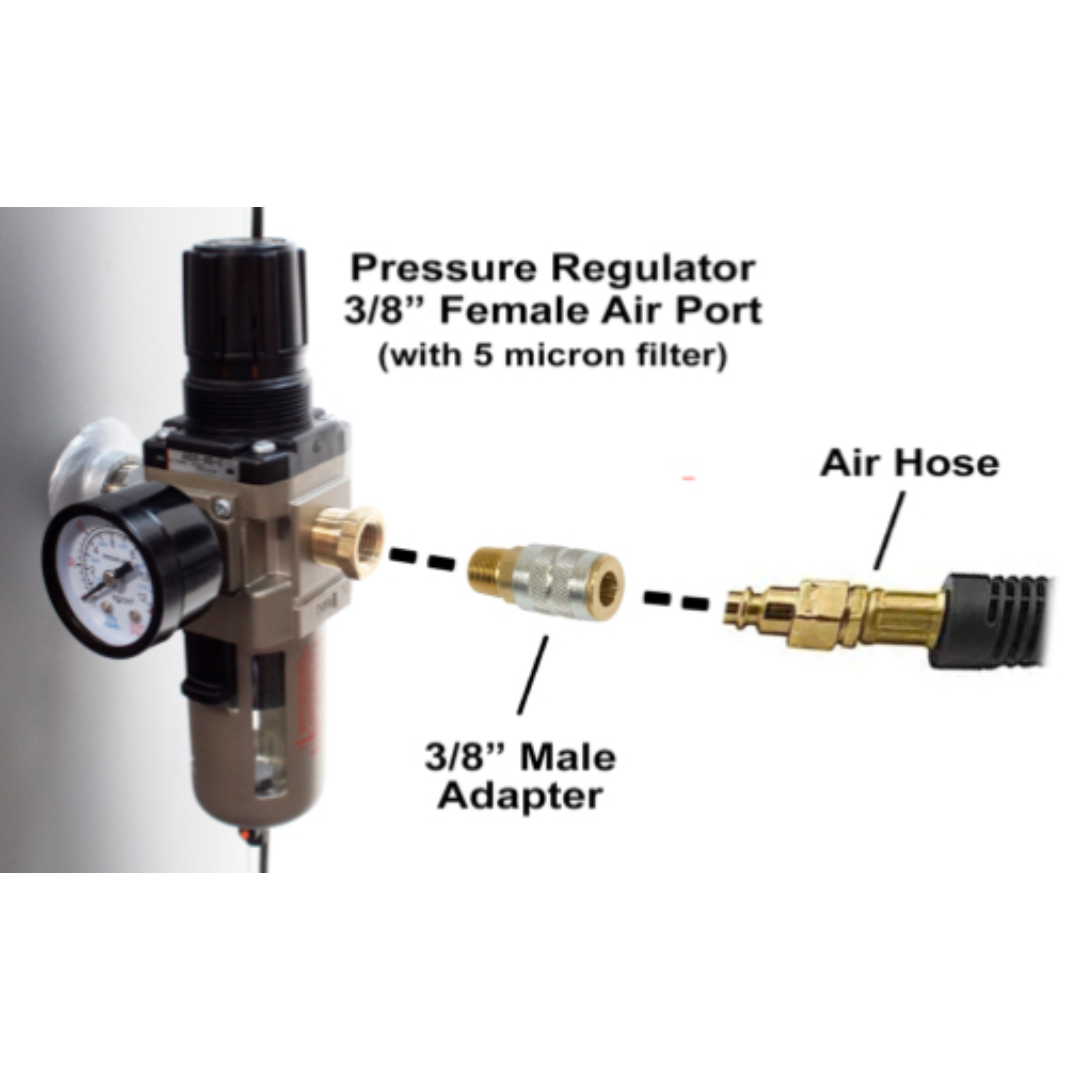

- Integrated Filtration System – Includes 5-micron air filter and regulator with 3/8” air port for cleaner air delivery.
- Low Amp Draw – Efficient 14-amp operation reduces electrical load and operating costs.
- Cold Start Capability – Oil-free design allows reliable startup in low temperatures and uneven environments.
Why Choose the CALIFORNIA AIR TOOLS 60040CAD Powerful 4.0 Hp Ultra Quiet & Oil-Free 60 Gallon ASME Stationary Air Compressor
- Powerful 4.0 HP performance with consistent high airflow output.
- Ultra-quiet 75 dB operation for improved workplace comfort.
- Oil-free system ensures cleaner air and lower maintenance requirements.
- Automatic drain valve eliminates manual tank draining.
- Durable ASME-certified tank for safe and reliable commercial use.
The CALIFORNIA AIR TOOLS 60040CAD Powerful 4.0 Hp Ultra Quiet & Oil-Free 60 Gallon ASME Stationary Air Compressor with Automatic Drain Valve is a dependable, low-maintenance solution built for professionals who demand quiet operation, long service life, and consistent compressed air performance.
