California Air Tools 365VK 5-Gal Pressure Pot Vacuum Kit Applications
- Vacuum degassing of resin and epoxy before pressure casting
- Professional resin casting workflows requiring bubble elimination
- Composite material preparation and air removal
- Advanced hobbyist and industrial casting environments
- Pre-treatment step for high-clarity or structural resin projects
Designed for use with vacuum pump systems—ideal for removing air prior to pressurization in casting workflows.
California Air Tools 365VK 5-Gal Pressure Pot Vacuum Kit Specifications
| Model | 365VK |
|---|---|
| Compatibility | 365 Series (365C, 365CW, 365CR, 365CH) |
| Application Type | Vacuum Conversion Kit |
| Port Configuration | Two (2) Female Ports (1/4″ NPT) |
| Valve Type | Two (2) On/Off Ball Valves |
| Weight | 8 lbs |
| Dimensions | 14 1/2″ × 14 1/2″ × 3 1/4″ |
| Tank Included | No – Pressure Pot Sold Separately |
California Air Tools 365VK 5-Gal Pressure Pot Vacuum Kit Performance & Construction

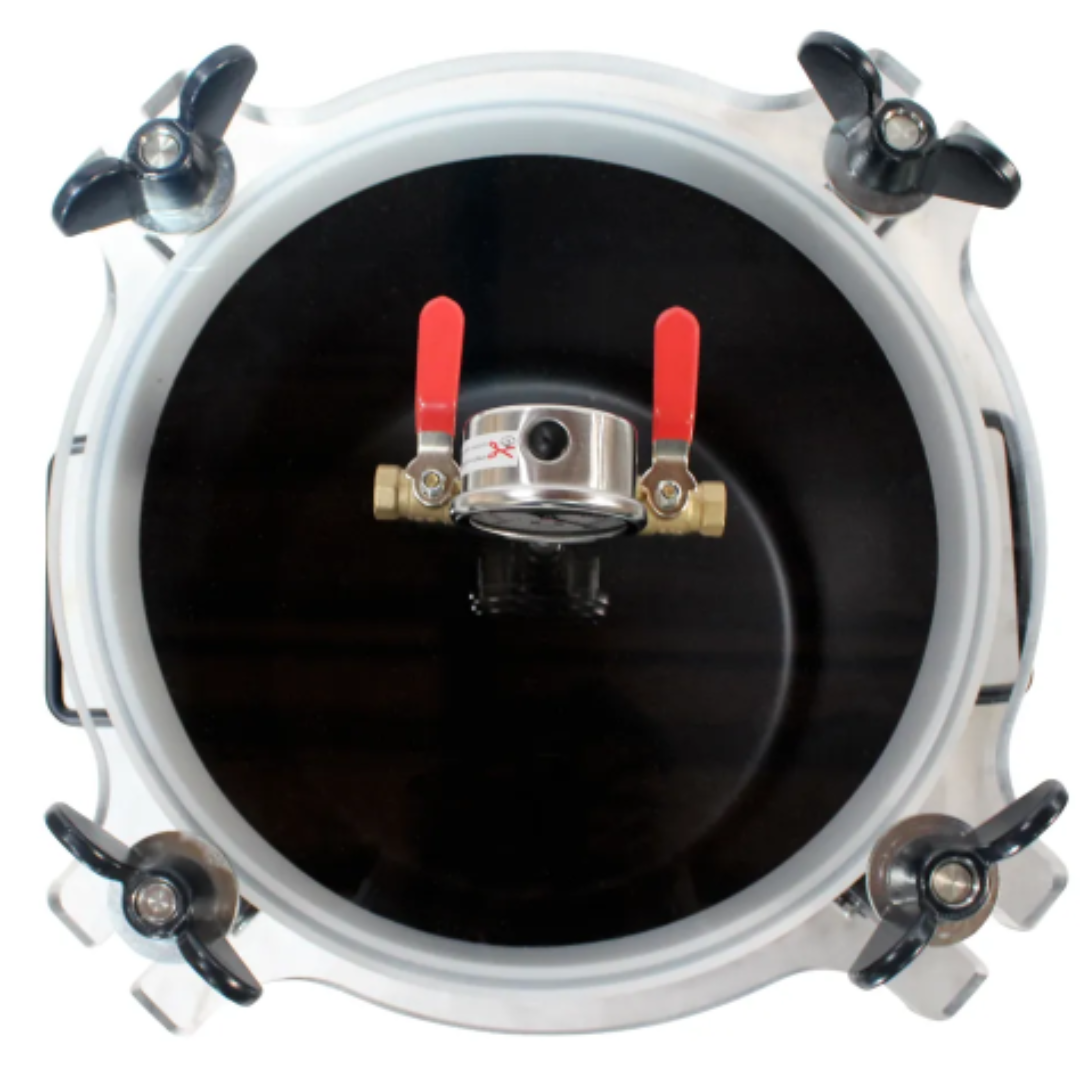

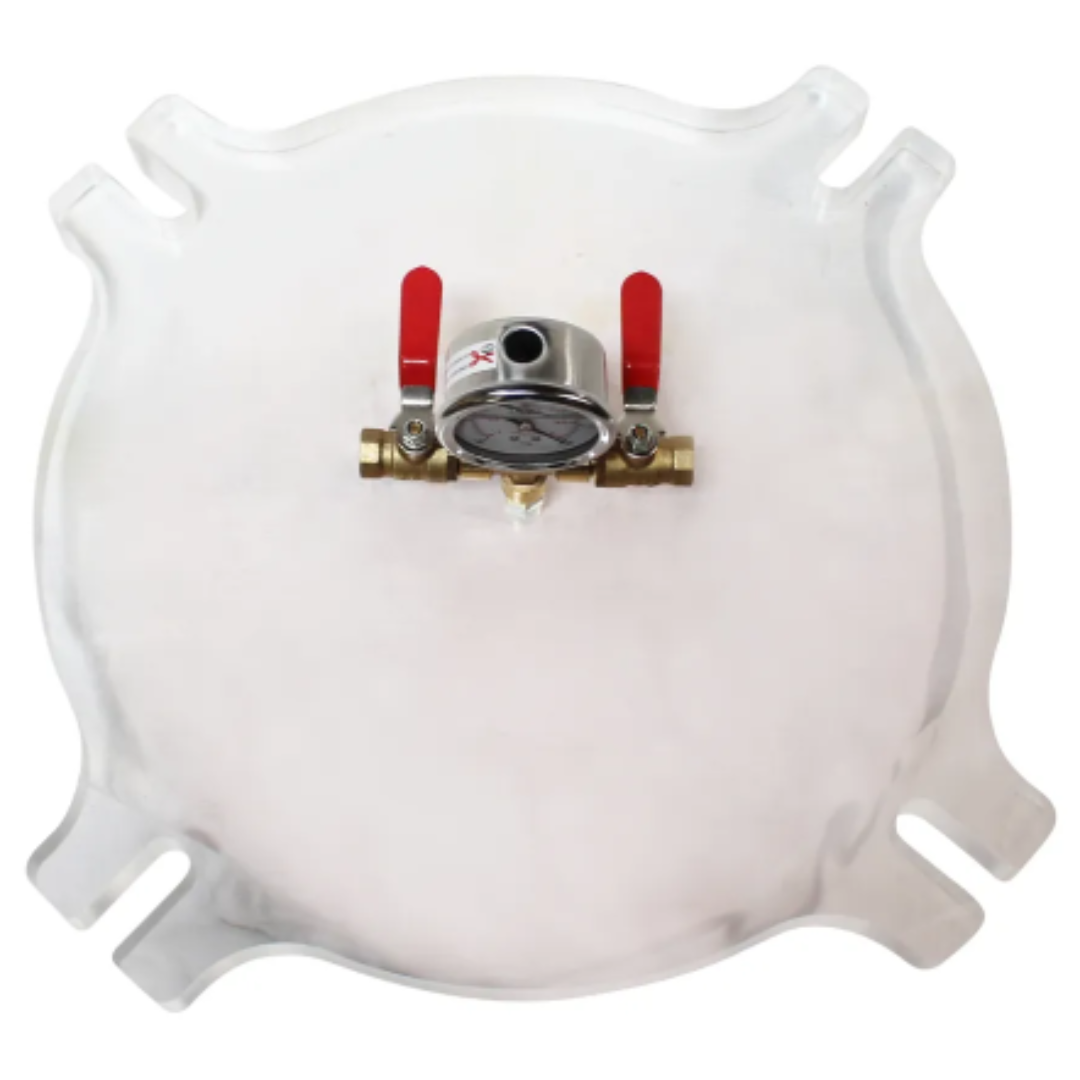

- Clear acrylic vacuum lid allows full visibility during degassing process.

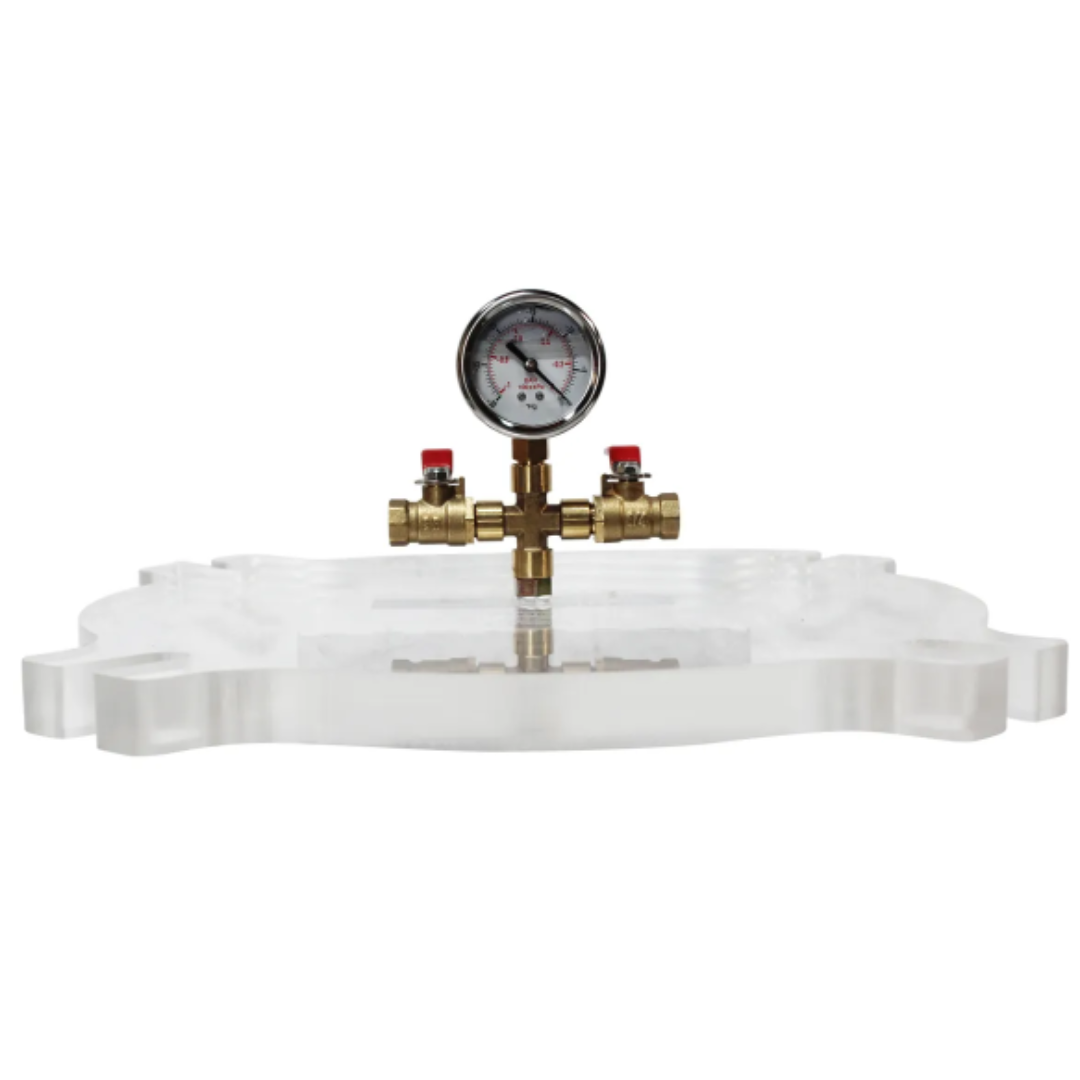

- Precision pressure gauge assembly provides accurate vacuum monitoring.
- Dual 1/4″ NPT female ports enable flexible connection to vacuum systems.
- Integrated ball valves allow controlled air flow and vacuum regulation.
- Sealing ring (gasket) ensures airtight performance when properly installed.
- Designed for 365 series pressure pots for seamless compatibility.
- Durable construction built for repeated use in professional environments.
California Air Tools 365VK 5-Gal Pressure Pot Vacuum Kit Important Information
- Pressure pot is NOT included and must be purchased separately.
- Compatible only with 365 series 5-gallon pressure pots.
- Not recommended for single-component epoxies.
- Requires external vacuum motor-pump system for operation.

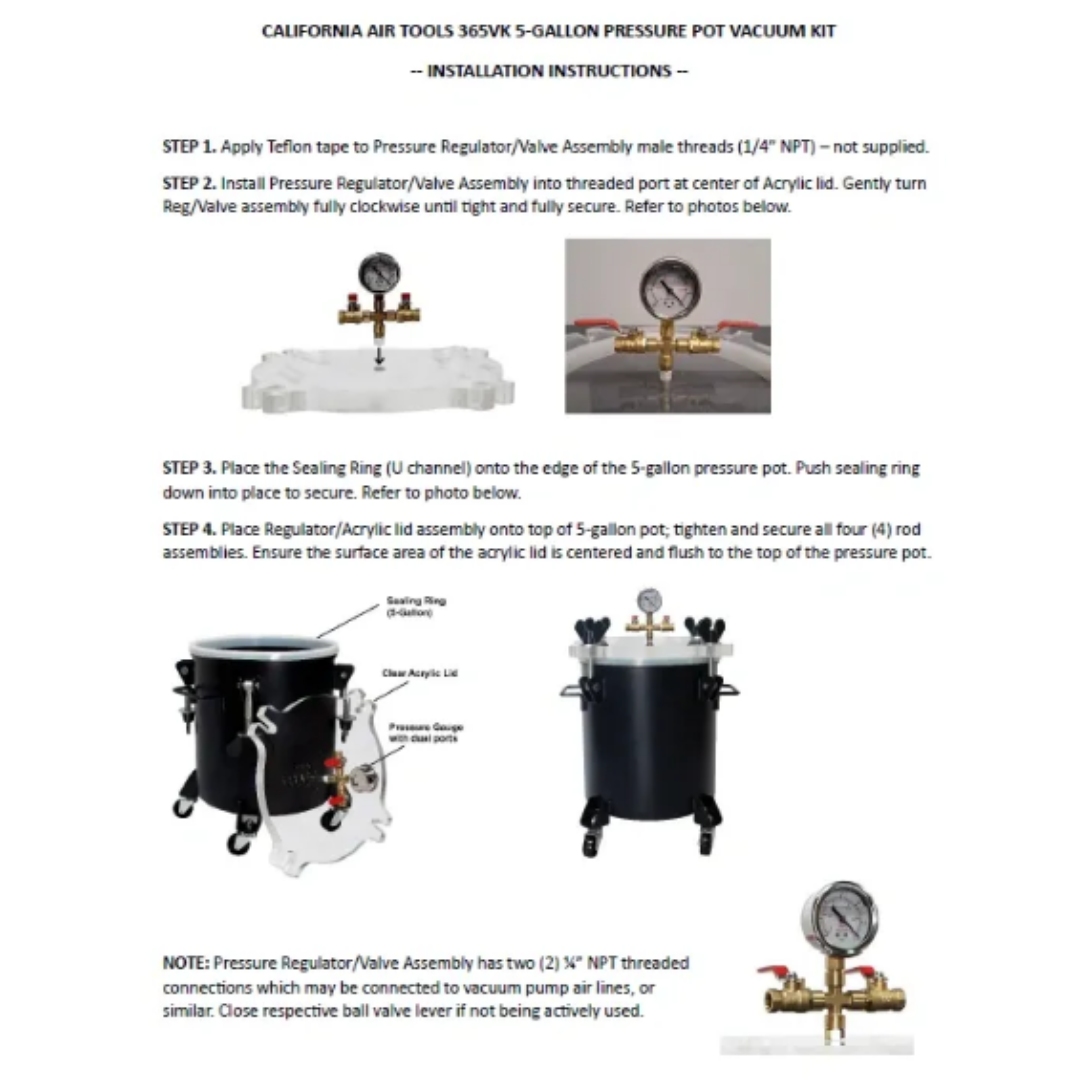

- Ensure proper installation of acrylic lid and gasket to maintain an airtight seal.
- Commercial use must comply with local and state regulations.
Proper sealing and correct setup are critical to achieving effective vacuum performance and optimal degassing results.

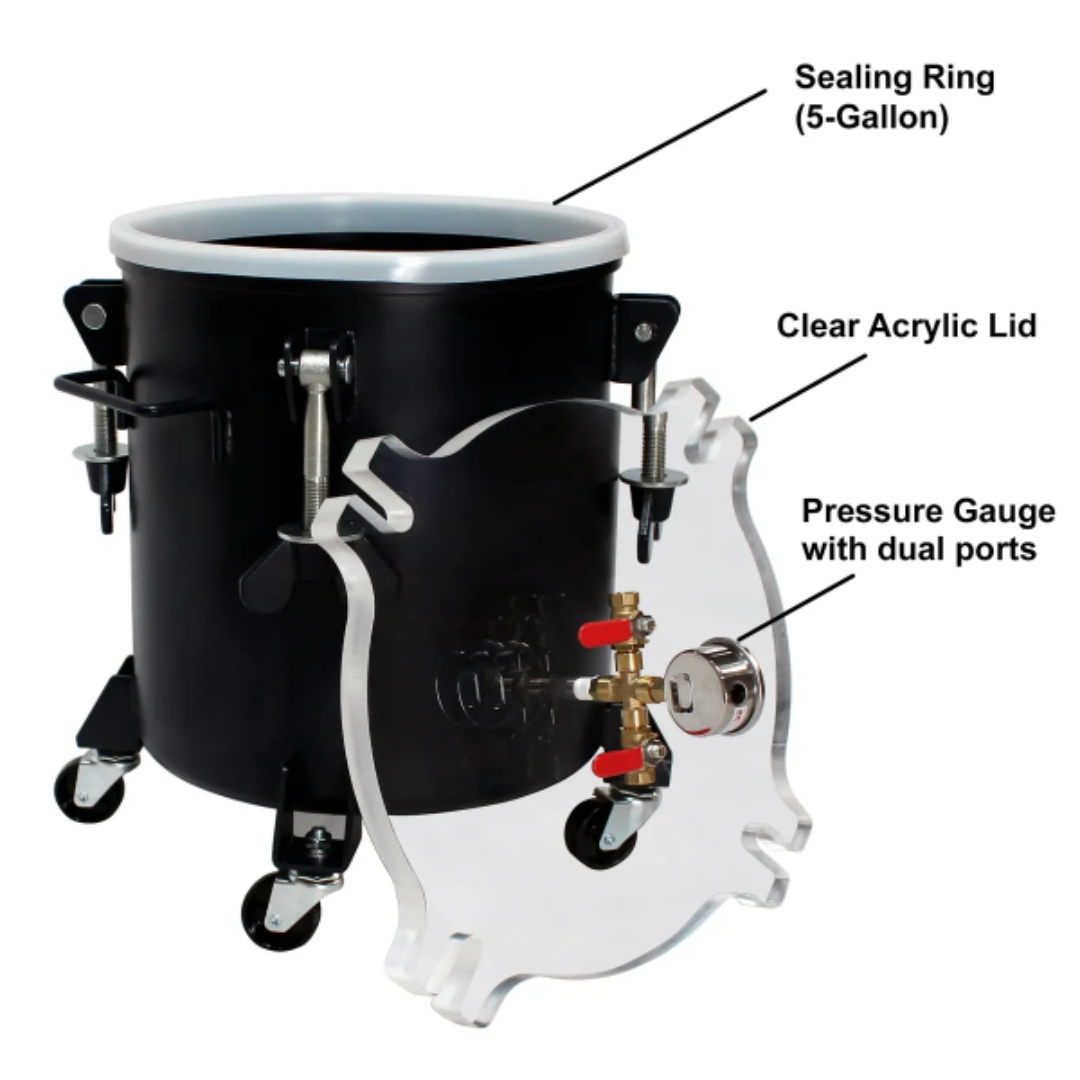

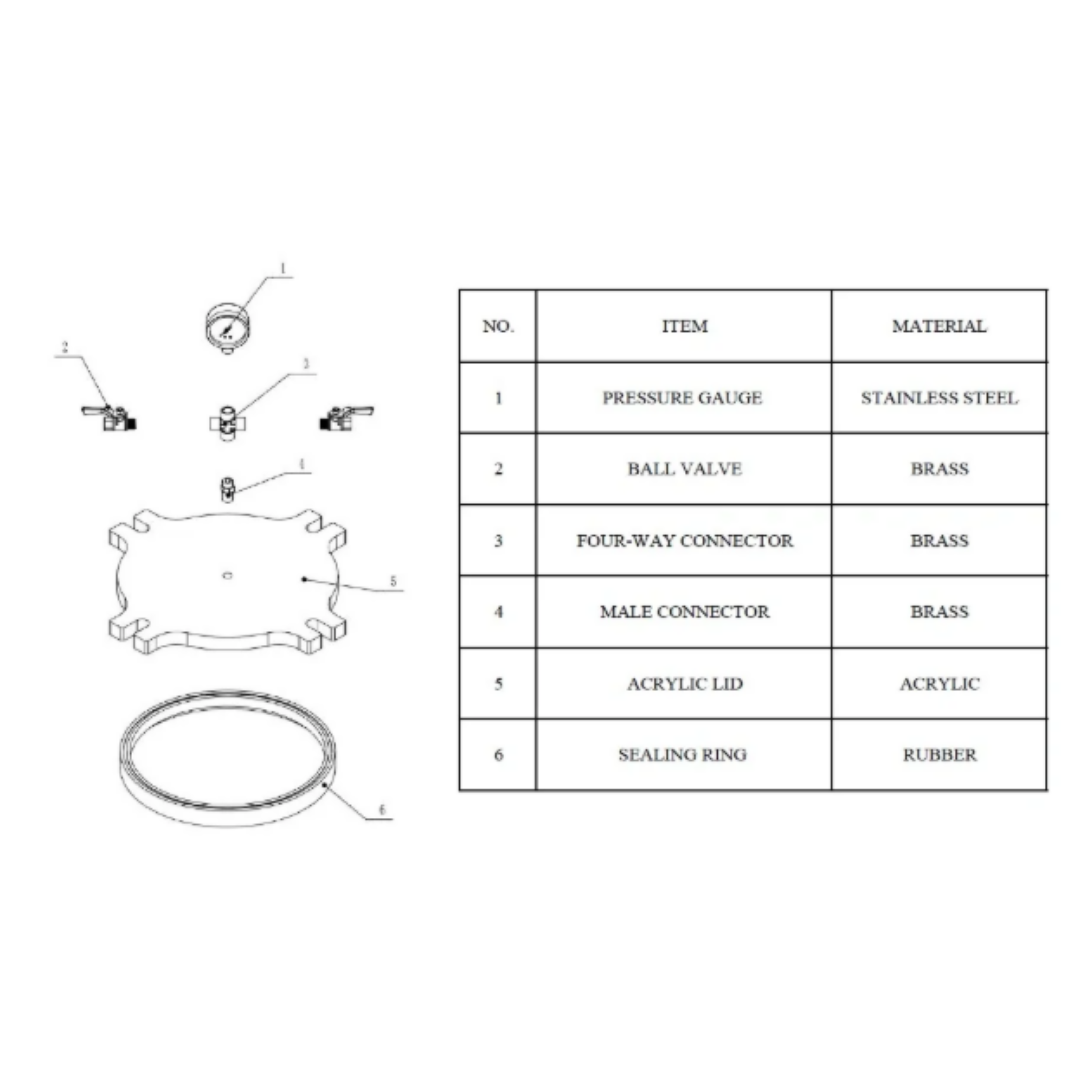

California Air Tools 365VK 5-Gal Pressure Pot Vacuum Kit Included Components
| Vacuum Lid | Clear Acrylic Lid |
|---|---|
| Sealing Component | 5-Gallon Pressure Pot Sealing Ring |
| Gauge Assembly | Pressure Gauge with Dual Ports and Ball Valves |
Why Choose the California Air Tools 365VK 5-Gal Pressure Pot Vacuum Kit
- Adds vacuum degassing capability to existing 365 series pressure pots.
- Improves casting quality by removing trapped air before pressurization.
- Clear lid design allows real-time monitoring of the degassing process.
- Professional-grade components built for repeat use.
- Essential upgrade for advanced resin casting workflows.
The California Air Tools 365VK 5-Gal Pressure Pot Vacuum Kit is a powerful upgrade for professionals seeking superior resin casting results through effective vacuum degassing and controlled processing.
