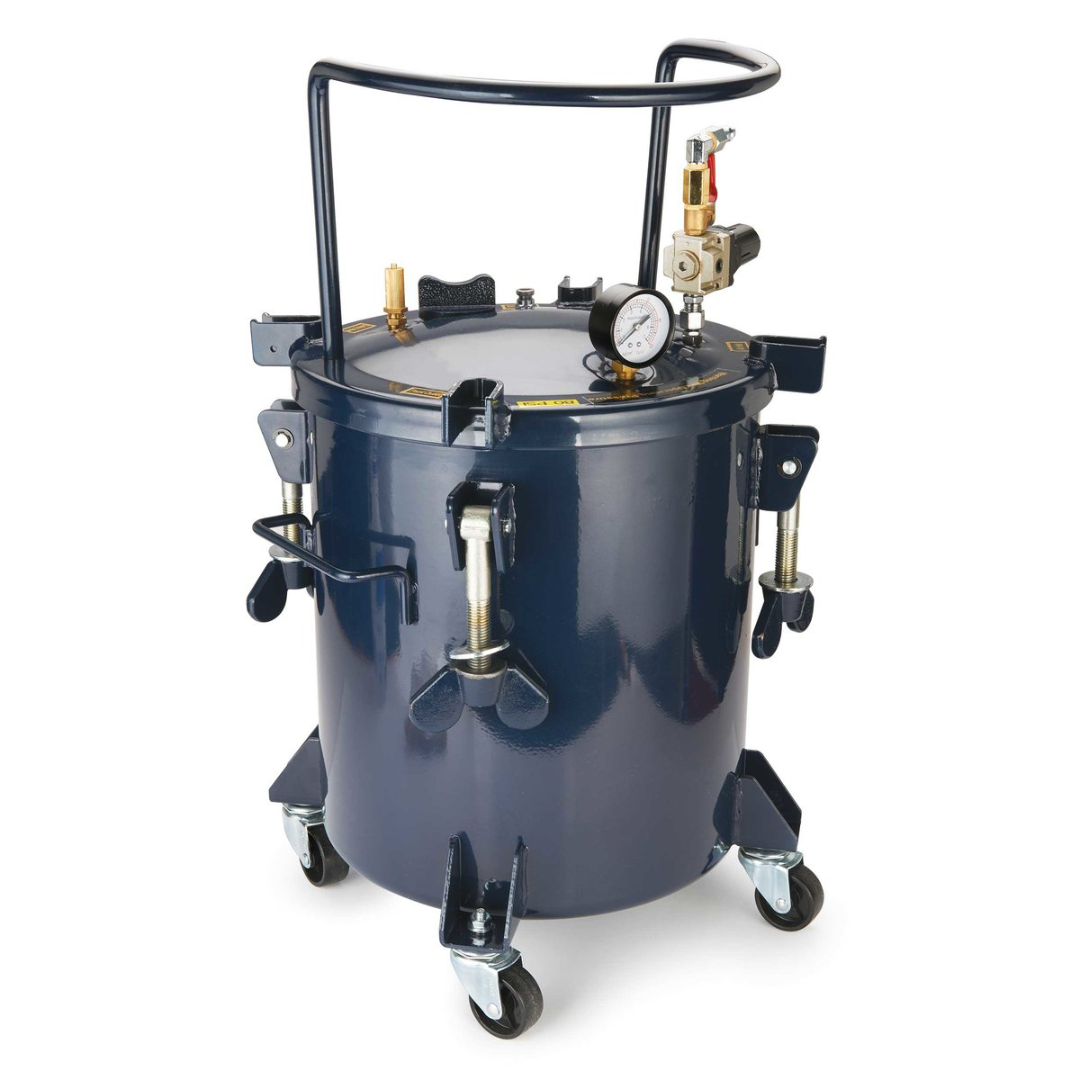

California Air Tools 365C 5 Gallon Pressure Pot for Resin Casting Applications
- Resin and epoxy casting for molds, blanks, and industrial components
- Wood stabilization and hybrid woodworking projects
- Large-scale casting requiring higher internal capacity
- Jewelry, art, and craft casting with bubble elimination
- Composite part production and small-batch manufacturing
Ideal for users who need increased capacity and consistent pressure for larger or multiple casting projects.

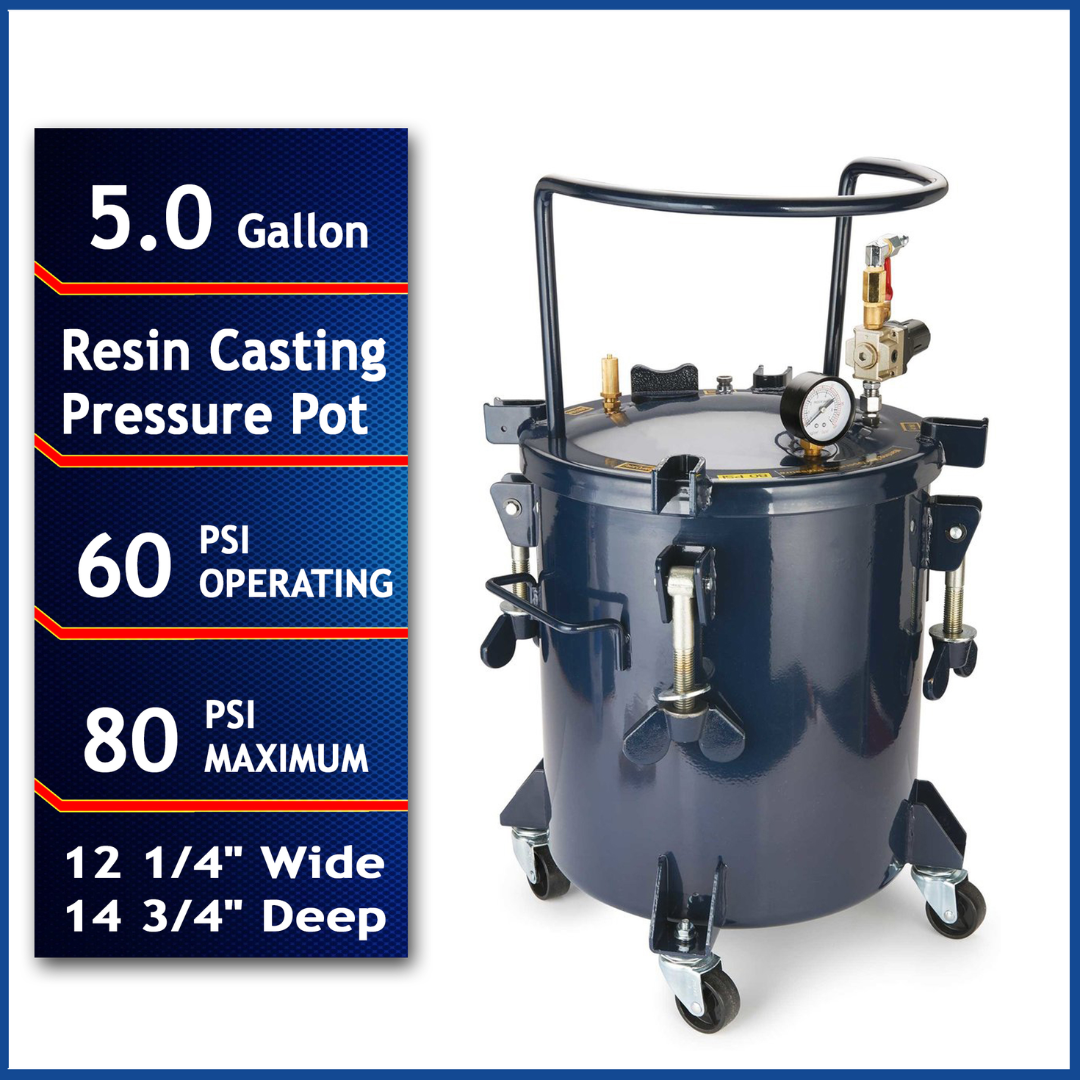

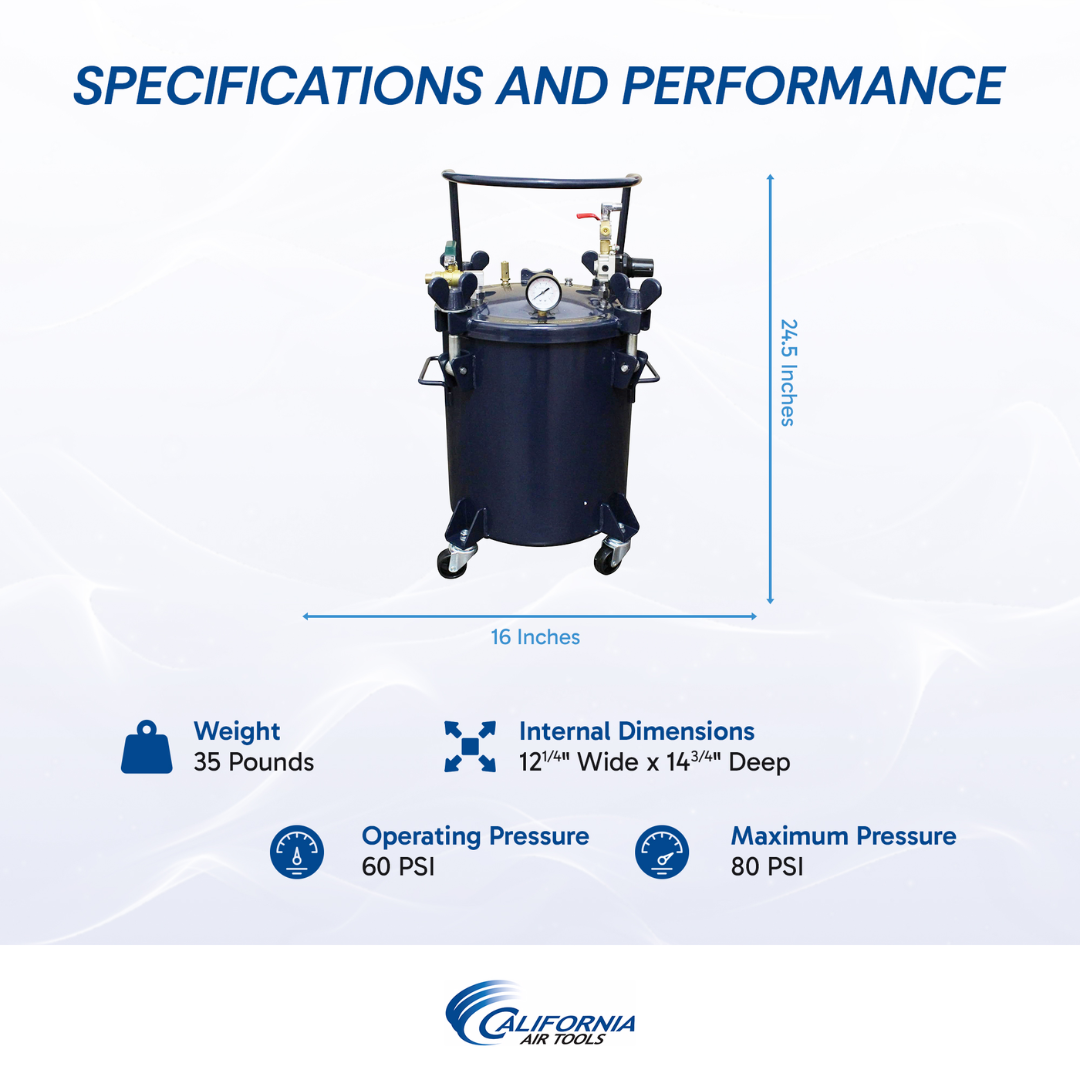

California Air Tools 365C 5 Gallon Pressure Pot for Resin Casting Specifications
| Model | 365C |
|---|---|
| Tank Capacity | 5 Gallons |
| Maximum Pressure | 80 PSI |
| Operating Pressure | 60 PSI |
| Internal Dimensions | 12 1/4″ Width × 14 3/4″ Depth (with lid) |
| External Dimensions | 16″ Width × 24.5″ Height (assembled) |
| Bucket Compatibility | Fits standard 5 gallon bucket (12″ Diameter × 14 1/2″ Height) |
| Air Inlet Connection | 1/4″ Male Industrial Quick Connector |
| Tank Type | Non-ASME |
| Product Weight | 35 lbs |

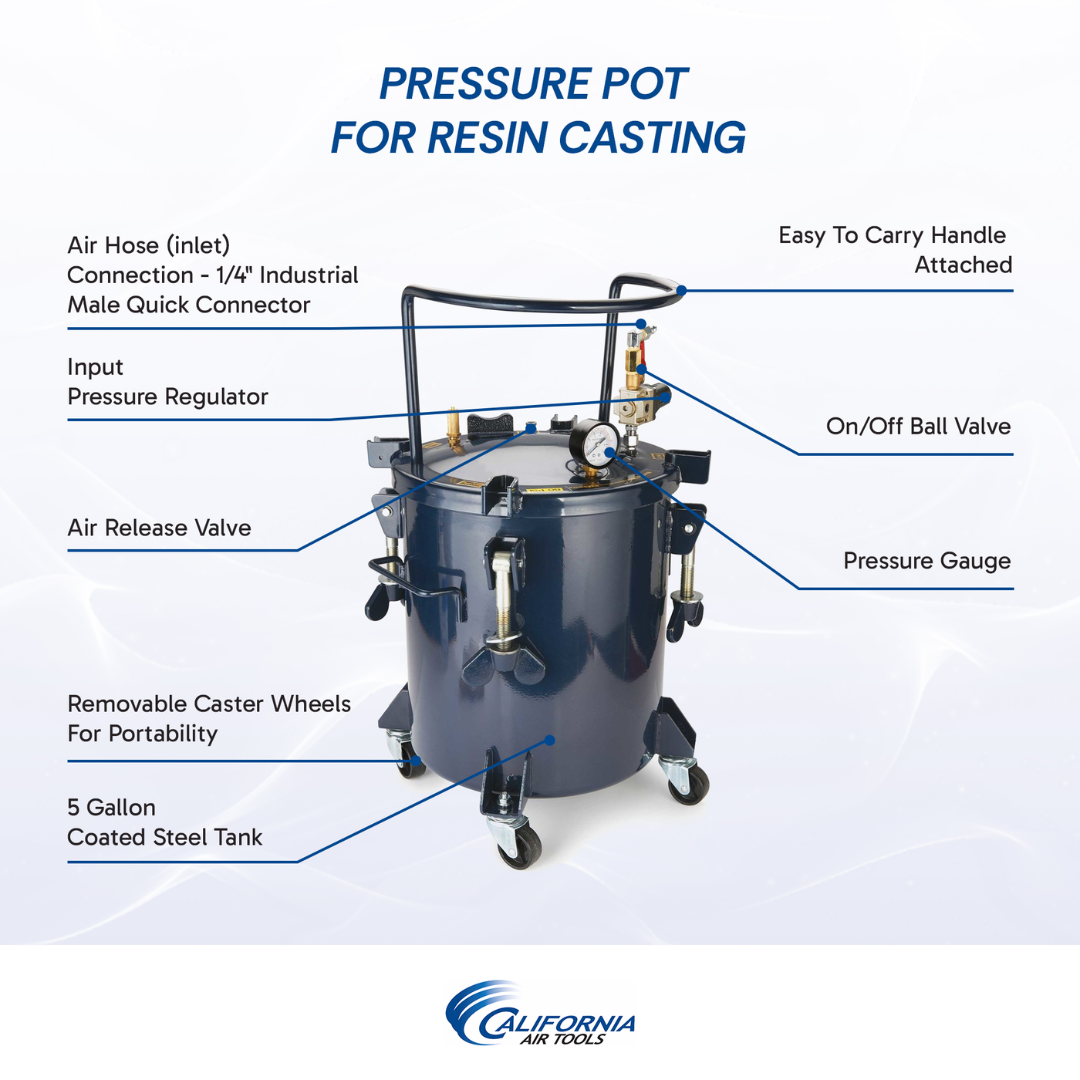

California Air Tools 365C 5 Gallon Pressure Pot for Resin Casting Performance & Construction
- Teflon® coated steel tank enables easy cleanup and long-lasting durability.

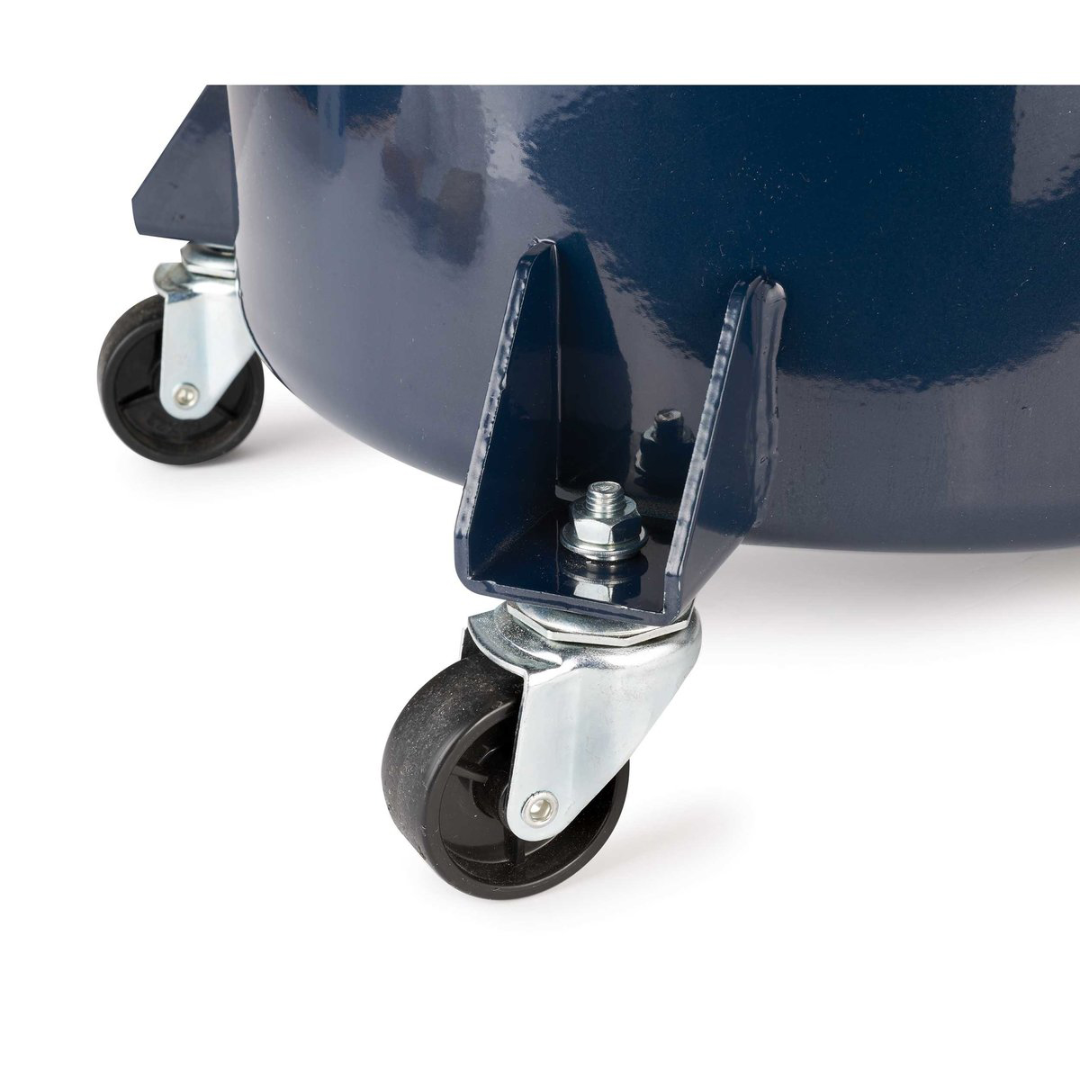

- Removable caster wheels provide mobility while maintaining stability during operation.

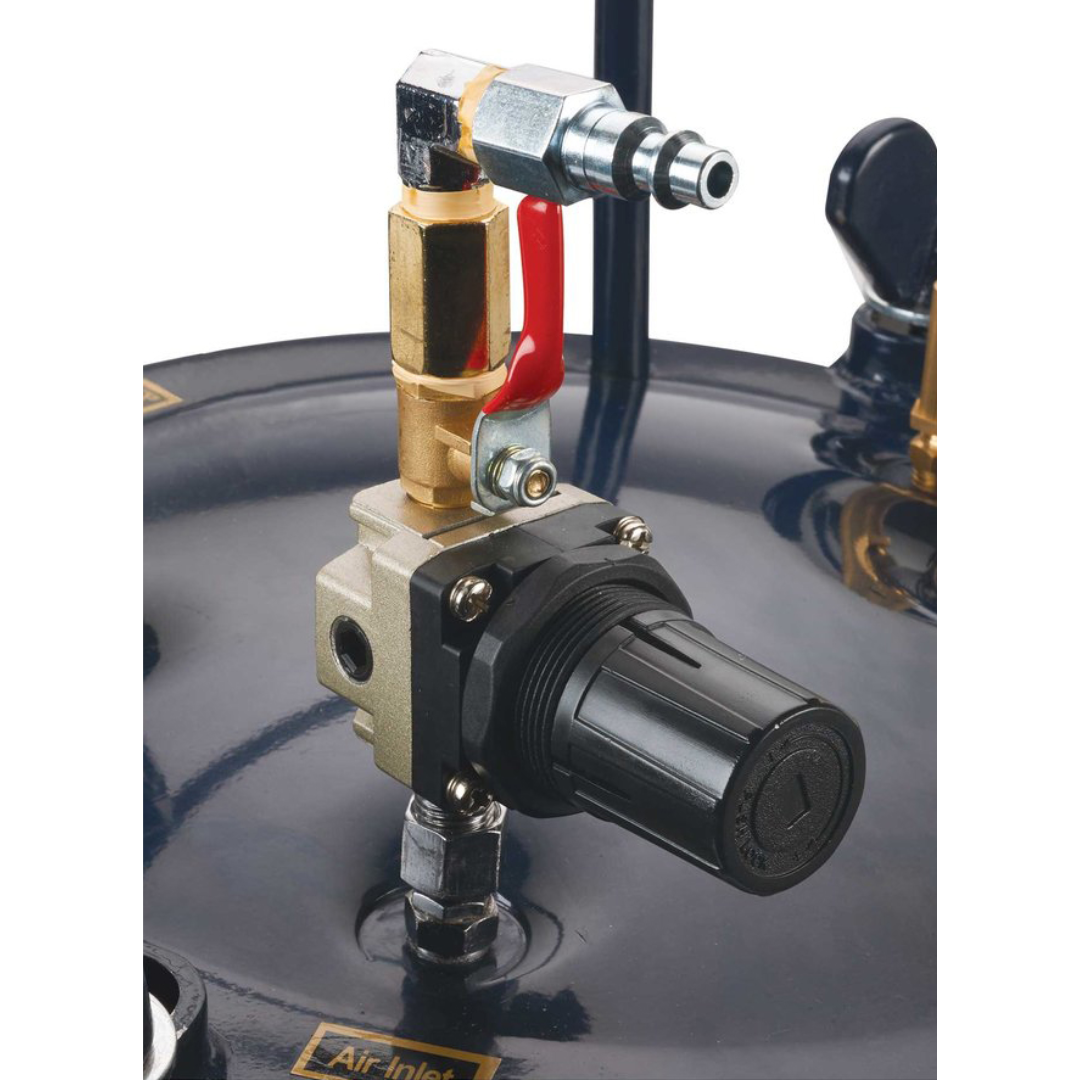

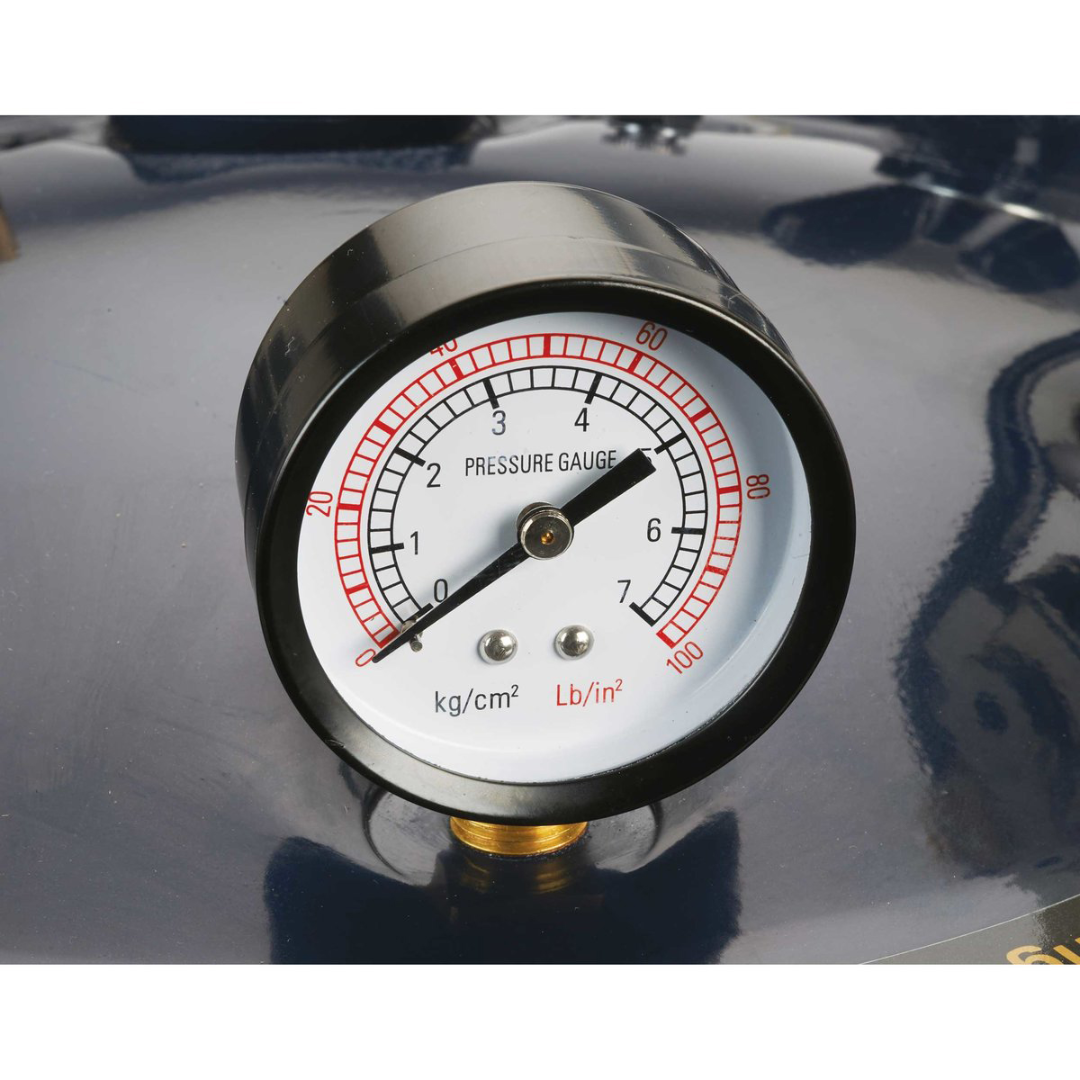

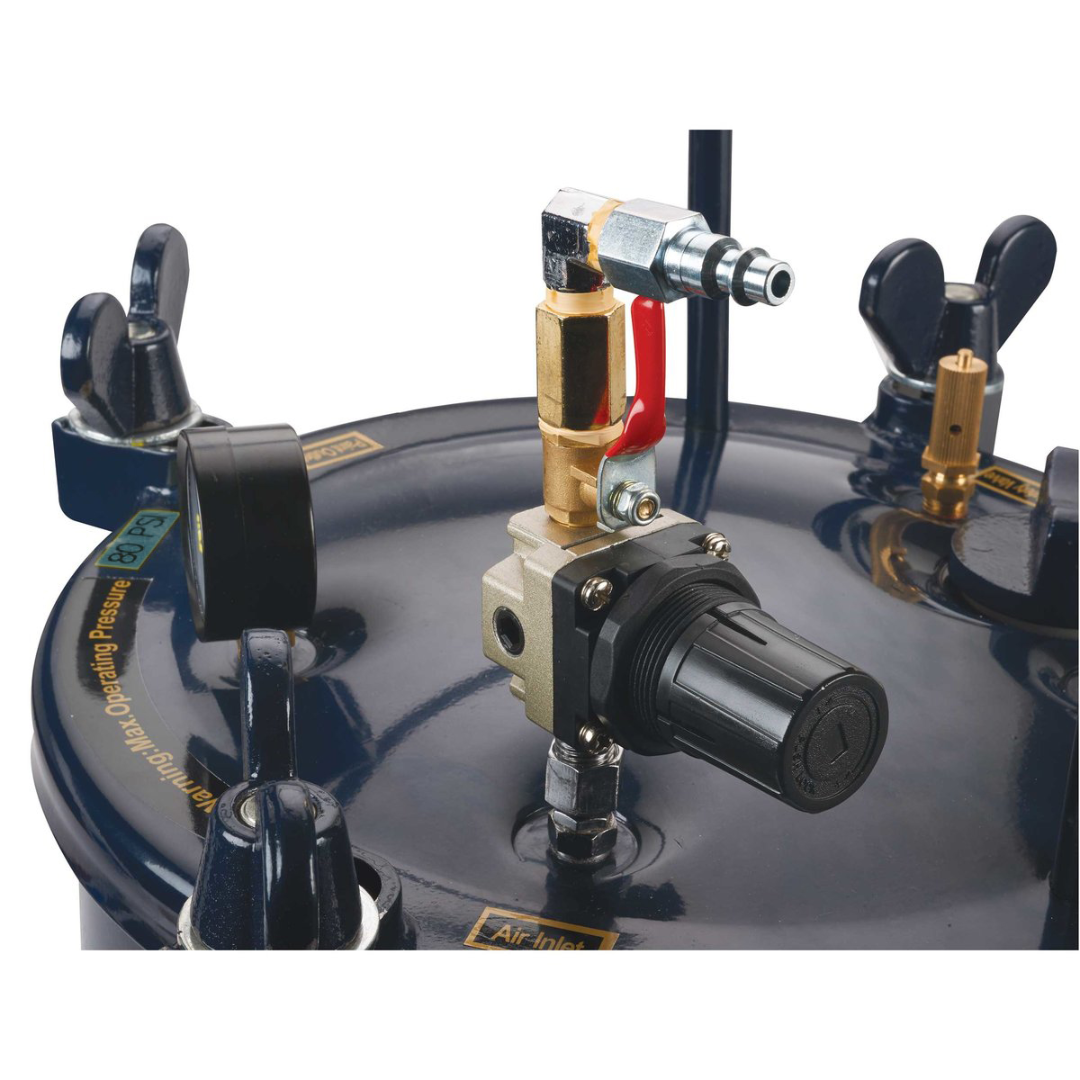

- Integrated input pressure regulator ensures accurate and consistent pressure control.
- On/Off ball valve allows simple operation and quick pressure adjustments.
- Pressure relief safety valve automatically opens at 80 PSI for added protection.
- Wide internal capacity accommodates standard 5-gallon buckets for efficient workflow.

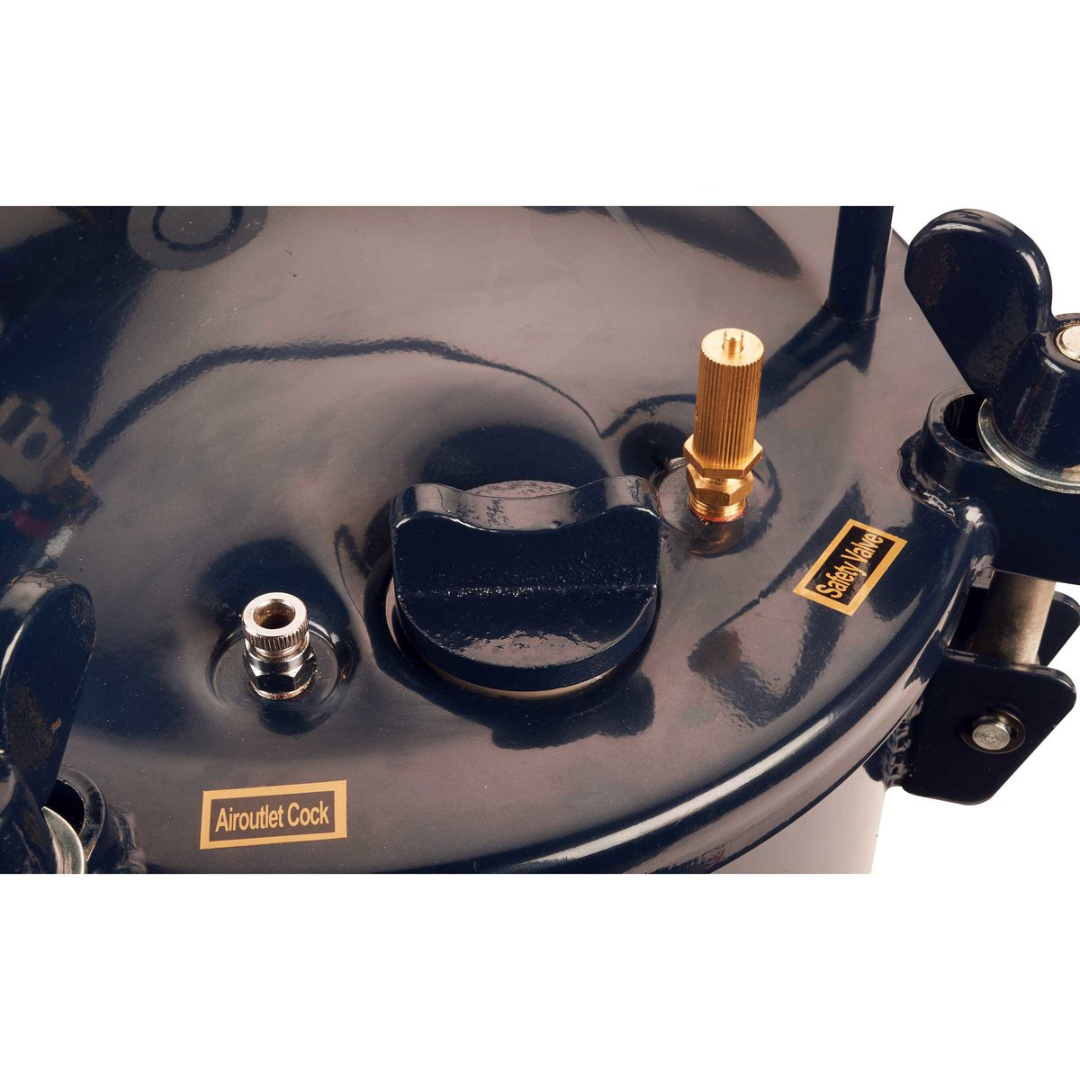

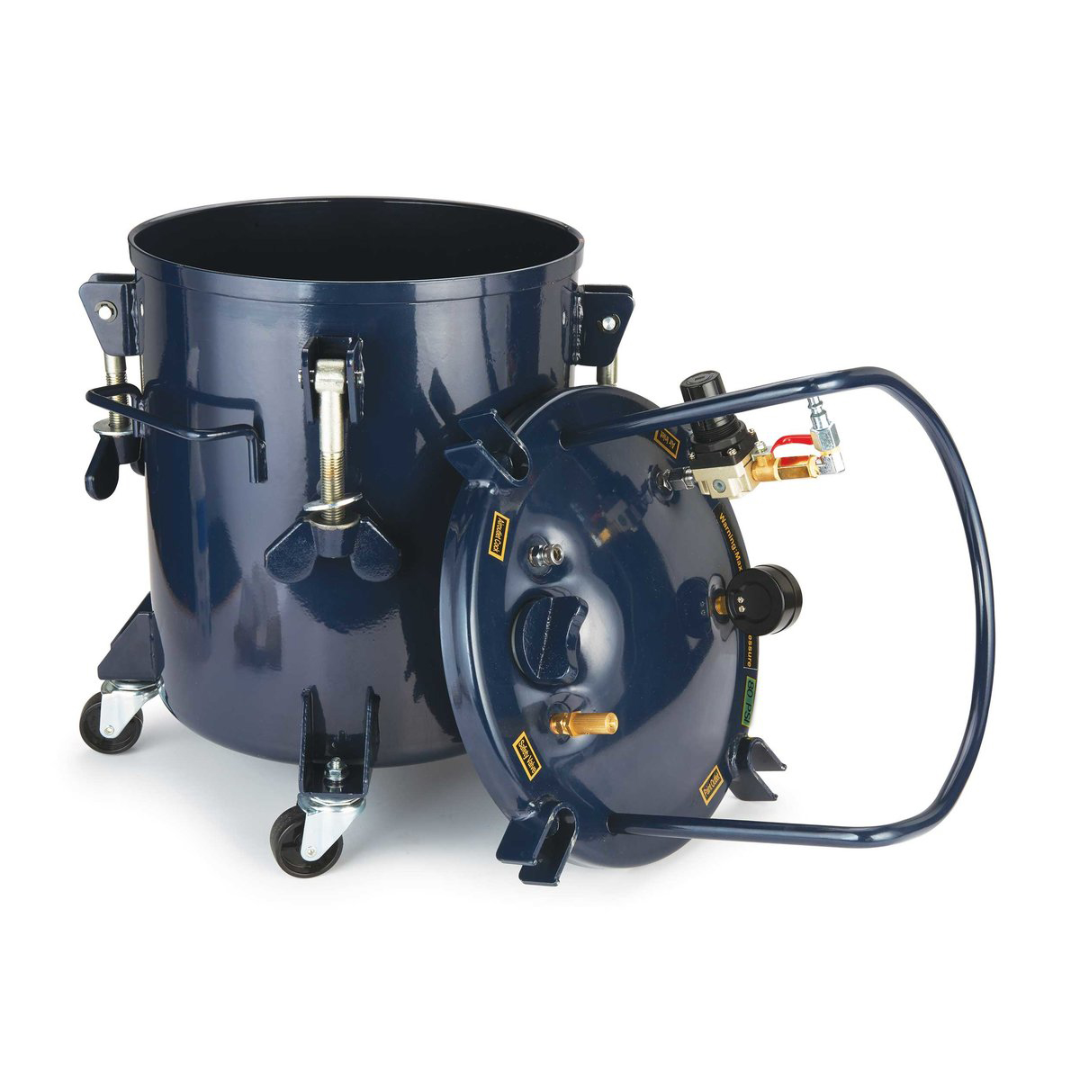

- Secure lid sealing system maintains airtight pressure for optimal casting results.
- Durable steel construction designed for repeated use in demanding environments.

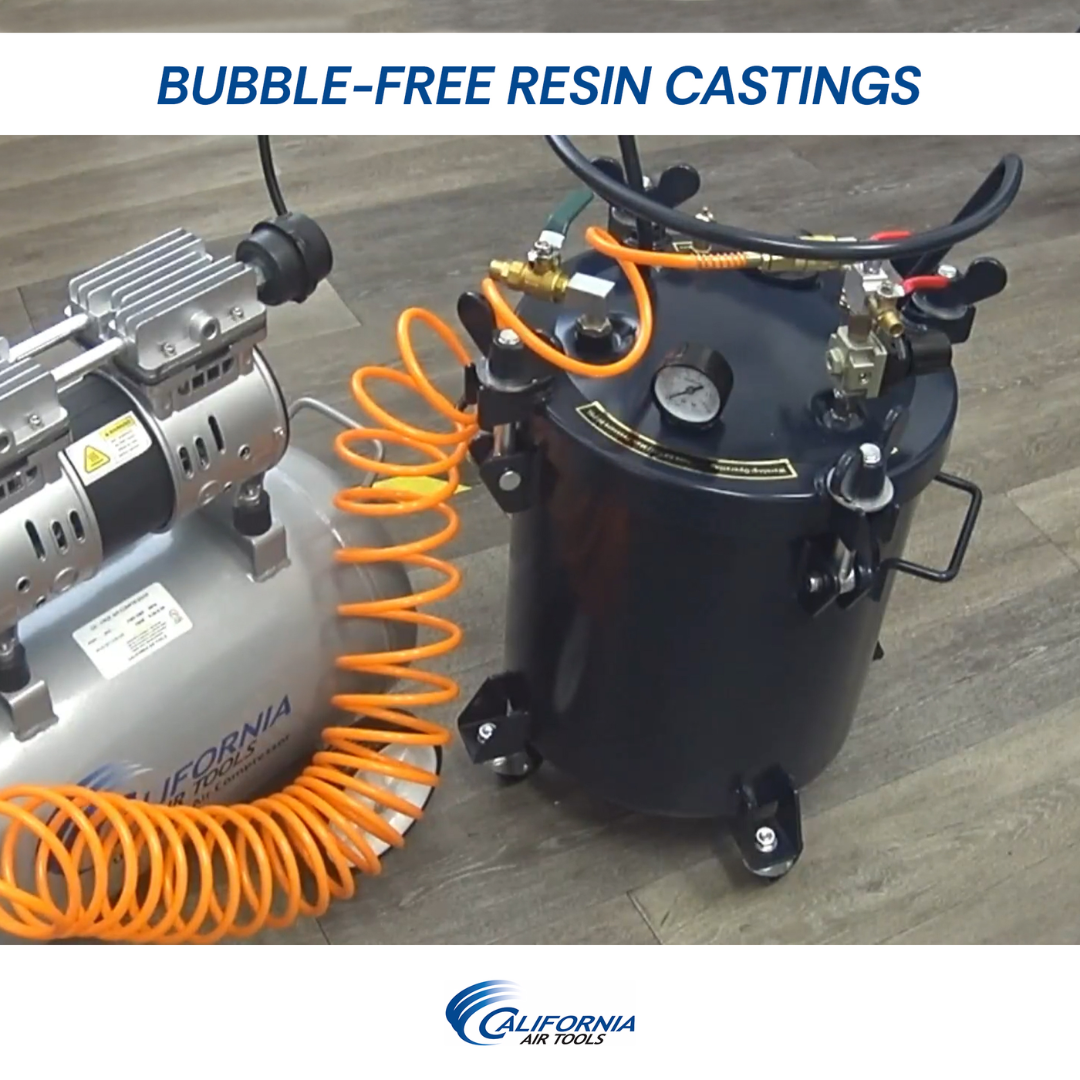

California Air Tools 365C 5 Gallon Pressure Pot for Resin Casting Performance Data
| Air Compressor Model | Fill Time |
|---|---|
| 1P1060S Air Compressor | 2 Minutes |
| 8010 Air Compressor | 45 Seconds |
| 10020C Air Compressor | 28 Seconds |
| 20020 Air Compressor | 16 Seconds |
California Air Tools 365C 5 Gallon Pressure Pot for Resin Casting Included Components
| Air Hose | HFH25.50 Air Hose |
|---|---|
| Regulator | 60 PSI Air Pressure Regulator |
| Replacement | Gasket Included |
Why Choose the California Air Tools 365C 5 Gallon Pressure Pot for Resin Casting
- Higher capacity design ideal for larger molds and batch production.
- Consistent 60 PSI operating pressure for reliable bubble-free casting.
- Mobile and stable with removable caster wheels.
- Easy-clean interior coating reduces maintenance time.
- Fast fill times with multiple compatible air compressors.
The California Air Tools 365C 5 Gallon Pressure Pot for Resin Casting delivers a balance of capacity, precision, and durability—making it a reliable choice for professionals and serious hobbyists focused on high-quality casting results.
