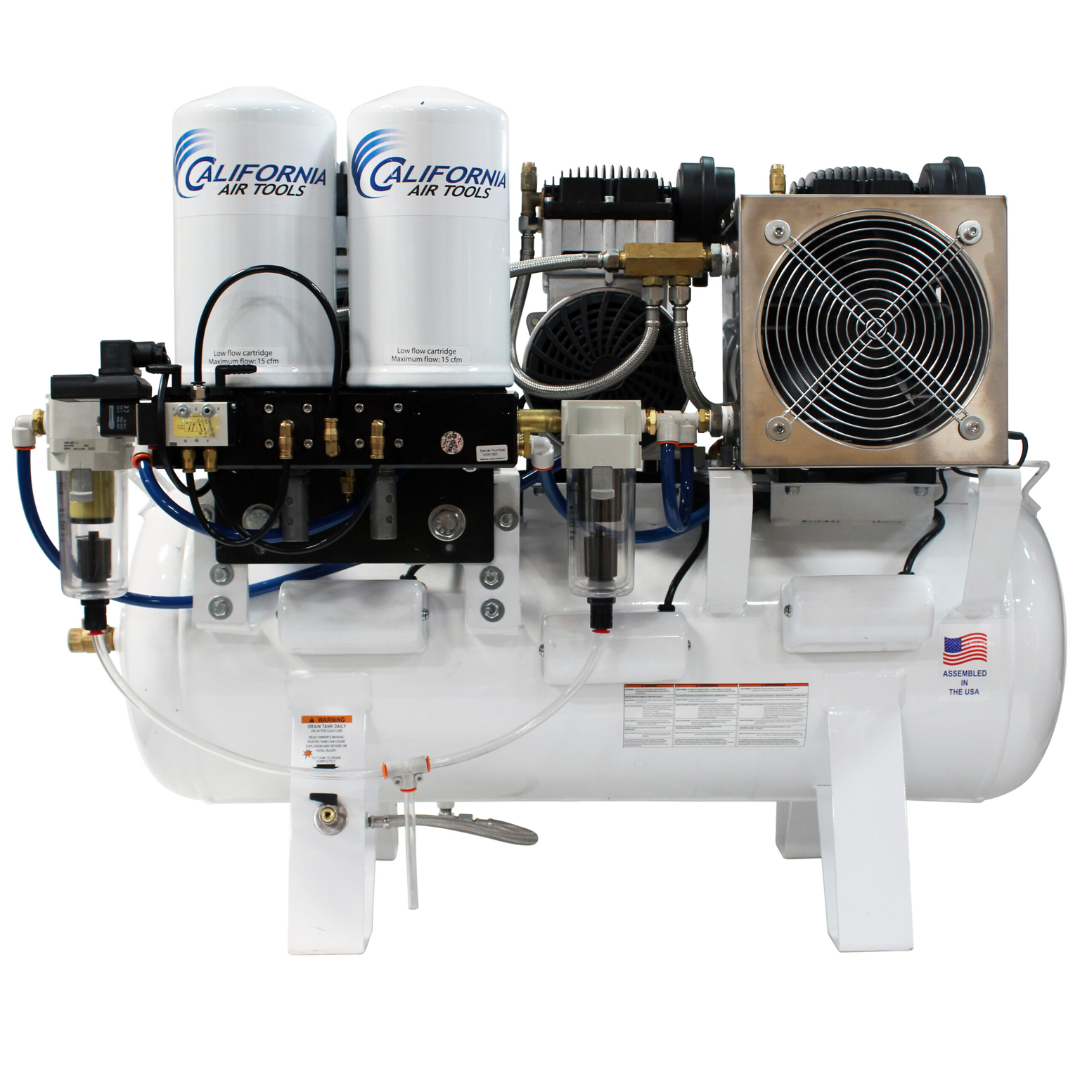

CALIFORNIA AIR TOOLS 20060DCC Powerful 6.0 Hp Ultra Quiet Ultra Dry Oil-Free 20-Gallon Air Compressor Applications
- Dental, medical, and laboratory environments requiring ultra-dry air
- Clean rooms, bio-tech, and pharmaceutical facilities
- Precision manufacturing, CNC machining, and milling operations
- Food processing, bakeries, and packaging systems
- Industrial applications requiring moisture-free compressed air
Ideal for applications where air purity, low dew point, and consistent high airflow are critical to performance and equipment protection.

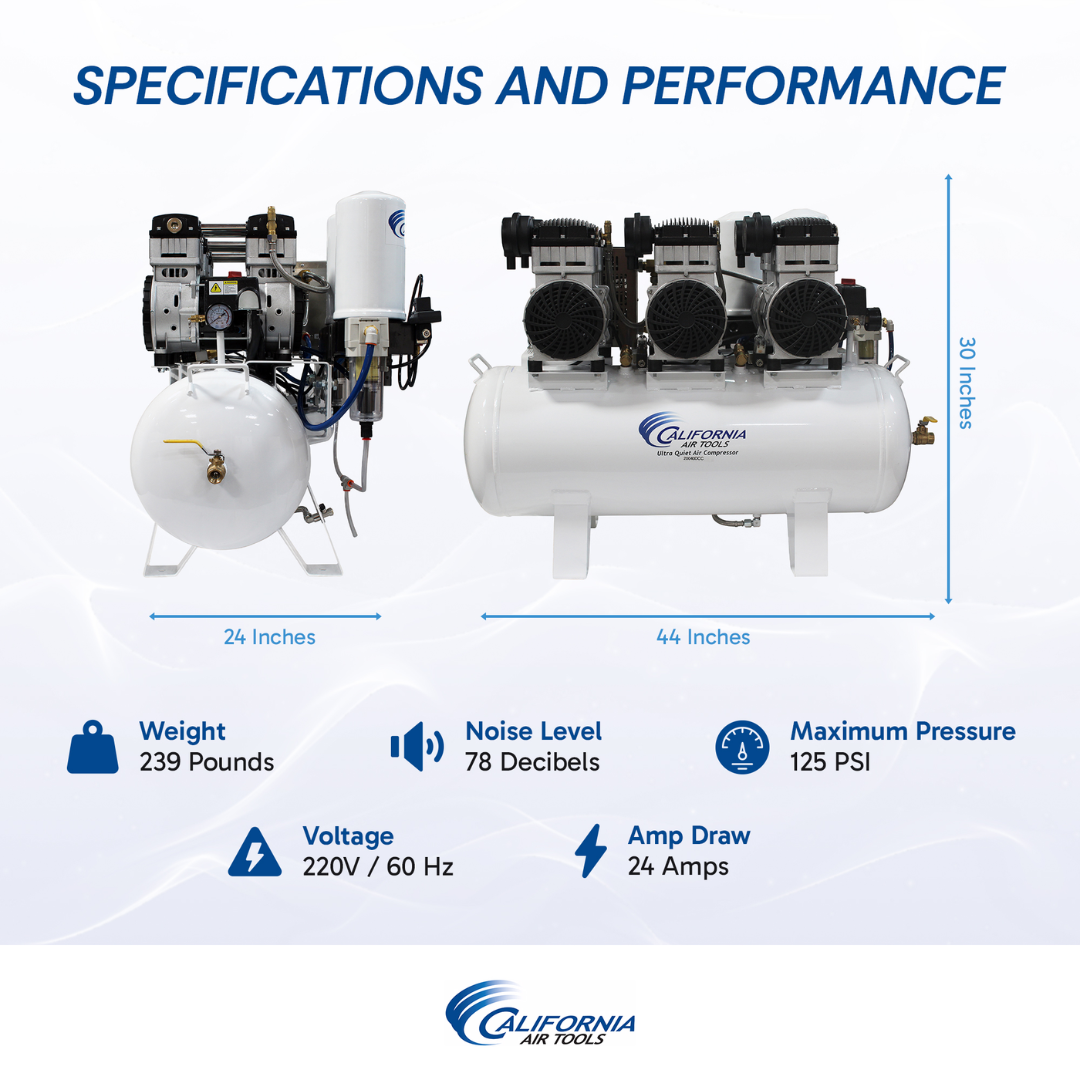

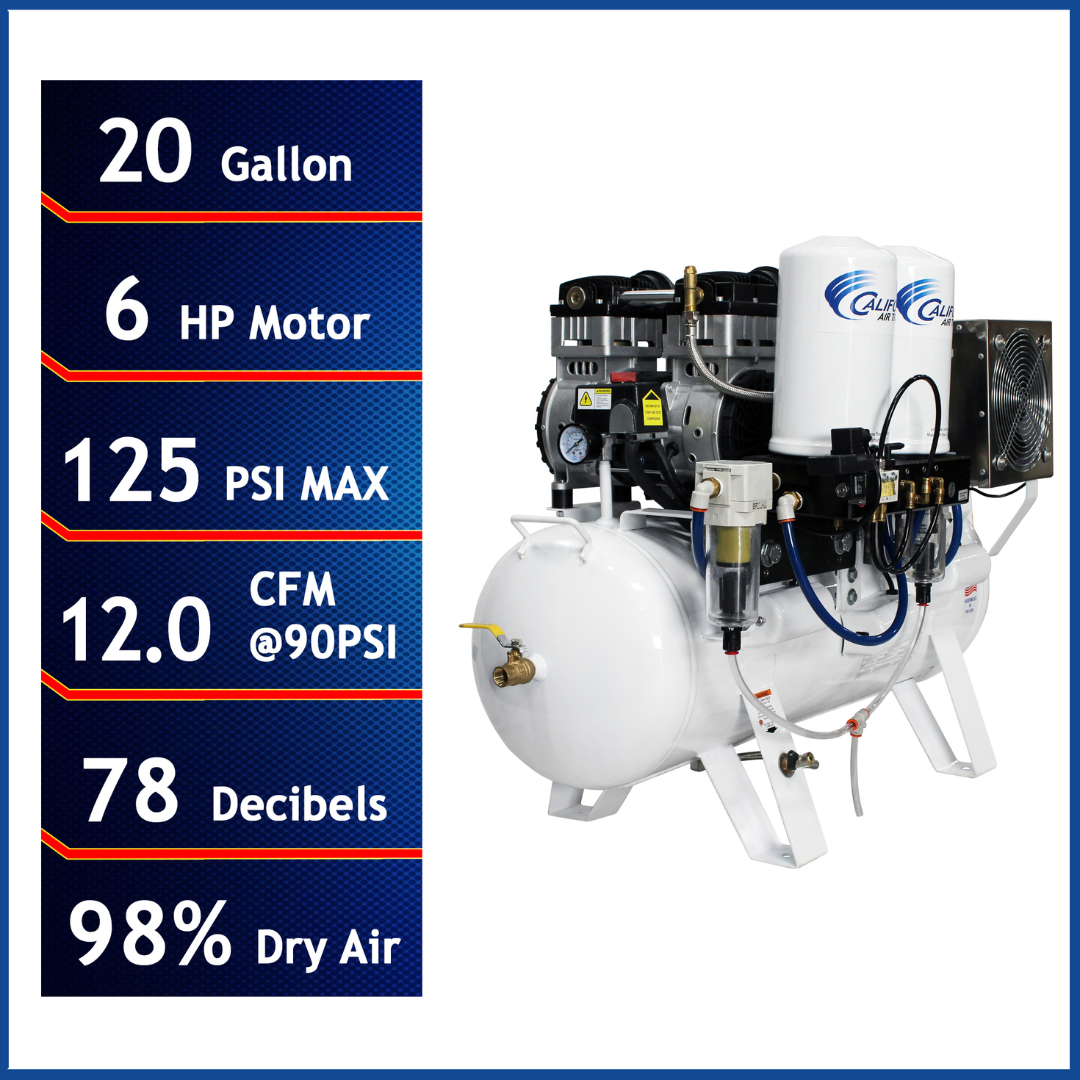

CALIFORNIA AIR TOOLS 20060DCC Powerful 6.0 Hp Ultra Quiet Ultra Dry Oil-Free 20-Gallon Air Compressor Specifications
| Model | 20060DCC |
|---|---|
| Motor Power | 6.0 HP (Rated/Running) |
| Motor Configuration | Triple (3) 2.0 HP SP-9421 Oil-Free Motors |
| Tank Capacity | 20 Gallon Steel Tank |
| Air Flow | 16.30 CFM @ 40 PSI / 12.00 CFM @ 90 PSI |

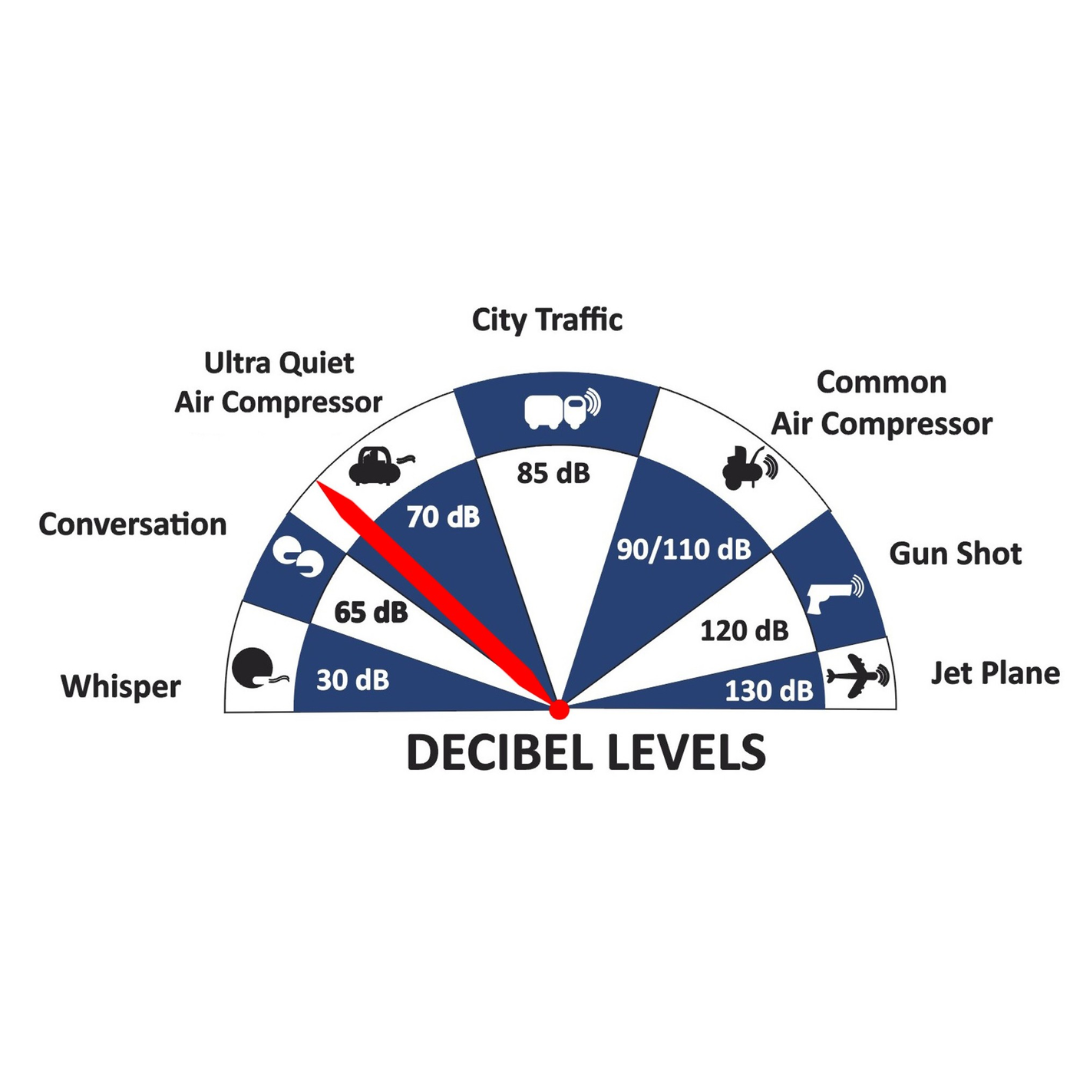

| Noise Level | 78 Decibels |

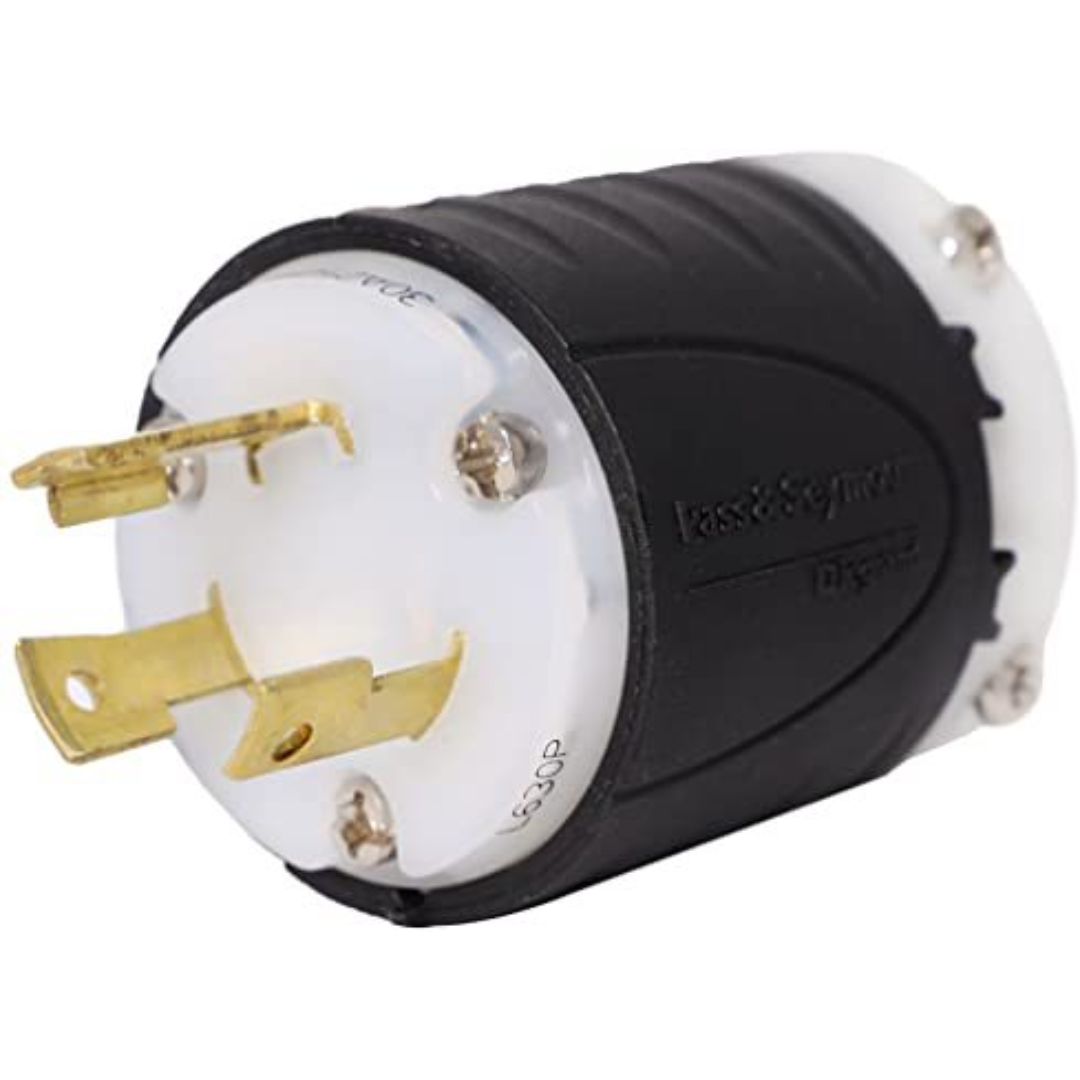

| Voltage | 220V / 60Hz / Single Phase |
| Amperage | 24 Amps (Operating Avg: 18–20 Amps) |
| Breaker Requirement | 30 Amp Breaker Required |
| Maximum Pressure | 125 PSI |
| Tank Fill Time | 93 Seconds |
| Recovery Time | 32 Seconds (95 PSI to 125 PSI) |
| Air Quality | ISO 8573 Class 2.3.1 |
| Dew Point Performance | -20°F to -51°F PDP Range |

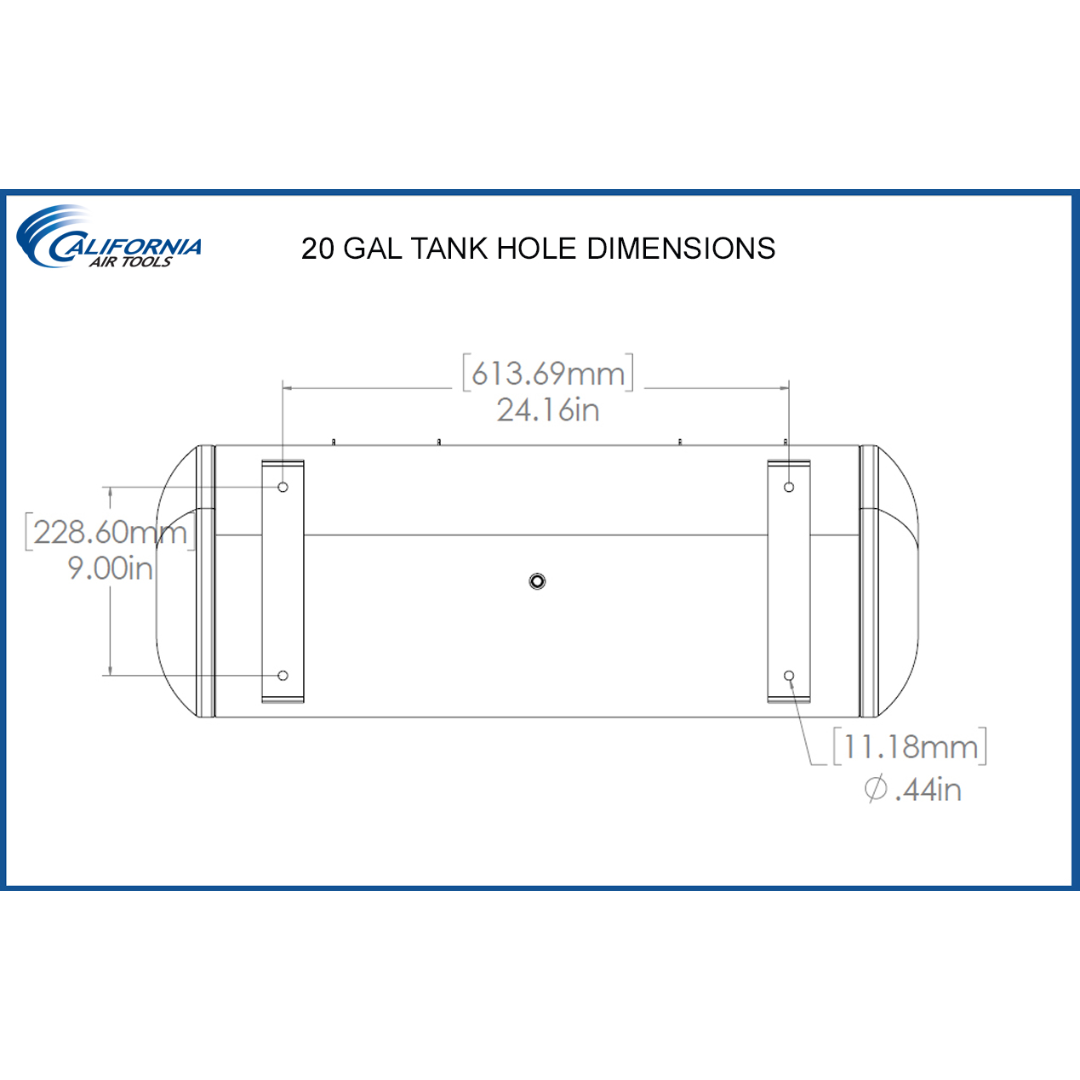

| Dimensions (L x W x H) | 44" x 24" x 30" |
| Weight | 239 lbs |

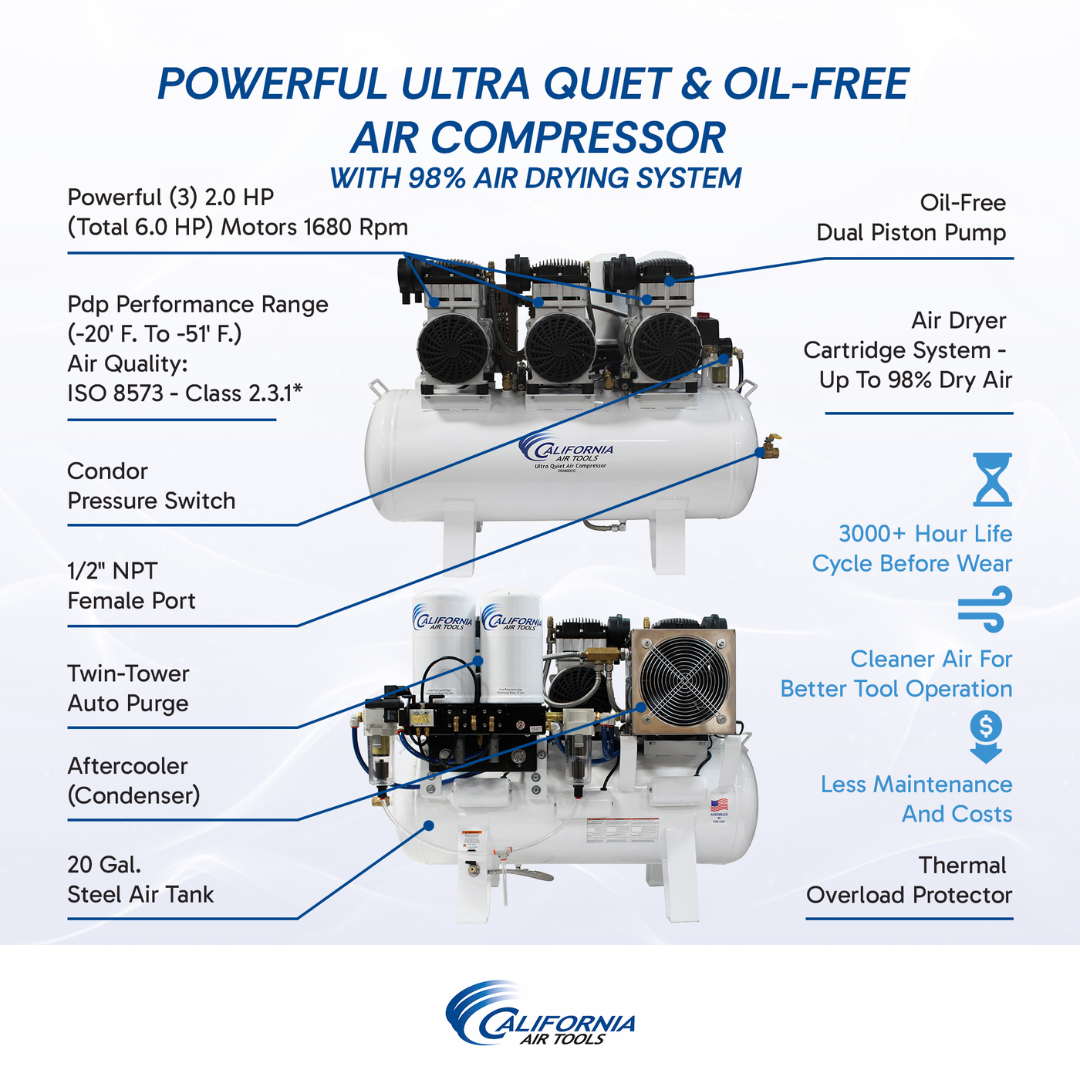

CALIFORNIA AIR TOOLS 20060DCC Powerful 6.0 Hp Ultra Quiet Ultra Dry Oil-Free 20-Gallon Air Compressor Performance & Construction

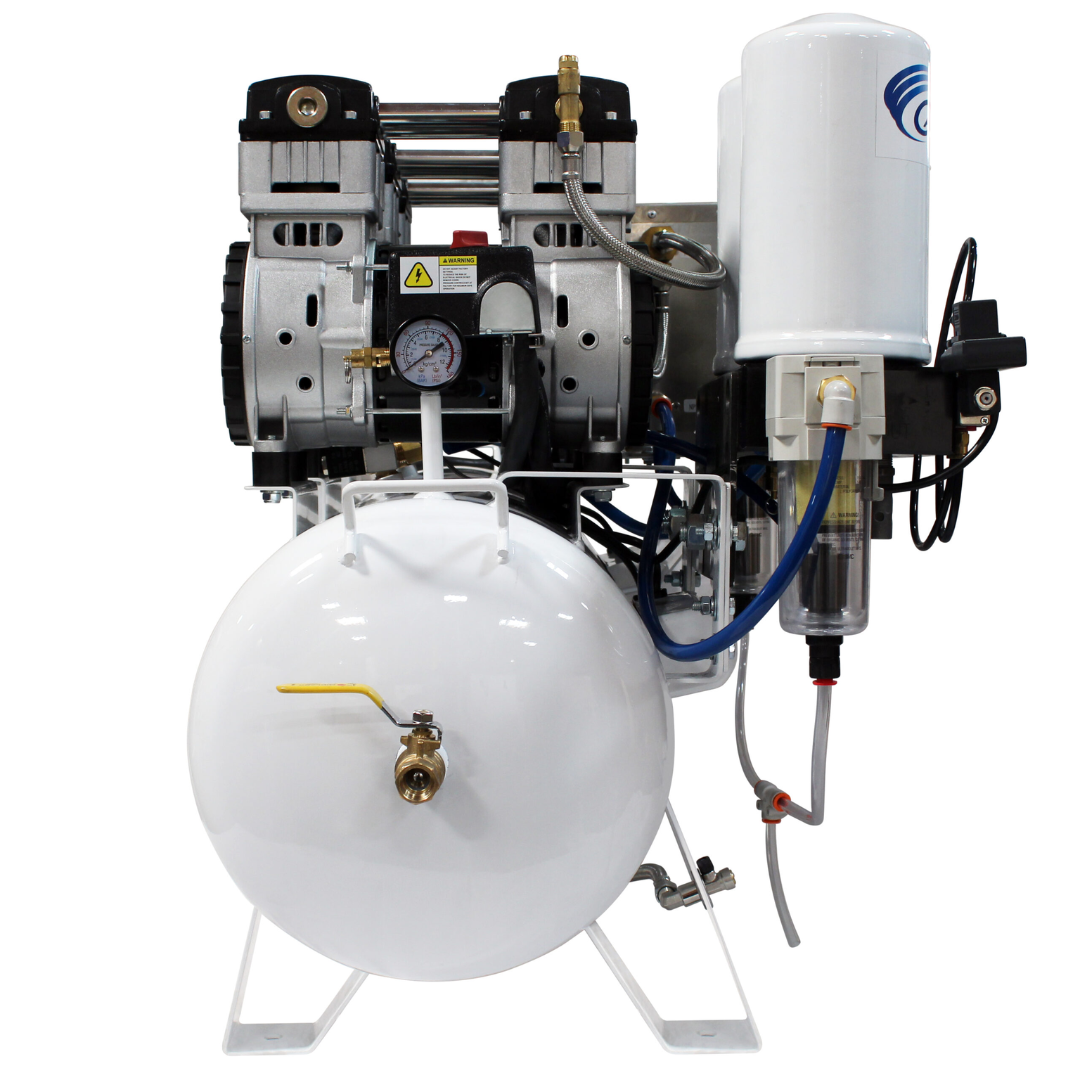

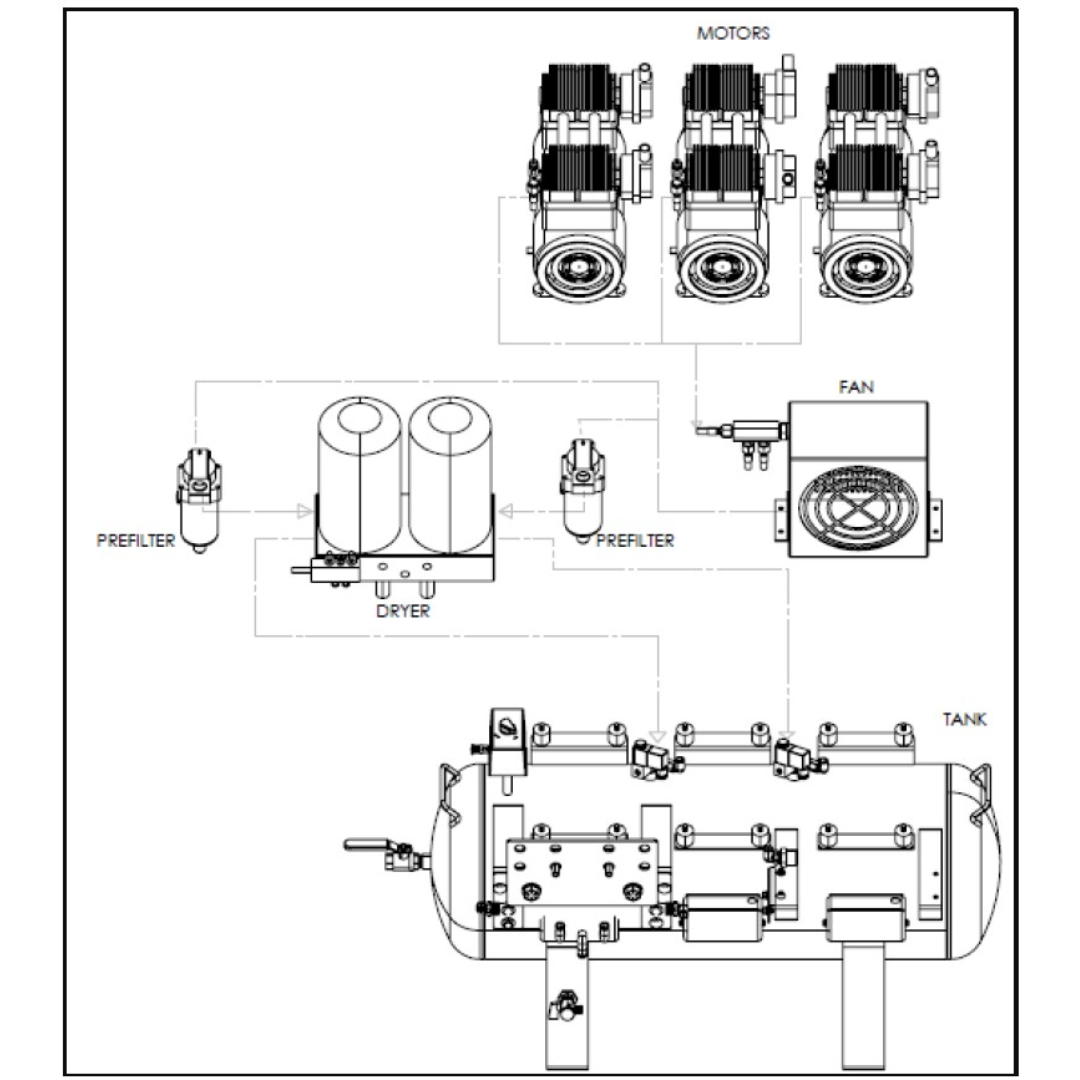

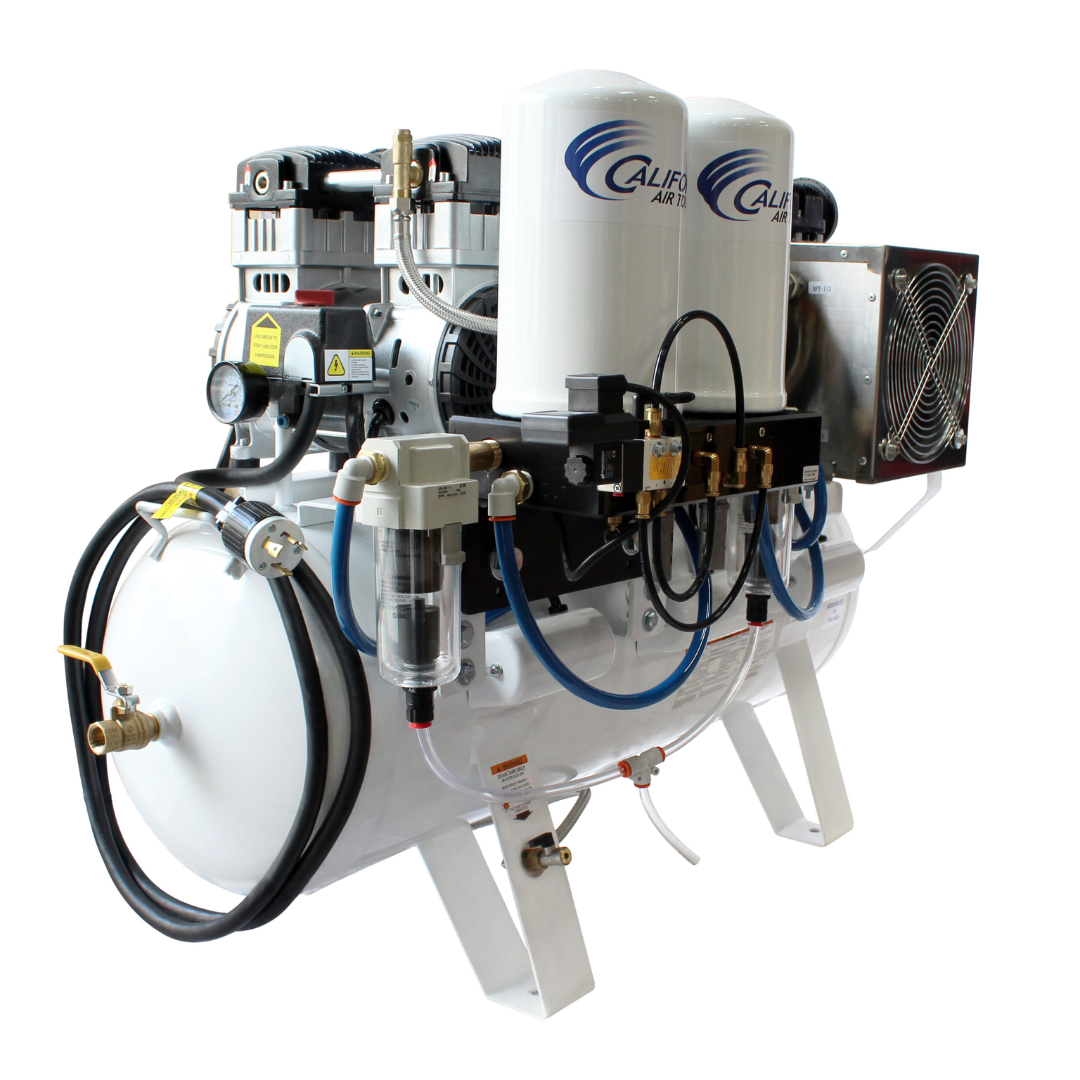

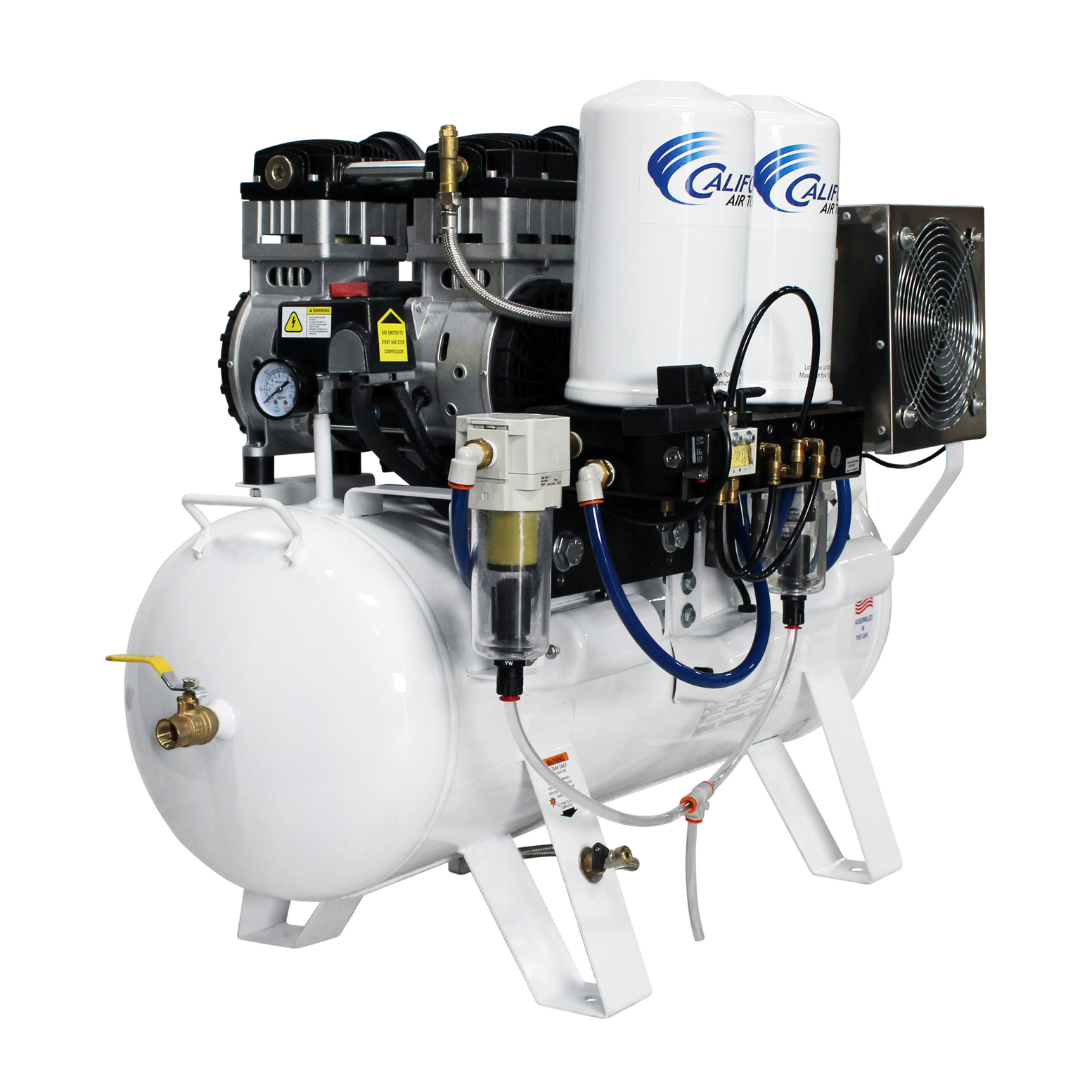

- Twin-Tower Auto Purge Drying System continuously regenerates desiccant for consistent ultra-dry air output.
- 98% Air Drying Technology removes moisture to protect sensitive tools and equipment.
- Aftercooler System condenses water vapor before entering the drying system for maximum efficiency.
- Spin-On Desiccant Cartridges with high-temperature molecular sieve for reliable moisture removal (2-year lifespan).
- Ultra Quiet Operation (78 dB) minimizes noise in comparison to standard high-output compressors.

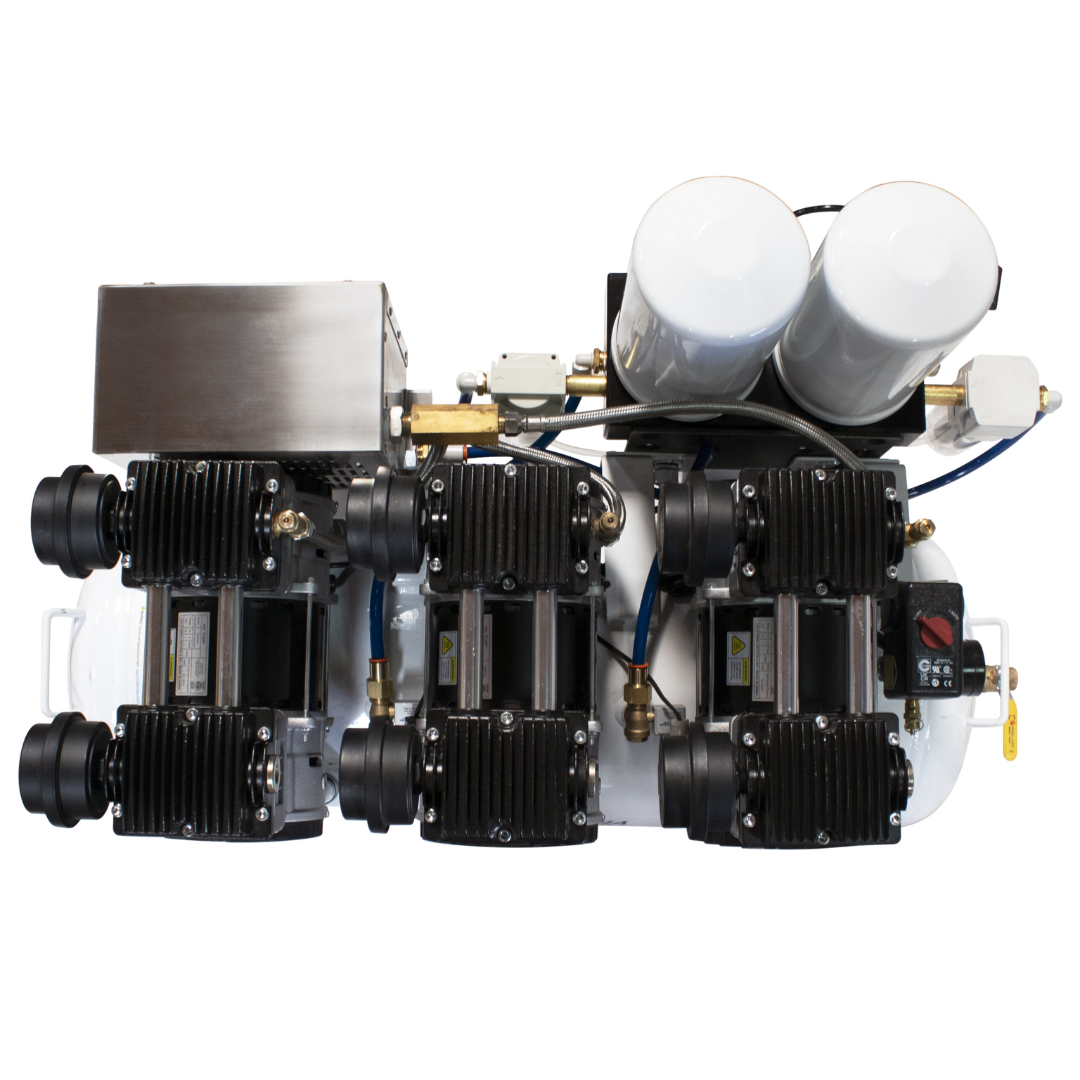

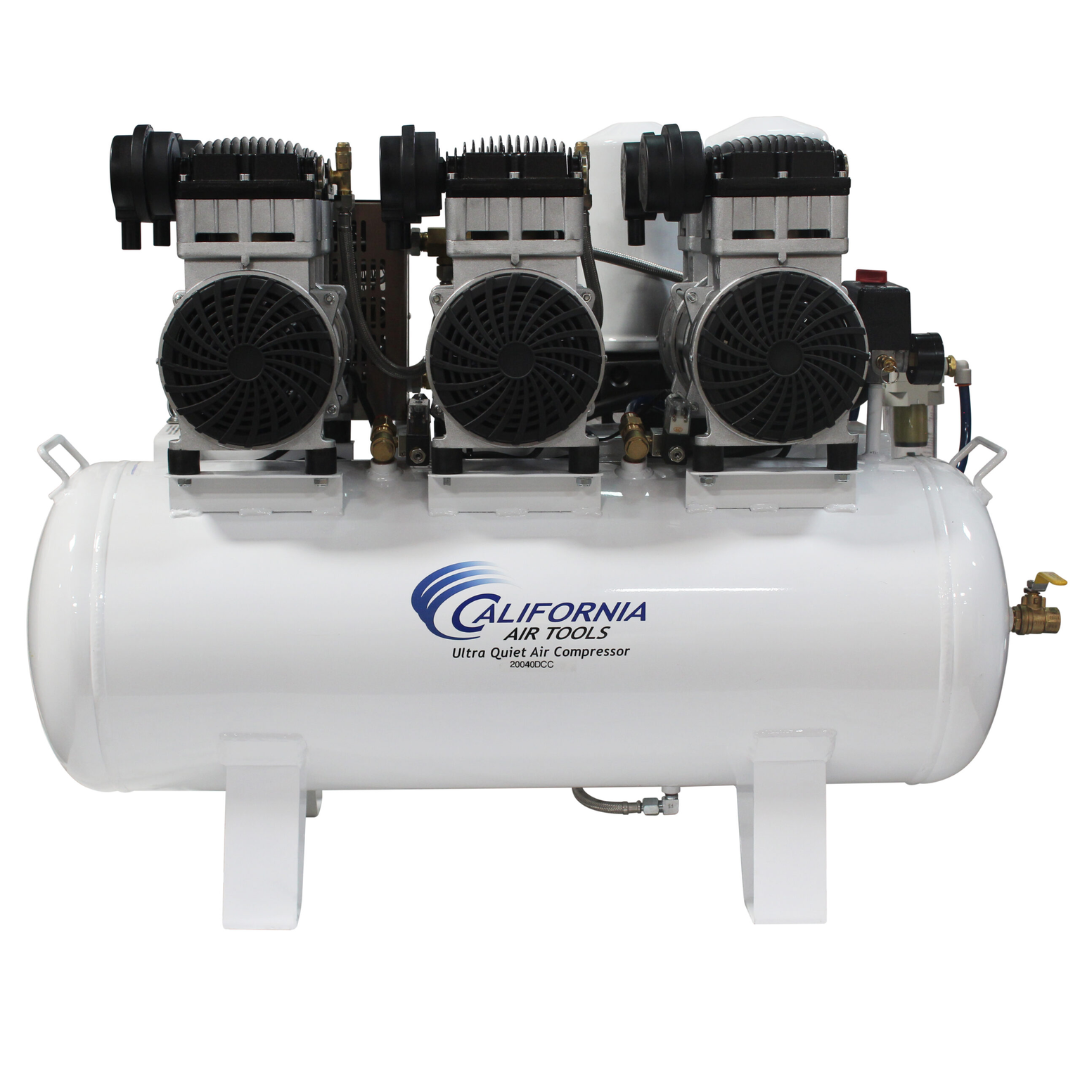

- Triple Motor Power System provides high airflow for demanding industrial and cleanroom applications.
- Oil-Free Dual Piston Pumps ensure contaminant-free air and reduced maintenance.
- Extended Pump Life rated for over 3000 hours before service.
- Low RPM Motors (1680 RPM) reduce wear, heat, and vibration.
- Thermal Overload Protection protects internal components during continuous operation.

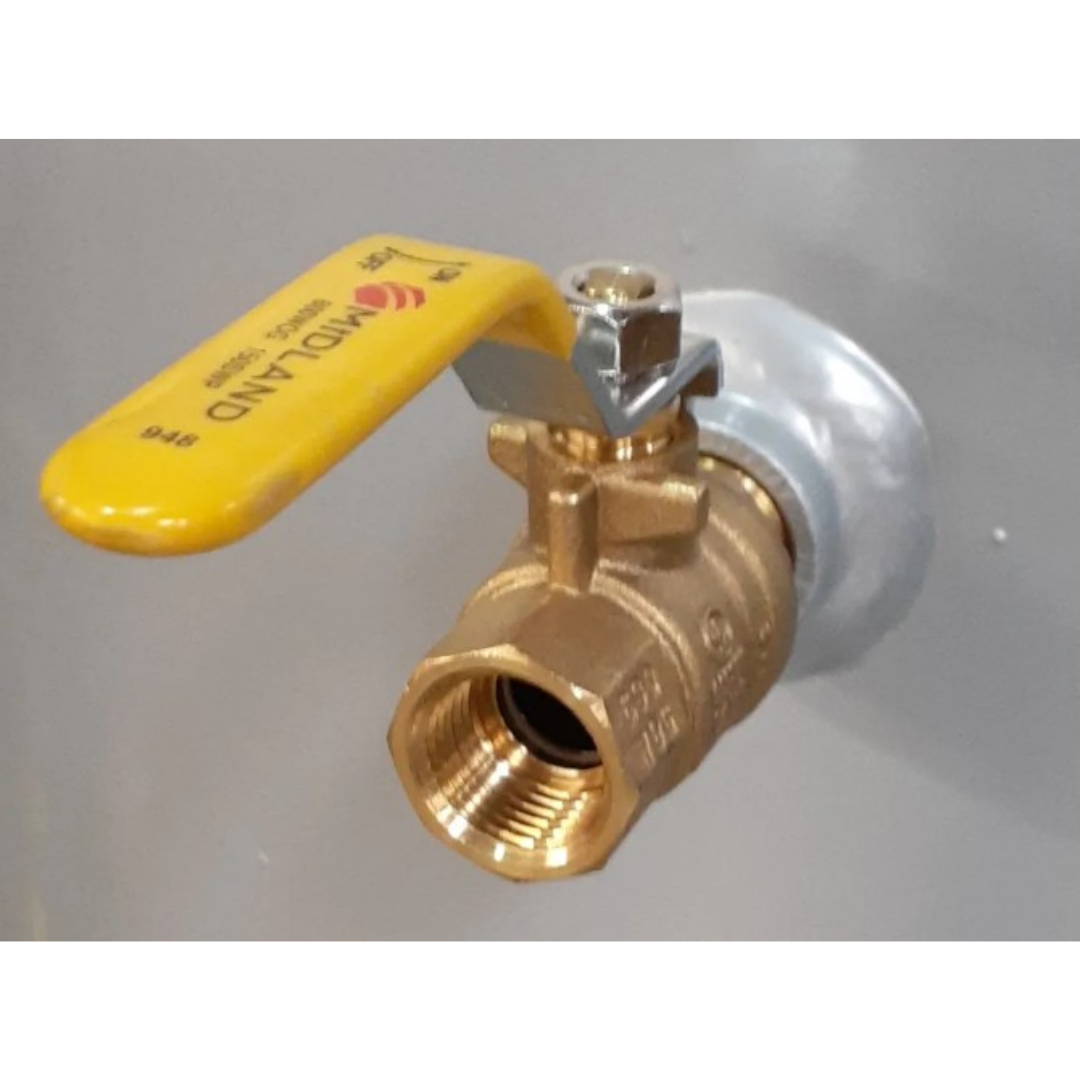

- Industrial 1/2" NPT Air Port supports high-flow air delivery setups.
- No Auto Drain Required due to efficient twin-tower purge drying system.
Why Choose the CALIFORNIA AIR TOOLS 20060DCC Powerful 6.0 Hp Ultra Quiet Ultra Dry Oil-Free 20-Gallon Air Compressor
- Delivers up to 98% dry air with advanced twin-tower drying technology
- High CFM output for demanding industrial and precision applications
- Ultra-quiet operation for a 6.0 HP class compressor
- Oil-free system ensures clean, contaminant-free airflow
- Reduced maintenance with long-life components and no drain requirement
- Built for cleanroom, medical, and high-performance environments
The CALIFORNIA AIR TOOLS 20060DCC Powerful 6.0 Hp Ultra Quiet, Ultra Dry & Oil-Free 20-Gallon Air Compressor is a premium solution for professionals who require powerful airflow, ultra-dry air quality, and dependable long-term performance.
