CALIFORNIA AIR TOOLS 20040DSMADC Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 20 Gallon Air Compressor Applications

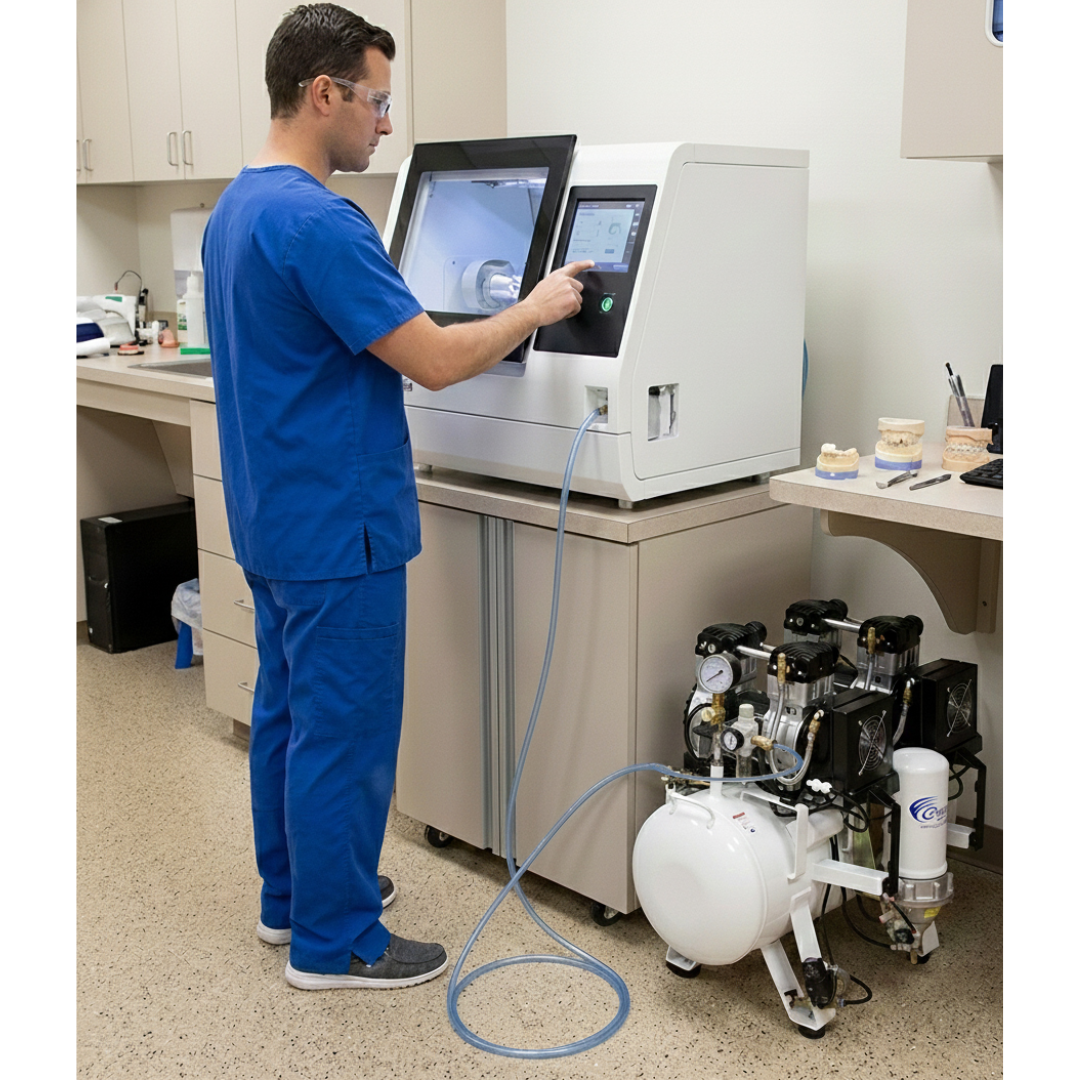

- Dental, medical, and laboratory environments requiring clean, dry air
- Bio-tech, pharmaceutical, and precision manufacturing operations
- Milling, CNC, and automated production systems
- Packaging, food service, and restaurant equipment
- General engineering, workshops, and industrial air supply systems
Ideal for environments where moisture-free air, low noise, and reliable continuous operation are critical.

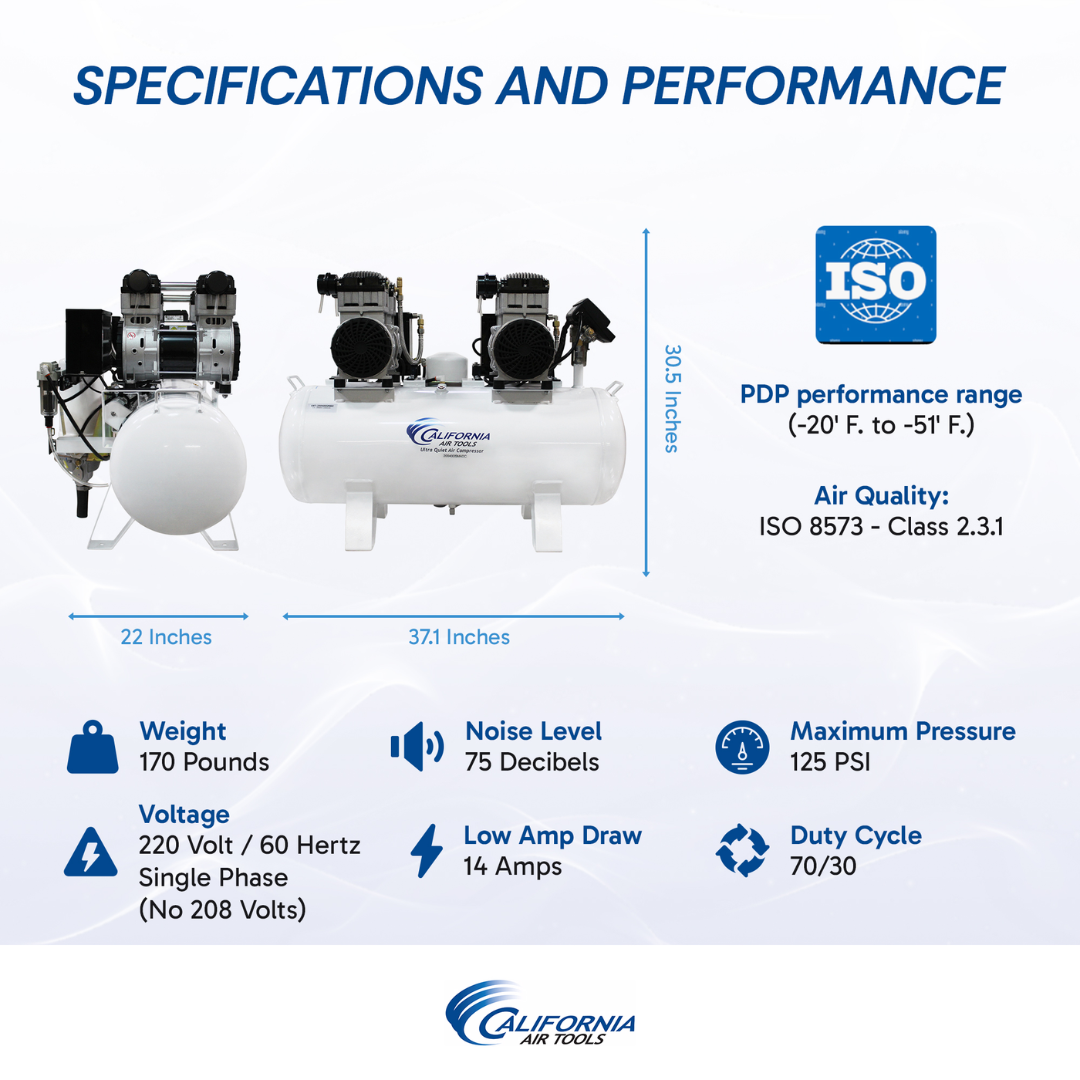

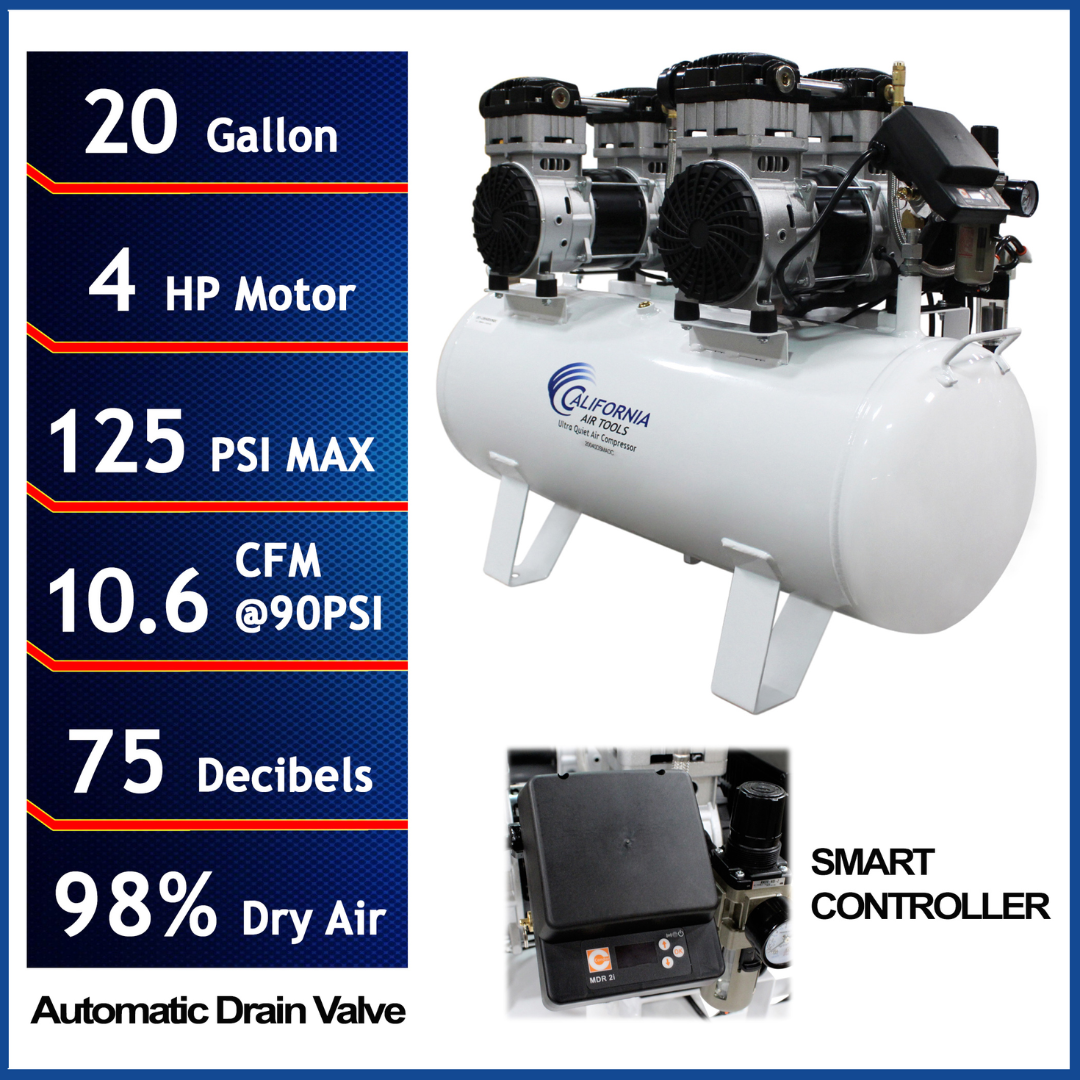

CALIFORNIA AIR TOOLS 20040DSMADC Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 20 Gallon Air Compressor Specifications
| Model | 20040DSMADC |
|---|---|
| Motor Power | 4.0 HP (Rated/Running) |
| Motor Type | Twin 2.0 HP SP-9421 Oil-Free Motors |
| Tank Capacity | 20 Gallon Steel Tank |
| Air Flow | 12.80 CFM @ 40 PSI / 10.60 CFM @ 90 PSI |
| Noise Level | 75 Decibels |

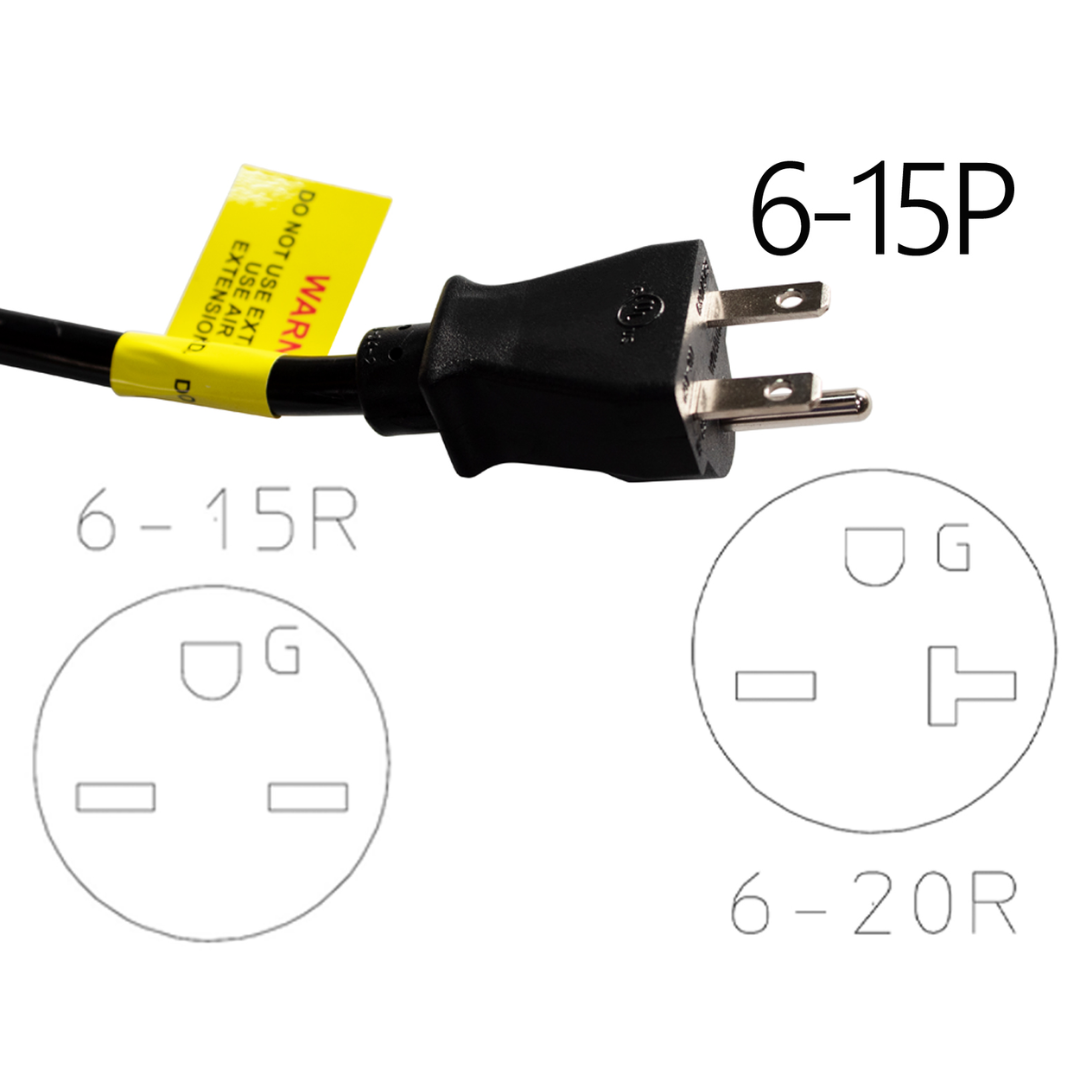

| Voltage | 220V / 60Hz / Single Phase |
| Amperage | 14 Amps |
| Working Pressure | 90–120 PSI (Adjustable) |
| Max Pressure | 130 PSI |
| Tank Fill Time | 150 Seconds |
| Recovery Time | 40 Seconds (95 PSI to 125 PSI) |
| Air Quality | ISO 8573-1 Class 2.3.1 |
| Dew Point Performance | -20°F to -51°F PDP Range |

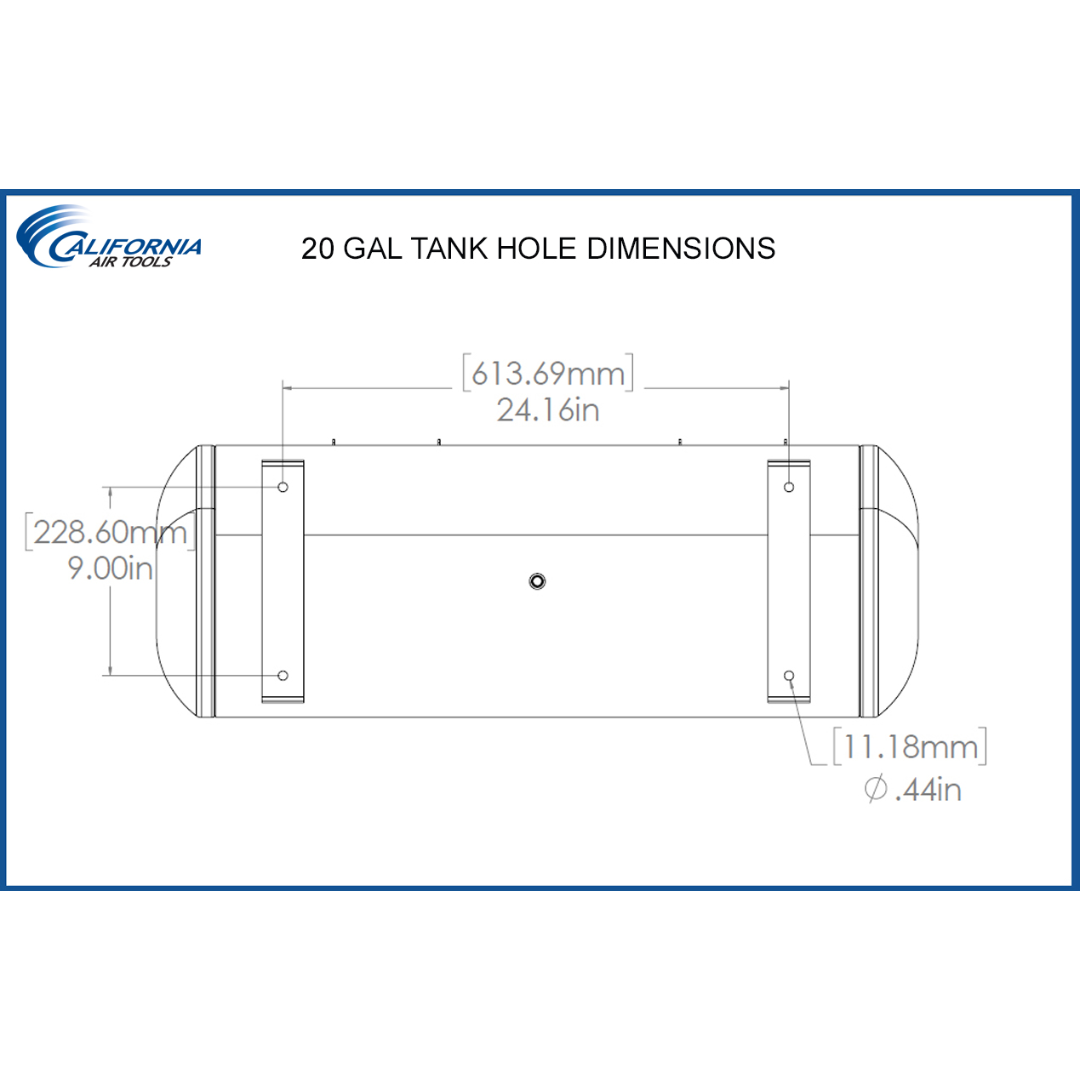

| Dimensions (L x W x H) | 37.1" x 22" x 30.5" |
| Weight | 170 lbs |

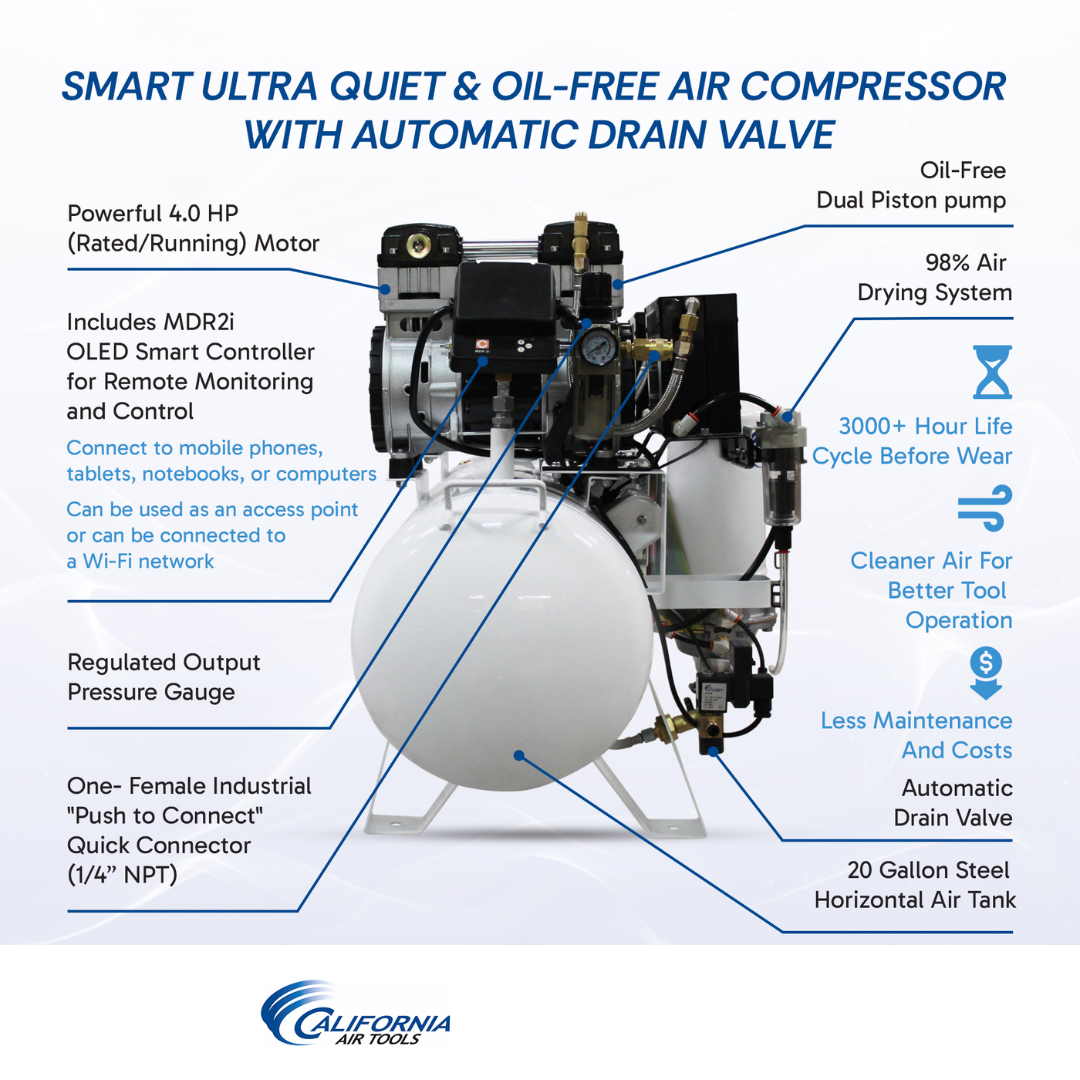

CALIFORNIA AIR TOOLS 20040DSMADC Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 20 Gallon Air Compressor Performance & Construction

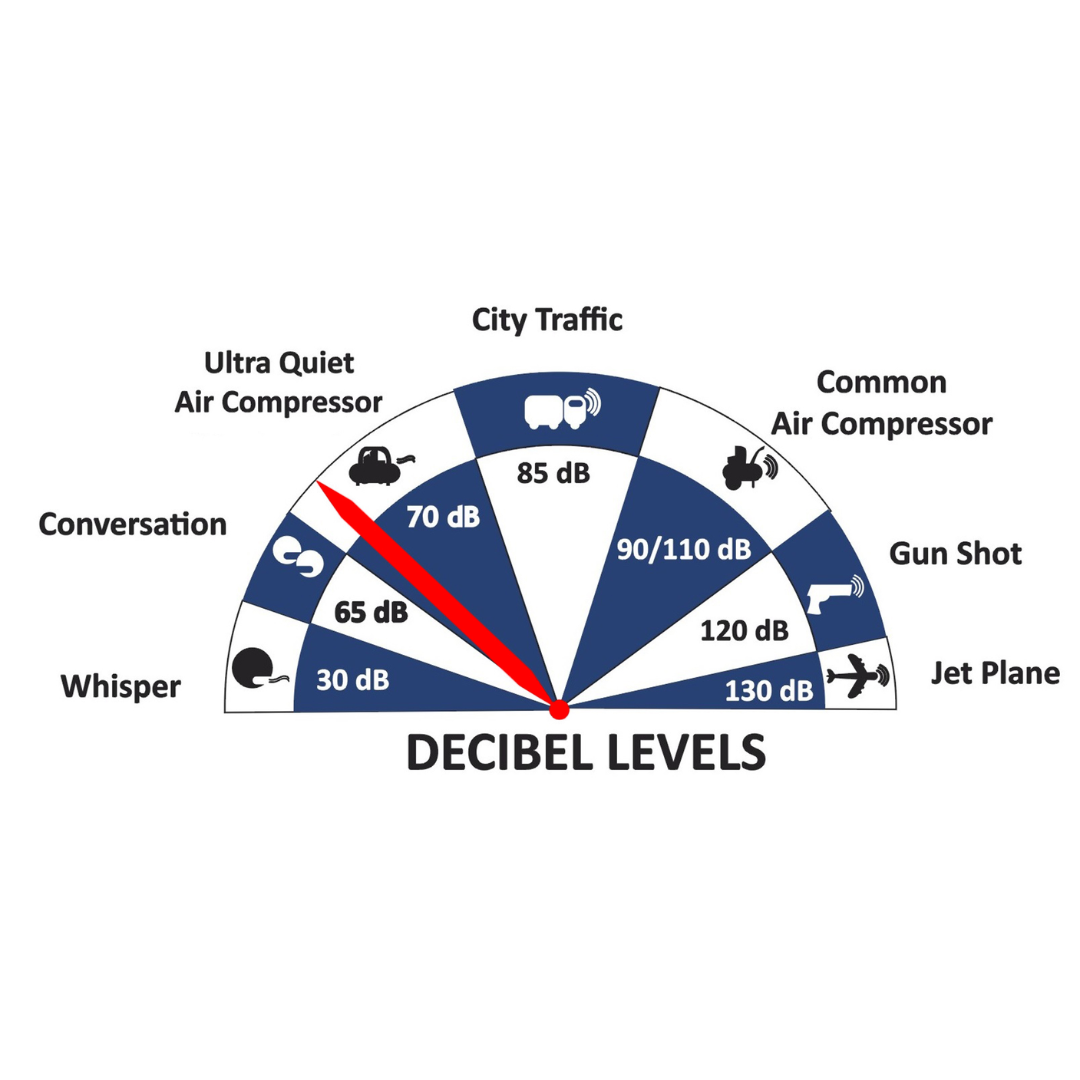

- Ultra Quiet Operation (75 dB) significantly reduces workplace noise compared to standard compressors.

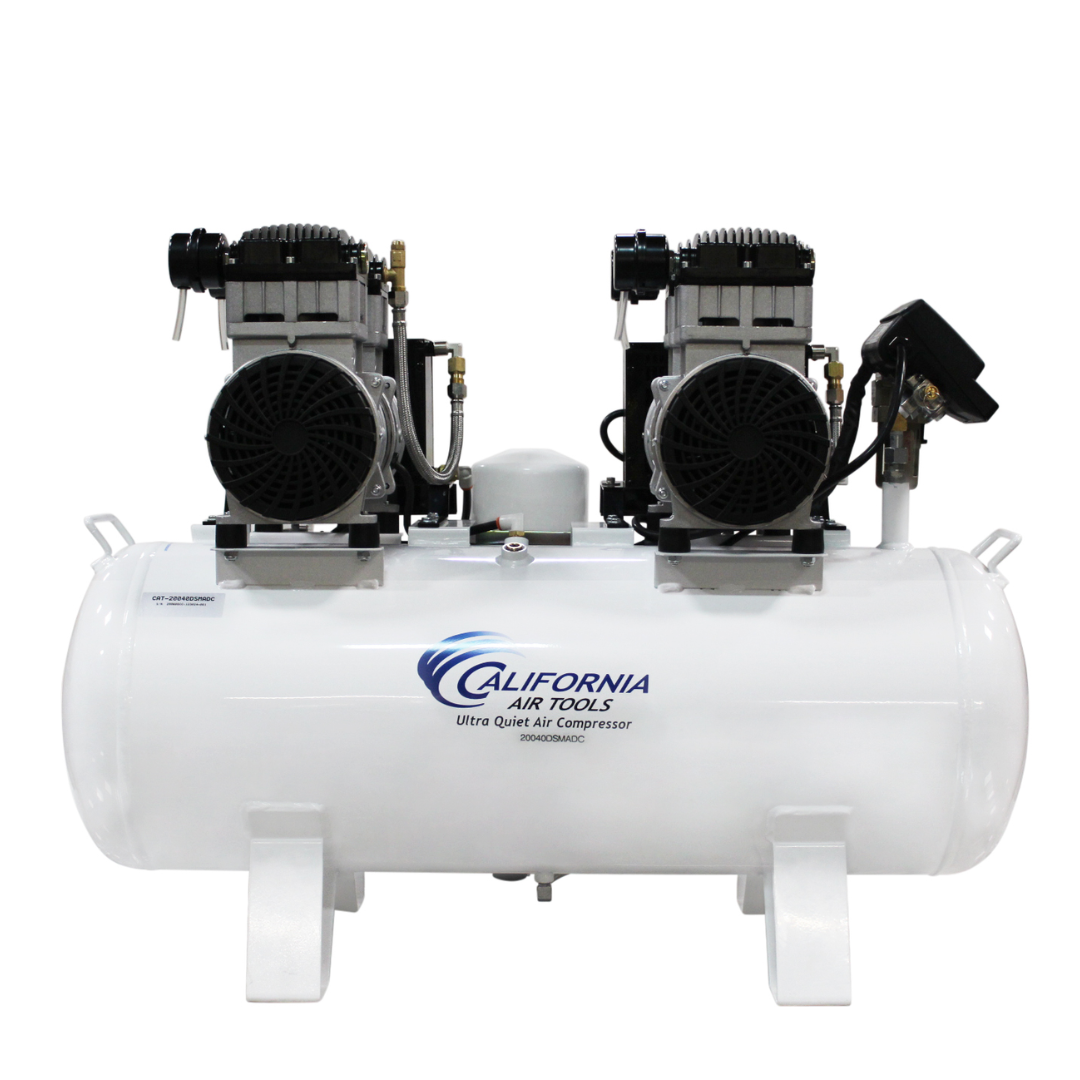

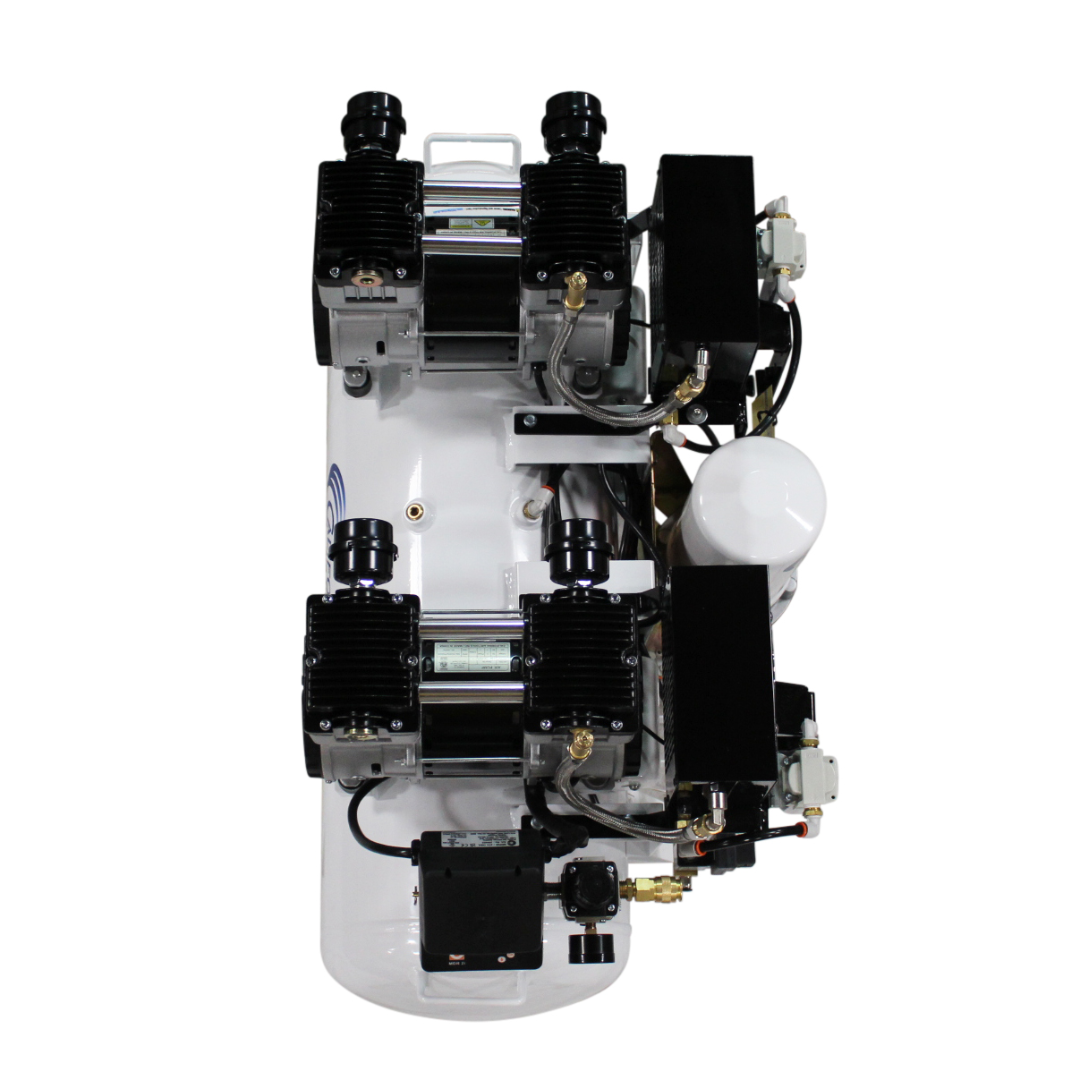

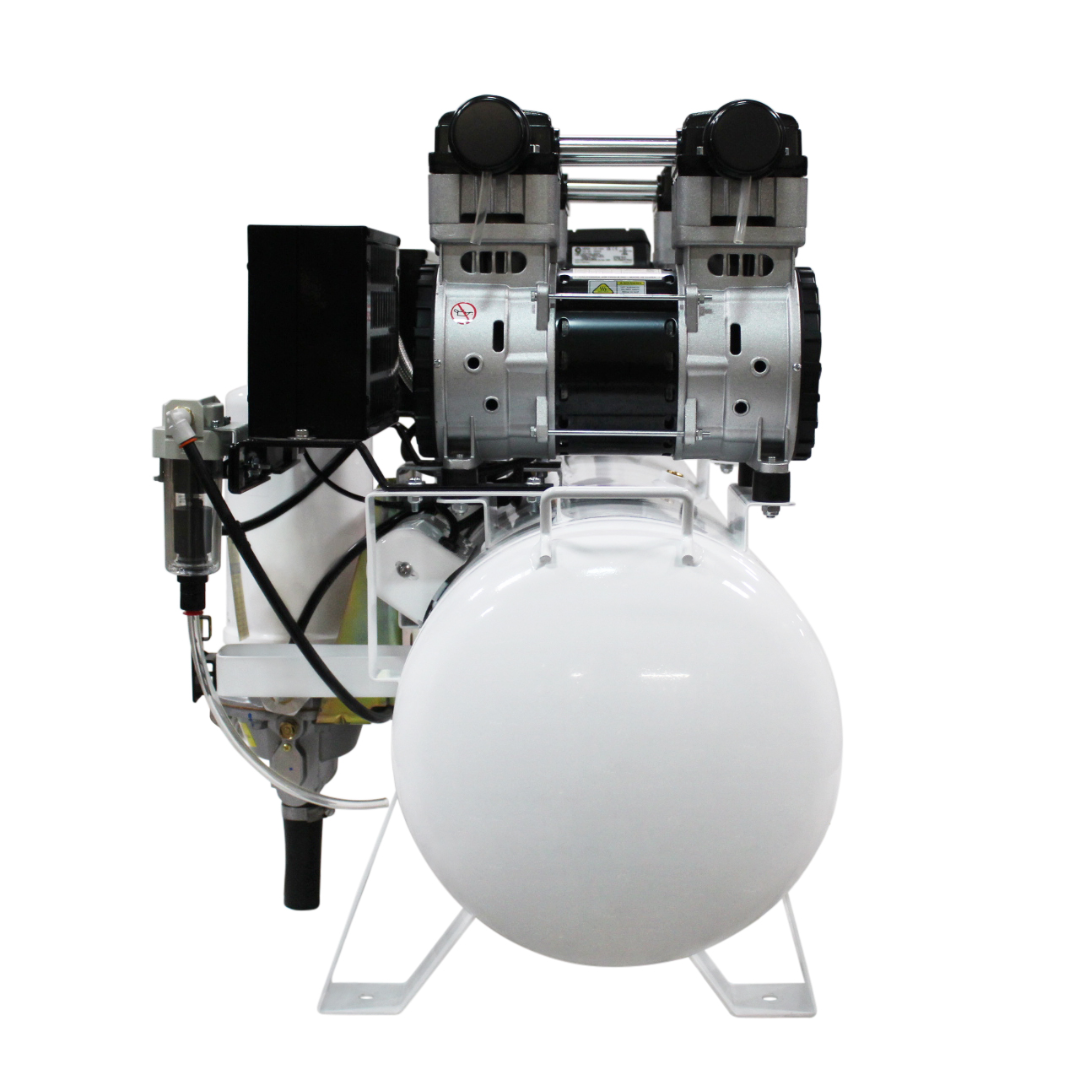

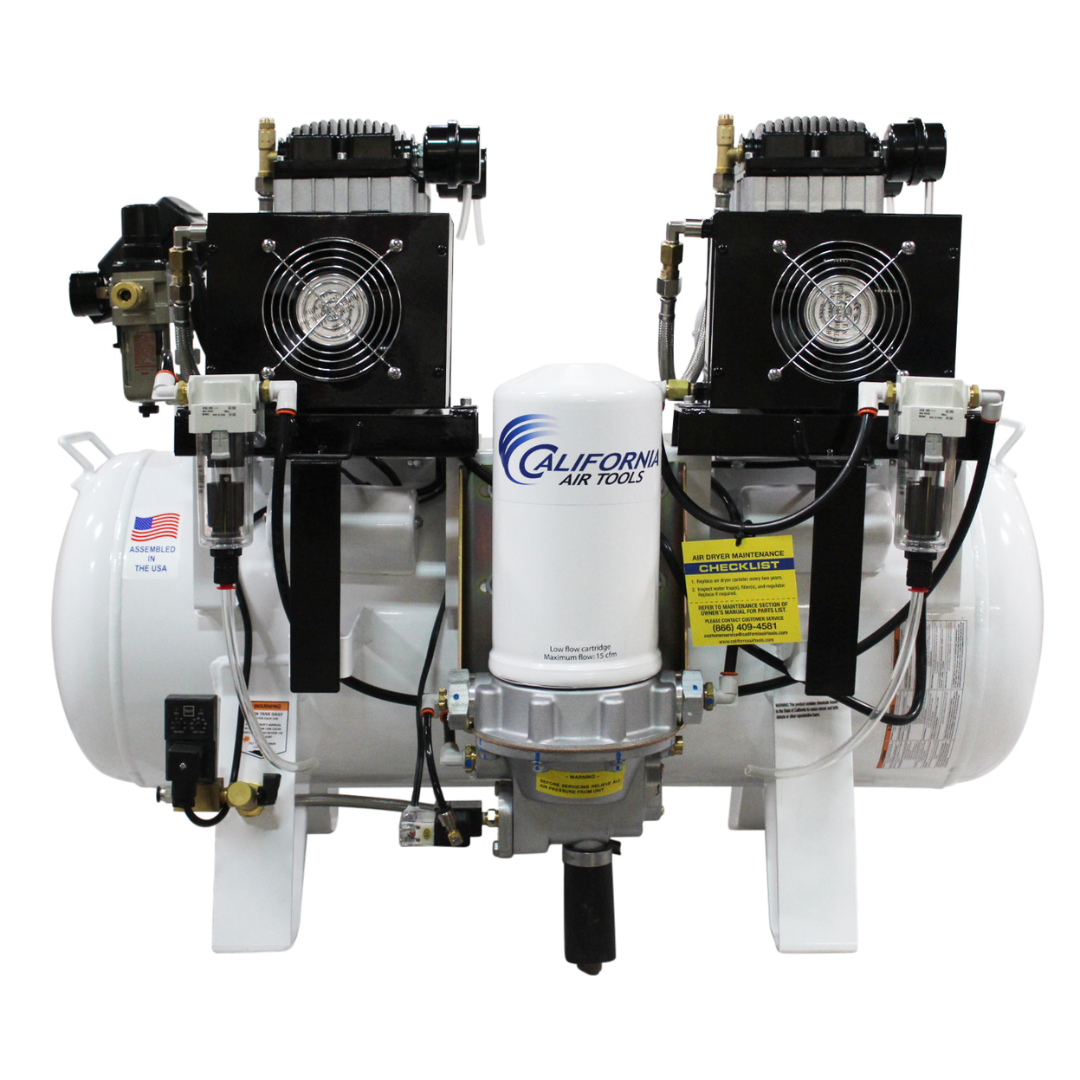

- Oil-Free Dual Pump System delivers cleaner air, reduces maintenance, and lowers operating costs.
- 98% Air Dryer System with aftercooler removes moisture to protect sensitive equipment.
- ISO 8573 Class 2.3.1 Air Quality ensures high-purity compressed air output.

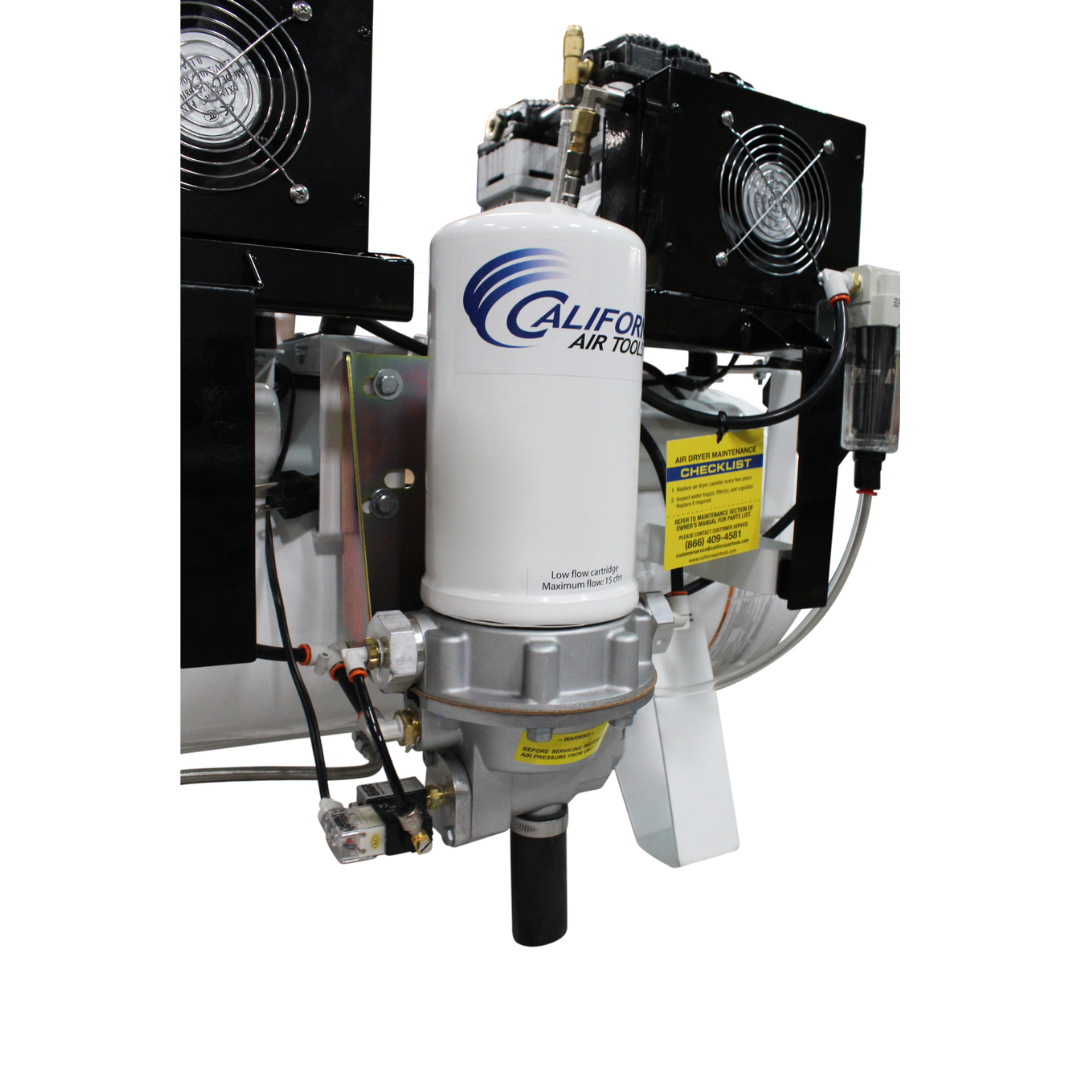

- Spin-On Desiccant Air Dryer Cartridge with 4000-hour lifespan for efficient moisture removal.

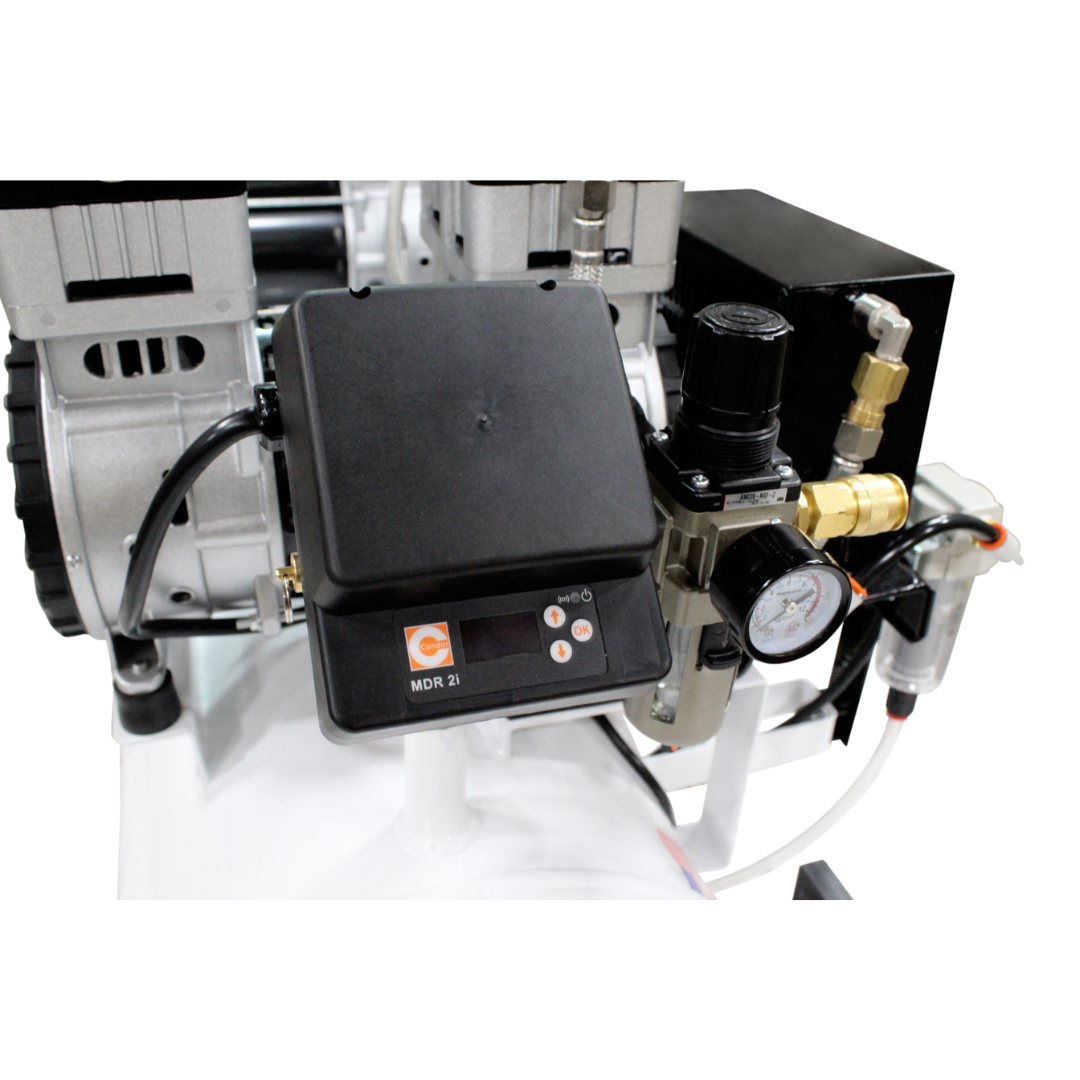

- MDR2i OLED SMART Controller enables programmable pressure settings, scheduling, and remote monitoring via Wi-Fi.

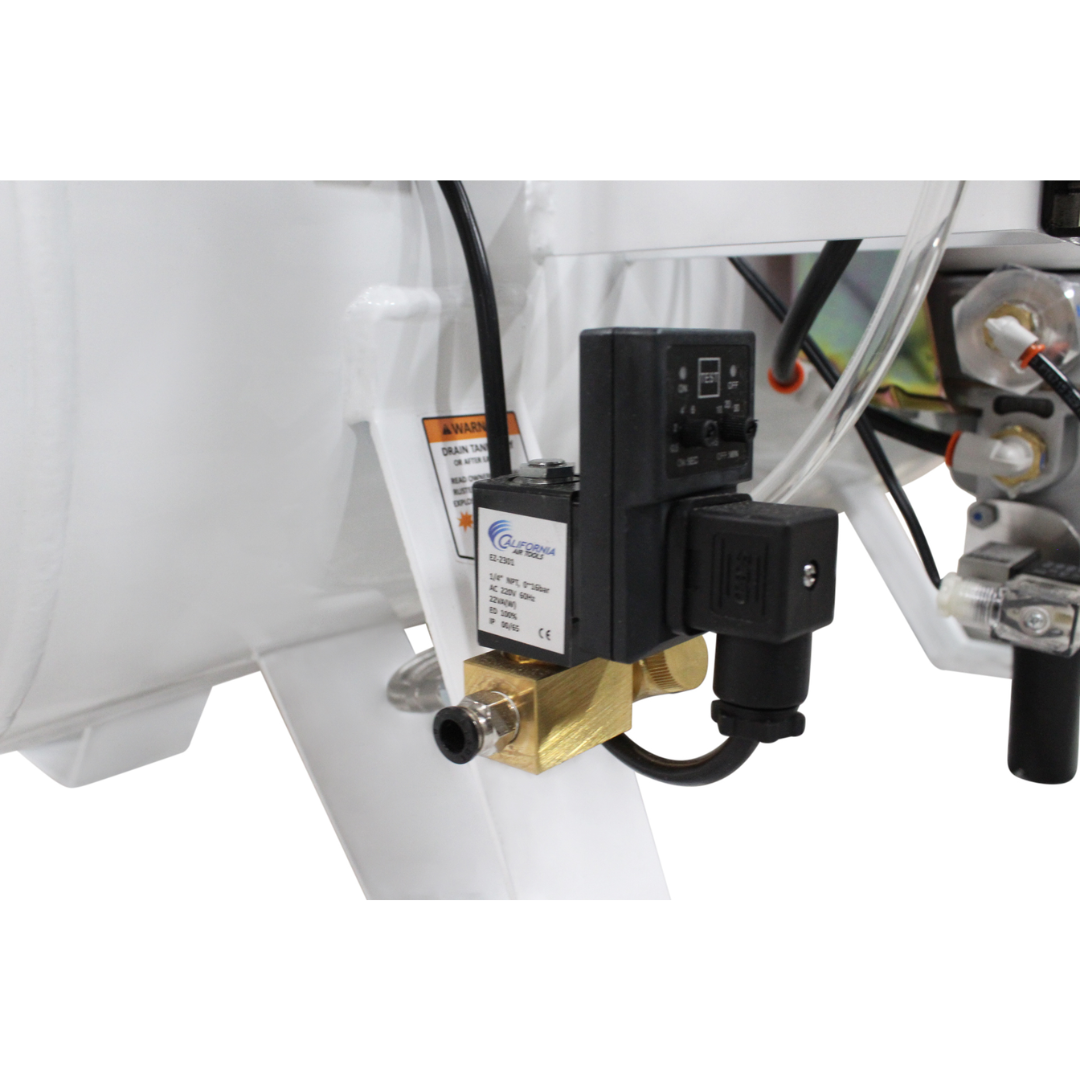

- Automatic Drain Valve (EZ-1) eliminates manual tank draining with programmable intervals.

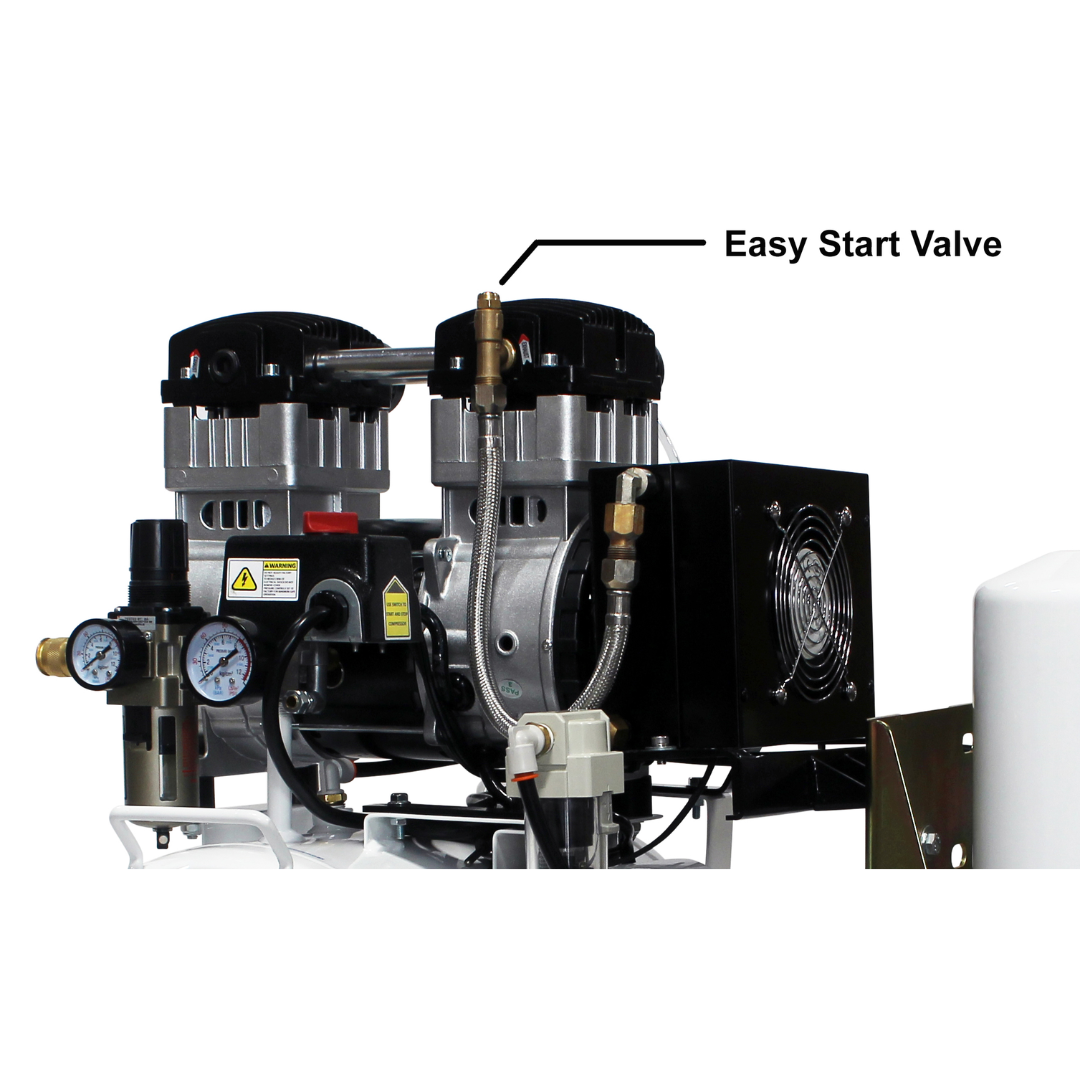

- Easy Start Valve Technology reduces starting amperage for reliable cold starts.
- Low RPM Motors (1680 RPM) minimize wear and extend pump life to 3000+ hours.
- 70/30 Duty Cycle supports longer continuous operation in demanding environments.
- Advanced Filtration System includes dual 0.01 micron prefilters and 5 micron regulator filter.
- Thermal Overload Protection safeguards electrical components during extended use.
Why Choose the CALIFORNIA AIR TOOLS 20040DSMADC Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 20 Gallon Air Compressor
- Delivers up to 98% dry, clean air for precision and sensitive applications
- Ultra-quiet 75 dB operation for indoor and noise-sensitive environments
- Smart controller with remote monitoring and programmable performance
- Low maintenance oil-free system with extended pump life
- Fast recovery and consistent airflow for continuous operation
- Integrated automatic drain and advanced filtration system
The CALIFORNIA AIR TOOLS 20040DSMADC Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 20 Gallon Air Compressor is a premium solution for professionals who require powerful performance, ultra-clean dry air, and intelligent control in one reliable system.
