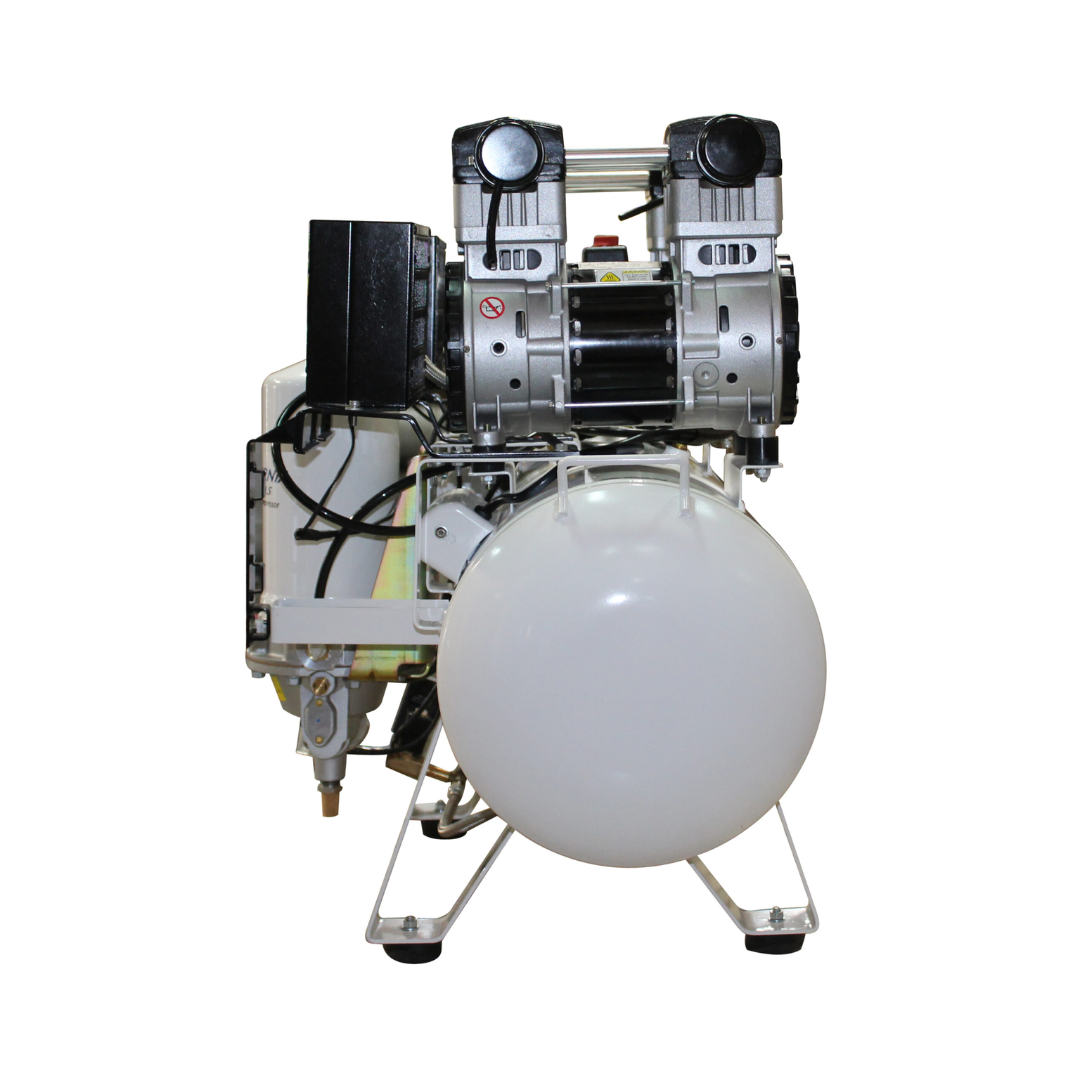

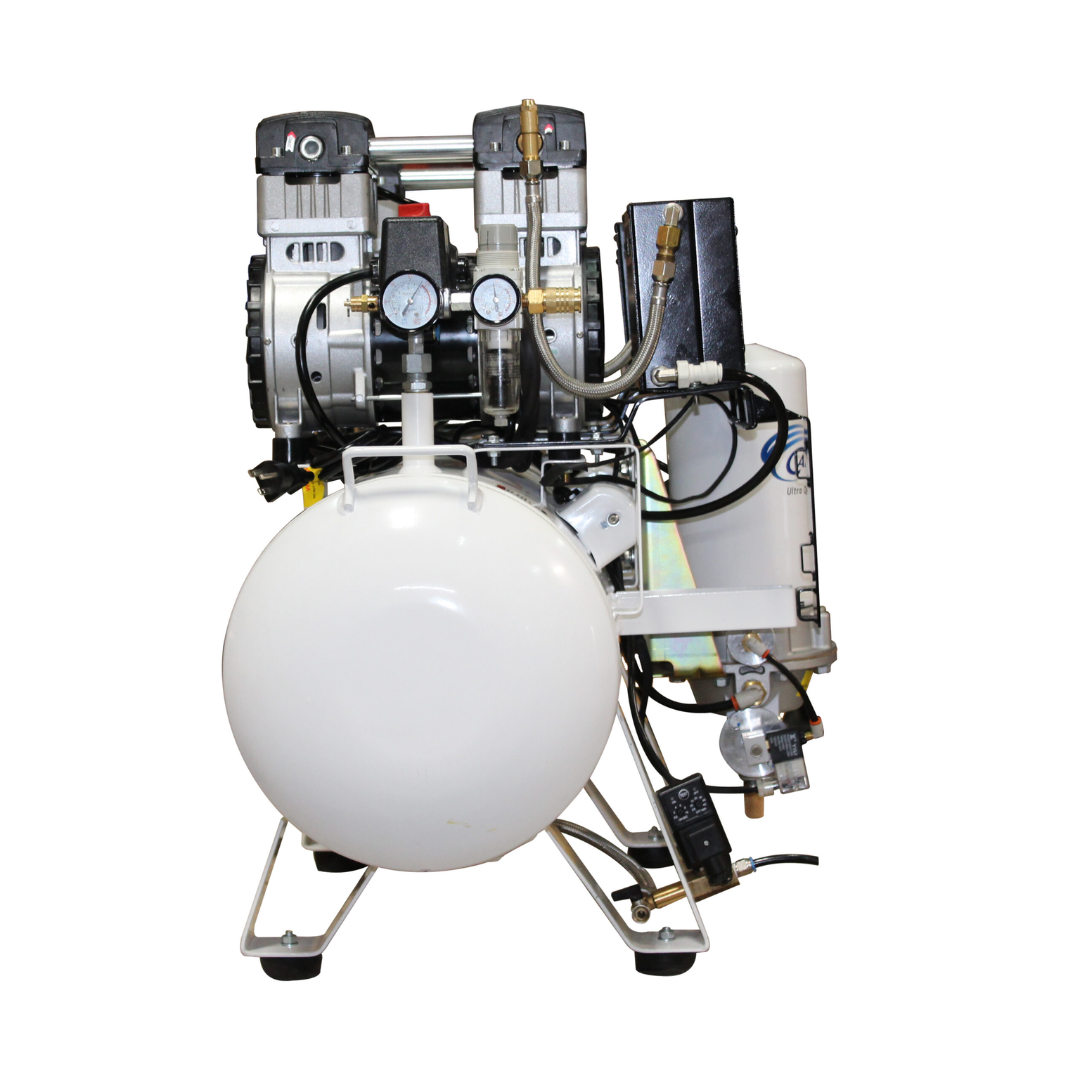

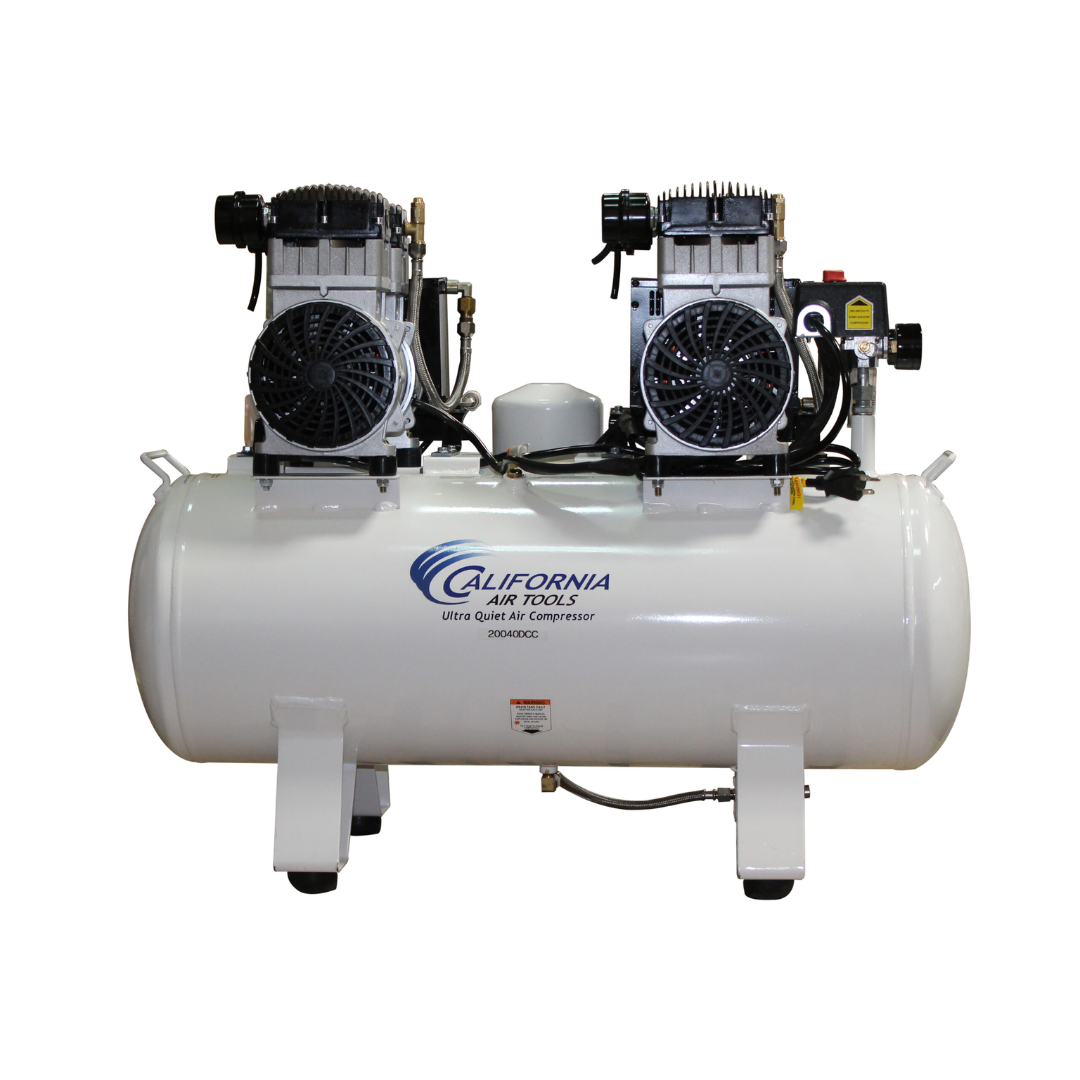

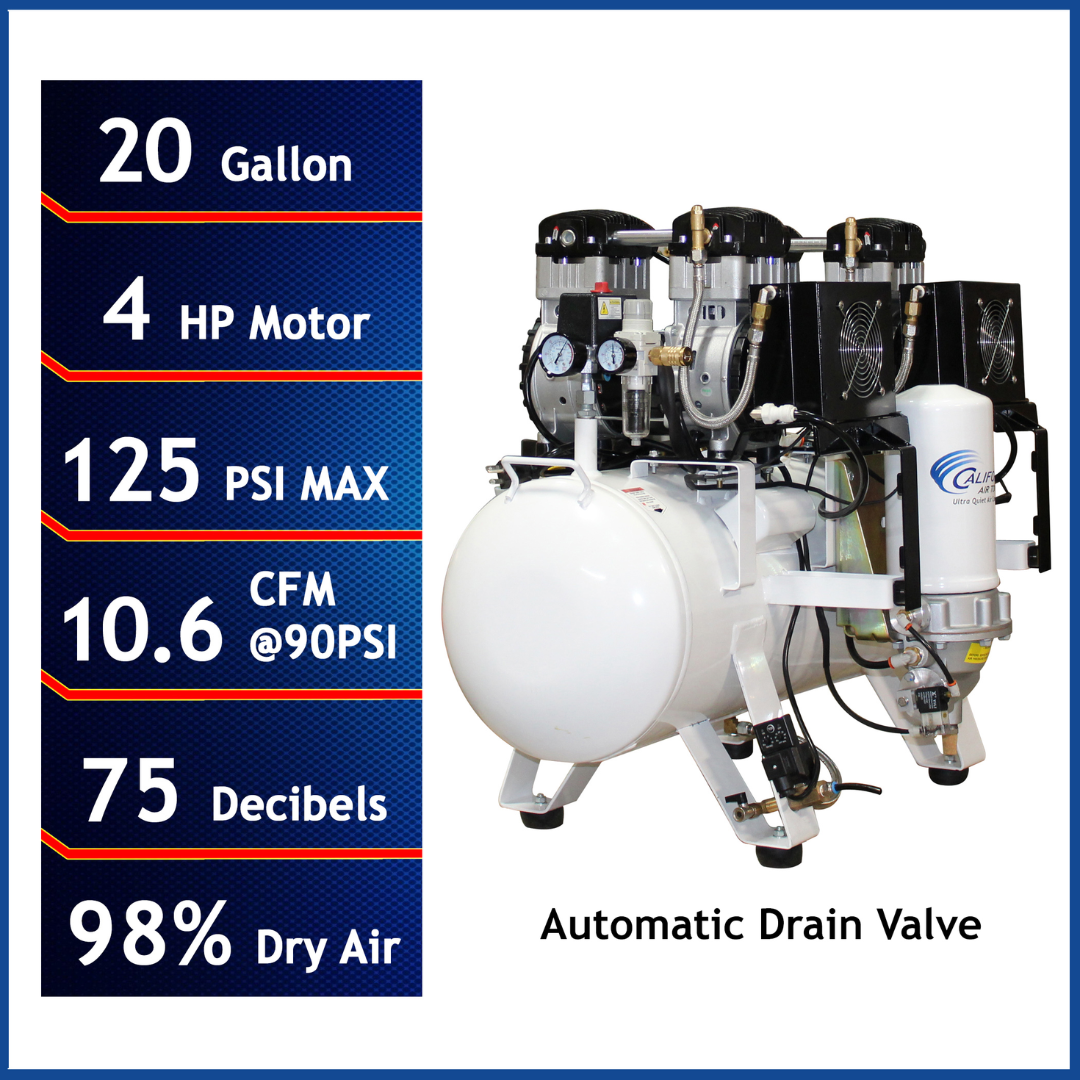

CALIFORNIA AIR TOOLS 20040DCADC Powerful 4.0 Hp Ultra Quiet Ultra Dry Oil-Free 20 Gallon Air Compressor Applications
- Automotive paint booths and refinishing
- Spray finishing and coating applications requiring ultra-dry air
- Woodworking and cabinet production shops
- Industrial pneumatic tools and equipment
- HVAC service and installation
- Laboratories and precision environments requiring moisture-free air
Built for environments where moisture control, consistent airflow, and quiet operation are critical.

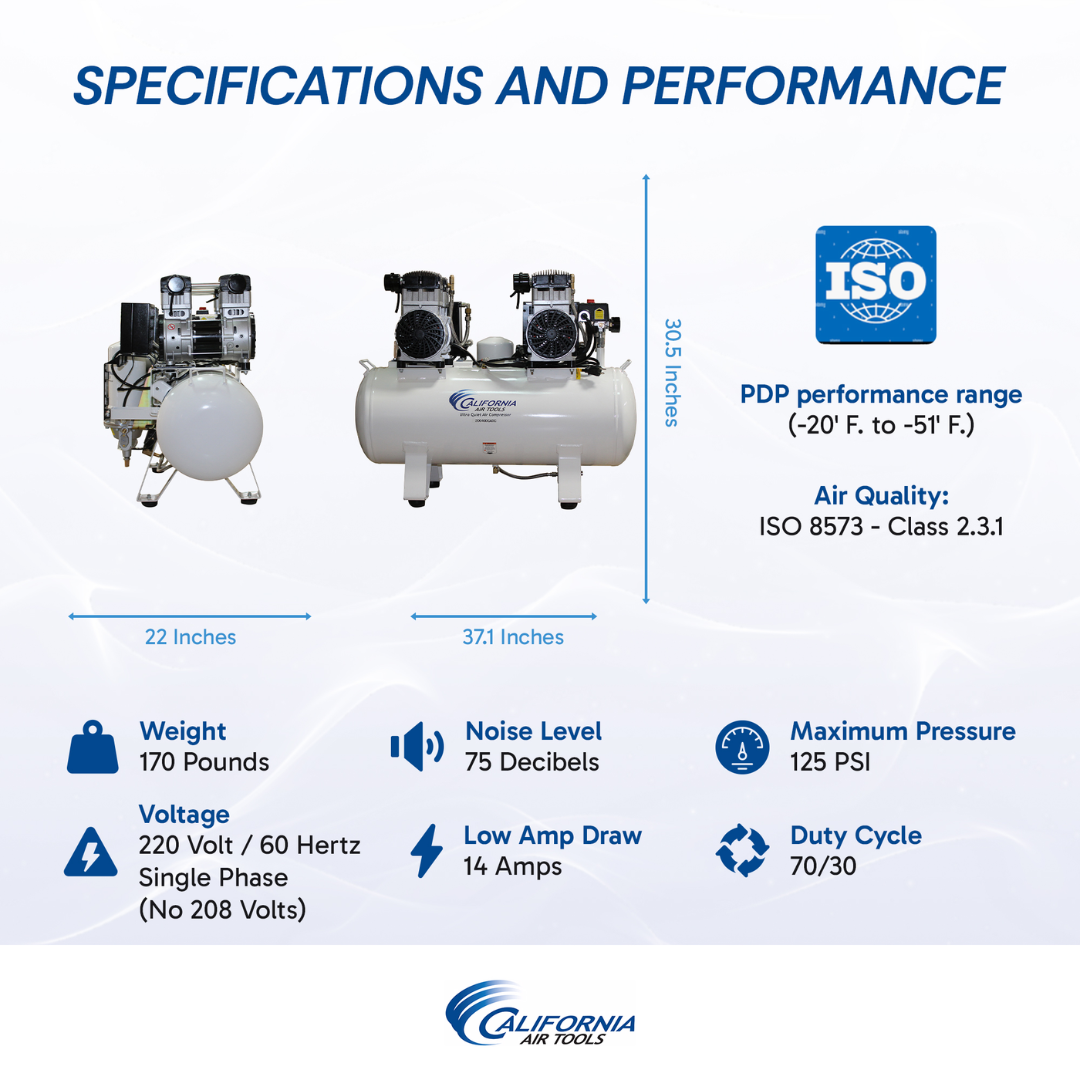

CALIFORNIA AIR TOOLS 20040DCADC Powerful 4.0 Hp Ultra Quiet Ultra Dry Oil-Free 20 Gallon Air Compressor Specifications
| Model | 20040DCADC |
|---|---|
| Motor Power | 4.0 HP (Dual 2.0 HP Motors) |
| Voltage | 220V / 60 Hz / Single Phase |
| Amperage | 14 Amps |

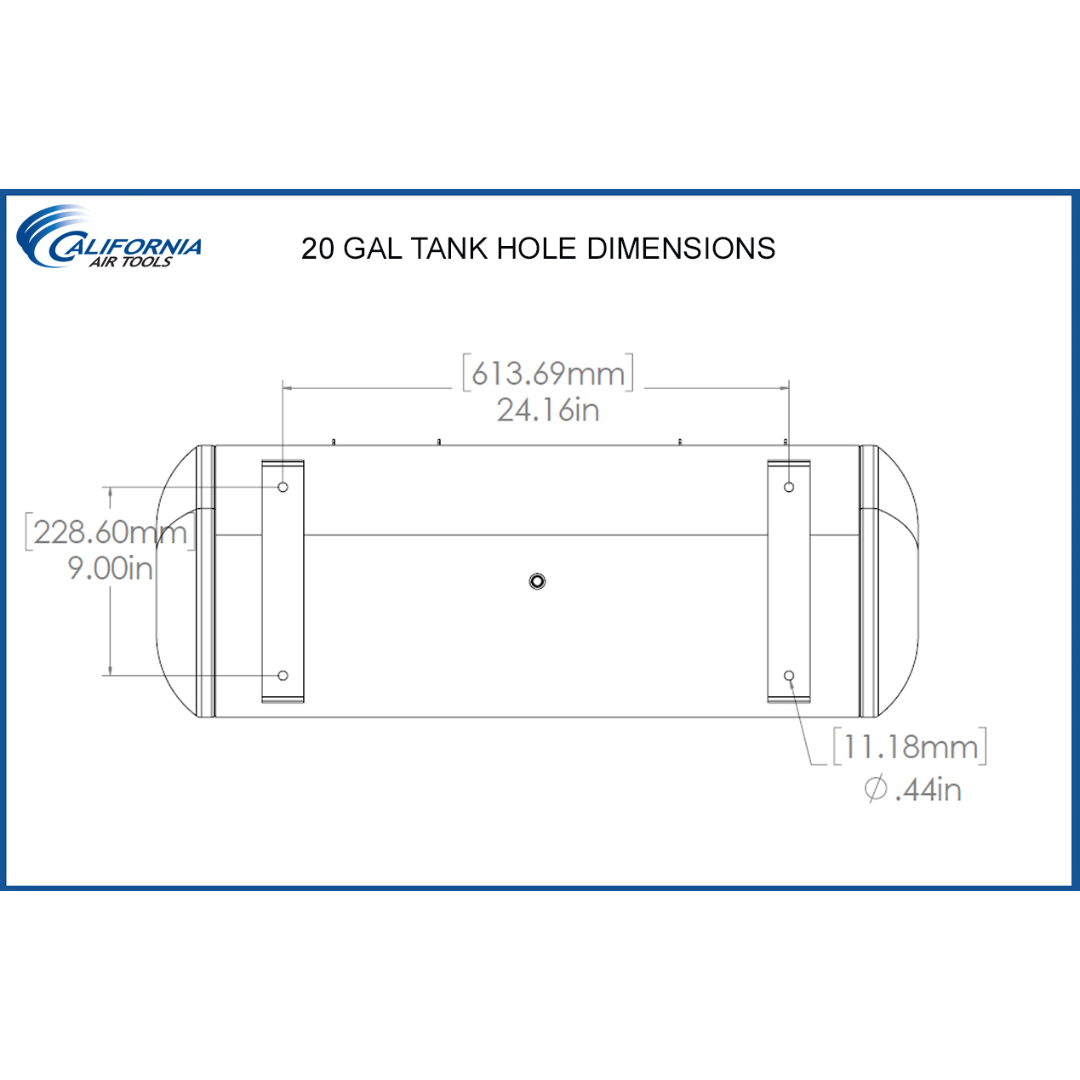

| Tank Capacity | 20 Gallon Steel Tank |
| Airflow | 12.80 CFM @ 40 PSI |
| Airflow | 10.60 CFM @ 90 PSI |
| Maximum Pressure | 125 PSI |
| Noise Level | 75 dBA |
| Tank Fill Time | 150 Seconds |
| Recovery Time | 40 Seconds (95 PSI to 125 PSI) |
| Duty Cycle | 70/30 |
| Dimensions | 37.5" × 25" × 28" |
| Weight | 192 lbs |

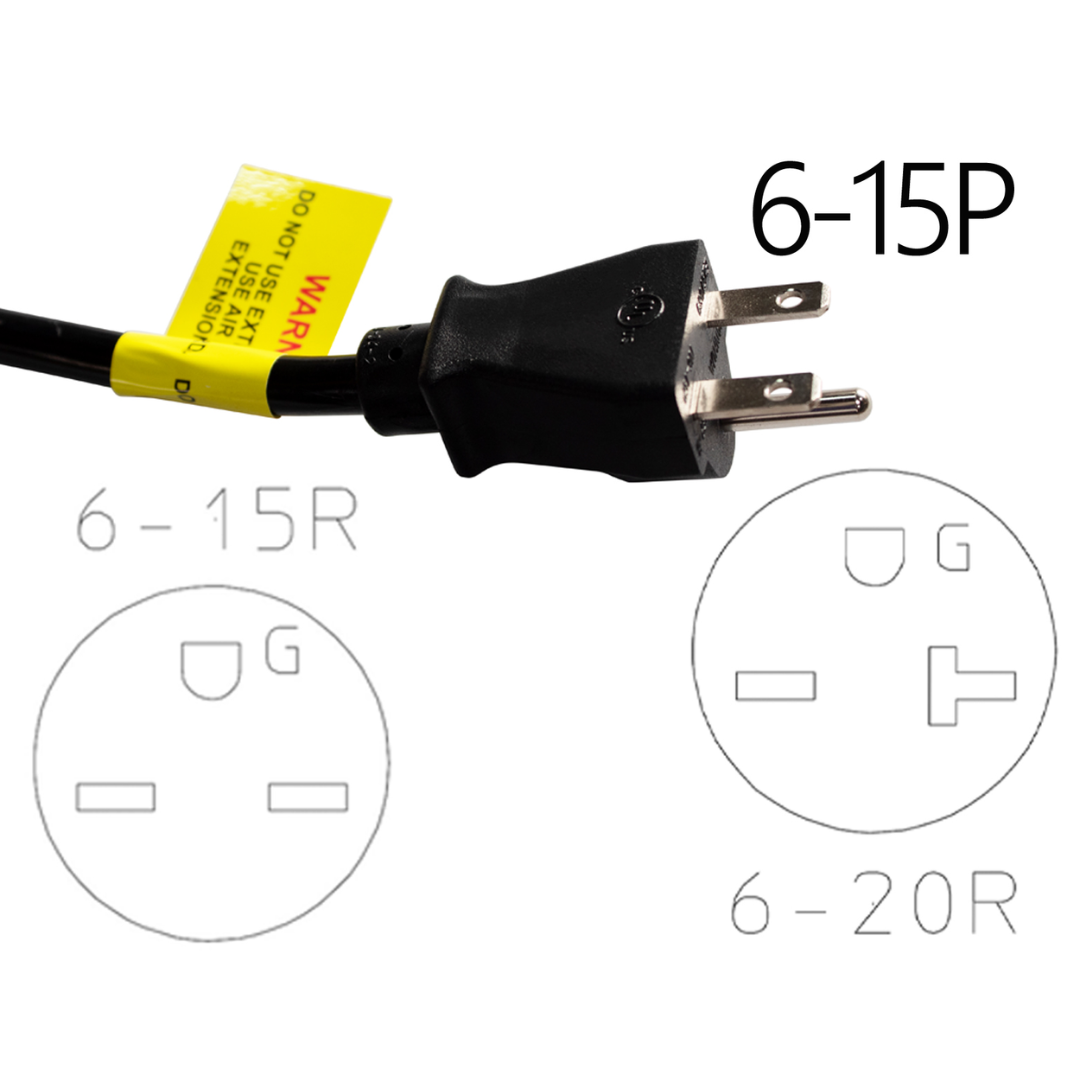

| Plug Type | NEMA 6-15P |
CALIFORNIA AIR TOOLS 20040DCADC Powerful 4.0 Hp Ultra Quiet Ultra Dry Oil-Free 20 Gallon Air Compressor Performance & Construction

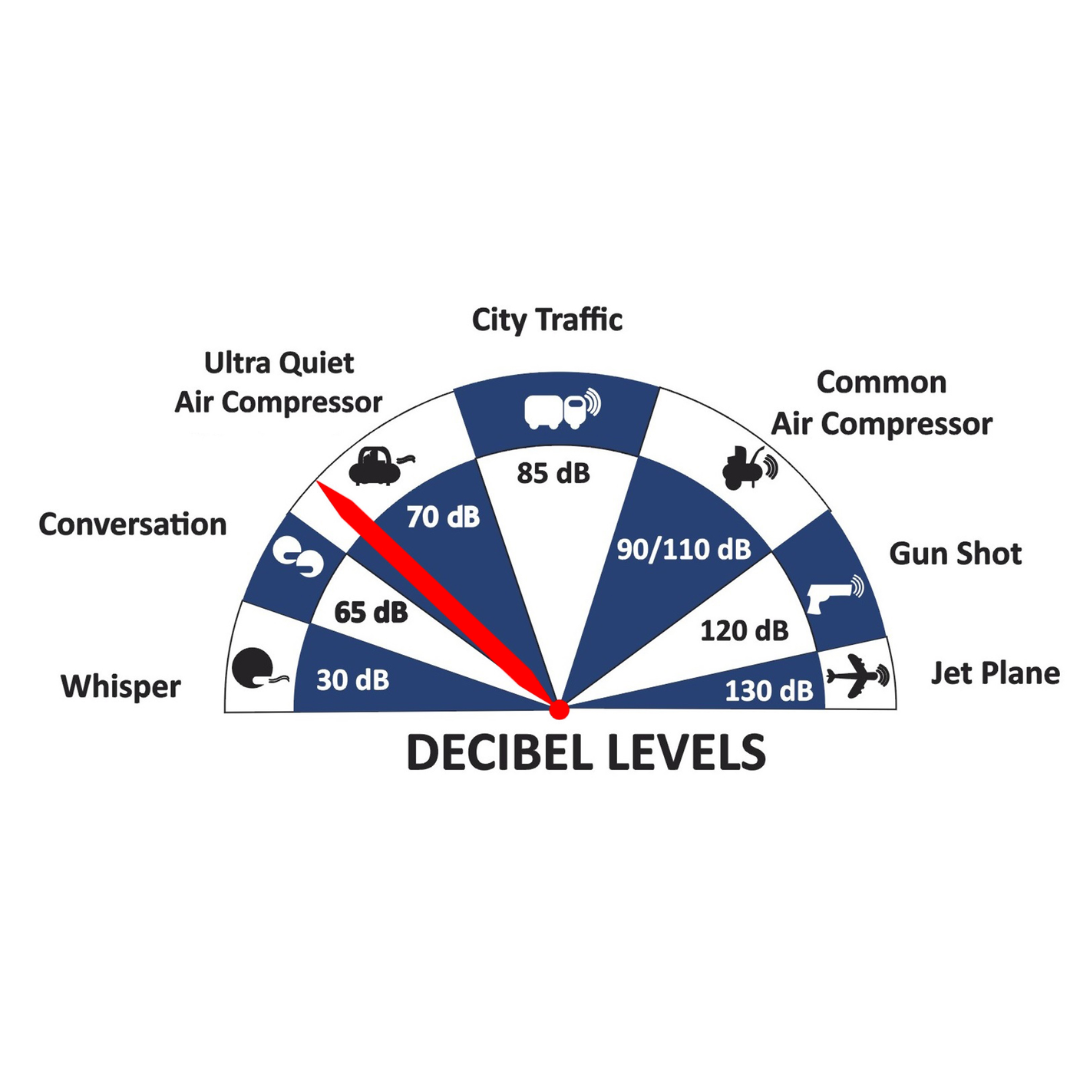

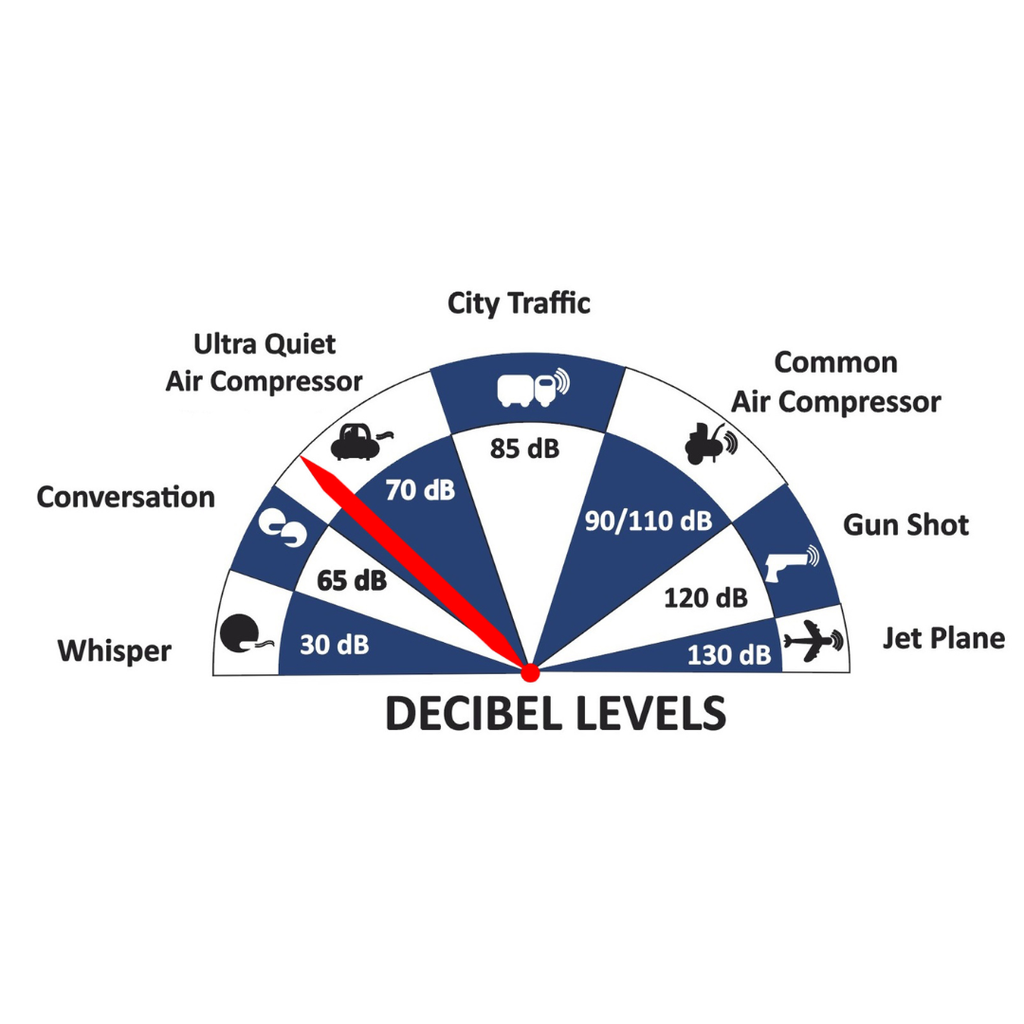

- Ultra quiet operation at 75 dB for indoor and noise-sensitive environments.
- Dual low-RPM motors (1680 RPM) reduce wear and extend compressor life.
- Oil-free dual piston pump delivers clean air with minimal maintenance.
- 3000+ hour pump life for long-term durability and reliability.
- Thermal overload protection ensures safe operation.

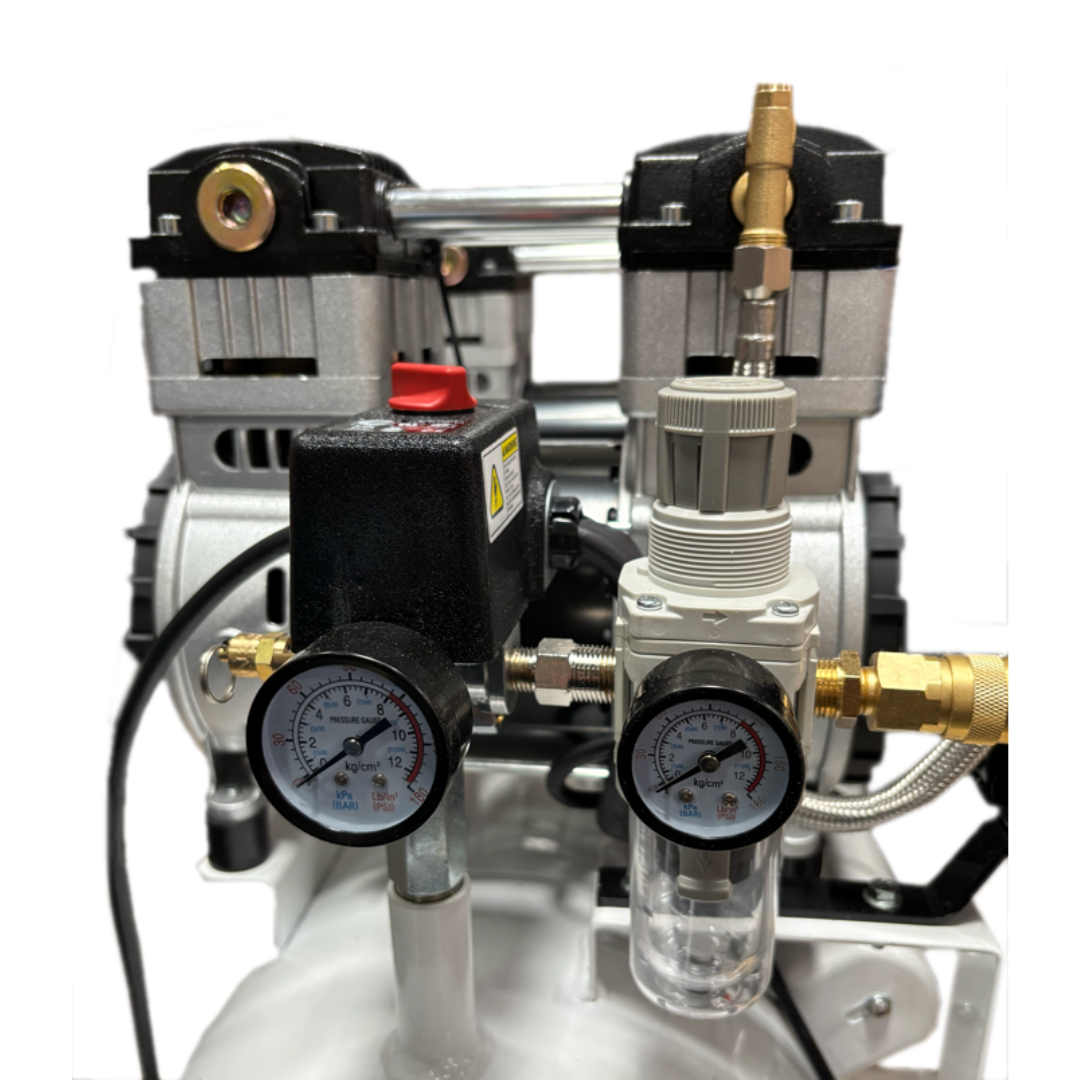

- Condor pressure switch provides precise and dependable control.

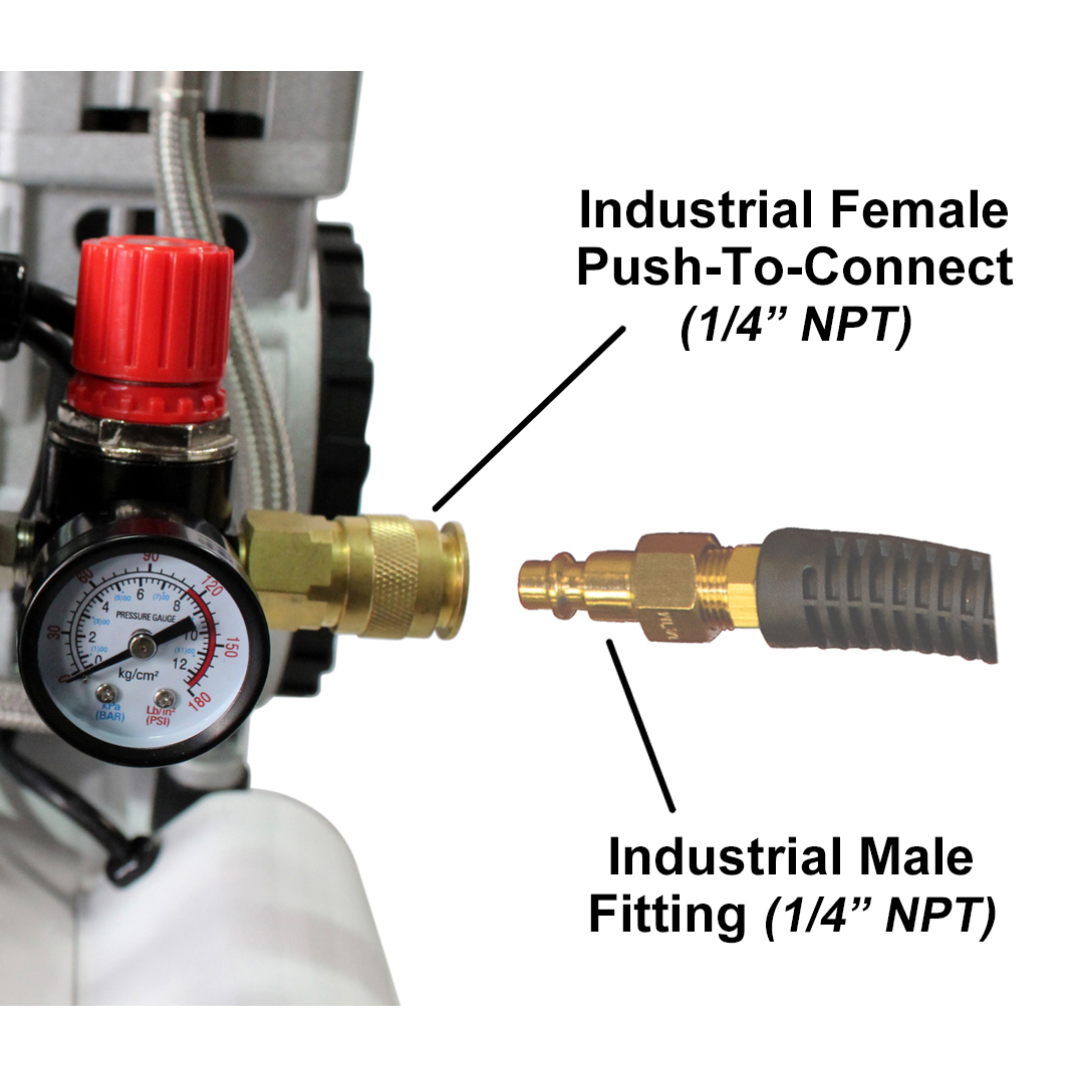

- Industrial quick-connect outlet simplifies tool connections.
- Low heat generation improves efficiency and component lifespan.

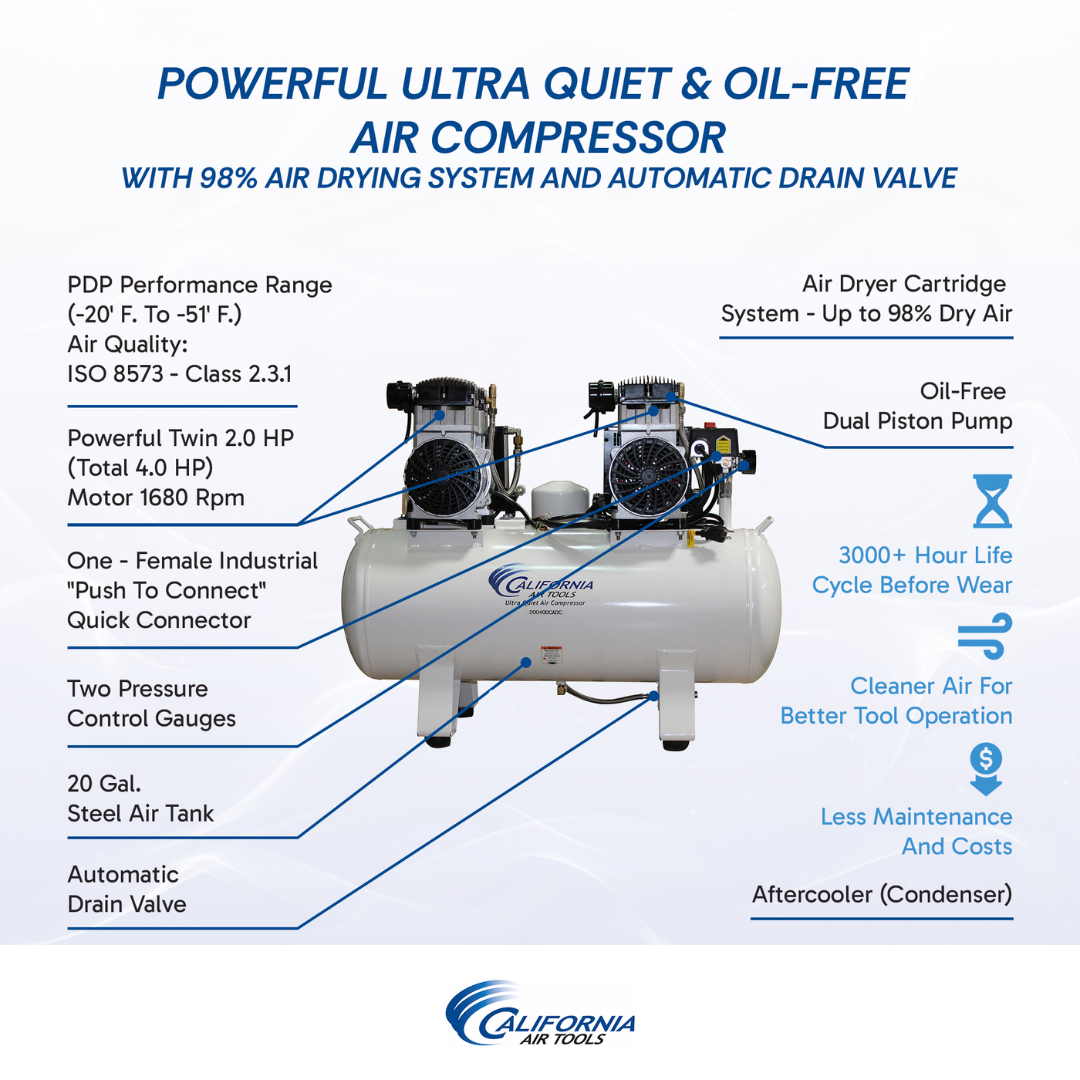

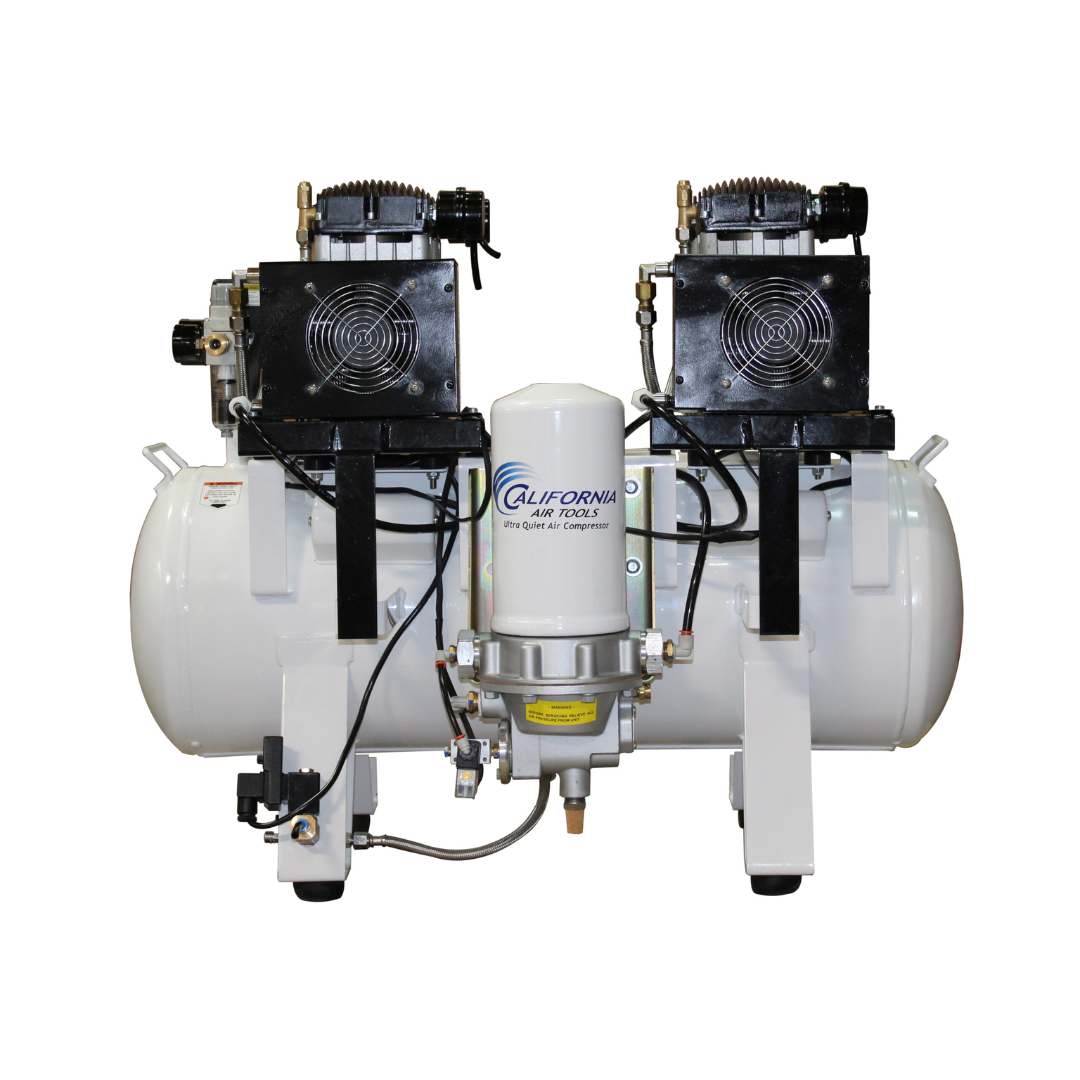

CALIFORNIA AIR TOOLS 20040DCADC Powerful 4.0 Hp Ultra Quiet Ultra Dry Oil-Free 20 Gallon Air Compressor Air Drying System
- Advanced 98% air drying system removes nearly all moisture from compressed air.
- Aftercooler heat exchanger condenses water vapor before drying stage.
- Activated alumina desiccant tower ensures deep moisture removal.
- ISO 8573 2.3.1 compliant air quality for sensitive tools and equipment.
- Extended desiccant life (up to 4000 hours) reduces maintenance frequency.
Delivers ultra-dry air critical for paint finishing, instrumentation, and moisture-sensitive operations.
CALIFORNIA AIR TOOLS 20040DCADC Powerful 4.0 Hp Ultra Quiet Ultra Dry Oil-Free 20 Gallon Air Compressor Automatic Drain System
- EZ-1 automatic drain valve eliminates manual tank draining.
- Adjustable timer controls drain frequency and duration.
- Prevents moisture buildup and internal corrosion.
- Maintains consistent air quality with minimal operator intervention.
CALIFORNIA AIR TOOLS 20040DCADC Powerful 4.0 Hp Ultra Quiet Ultra Dry Oil-Free 20 Gallon Air Compressor Maintenance
- Replace desiccant every 3000–4000 hours (1–2 years typical use).
- Replace intake air filters every 1–2 years (more often in dusty environments).
- Oil-free design eliminates need for oil changes and reduces service costs.
- Includes (4) air filters for extended maintenance intervals.
Why Choose the CALIFORNIA AIR TOOLS 20040DCADC Powerful 4.0 Hp Ultra Quiet Ultra Dry Oil-Free 20 Gallon Air Compressor
- High-performance airflow up to 10.60 CFM @ 90 PSI.
- Ultra quiet operation at only 75 dB.
- Industry-leading 98% air drying system.
- Durable oil-free pump with long service life.
- Automatic drain system for hands-free maintenance.
The CALIFORNIA AIR TOOLS 20040DCADC Powerful 4.0 Hp Ultra Quiet Ultra Dry Oil-Free 20 Gallon Air Compressor is the ideal solution for professionals needing powerful, quiet, and ultra-dry compressed air with minimal maintenance and maximum reliability.
