CALIFORNIA AIR TOOLS 20040DCAD Powerful 4.0 Hp Ultra Quiet & Oil-Free 20 Gallon Air Compressor Applications
- Automotive repair and tire service operations
- Spray painting and finishing requiring dry air
- Woodworking and cabinet shops
- HVAC service and installation
- Industrial and commercial pneumatic tool operation
- Precision applications requiring moisture-free compressed air
Ideal for users who need clean, dry air combined with quiet operation and consistent airflow performance.

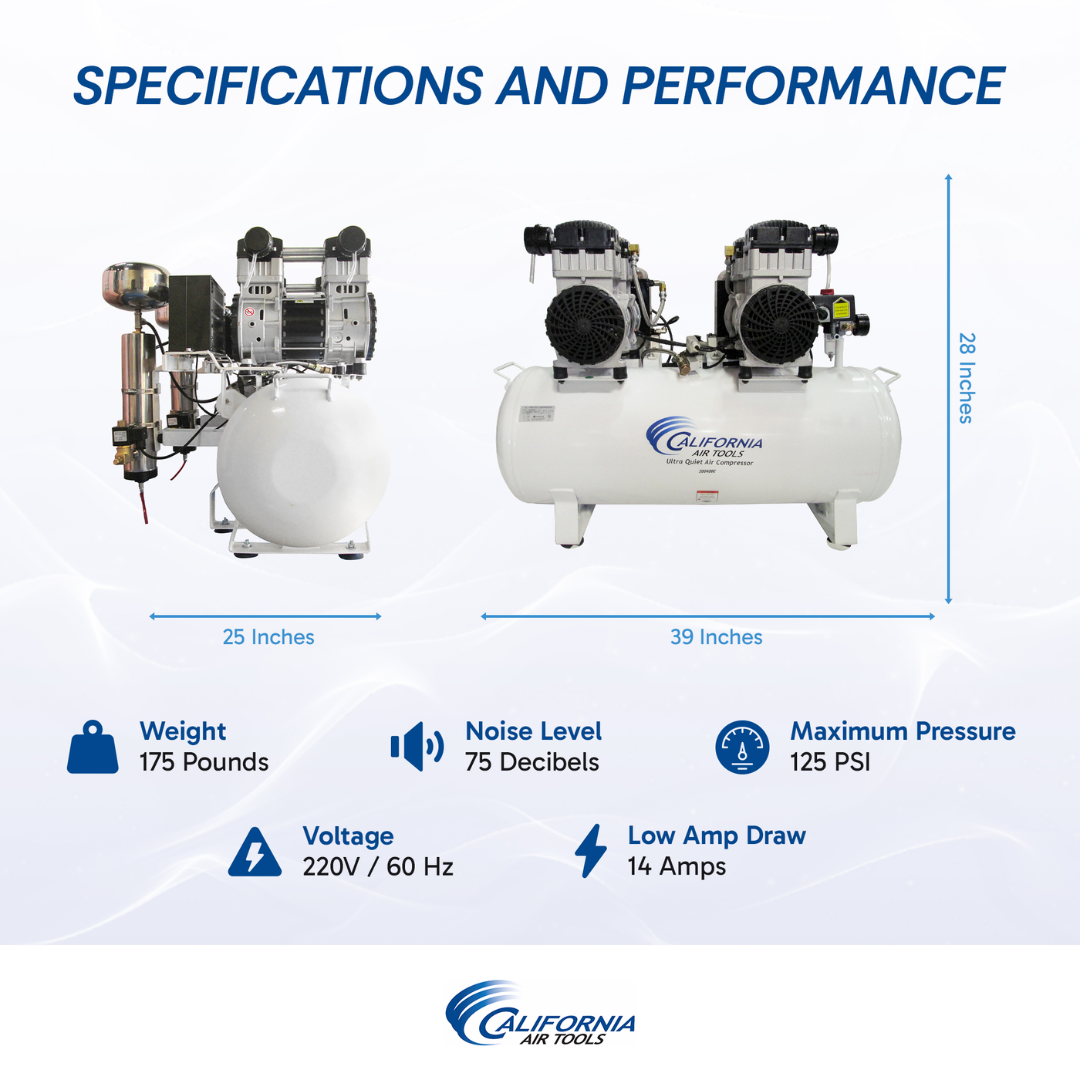

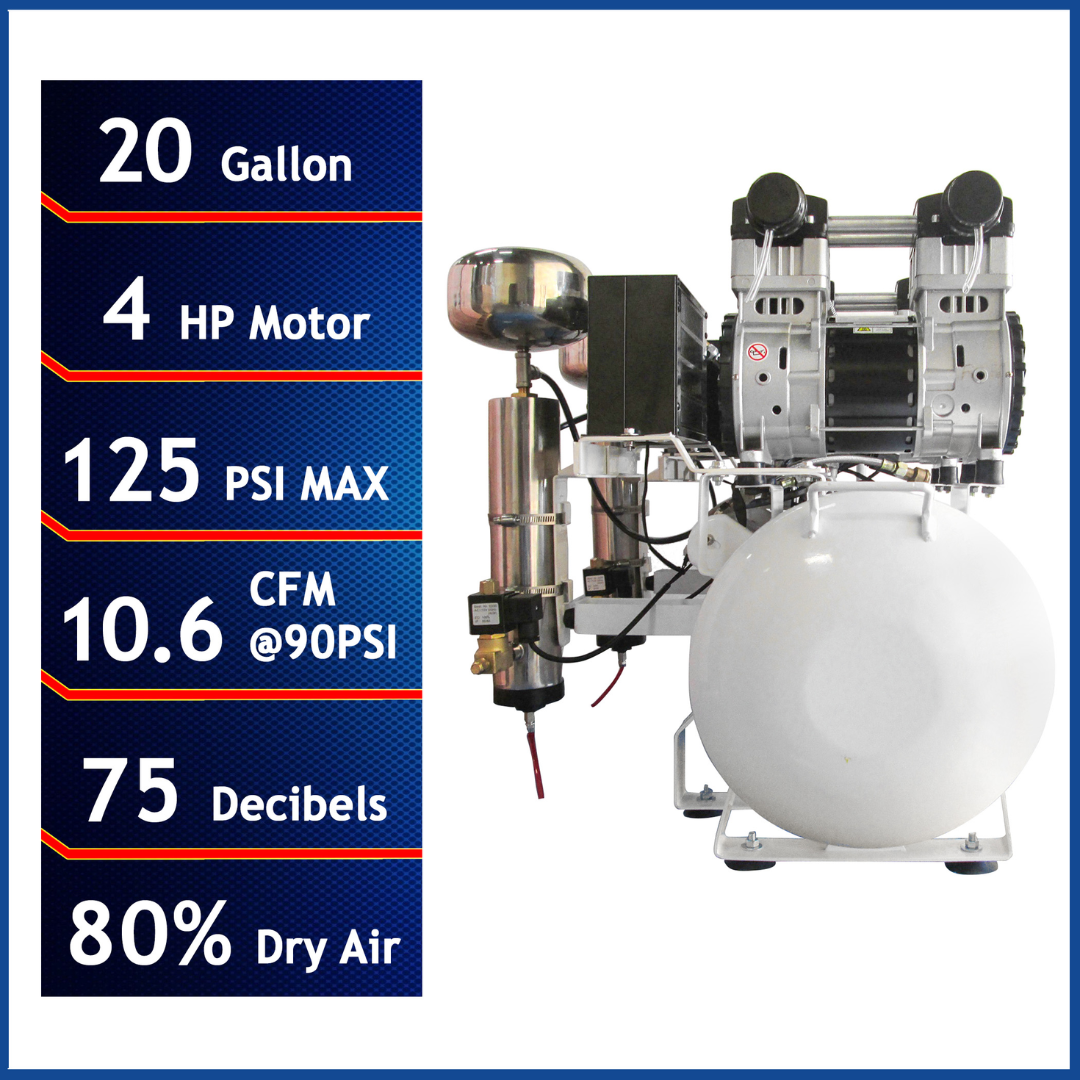

CALIFORNIA AIR TOOLS 20040DCAD Powerful 4.0 Hp Ultra Quiet & Oil-Free 20 Gallon Air Compressor Specifications
| Model | 20040DCAD |
|---|---|
| Motor Power | 4.0 HP (Dual 2.0 HP Motors) |
| Voltage | 220V / 60 Hz / Single Phase |
| Amperage | 14 Amps |
| Tank Capacity | 20 Gallon Steel Tank |
| Airflow | 12.80 CFM @ 40 PSI |
| Airflow | 10.60 CFM @ 90 PSI |
| Maximum Pressure | 125 PSI |
| Noise Level | 75 dBA |
| Tank Fill Time | 150 Seconds |
| Recovery Time | 40 Seconds (95 PSI to 125 PSI) |
| Duty Cycle | 70/30 |

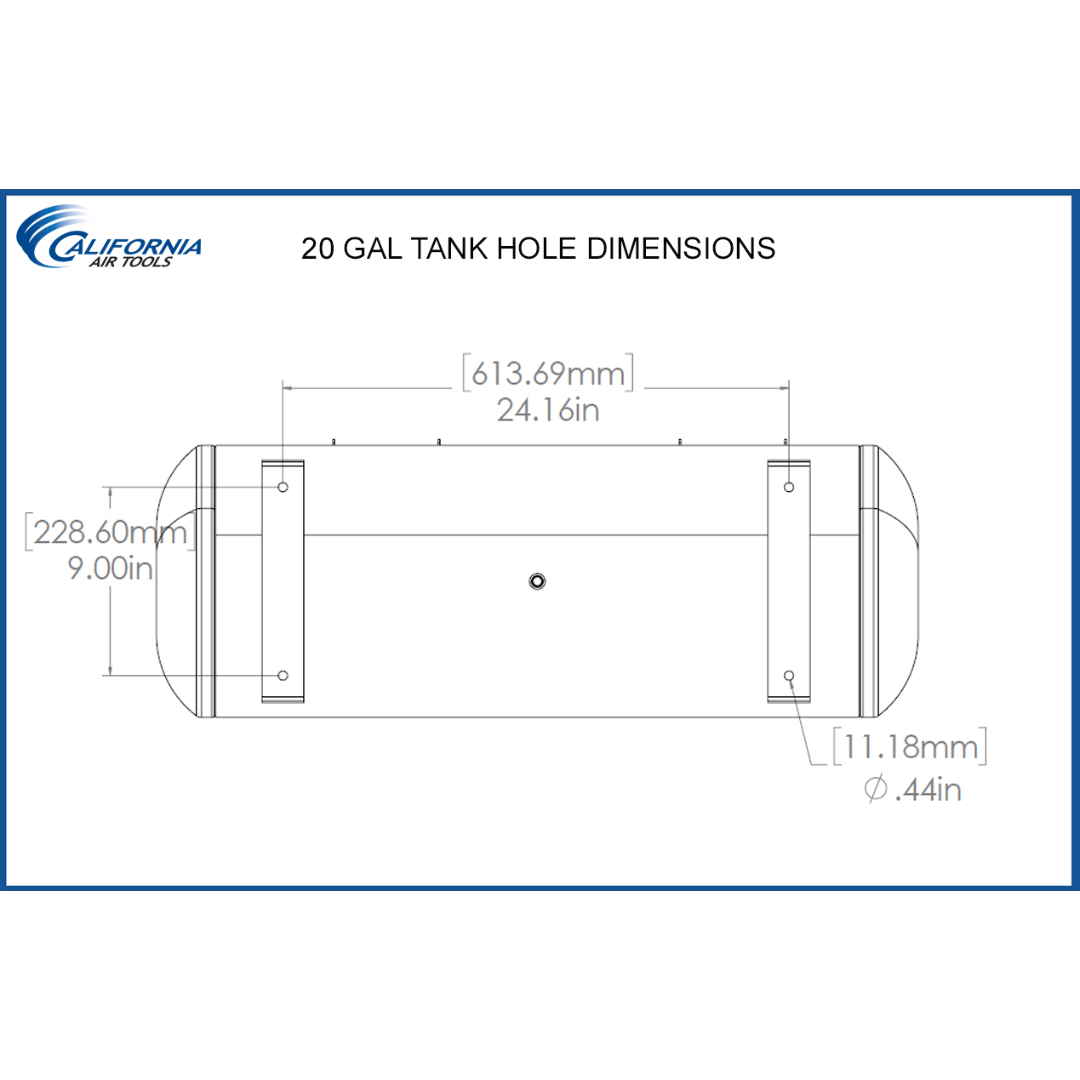

| Dimensions | 37.5" × 25" × 28" |
| Weight | 192 lbs |

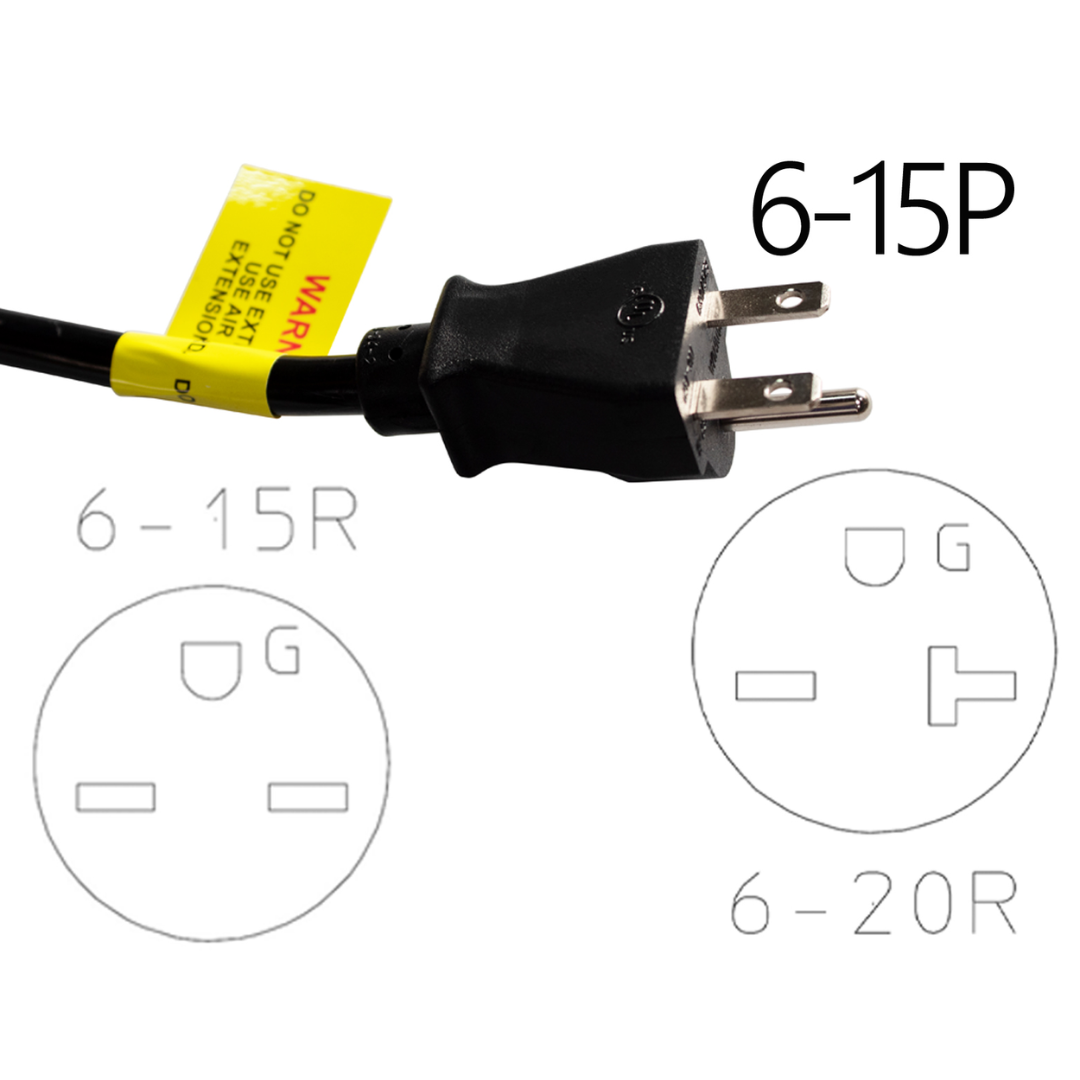

| Plug Type | NEMA 6-15P |

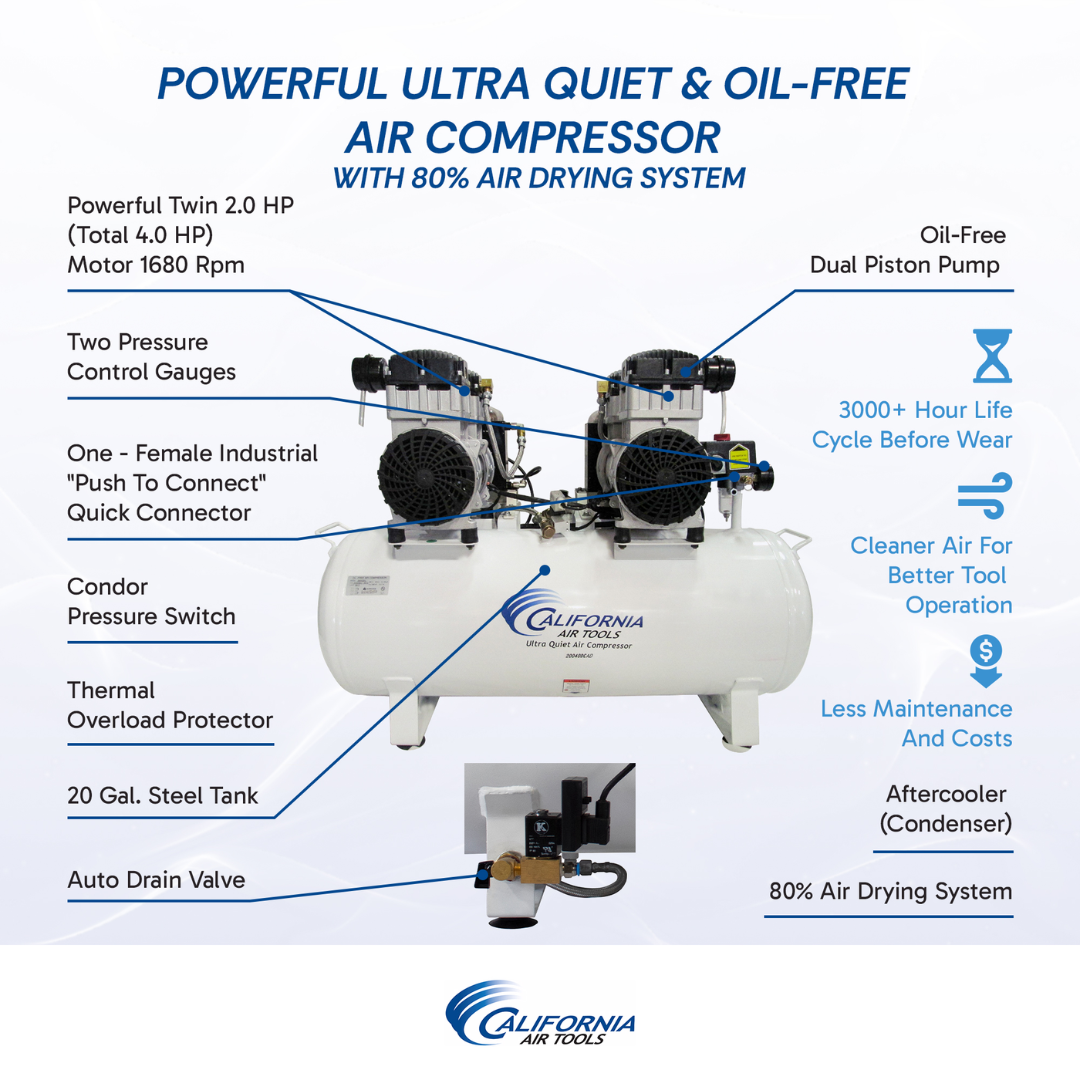

CALIFORNIA AIR TOOLS 20040DCAD Powerful 4.0 Hp Ultra Quiet & Oil-Free 20 Gallon Air Compressor Performance & Construction

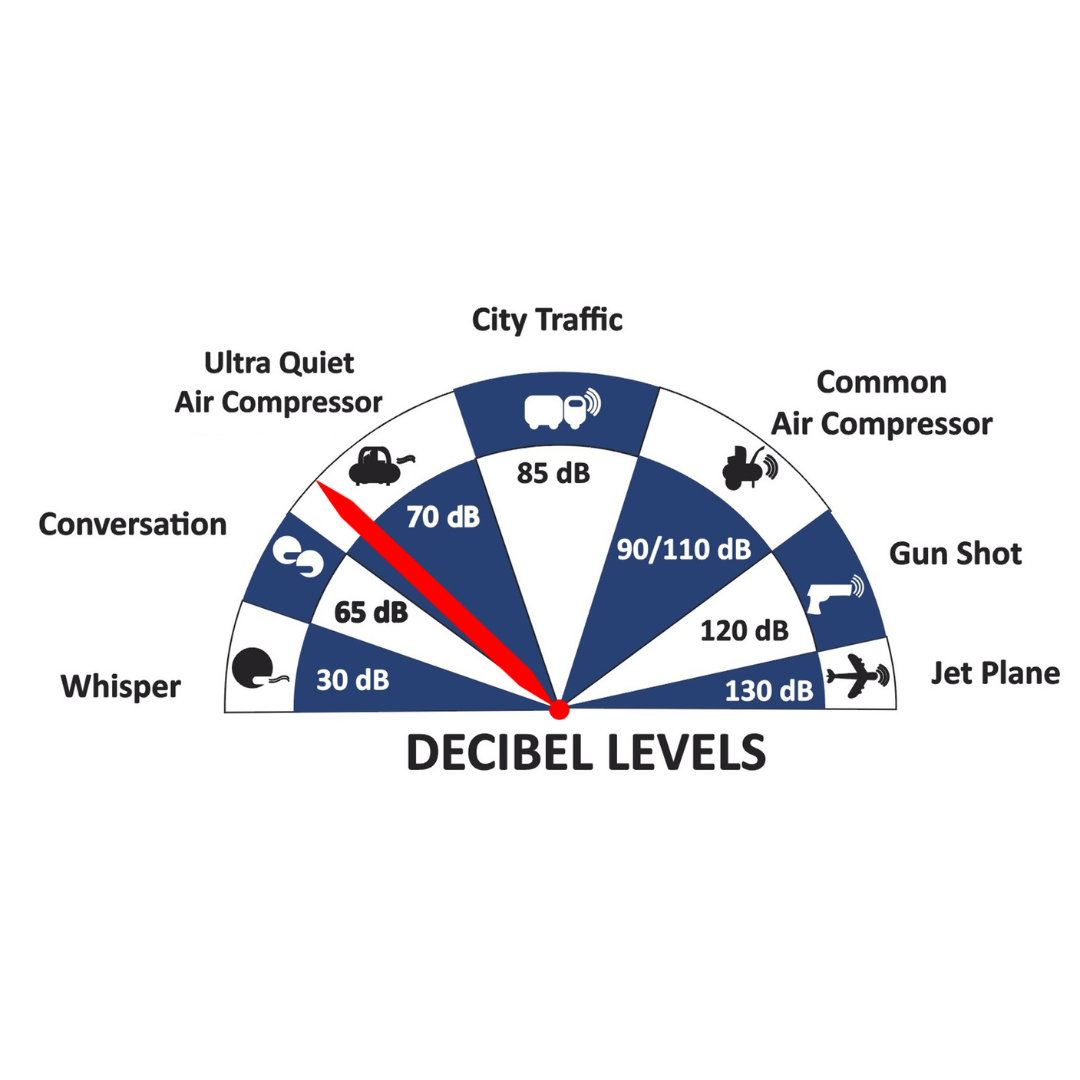

- Ultra quiet 75 dB operation allows use in noise-sensitive environments.
- Dual 2.0 HP motors running at 1680 RPM reduce wear and extend lifespan.

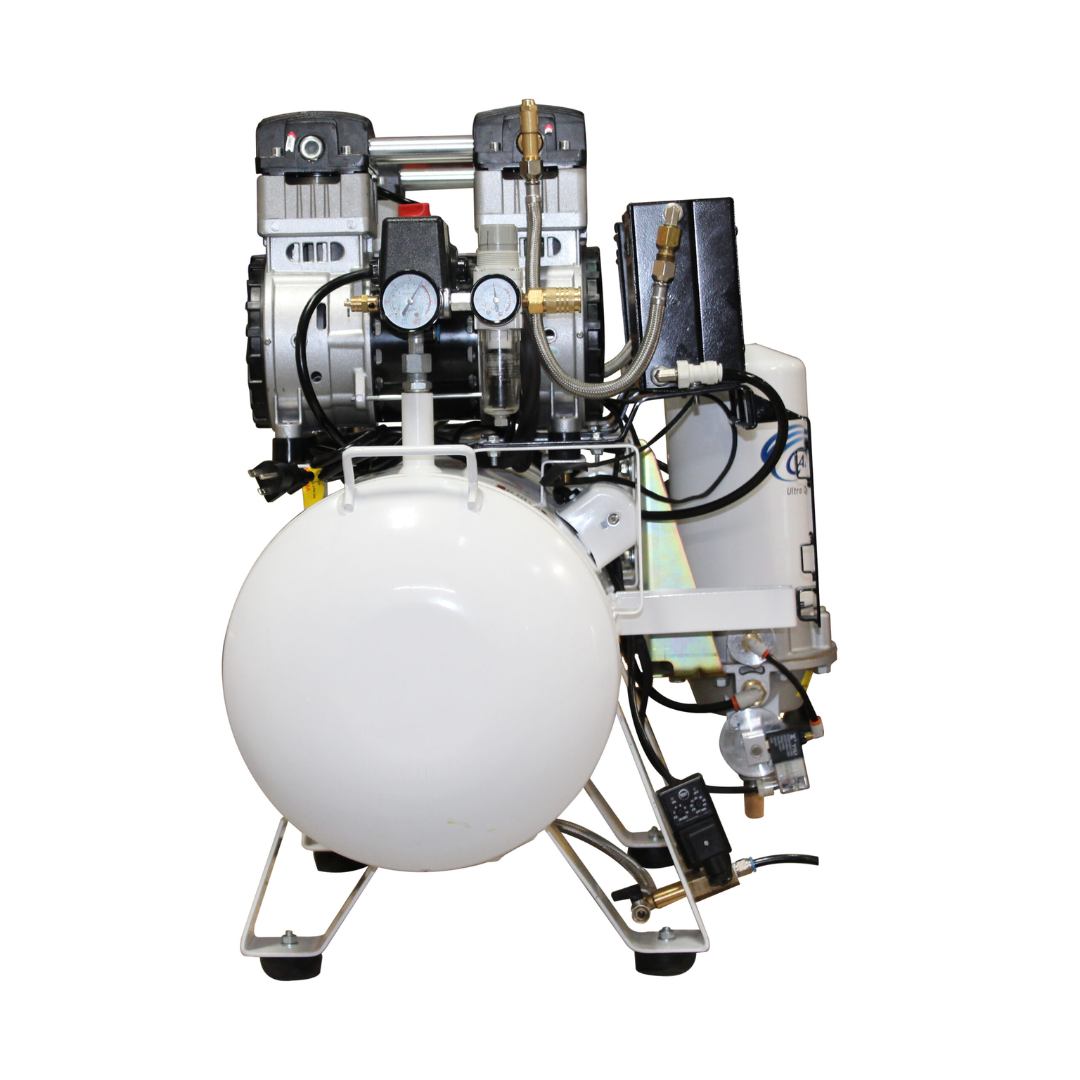

- Oil-free dual piston pump delivers clean air with minimal maintenance.
- 3000+ hour pump life cycle for long-term durability.
- Thermal overload protection safeguards motor performance.
- Condor pressure switch ensures reliable pressure control.

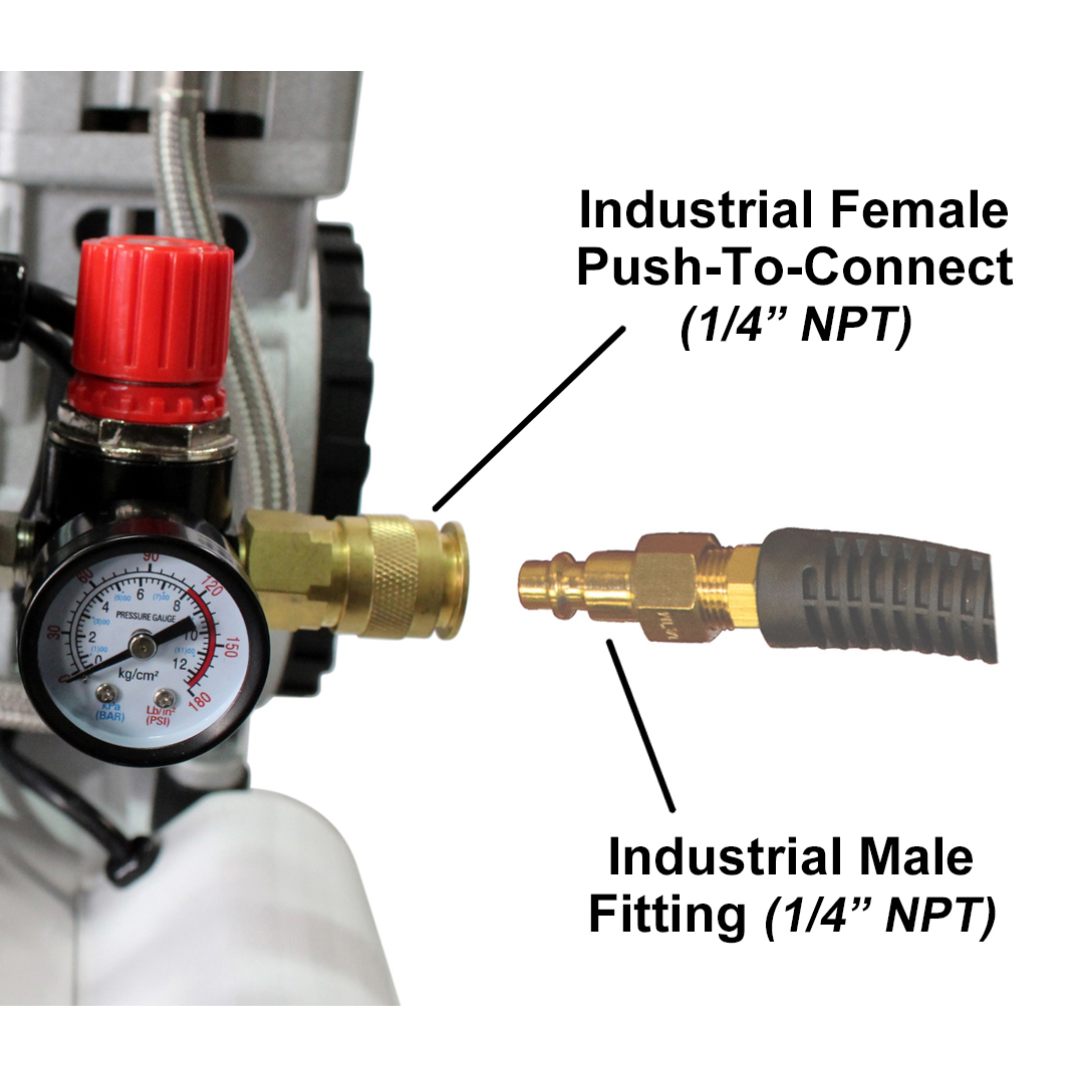

- Industrial quick-connect outlet (1/4" NPT) for easy tool hookup.
- Low heat operation improves efficiency and longevity.

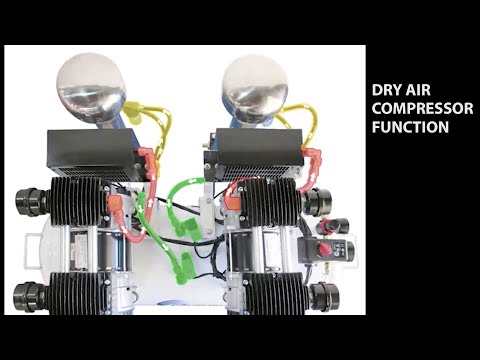

CALIFORNIA AIR TOOLS 20040DCAD Powerful 4.0 Hp Ultra Quiet & Oil-Free 20 Gallon Air Compressor Air Drying System

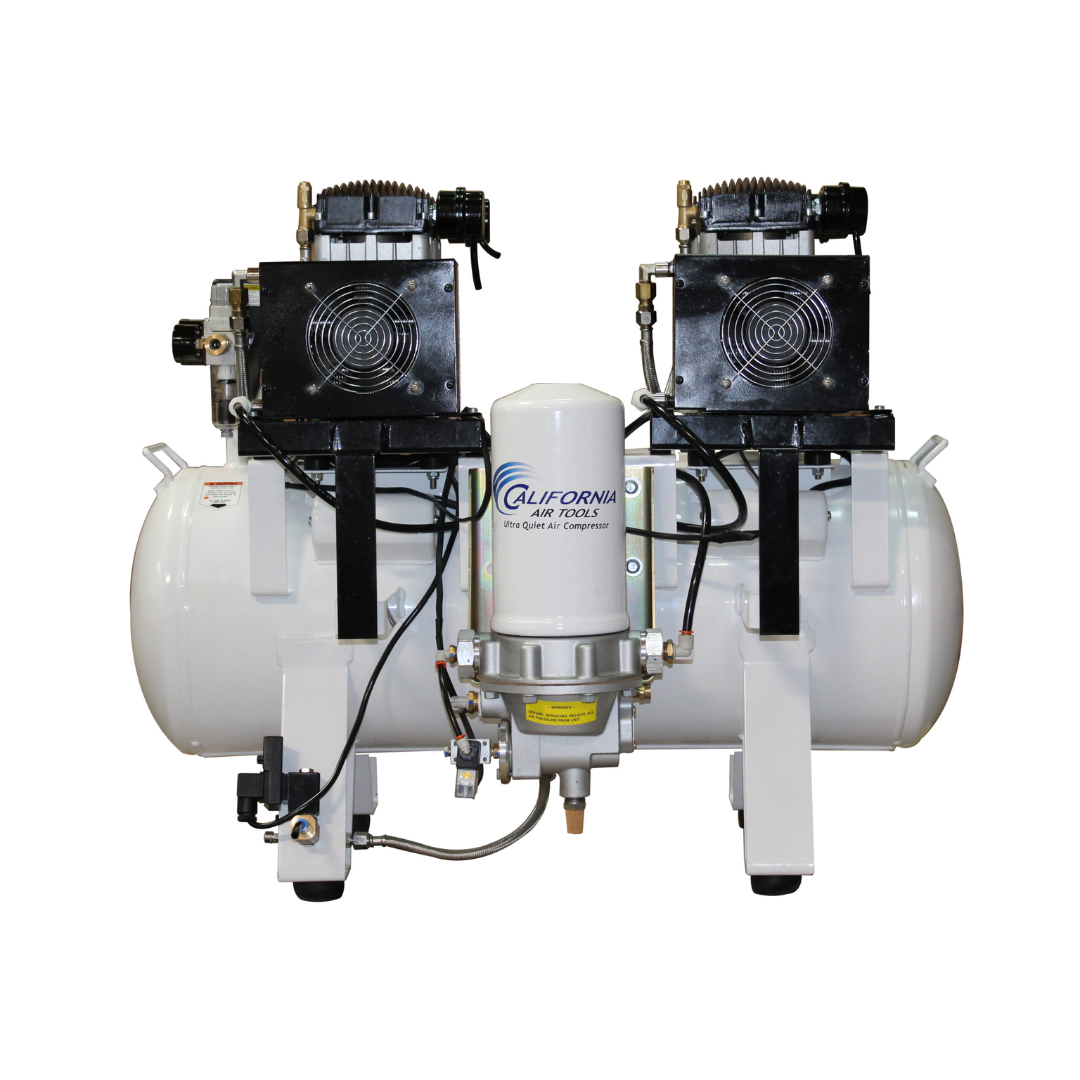

- Integrated aftercooler condenses moisture from compressed air.
- Activated alumina desiccant dryer removes up to 98% of moisture.
- ISO 8573 2.3.1 compliant air quality for sensitive equipment.
- 80%+ moisture removal before drying stage enhances efficiency.
- 4000-hour desiccant life for extended use between maintenance.
Designed to protect tools, finishes, and equipment by delivering consistently dry compressed air.
CALIFORNIA AIR TOOLS 20040DCAD Powerful 4.0 Hp Ultra Quiet & Oil-Free 20 Gallon Air Compressor Automatic Drain System
- EZ-1 automatic drain valve eliminates manual tank draining.
- Adjustable timer control for customized drain intervals.
- Prevents moisture buildup and internal tank corrosion.
- Improves system efficiency and reduces maintenance labor.
CALIFORNIA AIR TOOLS 20040DCAD Powerful 4.0 Hp Ultra Quiet & Oil-Free 20 Gallon Air Compressor Maintenance
- Replace desiccant every 3000–4000 hours (approximately 1–2 years).
- Replace air filters every 1–2 years depending on environment.
- Oil-free pump design eliminates need for oil changes.
- Includes (4) air filters for extended service life.
Why Choose the CALIFORNIA AIR TOOLS 20040DCAD Powerful 4.0 Hp Ultra Quiet & Oil-Free 20 Gallon Air Compressor
- High airflow performance with 10.60 CFM @ 90 PSI.
- Ultra quiet operation at only 75 decibels.
- Advanced air drying system delivering up to 98% dry air.
- Long-life oil-free pump with reduced maintenance costs.
- Automatic drain system for hands-free operation.
The CALIFORNIA AIR TOOLS 20040DCAD Powerful 4.0 Hp Ultra Quiet & Oil-Free 20 Gallon Air Compressor is built for professionals who demand power, reliability, ultra-quiet performance, and clean, dry air in one complete system.
