CALIFORNIA AIR TOOLS 20020AD Ultra Quiet, Oil-Free and Powerful 2.0 Hp Portable 20-Gallon Air Compressor Applications
- Automotive repair, tire inflation, and maintenance tasks
- Spray painting, finishing, and airbrushing applications
- Operating pneumatic tools such as nailers, staplers, and impact wrenches
- Workshops, garages, and contractor job site environments
- Sanding, grinding, and light industrial air tool usage
Ideal for users needing consistent air supply, low noise levels, and reduced maintenance in both residential and light commercial environments.

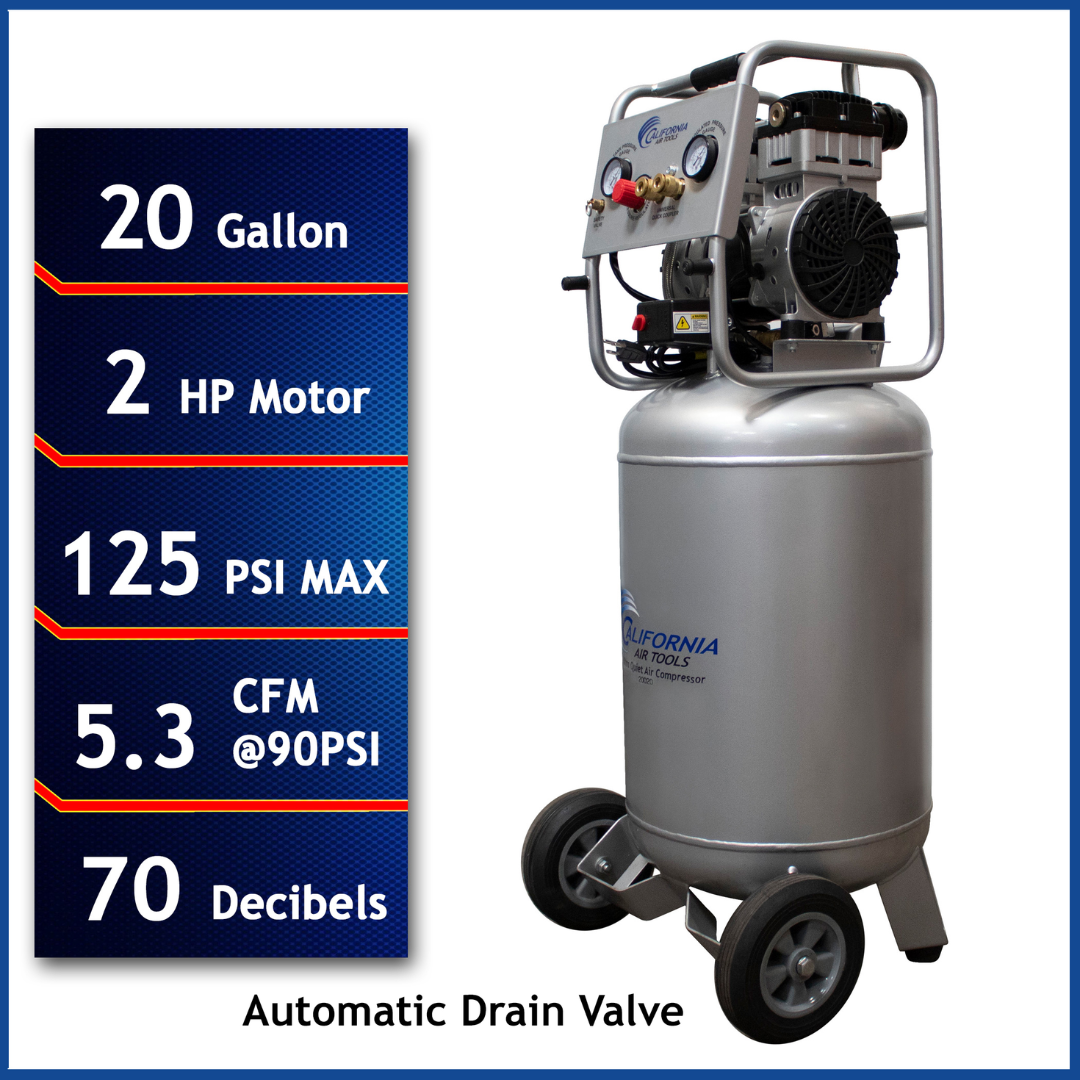

CALIFORNIA AIR TOOLS 20020AD Ultra Quiet, Oil-Free and Powerful 2.0 Hp Portable 20-Gallon Air Compressor Specifications

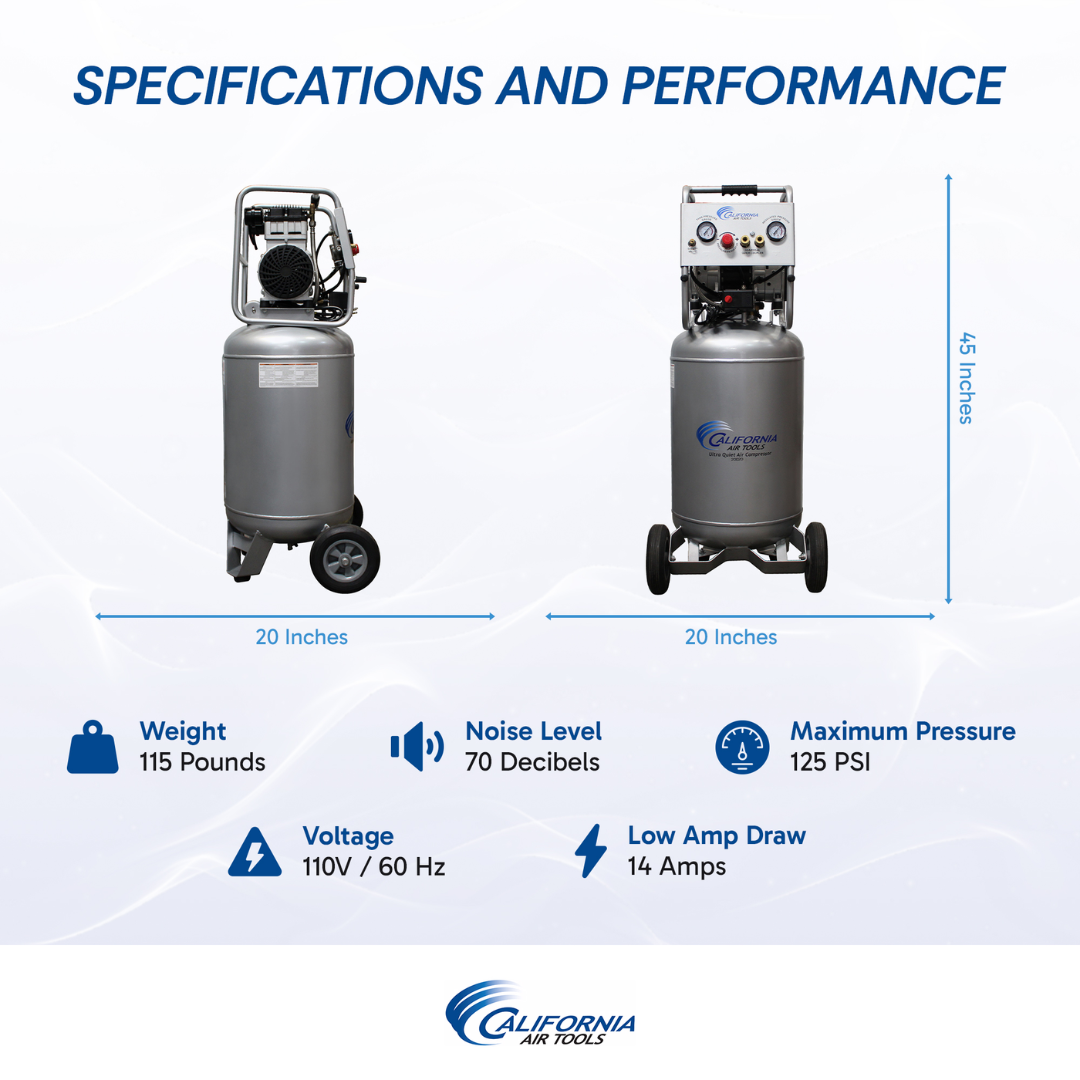

| Model | 20020AD |
|---|---|
| Motor Power | 2.0 HP (Rated/Running) |
| Tank Capacity | 20 Gallon Steel Tank |
| Air Flow @ 40 PSI | 6.40 CFM |
| Air Flow @ 90 PSI | 5.30 CFM |
| Maximum Pressure | 125 PSI |
| Noise Level | 70 dB (Ultra Quiet) |
| Voltage | 110V / 60 Hz |
| Amperage | 14 Amps (Low Amp Draw) |
| Tank Fill Time | 4 Minutes (Empty to Full) |
| Recovery Time | 1 Minute (95 PSI to 125 PSI) |
| Duty Cycle | 70/30 |
| Dimensions (L × W × H) | 20" × 23" × 45" |
| Weight | 115 lbs |
| Tank Type | Non-ASME Steel Tank |
| Origin | Assembled in USA with Global Components |
| Warranty | 1 Year Limited Warranty |

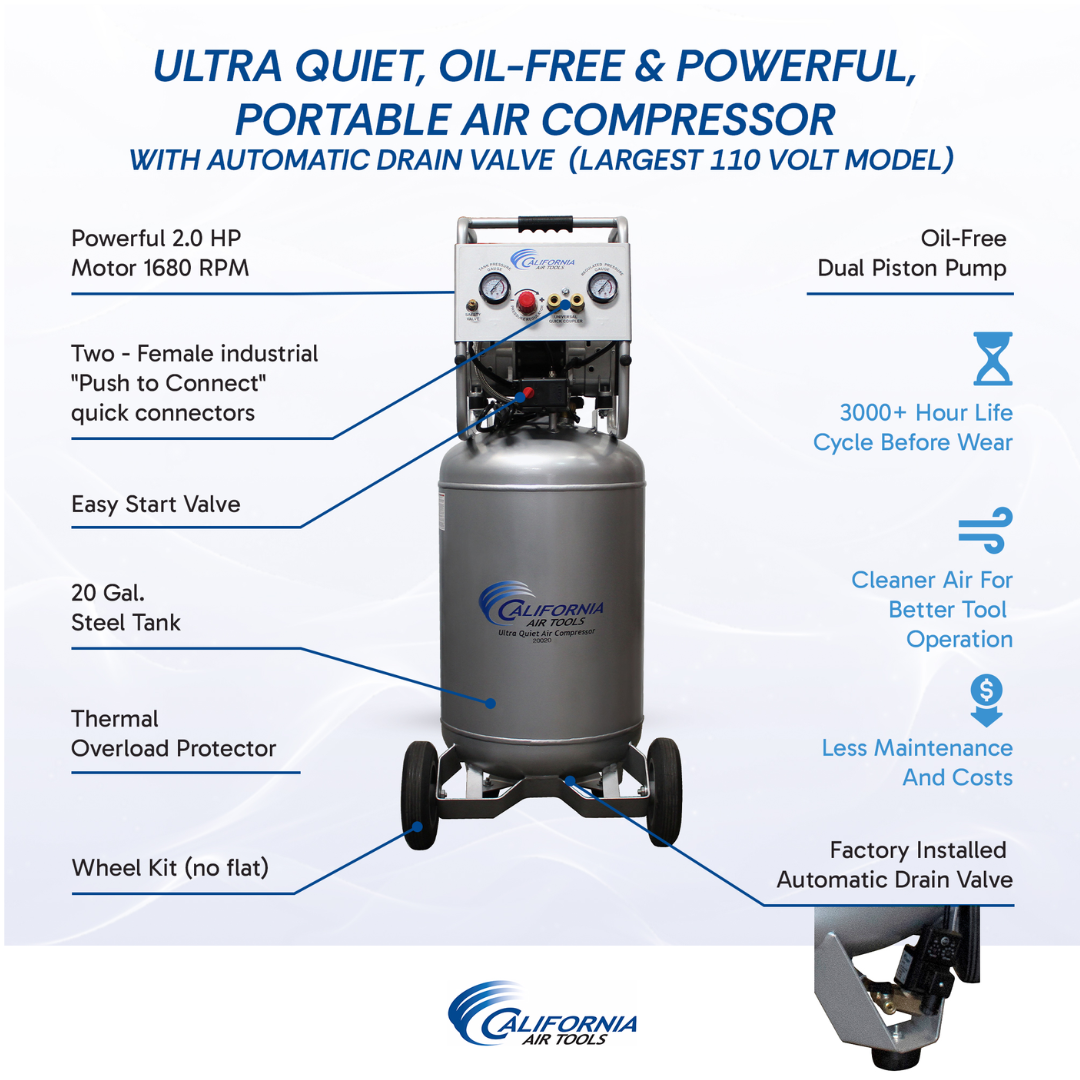

CALIFORNIA AIR TOOLS 20020AD Ultra Quiet, Oil-Free and Powerful 2.0 Hp Portable 20-Gallon Air Compressor Performance & Construction

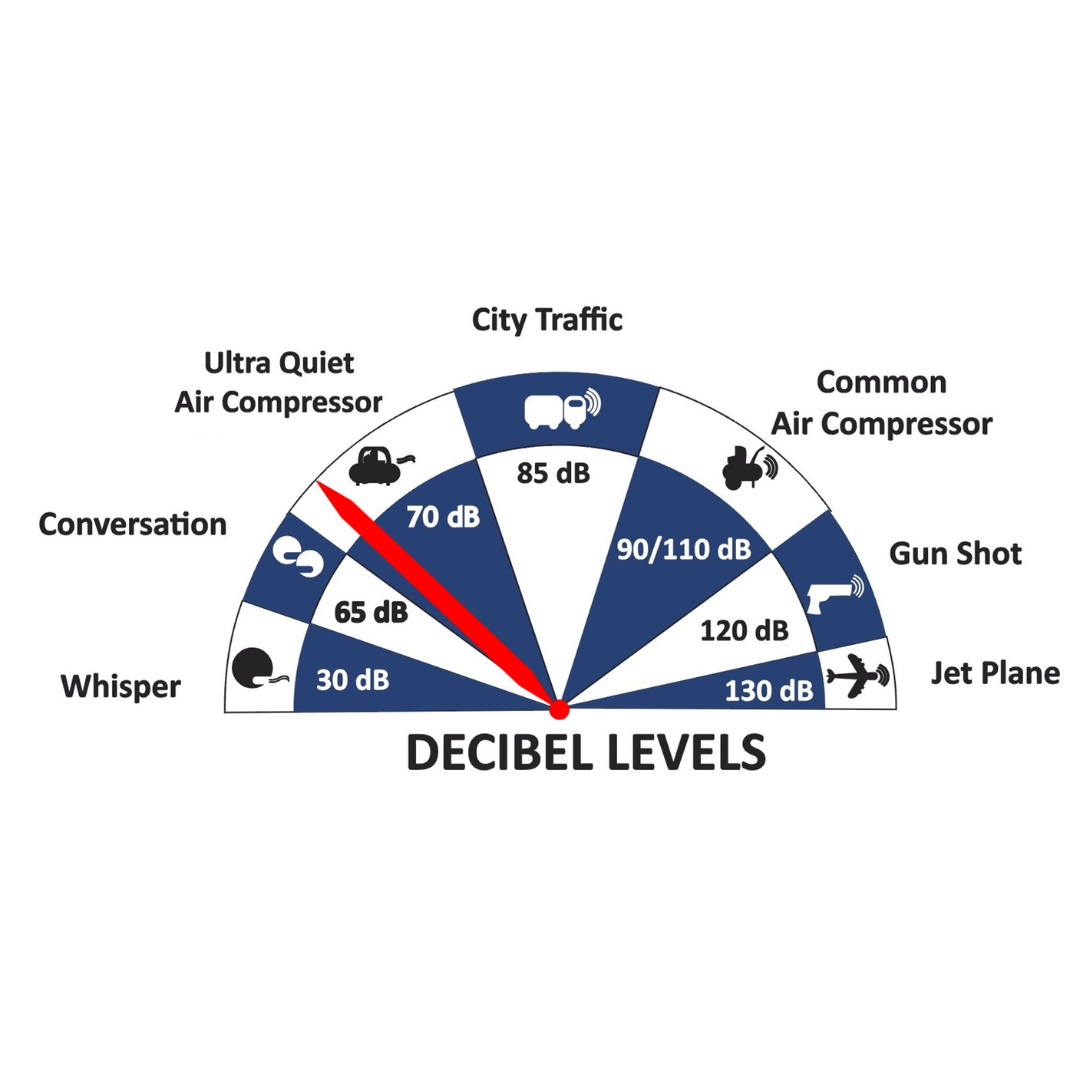

- Ultra Quiet Operation (70 dB) allows comfortable use in enclosed spaces and noise-sensitive environments.
- Powerful 2.0 HP Motor (1680 RPM) reduces wear and heat while extending service life.

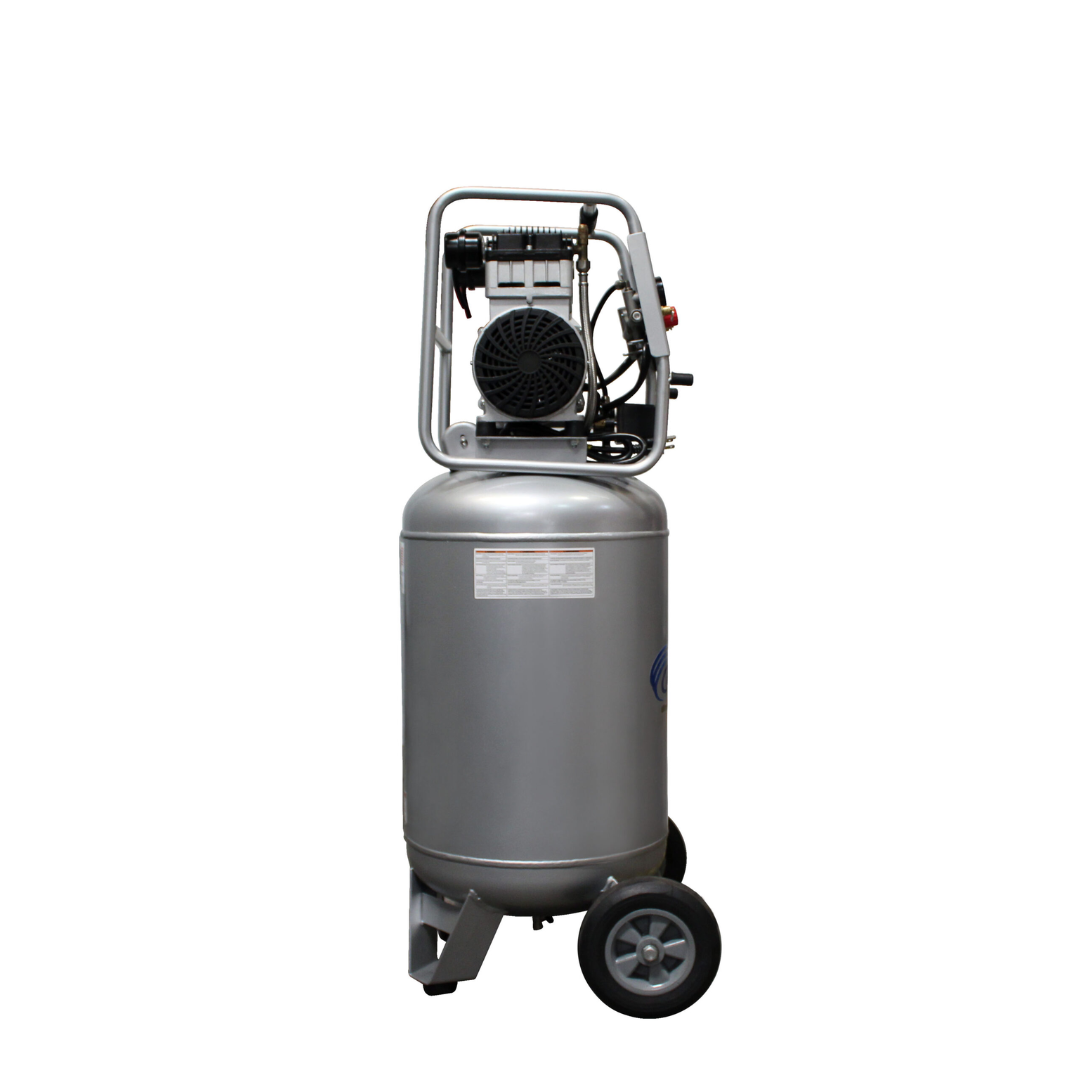

- Oil-Free Dual Piston Pump delivers clean air, eliminates maintenance, and supports operation in cold temperatures and uneven terrain.
- Extended Pump Life (3000+ Hours) significantly exceeds typical compressor durability standards.
- SP Series Motor Design increases duty cycle and supports longer continuous run times.

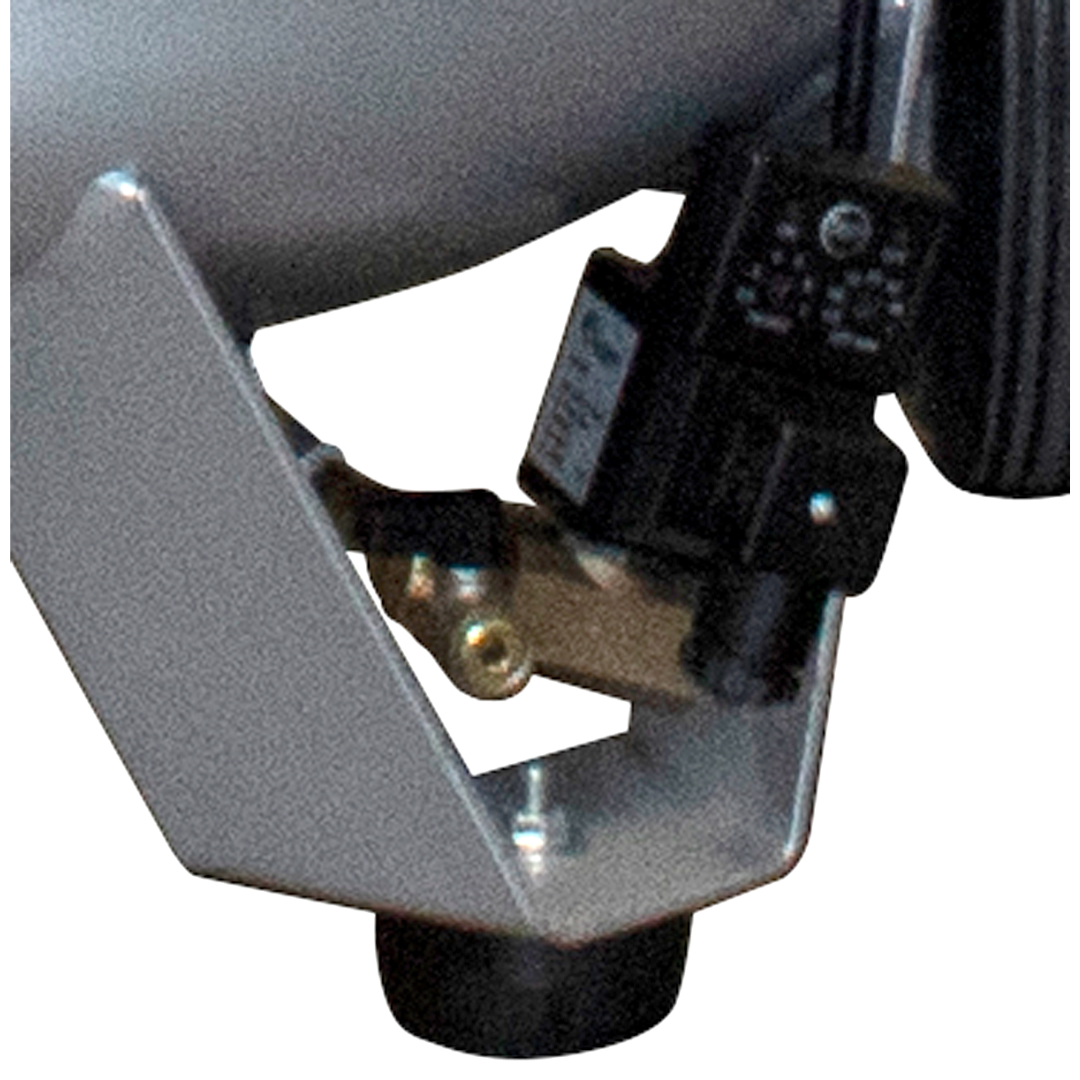

- Automatic Drain Valve (EZ-1) removes moisture automatically, eliminating manual tank draining.
- Easy Start Valve Technology reduces starting amps and ensures reliable startup in cold conditions.

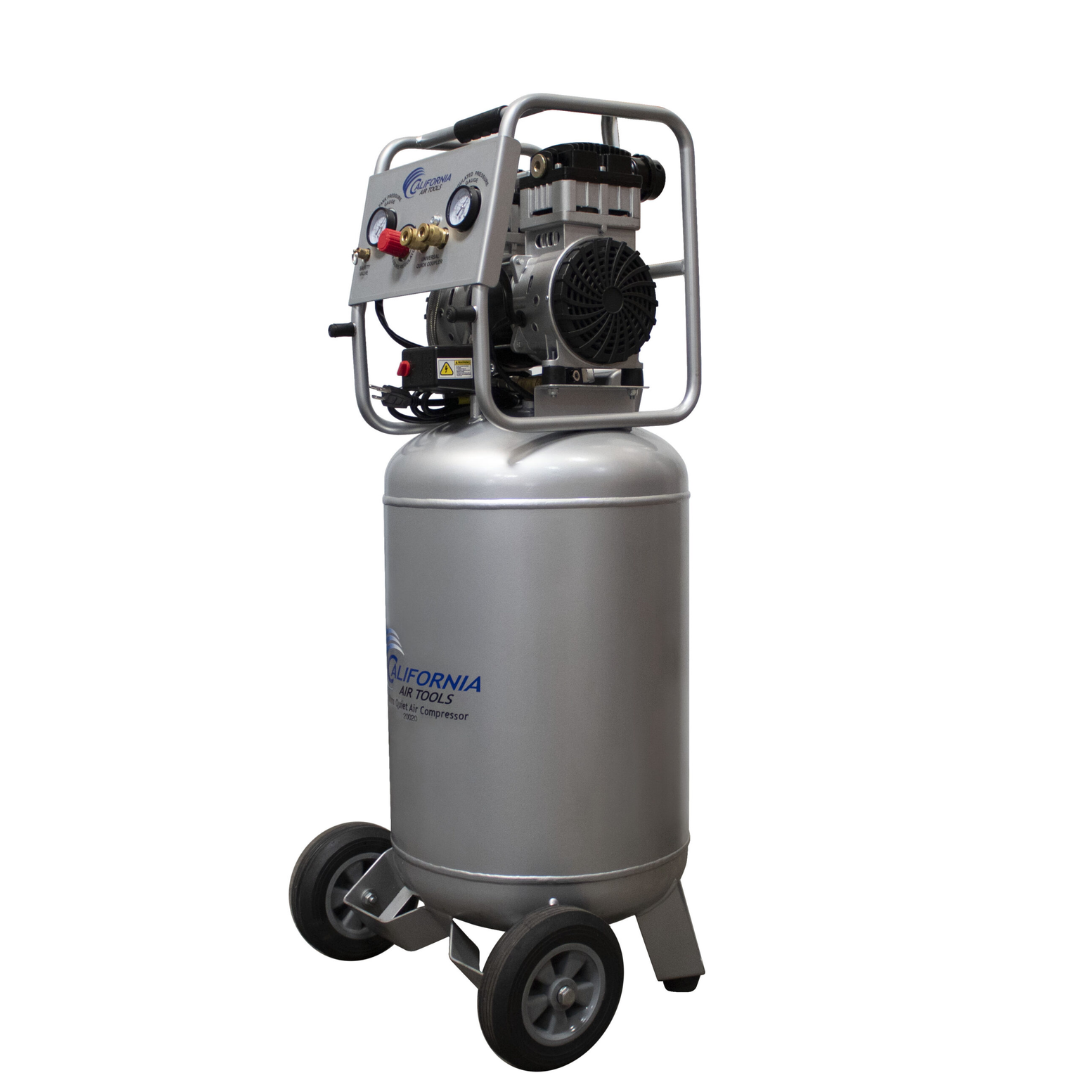

- Large 20-Gallon Steel Tank provides sustained air volume for higher demand tools.

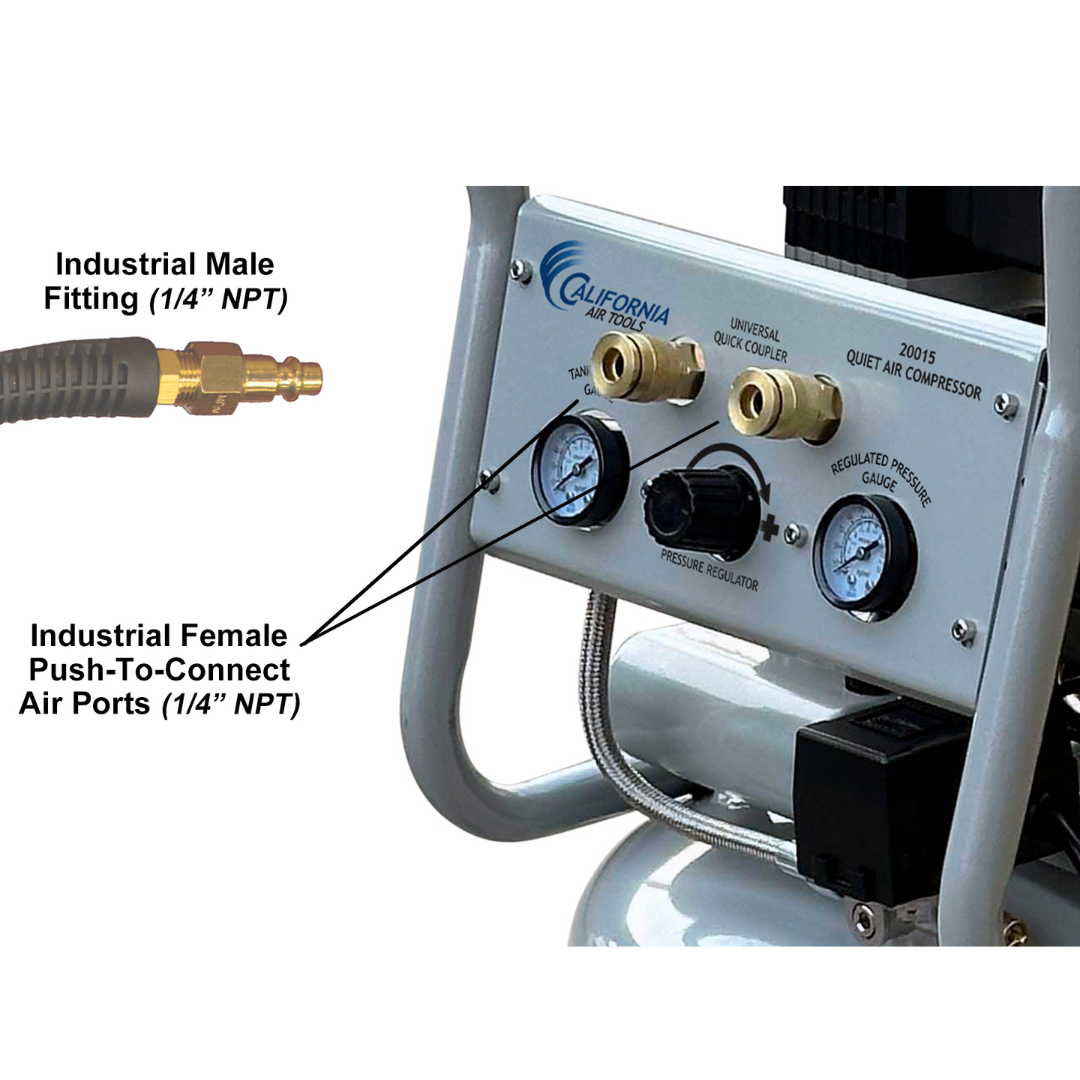

- Dual Pressure Gauges & Quick Connectors for efficient monitoring and tool connections.
- Thermal Overload Protection safeguards motor from overheating during extended use.

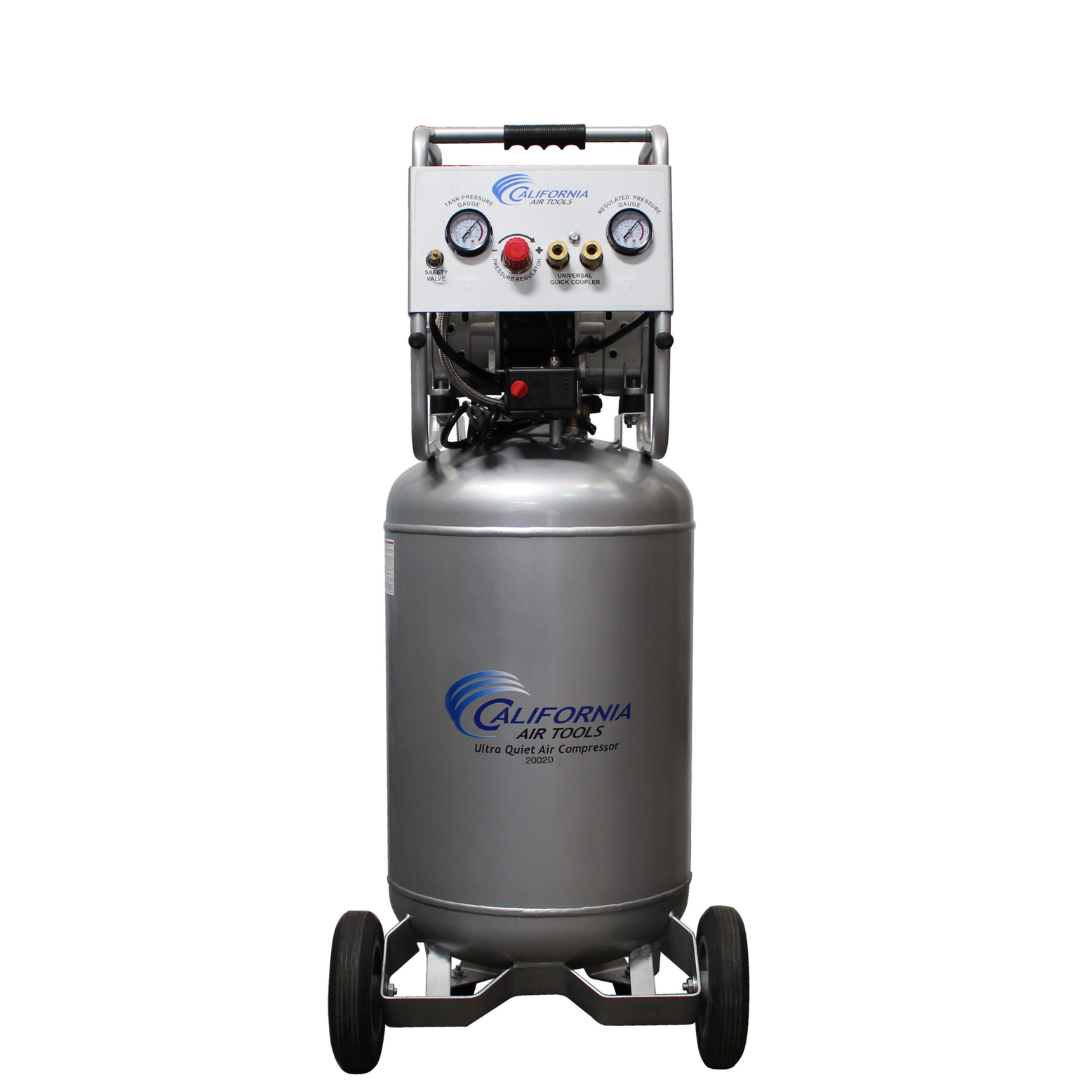

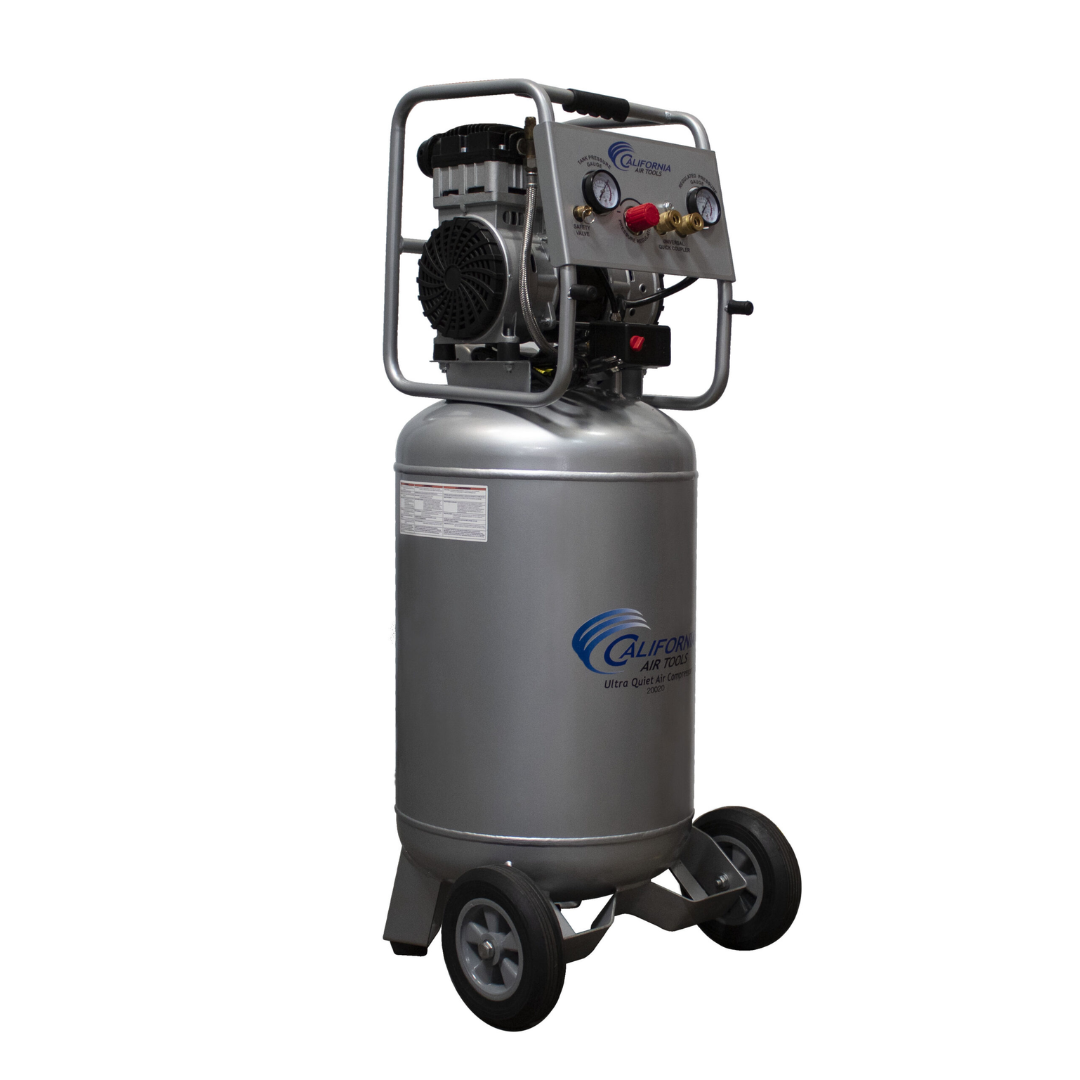

- Portable Design with no-flat wheels and sturdy handle for easy transport.
- Low Heat Output improves efficiency and extends component lifespan.
Why Choose the CALIFORNIA AIR TOOLS 20020AD Ultra Quiet, Oil-Free and Powerful 2.0 Hp Portable 20-Gallon Air Compressor
- Ultra-quiet 70 dB operation—up to 30% less noise than comparable units
- High airflow performance for a wide range of pneumatic tools
- Oil-free system reduces maintenance and operating costs
- Automatic drain valve simplifies operation and protects tank longevity
- Durable, long-life pump engineered for extended use
- Portable yet powerful solution for shop, garage, or job site
The CALIFORNIA AIR TOOLS 20020AD Ultra Quiet, Oil-Free and Powerful 2.0 Hp Portable 20-Gallon Air Compressor is a premium solution for users seeking reliable air power, minimal maintenance, and exceptionally quiet performance in a compact, mobile design.
