CALIFORNIA AIR TOOLS 15020C Ultra Quiet, Oil-Free and Powerful 2.0 Hp 15-Gallon Air Compressor Applications
- Automotive repair and maintenance operations
- Woodworking shops and carpentry applications
- Contractor and jobsite air tool usage
- HVAC installation and service work
- Garage and workshop compressed air systems
- Light industrial and commercial applications
Designed for users who need higher airflow, larger tank capacity, and quieter operation with reduced maintenance requirements.

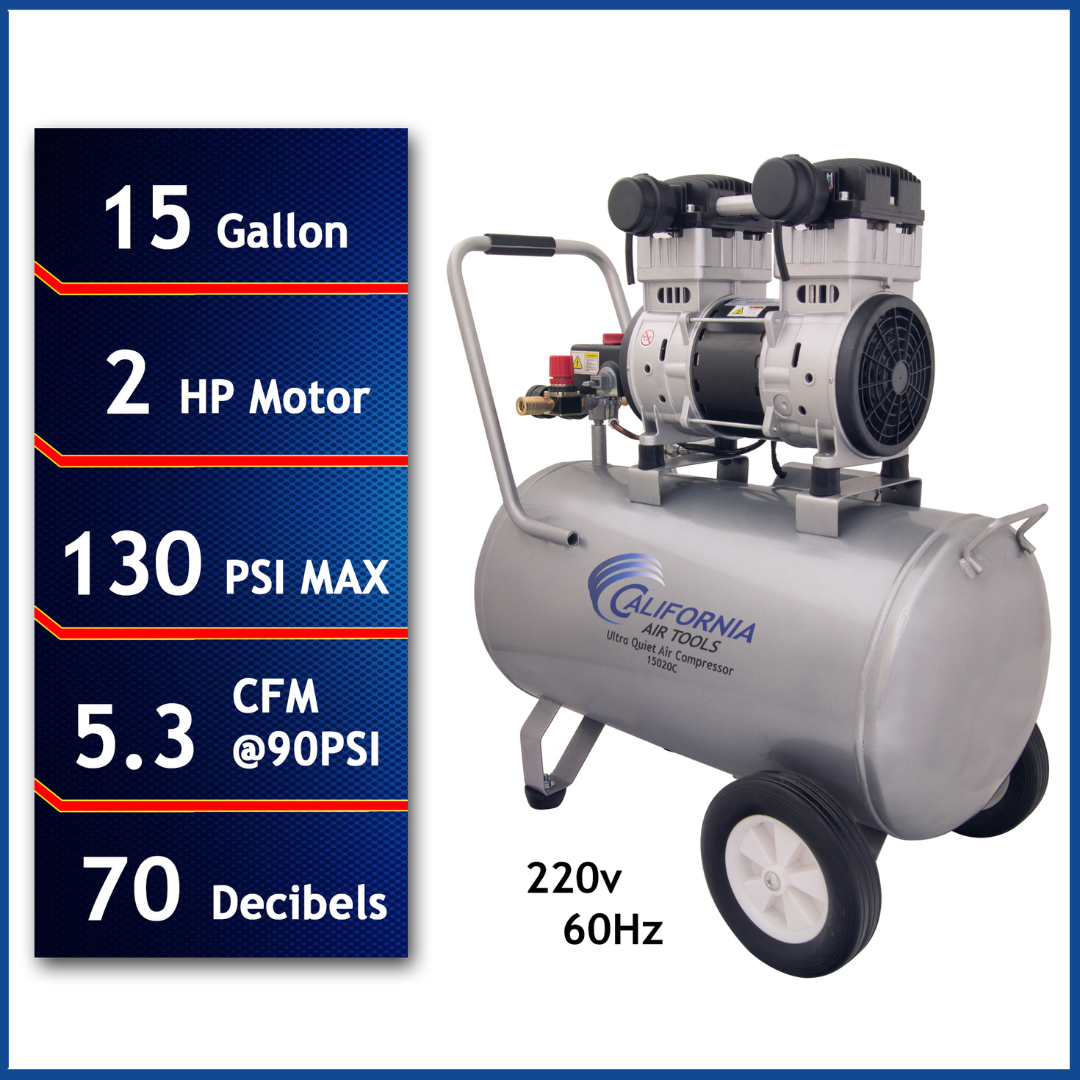

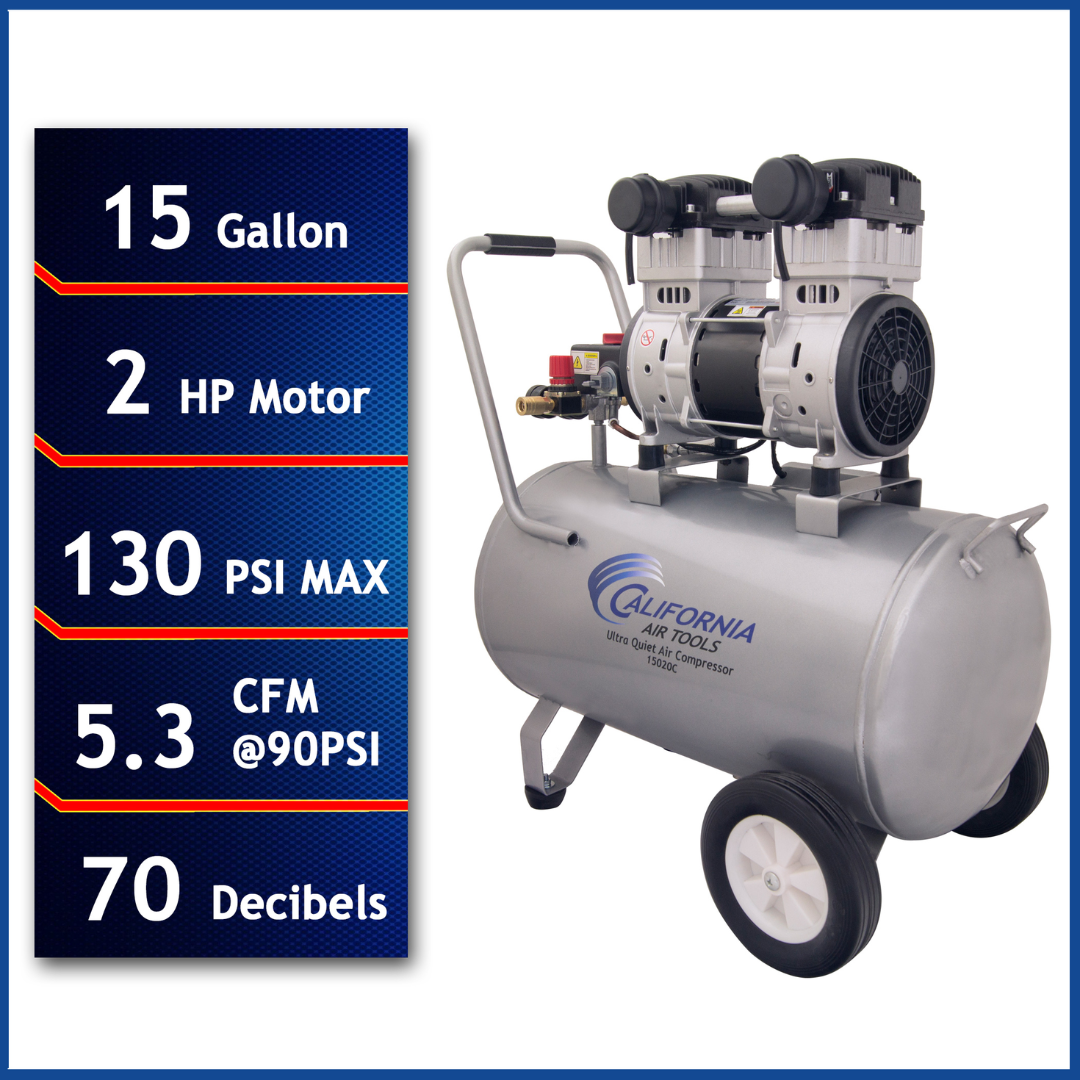

CALIFORNIA AIR TOOLS 15020C Ultra Quiet, Oil-Free and Powerful 2.0 Hp 15-Gallon Air Compressor Specifications
| Model | 15020C |
|---|---|
| Motor | 2.0 HP (Rated/Running) |
| Motor Speed | 1680 RPM |

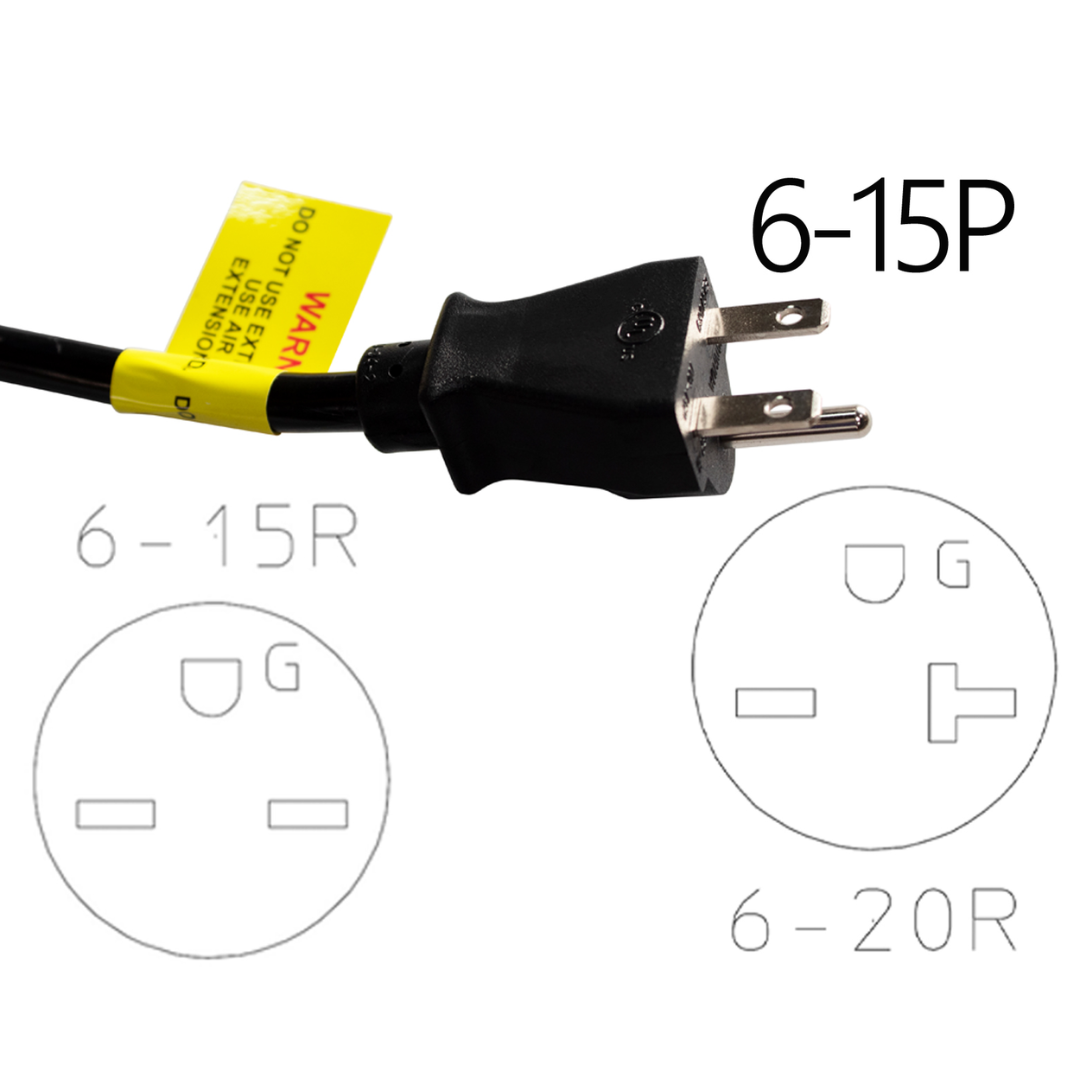

| Voltage Options | 110V / 60Hz or 220V / 60Hz (Single Phase) |
| Amperage | 14 Amps (110V) / 7.5 Amps (220V) |
| Tank Capacity | 15 Gallon Steel Tank |
| Operating Pressure | 100–130 PSI |
| Maximum Pressure | 130 PSI |
| Air Flow @ 40 PSI | 6.40 CFM |
| Air Flow @ 90 PSI | 5.30 CFM |

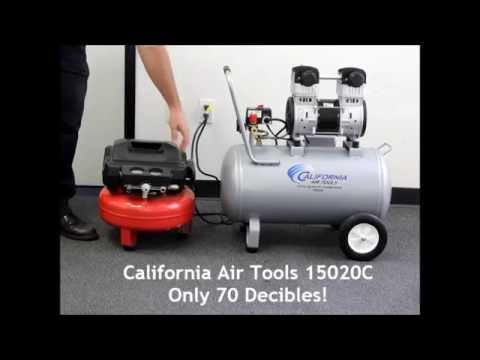

| Noise Level | 70 dB |
| Pump Type | Oil-Free Dual Piston Pump |
| Pump Life | 3000+ Hours Before Wear |
| Fill Time | 230 Seconds |
| Recovery Time | 50 Seconds (100–130 PSI) |
| Duty Cycle | 70/30 |
| Air Outlet | 1/4" NPT Female Push-to-Connect |

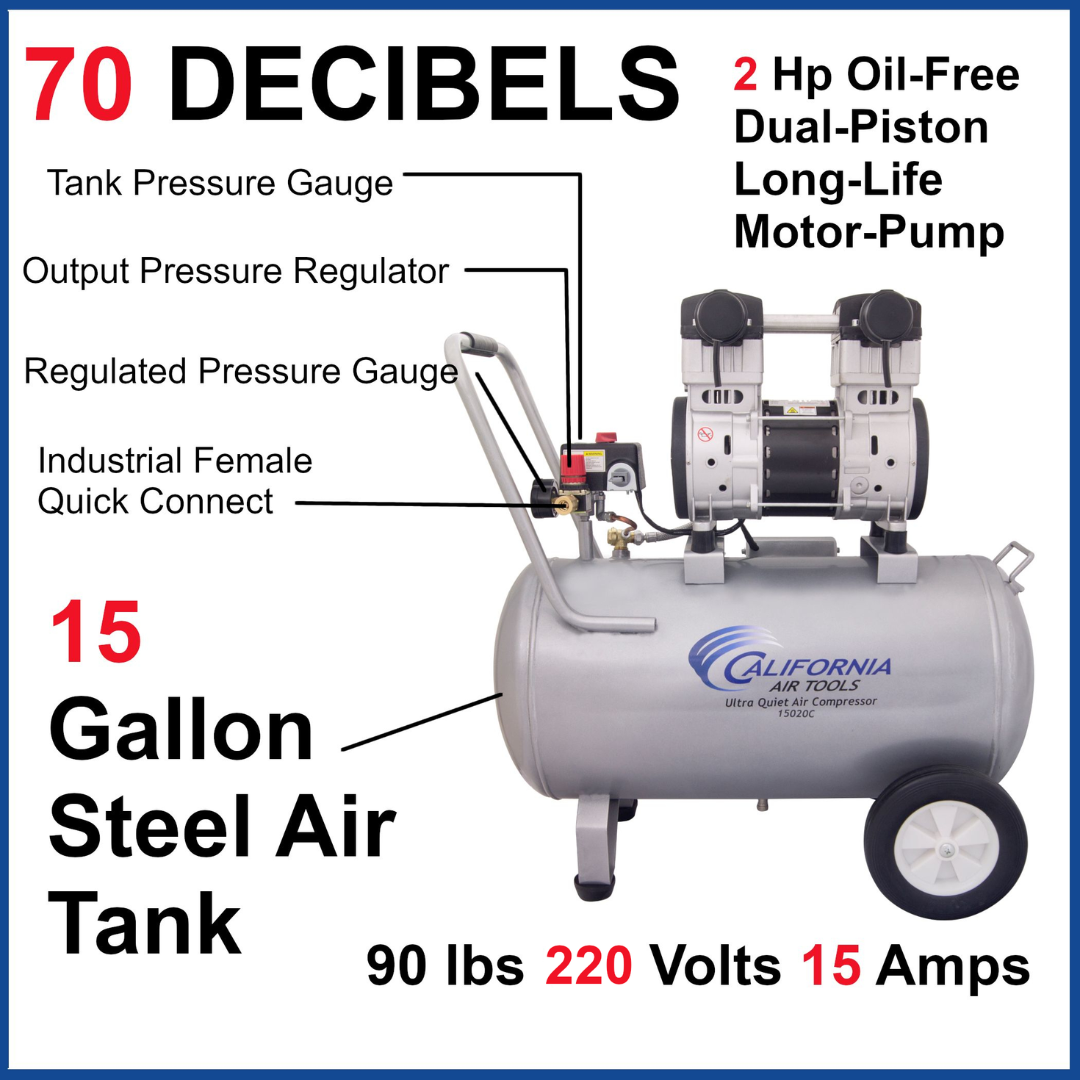

| Gauges | Two Pressure Control Gauges |
| Regulator | Adjustable Output Regulator (0–100 PSI) |
| Protection | Thermal Overload Protector |
| Dimensions | 28" × 17" × 30" |
| Weight | 90 lbs |
| Tank Type | Non-ASME |
| Certification | UL Certified |
| Warranty | 1 Year Limited Warranty |

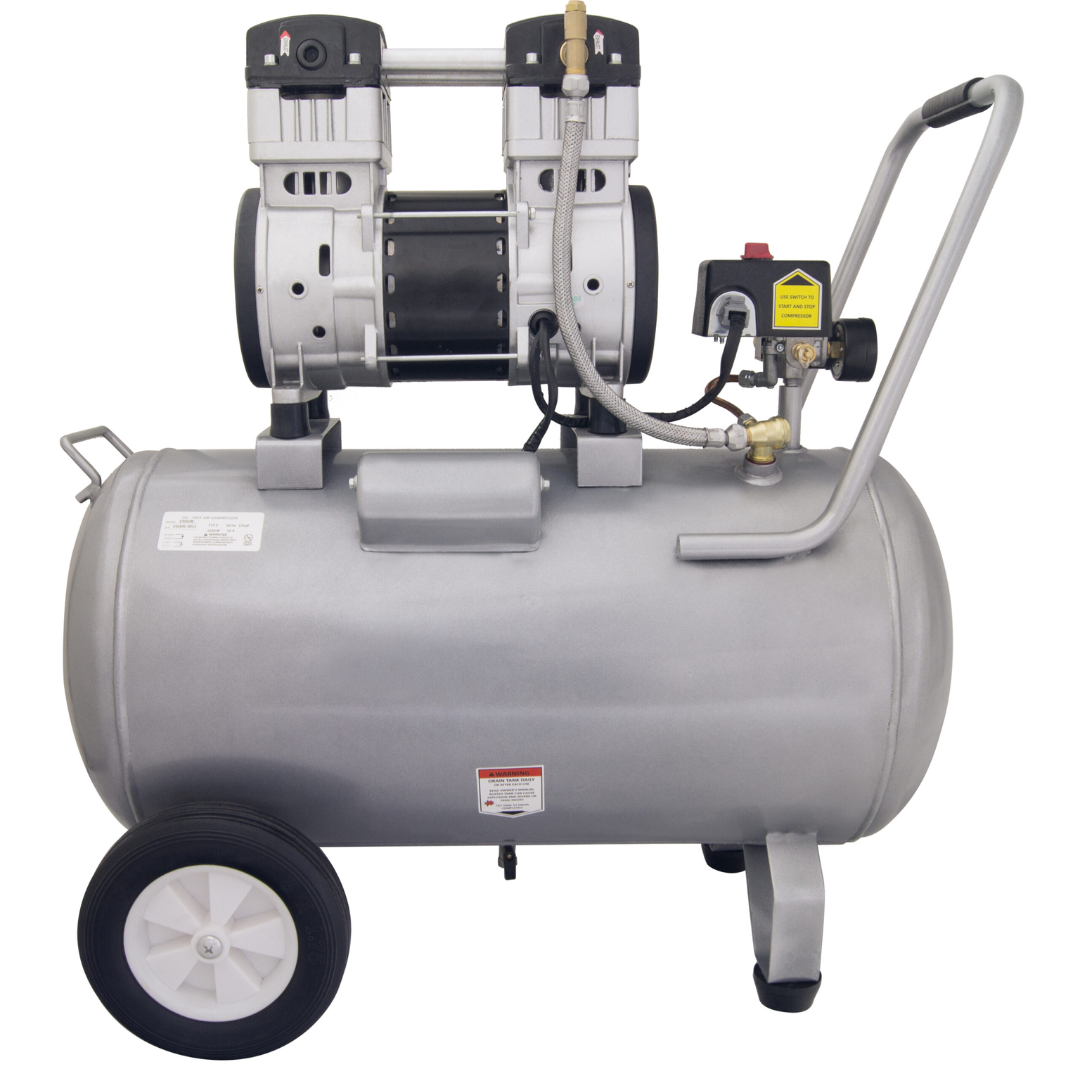

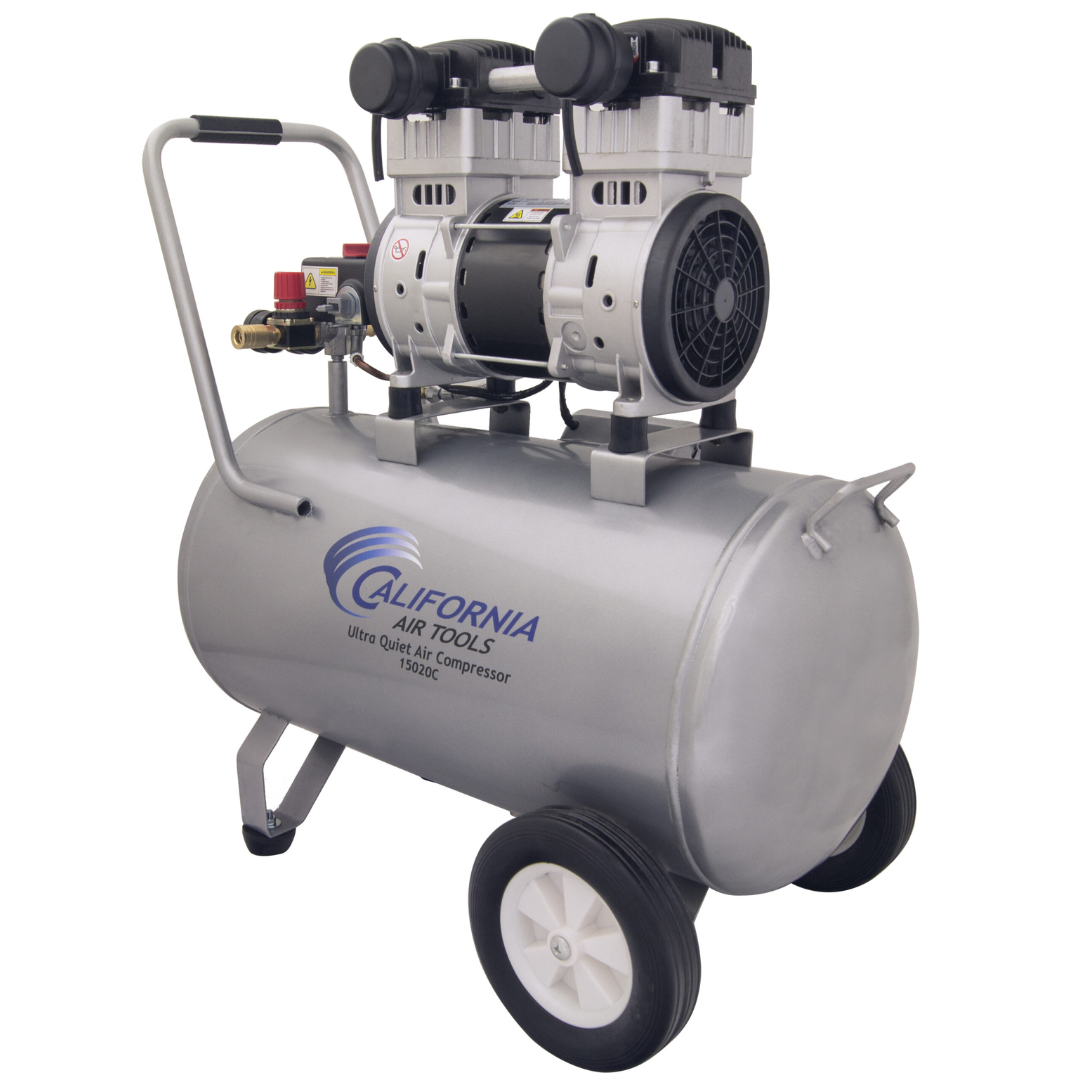

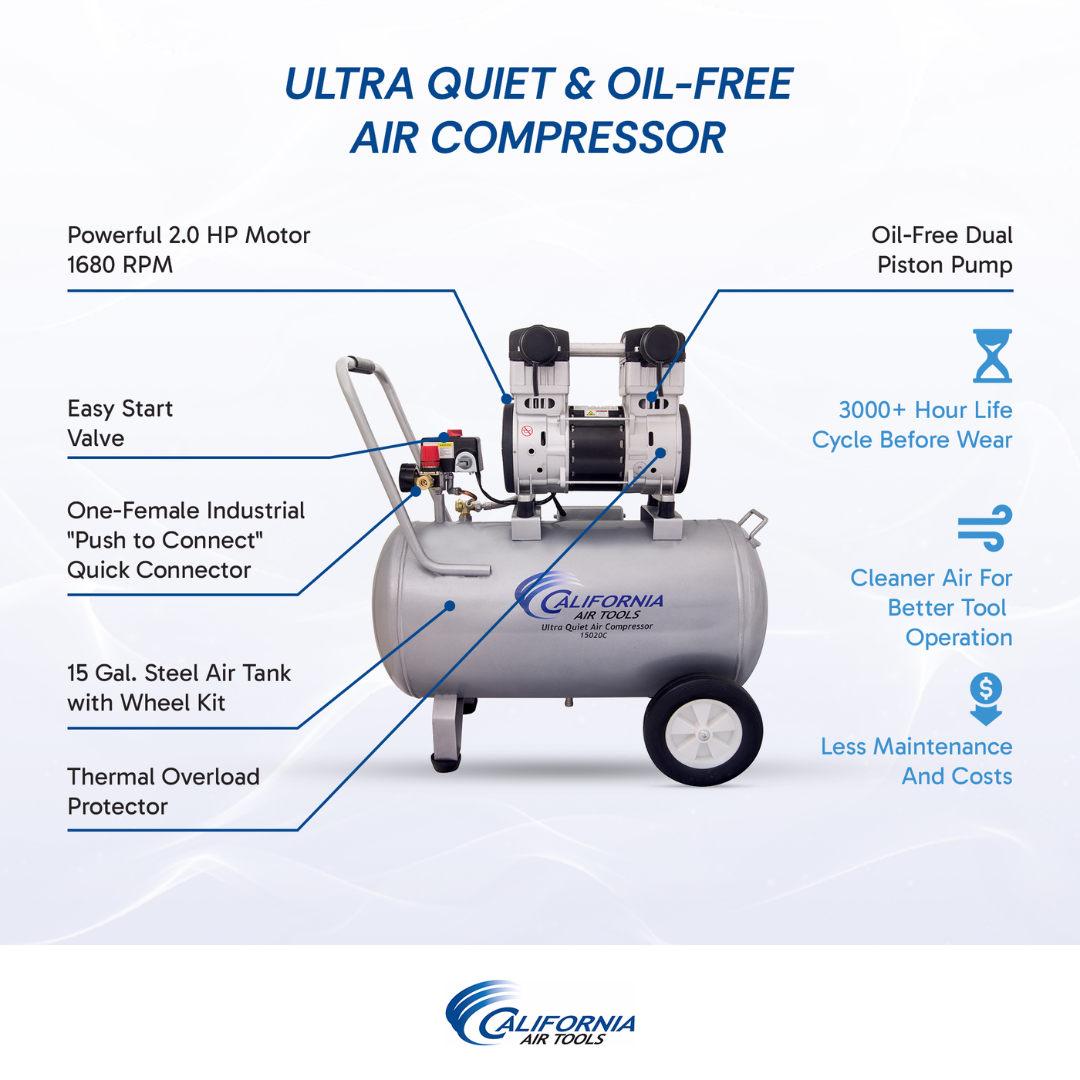

CALIFORNIA AIR TOOLS 15020C Ultra Quiet, Oil-Free and Powerful 2.0 Hp 15-Gallon Air Compressor Performance & Construction

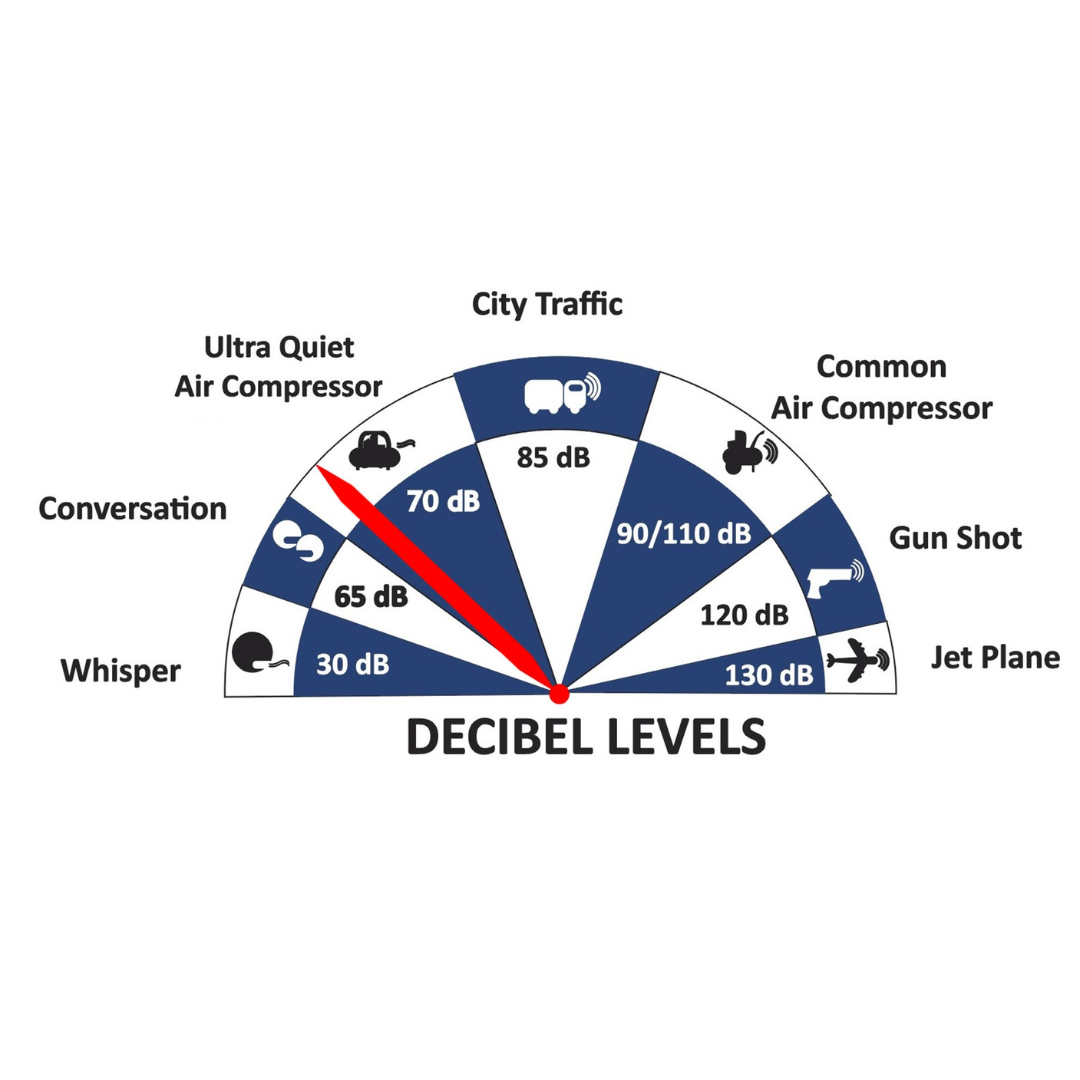

- Ultra quiet 70 dB operation delivers significantly reduced noise compared to traditional compressors.
- 2.0 HP SP-9421 motor at 1680 RPM minimizes wear, vibration, and heat for extended service life.
- Oil-free dual piston pump system ensures clean air output and eliminates oil maintenance.
- 3000+ hour pump life cycle provides long-term durability and reliability.
- Dual voltage capability allows flexible operation on 110V or 220V power sources.
- Easy Start Valve reduces starting amperage and enables smoother startup, especially in cold conditions.
- 15-gallon steel air tank provides increased air storage capacity for longer tool run times.
- Wheel kit design makes it easy to transport across job sites or workshops.

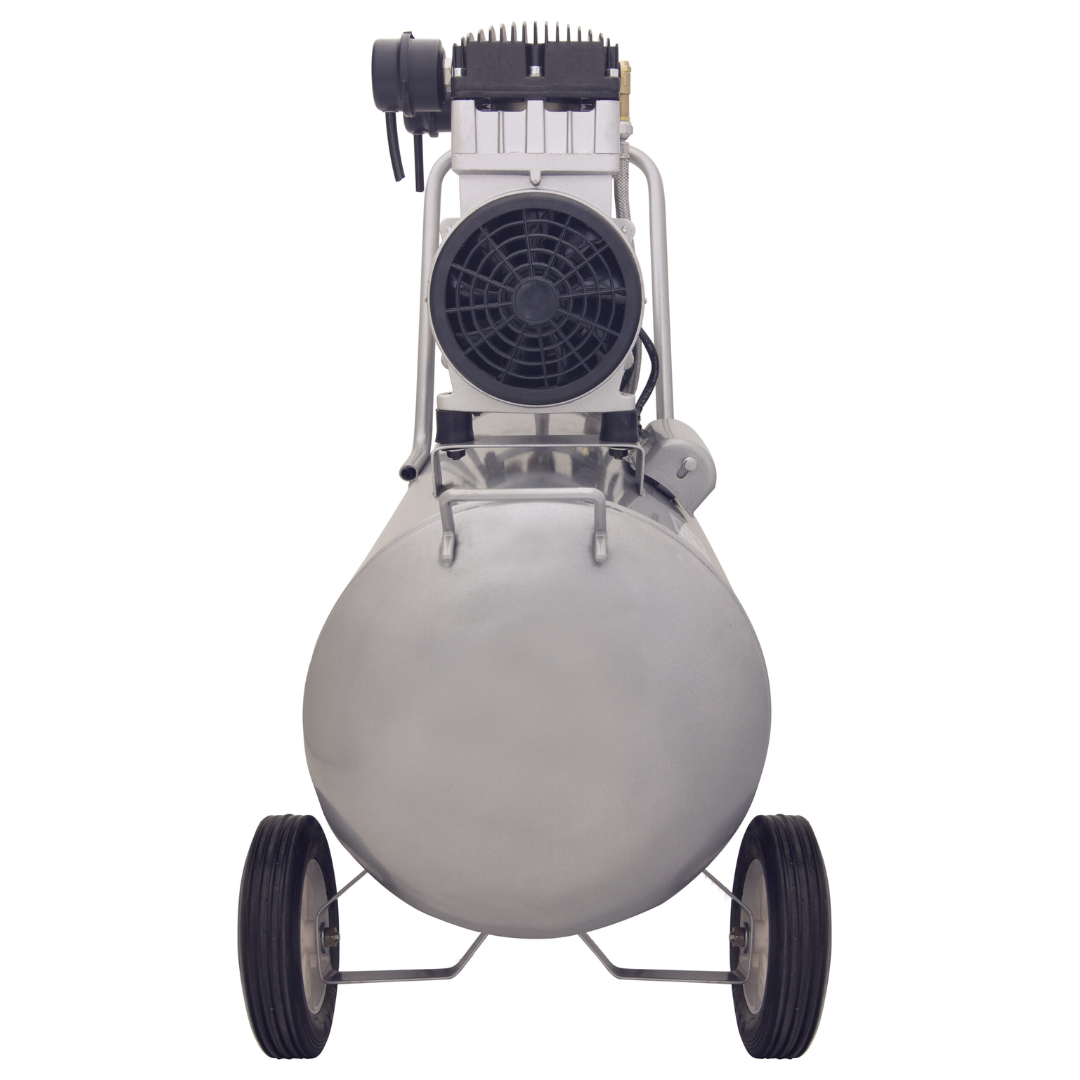

- Efficient heat dissipation improves performance and extends component life.
- Condor pressure switch and overload protection enhance safety and operational reliability.
Why Choose the CALIFORNIA AIR TOOLS 15020C Ultra Quiet, Oil-Free and Powerful 2.0 Hp 15-Gallon Air Compressor
- High airflow output suitable for demanding air tools
- Ultra quiet 70 dB operation for improved work environments
- Dual voltage flexibility for varied jobsite power options
- Large 15-gallon tank for extended operation
- Oil-free design reduces maintenance and operating costs
- Durable construction with long pump life and reliable performance
The CALIFORNIA AIR TOOLS 15020C Ultra Quiet, Oil-Free and Powerful 2.0 Hp 15-Gallon Air Compressor delivers a powerful combination of airflow, quiet performance, and low maintenance, making it an excellent choice for professionals and serious users who need reliable compressed air in a wide range of environments.
