Name: California Air Tools 10020HDCADC-22060 Powerful 2.0 Hp Ultra Quiet, Ultra Dry & Oil-Free 10 Gallon Air Compressor with 98% Air Drying System and Automatic Drain Valve
Brand: California Air Tools
SKU: Air Compressor 10020HDCADC-22060
Price: 2127.00 USD
Availability: InStock

★★★★★

Iron Line Verified

Authorized Dealer: California Air Tools

Official Partner

IN STOCK & RECEIVE IN 5-7 DAYS

SKU: Air Compressor 10020HDCADC-22060

Price:

$2,127.00

Quantity:

Financing as low as ~$35 / month (60 mo. terms) Estimate your payment

We pay your sales tax! (IL excluded) 📦 Order before 7 PM CST for same-day shipping.

Share this product

Section 179
Tax Savings

Save up to $446.67 on this equipment Estimate Your Tax Deduction

Calculate Savings →

Commercial Buyer?

Unlock volume pricing and dedicated facility support with Trade Accounts
(Requires minimum of 2+ items)

Power: 2.0 HP motor • 220V, 60Hz, Single Phase • 7.5 Amps • NEMA 6-15P plug • 1680 RPM • Thermal overload protection • Generator compatible (3000 running watts).
Size & Weight: 100 lbs • 20" × 28" × 26" dimensions.
Capacity: 10 Gallon steel horizontal tank • 6.40 CFM @ 40 PSI • 5.30 CFM @ 90 PSI • 125 PSI max pressure • 70 dB noise level.

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered Fast

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

Ultra Dry Air • 220V Power • ISO Certified Clean Air

CALIFORNIA AIR TOOLS 10020HDCADC-22060 Powerful 2.0 Hp Ultra Quiet Ultra Dry Oil-Free 10 Gallon Air Compressor

The CALIFORNIA AIR TOOLS 10020HDCADC-22060 Powerful 2.0 Hp Ultra Quiet Ultra Dry Oil-Free 10 Gallon Air Compressor is built for demanding professional environments requiring ultra-clean, moisture-free compressed air with low noise and high efficiency. Featuring a 98% air drying system, ISO 8573 Class 2.3.1 compliance, and a powerful 220V motor, this system is ideal for precision applications where air quality and reliability are critical.

CALIFORNIA AIR TOOLS 10020HDCADC-22060 Powerful 2.0 Hp Ultra Quiet Ultra Dry Oil-Free 10 Gallon Air Compressor Applications

Dental, surgical, and medical facilities requiring ultra-dry air
Precision milling and manufacturing operations
Clean rooms and laboratory environments
Restaurant and food service equipment applications
Engineering and industrial environments requiring low dew point air

Perfect for applications requiring ISO-certified clean, dry compressed air with consistent performance.

CALIFORNIA AIR TOOLS 10020HDCADC-22060 Powerful 2.0 Hp Ultra Quiet Ultra Dry Oil-Free 10 Gallon Air Compressor Specifications

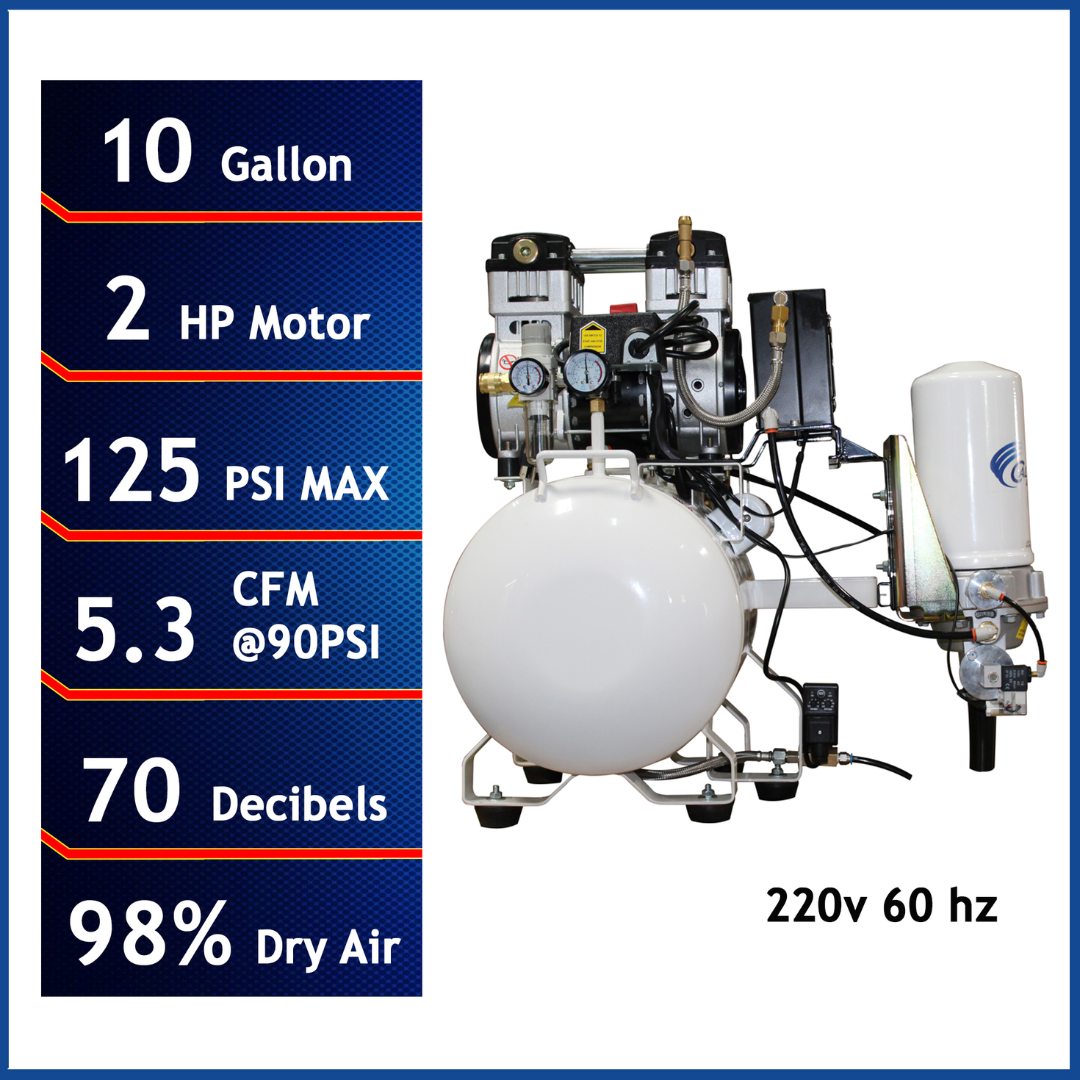

Model	10020HDCADC-22060
Motor	2.0 HP (Rated/Running)
Voltage	220V / 60Hz / Single Phase
Noise Level	70 dB
Tank Capacity	10 Gallon Steel Horizontal Tank
Airflow	6.40 CFM @ 40 PSI / 5.30 CFM @ 90 PSI
Maximum Pressure	125 PSI
Amperage	7.5 Amps
Tank Fill Rate	120 Seconds
Recovery Time	25 Seconds (95 PSI to 125 PSI)
Duty Cycle	70/30
Dimensions (L × W × H)	20" × 28" × 26"
Weight	100 lbs
Air Drying	98% Drying System with Molecular Sieve Desiccant

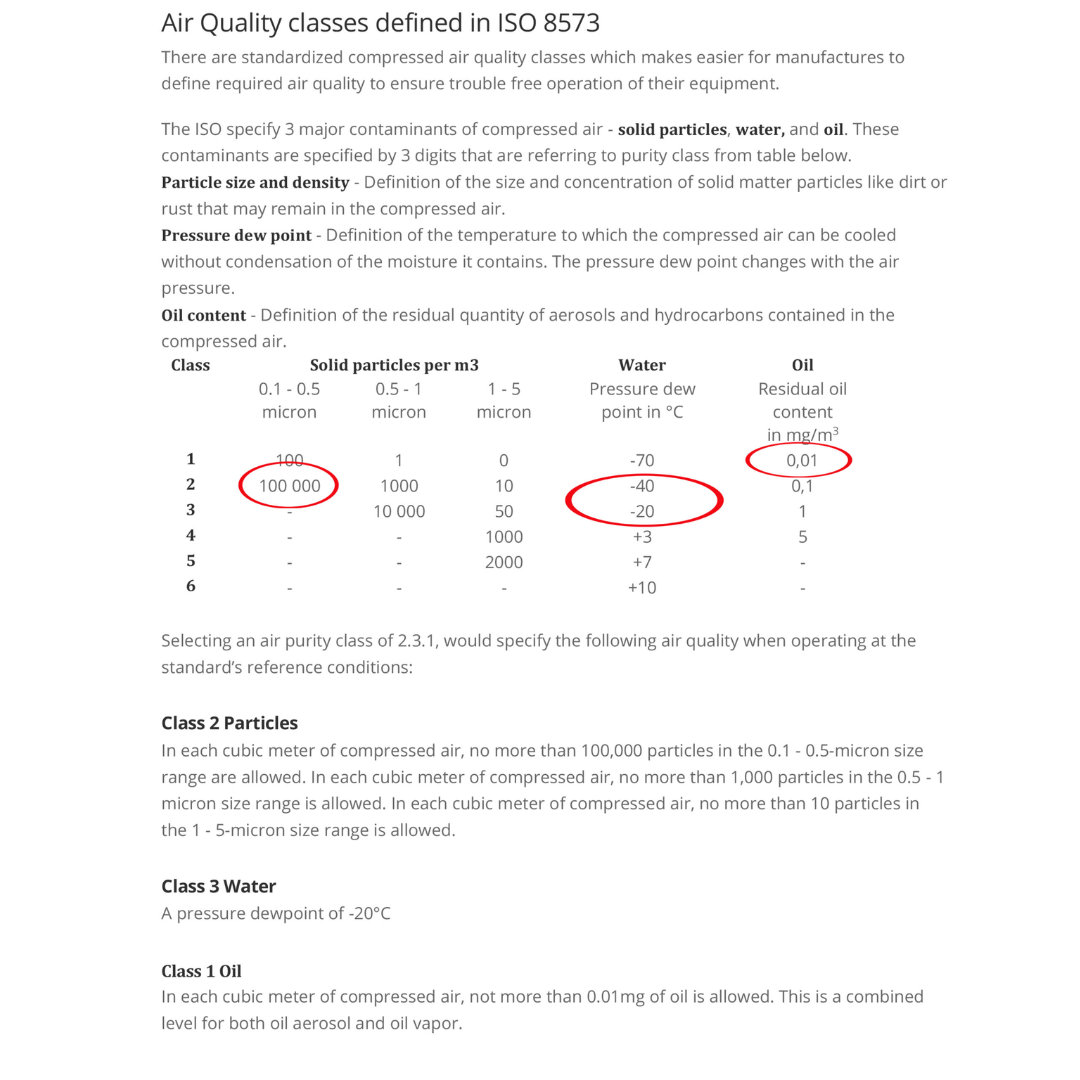

Air Quality	ISO 8573 Class 2.3.1

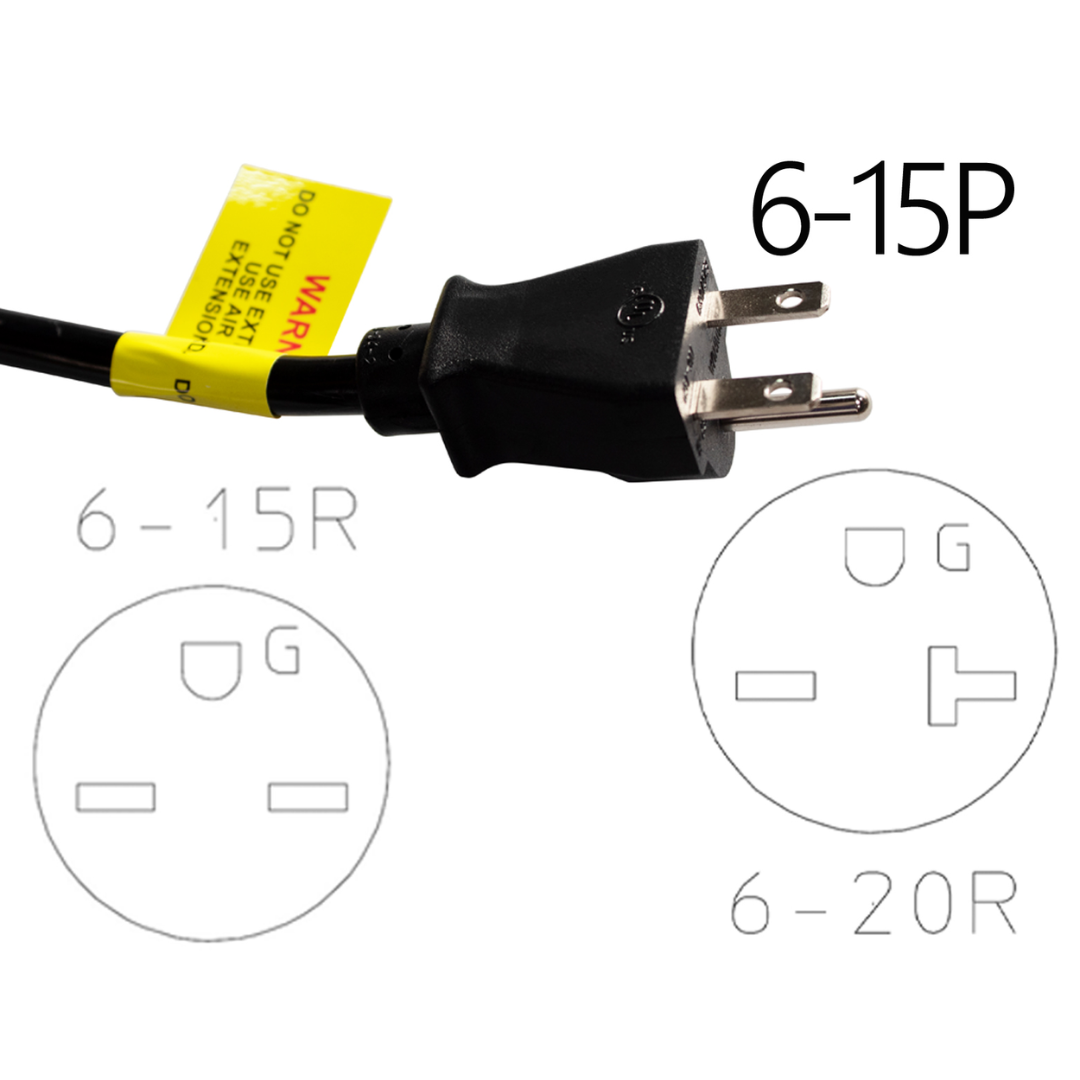

Plug Type	NEMA 6-15P (Fits 6-15R or 6-20R)

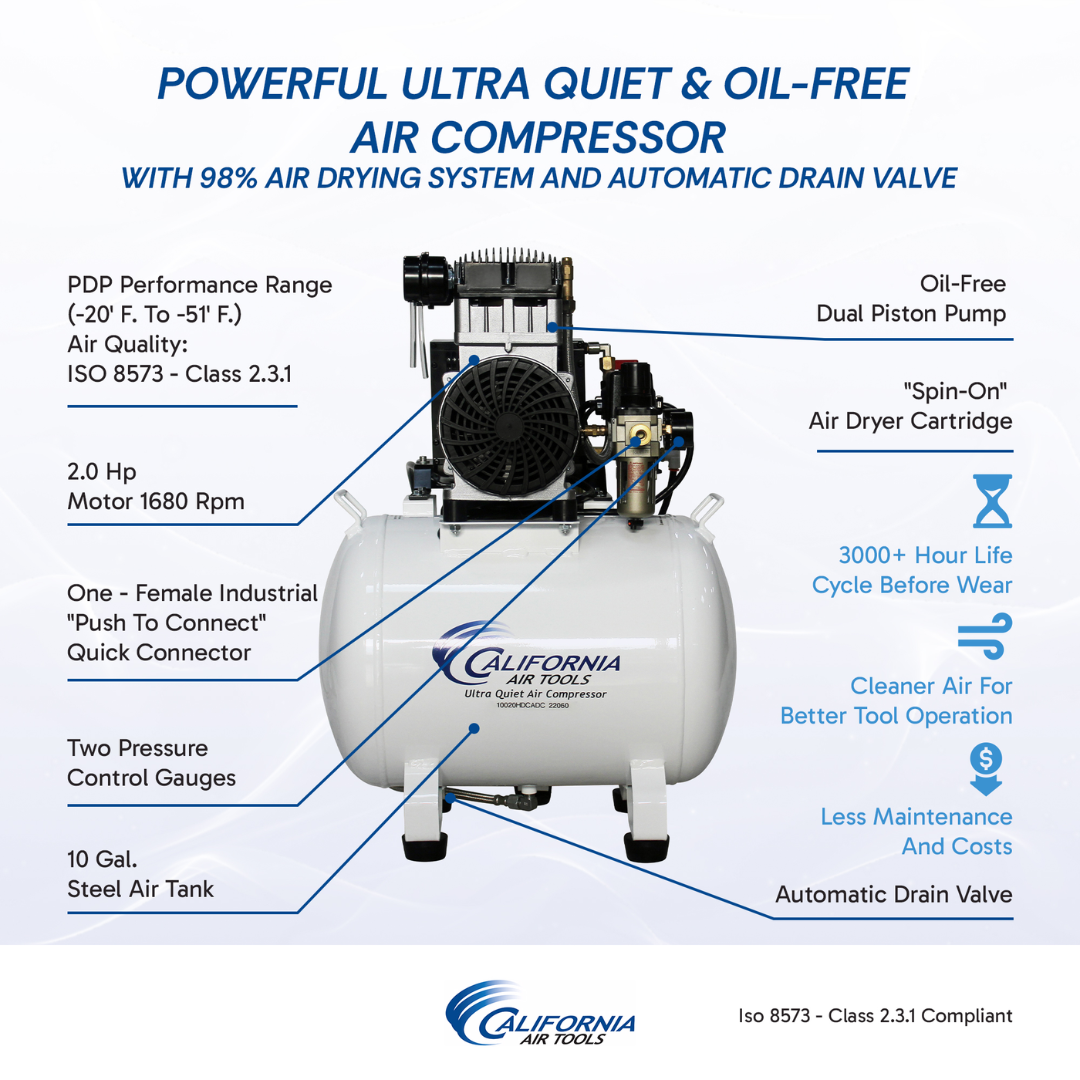

CALIFORNIA AIR TOOLS 10020HDCADC-22060 Powerful 2.0 Hp Ultra Quiet Ultra Dry Oil-Free 10 Gallon Air Compressor Performance & Construction

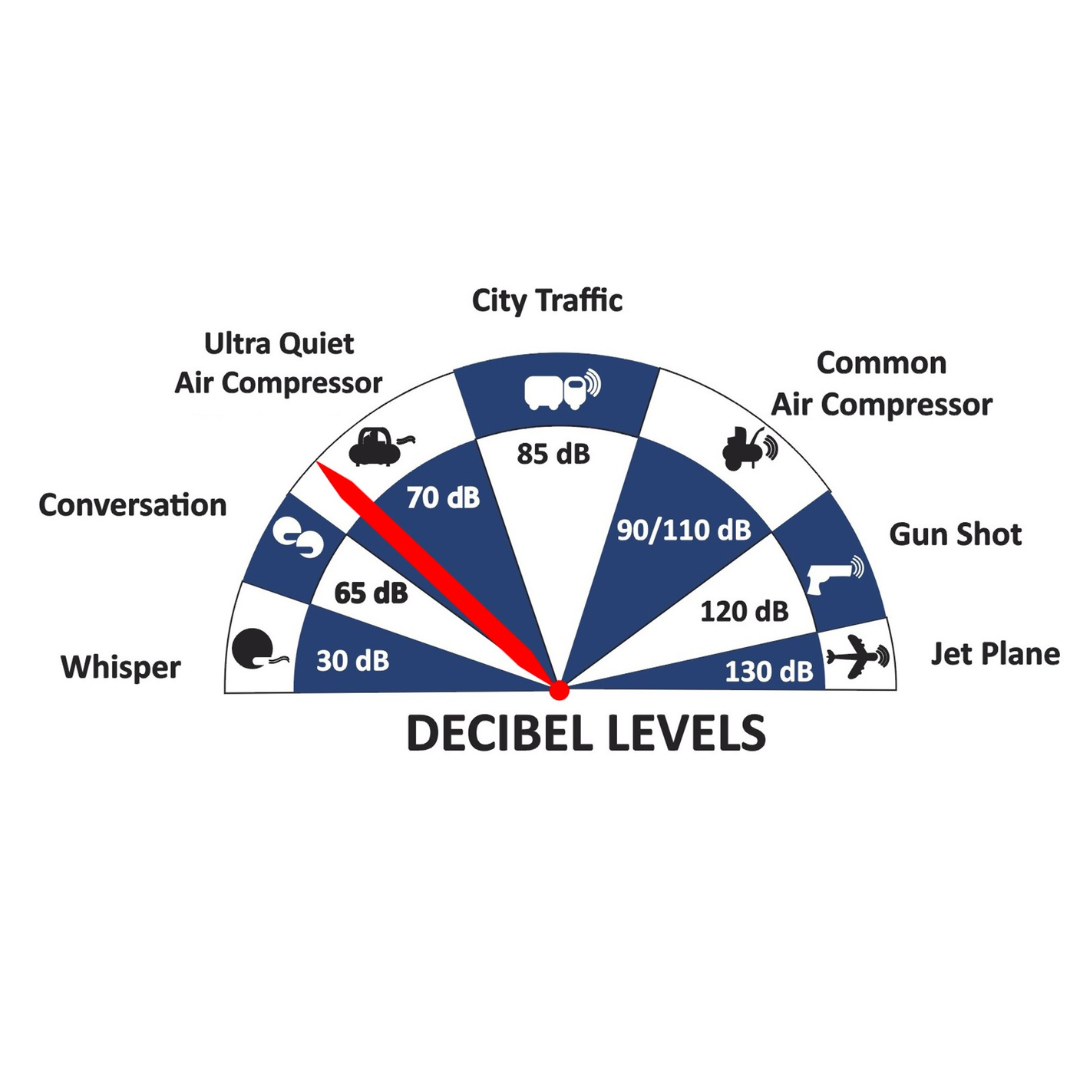

Ultra Quiet 70 dB Operation minimizes workplace noise while maintaining performance.

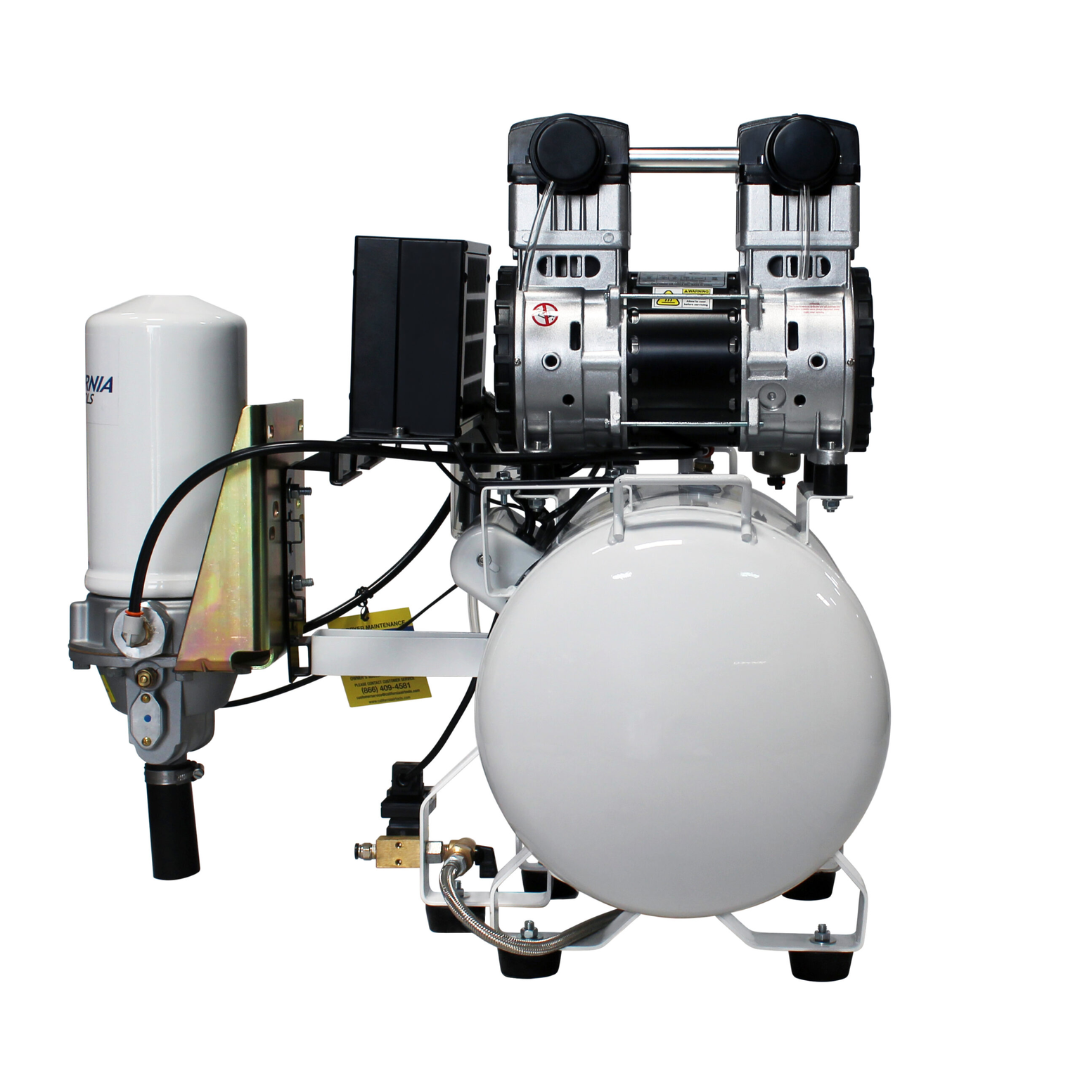

98% Air Drying System removes moisture for sensitive equipment protection.
ISO 8573 Class 2.3.1 Compliance ensures high-quality, clean compressed air.

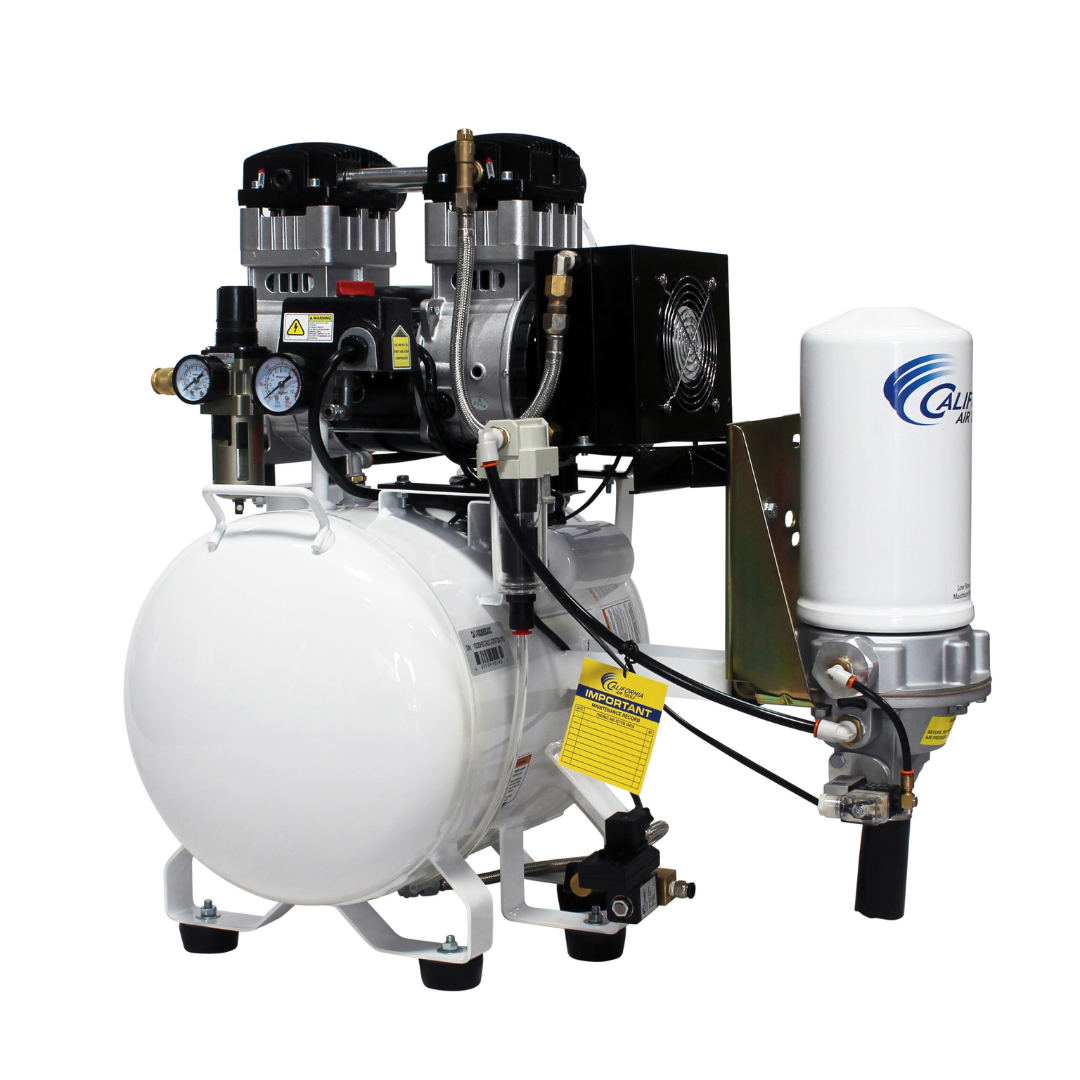

Oil-Free Dual Piston Pump delivers maintenance-free operation and contaminant-free air.
Low RPM Motor (1680 RPM) reduces wear, heat, and vibration.
Aftercooler System condenses moisture before entering the drying system.

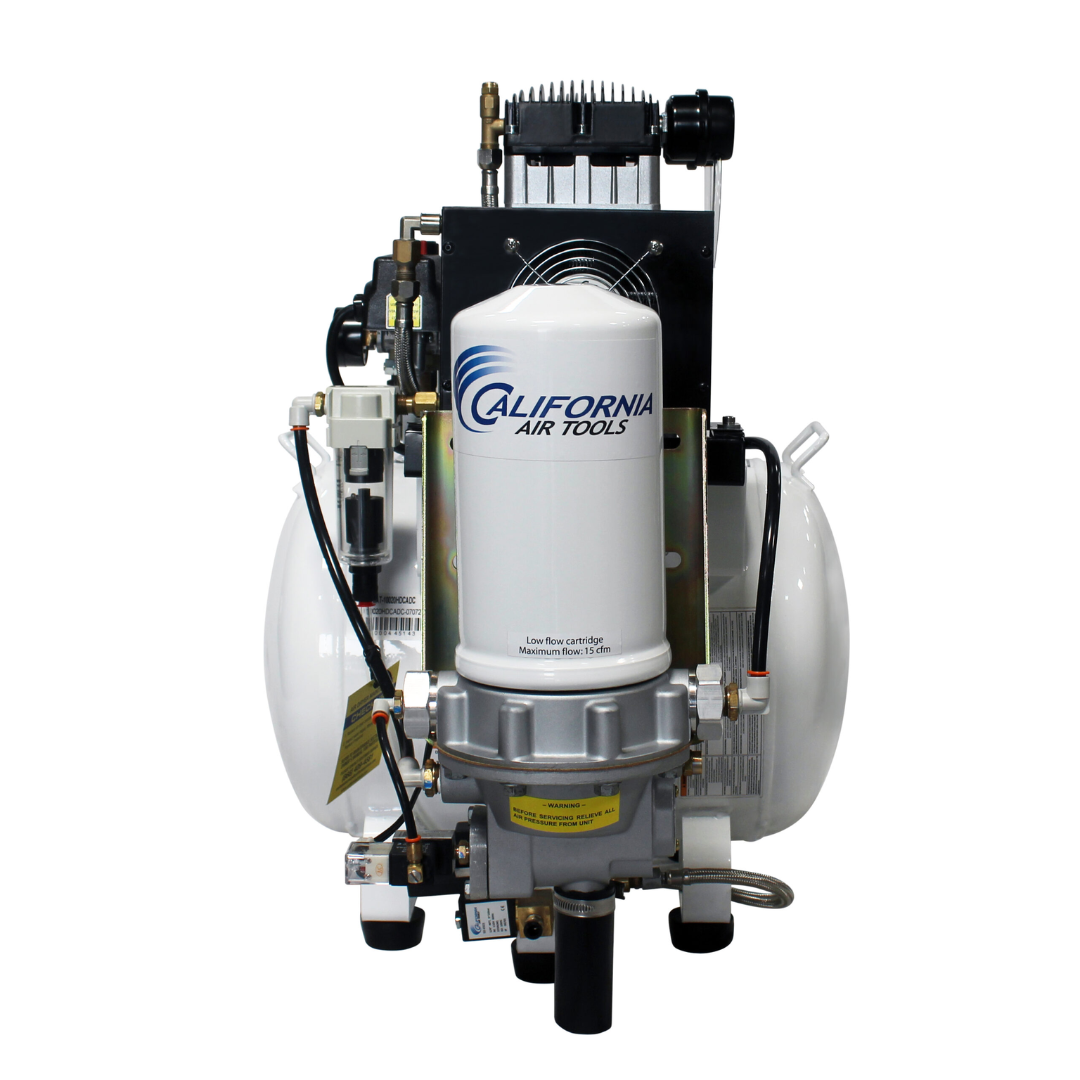

Spin-On Dryer Cartridge with molecular sieve desiccant for easy replacement.
0.01 Micron Prefilter & 5 Micron Regulator improves air purity and filtration.

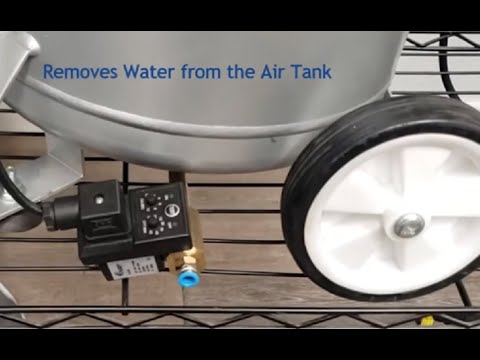

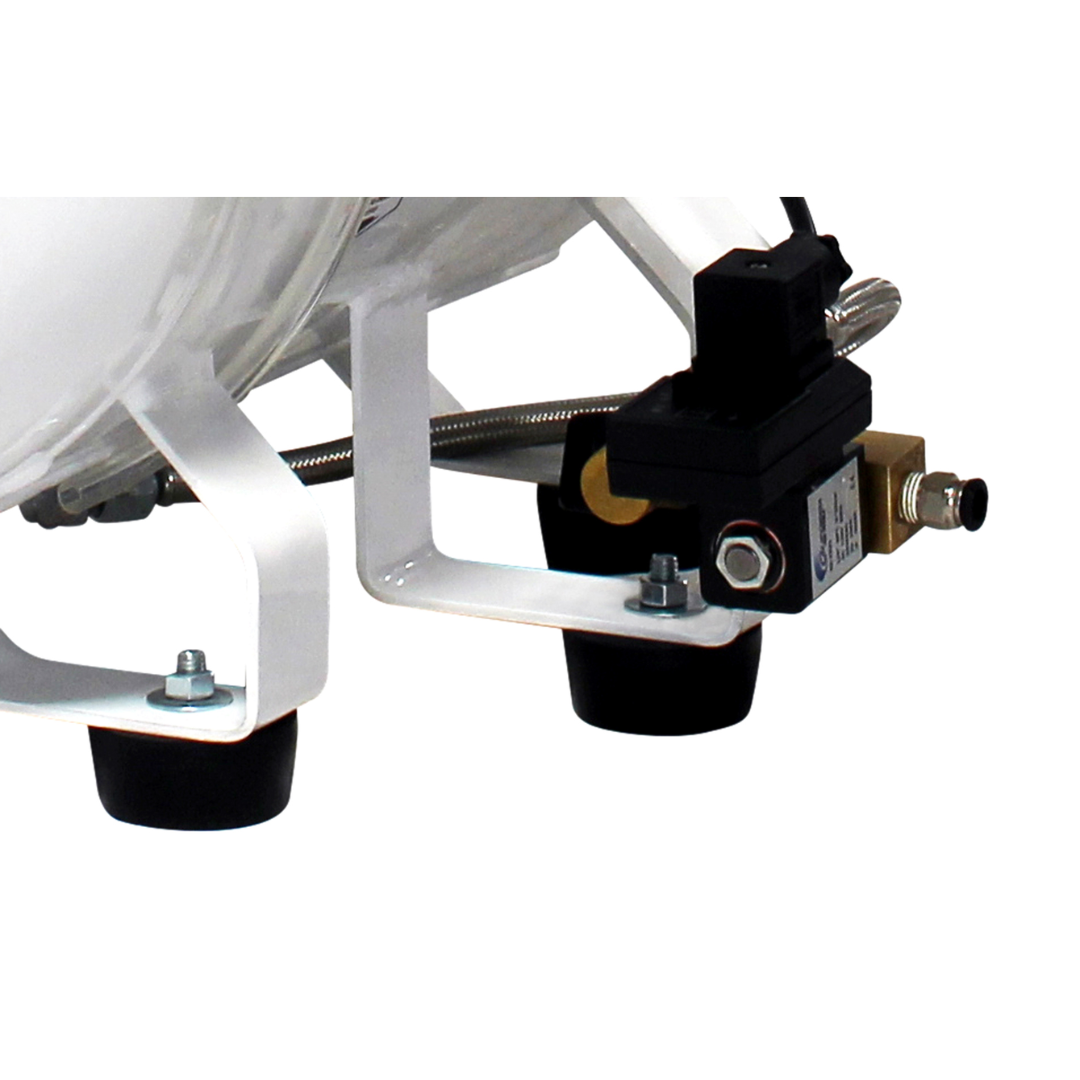

EZ-1 Automatic Drain Valve automates moisture removal from the tank.
Compact Horizontal Tank fits under workstations and tight spaces.
Thermal Overload Protection enhances safety and motor longevity.
Generator Compatible (3000 Running Watts) for flexible job site operation.

CALIFORNIA AIR TOOLS 10020HDCADC-22060 Powerful 2.0 Hp Ultra Quiet Ultra Dry Oil-Free 10 Gallon Air Compressor Maintenance

Replace air dryer cartridge every 4000 hours or approximately every 2 years.
Replace dual intake air filters every 1–2 years depending on operating environment.
Inspect filtration system and fittings regularly.
Ensure proper ventilation for efficient cooling during operation.

Routine maintenance ensures optimal drying efficiency, consistent airflow, and long system life.

Why Choose the CALIFORNIA AIR TOOLS 10020HDCADC-22060 Powerful 2.0 Hp Ultra Quiet Ultra Dry Oil-Free 10 Gallon Air Compressor

98% moisture removal with ultra-low dew point performance
ISO-certified clean air for critical applications
220V power with low amp draw for efficiency
Quiet operation for indoor and professional use
Durable oil-free system with 3000+ hour pump life

The CALIFORNIA AIR TOOLS 10020HDCADC-22060 Powerful 2.0 Hp Ultra Quiet Ultra Dry Oil-Free 10 Gallon Air Compressor delivers superior dry air performance, reliability, and quiet operation for professionals who demand the highest air quality standards.

Key Information

Order Cutoff Time: 2:00 PM EST
Order Handling Time: 1–3 business days (Monday–Friday)
Transit Time: 1–7 business days (Monday–Friday)
Total Estimated Delivery Time: 3–11 business days (Monday–Friday)
Shipping Availability: Free Shipping On some Items In The Contiguous United States only

For more information Click Here

Request Expert Consultation

Our tool specialists are ready to help you find the perfect solution for your specific application.

CAPITAL ACCESS

EQUIPMENT FINANCING

AVAILABLE

Preserve cash flow with up to 60 month financing.

Job Site Proven

Trusted by Facilities and manufacturing centers

JLT #180A-M2 Pneumatic Panel Flattener Customer review image

Travis Farwell | Farwell's Fine Woodworking Field Verified

I hope this helps

"I have attached the pictures of how I use my panel flattener. I hope this helps."

JLT #180A-M2 Pneumatic Panel Flattener

Mike Yaross Field Verified

Just what I needed

"Saw works great. Just what I needed. You may want to update the specs though. It says 110v but it’s 220v. I don’t think it will an 10” saw blade either. Haven’t tried but I don’t think it’s set up for one like it says. Ordering process was nice and easy. Thank you."

Castaly 12" Radial Arm Saw RS-612

FRANCISCO, Shop Manager Field Verified

Built for 24/7 Production

"Got the JLT #717C for our shop and it’s an absolute beast for narrow stile doors. The 2-second squaring cycle is legit—we’re easily pushing 100+ perfect doors a day now without stressing over glue joint alignment. Setup is super fast with the pin system, and the heavy-duty build takes daily abuse without losing accuracy."

JLT #717C Cabinet Door Clamp

JLT Pressurized A8 Glue Tank for PVA Glue PIZ.9001 in shop

Lincoln Lakes Ind | Lincoln Lakes Industries LLC Field Verified

Thanks for the service!

"Here are 2 pictures of the glue tank in our shop. I hesitated to send anything as it is not in its final place but perhaps it's good enough for you. We are using it for our drawer box station and assembly station. Thanks for the service!"

JLT Pressurized A8 Glue Tank for PVA Glue PIZ.9001

Gedalya Glauber Field Verified

Purchased Machine for Partner

"I purchased this machine for our partner in China to use. We had some issues but we were able to get them fixed thanks to iron line tools."

Virutex CE53S Edge Lipping Planer for Perfect Flush Edges 5300199

Virutex TWOO AB200 Corded Dowel Jointer (120V) 7900799 vertical dowel joint cutting on panel surface ensuring precise alignment and repeatable results

David & Joyce West Field Verified

I know this will meet my requirements

"haven't had a chance to use it but it looks like a well built product have a few projects down the road and I know this will meet my requirements. so hats off to your team! David"

Virutex TWOO AB200 Corded Dowel Jointer (120V) 7900799

Virutex AU93 Double Edge Trimmer And Scraper + RC21E Manual End Trimmer SET 2800086 complete edge finishing tool set shown with dual edge trimmer and manual end trimmer.

Stuart Casterlin | Stuart Casterlin Custom Cabinets and Fine Woodworking, Inc. Field Verified

Both Tools Work Great

"Both tools work great and are real time savers . The two tools that I received from your company were replacements for the exact same tools that I've used for the past years, I think its safe to say 20+ years. Extremely pleased with product and service."

Virutex AU93 Double Edge Trimmer And Scraper + RC21E Manual End Trimmer SET 2800086

Bradley Cole, CB Anderson Shutter Co Field Verified

They are just what we needed

"We use these clamps daily, and they're very helpful for our work. We are always happy to support a small business."

JLT #812B Clamp Design

California Air Tools 10020DCAD-22060 2.0 Hp Ultra Quiet Oil-Free 10 Gallon Air Compressor angled view with dual piston pump

Mike T., Shop Manager Field Verified

Quiet, Fast, and Totally Worth It

"Bought this California Air Tools compressor for the shop and it’s an absolute game changer. It’s incredibly quiet—you can actually have a normal conversation right next to it without yelling. It fills up fast, keeps up with all our nailers and blowguns with zero issues, and the oil-free pump means no maintenance. If you're tired of loud, annoying compressors ruining the vibe on your floor, grab this bad boy. Worth every penny."

Jet 16" x 40" Engine Lathe: Geared Head, 230 V 3 Phase, 3-1/8" Spindle Bore Dia, 25 to 1,800 RPM JT9-321381

Mark D. | Machine Shop Foreman Field Verified

Heavy Duty & Precise

"Brought this Jet 16" x 40" Engine Lathe into the shop recently and it’s an absolute beast. The 3-1/8" spindle bore is exactly what we needed for turning larger bar stock, and the geared head runs incredibly smooth from 25 all the way up to 1,800 RPM. It handles our heavy daily metalwork without breaking a sweat, and you can see how solid the build is right in the photo. If you need a reliable 3-phase lathe that holds tight tolerances all day, grab this bad boy. Worth every penny."

Jet Tools Lathe

Euroboor TCT 1" Depth Annular Cutter tungsten carbide tipped annular cutter designed for high-performance drilling in hard steel and abrasive materials.

LEKS KAMIHIRA Field Verified

Yep we got the cutter

"Yep we got the cutter. We haven’t used it, the project we purchased it for has ended. Shipping was fast and I had no issues getting my order"

Euroboor TCT 1" Depth Annular Cutter

Virutex Hand-Held Hot Air Edgebander Set AG52F AG98F AU93 RC21E 5200199 showing complete kit with edgebander, tape roll holder, and accessories

Jesse Pegorsch Field Verified

The edge bender is working great!

"The edge bender is working great! I’ll keep you in mind next time I need something for my shop"

Virutex Hand-Held Hot Air Edgebander Set AG52F: AG98F + AU93 + RC21E 5200199

Virutex Wheel Cutter Set of 2 Wheel Cutters for Laminate and Veneer 1527075 in retail packaging showing replacement cutting wheels

Bryce Bamsey Field Verified

Thanks for checking in.

"I believe they are working well judging by none of the guys have said anything about them other than a thank you for swapping them out for them hahah. So thanks for checking in."

Virutex Wheel Cutter Set Of 2 Wheel Cutters For Laminate And Veneer 1527075

Jesse Browning Field Verified

Figured it out

"I had issues initially with the order but iron line tools helped me figure it out and sent me another Handheld Gluer. Very good service."

Virutex EM125T Handheld Gluer With Upper Roller 2500300

Frequently Asked Questions

It runs on 220V/60Hz single-phase power, draws 7.5 amps and has a NEMA 6-15P plug that fits 6-15R or 6-20R receptacles.

Yes. It is generator compatible with a generator providing 3000 running watts, which adds flexibility for job site use.

An aftercooler and 98% drying system with molecular sieve desiccant deliver air rated to ISO 8573 Class 2.3.1, backed by a 0.01 micron prefilter and 5 micron regulator.

Replace the spin-on dryer cartridge every 4000 hours or about every 2 years and the dual intake filters every 1–2 years. The EZ-1 automatic drain valve takes care of tank draining.

It produces 6.40 CFM at 40 PSI and 5.30 CFM at 90 PSI with a 125 PSI maximum, filling in about 120 seconds and recovering in about 25 seconds.

It uses a compact horizontal 10 gallon steel tank, measures 20" × 28" × 26", weighs 100 lbs and runs at 70 dB.
