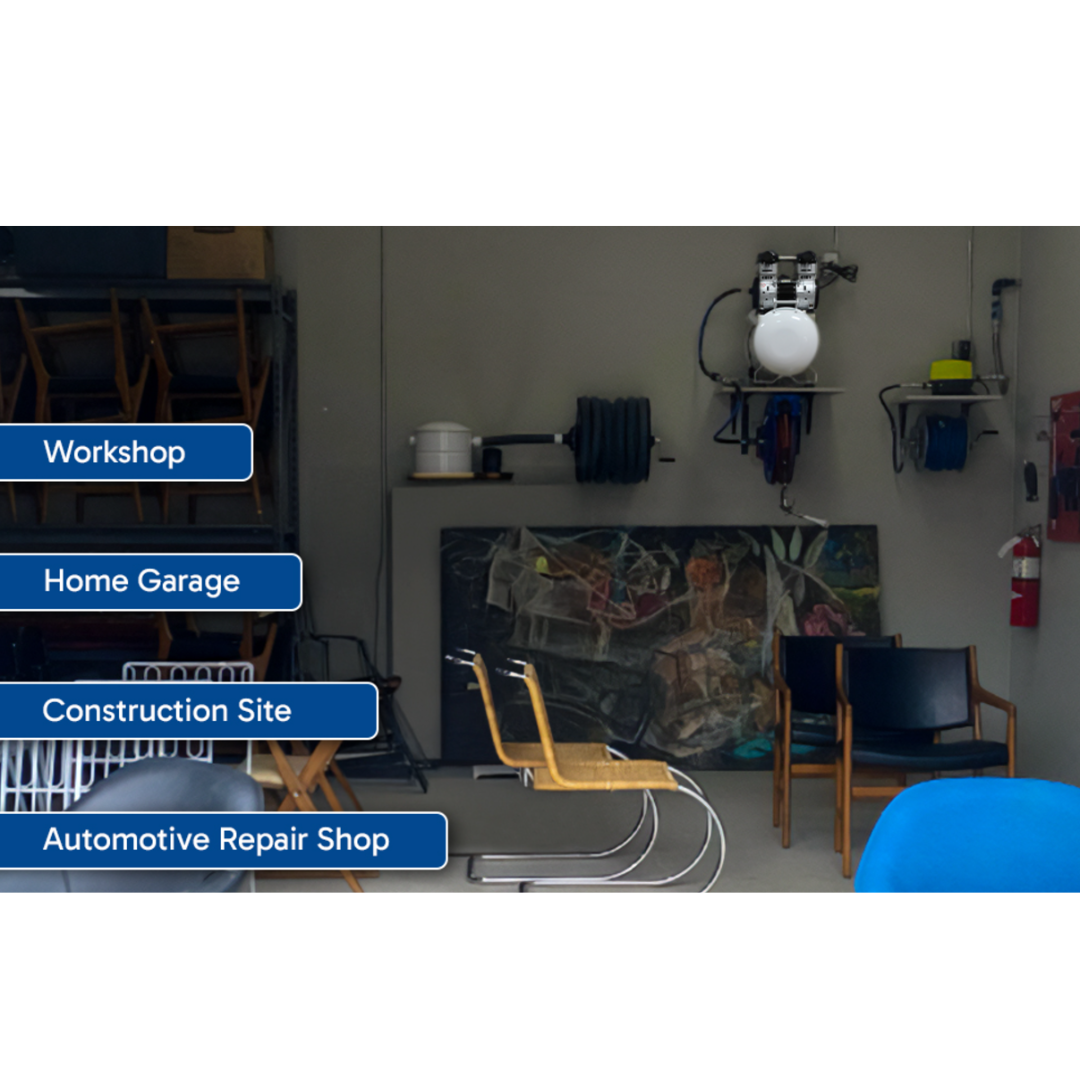

CALIFORNIA AIR TOOLS 10020CHAD Powerful 2.0 Hp Ultra Quiet Oil-Free 10 Gallon Air Compressor with Automatic Drain Valve Applications
- Automotive repair and tire inflation
- Workshops requiring low-profile equipment placement
- Contractor and jobsite use with limited maintenance access
- Indoor environments where quiet operation is essential
- Under-bench or shelf-mounted installations
Ideal for installations where regular tank draining is difficult—automatic drainage handles maintenance for you.

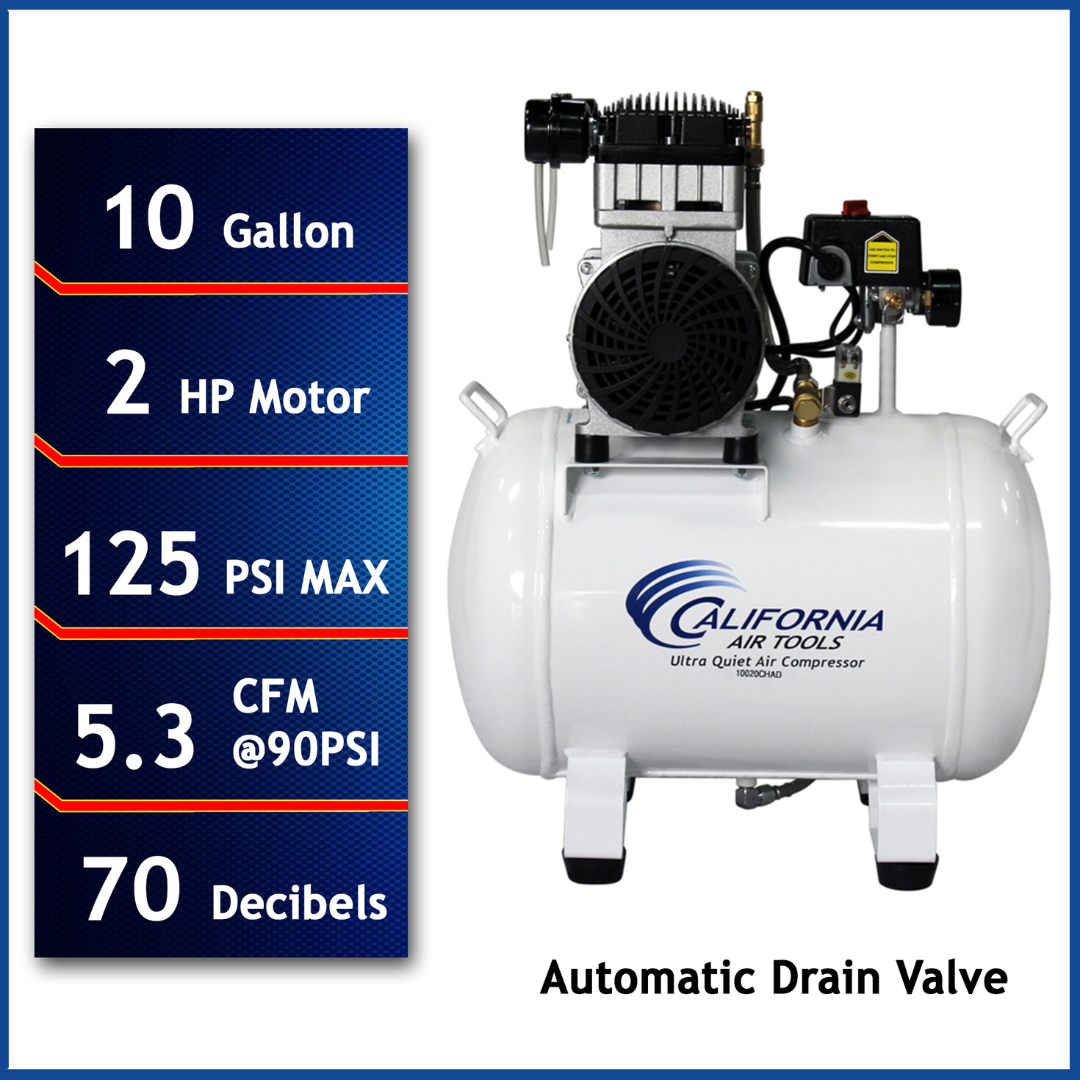

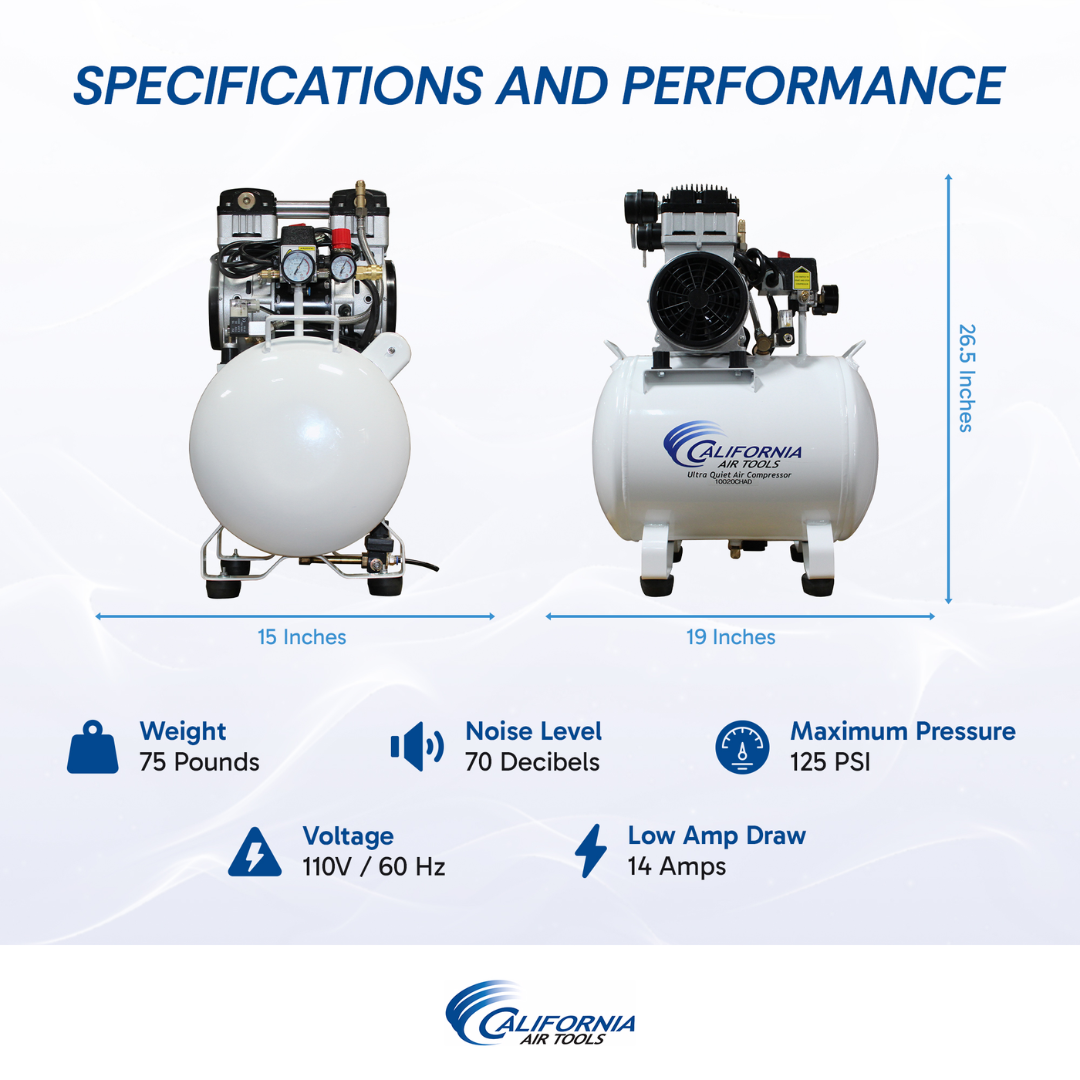

CALIFORNIA AIR TOOLS 10020CHAD Powerful 2.0 Hp Ultra Quiet Oil-Free 10 Gallon Air Compressor with Automatic Drain Valve Specifications
| Model | 10020CHAD |
|---|---|
| Motor Power | 2.0 HP (Rated/Running) |

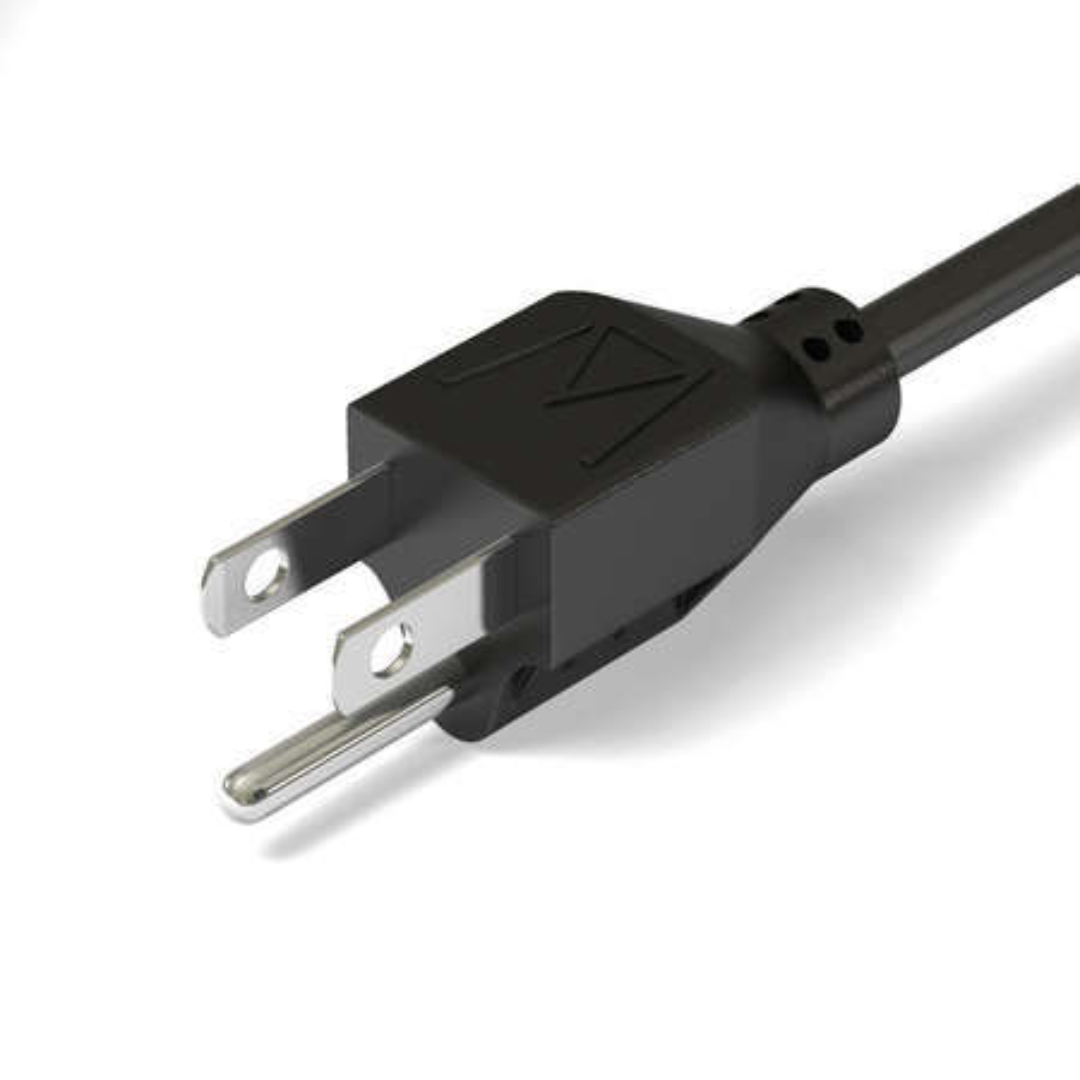

| Voltage | 110V / 60Hz |
| Noise Level | 70 dB |
| CFM @ 40 PSI | 6.40 CFM |
| CFM @ 90 PSI | 5.30 CFM |
| Maximum Pressure | 130 PSI |
| Working Pressure | 100–130 PSI |
| Tank Size | 10 Gallon Steel Horizontal (Low Profile) |
| Weight | 75 lbs |
| Dimensions (L × W × H) | 19" × 15" × 26.5" |
| Amperage | 14 Amps |
| Duty Cycle | 70/30 |
| Fill Time | 120 Seconds |
| Recovery Time | 25 Seconds (95 PSI to 125 PSI) |
| Tank Type | Non-ASME Steel Tank |
| Auto Drain System | EZ-1-2321 Automatic Drain Valve (Factory Installed) |
| Warranty | 1 Year Limited |

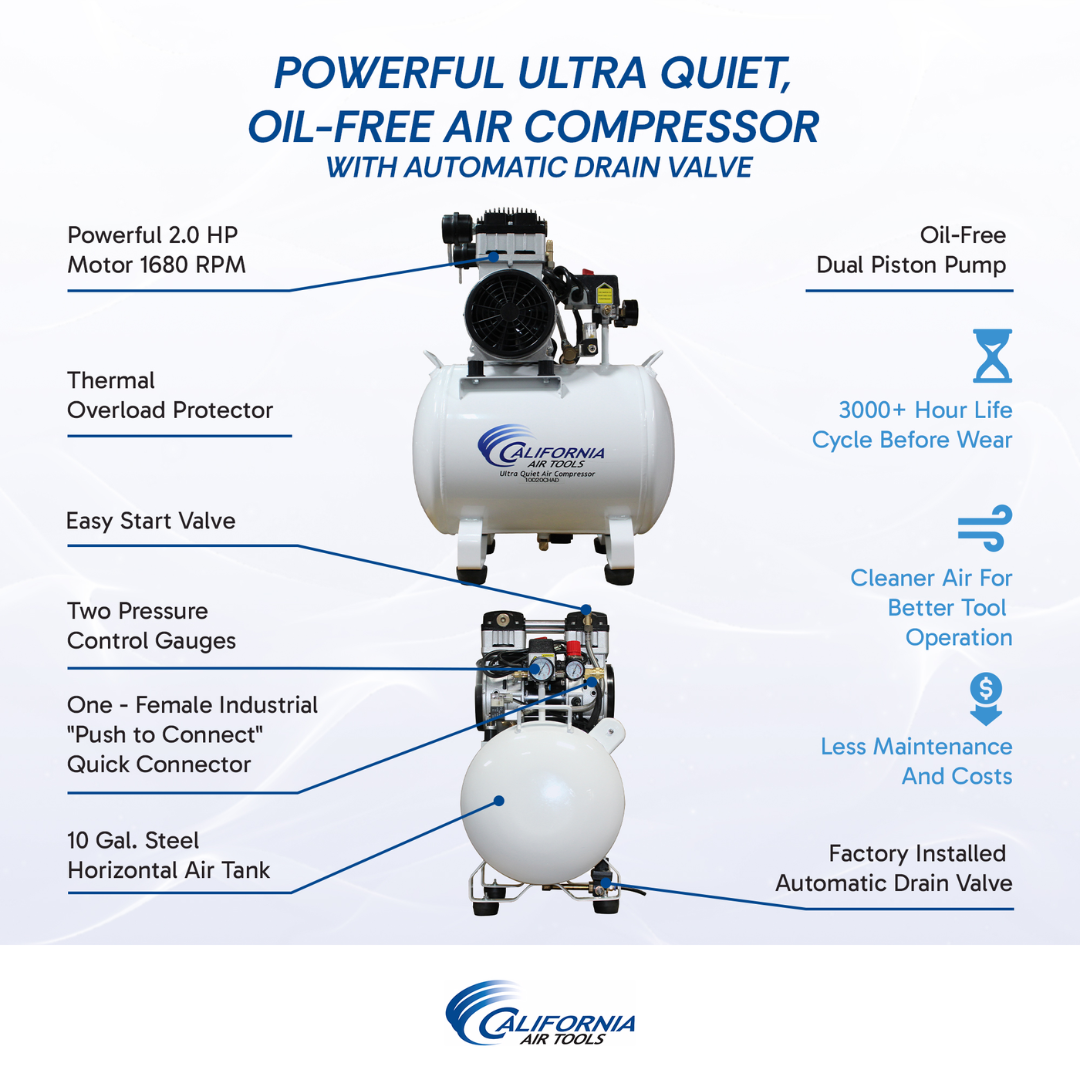

CALIFORNIA AIR TOOLS 10020CHAD Powerful 2.0 Hp Ultra Quiet Oil-Free 10 Gallon Air Compressor with Automatic Drain Valve Performance & Construction

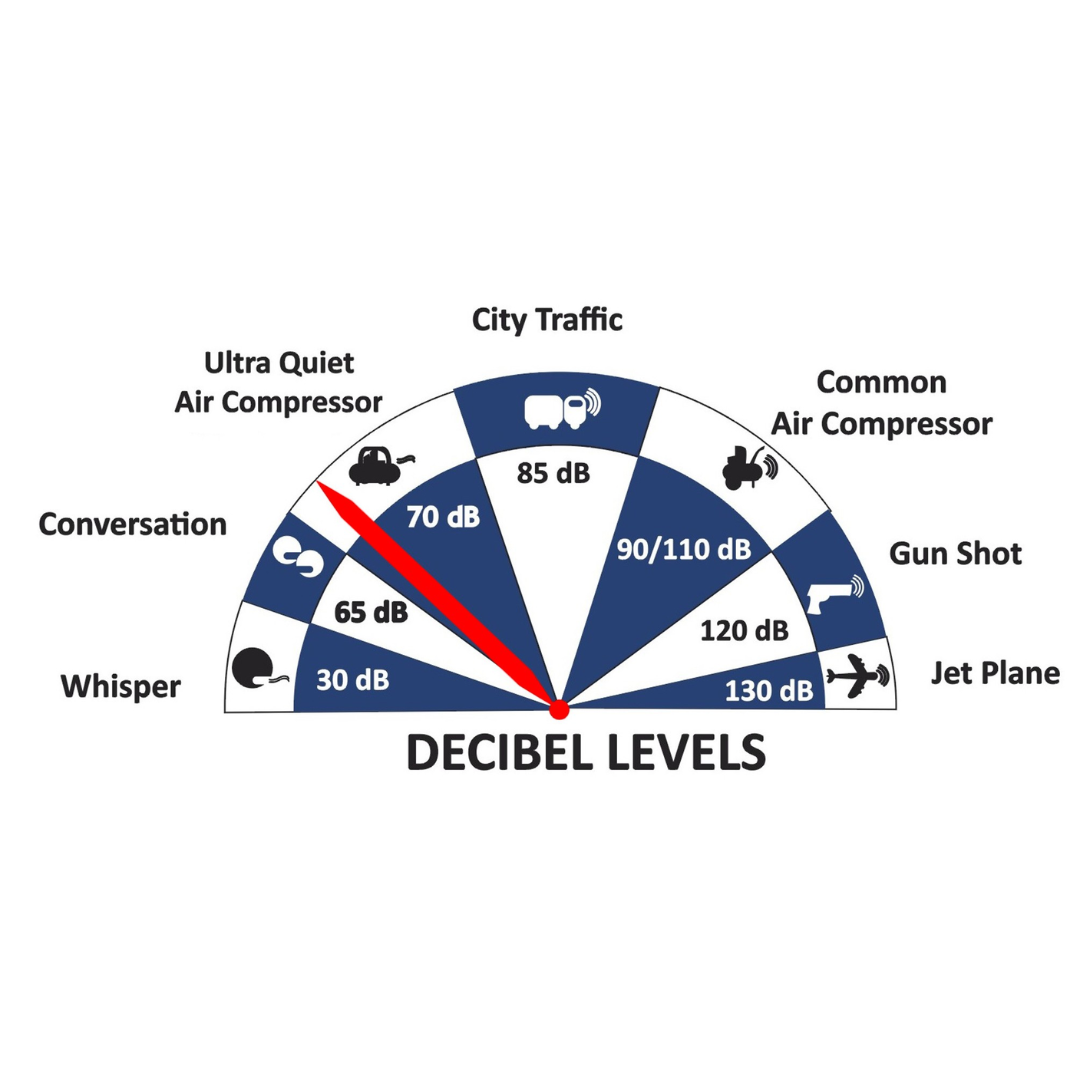

- Ultra Quiet 70 dB Operation allows for comfortable use in noise-sensitive environments.
- 2.0 HP Low RPM Motor (1680 RPM) reduces wear while delivering consistent power.

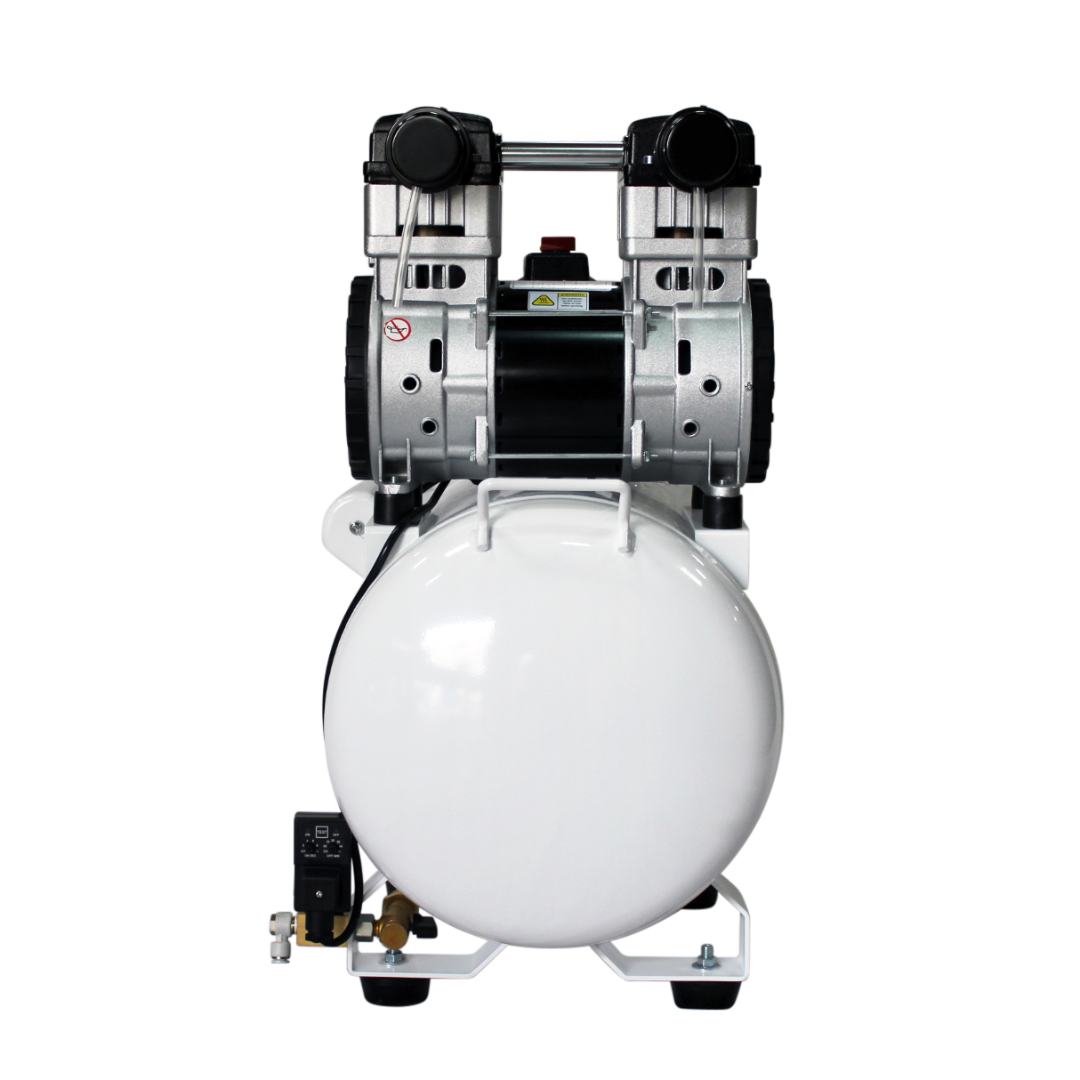

- Oil-Free Dual Piston Pump ensures cleaner air and eliminates oil maintenance.
- Extended Pump Life (3000+ Hours) significantly increases durability over standard compressors.

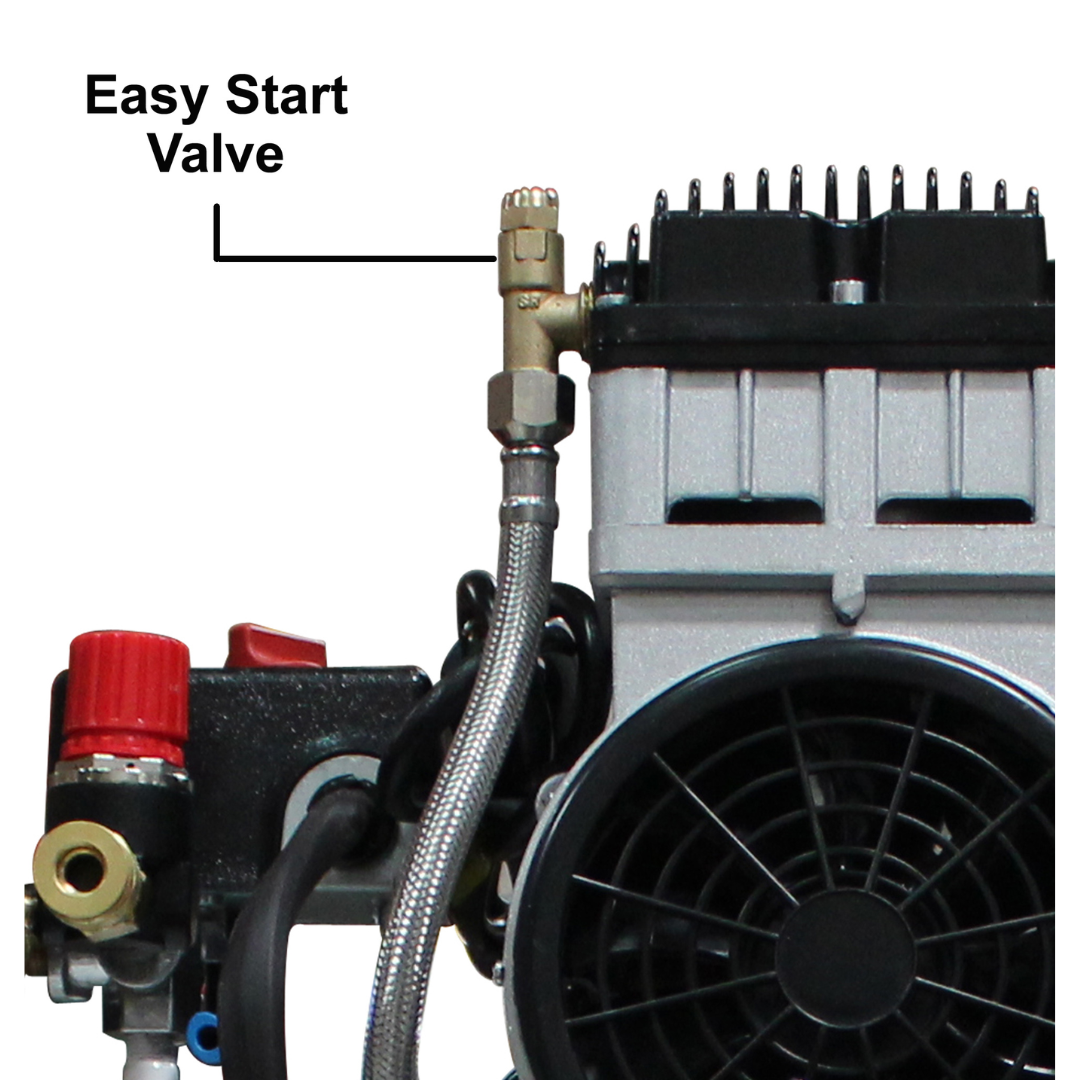

- Easy Start Valve reduces starting amps for reliable performance in cold conditions.

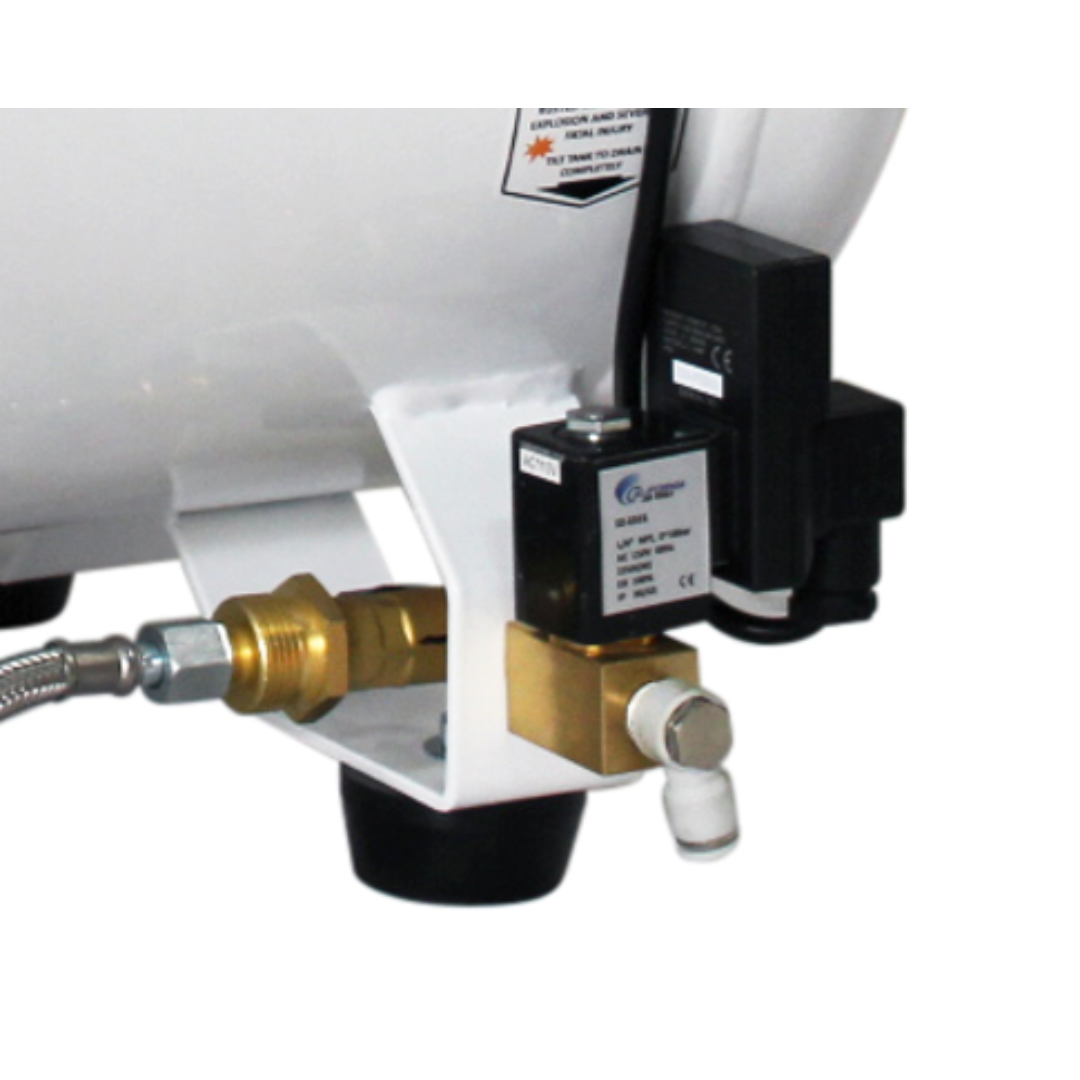

- Automatic Drain Valve System removes moisture automatically, reducing manual maintenance requirements.

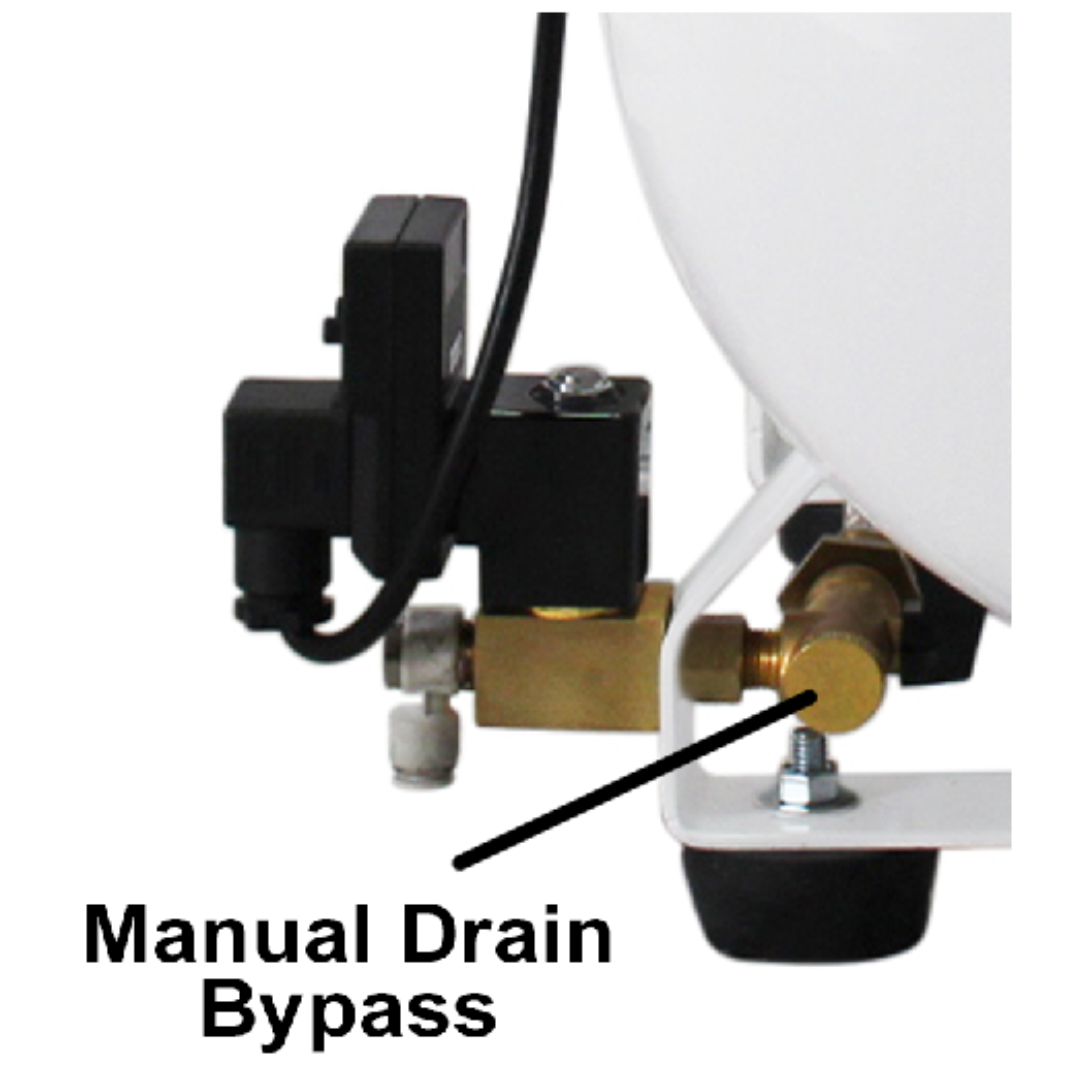

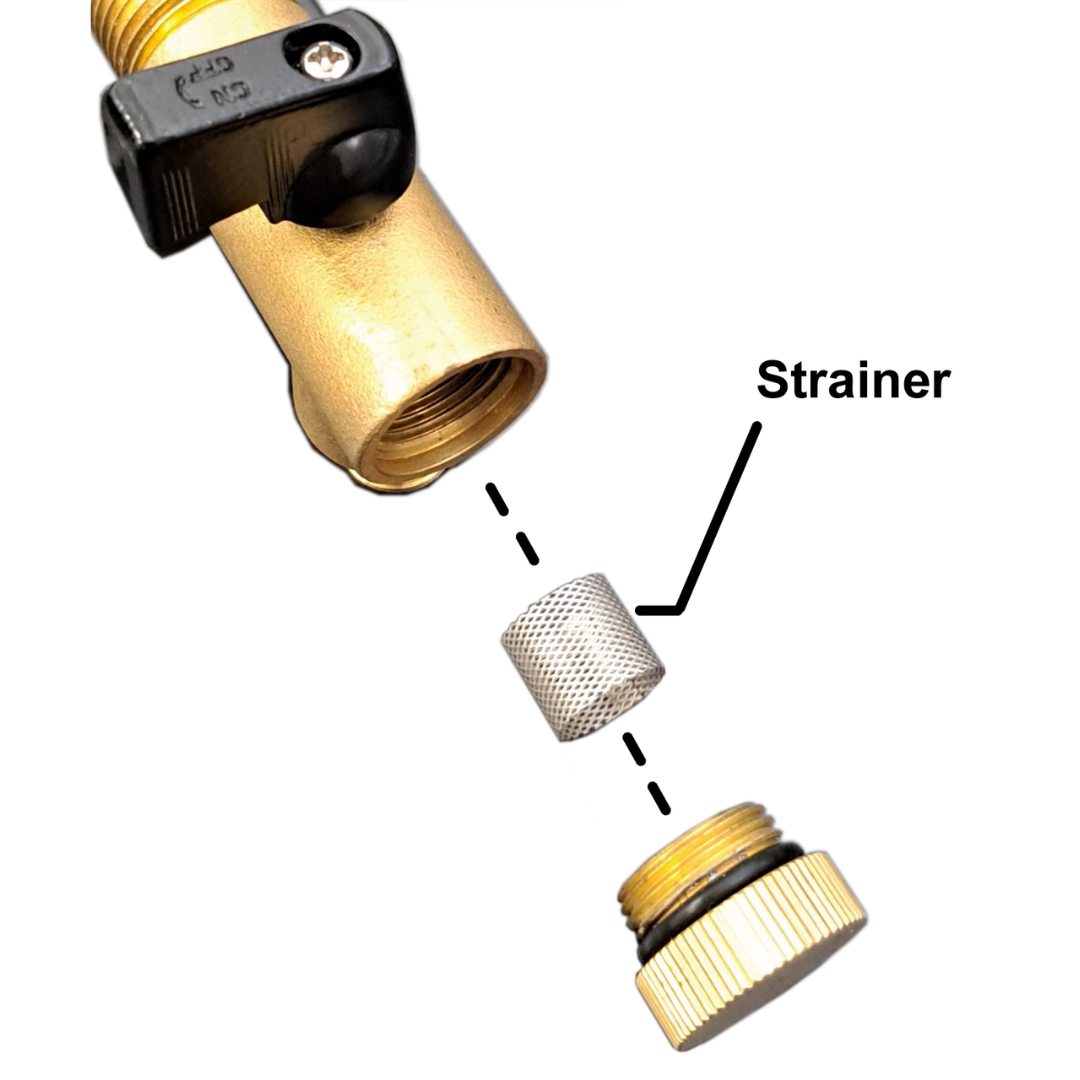

- Manual Drain with Strainer allows easy cleaning and servicing of the drainage system.

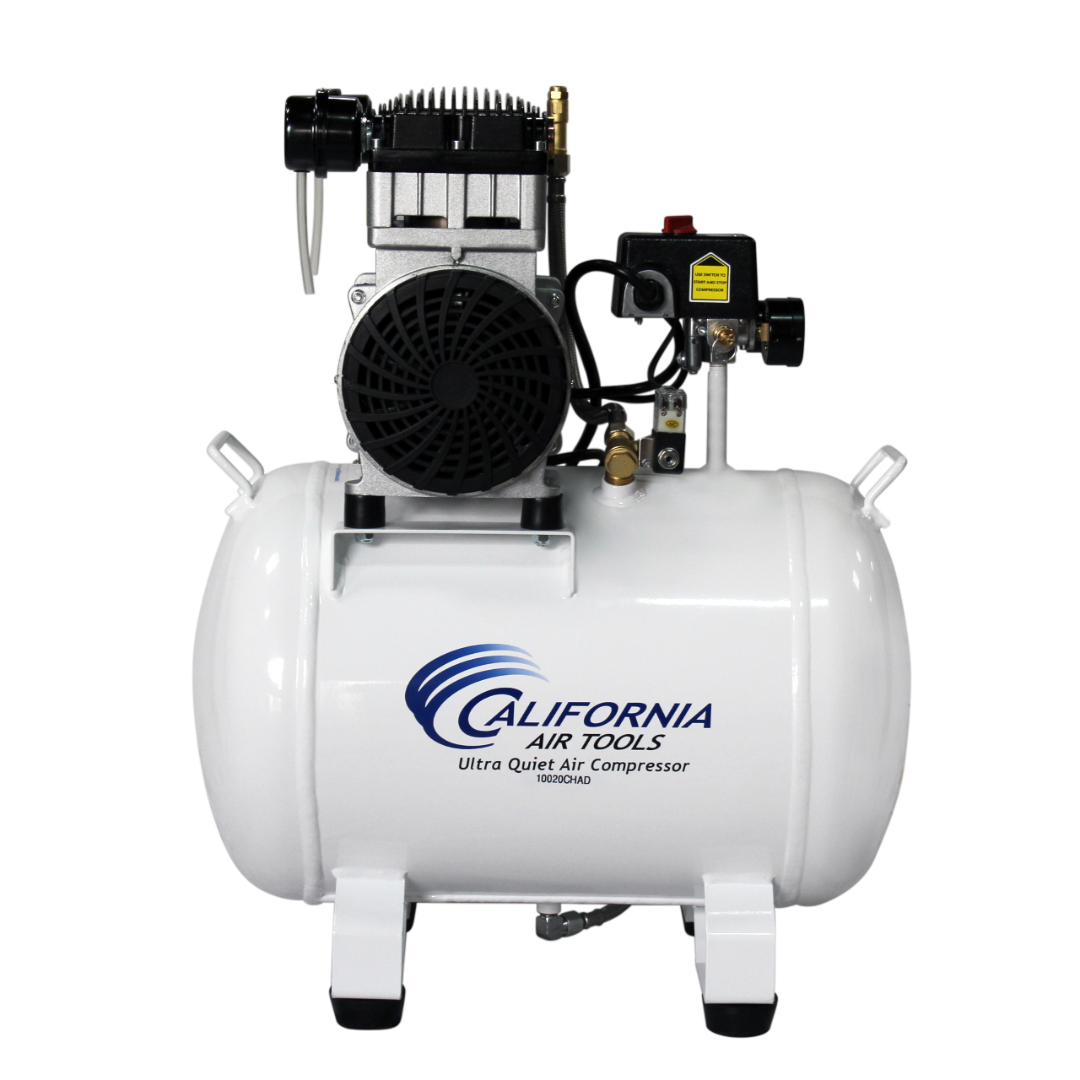

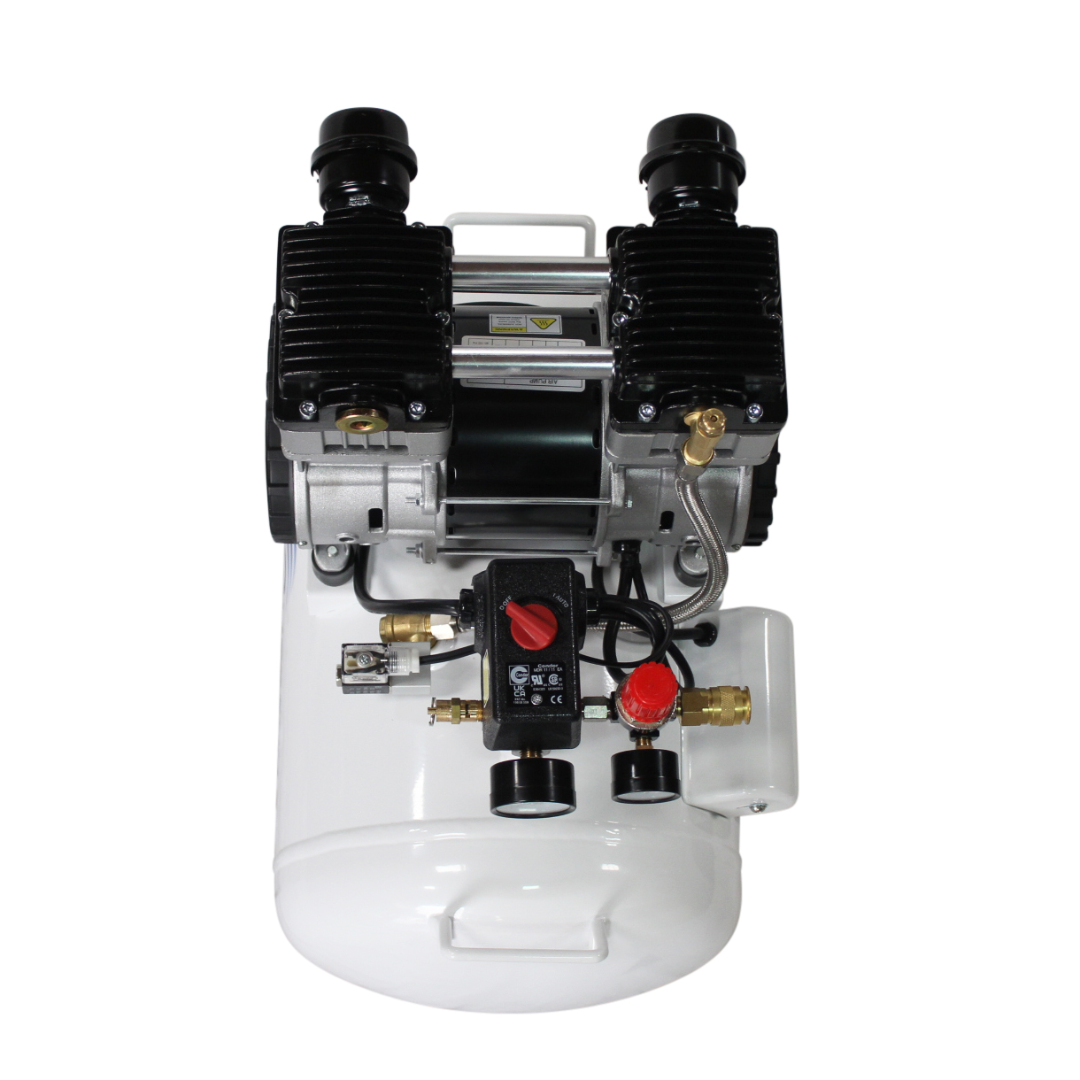

- Low Profile Horizontal Tank fits easily under benches, shelves, or workstations.
- Thermal Overload Protection protects the motor from overheating.
- Quick Connect Coupler provides fast tool connection and operation.
- Efficient Cooling Design minimizes heat buildup for longer continuous use.
Why Choose the CALIFORNIA AIR TOOLS 10020CHAD Powerful 2.0 Hp Ultra Quiet Oil-Free 10 Gallon Air Compressor with Automatic Drain Valve
- Automatic drain system eliminates the need for routine manual tank draining.
- Ultra-quiet 70 dB performance ideal for indoor and professional settings.
- Low-profile design perfect for tight or under-bench installations.
- Oil-free system reduces maintenance and operational costs.
- High airflow output supports a wide range of pneumatic tools.
The CALIFORNIA AIR TOOLS 10020CHAD Powerful 2.0 Hp Ultra Quiet Oil-Free 10 Gallon Air Compressor with Automatic Drain Valve combines quiet operation, powerful performance, and automated maintenance—making it an excellent solution for professionals seeking efficiency and convenience.
