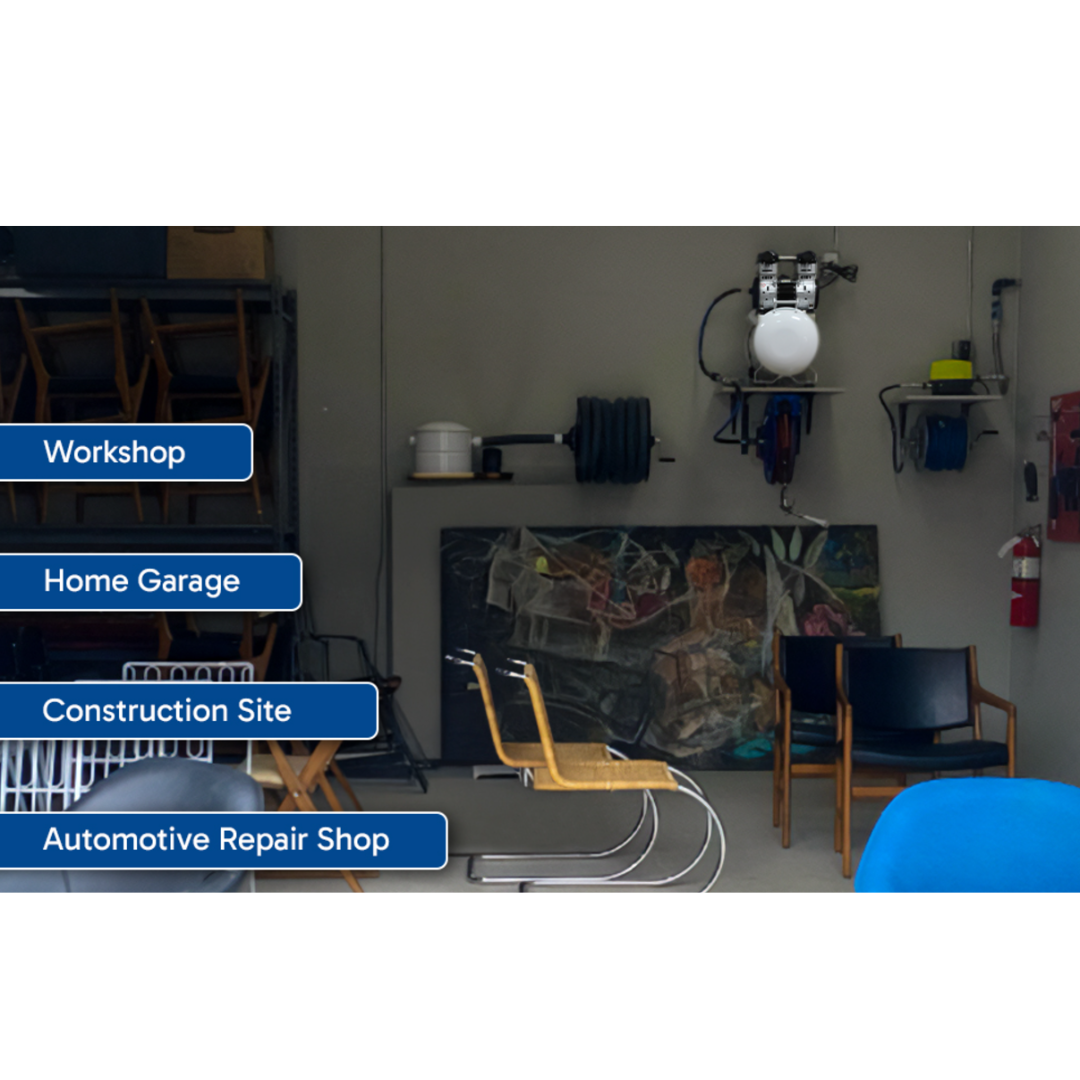

CALIFORNIA AIR TOOLS 10020CHAD-22060 Powerful 2.0 Hp Ultra Quiet Oil-Free 10 Gallon Air Compressor with Automatic Drain Valve Applications
- Professional workshops requiring 220V power systems
- Automotive repair and tire inflation applications
- Under-bench or shelf-mounted installations
- Industrial environments with limited maintenance access
- Indoor workspaces where low noise is critical
Ideal for users needing reliable 220V performance with automatic moisture management and minimal maintenance.
CALIFORNIA AIR TOOLS 10020CHAD-22060 Powerful 2.0 Hp Ultra Quiet Oil-Free 10 Gallon Air Compressor with Automatic Drain Valve Specifications
| Model | 10020CHAD-22060 |
|---|---|
| Motor Power | 2.0 HP (Rated/Running) |
| Voltage | 220V / 60Hz / Single Phase |
| Operating Voltage Range | 215V – 250V |
| Noise Level | 70 dB |
| CFM @ 40 PSI | 6.40 CFM |
| CFM @ 90 PSI | 5.30 CFM |
| Maximum Pressure | 130 PSI |
| Working Pressure | 100–130 PSI |
| Tank Size | 10 Gallon Steel Horizontal (Low Profile) |
| Weight | 75 lbs |
| Dimensions (L × W × H) | 19" × 15" × 26.5" |
| Amperage | 7.0 Amps |
| Duty Cycle | 70/30 |
| Max Continuous Run | 45–60 Minutes |
| Fill Time | 120 Seconds |
| Recovery Time | 25 Seconds (95 PSI to 125 PSI) |
| Tank Type | Non-ASME Steel Tank |
| Auto Drain System | EZ-1-2321 Automatic Drain Valve (Factory Installed) |

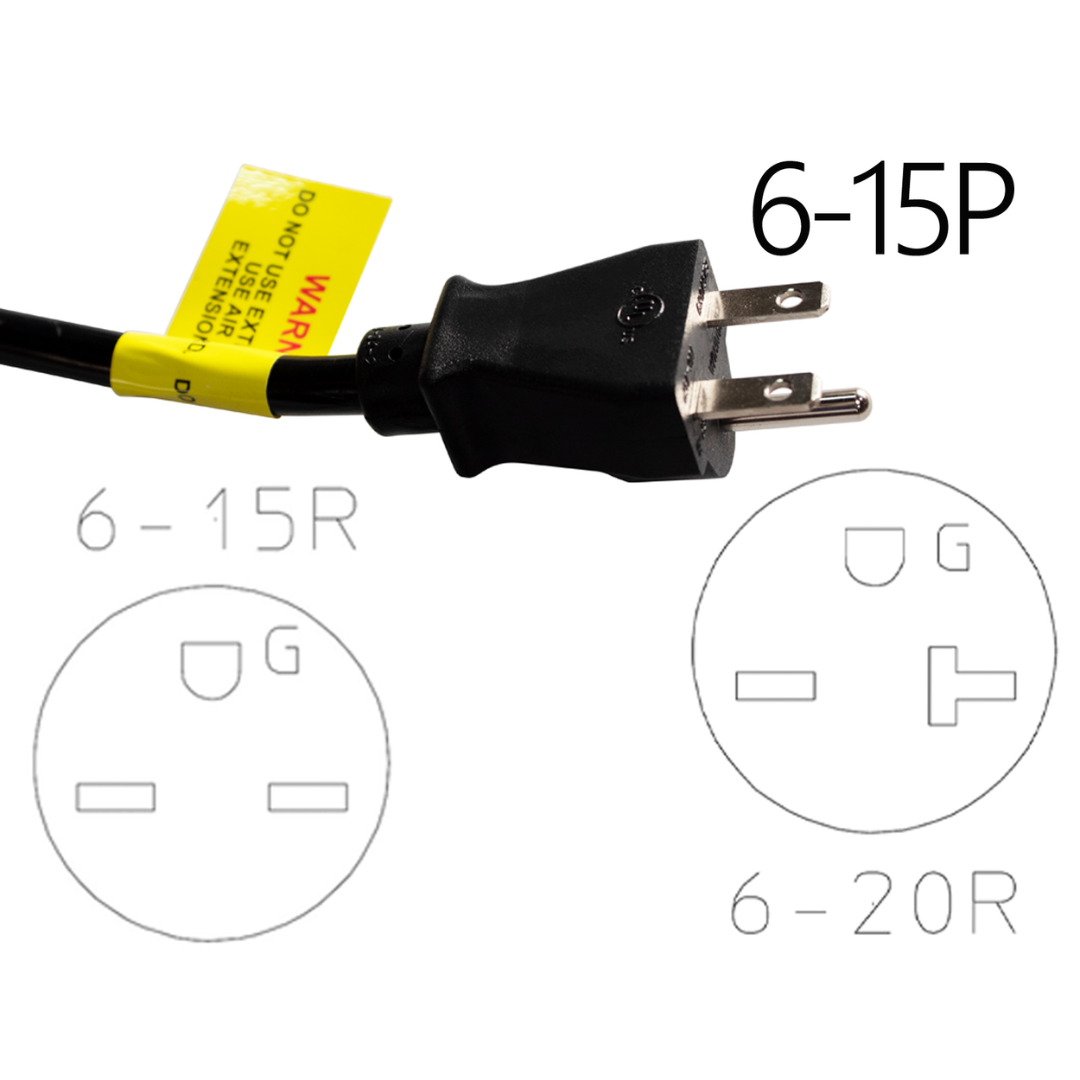

| Plug Type | NEMA 6-15P |
| Warranty | 1 Year Limited |

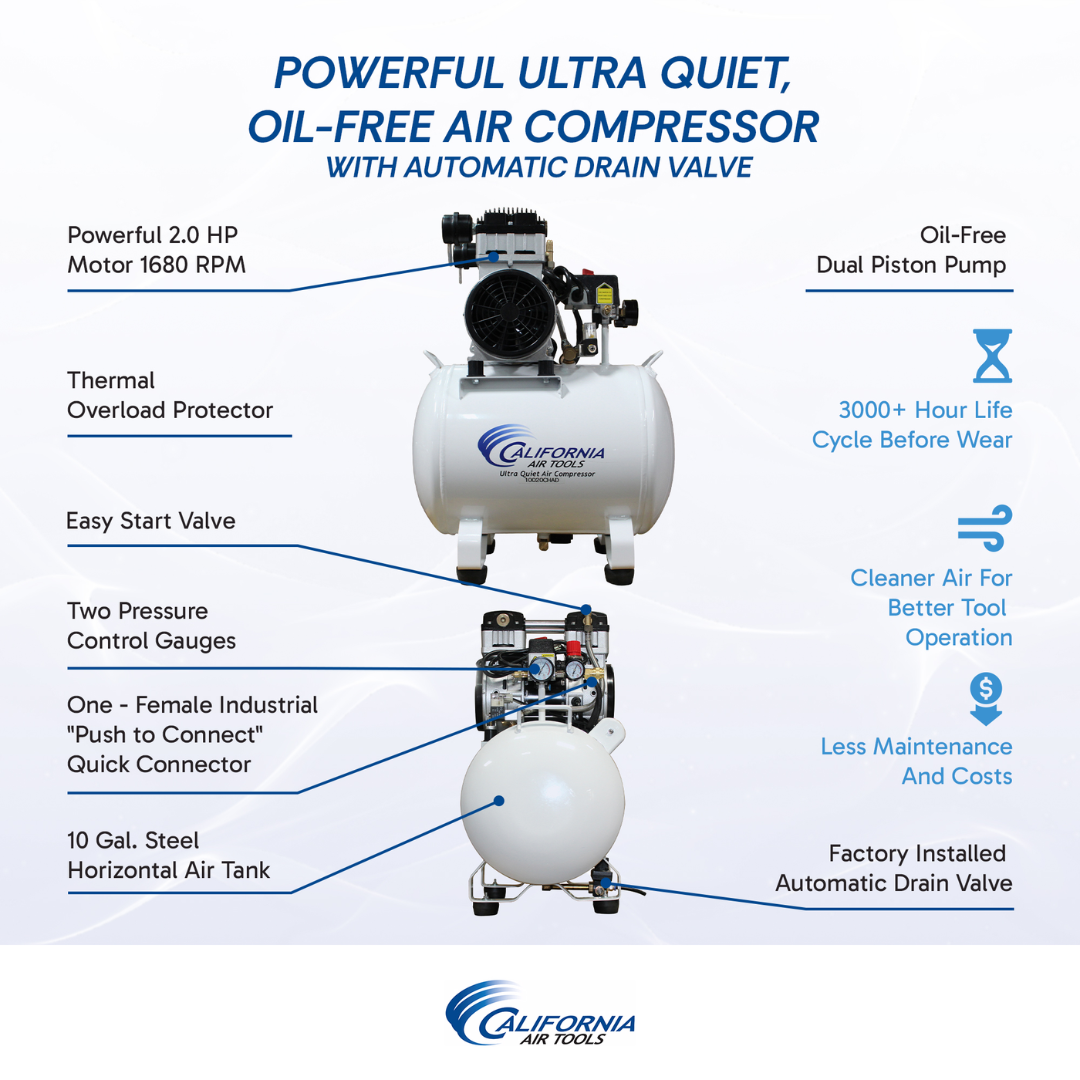

CALIFORNIA AIR TOOLS 10020CHAD-22060 Powerful 2.0 Hp Ultra Quiet Oil-Free 10 Gallon Air Compressor with Automatic Drain Valve Performance & Construction

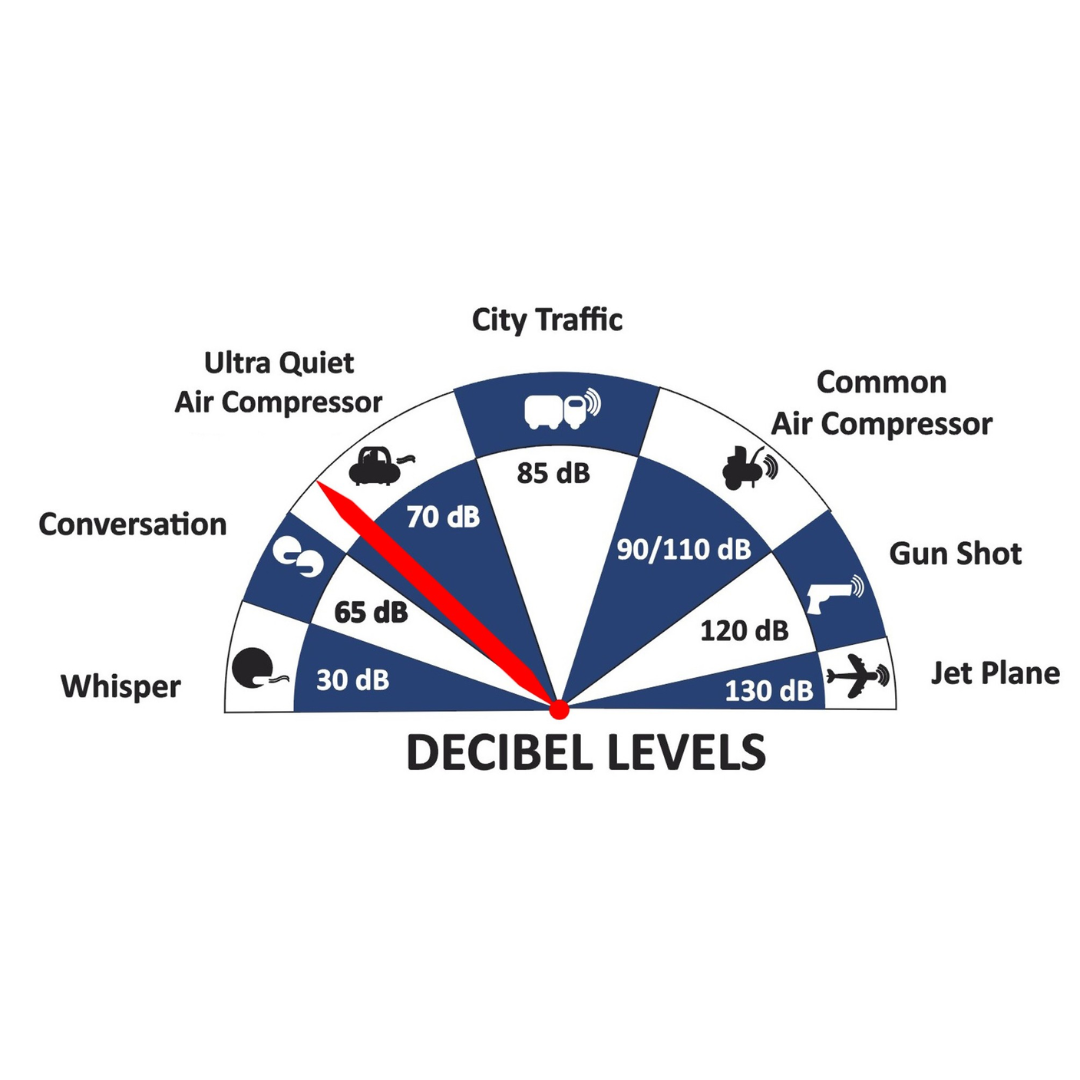

- Ultra Quiet 70 dB Operation provides one of the lowest noise levels in its class.
- 220V 2.0 HP Low RPM Motor (1680 RPM) delivers efficient performance with reduced wear.

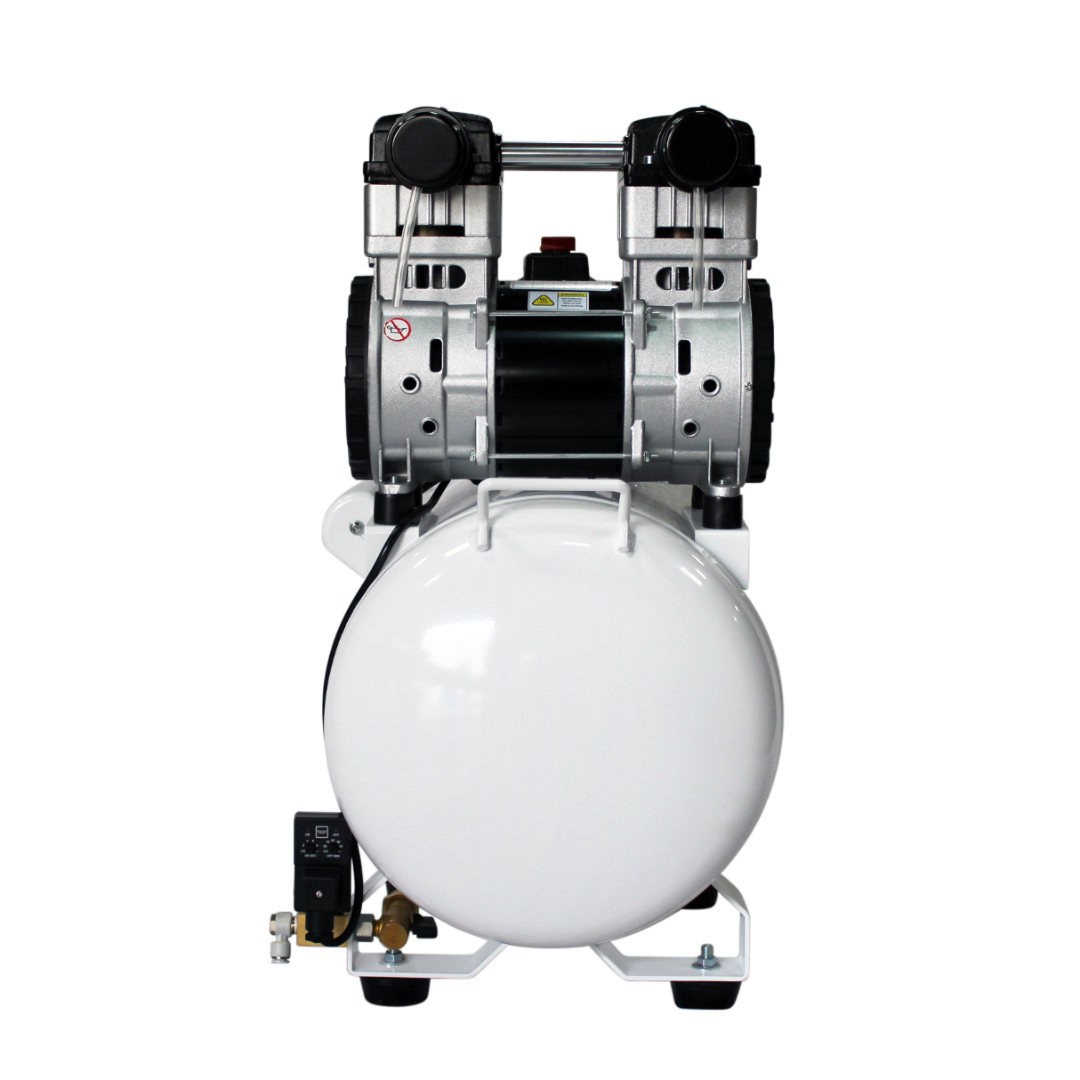

- Oil-Free Dual Piston Pump ensures clean air output and eliminates oil maintenance.
- Extended Pump Life (3000+ Hours) significantly improves durability and longevity.

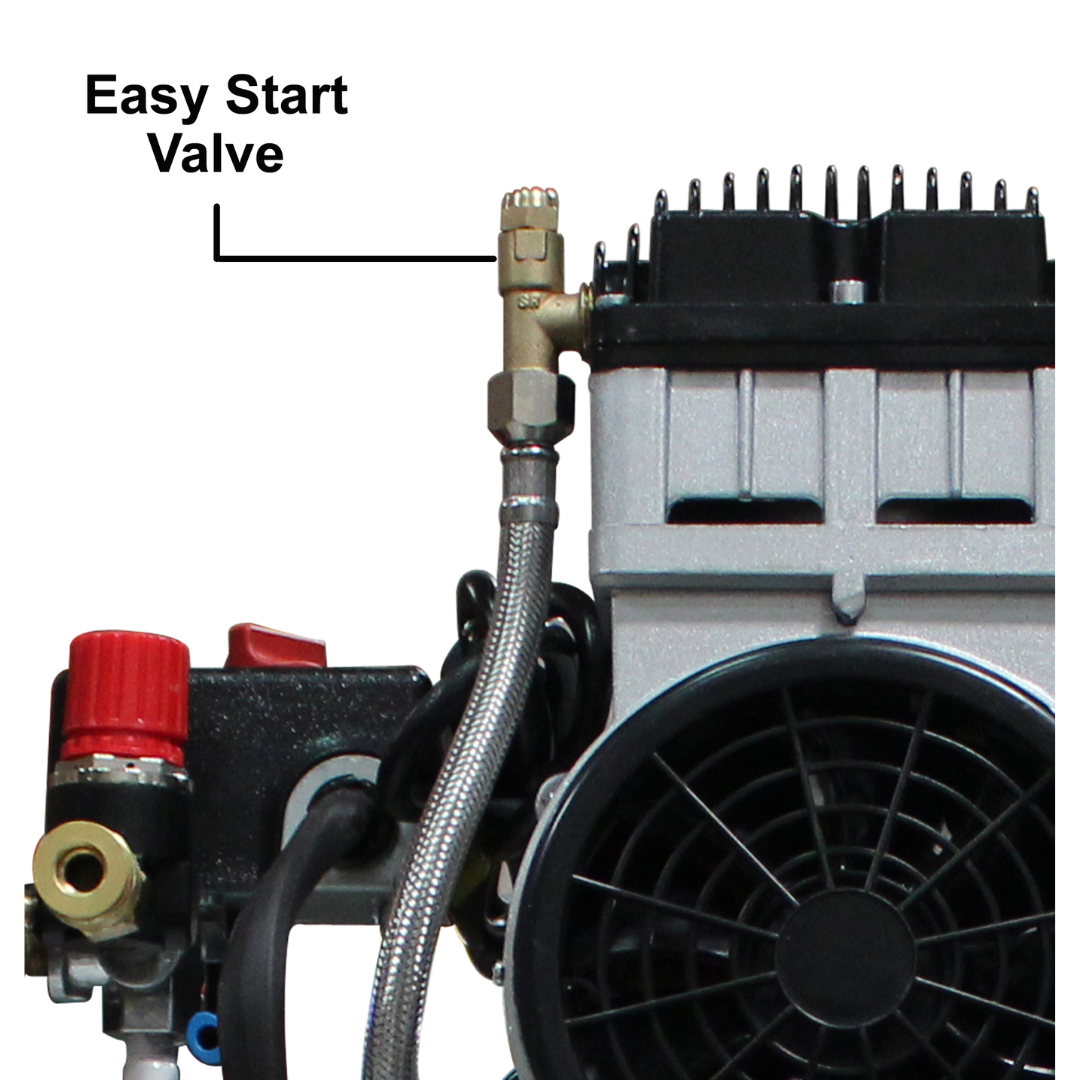

- Easy Start Valve reduces starting amps for reliable cold-weather startups.

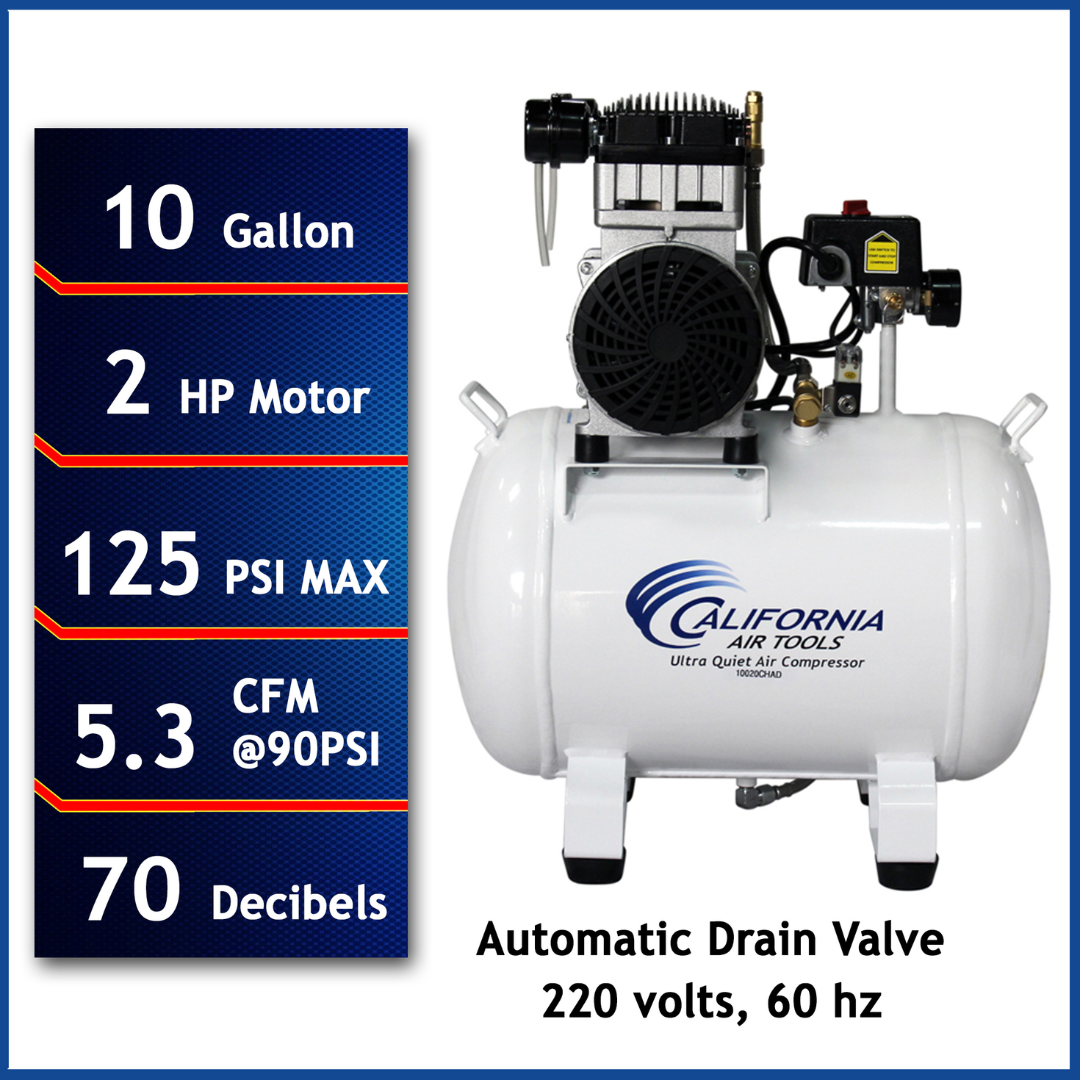

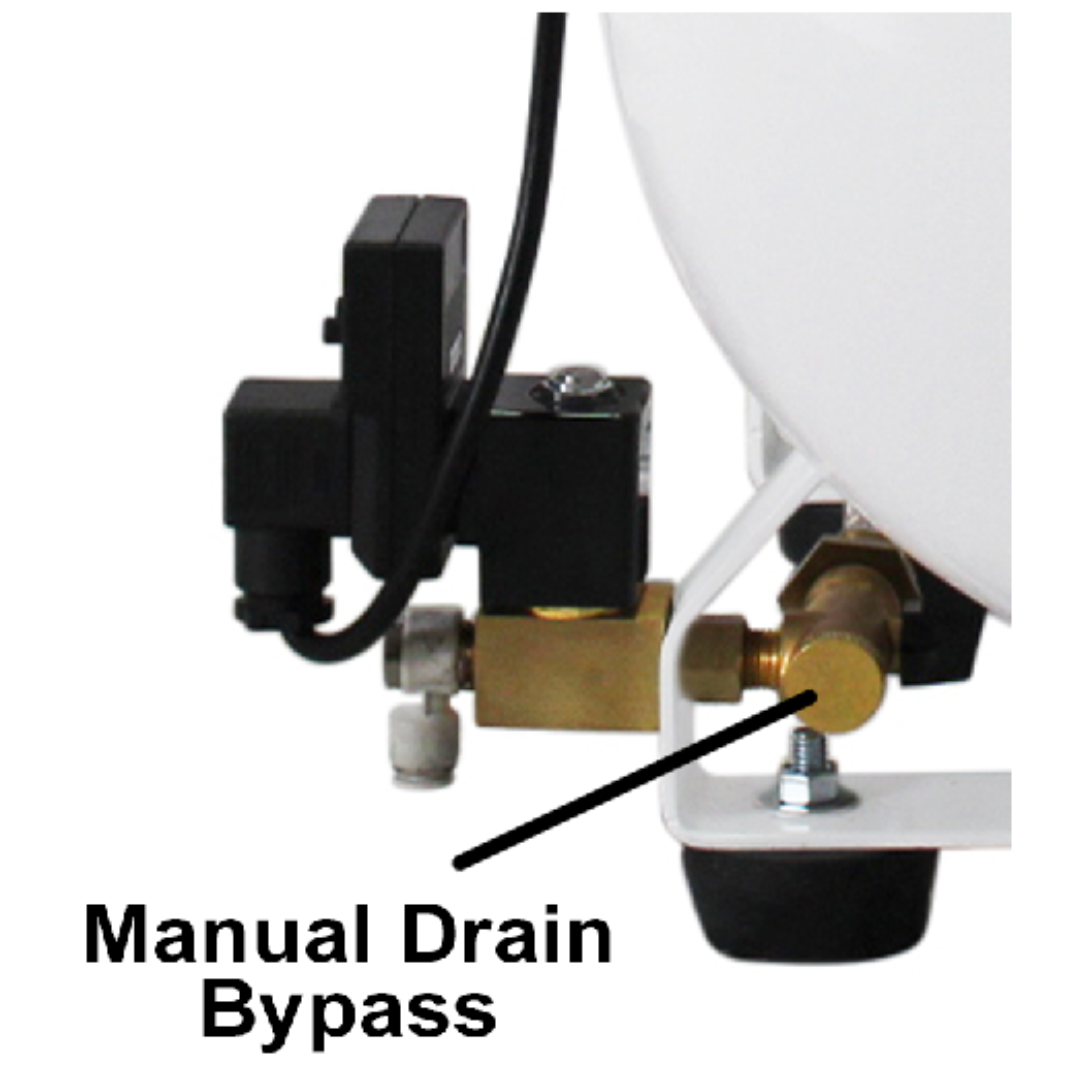

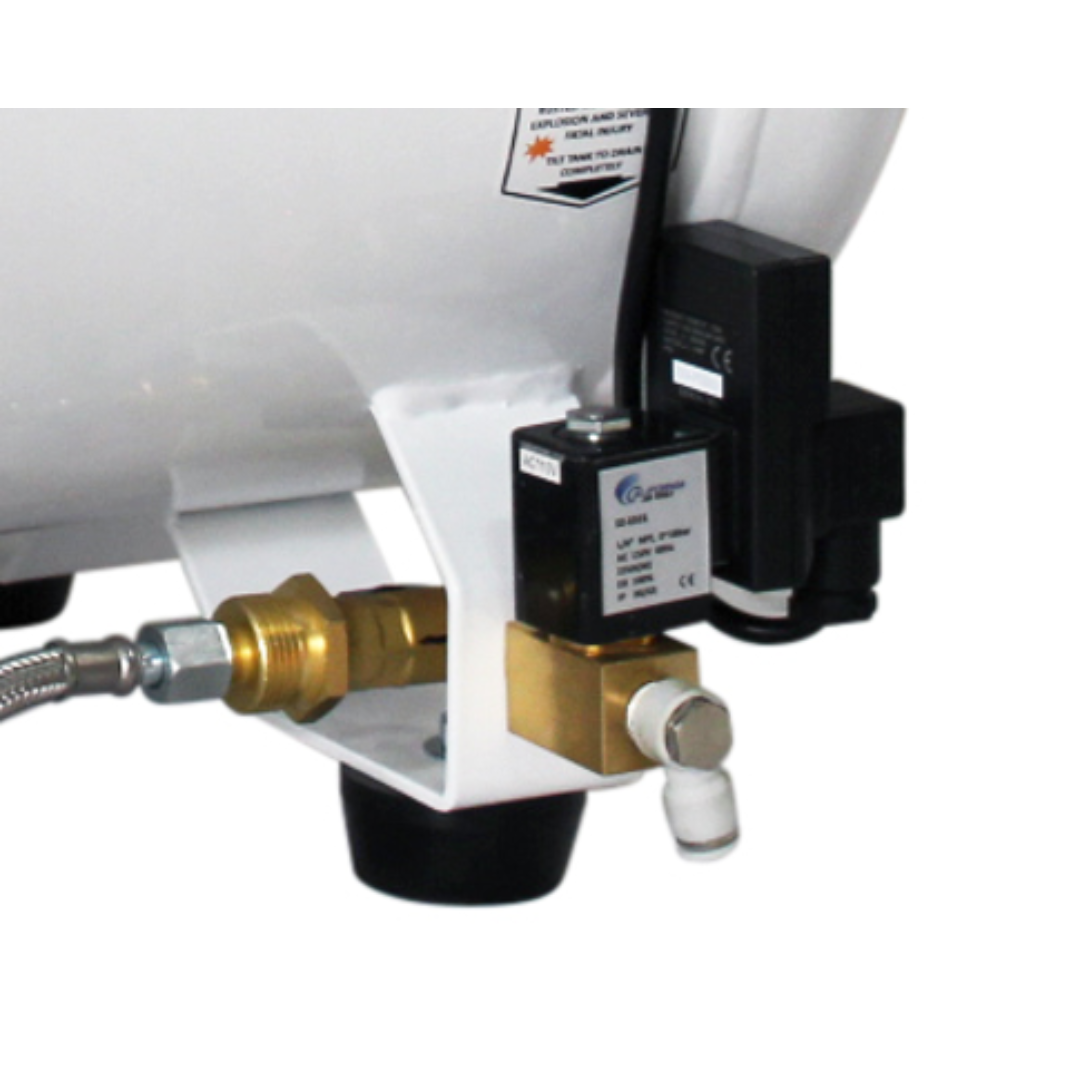

- Automatic Drain Valve System removes moisture automatically, eliminating manual draining.

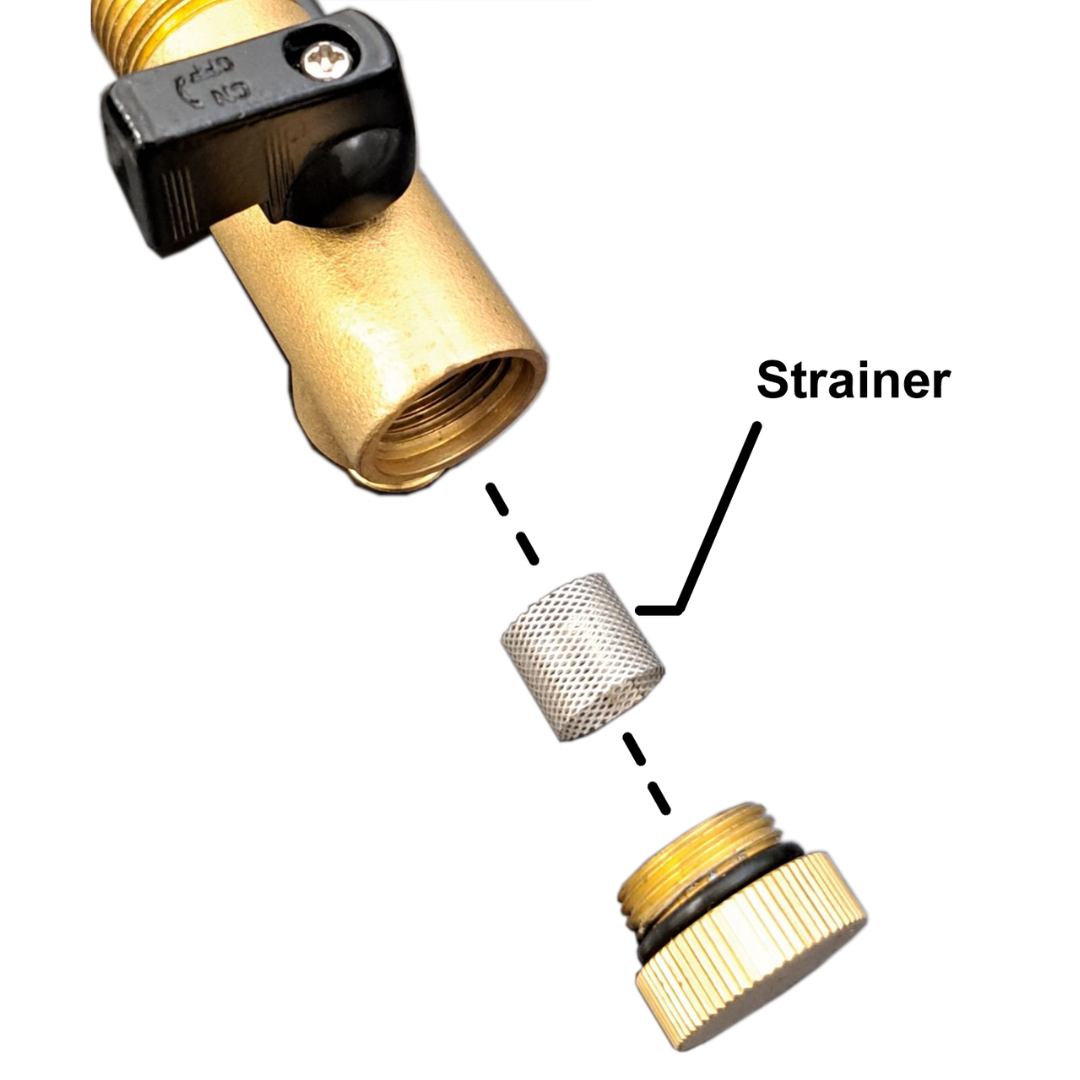

- Manual Drain with Strainer allows easy maintenance and cleaning access.

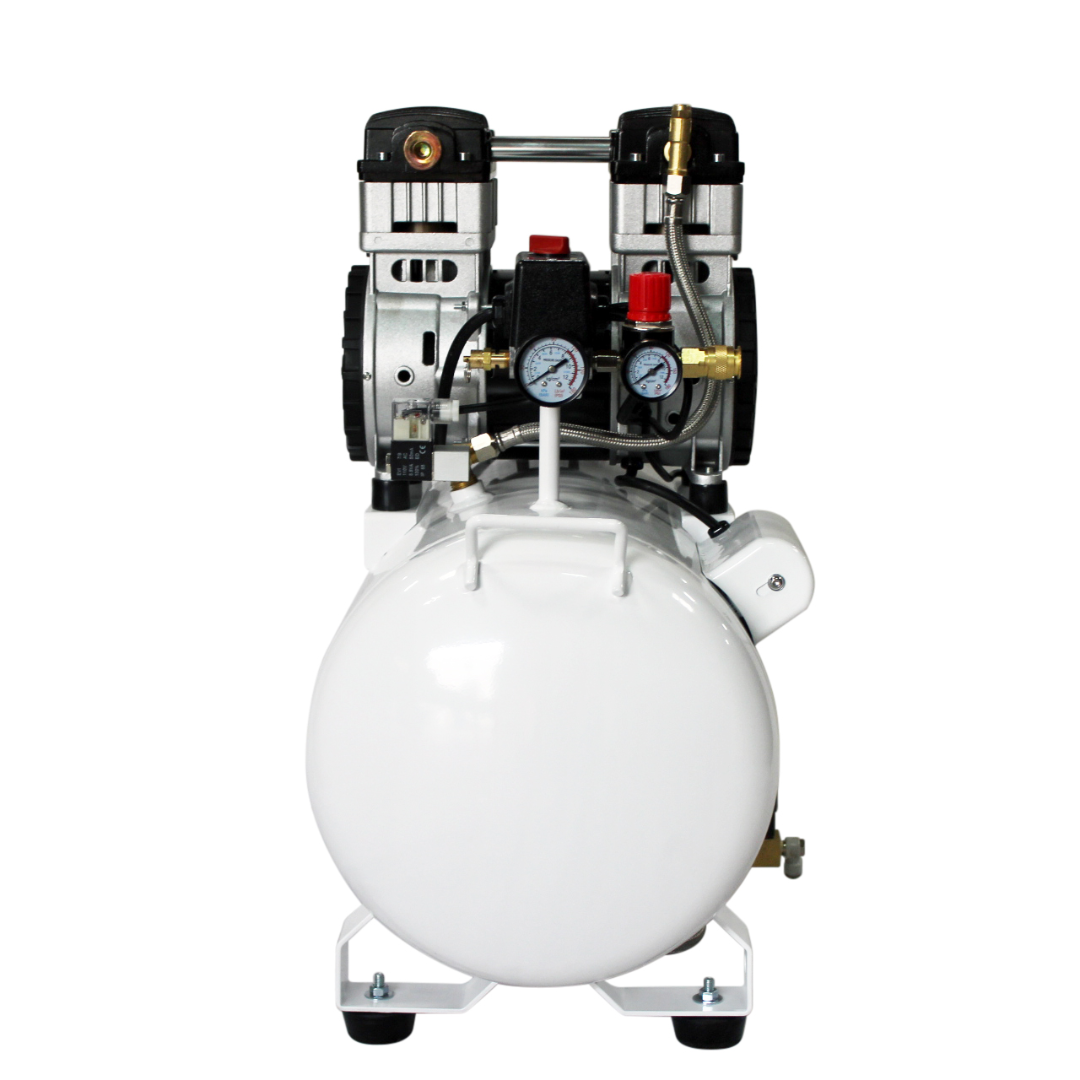

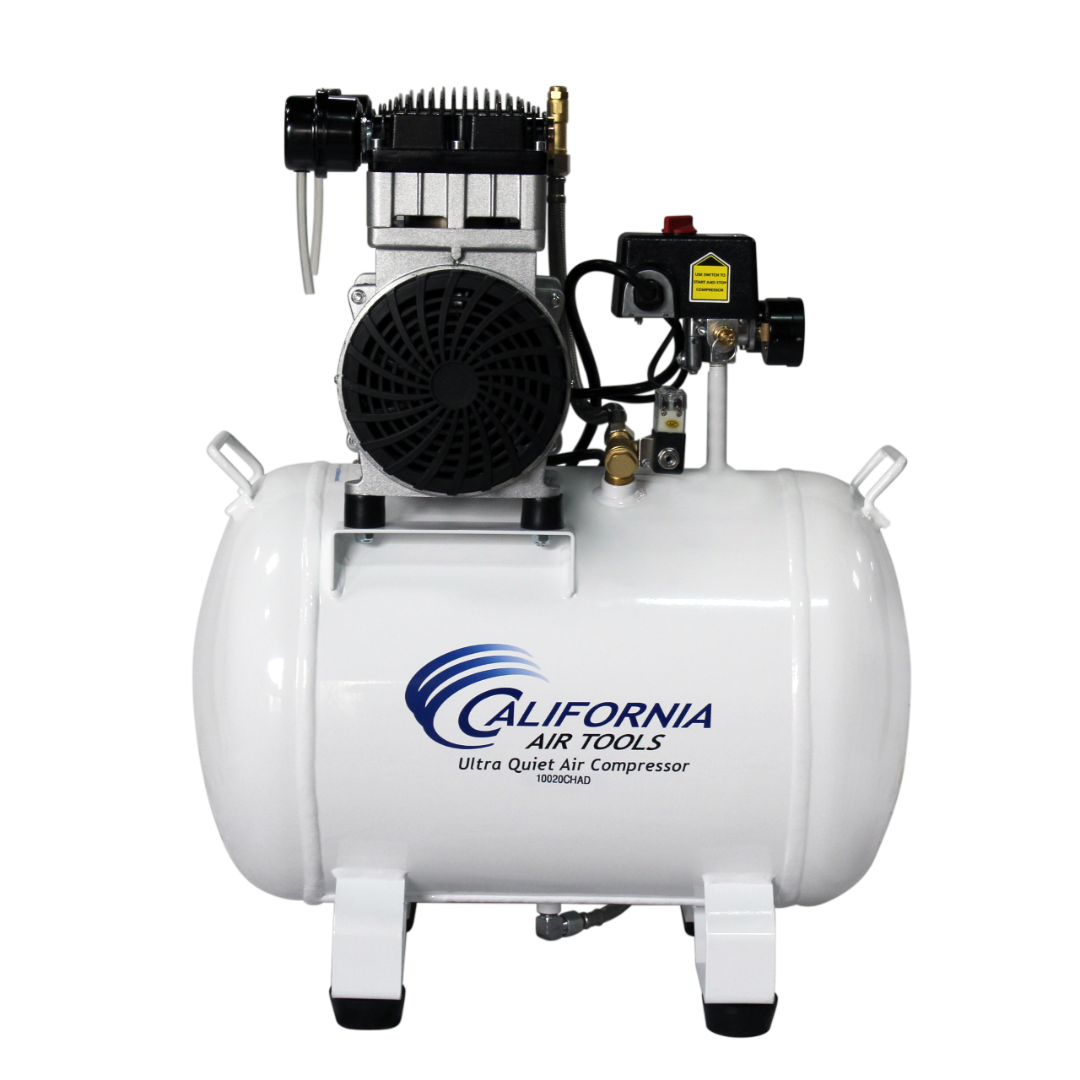

- Low Profile Horizontal Tank ideal for space-saving installations under benches or shelves.
- Thermal Overload Protection safeguards the motor during extended use.
- Efficient Cooling System reduces heat buildup and improves performance consistency.
- Low Amp Draw (7.0 Amps) maximizes efficiency on 220V circuits.
Why Choose the CALIFORNIA AIR TOOLS 10020CHAD-22060 Powerful 2.0 Hp Ultra Quiet Oil-Free 10 Gallon Air Compressor with Automatic Drain Valve
- 220V operation for improved efficiency and lower amp draw.
- Automatic drain system reduces maintenance and downtime.
- Ultra-quiet 70 dB performance for indoor environments.
- Low-profile design for compact and flexible placement.
- High airflow output for professional tool operation.
The CALIFORNIA AIR TOOLS 10020CHAD-22060 Powerful 2.0 Hp Ultra Quiet Oil-Free 10 Gallon Air Compressor with Automatic Drain Valve delivers powerful, efficient, and low-maintenance compressed air with the added benefit of 220V performance and automatic moisture control.
