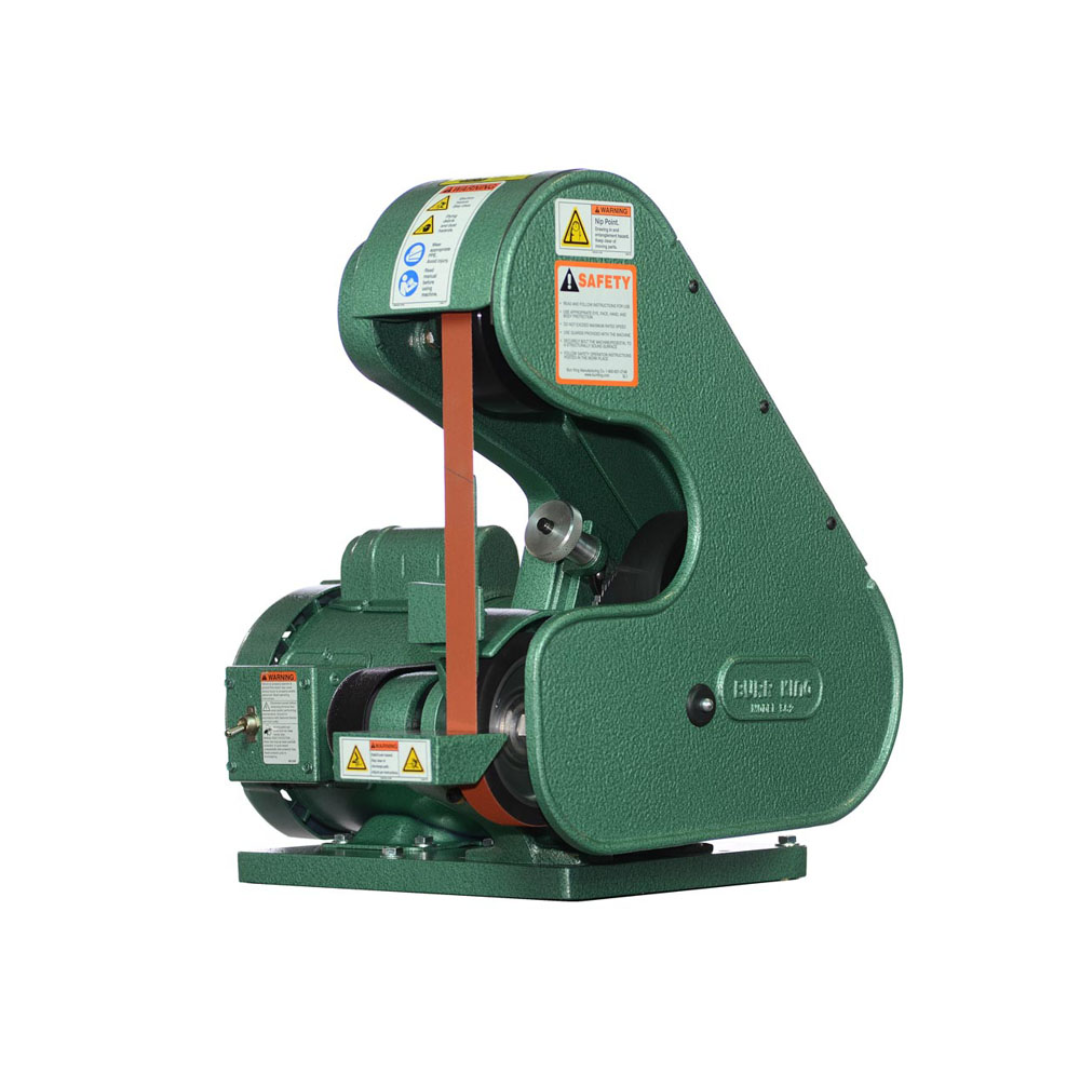

Burr King 1 x 42 Three Wheel Belt Grinder Model 562 57110 Applications
- Precision grinding and controlled stock removal.
- Deburring machined, laser-cut, stamped, and fabricated components.
- Edge beveling and weld blending.
- Contour grinding on curved and irregular workpieces.
- Knife making, tool sharpening, and fixture fabrication.
- Surface preparation before polishing, coating, plating, or painting.
- Ideal for fabrication shops, maintenance departments, machine shops, educational facilities, and industrial production environments.
The adjustable variable-speed drive allows operators to reduce heat buildup while achieving optimal grinding performance on steel, stainless steel, aluminum, titanium, and other materials.
Burr King 1 x 42 Three Wheel Belt Grinder Model 562 57110 Specifications
| Model | 562 (57110) |
|---|---|
| Belt Size | 1" × 42" |
| Motor | 3/4 HP |
| Voltage / Phase | 120 Volt / Single Phase |
| Frequency | 50–60 Hz |
| Speed Type | Variable Speed |
| Belt Speed Range | 530–5,300 SFPM |
| Number of Wheels | 3 |
| Contact Wheel Size | 4-3/4" × 1" |
| Contact Wheel Hardness | 55 Duro |
| Throat Clearance | 5-1/2" |
| Steel Backup Platen | 1-1/8" × 5" × 1/8" |
| Belt Tension System | Quick Change Assembly |
| Belt Tracking | Positive Belt Tracking Adjustment |
| Adjustable Work Rest | Yes |
| Safety Belt Guard | Included |
| Construction | Cast Aluminum |
| Mounting Options | Bench or Pedestal Mount |
| Pedestal Included | No |
| Base Area | 10" × 13" |
| Overall Dimensions (H × W × D) | 20" × 17" × 15" |
| Machine Weight | 85 lbs |
| Main Application | Belt Grinding |
| Country of Origin | Made in USA |
Burr King 1 x 42 Three Wheel Belt Grinder Model 562 57110 Features & Performance
- Industrial 3/4 HP motor provides dependable performance for precision grinding, deburring, sharpening, and finishing operations.
- Variable belt speed from 530 to 5,300 SFPM allows operators to optimize grinding performance for aggressive material removal, fine finishing, and heat-sensitive materials.
- Three-wheel belt configuration offers superior accessibility for contour grinding, inside curves, and difficult-to-reach surfaces.
- 1" × 42" abrasive belt capacity provides an economical and versatile solution for precision metalworking applications.
- 4-3/4" × 1" contact wheel with 55-durometer hardness delivers an excellent balance of stock removal and finish quality.
- 5-1/2-inch throat clearance provides additional workspace for larger components and complex grinding operations.

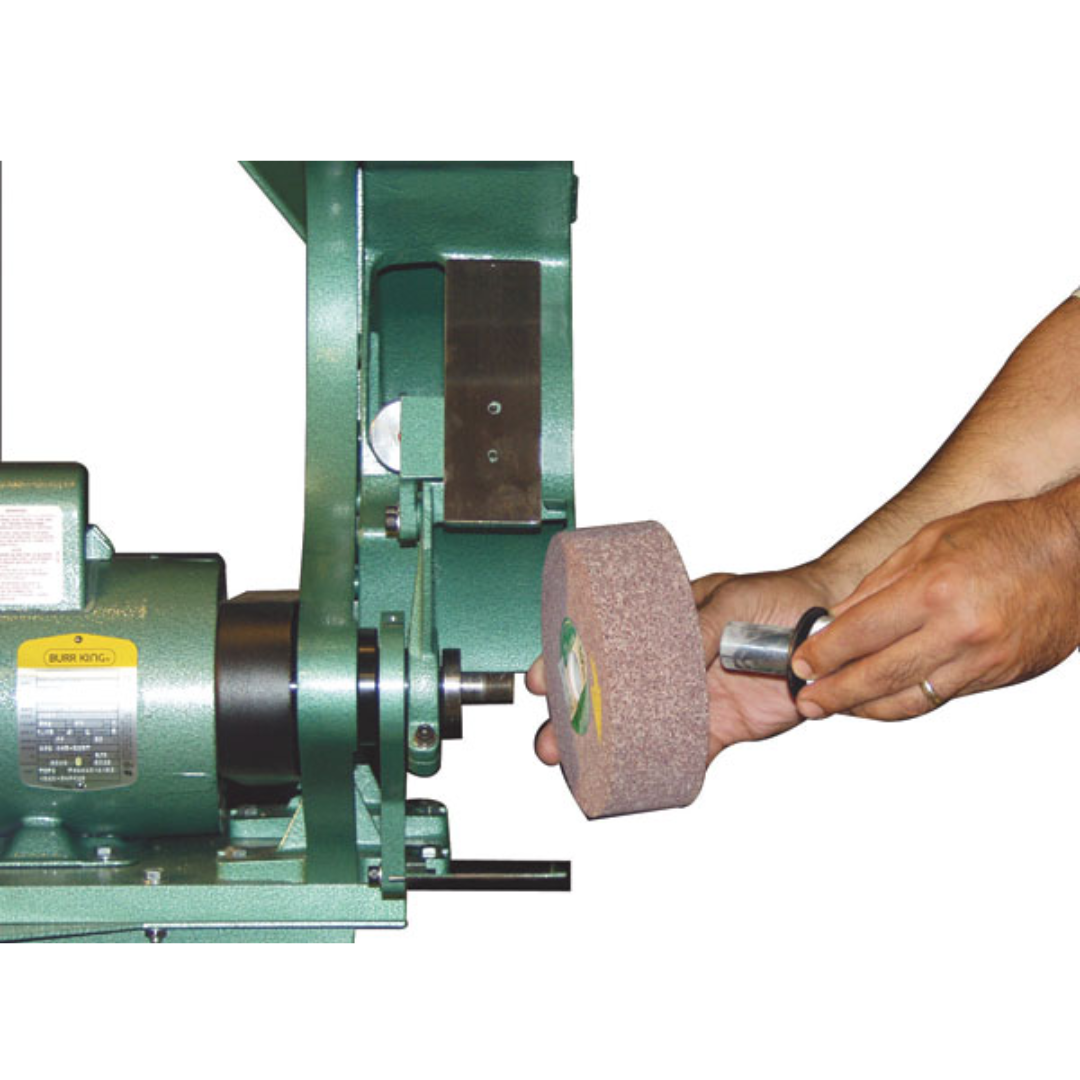

- Quick-change belt tension assembly enables fast abrasive belt changes to maximize productivity.
- Positive belt tracking adjustment ensures accurate belt alignment and smooth, reliable operation.
- Steel backup platen provides rigid support for flat grinding and precision finishing.
- Adjustable work rest improves workpiece support, operator control, and grinding accuracy.
- Heavy-duty cast aluminum construction minimizes vibration while providing exceptional strength and long service life.

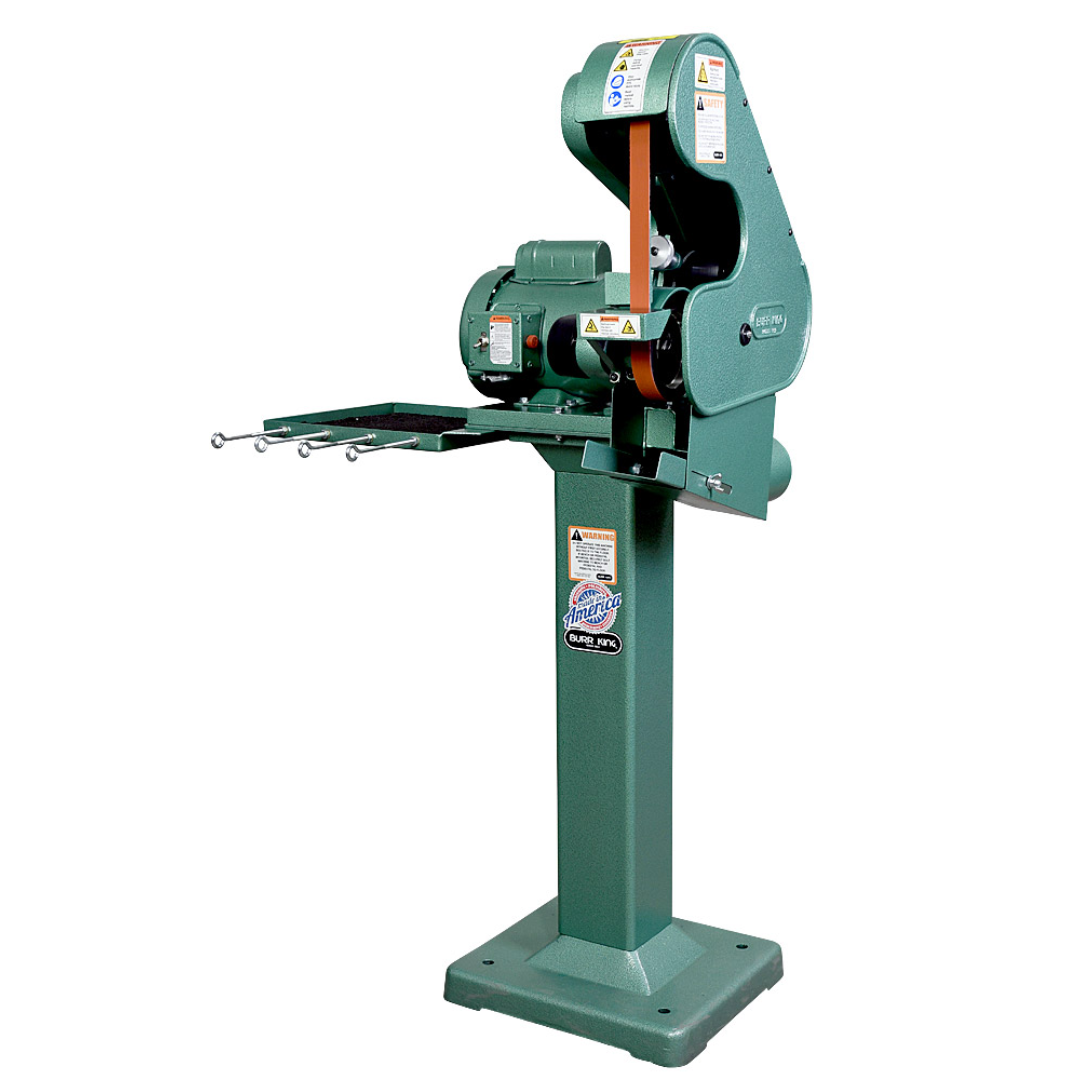

- Bench or pedestal mounting capability offers installation flexibility for production, maintenance, and educational workspaces.
- Designed and manufactured in the USA for dependable industrial performance and long-term durability.
Why Choose the Burr King 1 x 42 Three Wheel Belt Grinder Model 562 57110
- Professional variable-speed grinder for precision metalworking applications.
- 530–5,300 SFPM speed range provides exceptional application flexibility.
- Compact three-wheel design offers outstanding grinding accessibility.
- Quick-change belt system and precision tracking improve productivity.
- Heavy-duty cast aluminum construction minimizes vibration and extends machine life.
- Ideal for fabrication, maintenance, sharpening, tool rooms, and manufacturing environments.
- Flexible bench or pedestal mounting options.
- Proudly manufactured in the USA for professional industrial reliability.
The Burr King 1 x 42 Three Wheel Belt Grinder Model 562 57110 combines compact size, precision variable-speed control, and Burr King's proven three-wheel grinding design into a versatile industrial machine. Whether performing aggressive grinding, precision deburring, contour finishing, or sharpening operations, it delivers the control, durability, and reliability required by today's professional metalworking facilities.
