Burr King 1 x 42 Three Wheel Belt Grinder Model 562 56100 Applications
- Precision metal grinding and stock removal.
- Deburring machined, stamped, laser-cut, and fabricated components.
- Edge beveling and weld cleanup.
- Contour grinding on curved and irregular workpieces.
- Knife making, tool sharpening, and fixture fabrication.
- Surface preparation prior to polishing, coating, or painting.
- Ideal for fabrication shops, maintenance departments, educational facilities, and industrial production environments.
The compact three-wheel design provides exceptional grinding accessibility while allowing operators to perform both flat and contour grinding with excellent control.
Burr King 1 x 42 Three Wheel Belt Grinder Model 562 56100 Specifications
| Model | 562 (56100) |
|---|---|
| Belt Size | 1" × 42" |
| Motor | 3/4 HP |
| Voltage / Phase | 120 Volt / Single Phase |
| Frequency | 60 Hz |
| Belt Speed | 5,300 SFPM (Fixed Speed) |
| Variable Speed | No |
| Number of Wheels | 3 |
| Contact Wheel Size | 4-3/4" × 1" |
| Contact Wheel Hardness | 55 Duro (Standard) |
| Throat Clearance | 5-1/2" |
| Steel Backup Platen | 1-1/8" × 5" × 1/8" |
| Belt Tension System | Quick Change Assembly |
| Belt Tracking | Positive Tracking Adjustment |
| Adjustable Work Rest | Yes |
| Safety Belt Guard | Included |
| Construction | Cast Aluminum |
| Mounting Options | Bench or Pedestal Mount |
| Pedestal Included | No |
| Base Area | 10" × 13" |
| Overall Dimensions (H × W × D) | 20" × 17" × 15" |
| Machine Weight | 70 lbs |
| Main Application | Belt Grinding |
| Country of Origin | Made in USA |
Burr King 1 x 42 Three Wheel Belt Grinder Model 562 56100 Features & Performance
- Reliable 3/4 HP motor provides smooth, dependable power for precision grinding and finishing applications.
- Fixed 5,300 SFPM belt speed delivers consistent grinding performance for deburring, edge finishing, contouring, and stock removal.

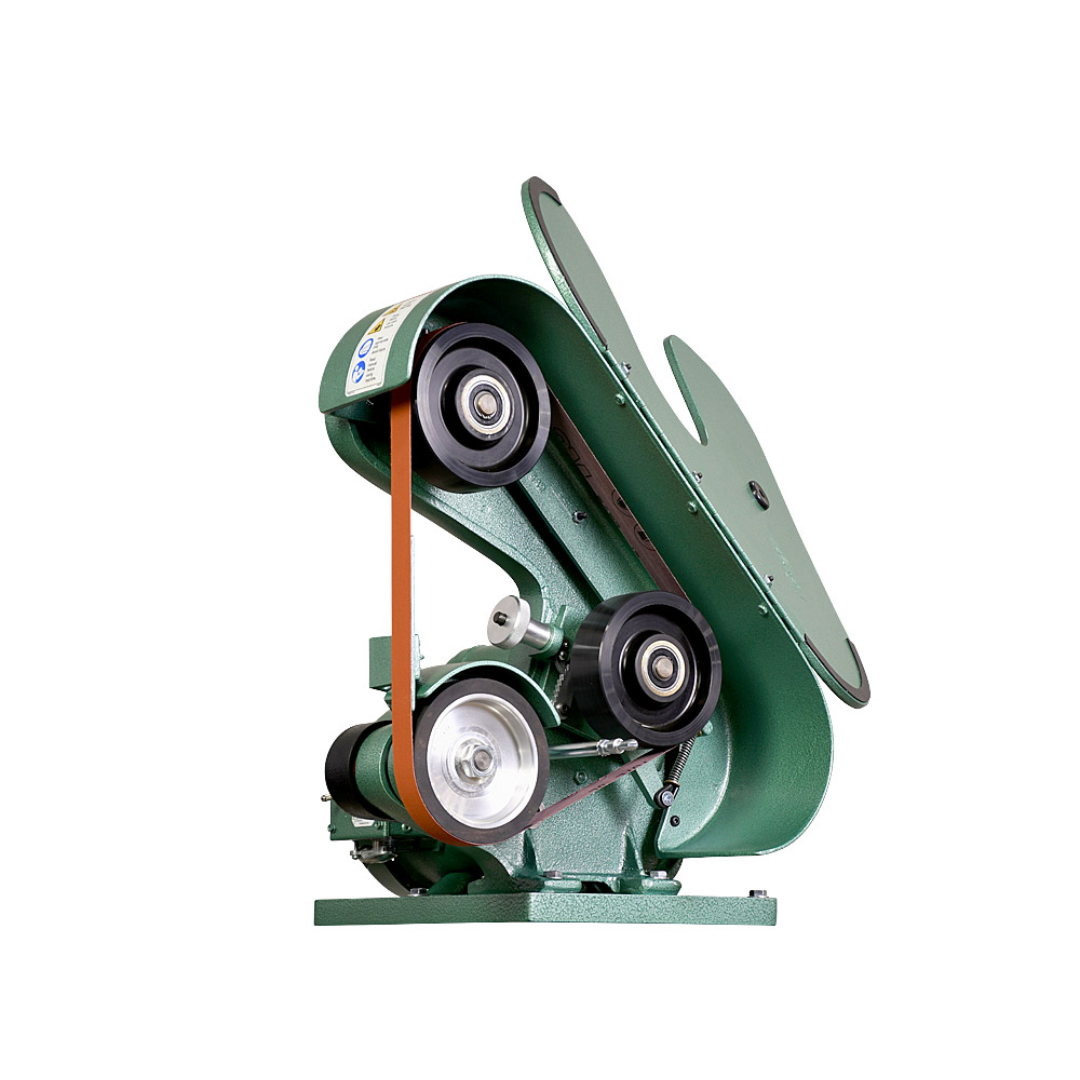

- Three-wheel belt configuration improves belt accessibility, making it easier to grind complex shapes, inside curves, and hard-to-reach areas.
- 1" × 42" abrasive belt capacity offers an economical and versatile belt size for a wide range of industrial grinding tasks.
- 4-3/4" × 1" contact wheel with standard 55-durometer hardness provides an excellent balance between material removal and finish quality.
- 5-1/2-inch throat clearance allows additional working space for contour grinding and fabrication projects.
- Quick-change belt tension assembly enables fast abrasive belt replacement, reducing downtime between operations.

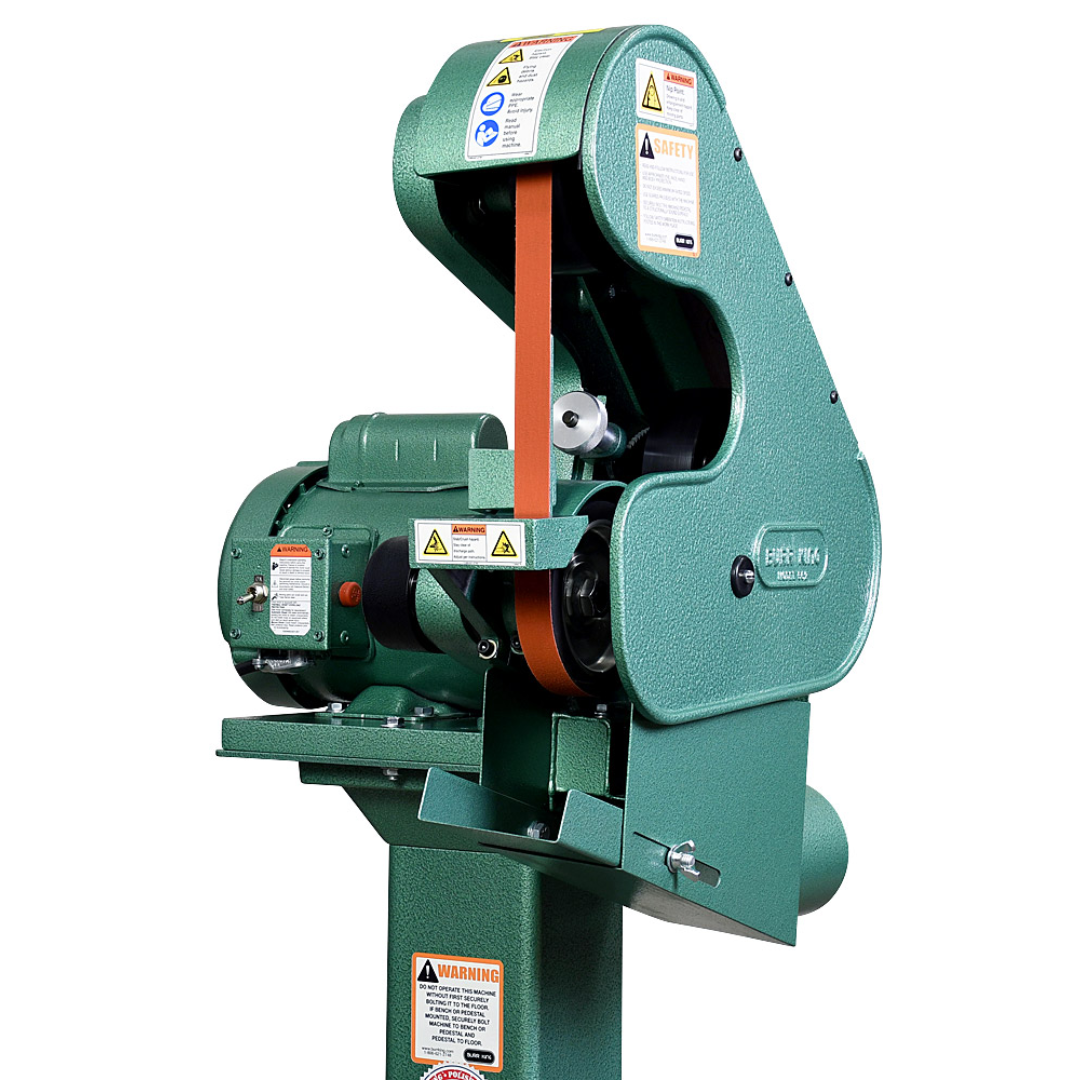

- Positive belt tracking adjustment maintains accurate belt alignment for smooth, reliable grinding performance.
- Steel backup platen provides rigid support for precision flat grinding and finishing applications.
- Adjustable work rest improves workpiece stability, operator control, and grinding accuracy.
- Heavy-duty cast aluminum construction minimizes vibration while providing exceptional rigidity and long-term durability.

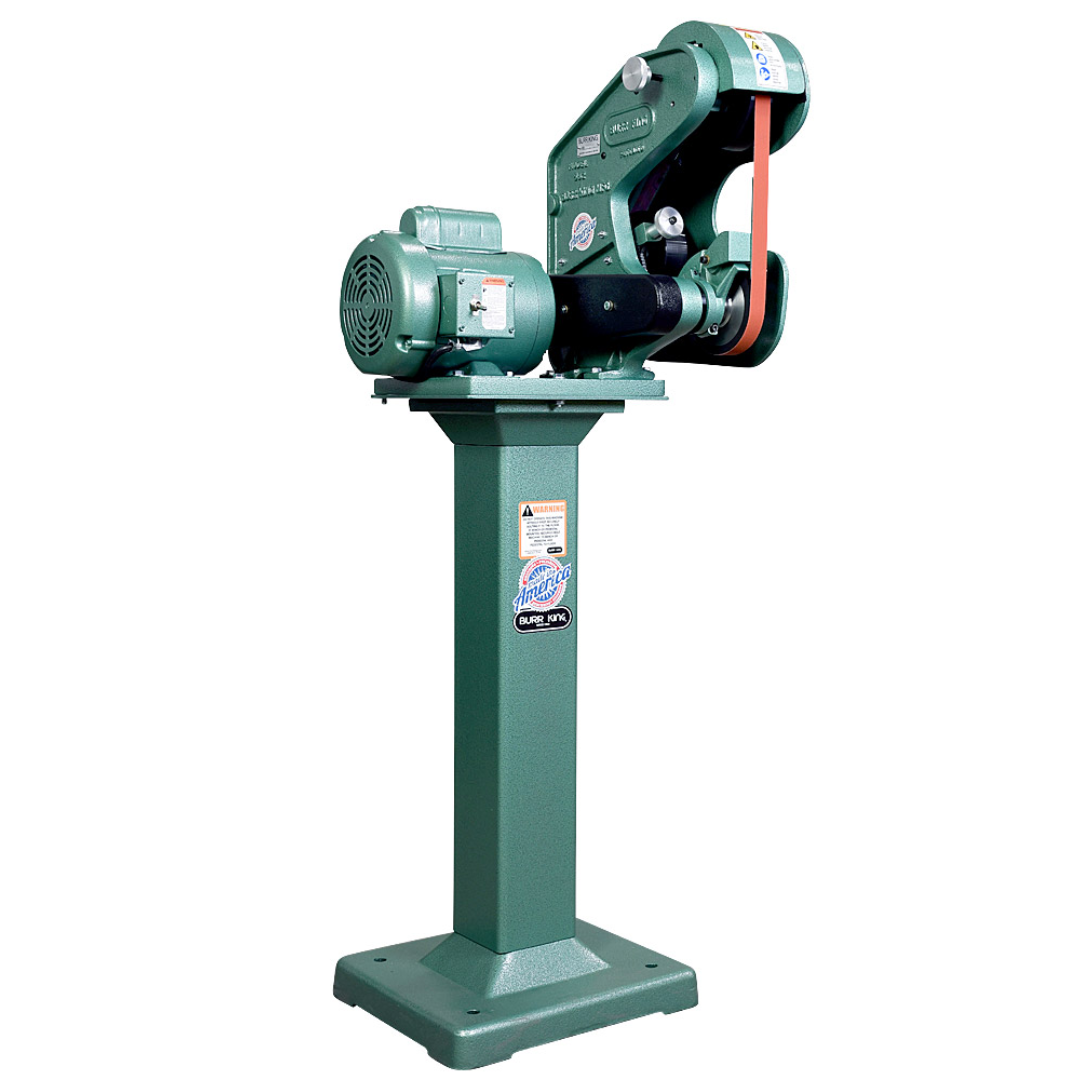

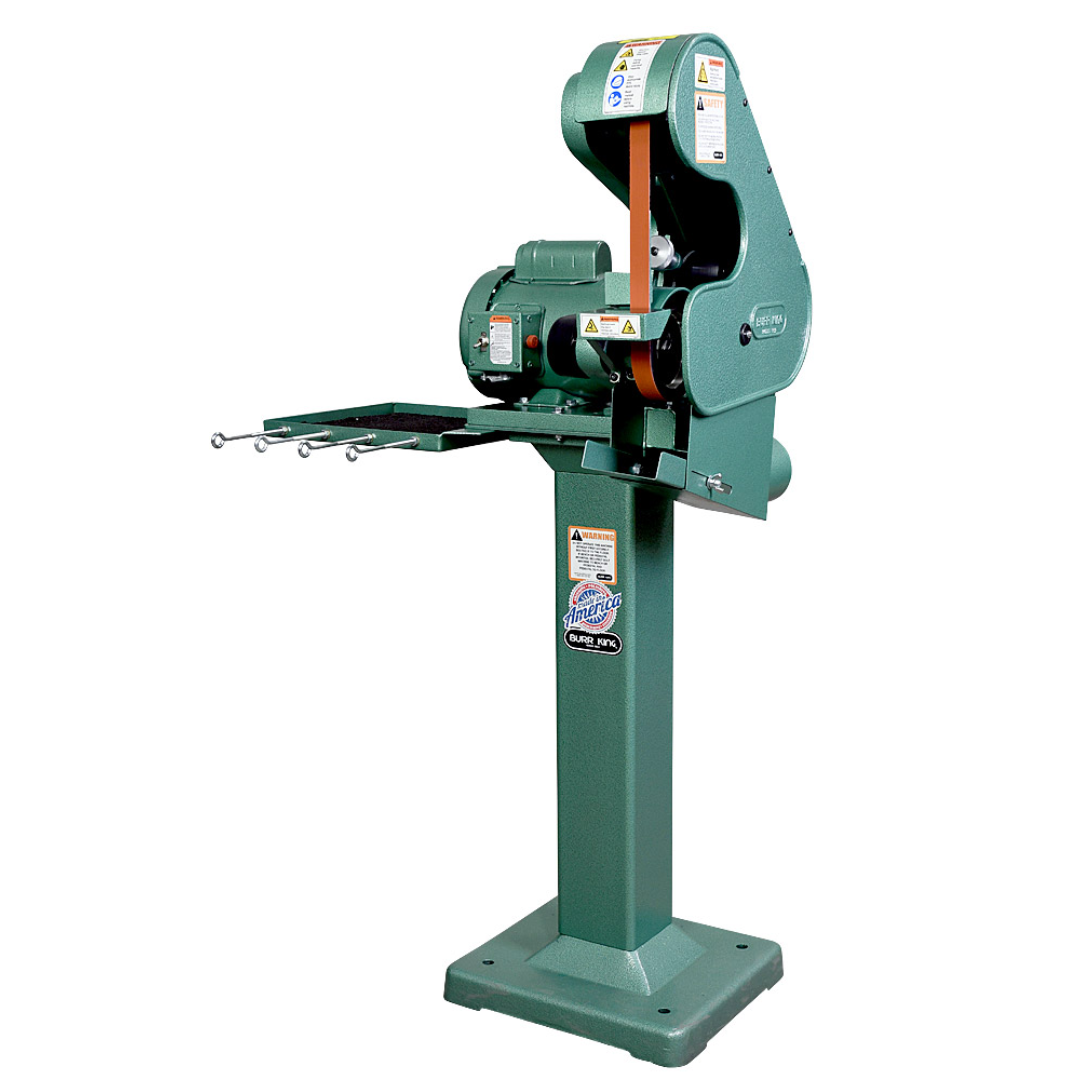

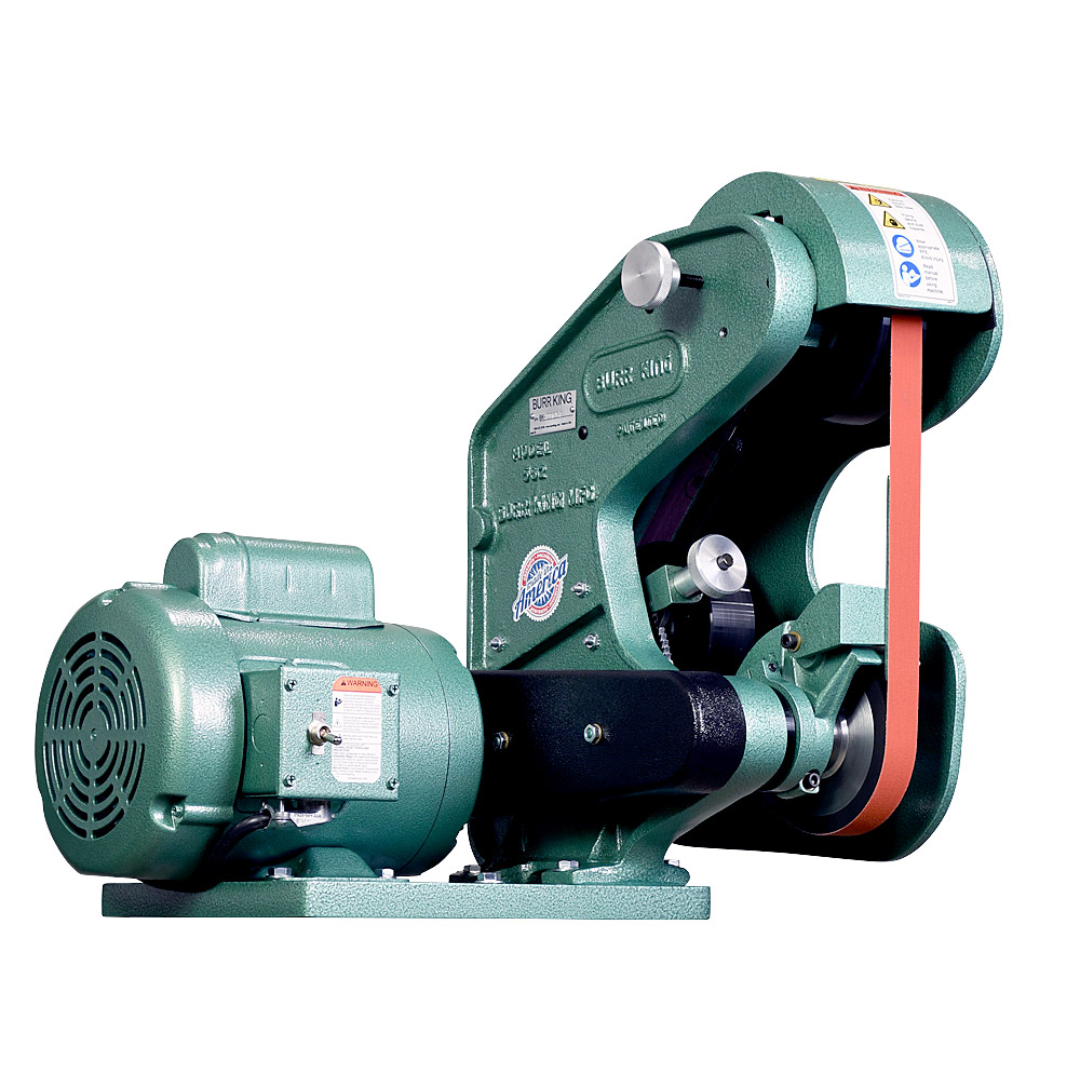

- Bench or pedestal mounting capability allows flexible installation for production, maintenance, or educational workspaces.
- Designed and manufactured in the USA for dependable industrial quality and long service life.
Why Choose the Burr King 1 x 42 Three Wheel Belt Grinder Model 562 56100
- Compact industrial three-wheel grinder designed for precision metalworking.
- Powerful 3/4 HP motor with reliable 5,300 SFPM fixed belt speed.
- Excellent accessibility for contour grinding and detailed finishing.
- Quick-change belt system and precision tracking maximize productivity.
- Heavy-duty cast aluminum construction minimizes vibration and extends machine life.
- Ideal for fabrication, maintenance, tool rooms, educational programs, and manufacturing facilities.
- Bench or pedestal mounting provides installation flexibility.
- Proudly designed and manufactured in the USA.
The Burr King 1 x 42 Three Wheel Belt Grinder Model 562 56100 delivers professional-grade grinding performance in a compact package. Its durable construction, three-wheel accessibility, precision belt tracking, and dependable fixed-speed operation make it an excellent solution for deburring, contour grinding, sharpening, and general metal finishing in demanding industrial environments.
