Burr King 1.5 x 60 or 2 x 60 Three Wheel Belt Grinder Model 760 75100 Applications
- Heavy-duty metal grinding and rapid stock removal.
- Deburring machined, laser-cut, plasma-cut, and fabricated components.
- Edge beveling, weld blending, and surface preparation.
- Contour grinding on curved, irregular, and complex workpieces.
- Tool sharpening, custom fabrication, and prototype manufacturing.
- Grinding steel, stainless steel, aluminum, brass, titanium, and other metals.
- Ideal for fabrication shops, welding operations, machine shops, maintenance departments, and industrial production environments.

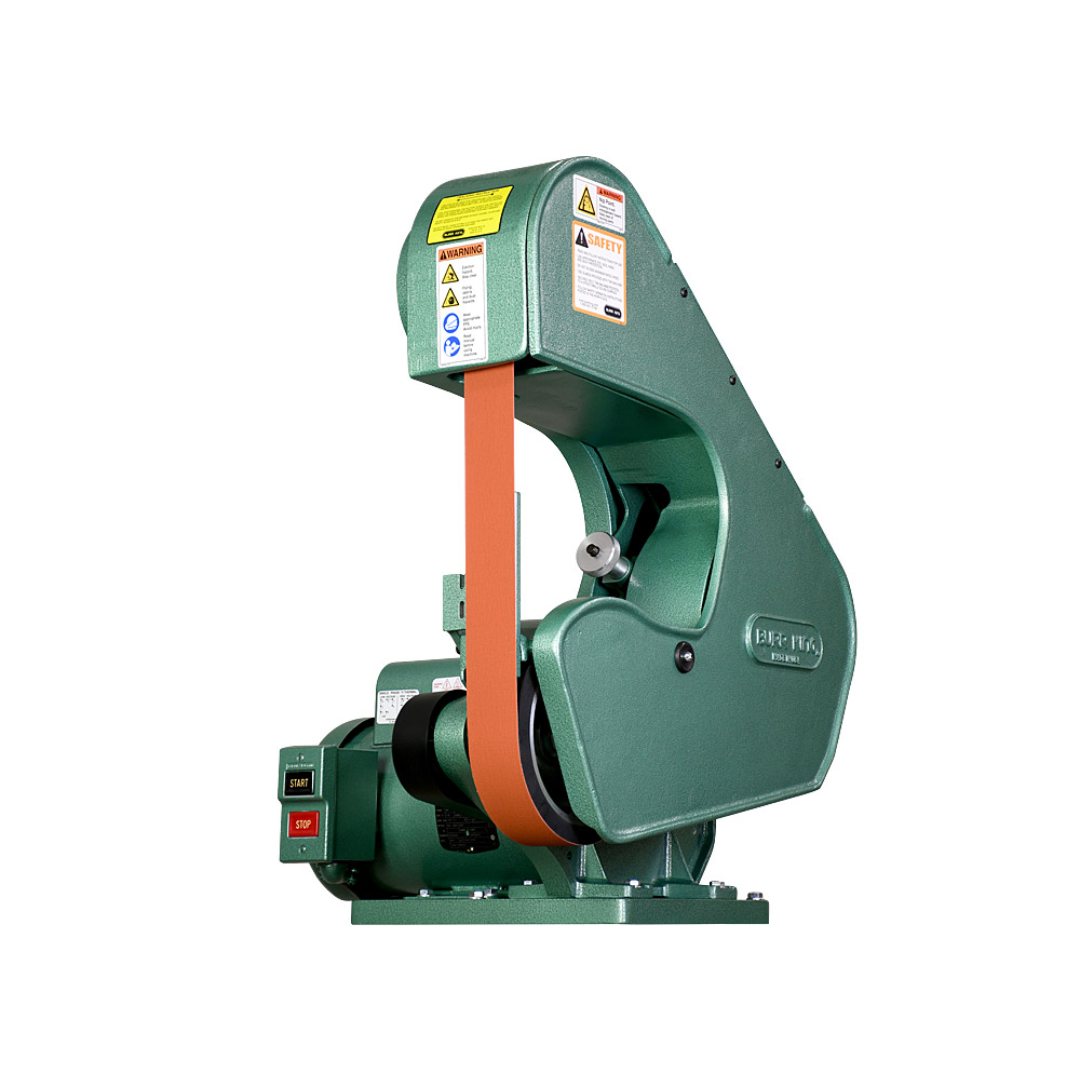

The three-wheel configuration provides improved belt access and an 8-7/8-inch throat clearance, allowing operators to efficiently grind larger parts and intricate geometries with greater control.
Burr King 1.5 x 60 or 2 x 60 Three Wheel Belt Grinder Model 760 75100 Specifications
| Model | 760 (75100) |
|---|---|
| Belt Size | 2" × 60" |
| Compatible Belt Widths | 1.5" × 60" or 2" × 60" |
| Motor | 1.5 HP |
| Voltage / Phase | 120 Volt / Single Phase |
| Frequency | 60 Hz |
| Belt Speed | 8,000 SFPM (Fixed Speed) |
| Variable Speed | No |
| Contact Wheel Size | 7" × 2" |
| Contact Wheel Hardness | 55 Duro (Standard) |
| Throat Clearance | 8-7/8" |
| Steel Backup Platen | 2" × 6" × 1/4" |
| Belt Tension System | Quick Change Assembly |
| Belt Tracking | Positive Tracking Adjustment |
| Adjustable Work Rest | Yes |
| Safety Belt Guard | Included |
| Construction | Cast Aluminum |
| Mounting Options | Bench or Pedestal Mount |
| Pedestal Included | No |
| Base Area | 10" × 13" |
| Overall Dimensions (H × W × D) | 26" × 24" × 23" |
| Machine Weight | 110 lbs |
| Main Application | Belt Grinding |
| Country of Origin | Made in USA |
Burr King 1.5 x 60 or 2 x 60 Three Wheel Belt Grinder Model 760 75100 Features & Performance

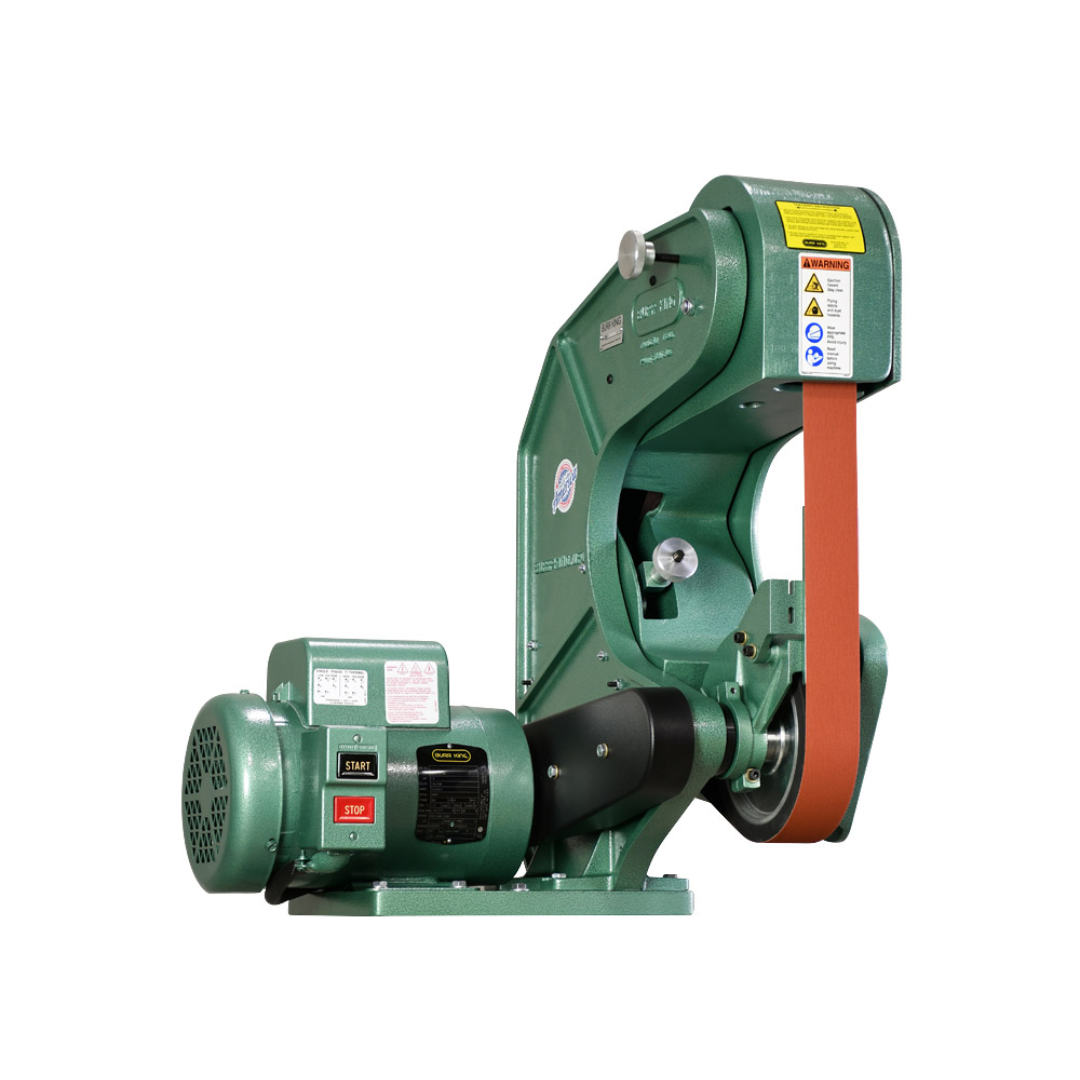

- Industrial-duty 1.5 HP motor delivers reliable power for demanding grinding and finishing applications.
- 8,000 SFPM fixed belt speed provides aggressive stock removal and efficient grinding performance across a wide variety of metals.

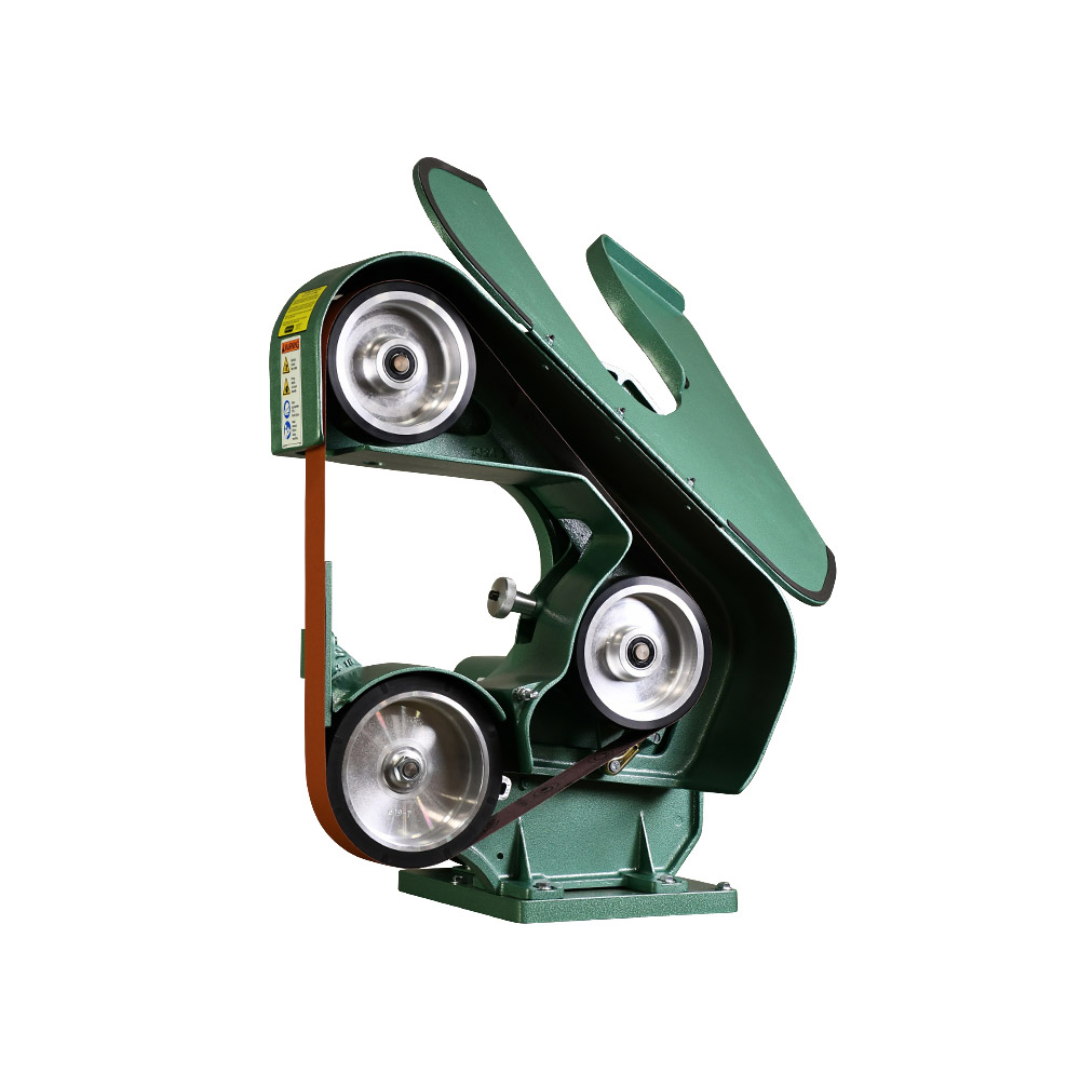

- Three-wheel belt configuration improves belt accessibility for contour grinding, inside curves, and complex workpieces.
- Compatible with both 1.5" × 60" and 2" × 60" abrasive belts to accommodate different grinding and finishing requirements.
- Large 7-inch contact wheel with standard 55-durometer hardness provides an excellent balance between material removal and finish quality.
- 8-7/8-inch throat clearance allows greater access when working on larger or irregularly shaped components.
- Quick-change belt tension assembly enables fast abrasive belt replacement, reducing downtime between jobs.
- Positive belt tracking adjustment ensures smooth, accurate belt alignment for consistent grinding performance.
- Steel backup platen provides a rigid support surface for precision flat grinding applications.
- Adjustable work rest improves workpiece stability, accuracy, and operator control during grinding operations.
- Heavy-duty cast aluminum construction minimizes vibration while providing exceptional strength and long-term durability.

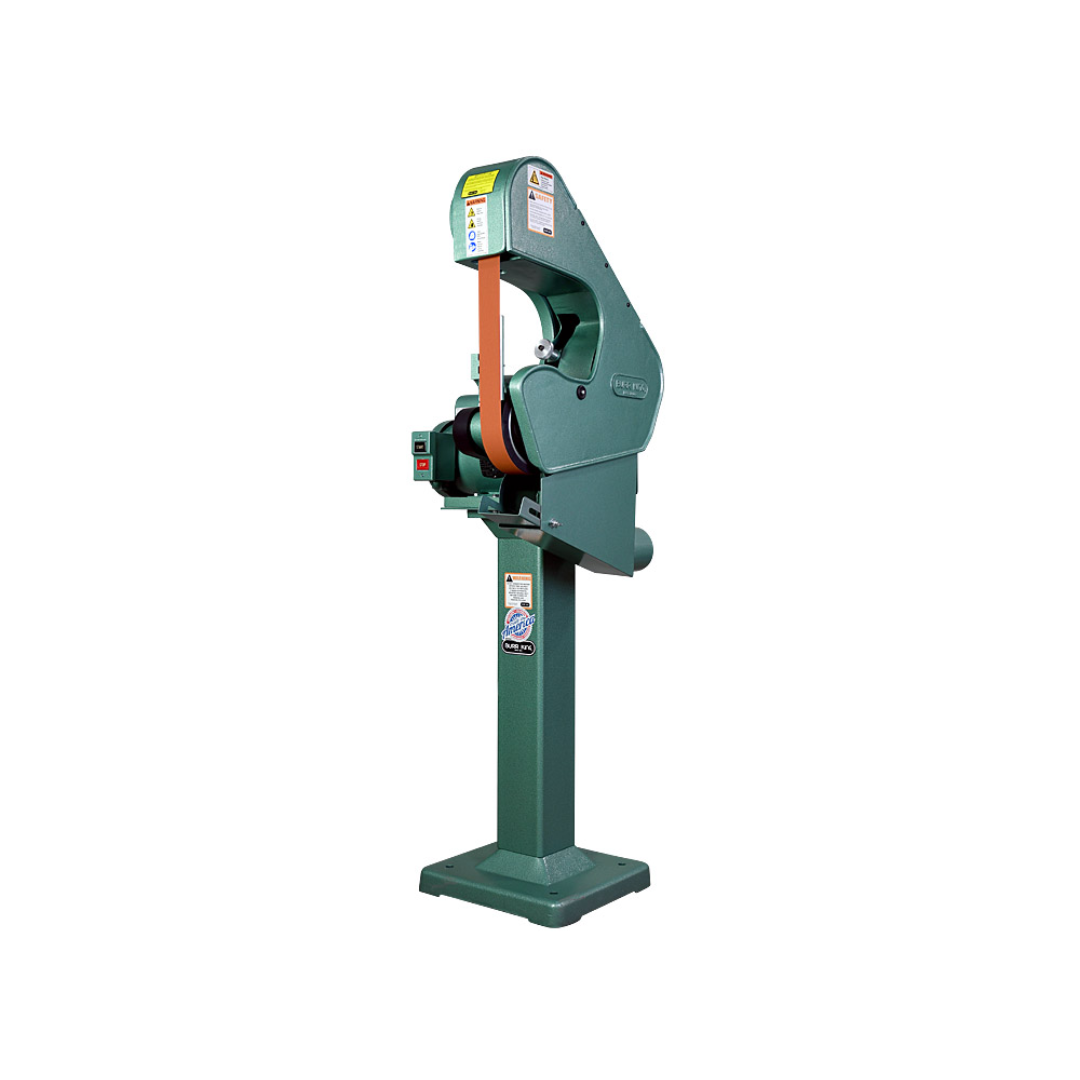

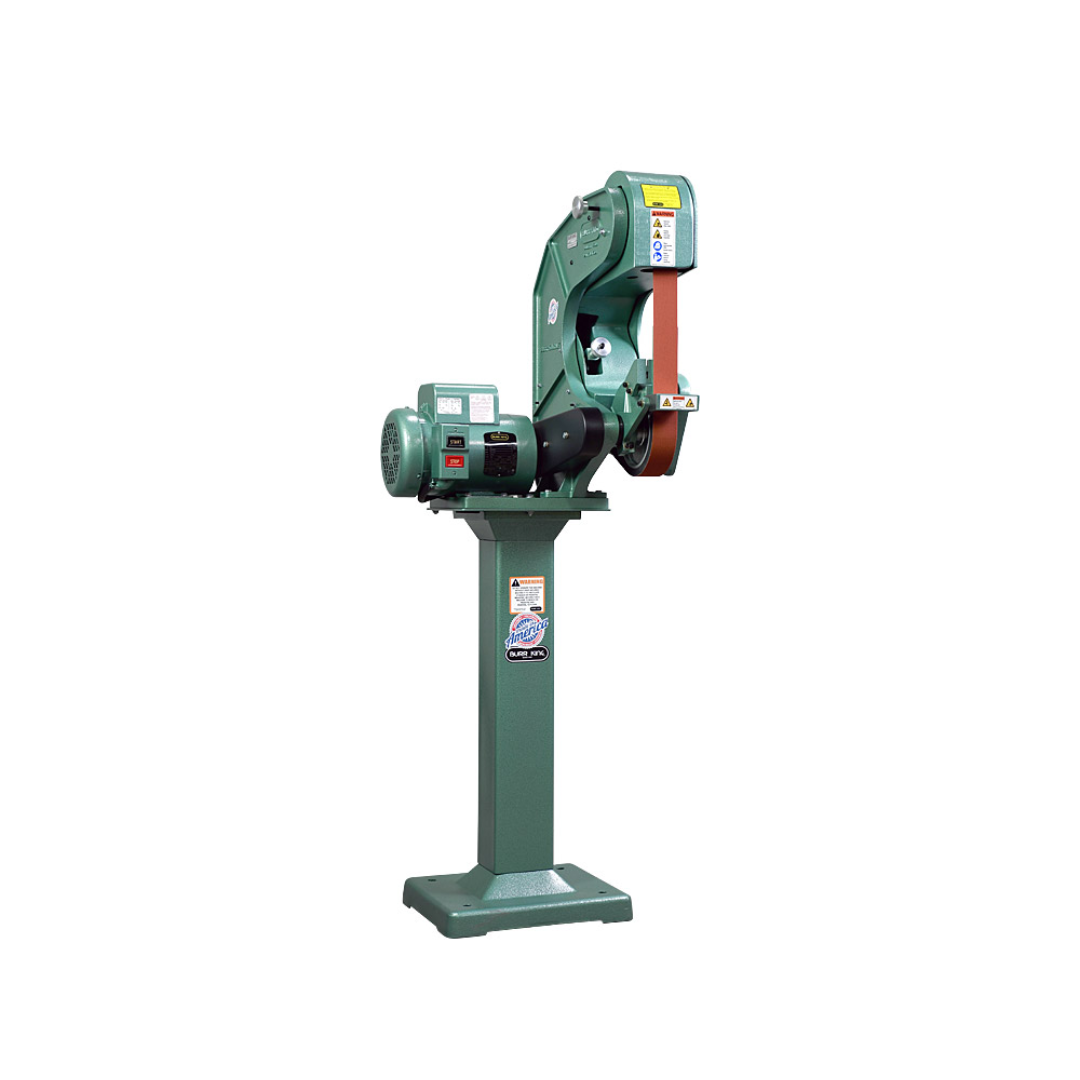

- Bench or pedestal mounting capability offers installation flexibility for a variety of shop layouts.
- Proudly designed and manufactured in the USA for dependable industrial performance and lasting reliability.
Why Choose the Burr King 1.5 x 60 or 2 x 60 Three Wheel Belt Grinder Model 760 75100
- Professional three-wheel grinder designed for demanding industrial applications.
- Powerful 1.5 HP motor with fast 8,000 SFPM belt speed.
- Supports both 1.5-inch and 2-inch wide 60-inch abrasive belts.
- Quick-change belt system and precision tracking maximize productivity.
- Large throat clearance increases versatility for complex workpieces.
- Heavy-duty cast aluminum construction provides exceptional durability.
- Suitable for fabrication, machining, welding, maintenance, and production environments.
- Designed and manufactured in the USA for dependable long-term performance.
The Burr King 1.5 x 60 or 2 x 60 Three Wheel Belt Grinder Model 760 75100 combines industrial power, precision belt tracking, and versatile three-wheel accessibility into one rugged grinding system. Built for professionals who demand reliable performance, this machine delivers exceptional results for grinding, deburring, beveling, blending, and finishing in even the most demanding metalworking environments.
