Baileigh Welding Jig Table WJT-3939 1010424 Applications
- Precision welding and fabrication projects.
- Fixture building and repeatable production welding.
- Metalworking, machining, and assembly operations.
- Automotive chassis and motorsports fabrication.
- Structural steel fabrication and custom manufacturing.
- Prototype development, inspection, and layout work.
- Vocational training facilities and industrial fabrication shops.
The precision 100 mm hole pattern accepts a wide variety of industry-standard fixturing components, allowing the Baileigh Welding Jig Table WJT-3939 1010424 to grow with your fabrication requirements while maintaining exceptional positioning accuracy.
Baileigh Welding Jig Table WJT-3939 1010424 Specifications
| Model | WJT-3939 |
|---|---|
| Manufacturer Part Number | 1010424 |
| Product Type | 2D Steel Welding Jig Table |
| Working Surface | 39" × 39" |
| Table Material | Q345 Steel (Yield Strength 345 MPa) |
| Fixture Hole Diameter | 28 mm |
| Hole Spacing | 100 mm Centers |
| Distance Between Centers | 100 mm |
| Table Flatness | ±0.0025 in. |
| Surface Hardness | 18–25 HRC (Approx. Brinell 140–160) |
| Load Capacity | 3,300 lbs. |
| Mounting Surface | Single Precision Fixturing Surface |
| Number of Mounting Points | 1 |
| Included Accessories | Table Oiler, Cleaning Brush, Cleaning Stone |
| Net Weight | 600 lbs. |
| Gross Weight | 600 lbs. |
| Warranty | 1 Year Parts Warranty |
| Technical Support | Lifetime Technical Support |
| UPC | 19907011330 |
Baileigh Welding Jig Table WJT-3939 1010424 Performance & Construction

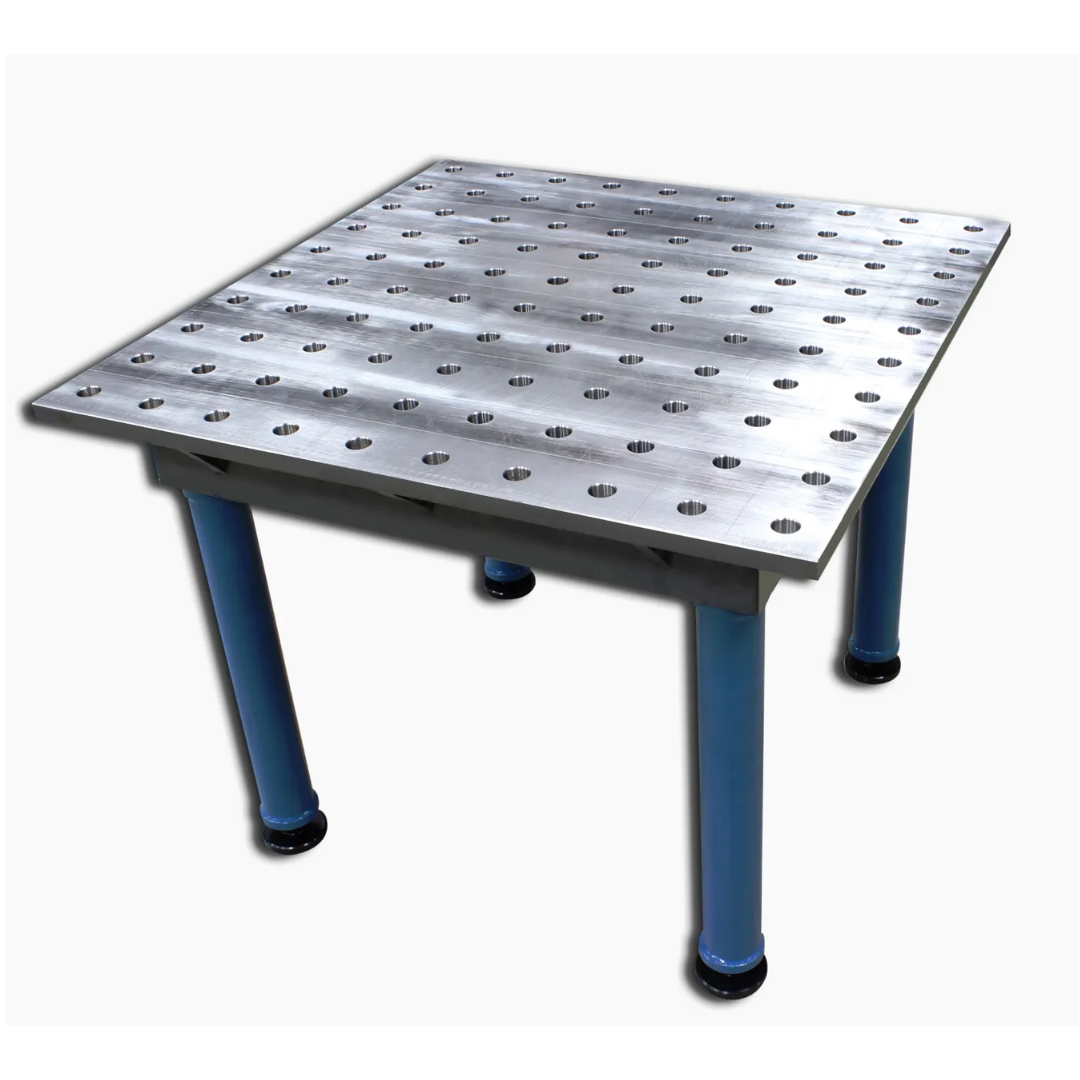

- 39-inch by 39-inch precision work surface provides ample workspace for welding, fixture building, fabrication, inspection, and assembly operations.
- Industry-standard 28 mm fixture holes accept a broad range of clamps, stops, locator pins, and fixturing accessories for highly versatile workholding.
- 100 mm hole spacing creates a precise and repeatable fixture grid that simplifies setup while improving manufacturing consistency.
- Precision-machined flatness of ±0.0025 inch ensures outstanding dimensional accuracy for fabrication, welding, and assembly work.
- High-strength Q345 structural steel construction delivers excellent rigidity, long service life, and resistance to deformation under heavy workloads.
- Surface hardness of 18–25 HRC (approximately Brinell 140–160) provides excellent durability while maintaining machinability for industrial use.
- 3,300-pound load capacity supports large weldments, structural assemblies, fixtures, and heavy fabrication projects with confidence.
- Single solid mounting surface allows future expansion with modular fixturing systems as shop requirements continue to grow.
- Maintenance accessories included including a table oiler, cleaning brush, and cleaning stone to help preserve surface accuracy and extend table life.
- Heavy-duty industrial construction is designed for continuous use in fabrication shops, manufacturing facilities, educational programs, and production environments.
Why Choose the Baileigh Welding Jig Table WJT-3939 1010424
- Precision-machined 39" × 39" welding surface for accurate fabrication.
- Industry-standard 28 mm fixture holes with 100 mm spacing.
- Exceptional ±0.0025" table flatness for repeatable precision.
- Heavy-duty Q345 steel construction built for industrial environments.
- Supports up to 3,300 lbs. for large fabrication projects.
- Compatible with a wide range of professional welding fixtures and accessories.
- Includes maintenance tools to preserve table performance.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Welding Jig Table WJT-3939 1010424 delivers the precision, rigidity, and durability required by professional fabricators, welders, and manufacturers. Combining a precision-ground 39" × 39" work surface, industry-standard 28 mm fixturing system, outstanding flatness, and heavy-duty Q345 steel construction, this welding table provides a dependable foundation for accurate, repeatable fabrication and assembly work.
