Baileigh Vertical Milling Machine VM-949-3 1008236 Applications
- Industrial machine shops and production machining.
- Tool rooms and maintenance departments.
- Metal fabrication and manufacturing facilities.
- Precision drilling, boring, and tapping operations.
- Fixture, die, and tooling production.
- Prototype and custom component manufacturing.
- General-purpose milling of steel, aluminum, brass, and other machinable materials.
- Repair and rebuilding of industrial machinery and equipment.

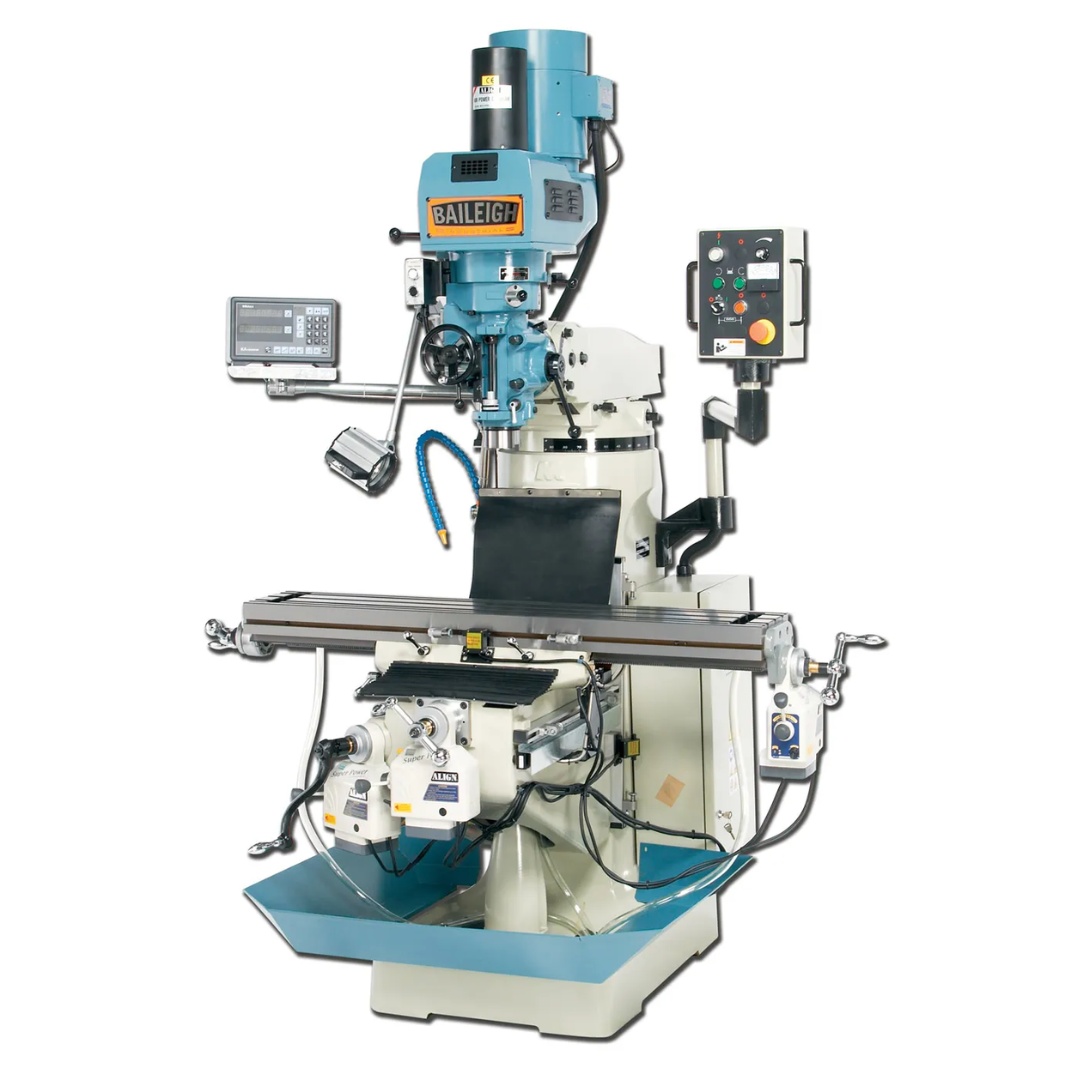

The Baileigh Vertical Milling Machine VM-949-3 1008236 combines industrial-grade construction, precision digital positioning, and fully variable spindle speed control for accurate machining across a wide range of applications.
Baileigh Vertical Milling Machine VM-949-3 1008236 Specifications
| Model | VM-949-3 |
|---|---|
| Part Number | 1008236 |
| Machine Type | Variable-Speed Vertical Knee Milling Machine |
| Motor Power | 3 HP |
| Power Requirement | 220V Three-Phase |
| Drive System | Yaskawa® Variable Frequency Inverter Drive |
| Spindle Speed Range | 60 – 4200 RPM |
| Table Size | 9" × 49" Precision Ground Table |
| Table Load Capacity | 750 lbs. |
| Spindle Taper | NST-40 |
| Digital Readout | Mitutoyo® DRO on X and Y Axes |
| Axis Feed | Powered X, Y, and Z Axes |
| Tool Changing | Air Draw Bar Included |
| Coolant System | Integrated Coolant System with Catch Tray |
| Net Weight | 2,400 lbs. |
| Gross Weight | 2,400 lbs. |
| UPC | 731325419993 |
| Warranty | 1-Year Parts Warranty with Lifetime Technical Support |
Baileigh Vertical Milling Machine VM-949-3 1008236 Performance & Construction
- Heavy-duty cast iron construction minimizes vibration and deflection while providing the rigidity required for accurate machining and extended machine life.
- Powerful 3 HP motor delivers consistent cutting performance for drilling, boring, tapping, facing, slotting, and milling operations.
- Yaskawa® inverter drive provides smooth, continuously variable spindle speed adjustment from 60 to 4200 RPM without changing belts or gears.
- Precision-ground 9" × 49" worktable offers a large machining surface capable of supporting workpieces up to 750 pounds.
- Powered X, Y, and Z axis movement improves machining efficiency, operator control, and production consistency during extended machining operations.
- Mitutoyo® digital readout system on the X and Y axes delivers highly accurate positioning for repeatable machining and reduced setup time.
- NST-40 spindle taper accepts a broad range of industrial tooling including end mills, shell mills, boring heads, drill chucks, and tapping attachments.
- Integrated air draw bar significantly reduces tooling change time while improving shop productivity during multiple machining operations.
- Built-in coolant system with catch tray helps maintain cutting temperatures, extends tool life, improves surface finishes, and efficiently manages chips and coolant.
- Variable-speed spindle control allows operators to optimize cutting speeds for steel, aluminum, stainless steel, brass, plastics, and specialty materials.
- Designed for professional machine shops where accuracy, repeatability, durability, and production efficiency are essential.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Vertical Milling Machine VM-949-3 1008236
- Industrial 3 HP motor delivers dependable machining power.
- Yaskawa® inverter provides continuously variable spindle speeds from 60 to 4200 RPM.
- Large 9" × 49" precision-ground table supports workpieces up to 750 lbs.
- Mitutoyo® DRO improves positioning accuracy and repeatability.
- Powered X, Y, and Z axes increase productivity and operator control.
- NST-40 spindle accepts a wide variety of professional tooling.
- Air draw bar speeds up tooling changes for improved efficiency.
- Integrated coolant system supports continuous machining operations.
- Heavy cast iron construction ensures excellent rigidity and precision.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Vertical Milling Machine VM-949-3 1008236 is a robust industrial milling solution that combines precision engineering, variable-speed performance, premium components, and heavy-duty construction to deliver outstanding results for production machining, fabrication, maintenance, and precision metalworking applications.
