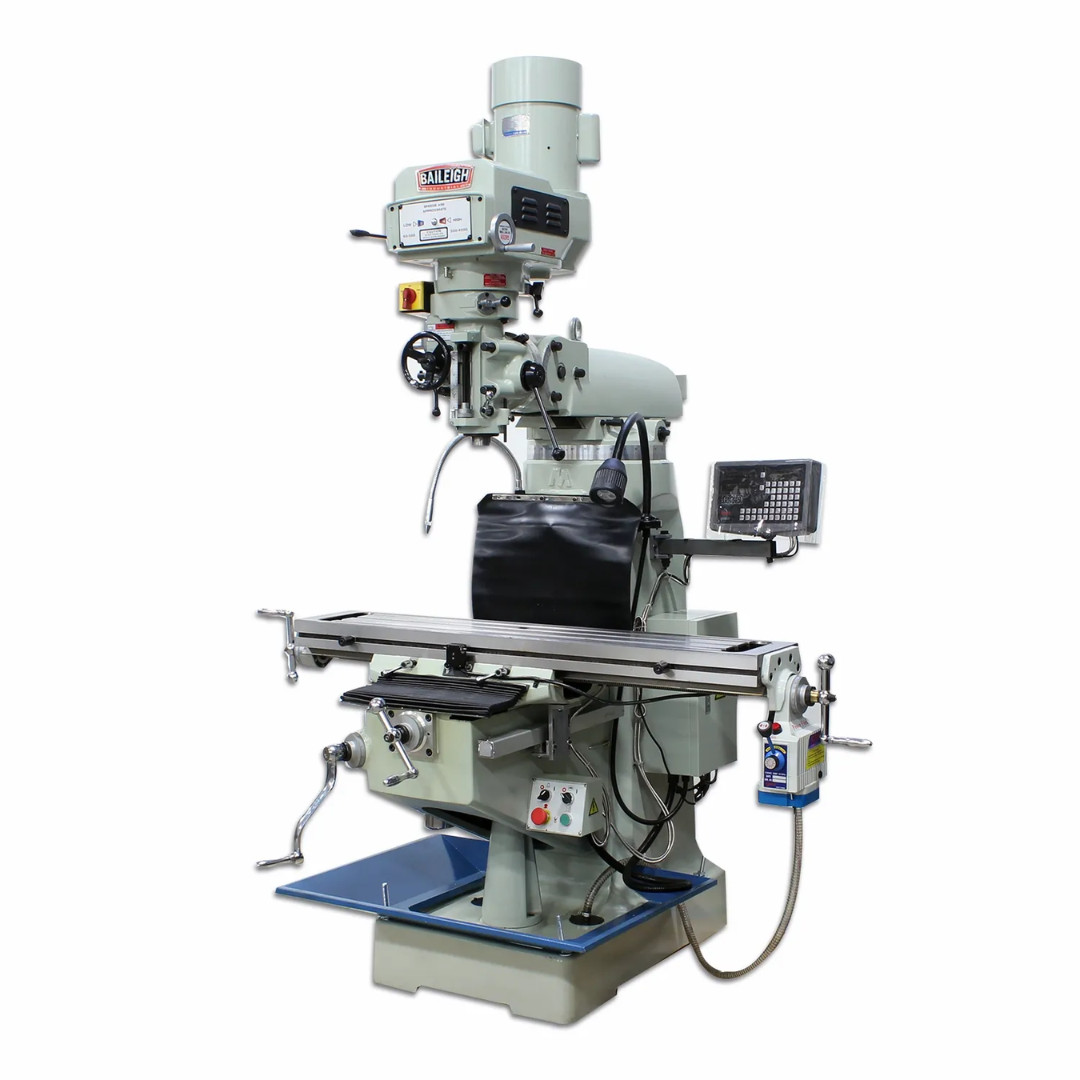

Baileigh Vertical Mill VM-949E-VS 1019108 Applications
- Precision milling and machining operations.
- Tool and die manufacturing environments.
- Prototype development and product engineering.
- General machine shop production work.
- Fabrication and custom metalworking projects.
- Drilling, boring, facing, and slotting applications.
- Maintenance and repair departments.
- Educational, vocational, and technical training facilities.
Ideal for machine shops and fabricators seeking a versatile variable-speed vertical mill capable of handling precision machining tasks across a wide range of materials and tooling configurations.
Baileigh Vertical Mill VM-949E-VS 1019108 Specifications
| Model Number | VM-949E-VS |
|---|---|
| Product Number | 1019108 |
| Product Type | Variable Speed Vertical Mill |
| Motor Power | 3 HP Continuous Duty |
| Horsepower | 3 HP |
| Input Power | 220V Single Phase |
| Table Size | 9" × 49" |
| Spindle Speed Range | 60 – 4200 RPM Infinitely Variable |
| Number of Spindle Speeds | 60 – 4200 RPM Infinitely Variable |
| Spindle Taper | R8 |
| Drawbar | Included |
| Power Draw Bar | Yes |
| Digital Readout | DRO for X and Y Axes |
| Power Feed | X-Axis Power Feed with Rapid Traverse |
| Load Capacity | 750 lbs |
| Coolant System | Integrated Coolant System with Splash Guard |
| Work Light | LED Work Light Included |
| Lubrication | One-Shot Lubrication System |
| Construction | Meehanite® Castings with Dovetail Ways |
| Net Weight | 2,350 lbs |
| Gross Weight | 2,350 lbs |
| UPC | 731325478457 |
Baileigh Vertical Mill VM-949E-VS 1019108 Performance & Construction

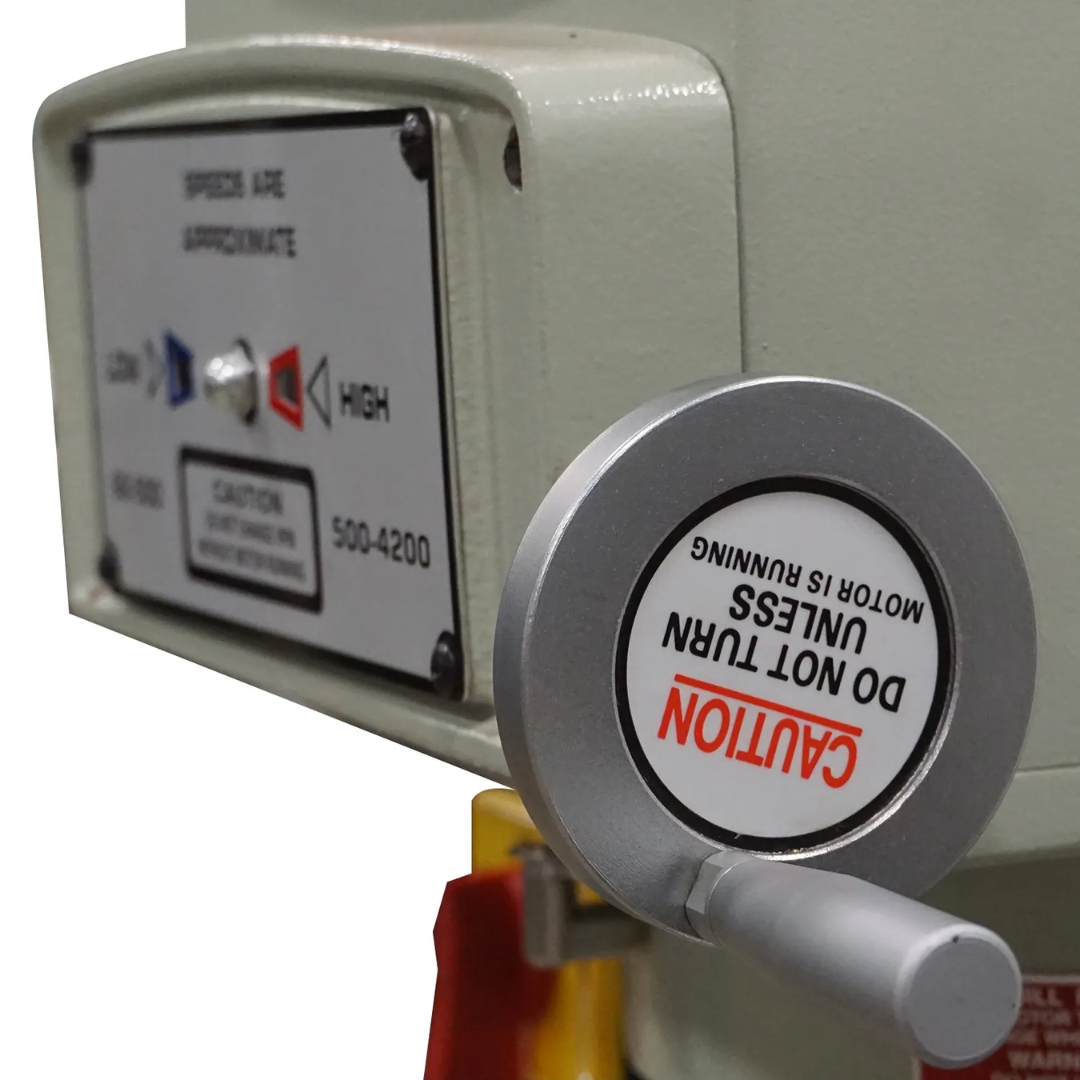

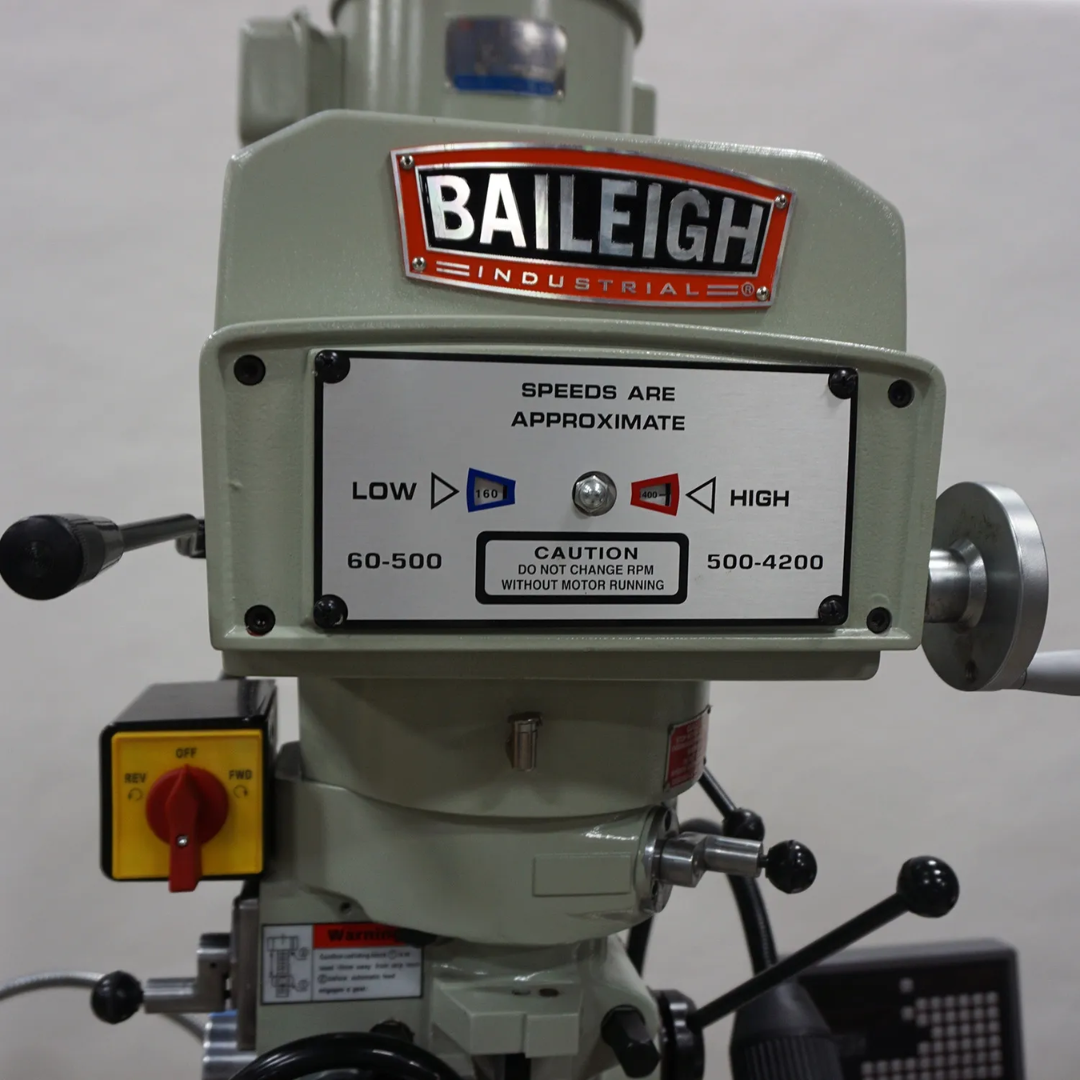

- Infinitely variable spindle speed control allows operators to select the ideal cutting speed between 60 and 4200 RPM for a wide variety of materials, tooling configurations, and machining operations.
- Powerful 3 HP continuous-duty motor delivers reliable torque and performance for demanding milling, drilling, boring, and facing applications.
- Precision 9" × 49" worktable provides ample workspace for large parts, fixtures, and production setups while maintaining excellent machining accuracy.
- Rigid Meehanite® cast iron construction minimizes vibration and enhances dimensional stability during heavy cutting operations.
- R8 spindle with drawbar accepts a wide range of industry-standard tooling for maximum versatility and convenience.

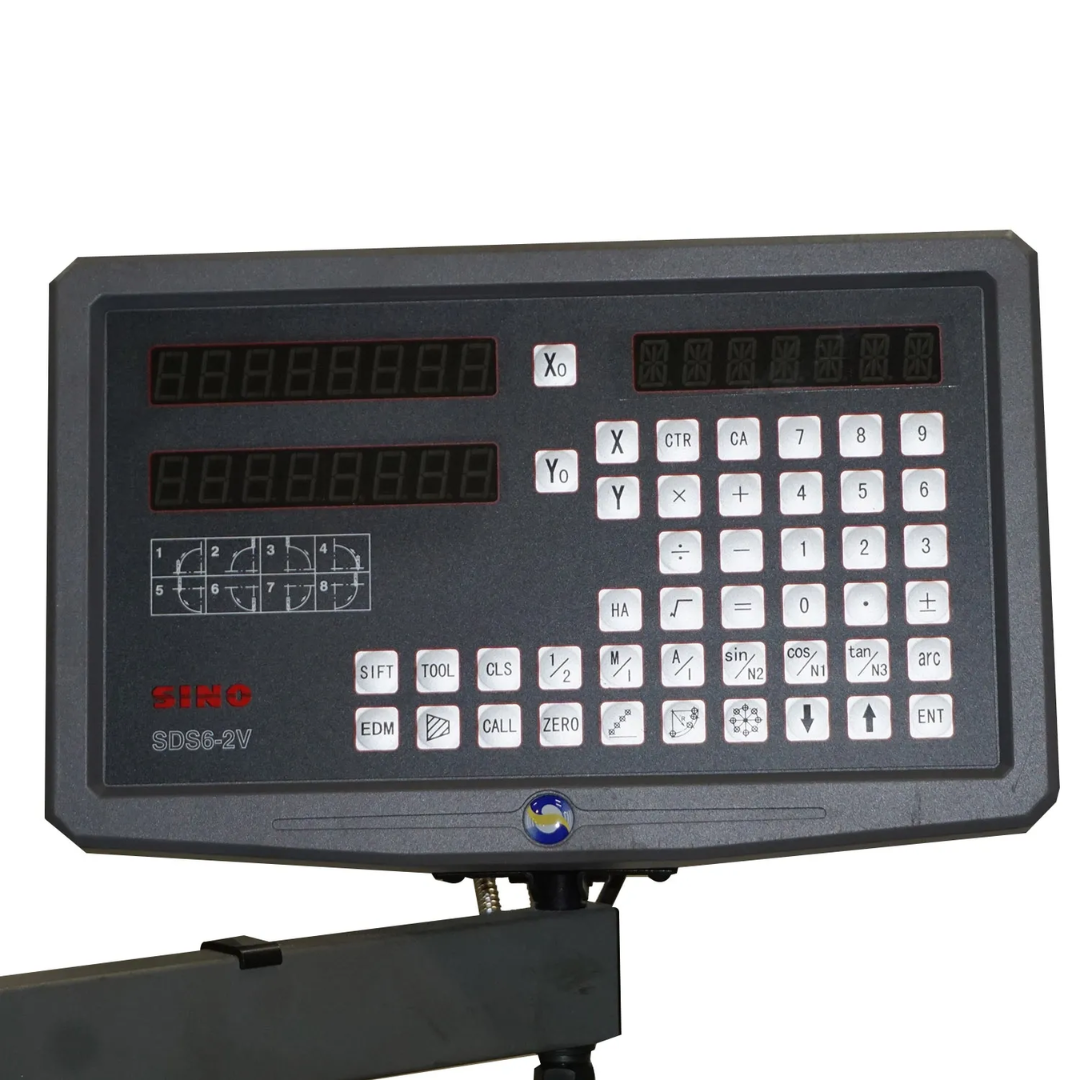

- DRO for X and Y axes improves positioning accuracy, reduces setup time, and enhances repeatability for complex machining projects.

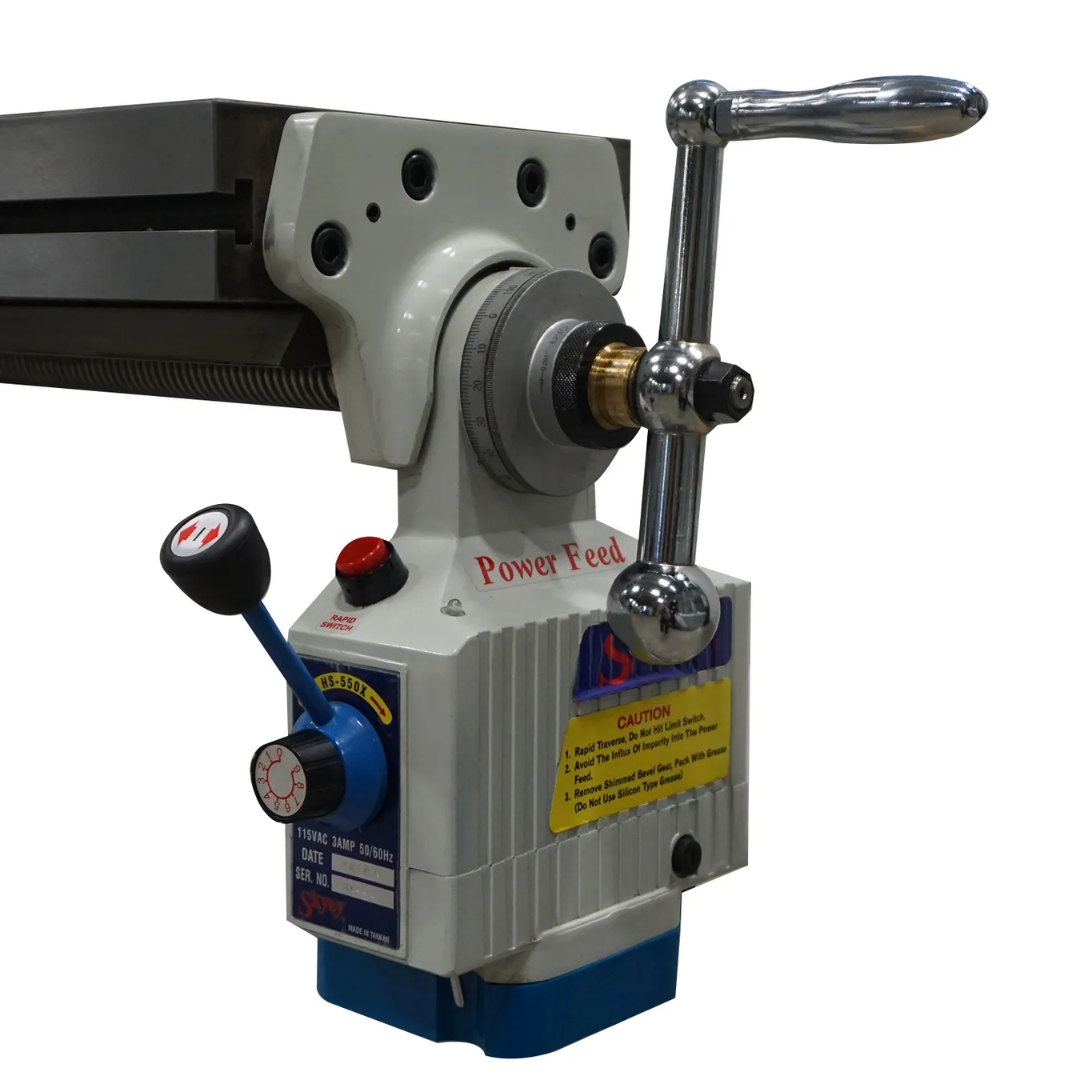

- X-axis power feed with rapid traverse reduces operator fatigue while improving efficiency during repetitive machining operations.
- Dovetail ways with adjustable gibs provide smooth table movement and allow precise machine adjustment over years of operation.
- Premium Taiwan lead screws contribute to consistent accuracy and dependable long-term performance.
- Integrated coolant system helps control heat, improve surface finish quality, extend tool life, and clear chips from the cutting zone.
- Splash guard and plumbed coolant return system help maintain a cleaner and more efficient work environment.

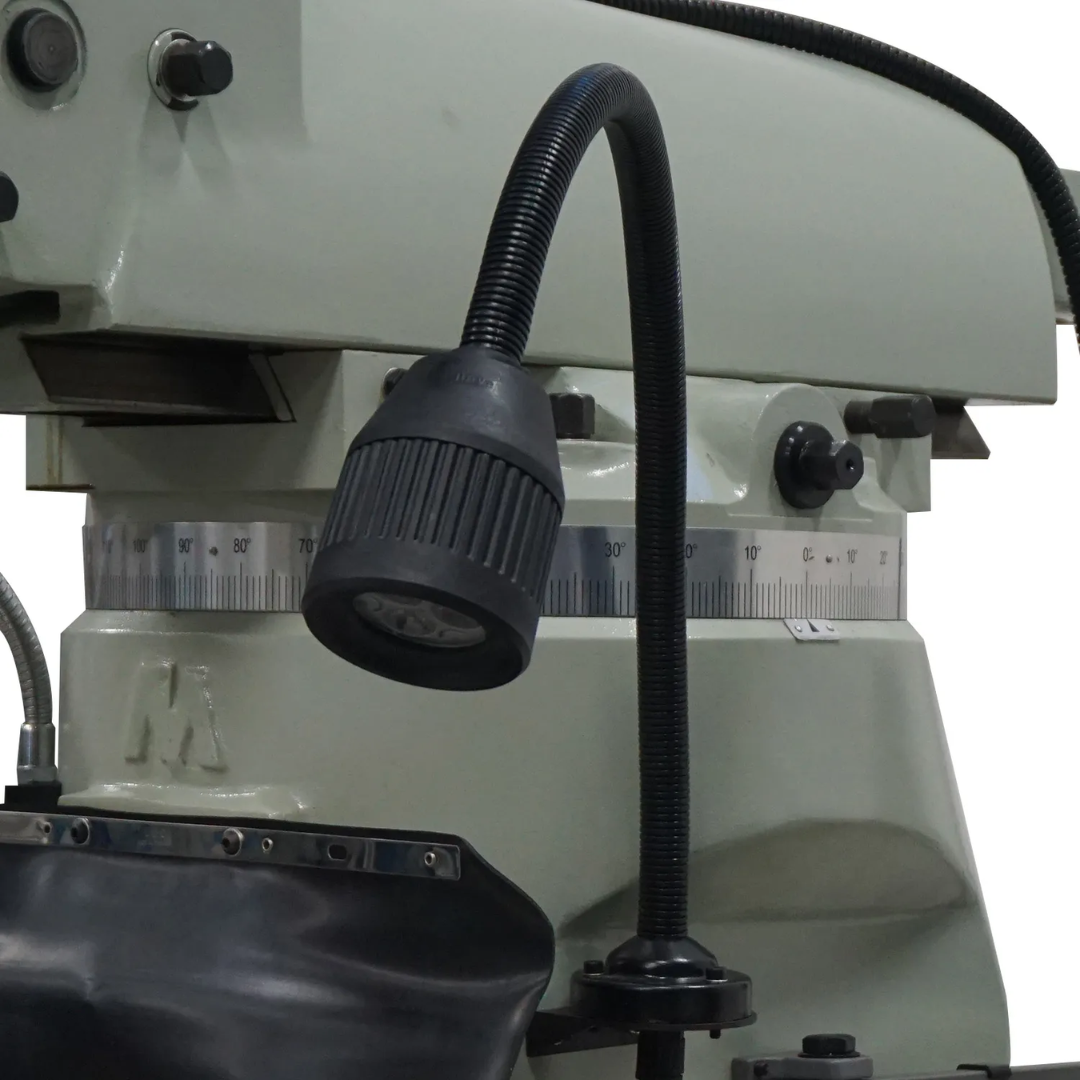

- LED work light improves visibility at the cutting area for increased precision and operator convenience.

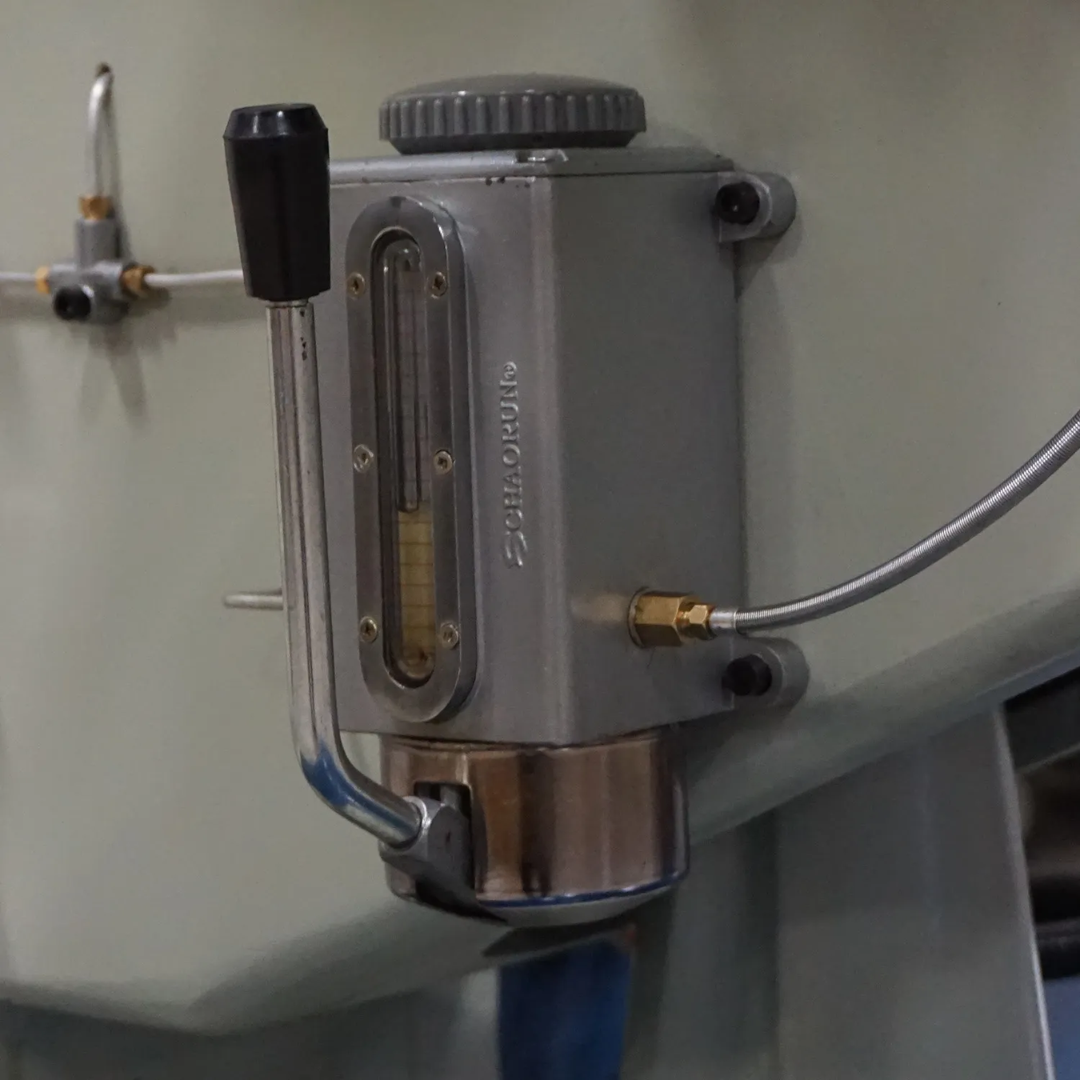

- One-shot lubrication system simplifies maintenance and promotes consistent machine performance.
- Spindle brake system enhances operational control and improves overall shop safety.
- 750-pound table load capacity accommodates large workpieces, fixtures, and production setups with confidence.
Why Choose the Baileigh Vertical Mill VM-949E-VS 1019108
- Wide 60 to 4200 RPM variable speed range supports diverse machining applications.
- Heavy-duty Meehanite® construction ensures rigidity and machining accuracy.
- DRO and power feed improve productivity and operational efficiency.
- R8 spindle accepts widely available tooling and accessories.
- Integrated coolant system enhances cutting performance and tool life.
- Large 9" × 49" table provides excellent workholding flexibility.
- 750 lb load capacity supports substantial machining projects.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Vertical Mill VM-949E-VS 1019108 combines industrial-grade construction, precision machining capability, variable-speed versatility, and operator-focused features into a professional milling solution designed for years of dependable service in demanding shop environments.
