Baileigh Vertical Mill VM-836E-1 1020694 Applications
- General-purpose milling and machining operations.
- Metal fabrication and manufacturing facilities.
- Maintenance and repair departments.
- Tool rooms and prototype development.
- Educational and vocational machine shops.
- Precision drilling, boring, tapping, and reaming.
- Fixture, jig, and tooling production.
- Machining steel, aluminum, brass, plastics, and other machinable materials.

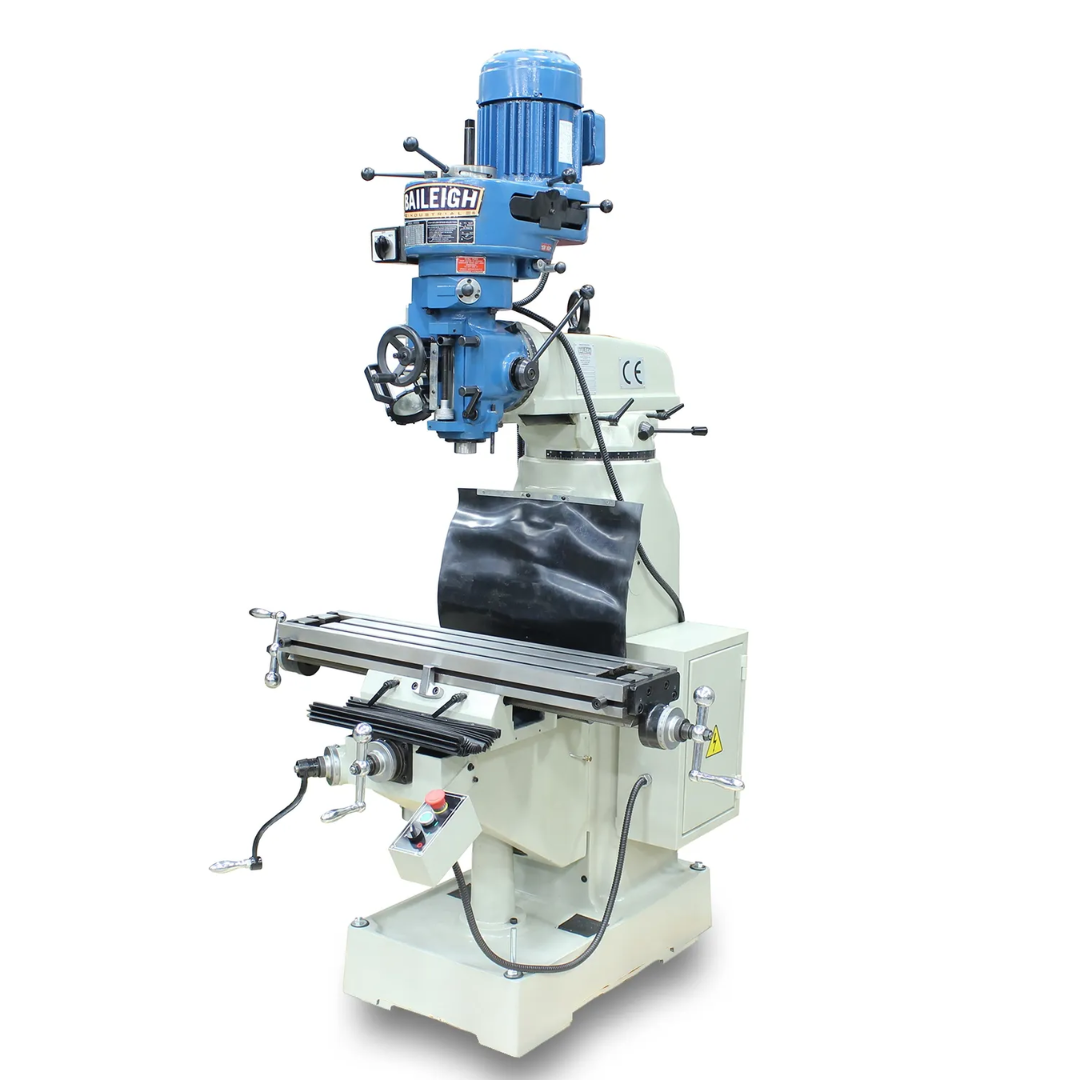

The Baileigh Vertical Mill VM-836E-1 1020694 offers industrial precision in a compact footprint, making it an excellent choice for shops requiring reliable milling performance without sacrificing valuable floor space.
Baileigh Vertical Mill VM-836E-1 1020694 Specifications
| Model | VM-836E-1 |
|---|---|
| Part Number | 1020694 |
| Machine Type | Vertical Milling Machine |
| Motor Power | 2 HP |
| Power Requirement | 110V Electrical Service |
| Drive System | Step Pulley Drive |
| Table Size | 8" × 36" Precision Ground Table |
| Table Load Capacity | 750 lbs. |
| Spindle Taper | R8 |
| Number of Spindle Speeds | 8 |
| Spindle Speed Range | 80 – 2720 RPM |
| Headstock Adjustment | Tilts 90° for Angular Machining |
| Coolant System | Integrated Coolant System |
| Work Light | Integrated Machine Work Light |
| Maximum Table Load | 750 lbs. |
| Net Weight | 1,750 lbs. |
| Gross Weight | 1,750 lbs. |
| UPC | 199077677756 |
| Warranty | 1-Year Parts Warranty with Lifetime Technical Support |
Baileigh Vertical Mill VM-836E-1 1020694 Performance & Construction
- Heavy-duty cast iron construction provides outstanding rigidity and minimizes vibration for improved machining accuracy and long-term durability.
- Powerful 2 HP milling motor supplies dependable cutting performance for milling, drilling, boring, tapping, and reaming operations.

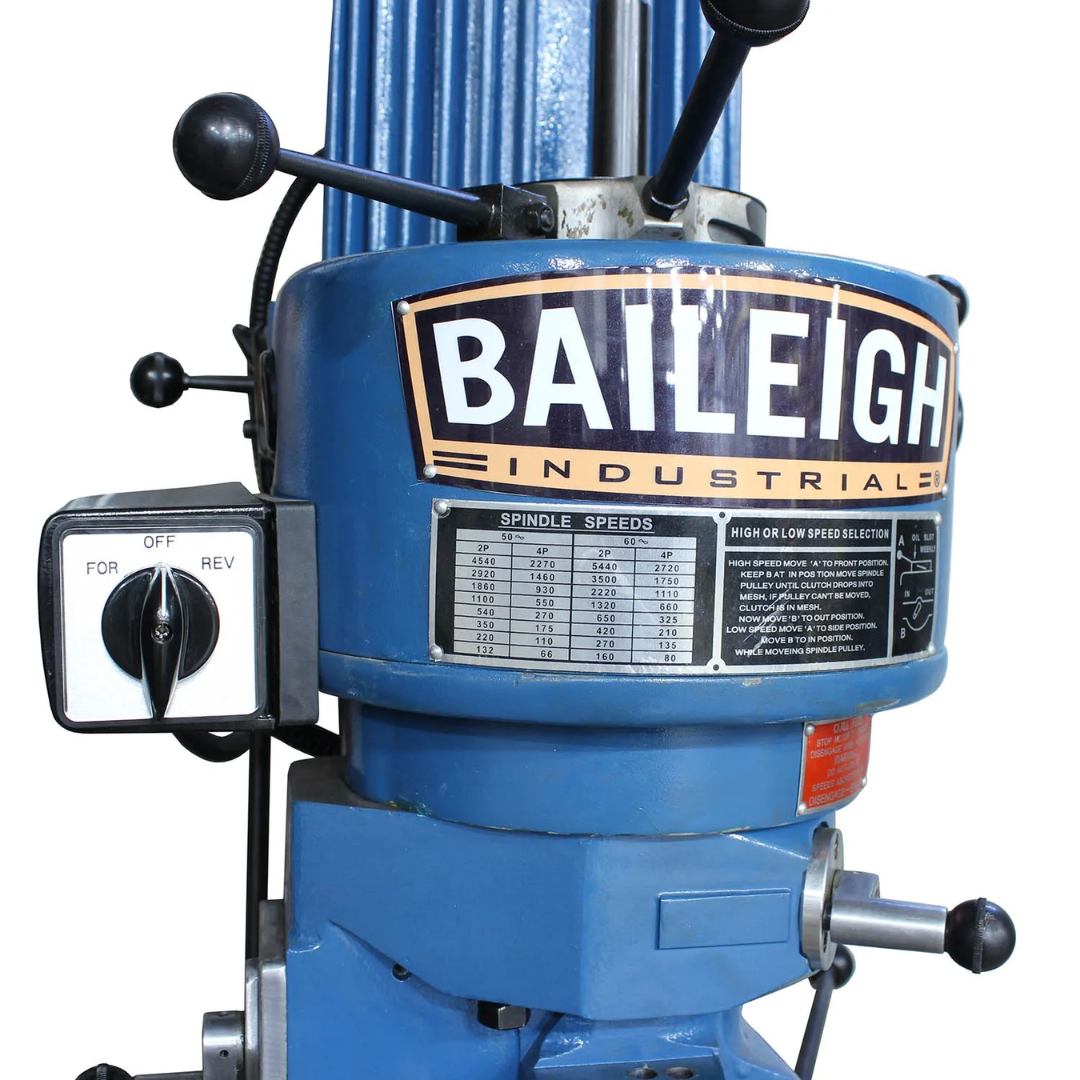

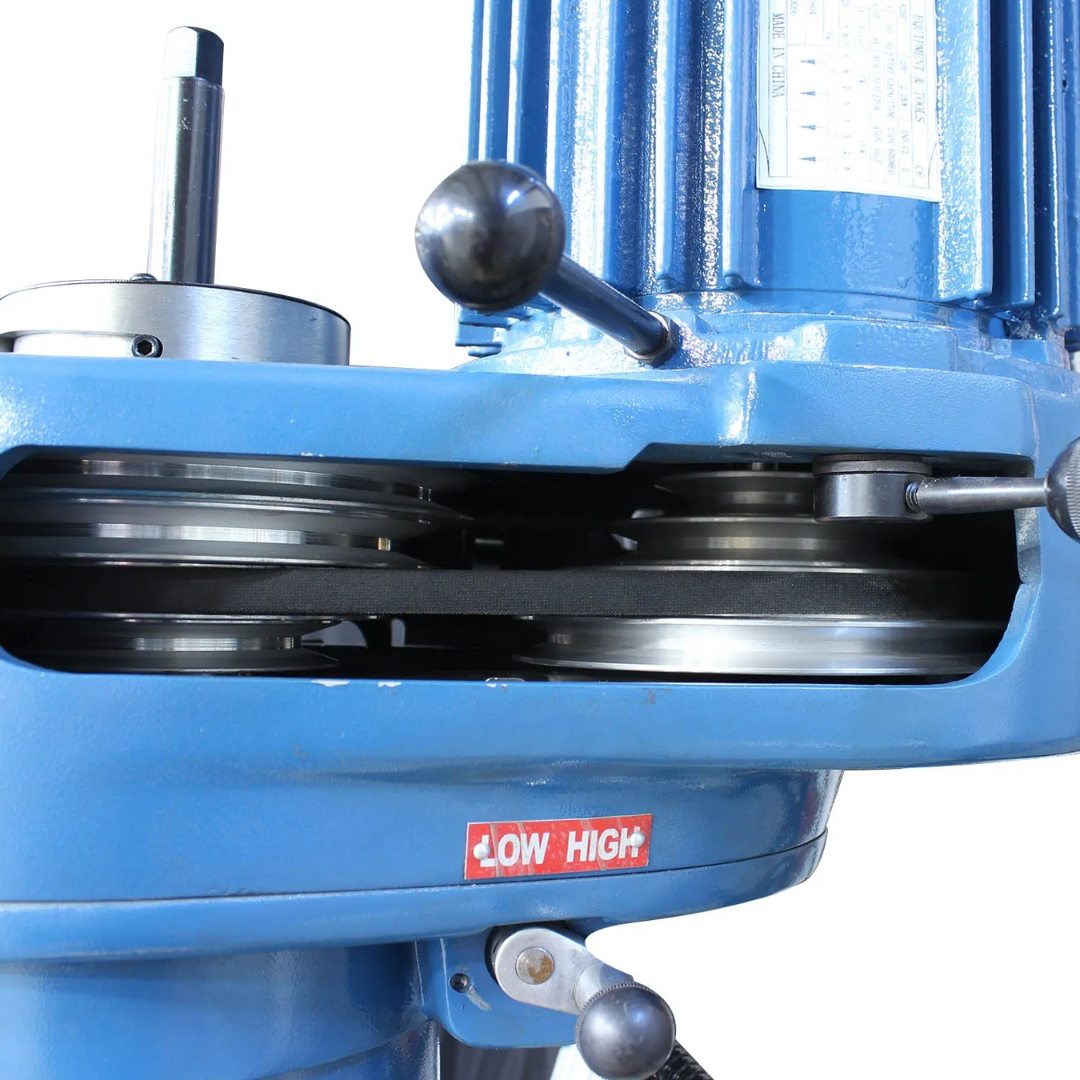

- Step pulley drive system offers eight selectable spindle speeds from 80 to 2720 RPM, allowing operators to match spindle speed to tooling and material requirements.

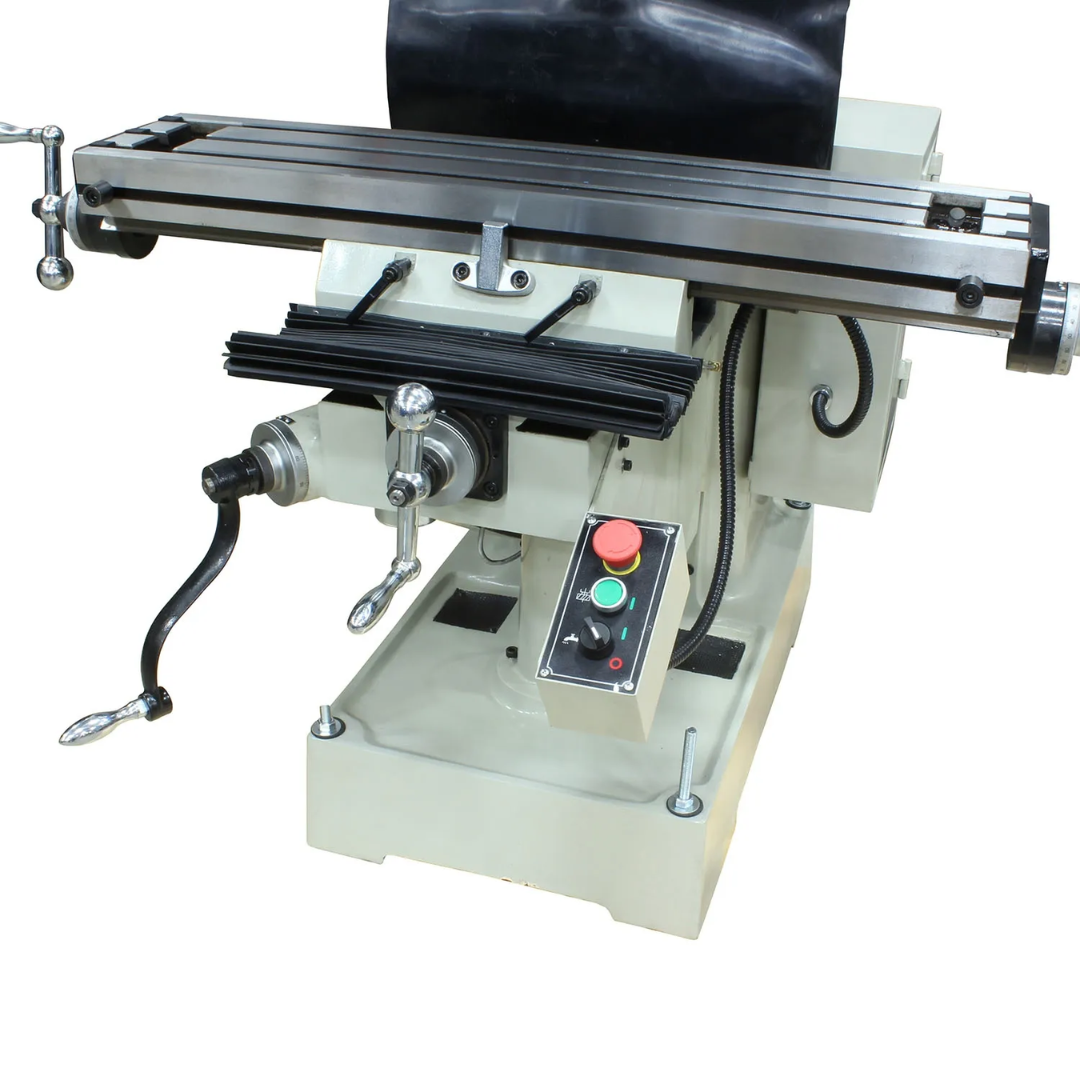

- Precision-ground 8" × 36" worktable provides a stable machining platform capable of supporting workpieces weighing up to 750 pounds.
- Standard R8 spindle taper accepts one of the industry's most common tooling systems, making tooling selection economical and widely available.

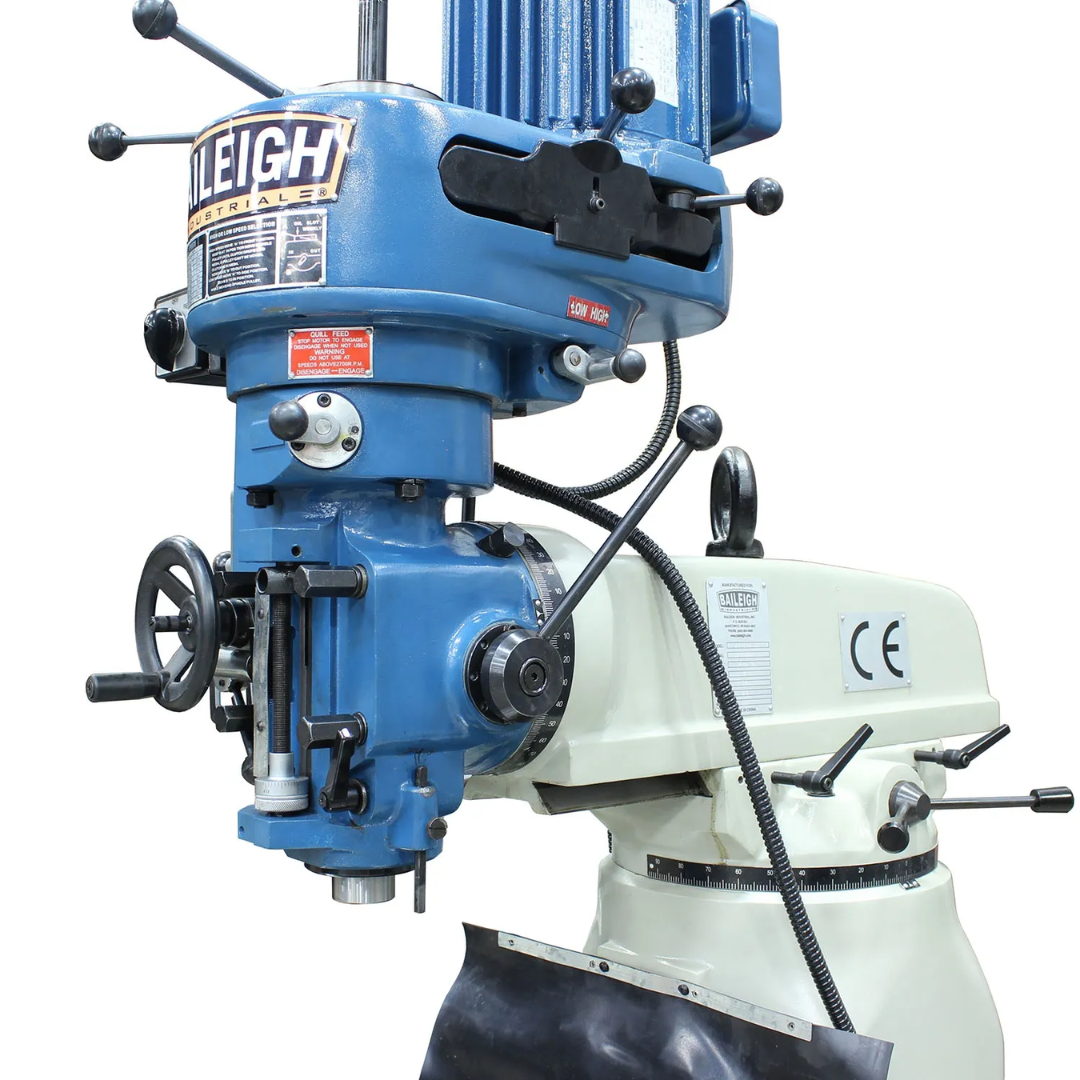

- 90-degree tilting headstock enables angled milling, drilling, and specialty machining operations without repositioning the workpiece.
- Integrated coolant system improves tool life, helps maintain cutting temperatures, and enhances chip evacuation during extended machining cycles.
- Built-in work light illuminates the machining area for improved visibility, greater accuracy, and enhanced operator confidence.
- Compact machine footprint makes the VM-836E-1 an excellent solution for smaller machine shops and fabrication facilities while still delivering industrial-grade performance.
- 750-pound table capacity accommodates large fixtures, vises, and heavy workpieces for versatile machining capability.
- Ideal for light- to medium-duty industrial machining, including maintenance work, prototype production, fabrication, and precision component manufacturing.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Vertical Mill VM-836E-1 1020694
- Industrial-grade cast iron construction ensures stability and precision.
- 2 HP motor provides dependable milling performance for everyday machining.
- Eight spindle speeds from 80 to 2720 RPM support a wide variety of cutting applications.
- Precision 8" × 36" worktable accommodates workpieces up to 750 lbs.
- R8 spindle taper accepts widely available professional tooling.
- 90° tilting head expands machining versatility.
- Integrated coolant system improves tool life and machining efficiency.
- Built-in work light enhances visibility and machining accuracy.
- Compact footprint fits machine shops where floor space is at a premium.
- Supported by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Vertical Mill VM-836E-1 1020694 delivers professional milling capability, rugged construction, and dependable precision in a compact package. Its combination of an R8 spindle, 8-speed step pulley drive, integrated coolant system, tilting head, and heavy-duty worktable makes it an excellent choice for fabrication shops, maintenance departments, educational facilities, and precision machine shops seeking reliable day-to-day milling performance.
