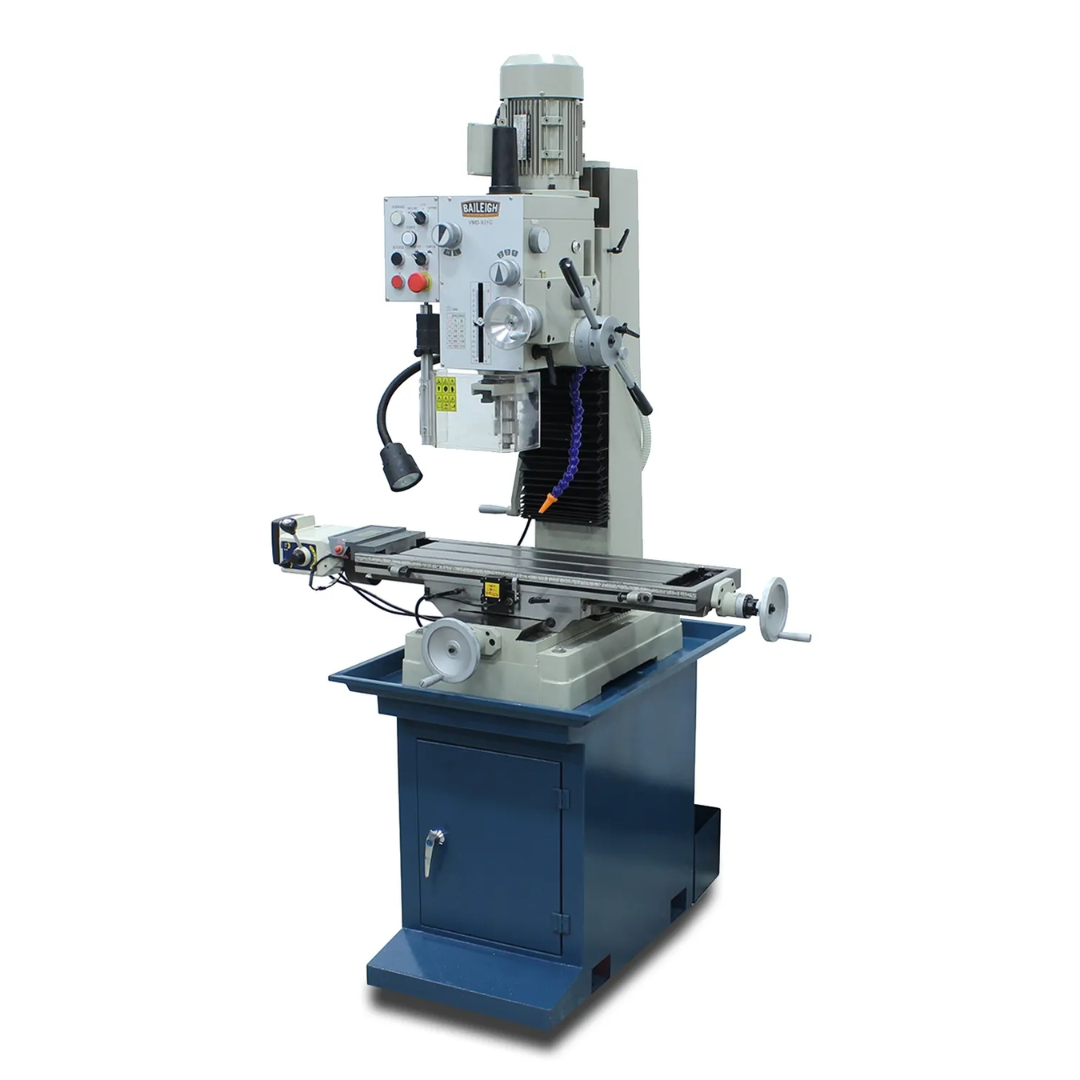

Baileigh Vertical Mill Drill - (VMD-931G) 1020693 Applications
- General metalworking and machining operations.
- Precision drilling, tapping, and boring applications.
- Prototype manufacturing and product development.
- Maintenance and repair facilities.
- Toolroom and job shop machining.
- Automotive fabrication and custom component production.
- Agricultural equipment repair and fabrication.
- Technical schools and vocational training programs.
Ideal for shops that need a multifunction machine capable of drilling, milling, tapping, and boring while maintaining precision and reducing equipment footprint.
Baileigh Vertical Mill Drill - (VMD-931G) 1020693 Specifications
| Model Number | VMD-931G |
|---|---|
| Product Number | 1020693 |
| Motor Power | 2 HP |
| Power Requirement | 110V Single Phase |
| Drilling Capacity - Mild Steel | 1.75 in. |
| Face Mill Capacity | 3.15 in. |
| Spindle Taper | R-8 |
| Spindle Speed Range | 90 - 1970 RPM |
| Number of Spindle Speeds | 6 |
| Available Spindle Speeds | 90, 210, 345, 670, 1180, 1970 RPM |
| Work Table Size | 31.5 in. × 9.45 in. |
| X-Axis Feed | Power Feed Included |
| Net Weight | 815 lbs. |
| Gross Weight | 815 lbs. |
| UPC | 19907768654 |
| Warranty | 1 Year |
Baileigh Vertical Mill Drill - (VMD-931G) 1020693 Performance & Construction
- 2 HP industrial motor delivers dependable power for drilling, milling, tapping, and boring operations across a variety of materials.
- 110V single-phase operation allows installation in many workshops without requiring specialized industrial power infrastructure.
- 1.75-inch drilling capacity in mild steel provides substantial drilling capability for fabrication, repair, and production applications.
- Gear-driven head design ensures positive power transfer, accurate spindle speed selection, and reduced belt wear compared to belt-driven systems.

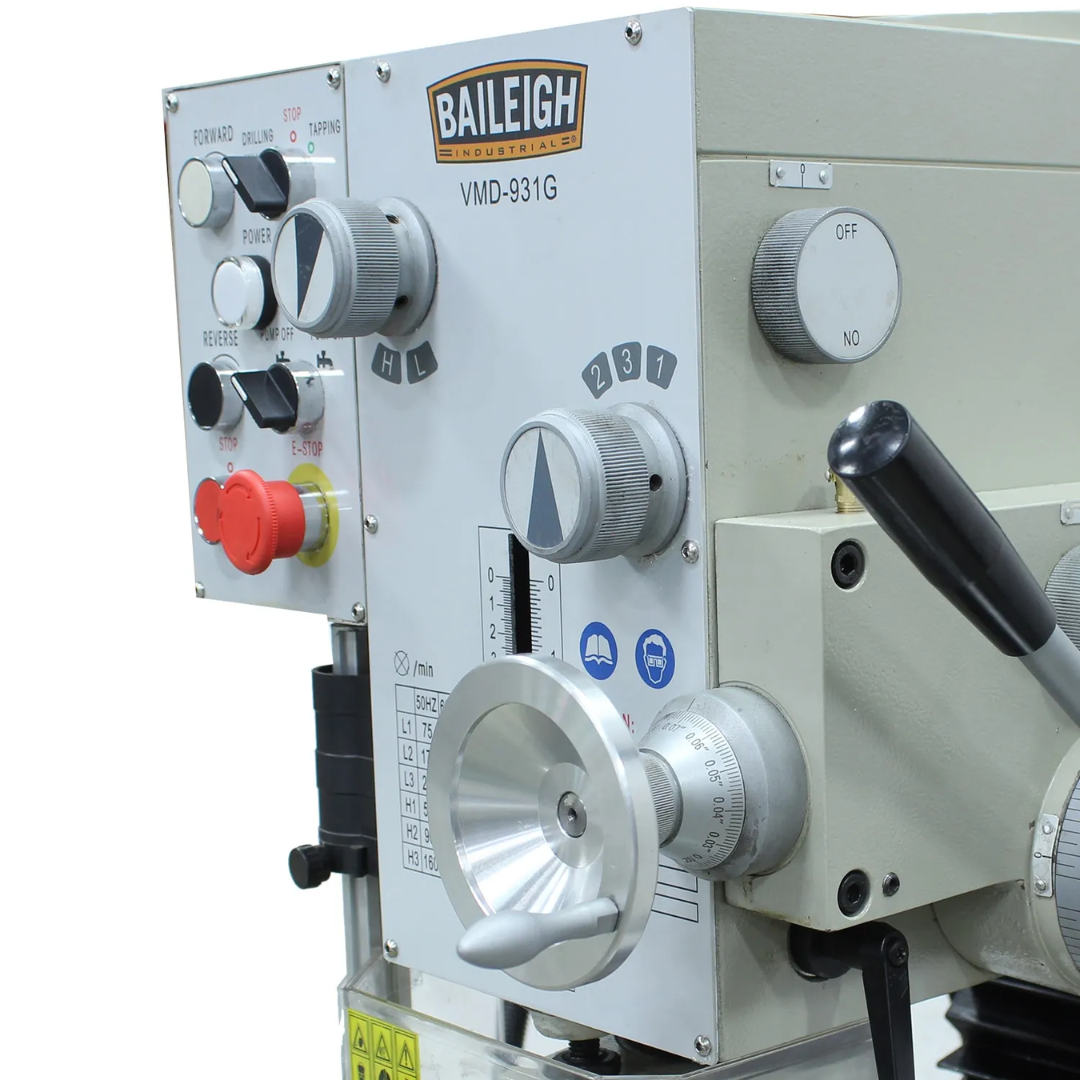

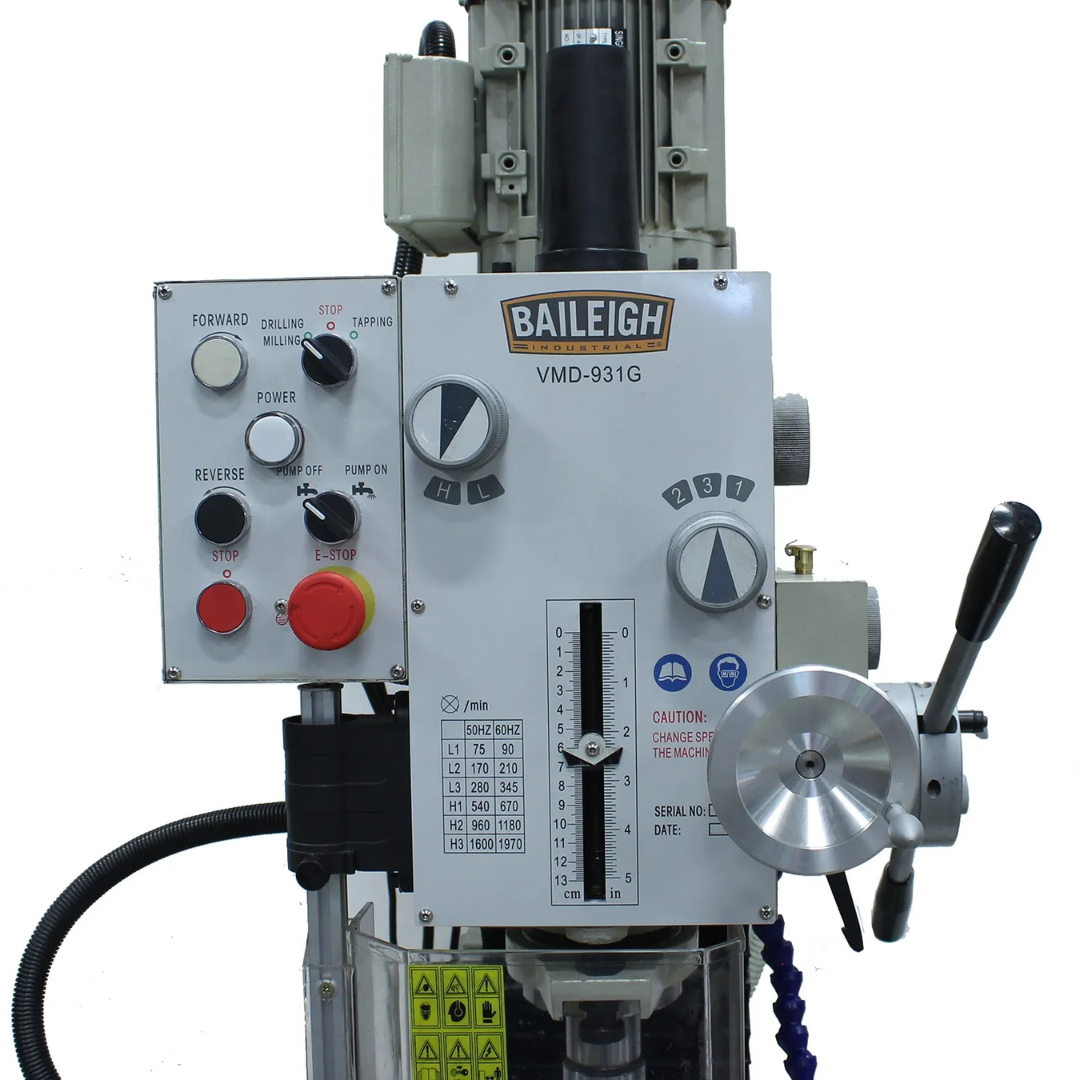

- Six selectable spindle speeds give operators the flexibility to optimize cutting performance based on tooling and material requirements.
- Wide spindle speed range from 90 to 1970 RPM supports everything from low-speed heavy cutting to high-speed finishing operations.
- R-8 spindle taper offers excellent tooling availability and compatibility with a broad range of milling and drilling accessories.

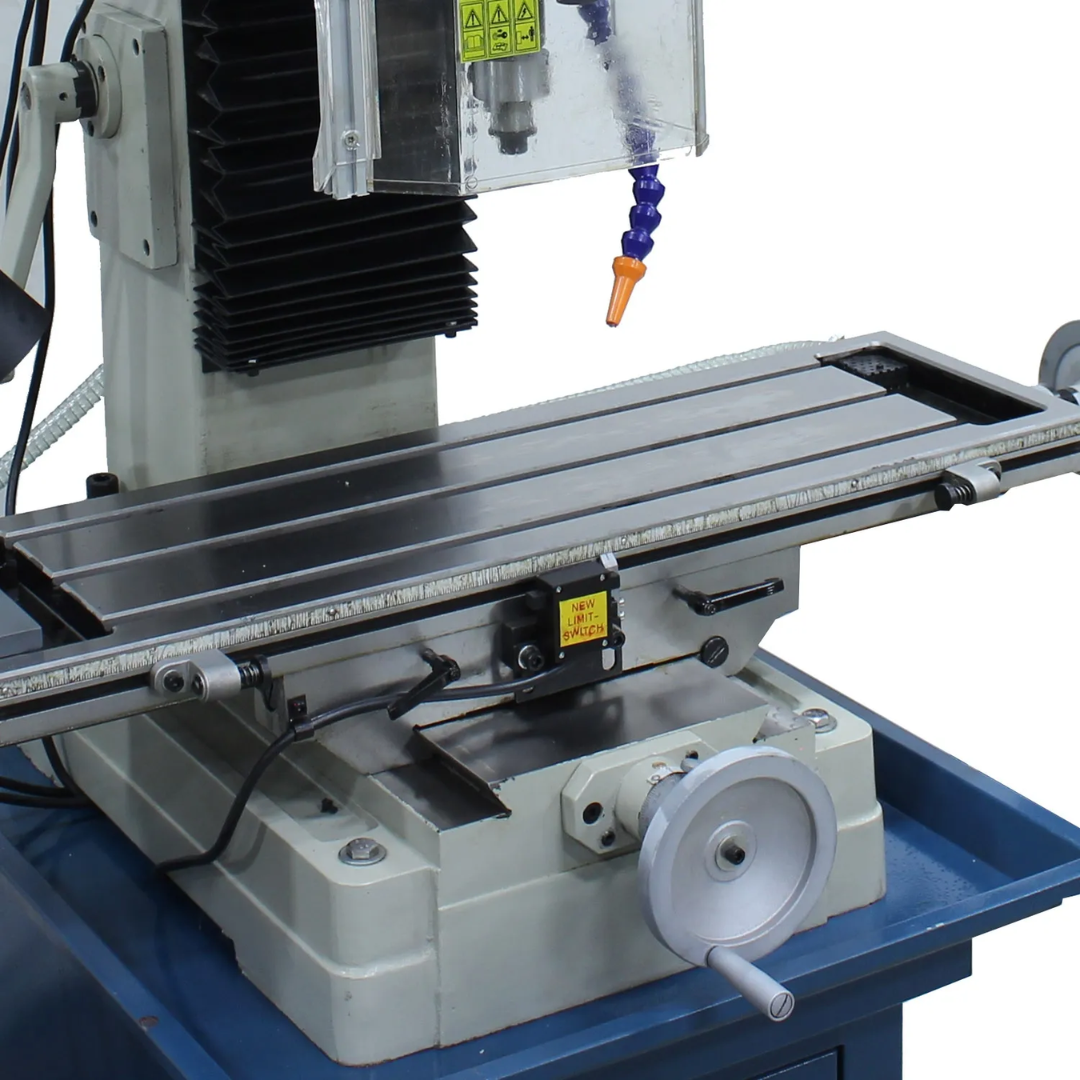

- Large milling-style work table measuring 31.5 inches by 9.45 inches provides ample workspace for fixtures, vises, and larger workpieces.

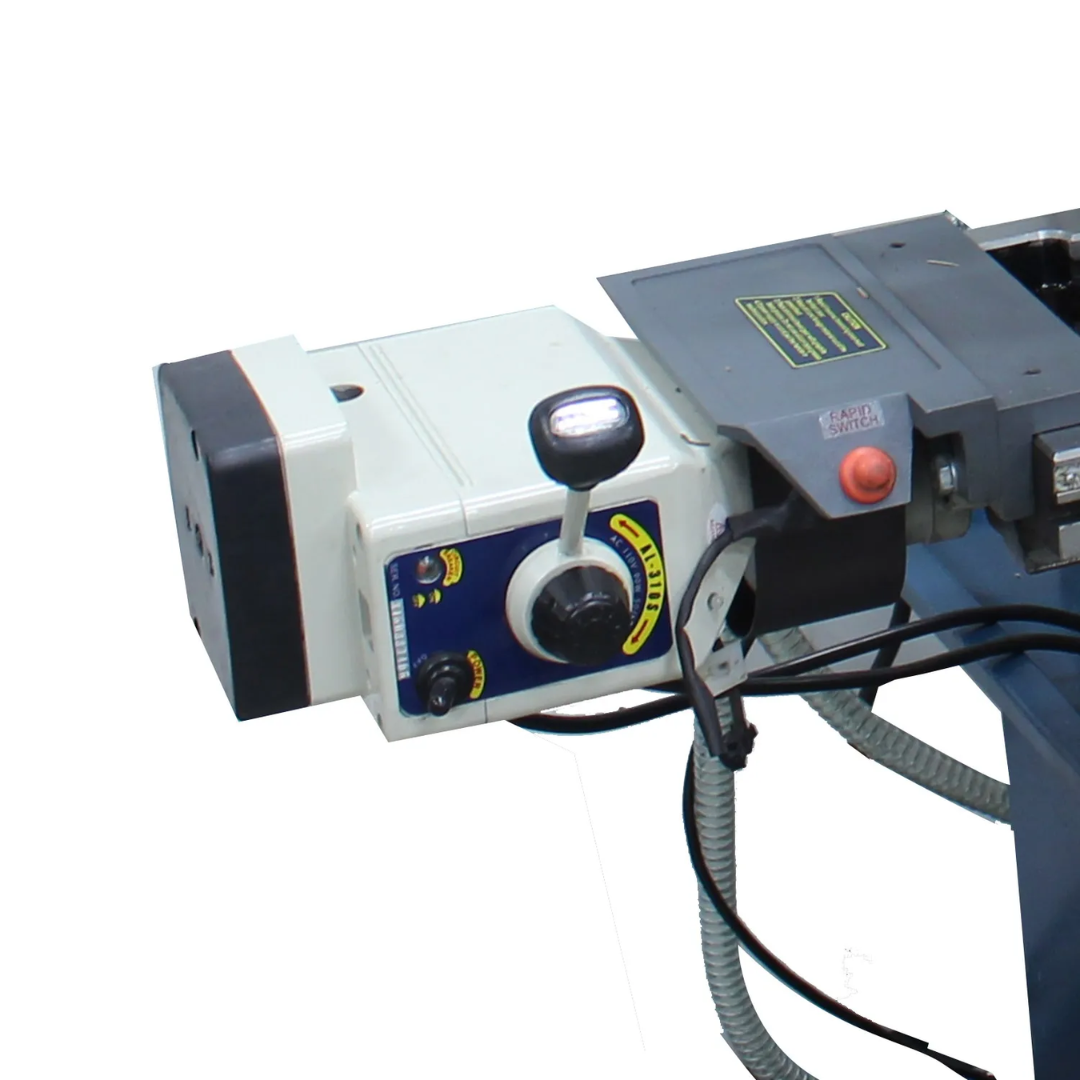

- X-axis power feed system improves machining consistency, enhances surface finish quality, and reduces operator fatigue during long cutting operations.
- 3.15-inch face mill capacity allows efficient material removal and surfacing operations on larger components.
- Heavy-duty steel column and base minimize flex and vibration, improving machining accuracy and extending tool life.
- Integrated coolant system helps manage heat, improve cutting performance, and increase tooling longevity during machining operations.
- Flexible halogen work light enhances visibility around the cutting area for improved precision and operator safety.
- Multi-function capability eliminates the need for separate drilling and milling machines, maximizing shop productivity and floor space efficiency.
- Industrial construction provides long-term durability and reliable operation in demanding workshop environments.
- Supported by Baileigh with a 1-year parts warranty and lifetime technical support.
Why Choose the Baileigh Vertical Mill Drill - (VMD-931G) 1020693
- Combines milling, drilling, tapping, and boring functions in one machine.
- Gear-driven head offers reliable performance and precise speed selection.
- R-8 spindle taper supports a wide range of tooling options.
- Large milling table with X-axis power feed improves productivity and precision.
- Heavy-duty construction minimizes vibration and maximizes machining accuracy.
- Operates on standard 110V power for easy installation.
- Designed for professional fabrication, machining, maintenance, and educational environments.
The Baileigh Vertical Mill Drill - (VMD-931G) 1020693 delivers the versatility of multiple machine tools in one rugged platform, combining drilling, milling, tapping, and boring capabilities with industrial-grade construction, precision controls, and dependable machining performance.
