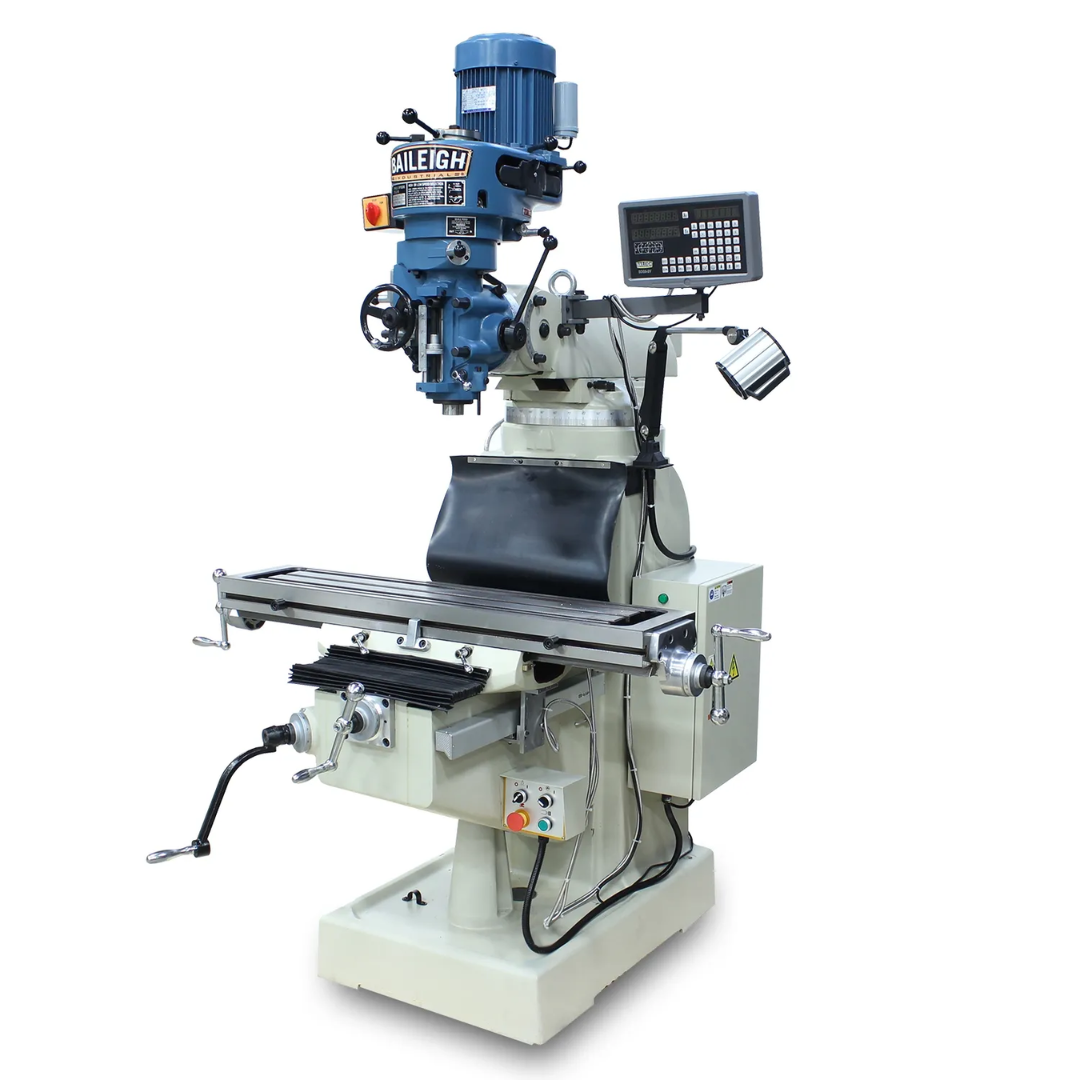

Baileigh Vertical Knee Mill - VM-942E-1 1020695 Applications
- Industrial machining and production manufacturing.
- Tool rooms and precision machine shops.
- General metal fabrication and repair facilities.
- Prototype development and engineering departments.
- Educational machining and vocational training programs.
- Drilling, milling, boring, slotting, facing, and precision machining.
- Steel, stainless steel, aluminum, brass, bronze, and cast iron machining.
- Fixture, mold, die, and custom component production.
Designed for professional machinists who require dependable accuracy, versatile spindle speeds, and industrial construction in a compact vertical knee mill operating on convenient single-phase power.
Baileigh Vertical Knee Mill - VM-942E-1 1020695 Specifications
| Model Number | VM-942E-1 |
|---|---|
| Product Keyword | Baileigh Vertical Knee Mill - VM-942E-1 1020695 |
| Machine Type | Industrial Vertical Knee Milling Machine |
| Power Requirement | 220V Single Phase |
| Main Motor | 3 HP |
| Table Size | 42" × 9" Precision Worktable |
| Maximum Table Load Capacity | 770 lbs |
| Spindle Speed Range | 60–2760 RPM |
| Number of Spindle Speeds | 8 |
| Spindle Taper | R8 |
| Digital Readout | 2-Axis Precision DRO |
| Coolant System | Integrated Flood Coolant System |
| Work Light | Halogen Work Light |
| Way Design | Dovetail Slide Ways with Protective Way Covers |
| Construction | Heavy-Duty Cast Iron Machine Frame |
| Net Weight | 2,250 lbs |
| Gross Weight | 2,250 lbs |
| Warranty | 1-Year Parts Warranty |
| Technical Support | Lifetime Technical Support from Baileigh |
| UPC | 19907767763 |
Baileigh Vertical Knee Mill - VM-942E-1 1020695 Performance & Construction
- Powerful 3 HP milling motor provides reliable cutting performance for demanding machining operations across a wide range of materials.
- 220V single-phase electrical operation allows installation in professional shops without requiring three-phase service.
- Eight selectable spindle speeds from 60 to 2760 RPM provide excellent flexibility for drilling, milling, boring, facing, and precision finishing.
- Industry-standard R8 spindle taper accepts widely available tooling, reducing tooling costs while expanding machining capabilities.

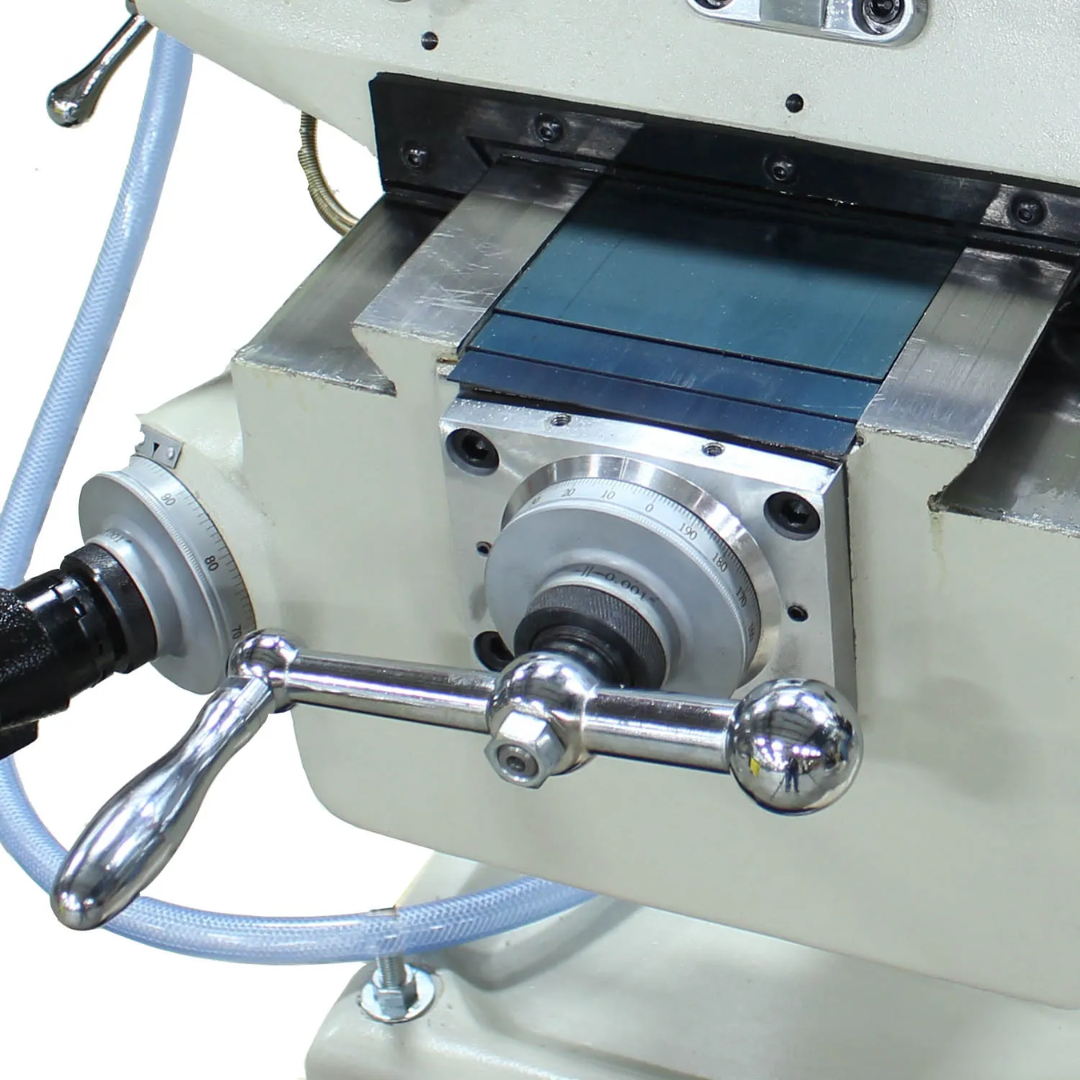

- Large 42" × 9" precision worktable accommodates a wide variety of workpieces, vises, rotary tables, and fixture setups.
- 770-pound table load capacity supports heavy components while maintaining machining stability and accuracy.

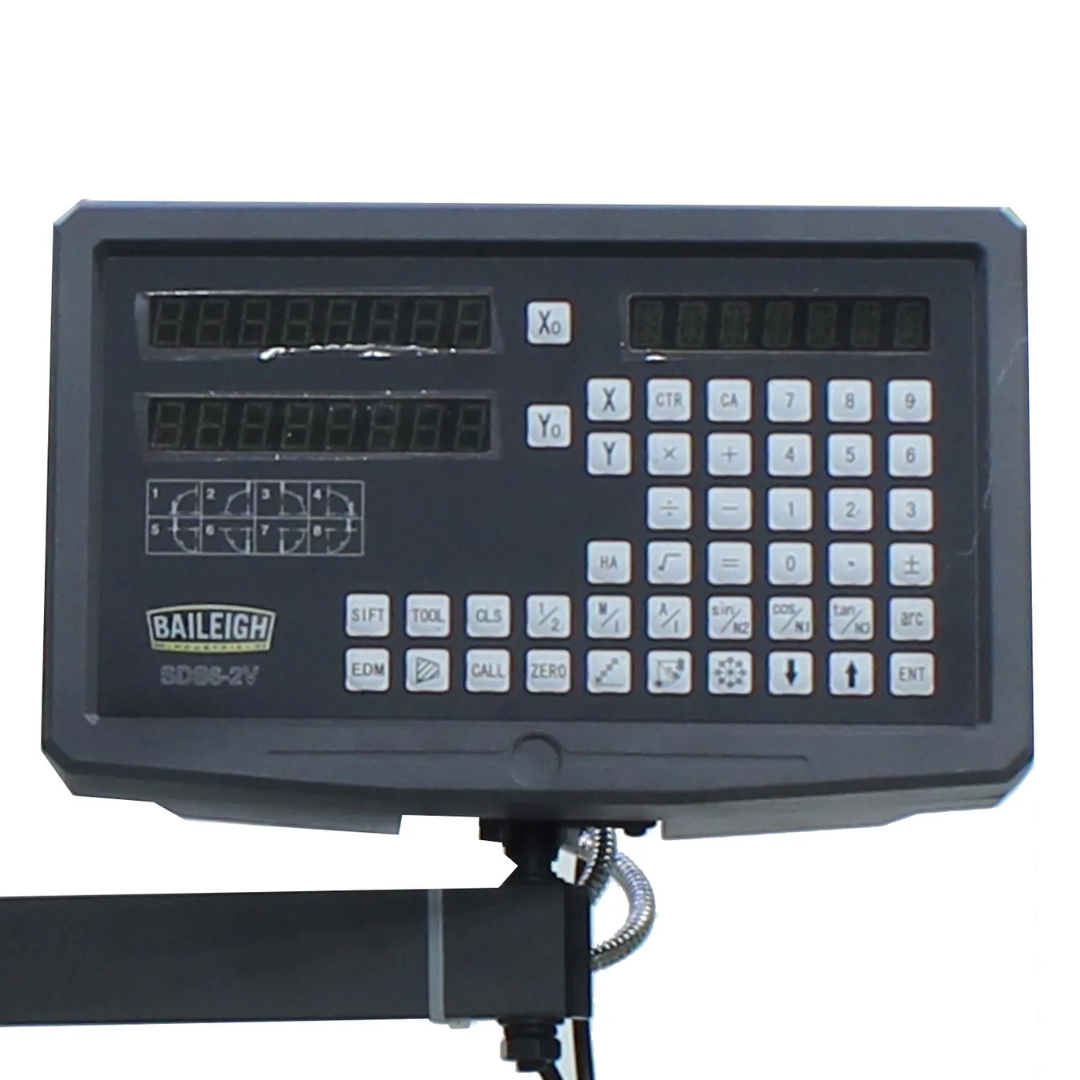

- Precision 2-axis digital readout (DRO) improves positioning accuracy, repeatability, and setup efficiency for production and prototype machining.
- Integrated flood coolant system helps extend cutting tool life, improve surface finish, and efficiently evacuate chips during machining.
- Factory-installed halogen work light provides enhanced visibility of the cutting area for improved operator accuracy.

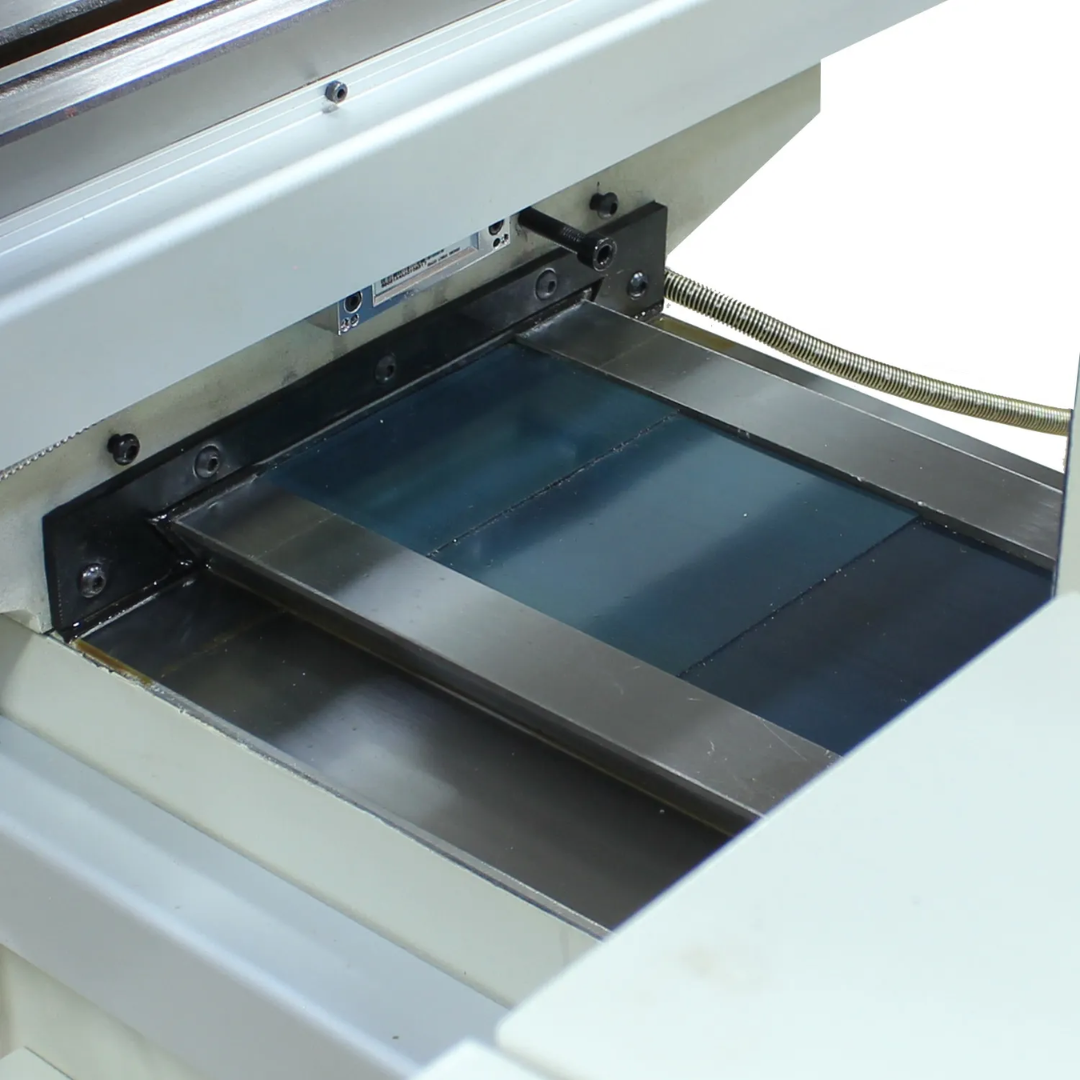

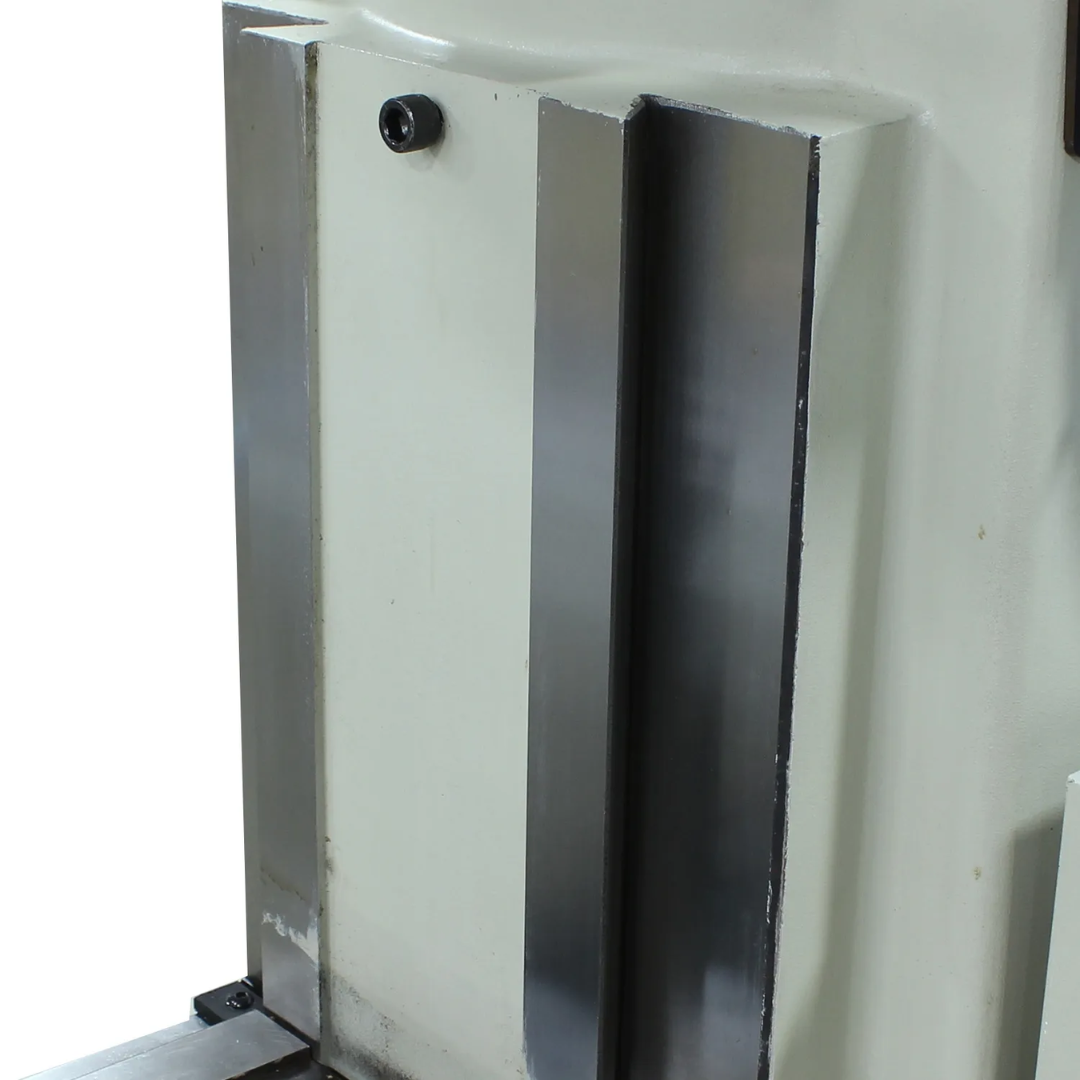

- Dovetail slide ways with protective covers maintain rigidity while protecting critical machine components from chips, coolant, and contamination.
- Heavy-duty cast iron construction minimizes vibration for smoother finishes, tighter tolerances, and dependable long-term performance.
- Designed for production machining, fabrication, maintenance, and precision tool room work where repeatable accuracy is essential.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support.
Why Choose the Baileigh Vertical Knee Mill - VM-942E-1 1020695
- Industrial-grade 3 HP motor provides dependable milling performance.
- Operates on convenient 220V single-phase electrical service.
- 8 spindle speeds allow precise machining across multiple materials.
- Industry-standard R8 spindle accepts economical, widely available tooling.
- Large 42" × 9" worktable supports versatile workholding configurations.
- 2-axis DRO improves machining accuracy and productivity.
- Integrated coolant system and halogen work light enhance machining performance.
- Rigid cast iron construction with protected dovetail ways ensures long service life.
- 770 lb table capacity supports demanding industrial applications.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Vertical Knee Mill - VM-942E-1 1020695 combines industrial durability, precision machining capability, and operator-friendly features into a dependable vertical milling platform. With its 3 HP motor, 8-speed spindle, R8 tooling compatibility, integrated coolant system, and precision 2-axis DRO, it is an excellent choice for professional machine shops, fabrication facilities, and manufacturers seeking reliable milling performance every day.
