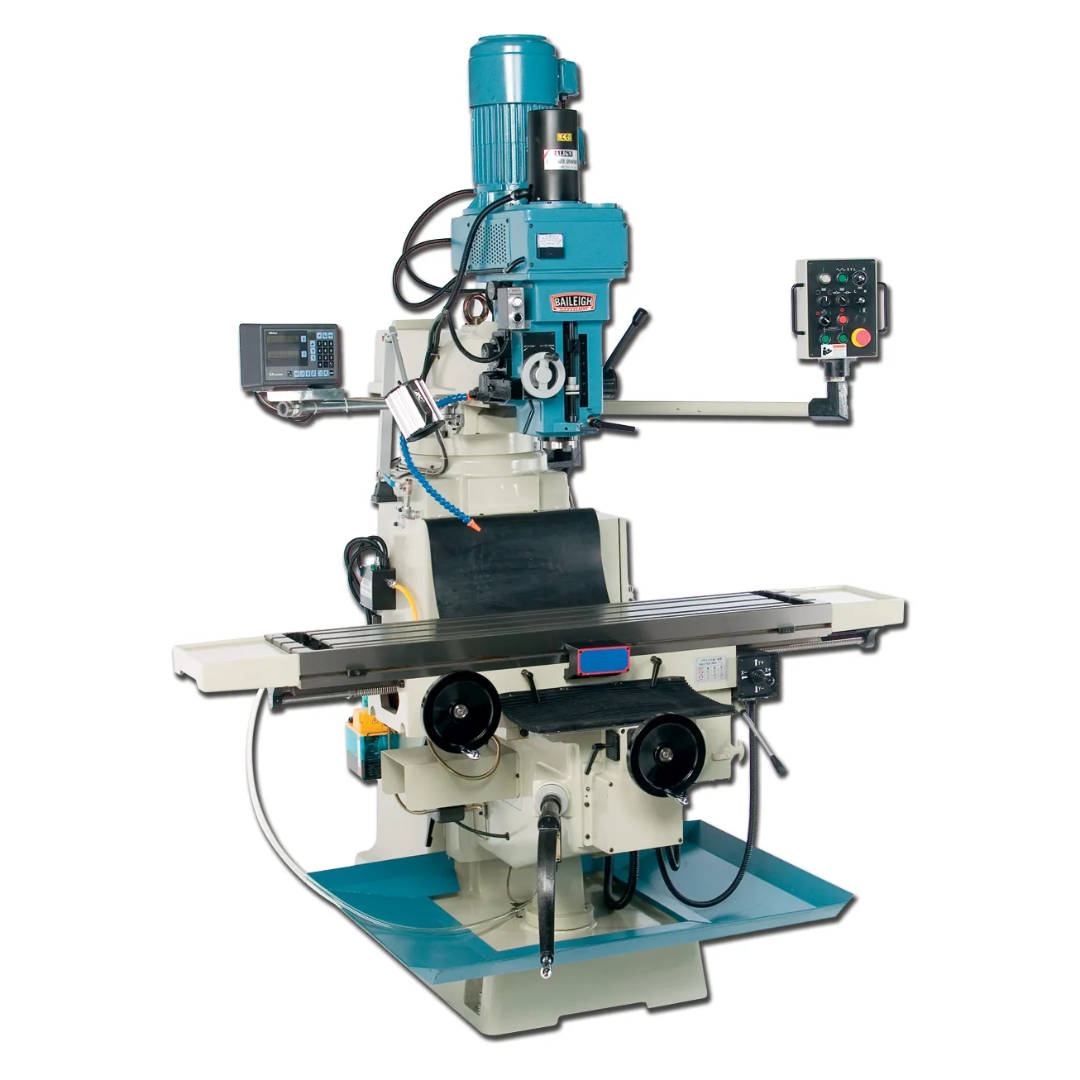

Baileigh Vertical Knee Mill VM-1258-3 1008169 Applications
- Industrial machining and production manufacturing.
- Tool rooms and precision machining facilities.
- Metal fabrication and custom manufacturing shops.
- Maintenance and repair departments.
- Prototype development and product engineering.
- Die, mold, and fixture production.
- General milling, drilling, boring, slotting, and facing operations.
- Precision machining of steel, stainless steel, aluminum, brass, bronze, and cast iron.
Designed for professional machinists who require industrial rigidity, variable spindle control, precision positioning, and dependable production performance in a full-size vertical knee mill.
Baileigh Vertical Knee Mill VM-1258-3 1008169 Specifications
| Model Number | VM-1258-3 |
|---|---|
| Product Keyword | Baileigh Vertical Knee Mill VM-1258-3 1008169 |
| Machine Type | Industrial Vertical Knee Milling Machine |
| Power Requirement | 220V Three Phase |
| Main Motor | 5 HP |
| Table Size | 12" × 58" Precision Ground Table |
| Maximum Table Load Capacity | 770 lbs |
| Spindle Speed Range | 80–3800 RPM Variable Speed |
| Spindle Taper | NT40 |
| Drive System | Yaskawa® Variable Frequency Inverter |
| Digital Readout | Mitutoyo® 2-Axis DRO (X/Y) |
| Power Feeds | X, Y & Z Axis |
| Machine Head | Rigid Head Design |
| Coolant System | Factory Installed Flood Coolant |
| Air Drawbar | Factory Installed |
| Lubrication System | Centralized Lubrication |
| Ball Screws | X & Y Axes |
| Way Design | Square Ways with Protective Covers |
| Net Weight | 4,300 lbs |
| Gross Weight | 4,300 lbs |
| Warranty | 1-Year Parts Warranty |
| Technical Support | Lifetime Technical Support from Baileigh |
| UPC | 731325419351 |
Baileigh Vertical Knee Mill VM-1258-3 1008169 Performance & Construction
- Powerful 5 HP industrial motor delivers the torque and reliability required for demanding milling applications.
- 220V three-phase electrical operation provides dependable power for production machining environments.
- Yaskawa® inverter-controlled variable speed spindle offers smooth speed adjustment from 80 to 3800 RPM for optimal cutting performance across a wide variety of materials and tooling.
- Rigid head design minimizes vibration and deflection to improve machining accuracy, surface finish, and repeatability.
- Large 12" × 58" precision-ground table provides ample workspace for oversized parts, fixtures, and multiple workholding configurations.
- 770-pound table load capacity supports heavy workpieces while maintaining excellent stability during machining.
- NT40 spindle taper accepts a wide range of industry-standard tooling for milling, drilling, boring, and precision machining operations.
- Mitutoyo® 2-axis digital readout delivers accurate positioning on the X and Y axes, helping improve productivity while reducing setup time.
- Power feeds on X, Y, and Z axes reduce operator fatigue and produce smoother, more consistent machining results.
- Precision ball screws on the X and Y axes provide smooth table movement with improved positioning accuracy.
- Square ways with protective covers enhance machine rigidity while protecting critical components from chips and contaminants.
- Factory-installed flood coolant system improves tool life, enhances surface finish, and assists with chip evacuation during heavy machining.
- Integrated air drawbar speeds up tool changes and increases production efficiency.
- Centralized lubrication system simplifies routine maintenance while promoting long-term machine reliability.
- Heavy-duty cast iron construction minimizes vibration and provides the rigidity necessary for accurate, repeatable machining over years of industrial use.
- Supported by Baileigh with a 1-year parts warranty and lifetime technical support.
Why Choose the Baileigh Vertical Knee Mill VM-1258-3 1008169
- Industrial 5 HP motor with variable-speed spindle performance.
- Large 12" × 58" precision table accommodates demanding machining projects.
- Yaskawa® inverter provides smooth and precise spindle speed control.
- Rigid head and heavy cast iron construction maximize machining accuracy.
- NT40 spindle accepts a broad range of professional tooling.
- Factory-installed DRO, power feeds, coolant system, air drawbar, and centralized lubrication increase productivity from day one.
- 770 lb table capacity supports heavy industrial workpieces.
- Designed for professional machine shops, fabrication facilities, and production environments.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Vertical Knee Mill VM-1258-3 1008169 is a fully equipped industrial milling machine that combines heavy-duty construction, precision motion control, advanced spindle speed management, and premium factory-installed features into one production-ready platform. Built for demanding machining applications, it delivers the accuracy, durability, and performance professionals expect from Baileigh Industrial.
