Baileigh Vertical Bandsaw BSV-14VS-V2 1230388 Applications
- Metal fabrication and custom manufacturing.
- Contour cutting and intricate profile work.
- Prototype development and precision fabrication.
- Machine shops and maintenance departments.
- Educational workshops and vocational training.
- Cutting mild steel, aluminum, plastics, and non-ferrous materials.
- General-purpose industrial and professional metalworking.
The combination of variable blade speed, a large throat capacity, and a tilting cast iron table makes the Baileigh Vertical Bandsaw BSV-14VS-V2 1230388 an excellent solution for both straight cutting and complex contour work with exceptional accuracy.
Baileigh Vertical Bandsaw BSV-14VS-V2 1230388 Specifications
| Model | BSV-14VS-V2 |
|---|---|
| Manufacturer Part Number | 1230388 |
| Product Type | Variable Speed Vertical Metal Cutting Bandsaw |
| Motor Power | 1 HP |
| Input Power | 120V Single Phase |
| Throat Capacity | 14.17 in. |
| Maximum Cutting Height | 7.08 in. |
| Blade Width Capacity | 1/8 in. – 1/2 in. |
| Variable Blade Speed | Adjustable Variable Speed Pulley System |

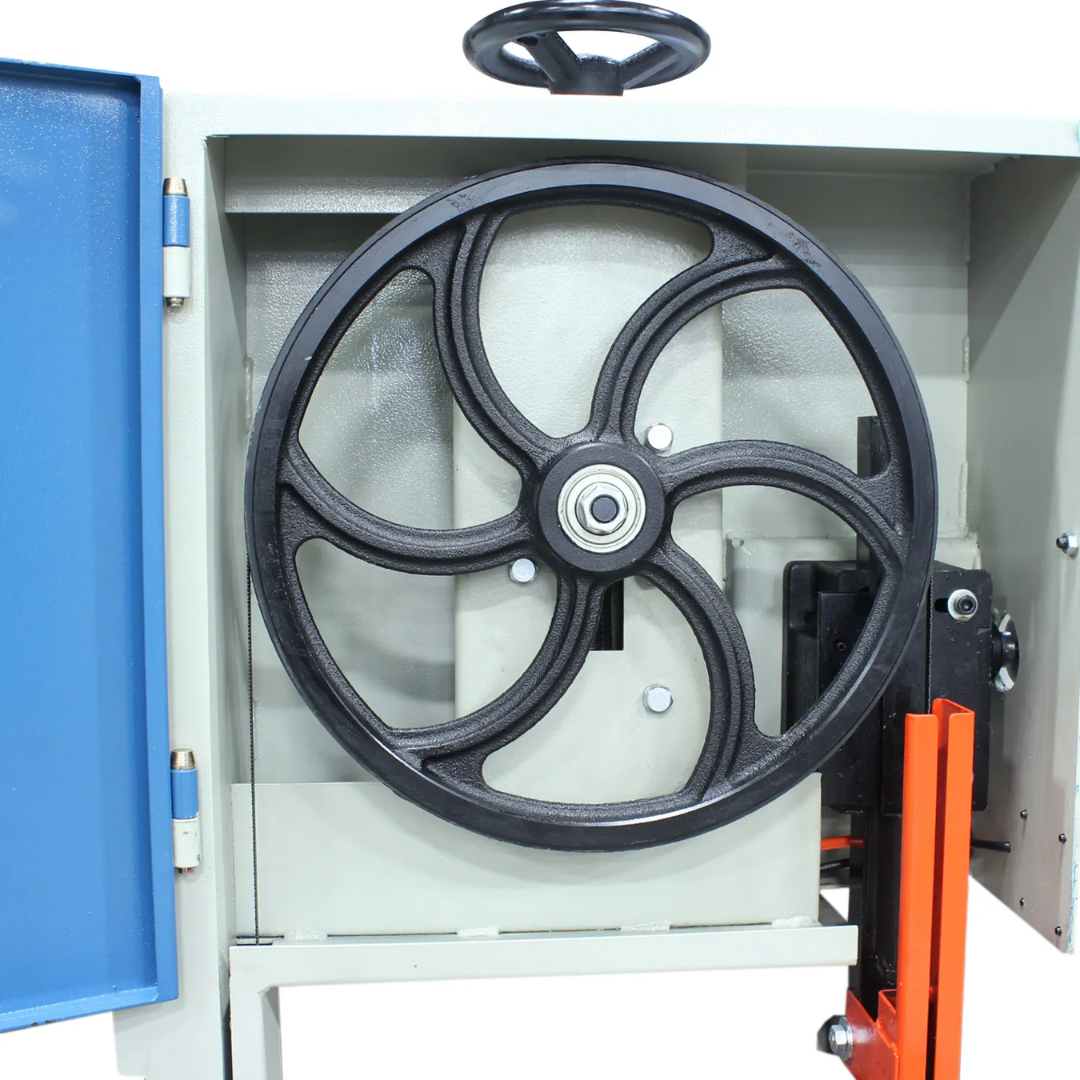

| Wheel Diameter | 14 in. |
| Table Tilt Range | 45° Right / 15° Left |
| Table Construction | Precision Cast Iron |
| Mitering System | Rip Fence and Protractor Included |
| Air Blowdown System | Included |
| Work Light | Integrated Halogen Work Light |
| Blade Welder | Integrated Blade Welder with Grinder |
| Net Weight | 445 lbs. |
| Gross Weight | 445 lbs. |
| Warranty | 1 Year Parts Warranty |
| Technical Support | Lifetime Technical Support |
| UPC | 19907702450 |
Baileigh Vertical Bandsaw BSV-14VS-V2 1230388 Performance & Construction
- Reliable 1 HP motor operating on standard 120V single-phase power provides dependable performance for professional fabrication and maintenance applications.
- Large 14.17-inch throat capacity accommodates oversized workpieces while allowing greater flexibility for contour cutting and fabrication projects.
- 7.08-inch maximum cutting height enables efficient cutting of thicker stock and fabricated components.

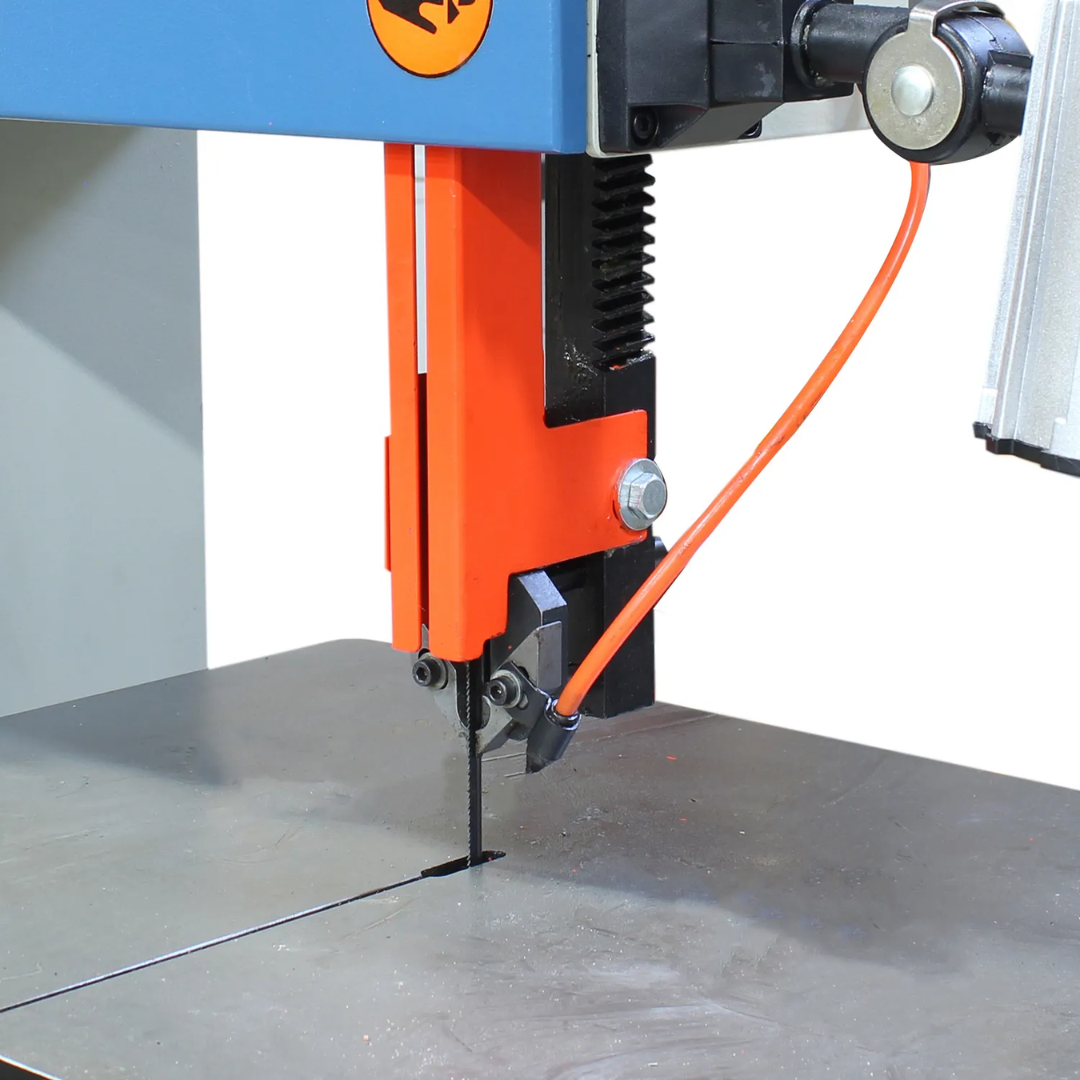

- Accepts blade widths from 1/8 inch to 1/2 inch, allowing operators to choose narrow blades for tight-radius cutting or wider blades for straight cuts and improved stability.

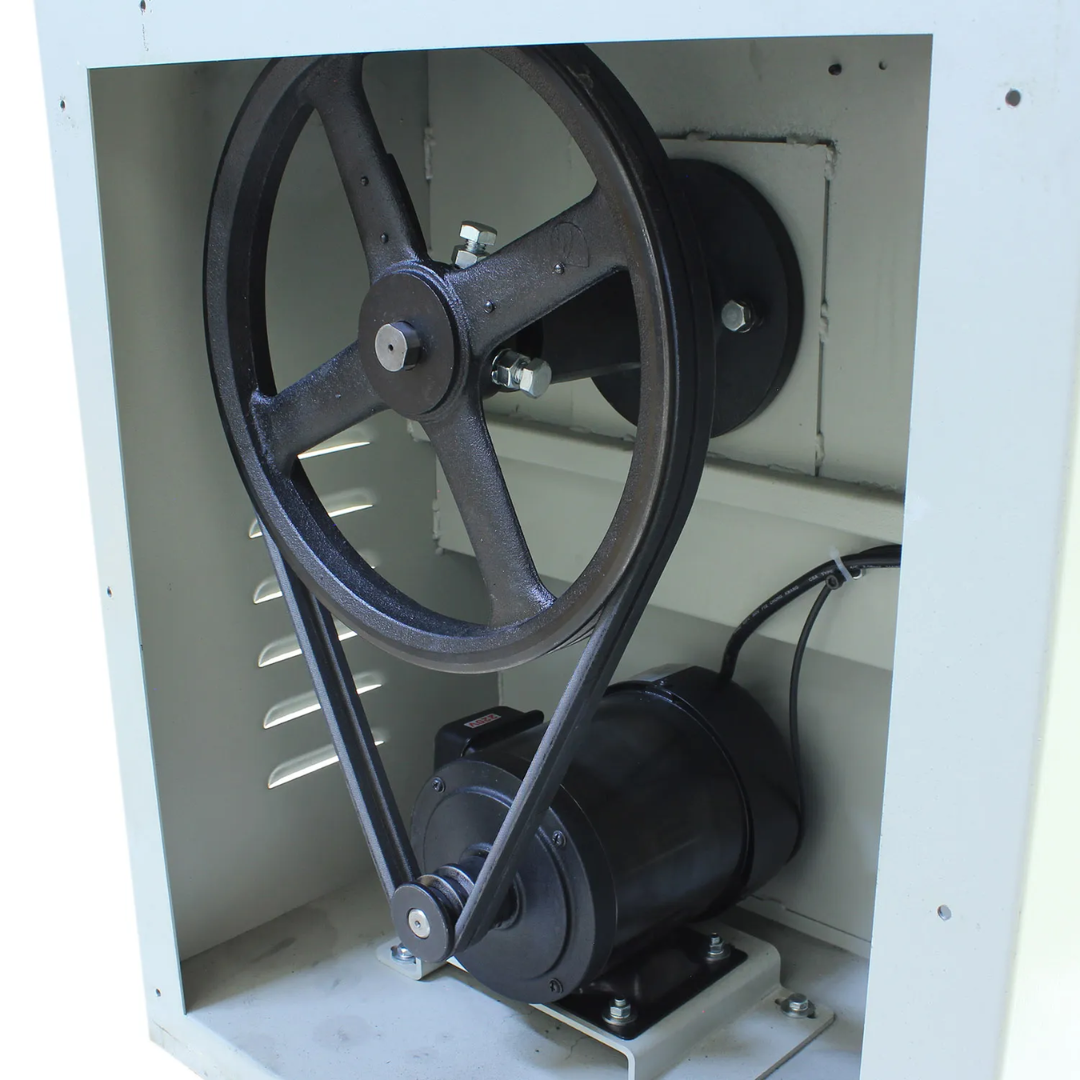

- Variable-speed pulley system allows blade speed adjustments to optimize cutting performance across steel, aluminum, plastics, and other materials while maximizing blade life.

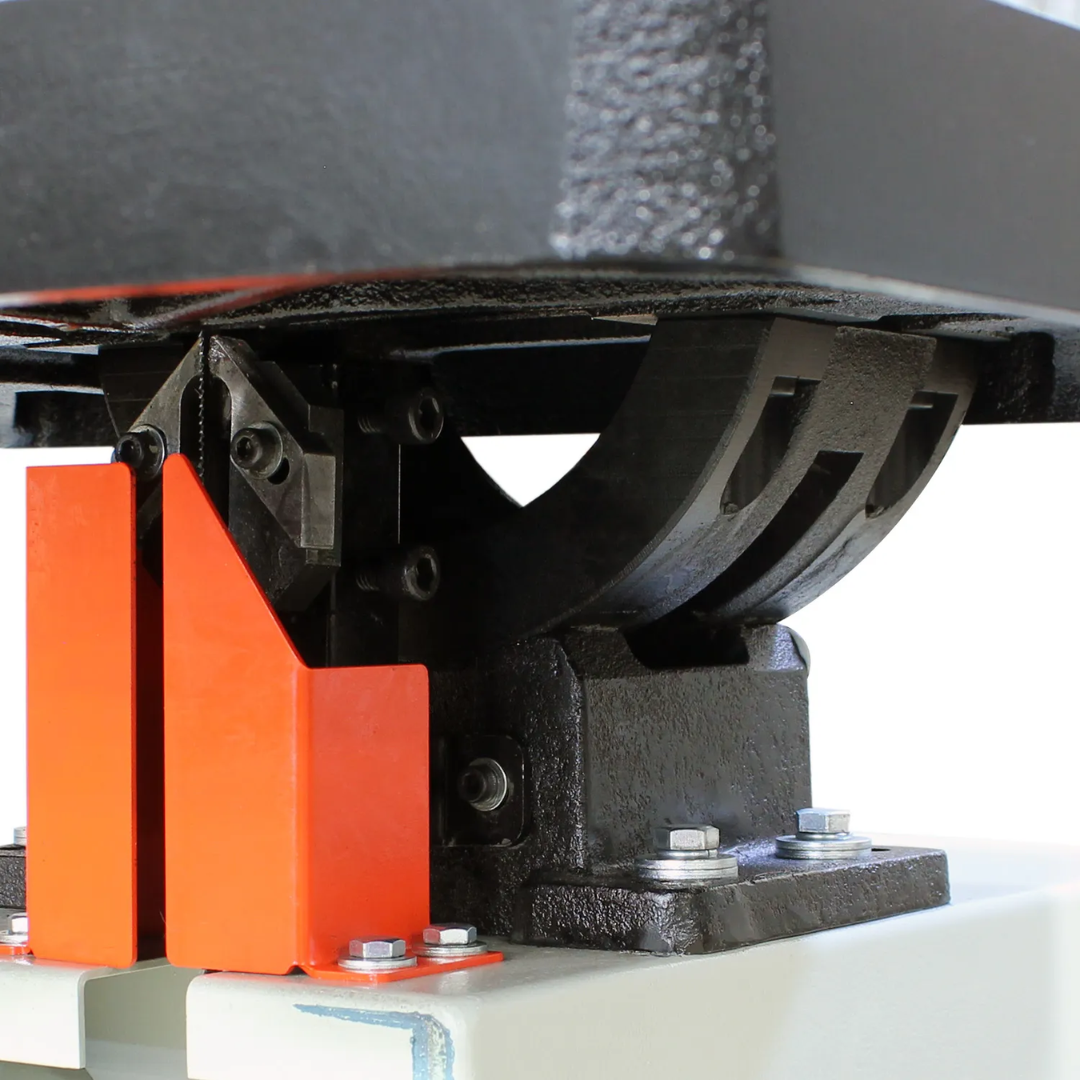

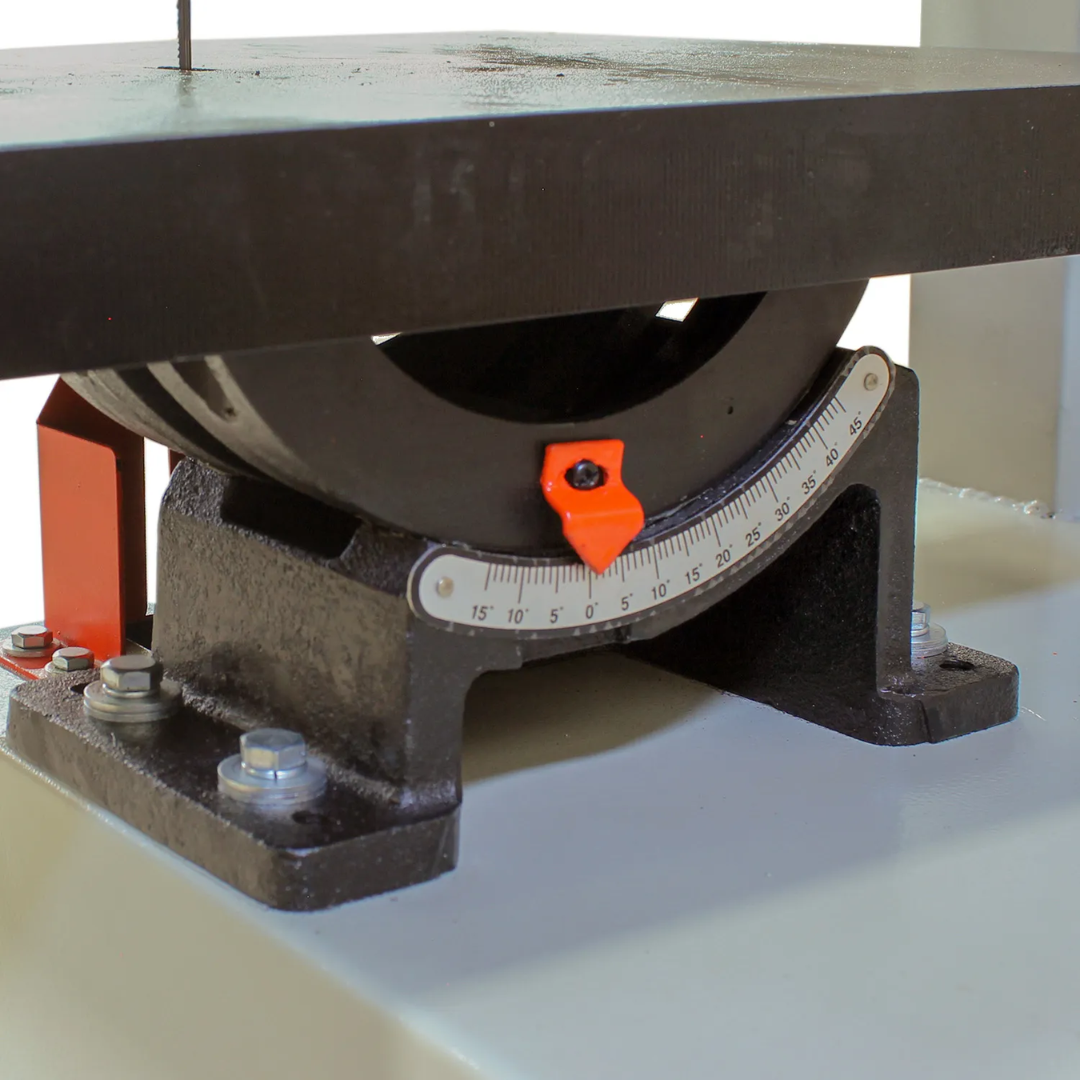

- Precision cast iron work table tilts 45° right and 15° left for accurate bevel cutting and increased fabrication versatility.
- Integrated rip fence and protractor improve setup accuracy and provide repeatable straight cuts and miter operations.
- Air blowdown system continuously clears chips from the cutting area while helping keep the blade cool for improved visibility and cutting efficiency.
- Built-in halogen work light illuminates the cutting zone for enhanced precision during detailed fabrication work.

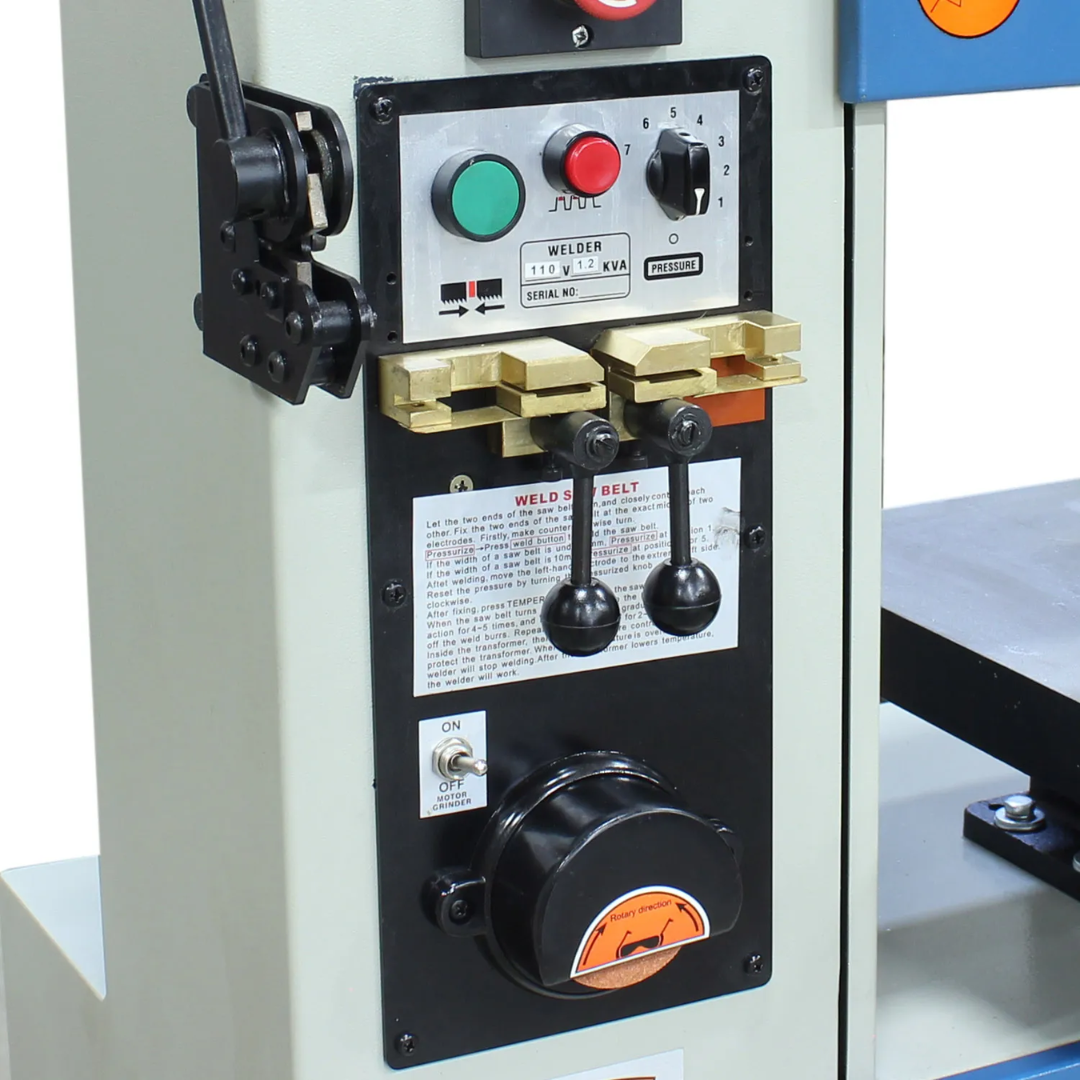

- Integrated blade welder and grinder allow operators to weld, repair, and finish blades in-house, minimizing downtime and increasing shop productivity.
- Heavy-duty steel cabinet construction combined with precision-machined components minimizes vibration while providing long-term durability in professional shop environments.
Why Choose the Baileigh Vertical Bandsaw BSV-14VS-V2 1230388
- Professional variable-speed vertical bandsaw built for demanding fabrication work.
- Large throat and cutting height expand project capabilities.
- Wide blade compatibility supports both straight and contour cutting.
- Precision cast iron tilting table improves cutting versatility.
- Integrated blade welder, grinder, and air blowdown system enhance shop productivity.
- Halogen work light improves operator visibility and cutting accuracy.
- Ideal for fabrication shops, maintenance departments, educational facilities, and industrial manufacturing.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.

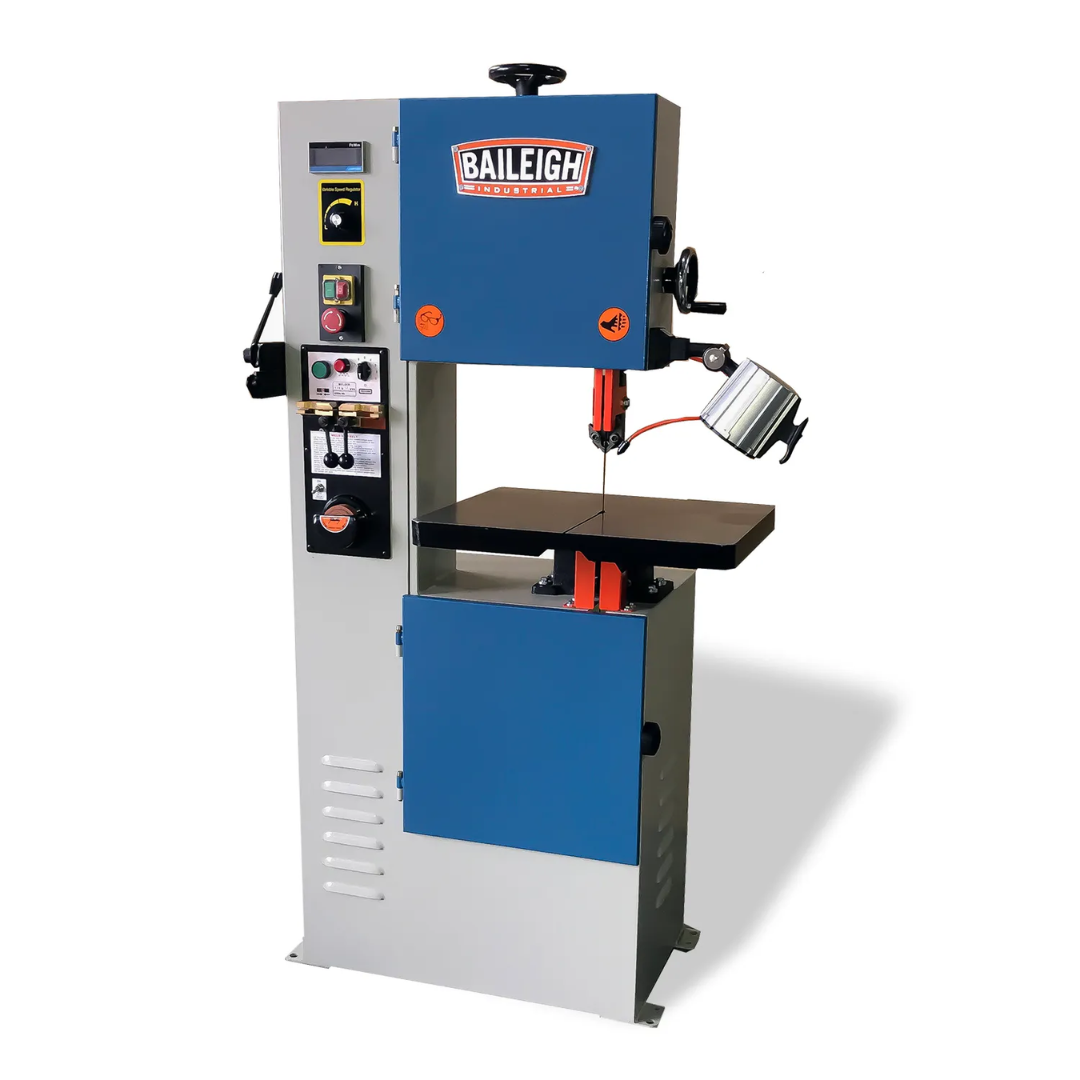

The Baileigh Vertical Bandsaw BSV-14VS-V2 1230388 combines variable-speed performance, precision construction, and professional-grade features into one versatile vertical bandsaw. With its generous throat capacity, tilting cast iron table, integrated blade welder, air blowdown system, and dependable 1 HP motor, it delivers the accuracy, flexibility, and durability required for demanding metal fabrication and production environments.
