Baileigh Variable Speed Drill Press DP-1400VS 1022511 Applications
- Industrial machine shops.
- Metal fabrication and welding facilities.
- Maintenance and repair departments.
- Production drilling and tapping operations.
- Tool and fixture manufacturing.
- Prototype and custom part fabrication.
- Agricultural and heavy equipment repair.
- General industrial manufacturing environments.
The Baileigh Variable Speed Drill Press DP-1400VS 1022511 combines precision drilling, variable-speed flexibility, and industrial durability to improve productivity while maintaining outstanding hole quality and tapping accuracy.
Baileigh Variable Speed Drill Press DP-1400VS 1022511 Specifications
| Model | DP-1400VS |
|---|---|
| Manufacturer | Baileigh Industrial |
| Product Number | 1022511 |
| Machine Type | Variable Speed Floor Drill Press |
| Motor Power | 2 HP |
| Motor Type | Inverter-Driven |
| Input Power | 220V Single Phase |
| Spindle Speed Range | 80 – 2,500 RPM |
| Swing Capacity | 20 in. |
| Maximum Drilling Capacity (Mild Steel) | 1.25 in. |
| Maximum Tapping Capacity (Mild Steel) | 0.625 in. |
| Table Design | 360° Pivoting Work Table |
| Digital Display | Digital RPM Readout |
| Auto Tap Function | Auto-Reversing |
| Coolant System | Integrated Coolant System |
| Net Weight | 665 lbs. |
| Gross Weight | 665 lbs. |
| Warranty | 1 Year |
| UPC | 731325498677 |
Baileigh Variable Speed Drill Press DP-1400VS 1022511 Performance & Construction
- Powerful 2 HP inverter-driven motor delivers smooth, reliable power for demanding drilling and tapping applications.
- 220V single-phase electrical operation allows installation in many fabrication and industrial shops without requiring three-phase power.
- Continuously variable spindle speeds from 80 to 2,500 RPM eliminate manual belt changes while providing optimal cutting speeds for a wide variety of materials and tooling.
- Digital RPM readout displays actual spindle speed for accurate setup, repeatability, and process control.
- 20-inch swing capacity accommodates larger workpieces while increasing overall machining versatility.
- Drills up to 1.25 inches in mild steel, making the machine suitable for heavy-duty production drilling and fabrication tasks.
- Auto-reversing tapping function simplifies tapping operations by automatically reversing the spindle after thread completion, improving productivity and reducing tap breakage.
- Maximum tapping capacity of 0.625 inch in mild steel supports demanding threading applications in industrial environments.

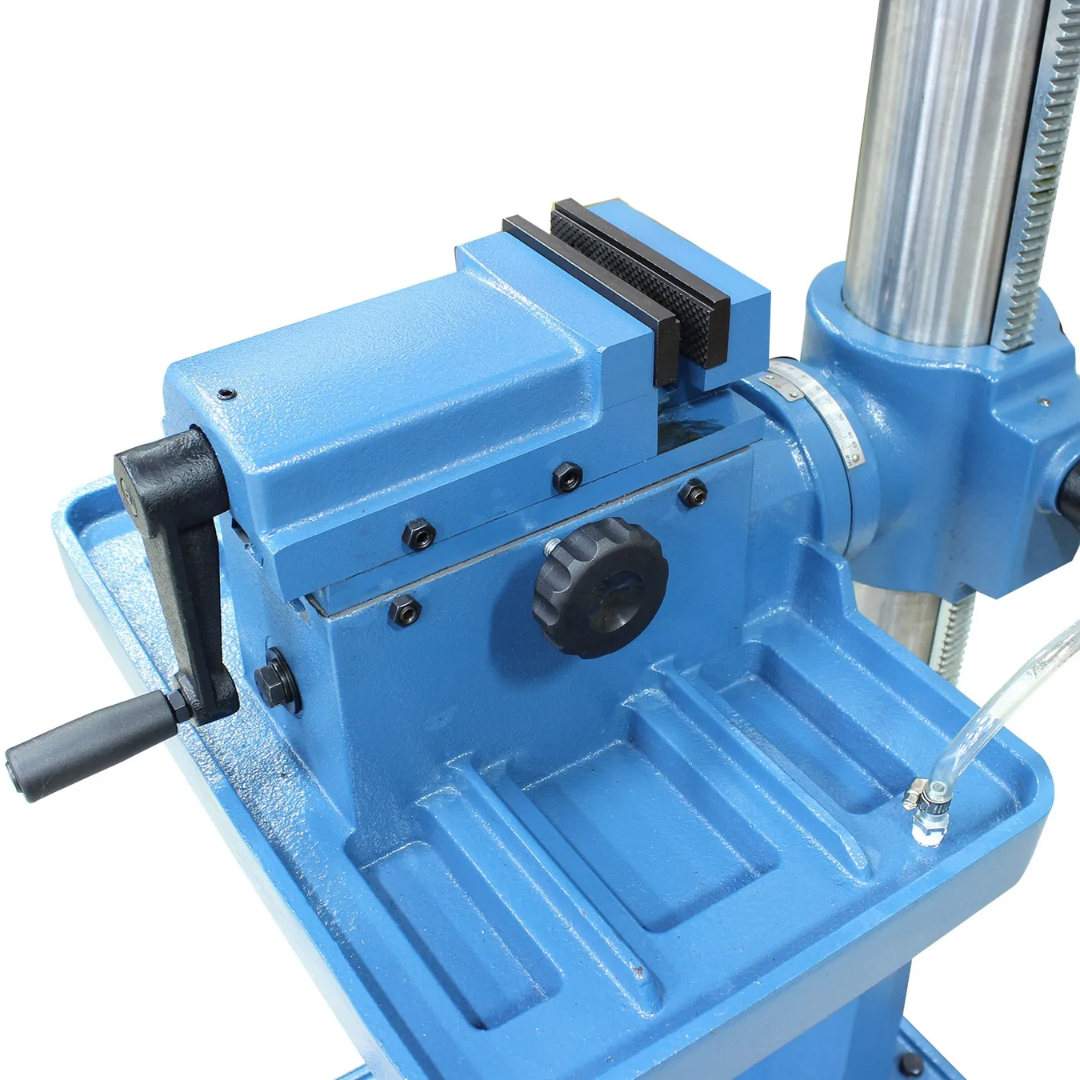

- Large 360° pivoting work table provides flexible positioning for oversized or irregular workpieces while improving operator convenience.

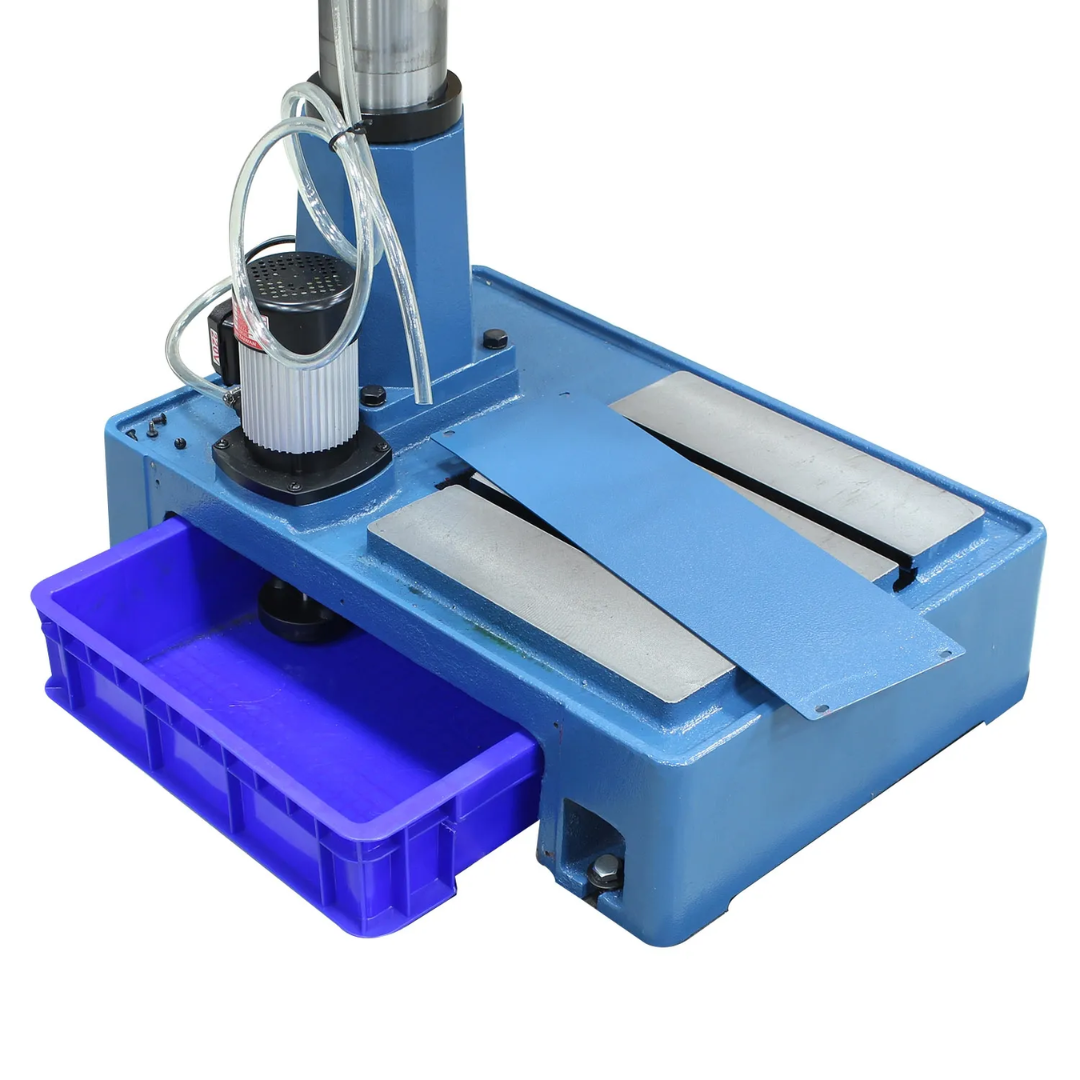

- Integrated coolant system directs coolant behind the safety guard to improve surface finish, reduce heat buildup, and significantly extend drill and tap life.
- Rigid cast iron base and column construction minimizes vibration and deflection to maintain drilling accuracy during heavy cutting operations.
- Industrial-duty design is built for continuous use in fabrication shops, manufacturing facilities, maintenance departments, and machine shops.
- Backed by Baileigh's 1-year warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Variable Speed Drill Press DP-1400VS 1022511
- Powerful 2 HP inverter-driven motor delivers dependable industrial performance.
- Variable spindle speeds from 80–2,500 RPM eliminate belt changes while maximizing versatility.
- 20-inch swing accommodates larger workpieces and fabrication projects.
- Drills up to 1.25-inch holes and taps up to 0.625 inch in mild steel.
- Digital RPM display improves setup accuracy and production repeatability.
- Auto-reversing tapping function increases efficiency while protecting tooling.
- 360° pivoting work table provides flexible workpiece positioning.
- Integrated coolant system extends tool life and improves machining performance.
- Heavy cast iron construction delivers exceptional rigidity and long-term durability.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Variable Speed Drill Press DP-1400VS 1022511 combines industrial-grade construction, inverter-controlled variable speed technology, precision drilling performance, and advanced tapping capabilities into one highly versatile machine. Designed for professionals who require dependable accuracy, increased productivity, and long-term reliability, it is an outstanding solution for demanding drilling and metalworking applications.
