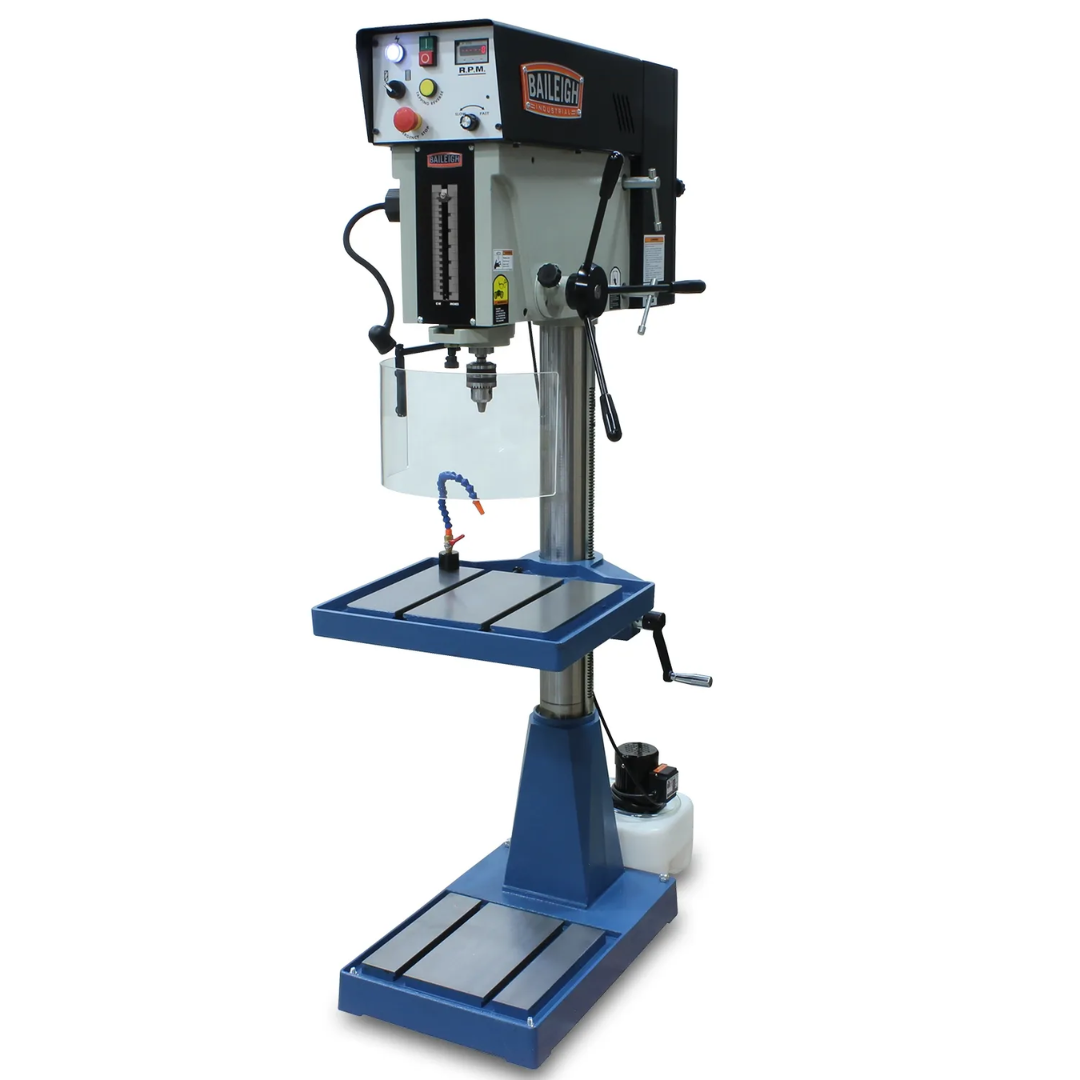

Baileigh Variable Speed Drill Press DP-1200VS 1020169 Applications
- Metal fabrication shops performing precision drilling operations.
- Machine shops requiring variable spindle speeds for different tooling and materials.
- Maintenance and repair facilities servicing industrial equipment and machinery.
- Manufacturing operations producing brackets, fixtures, plates, and assemblies.
- Tool rooms requiring accurate drilling and tapping performance.
- Industrial production environments handling medium to heavy-duty drilling tasks.
- General metalworking applications requiring adjustable spindle speeds and high rigidity.
The inverter-driven speed control system allows operators to quickly optimize spindle speeds for various drill bit sizes, materials, and production requirements without stopping to change belts.
Baileigh Variable Speed Drill Press DP-1200VS 1020169 Specifications
| Model Number | DP-1200VS |
|---|---|
| Product Name | Baileigh Variable Speed Drill Press DP-1200VS 1020169 |
| Swing Capacity | 22" |
| Motor Power | 2 HP |
| Motor Type | Inverter Driven |
| Power Requirement | 220V Single Phase |
| Variable Speed Range | 10 – 2,250 RPM |
| Spindle Taper | #3 Morse Taper (MT3) |
| Drilling Capacity (Mild Steel) | 1.0625" (1-1/16") |
| Tapping Capacity (Mild Steel) | 0.50" |
| Motor Phase | Single Phase |
| Table Construction | Heavy Cast Iron |
| T-Slot Size | 0.625" |
| Net Weight | 630 lbs |
| Gross Weight | 630 lbs |
| UPC | 19907769644 |
| Warranty | 1 Year |
Baileigh Variable Speed Drill Press DP-1200VS 1020169 Performance & Construction
- Industrial Cast Iron Construction: Heavy cast iron base and table provide exceptional rigidity, vibration reduction, and drilling accuracy.
- Powerful 2 HP Motor: Supplies dependable drilling power for demanding fabrication and machine shop applications.
- Inverter-Driven Head: Delivers smooth, reliable operation with precise electronic speed adjustment.
- Variable Speed Control: Continuous spindle speed adjustment from 10 to 2,250 RPM without changing belts.
- 22" Swing Capacity: Accommodates larger workpieces and expands overall drilling versatility.
- 1-1/16" Mild Steel Capacity: Provides substantial drilling capability for industrial metalworking operations.

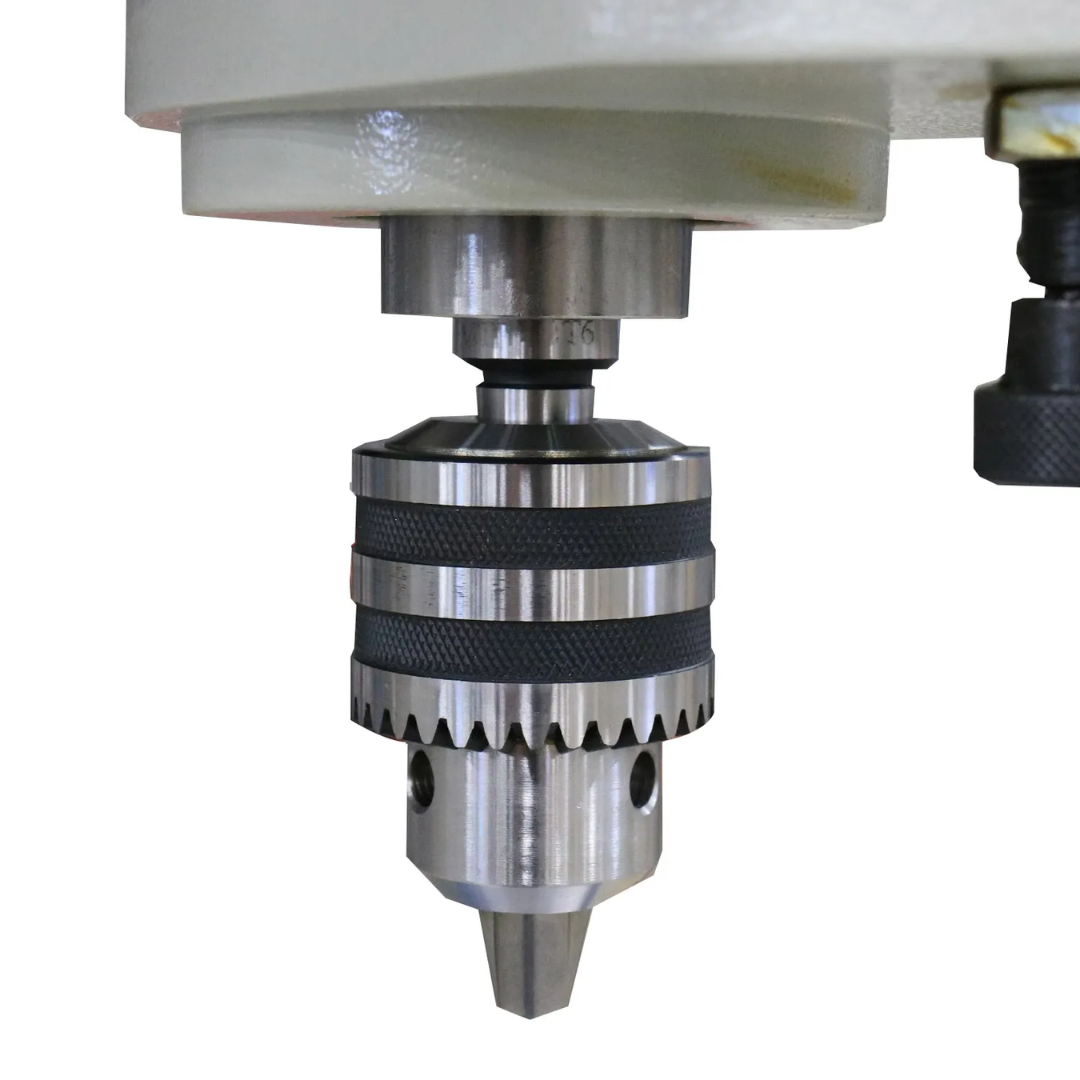

- #3 Morse Taper Spindle: Supports a broad range of industrial tooling and drilling accessories.

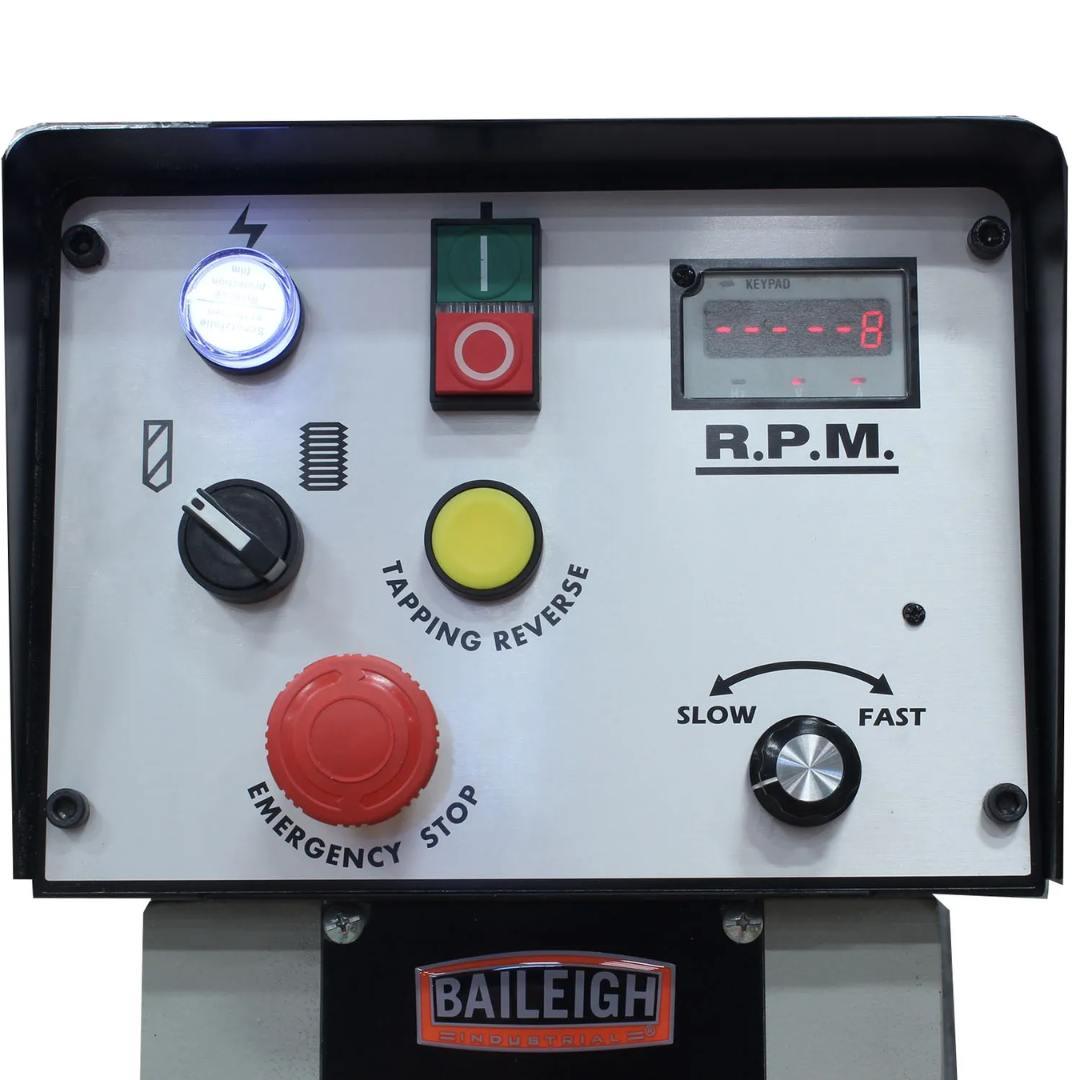

- Digital RPM Readout: Displays actual spindle speed for improved process control and repeatability.

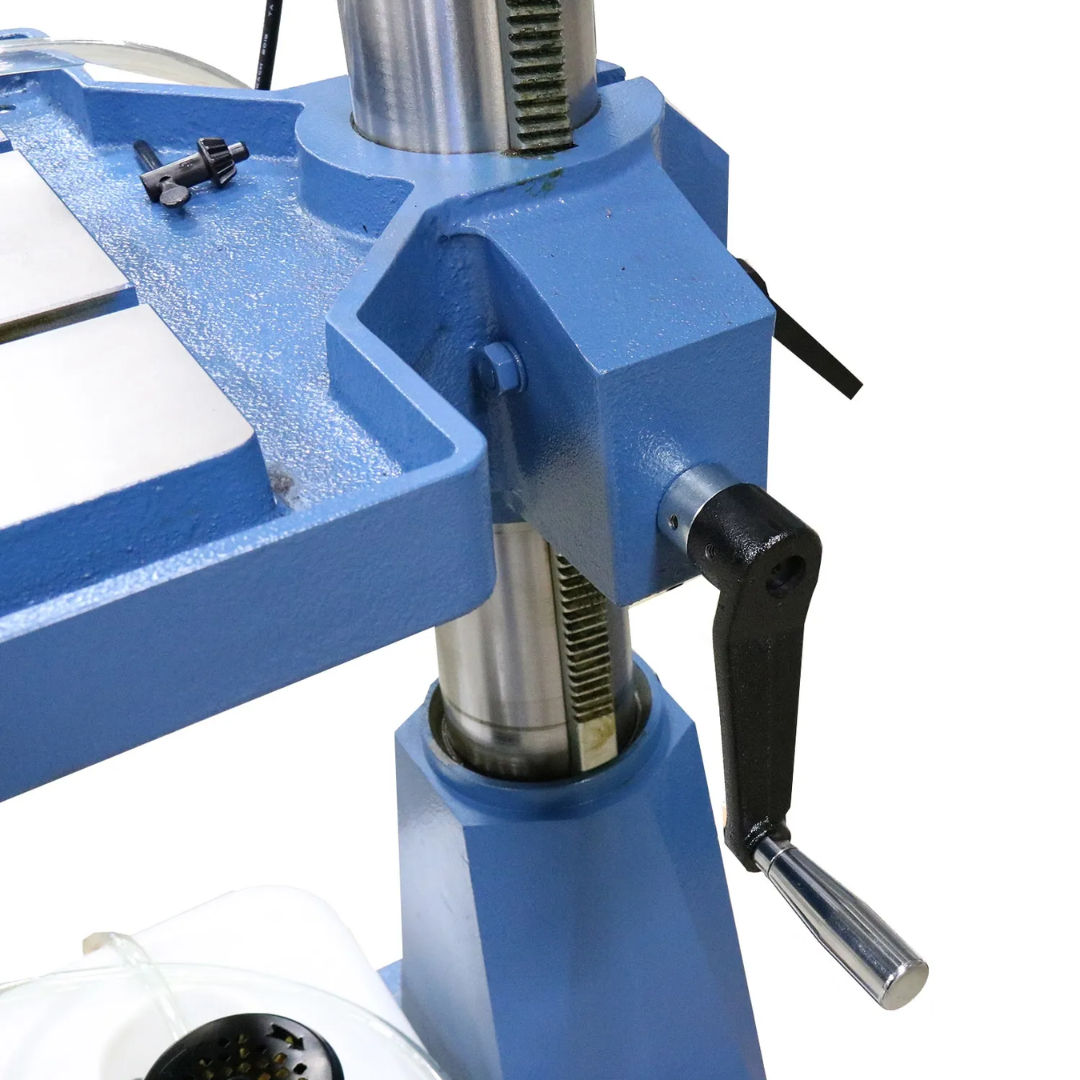

- Wide Support Column: Helps minimize flexing under load while maintaining drilling precision.

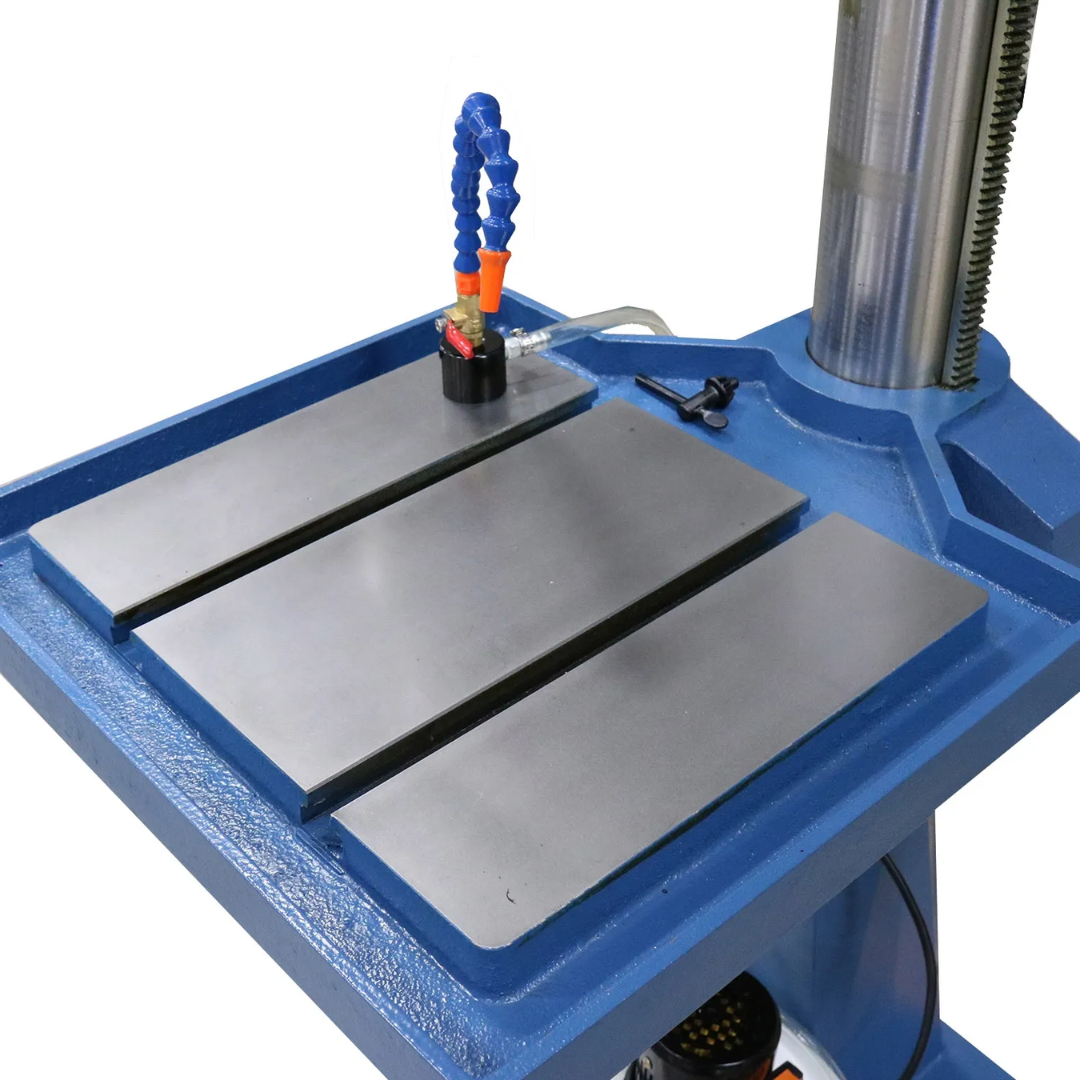

- Heavy-Duty Worktable: Features integrated 0.625" T-slots for securely mounting vises, fixtures, and workholding equipment.
- Tapping Capability: Supports tapping operations up to 1/2" in mild steel for increased machine versatility.
- Industrial Weight Design: The 630 lb machine weight contributes to stability and consistent drilling performance.
Why Choose the Baileigh Variable Speed Drill Press DP-1200VS 1020169
- Powerful 2 HP inverter-driven motor delivers industrial-grade performance.
- Variable spindle speeds from 10 to 2,250 RPM eliminate manual belt changes.
- 22" swing capacity accommodates larger parts and workpieces.
- Drills up to 1-1/16" in mild steel for demanding fabrication applications.
- Digital RPM display improves accuracy and process consistency.
- Heavy cast iron construction provides long-term durability and stability.
- #3 Morse taper spindle supports a wide selection of tooling.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Variable Speed Drill Press DP-1200VS 1020169 combines industrial-strength construction, inverter-driven variable speed technology, and exceptional drilling capacity into a reliable machine designed for professional fabrication, maintenance, and manufacturing environments.
