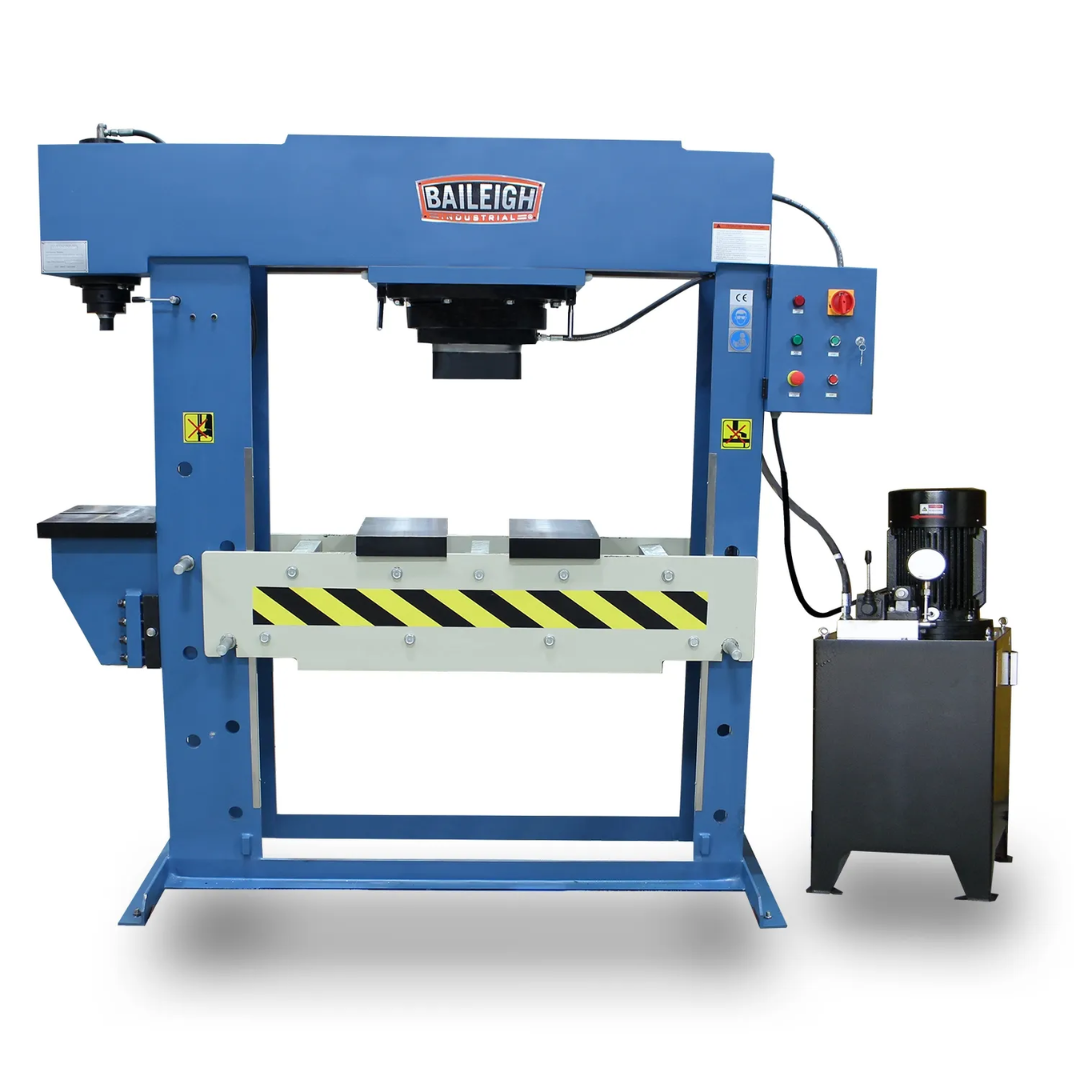

Baileigh Two Station Hydraulic Press HSP-200M-C 1019291 Applications
- Heavy industrial fabrication and manufacturing operations
- Bearing installation and removal procedures
- Metal forming, bending, and straightening applications
- Large component assembly and disassembly work
- Maintenance and repair facilities servicing heavy equipment
- Hydraulic pressing and force testing operations
- Shaft, bushing, and sleeve installation projects
- Production environments requiring multiple pressing stations
- Agricultural, mining, transportation, and industrial service centers
The dual-station design allows operators to perform both high-capacity pressing and precision arbor press operations simultaneously, increasing efficiency and workflow flexibility.
Baileigh Two Station Hydraulic Press HSP-200M-C 1019291 Specifications
| Model Number | HSP-200M-C |
|---|---|
| Product Number | 1019291 |
| Main Press Capacity | 200 Tons |
| Secondary Press Capacity | 20 Tons |
| Motor Power | 10 HP |
| Input Power | 220V, Three Phase |
| Working Width | 47" (Main Station) |
| Main Cylinder Stroke | 11.8" |
| Secondary Cylinder Stroke | 11.75" |
| Frame Construction | Fully Welded Reinforced Steel H-Frame |
| Hydraulic System | Independent Manual Hydraulic Pumps |
| Control System | Integrated Pressure Gauges |
| Ram Movement | Left/Right Movable Main Cylinder |
| Included Accessories | 2-Piece V-Block Set |
| Gross Weight | 6,910 lbs. |
| Net Weight | 6,910 lbs. |
| UPC | 731325479713 |
| Warranty | 1 Year Parts Warranty |
Baileigh Two Station Hydraulic Press HSP-200M-C 1019291 Performance & Construction
- 200-ton main hydraulic press capacity provides the force required for heavy-duty industrial forming, straightening, assembly, and pressing applications.

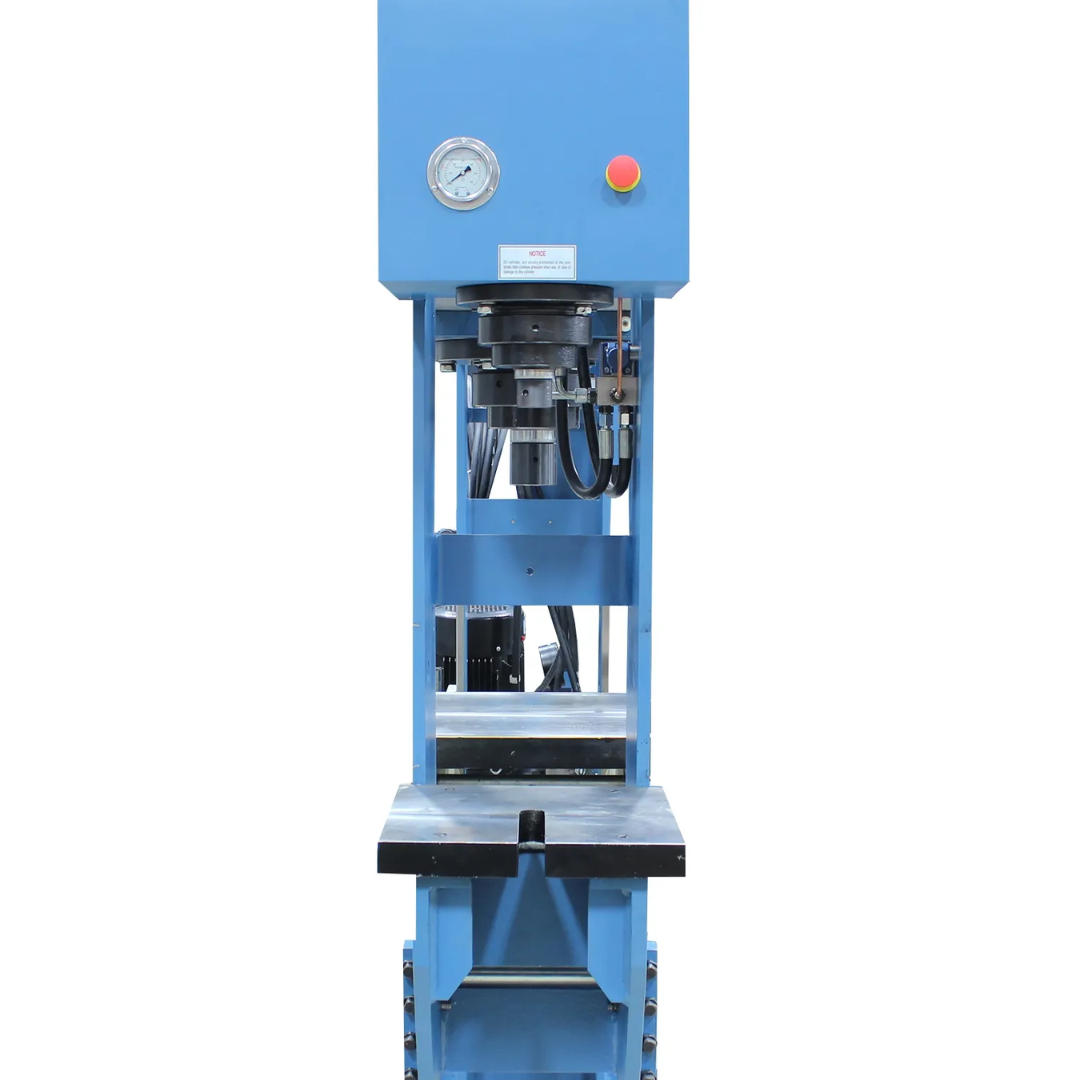

- Integrated 20-ton auxiliary hydraulic arbor press adds a second workstation for smaller precision tasks without interrupting production on the main press.

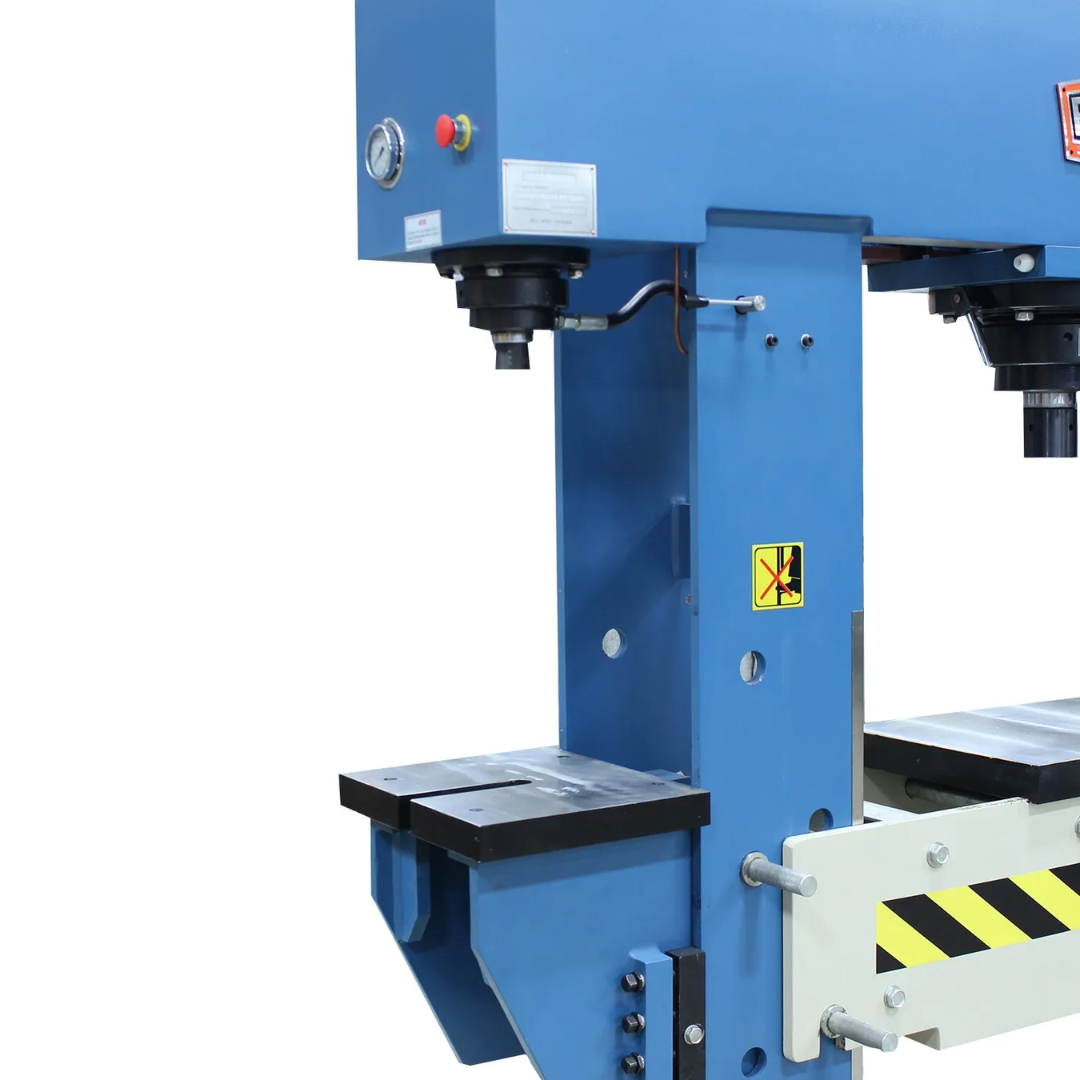

- Fully welded reinforced H-frame construction delivers superior rigidity, stability, and long-term durability under extreme operating loads.
- 10 HP industrial motor provides dependable hydraulic power for demanding shop and manufacturing environments.
- 220V three-phase electrical operation supports industrial installations requiring reliable and consistent performance.
- 47-inch working width accommodates large workpieces and provides flexibility for a broad range of industrial applications.
- 11.8-inch main cylinder stroke allows deep pressing capabilities for oversized assemblies and complex fabrication projects.
- 11.75-inch auxiliary press stroke provides substantial travel for precision arbor press operations.

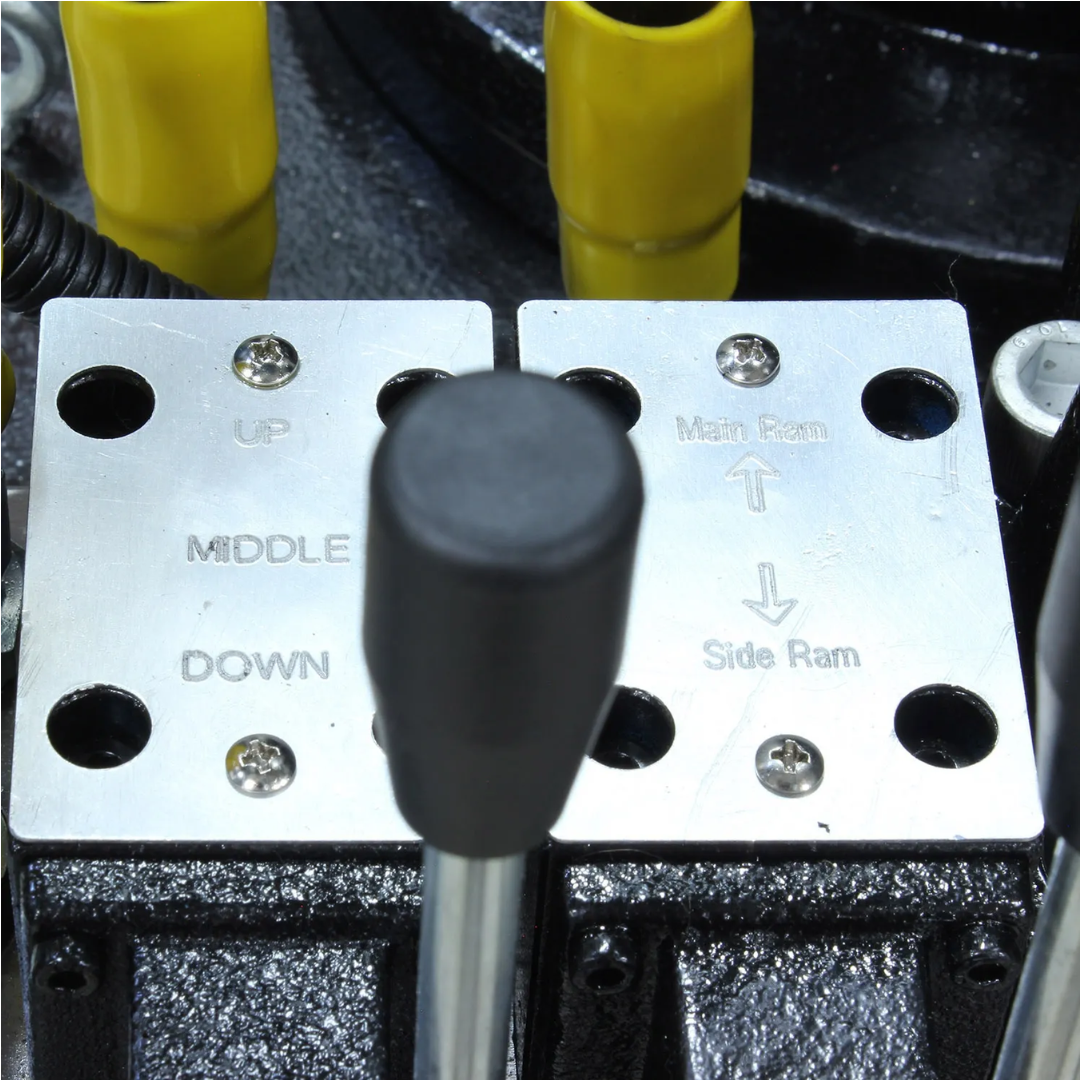

- Independent manual hydraulic pump systems give operators complete control over force application at each station.
- Integrated pressure gauges provide accurate force monitoring for repeatable results and improved process control.
- Movable main ram assembly shifts laterally within the frame, allowing efficient off-center pressing without repositioning large components.
- Adjustable work tables simplify setup and accommodate a variety of workpiece sizes and configurations.
- Included two-piece V-block set provides secure support for shafts, tubing, round stock, and other specialized workpieces.
- Dual-station productivity enables multiple pressing operations to be performed on a single machine, helping increase shop efficiency and throughput.
- Lifetime technical support from Baileigh provides long-term operational confidence and professional assistance when needed.
Why Choose the Baileigh Two Station Hydraulic Press HSP-200M-C 1019291
- Combines a 200-ton main press and 20-ton auxiliary press in one machine.
- Dual-station design increases productivity and workflow efficiency.
- Heavy-duty reinforced H-frame engineered for industrial service.
- Movable ram and adjustable work tables improve versatility.
- Independent hydraulic controls provide precise force management.
- Includes V-blocks and integrated pressure gauges for enhanced functionality.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Two Station Hydraulic Press HSP-200M-C 1019291 delivers exceptional industrial capability by combining massive 200-ton pressing power with a dedicated 20-ton auxiliary station, creating a versatile and highly productive solution for fabrication, manufacturing, maintenance, and heavy-duty industrial applications.
