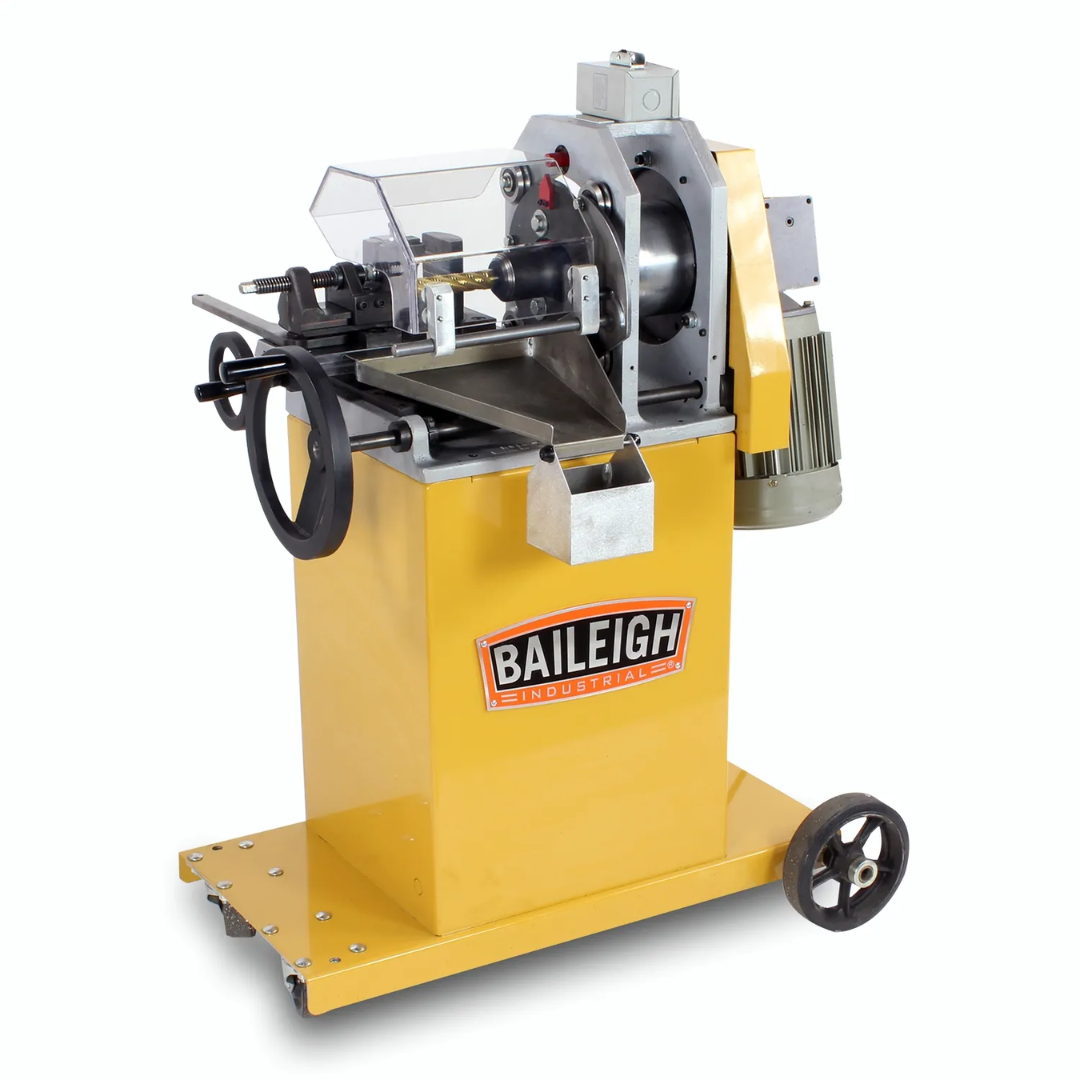

Baileigh Tube & Pipe Notcher, 110/220V 1Ph (TN-800) 1008064 Applications
- Race car chassis and roll cage fabrication
- Tube frame and structural fabrication projects
- Handrail and guardrail manufacturing
- Pipe and tube welding preparation
- Custom metal fabrication shops
- Industrial maintenance and repair facilities
- Architectural metalworking applications
- Prototype and specialty fabrication projects
- Production tube assembly operations
Designed for fabricators who require fast, accurate, and repeatable tube notching without the downtime associated with changing hole saws or specialty tooling.
Baileigh Tube & Pipe Notcher, 110/220V 1Ph (TN-800) 1008064 Specifications
| Model Number | TN-800 |
|---|---|
| Product Number | 1008064 |
| Motor Power | 1 HP |
| Input Power | 110V Single Phase |
| Tube Capacity | 1" to 3" OD Tube & Pipe |
| Notch Capacity OD | 2.5" |
| Notch Angle Range | 0° to 60° |
| Notching Method | End Mill Style Cutting System |
| Vise Adjustment | Precision X/Y Axis Adjustable Vise |
| Construction | Heavy-Duty Steel & Cast Iron |
| Mobility | Portable Wheeled Cart Included |
| Gross Weight | 600 lbs. |
| Net Weight | 600 lbs. |
| UPC | 19907418450 |
| Warranty | 1 Year Parts Warranty |
Baileigh Tube & Pipe Notcher, 110/220V 1Ph (TN-800) 1008064 Performance & Construction

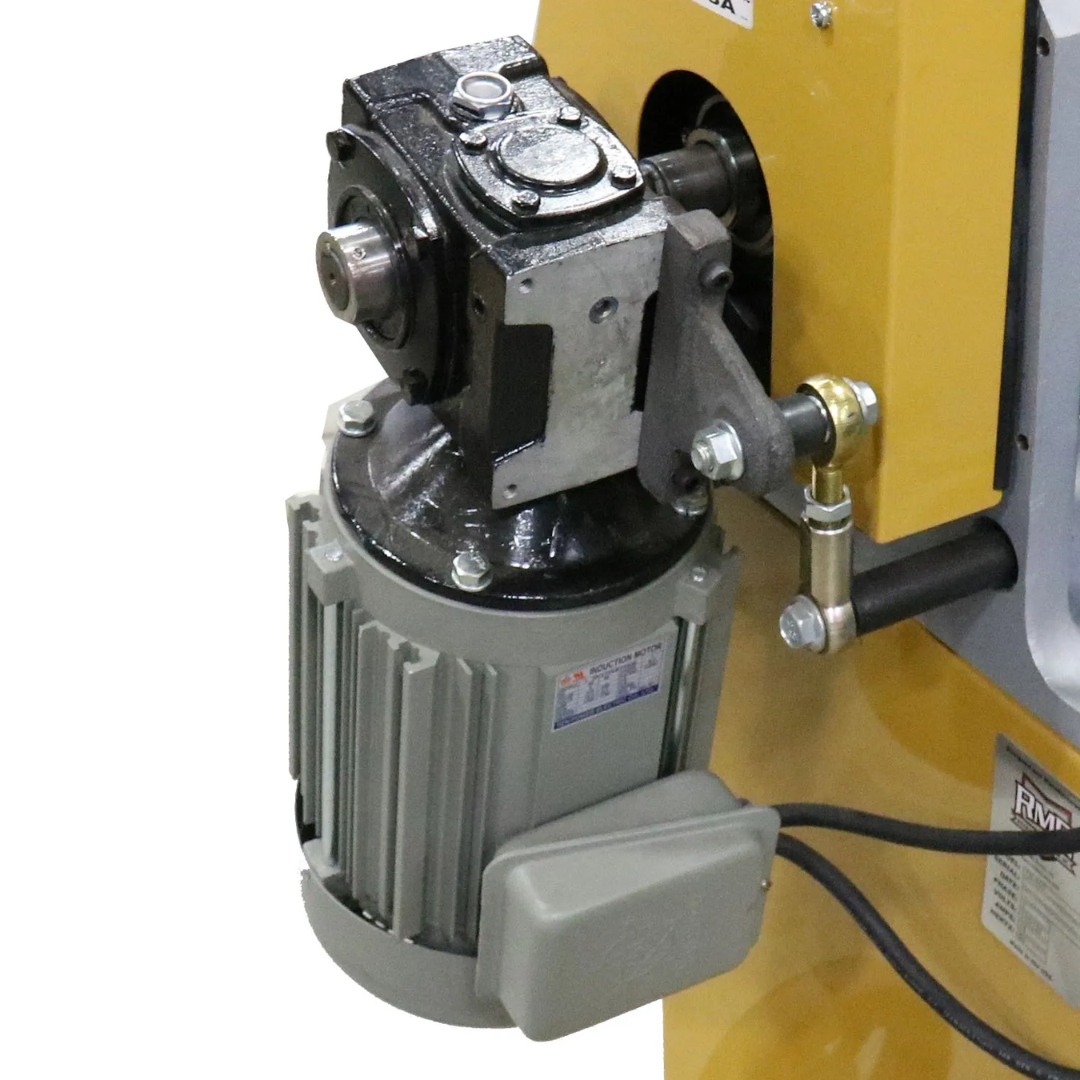

- Powered 1 HP motor system eliminates the physical effort associated with manual notchers while delivering smooth, consistent cutting performance.
- 110V single-phase operation allows installation in most fabrication shops without requiring specialized industrial power infrastructure.
- Patented tooling-free design enables operators to notch multiple tube sizes without changing tooling, dramatically reducing setup time and improving workflow efficiency.
- Handles tubing from 1" to 3" outside diameter for exceptional versatility across a wide range of fabrication projects.

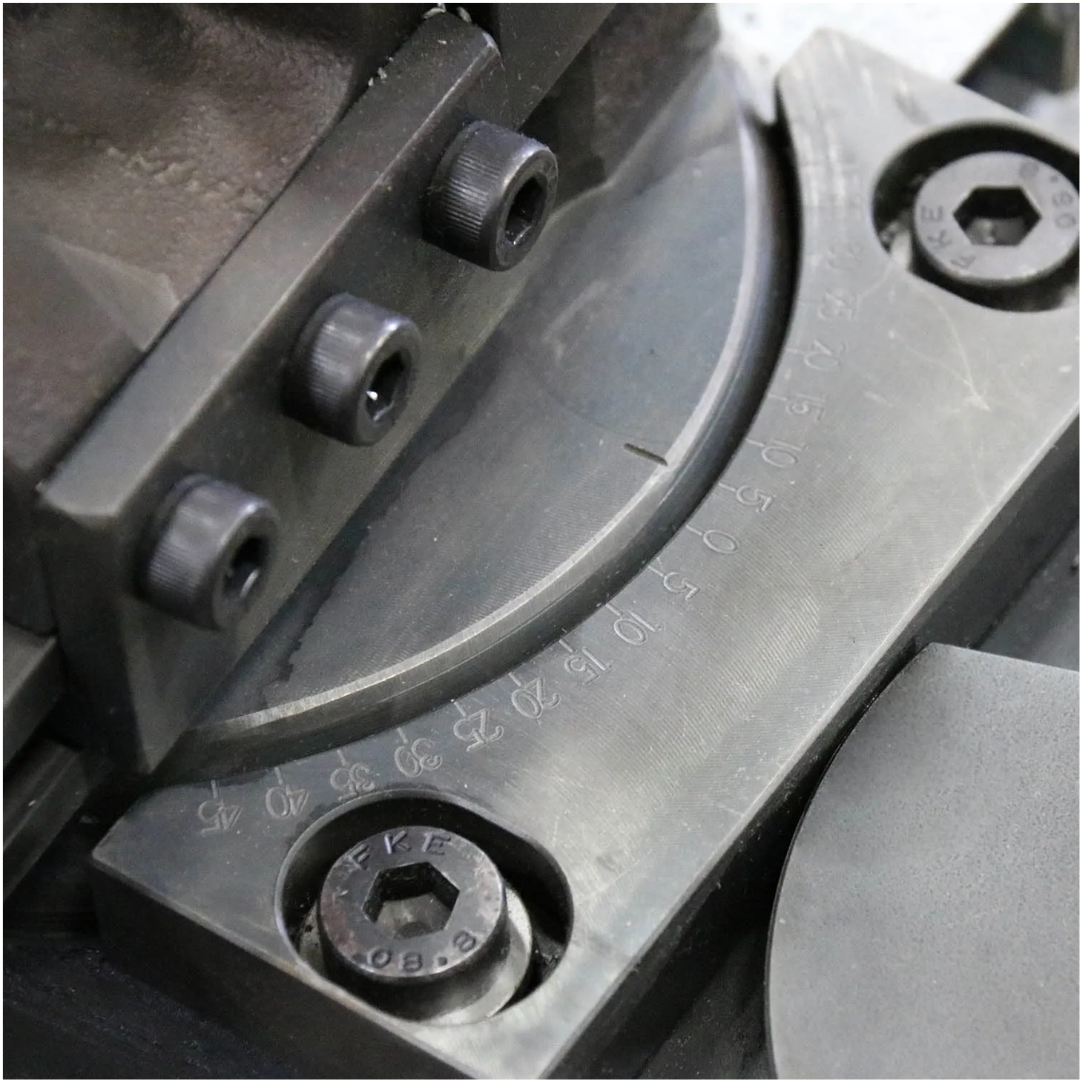

- Adjustable notch angle from 0° to 60° provides flexibility for creating complex tube intersections and custom fabrication joints.

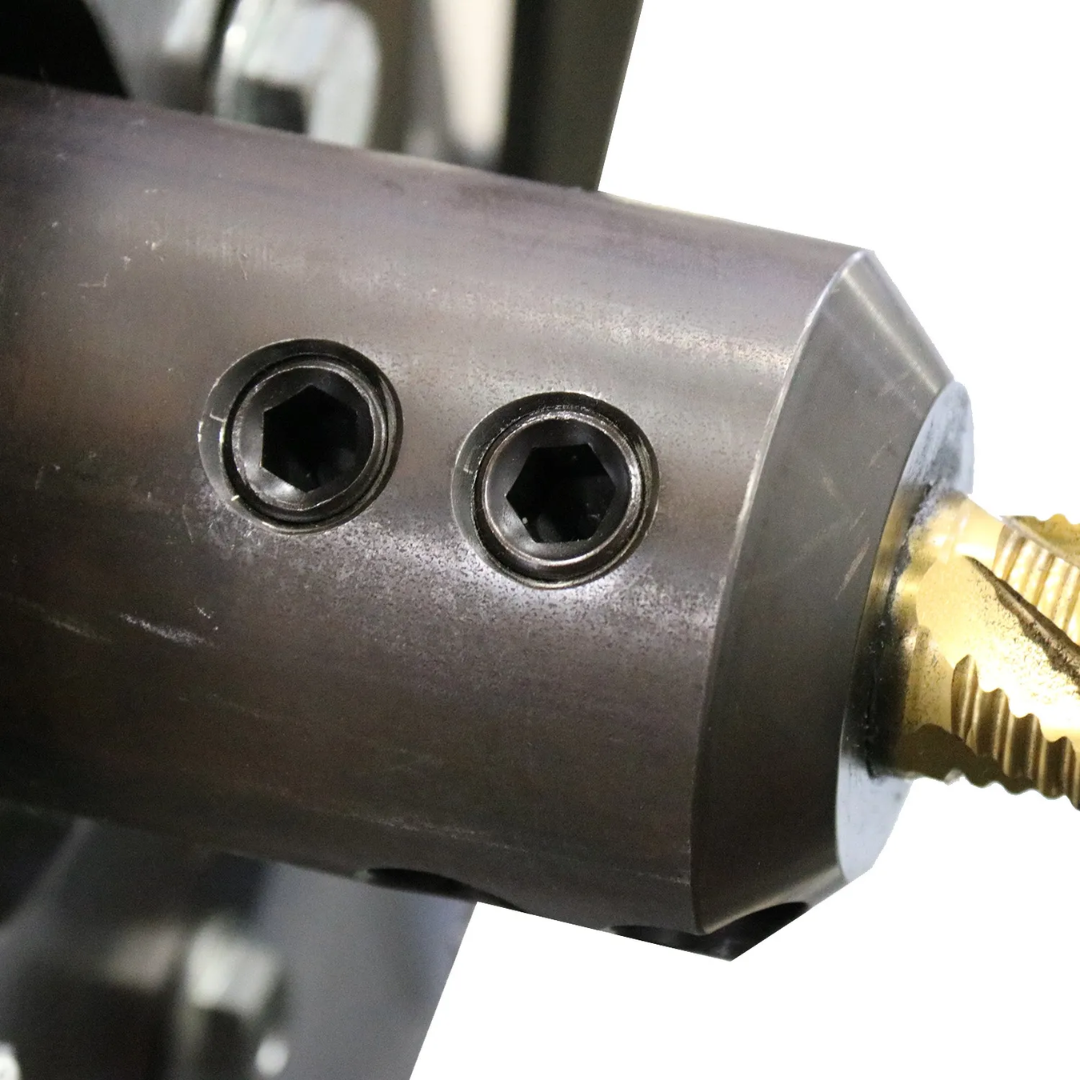

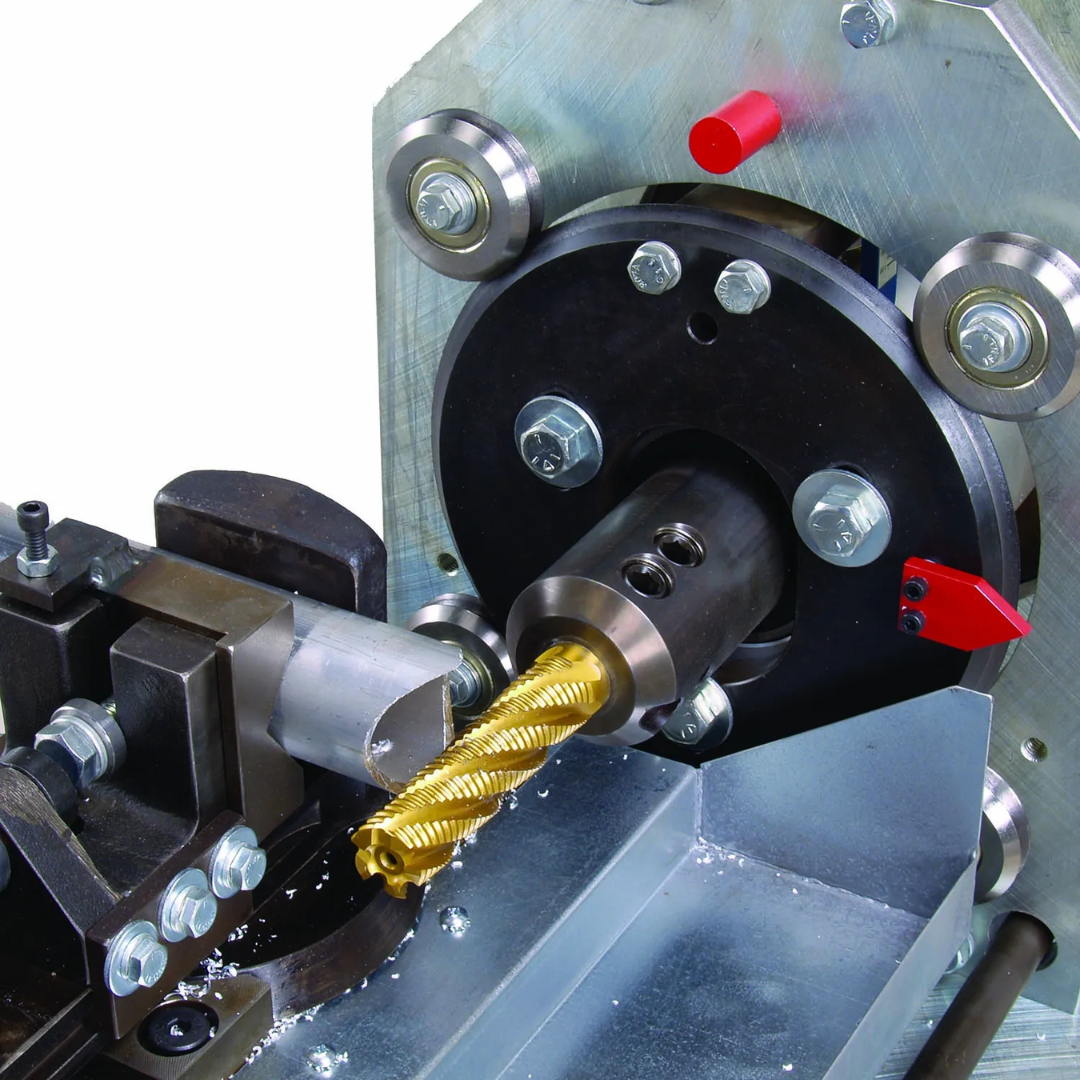

- End mill-style cutting system produces clean, accurate notches with excellent fit-up characteristics for welding and assembly operations.

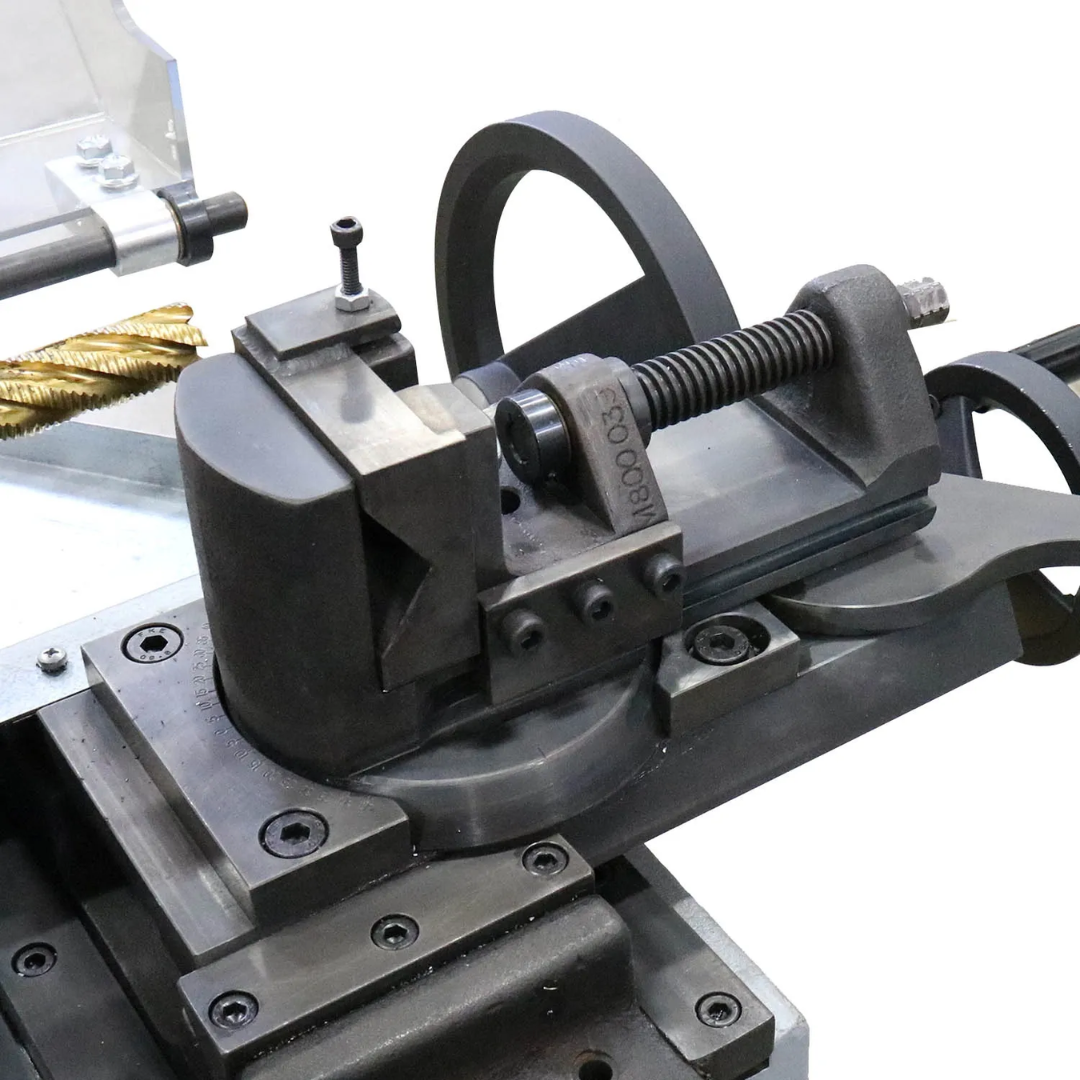

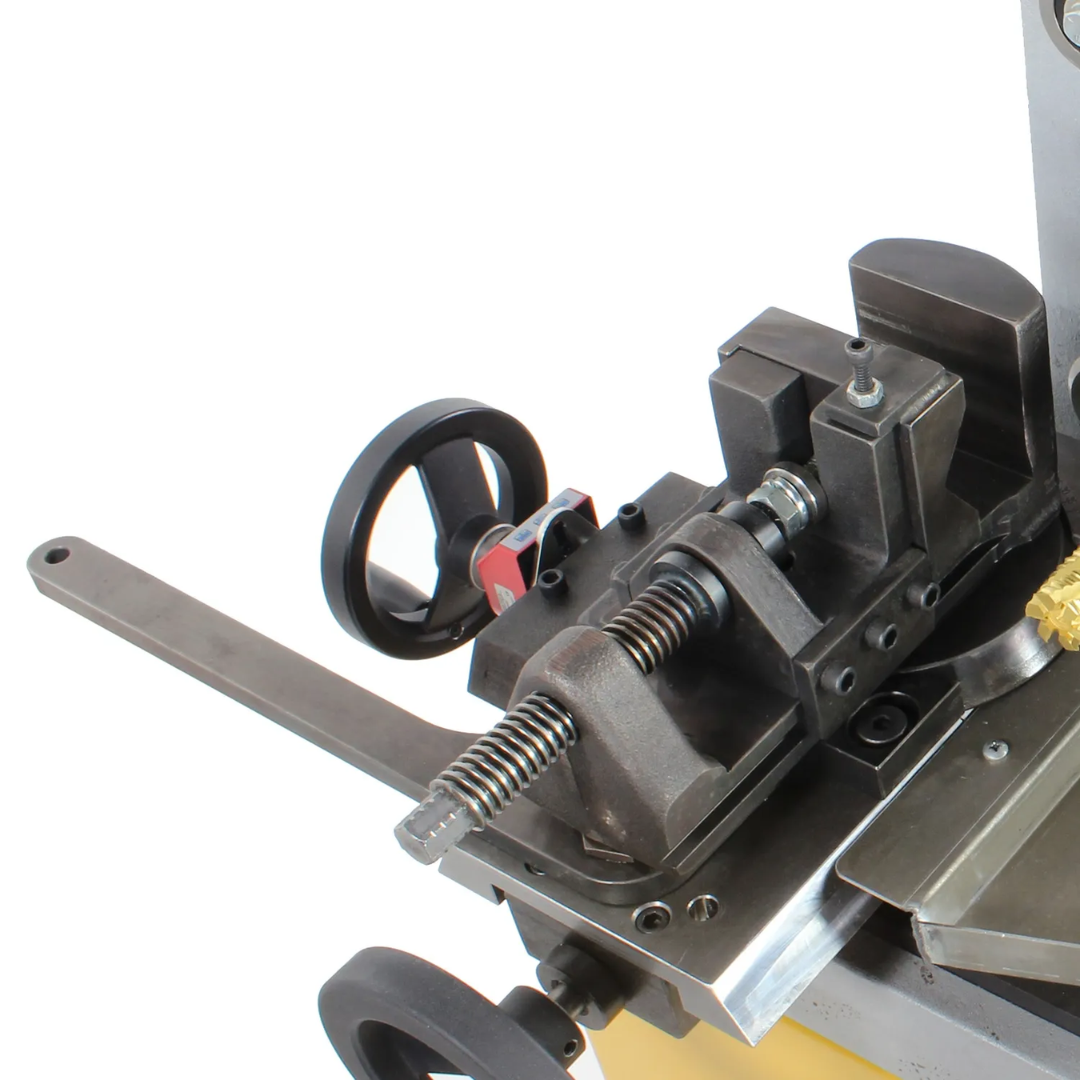

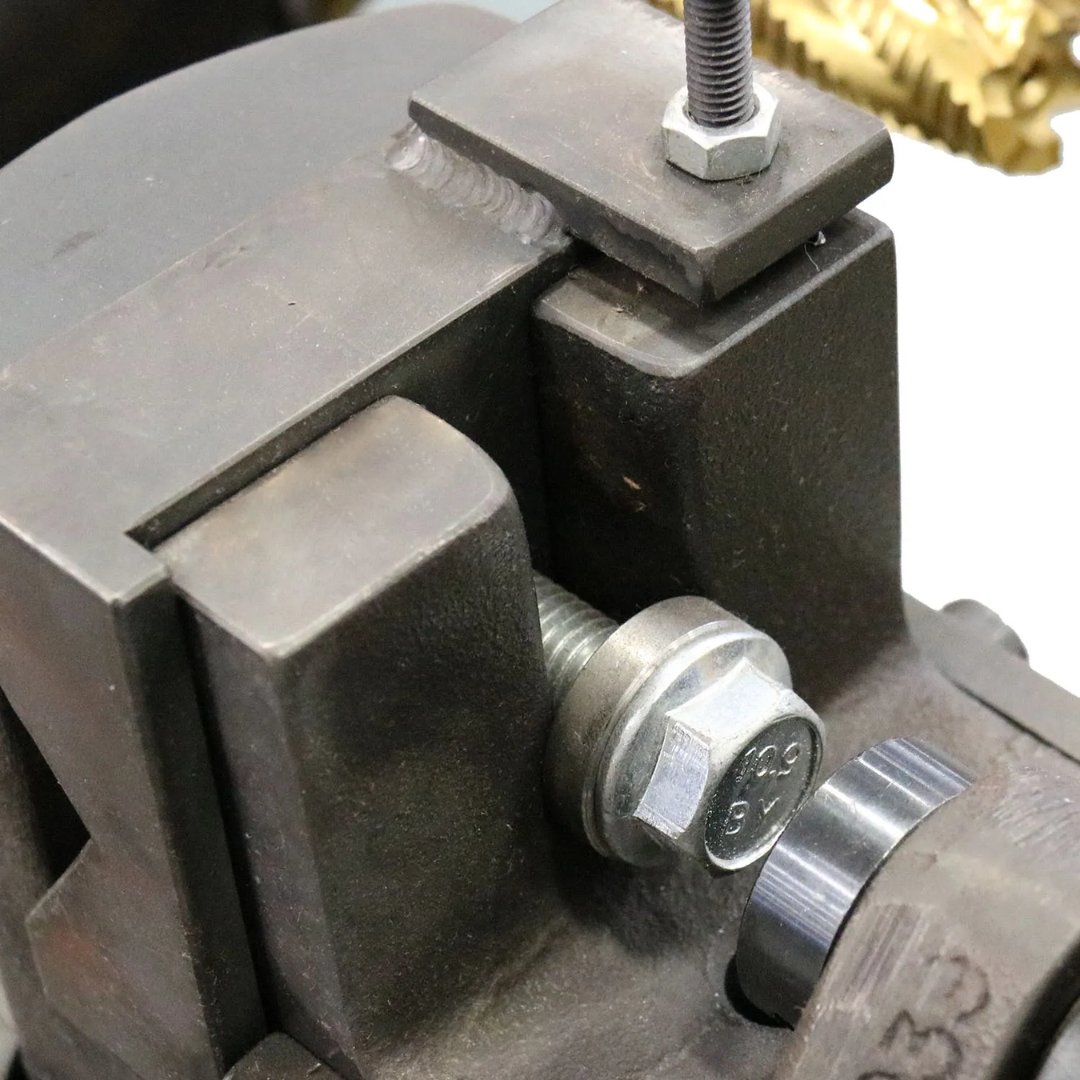

- Precision X/Y adjustable vise allows accurate tube positioning and repeatable setups for production work.

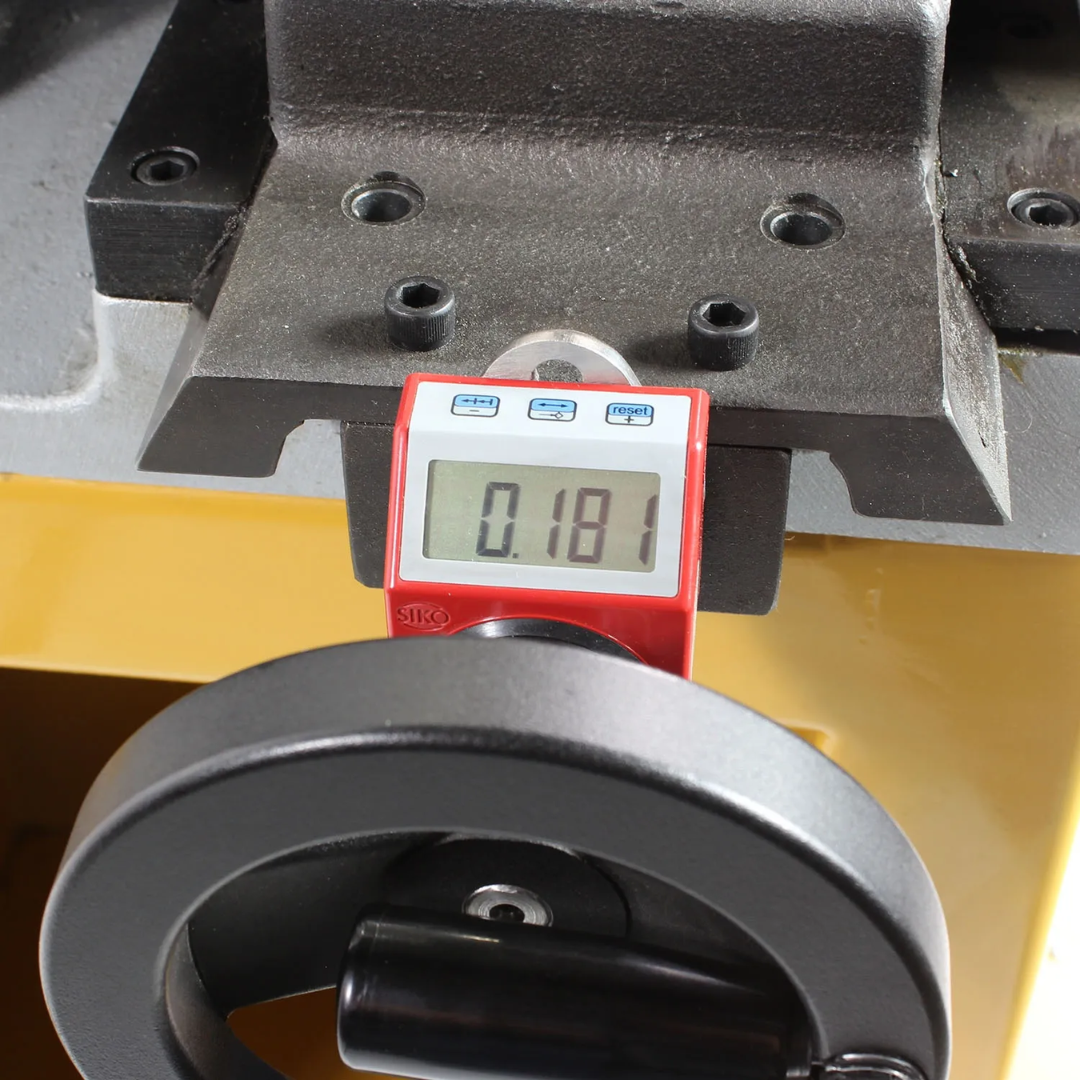

- Integrated angle finder system helps operators achieve precise notch angles and consistent fabrication results.
- Heavy-duty steel and cast iron construction reduces vibration and improves machine stability during cutting operations.
- Built in the USA with industrial-quality components designed for long-term professional use.
- Portable wheeled cart included allows easy repositioning throughout the shop while maintaining machine stability during operation.
- Production-friendly design helps increase throughput while maintaining notch accuracy and repeatability.
- 600-pound machine weight contributes to rigidity, vibration control, and long-term cutting precision.
- Ideal for race car, handrail, chassis, and structural fabrication where precision tube fit-up is essential.
- Lifetime technical support from Baileigh provides ongoing assistance and ownership confidence.
Why Choose the Baileigh Tube & Pipe Notcher, 110/220V 1Ph (TN-800) 1008064
- Patented tooling-free system reduces setup time and operating costs.
- Powered 1 HP motor increases productivity compared to manual notchers.
- Handles tube sizes from 1" to 3" OD without tooling changes.
- Adjustable notch angles up to 60° support complex fabrication projects.
- Precision vise system improves repeatability and fit-up accuracy.
- Heavy-duty cast iron and steel construction ensures durability.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Tube & Pipe Notcher, 110/220V 1Ph (TN-800) 1008064 combines powered end mill cutting, patented tooling-free versatility, and rugged industrial construction to deliver fast, accurate, and repeatable tube notching performance for professional fabrication and welding environments.
