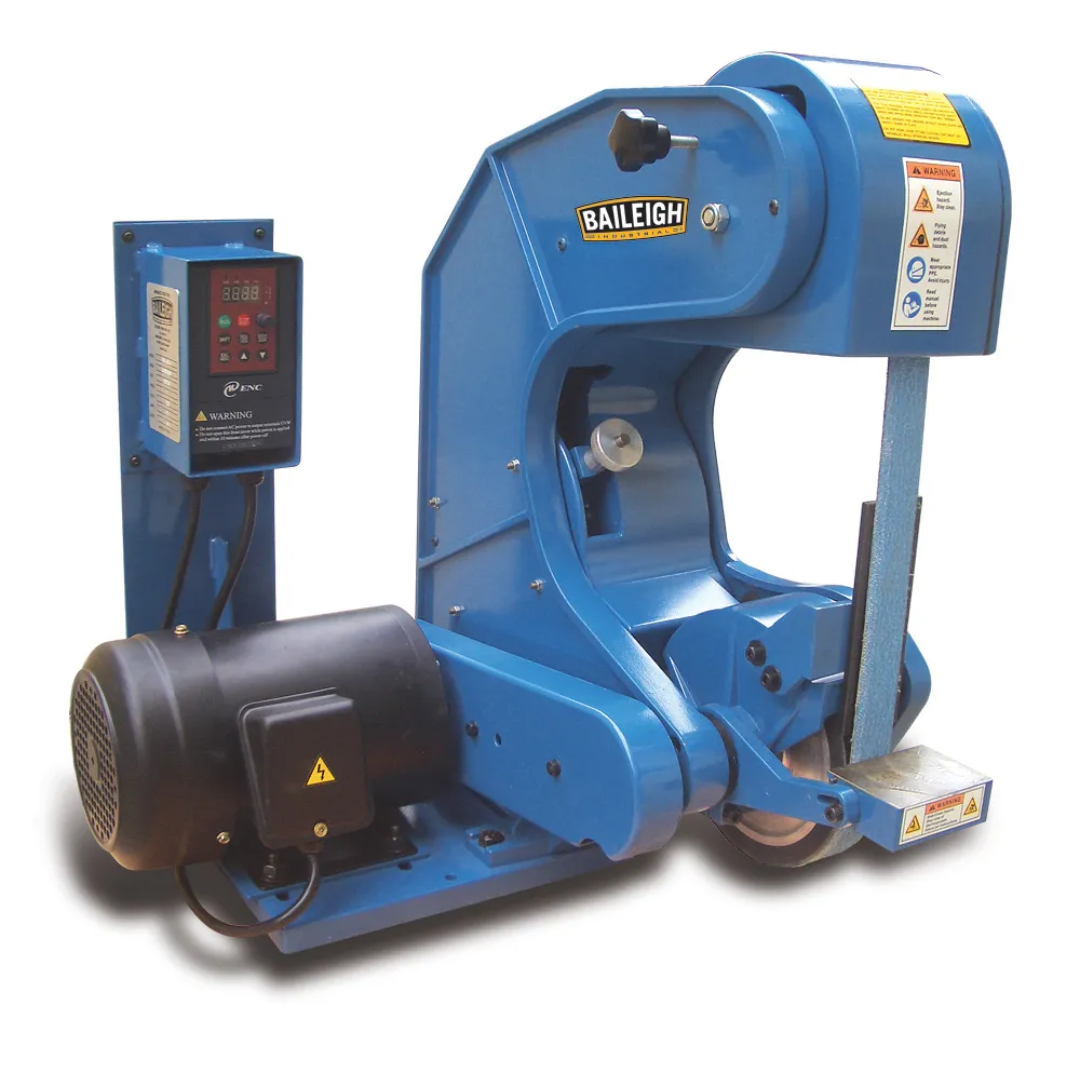

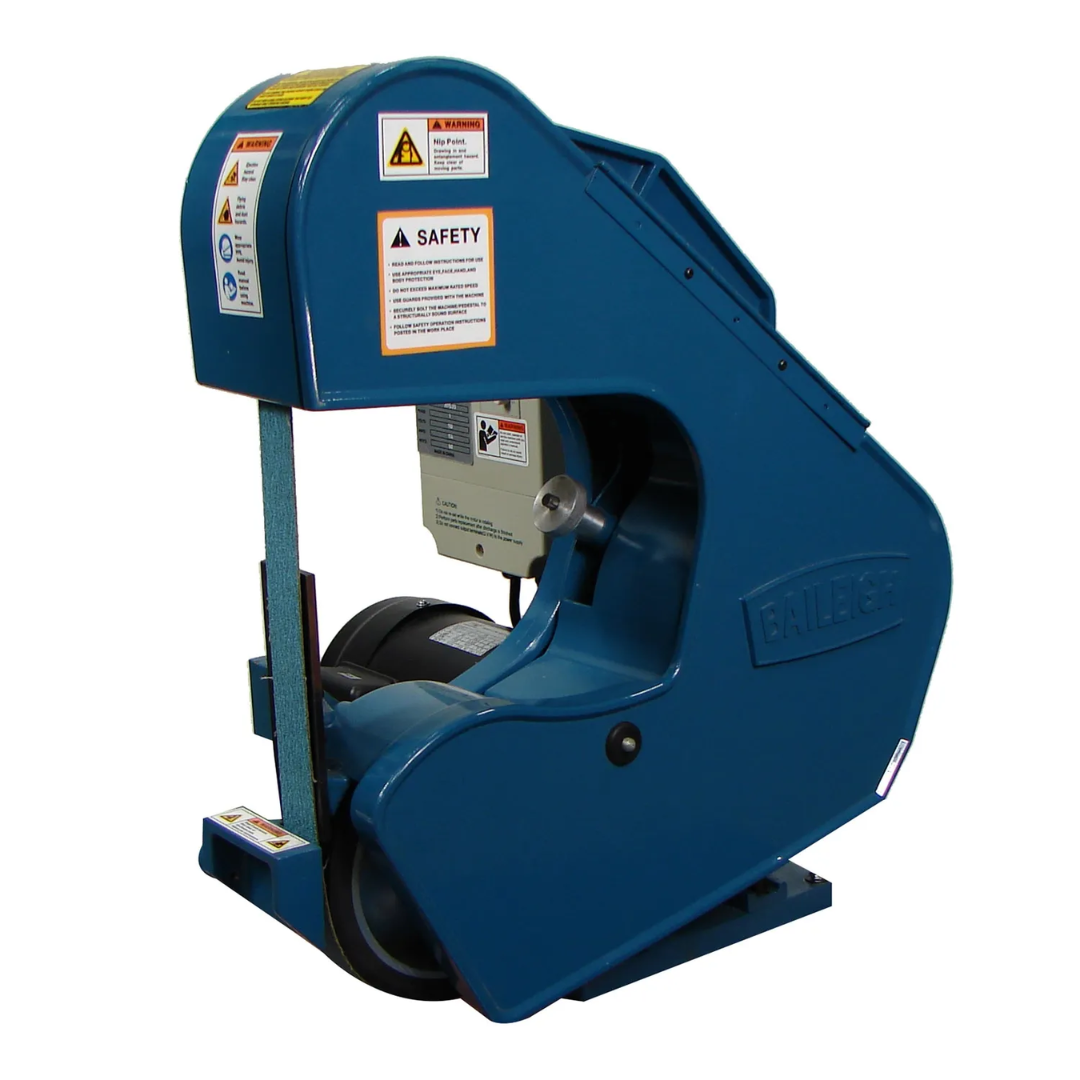

Baileigh Three Wheel Variable Speed Belt Grinder - BG-260-3-220 1000672 Applications
- Removing burrs from fabricated and machined metal components.
- Chamfering and preparing edges prior to welding.
- Grinding and blending weld seams.
- Cleaning castings and forged components.
- Surface finishing and material preparation.
- Toolroom and maintenance department grinding operations.
- Custom fabrication and metalworking projects.
- Processing irregularly shaped and oversized workpieces.
The Baileigh Three Wheel Variable Speed Belt Grinder - BG-260-3-220 1000672 is ideal for professionals who need adjustable grinding speeds, excellent belt control, and industrial-grade durability for daily metalworking operations.
Baileigh Three Wheel Variable Speed Belt Grinder - BG-260-3-220 1000672 Specifications
| Manufacturer | Baileigh Industrial |
|---|---|
| Model | BG-260-3-220 |
| Product Number | 1000672 |
| Product Type | Variable Speed Belt Grinder |
| Belt Size | 2 in. × 60 in. |
| Belt Speed Range | 800 – 8,000 FPM |
| Motor Power | 1.5 HP |
| Voltage | 220V |
| Phase | Single Phase |
| Wheel Configuration | 3-Wheel Design |
| Contact Wheel Diameter | 7 in. |
| Drive System | Inverter-Driven Variable Speed Control |
| Construction | All-Cast Aluminum Structure |
| Gross Weight | 150 lbs. |
| Net Weight | 150 lbs. |
| UPC | 731325393804 |
| Warranty | 1 Year |
Baileigh Three Wheel Variable Speed Belt Grinder - BG-260-3-220 1000672 Performance & Construction
- Variable speed operation from 800 to 8,000 FPM allows operators to match grinding speed to material type, finish requirements, and abrasive selection.

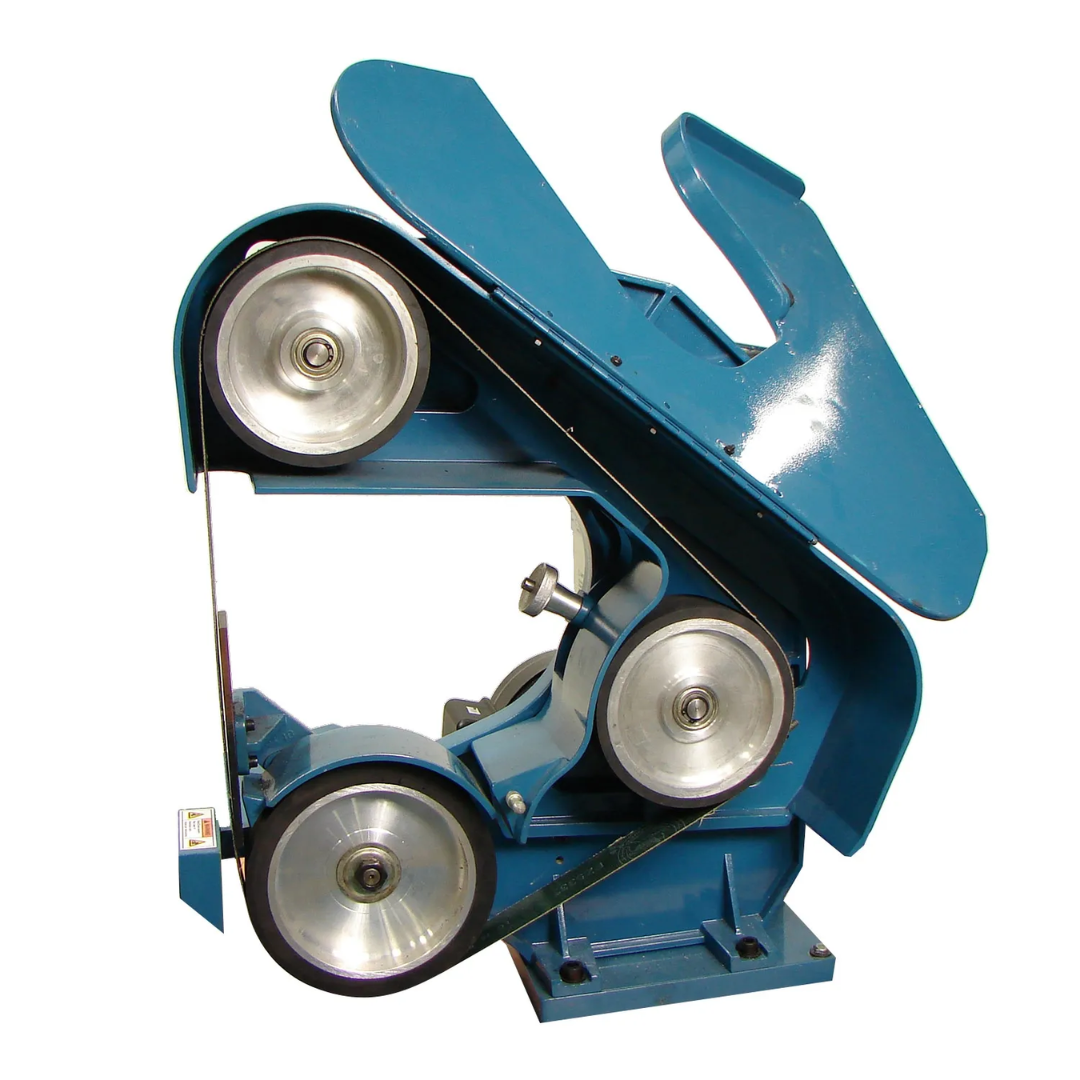

- Three-wheel belt grinder configuration improves belt stability, tracking accuracy, and overall grinding performance.
- 2-inch x 60-inch abrasive belt capacity supports a wide variety of commonly available industrial grinding belts.
- Powerful 1.5 HP motor delivers dependable grinding performance for demanding fabrication and finishing applications.
- 220V single-phase electrical service provides industrial power while remaining suitable for many professional shop environments.

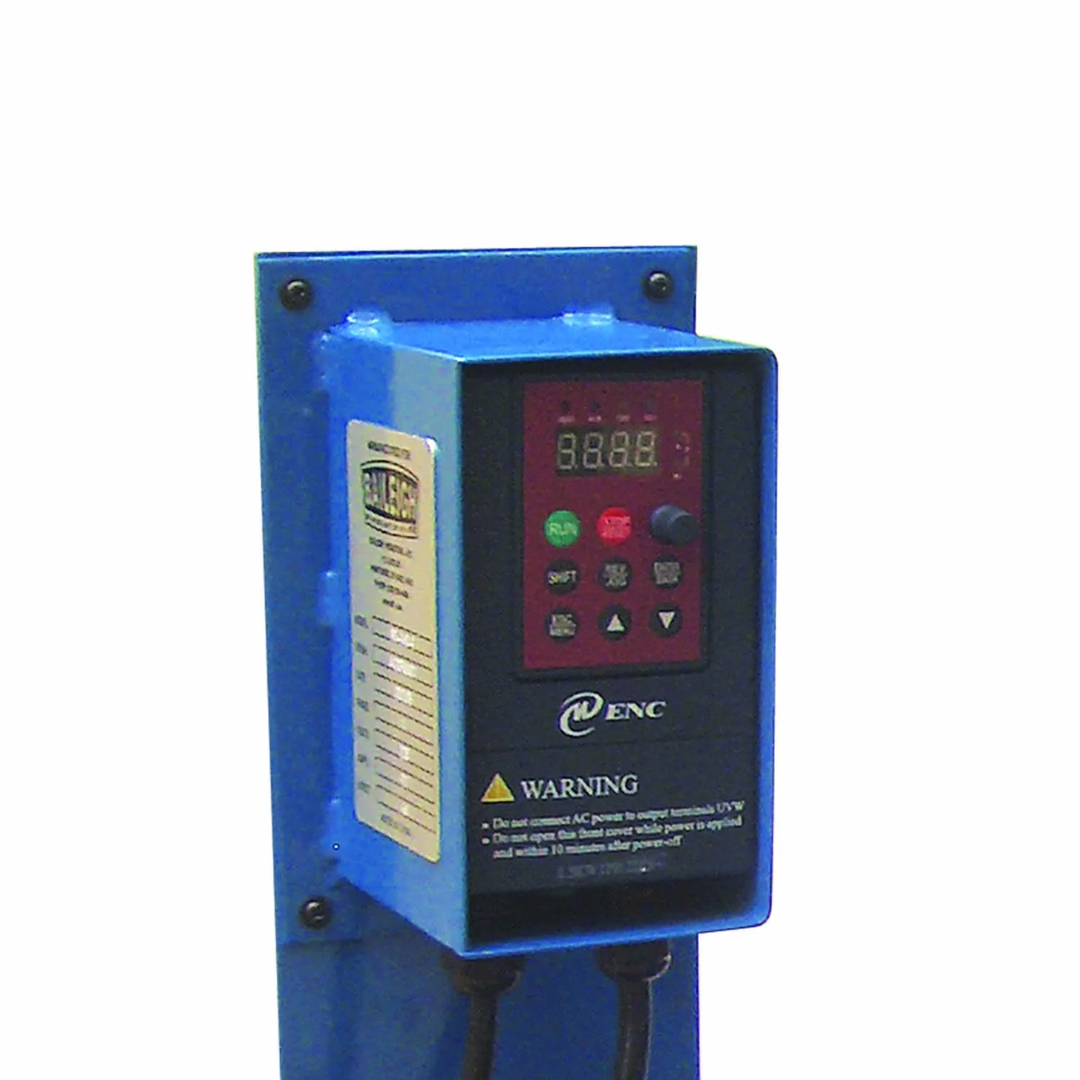

- Inverter-driven speed control system delivers smooth speed adjustments and enhanced process flexibility.
- 7-inch diameter contact wheel ensures reliable belt engagement and consistent material removal.
- All-cast aluminum construction minimizes vibration while maximizing machine rigidity and service life.
- Multiple grinding table options provide flexible workpiece support and improved operator control.
- Generous horizontal and vertical throat depth accommodates larger, longer, and irregularly shaped parts.
- Fully sealed ball bearings reduce maintenance requirements and help prevent premature machine wear.
- Precision belt tracking system maintains belt alignment during extended grinding sessions.
- Industrial-duty design built to withstand daily production and fabrication workloads.
Why Choose the Baileigh Three Wheel Variable Speed Belt Grinder - BG-260-3-220 1000672
- Wide variable speed range from 800 to 8,000 FPM.
- Heavy-duty all-cast construction for reduced vibration and long-term durability.
- Three-wheel design improves belt tracking and grinding consistency.
- Powerful 1.5 HP motor delivers reliable industrial performance.
- Multiple grinding table configurations increase versatility.
- Accommodates standard 2-inch x 60-inch abrasive belts.
- Ideal for deburring, weld preparation, finishing, and casting cleanup.
- Fully sealed bearings reduce maintenance and downtime.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Three Wheel Variable Speed Belt Grinder - BG-260-3-220 1000672 combines adjustable grinding performance, industrial durability, and precision belt control into a versatile finishing solution for professional fabrication and metalworking environments. Its variable speed capability, rigid cast construction, and three-wheel design make it an excellent choice for shops requiring both aggressive material removal and fine finishing control.
