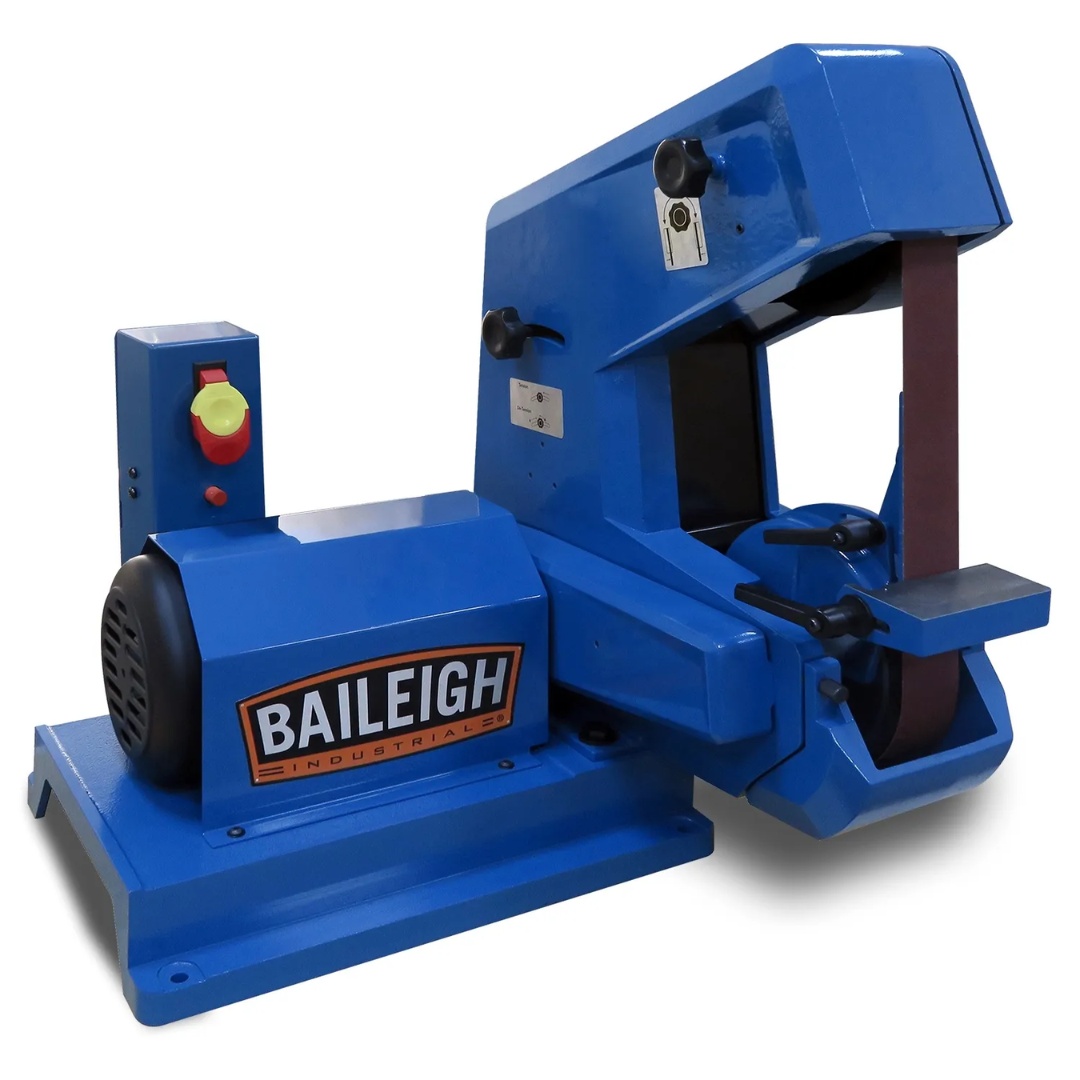

Baileigh Single Speed Belt Grinder - (BG-260S) 1227894 Applications
- Removing burrs from machined and fabricated metal parts.
- Chamfering edges prior to welding operations.
- Cleaning and finishing castings.
- Surface preparation for fabrication and assembly work.
- Grinding weld seams and weld spatter.
- General-purpose metal finishing and deburring.
- Toolroom and maintenance department grinding tasks.
- Production shop material preparation and finishing operations.
The Baileigh Single Speed Belt Grinder - (BG-260S) 1227894 is ideal for shops that require reliable high-speed grinding performance, accurate belt tracking, and long-term durability in a compact footprint.
Baileigh Single Speed Belt Grinder - (BG-260S) 1227894 Specifications
| Manufacturer | Baileigh Industrial |
|---|---|
| Model | BG-260S |
| Product Number | 1227894 |
| SKU | BA9-1227894 |
| Product Type | Single Speed Belt Grinder |
| Belt Size | 2 in. × 60 in. |
| Belt Speed | 8,000 FPM |
| Motor Power | 1 HP |
| Voltage | 115V |
| Phase | Single Phase |
| Wheel Configuration | 3-Wheel Design |
| Drive Wheel Diameter | 7 in. |
| Construction | Cast-Aluminum Frame |
| Gross Weight | 185 lbs. |
| Net Weight | 185 lbs. |
| UPC | 19907674016 |
| Warranty | 1 Year |
Baileigh Single Speed Belt Grinder - (BG-260S) 1227894 Performance & Construction
- Three-wheel belt grinder configuration provides smooth belt travel, improved tracking, and enhanced grinding stability.
- 2-inch x 60-inch abrasive belt capacity accommodates commonly available industrial grinding belts.
- High-speed 8,000 FPM belt velocity delivers aggressive material removal and efficient surface finishing.
- 1 HP motor provides dependable grinding power for daily shop applications.
- 115V single-phase operation allows installation using standard shop electrical service.
- 7-inch diameter drive wheel ensures consistent belt engagement and efficient power transfer.
- Solid cast-aluminum construction minimizes vibration while maintaining excellent rigidity and durability.

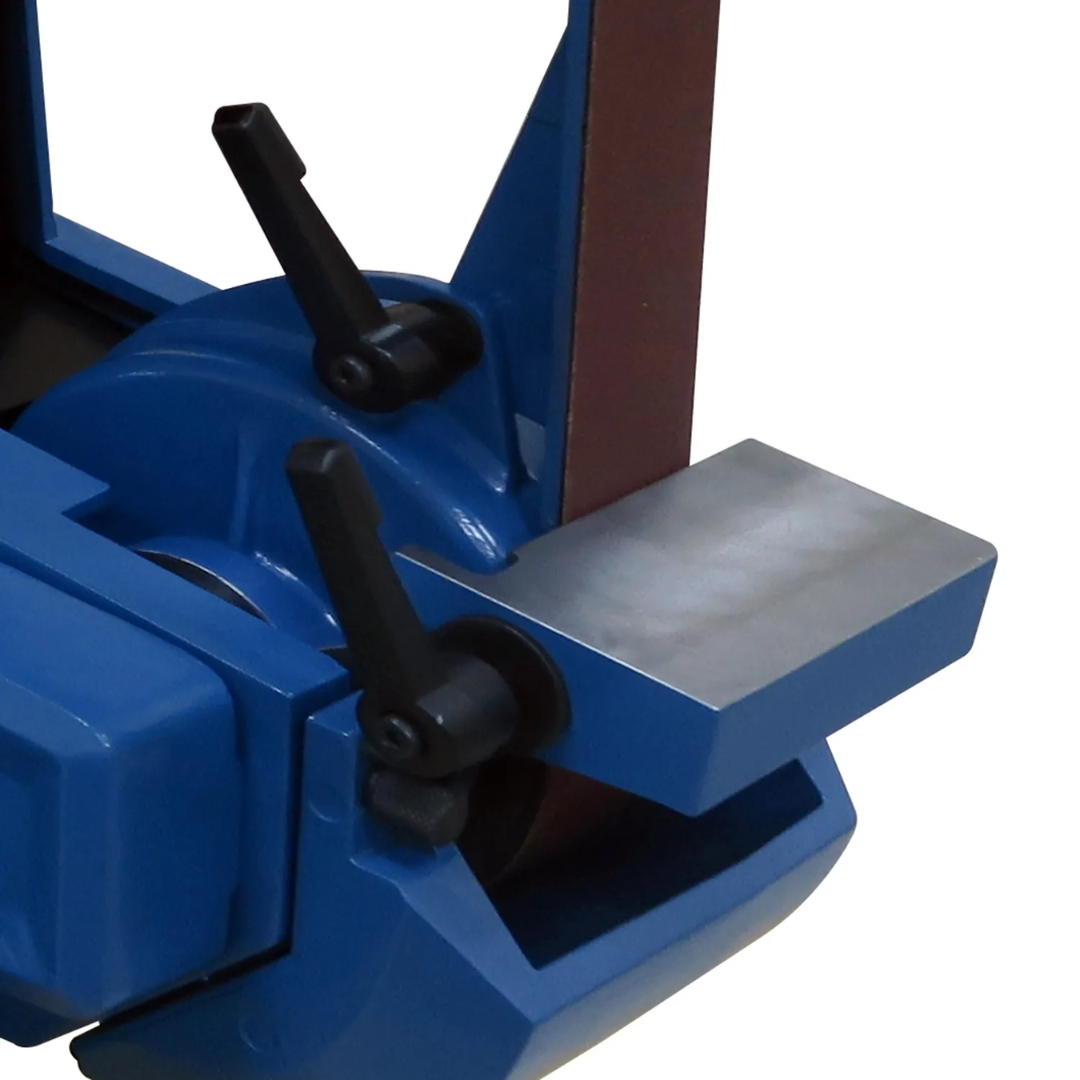

- Adjustable grinding table enables precise workpiece positioning for improved grinding accuracy.

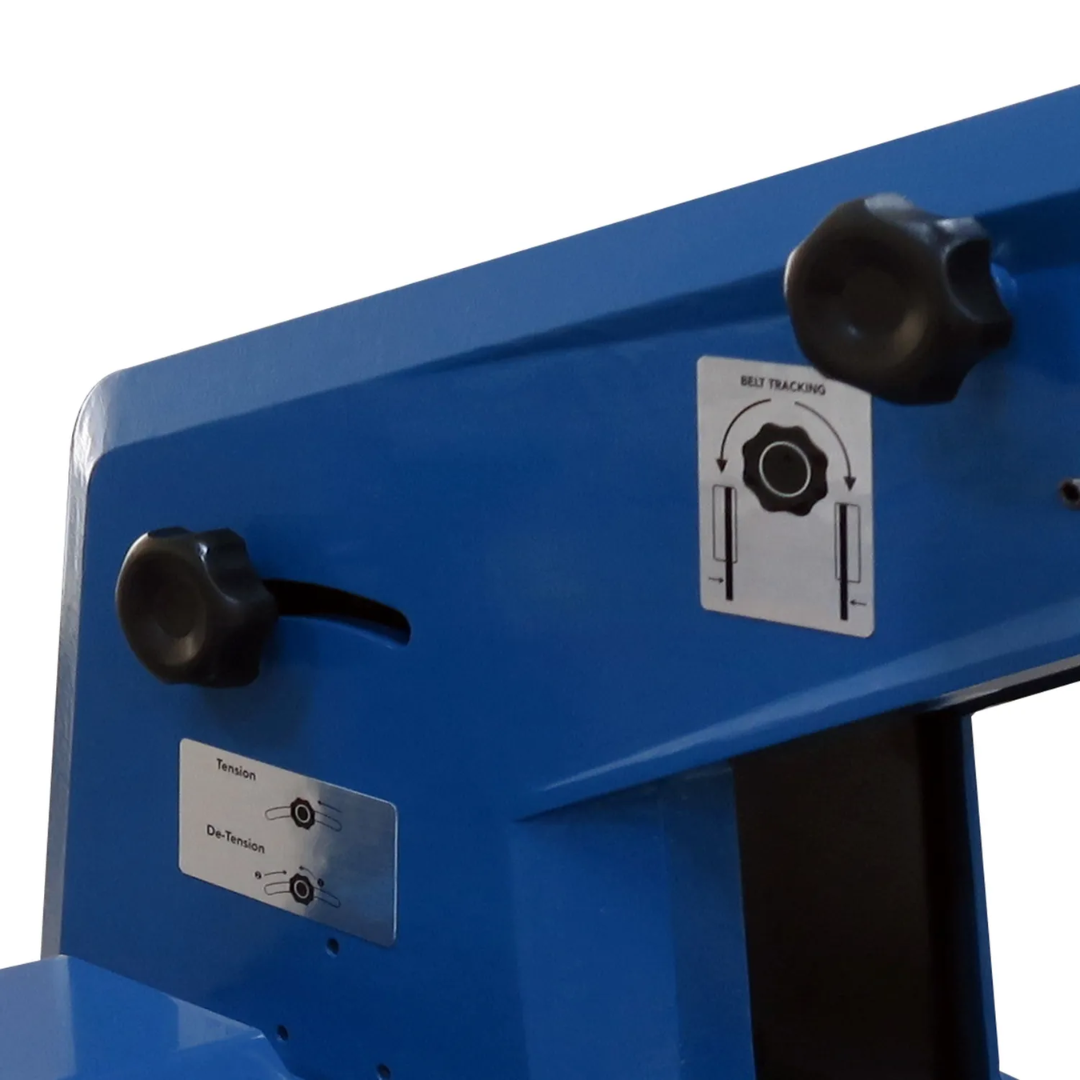

- Belt tension adjustment system allows quick setup and maintains optimal belt performance.

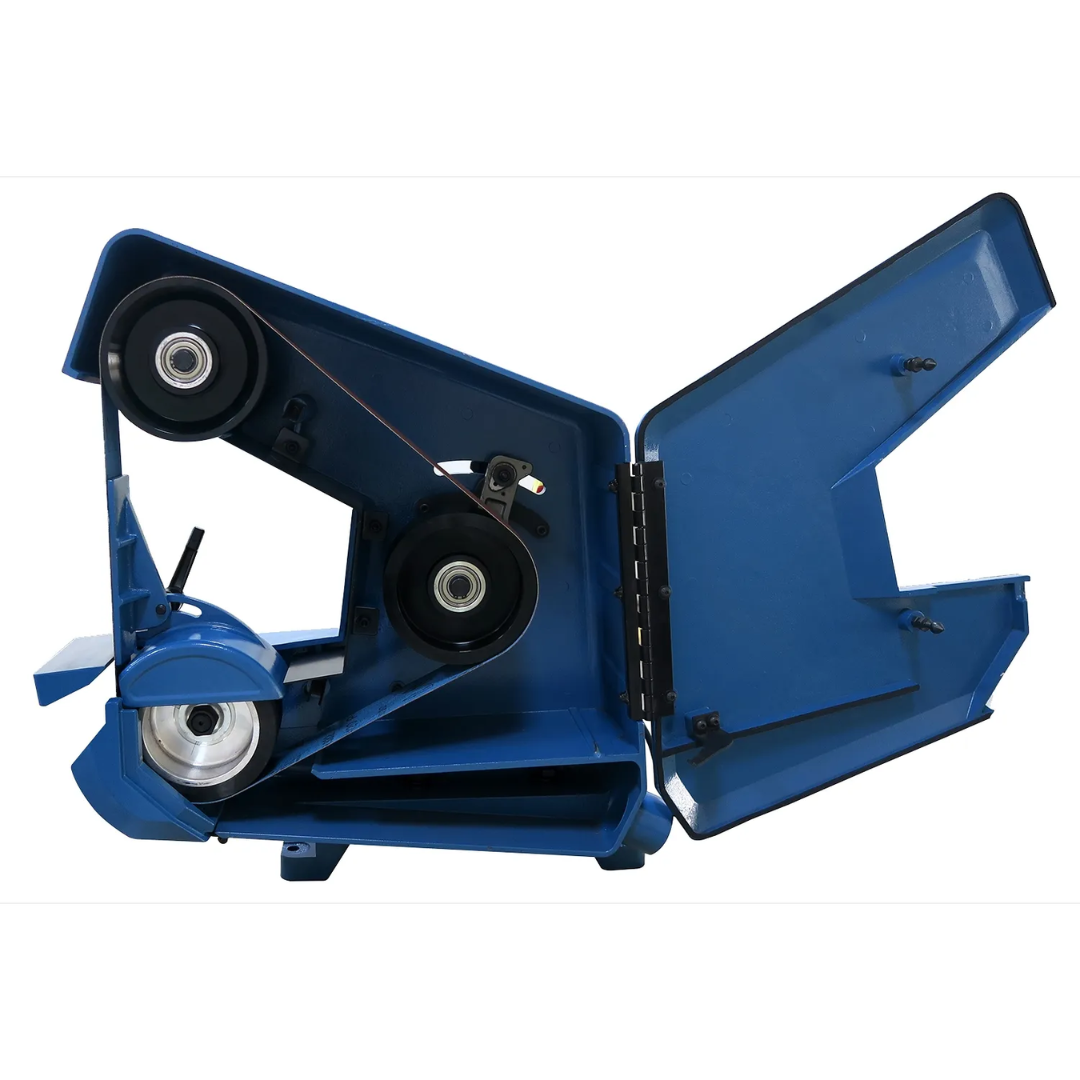

- Precision belt tracking design helps keep the belt aligned during extended operation.
- Fully sealed ball bearings reduce maintenance requirements and contribute to long machine life.
- Compact industrial footprint makes the machine suitable for fabrication shops with limited floor space.
- Production-grade construction designed for continuous metalworking and finishing applications.
Why Choose the Baileigh Single Speed Belt Grinder - (BG-260S) 1227894
- Fast 8,000 FPM grinding speed for efficient material removal.
- Industrial three-wheel belt system for improved stability and tracking.
- Rigid cast-aluminum construction reduces vibration during operation.
- Uses standard 2-inch x 60-inch abrasive belts.
- Adjustable grinding table increases precision and operator control.
- Fully sealed bearings reduce maintenance and downtime.
- Compact design fits easily into fabrication and maintenance shops.
- Suitable for deburring, weld preparation, finishing, and casting cleanup.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Single Speed Belt Grinder - (BG-260S) 1227894 delivers industrial-grade grinding performance in a compact and durable package. Featuring a high-speed 8,000 FPM belt, robust three-wheel design, cast-aluminum construction, and precision adjustment capabilities, this machine is an excellent solution for fabricators, welders, maintenance professionals, and metalworking shops seeking dependable finishing and deburring performance.
