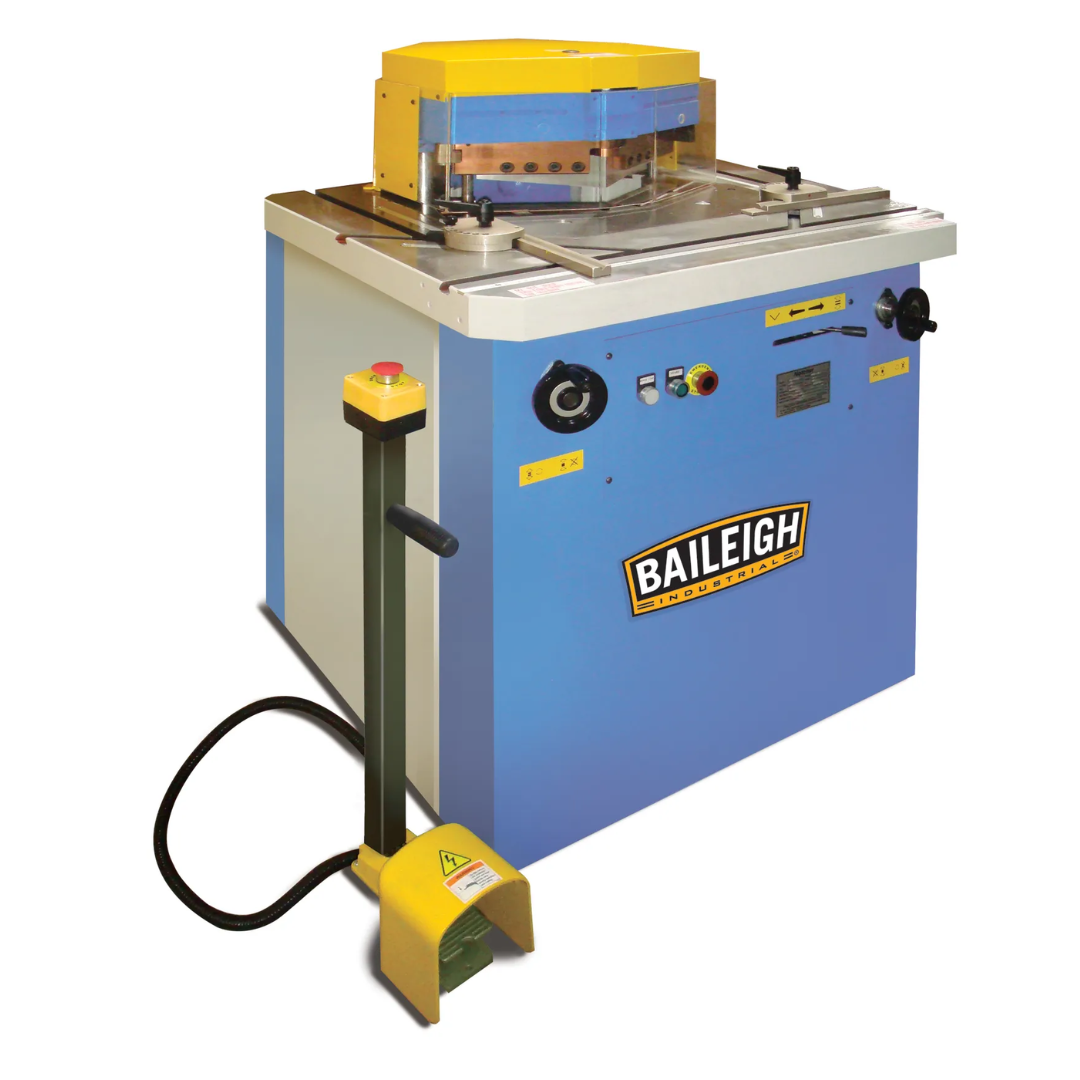

Baileigh Sheet Metal Notcher SN-V04-MS 1007269 Applications
- Industrial sheet metal fabrication facilities
- HVAC duct and ventilation system manufacturing
- Electrical enclosure and control cabinet fabrication
- Architectural and structural sheet metal production
- Custom metal fabrication and prototype development
- Heavy-duty production manufacturing operations
- Preparation of components for welding, bending, and assembly
- Variable-angle notching for specialty fabrication projects
Designed for fabrication professionals requiring precise adjustable-angle notching, heavy-duty hydraulic power, and repeatable production performance on thicker sheet metal materials.
Baileigh Sheet Metal Notcher SN-V04-MS 1007269 Specifications
| Model Number | SN-V04-MS |
|---|---|
| Product Number | 1007269 |
| Machine Type | Hydraulic Variable-Angle Sheet Metal Notcher |
| Maximum Corner Notch Capacity | 6" |
| Maximum Material Thickness | 6 mm (4 Gauge) Mild Steel |
| Variable Notch Angle | 30° – 140° Adjustable |
| Blade Length | 8-1/2" |
| Blade Design | Negative Rake, Resharpenable |
| Table Size | 27" × 23.5" Oversized Table with Guides and Miter Blocks |
| Production Speed | Up to 15 Strokes Per Minute |
| Main Motor | 4 HP |
| Input Power | 220/440V, 60 Hz, 3 Phase |
| Operation | Hydraulic Foot Pedal with Manual Angle Adjustment |
| Net Weight | 1,720 lbs |
| Gross Weight | 1,720 lbs |
| UPC | 731325415018 |
| Warranty | 1-Year Parts Warranty |
| Technical Support | Lifetime Technical Support |
Baileigh Sheet Metal Notcher SN-V04-MS 1007269 Performance & Construction
- Heavy-duty hydraulic cutting system delivers powerful, smooth, and consistent notching performance for industrial fabrication applications.
- Variable-angle cutting capability from 30° to 140° provides exceptional flexibility for producing custom notch configurations beyond standard 90-degree cuts.
- Cuts mild steel up to 6 mm (4 gauge), making it suitable for demanding heavy-gauge fabrication work.
- Powerful 4 HP hydraulic motor supplies reliable cutting force for continuous production environments.
- Operates on 220/440V, 60 Hz, 3-phase power for compatibility with industrial electrical systems.
- 8-1/2-inch negative rake blades improve cutting efficiency by pulling material cleanly through the blades while producing smooth, accurate edges.
- Oversized 27" × 23.5" work table with integrated guides and miter blocks supports larger workpieces while improving positioning accuracy.
- Manual handwheel blade angle adjustment allows quick and precise angle changes for versatile fabrication requirements.
- Foot pedal-controlled hydraulic operation enables hands-free cutting while allowing operators to maintain full control of workpiece positioning.
- Production capability of up to 15 strokes per minute increases efficiency for repetitive fabrication tasks.
- Industrial-grade construction is engineered for long-term durability, precision, and dependable operation in professional fabrication shops.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for long-term ownership confidence.
Why Choose the Baileigh Sheet Metal Notcher SN-V04-MS 1007269
- Variable-angle notching from 30° to 140° for maximum fabrication flexibility.
- Cuts up to 6 mm (4 gauge) mild steel with industrial-grade precision.
- Powerful 4 HP hydraulic system for demanding production environments.
- Long 8-1/2-inch negative rake blades deliver smooth, accurate cuts.
- Oversized guided table improves positioning and repeatability.
- Foot pedal operation enhances operator control and productivity.
- Manual angle adjustment enables fast setup for custom fabrication work.
- Heavy-duty industrial construction built for years of dependable service.
- Supported by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Sheet Metal Notcher SN-V04-MS 1007269 combines hydraulic cutting power, adjustable-angle versatility, and industrial-grade durability to deliver exceptional performance for professional fabrication operations. Whether producing custom enclosures, HVAC components, structural sheet metal parts, or specialty fabricated products, this variable-angle notcher provides the precision, flexibility, and reliability required for high-quality production.
