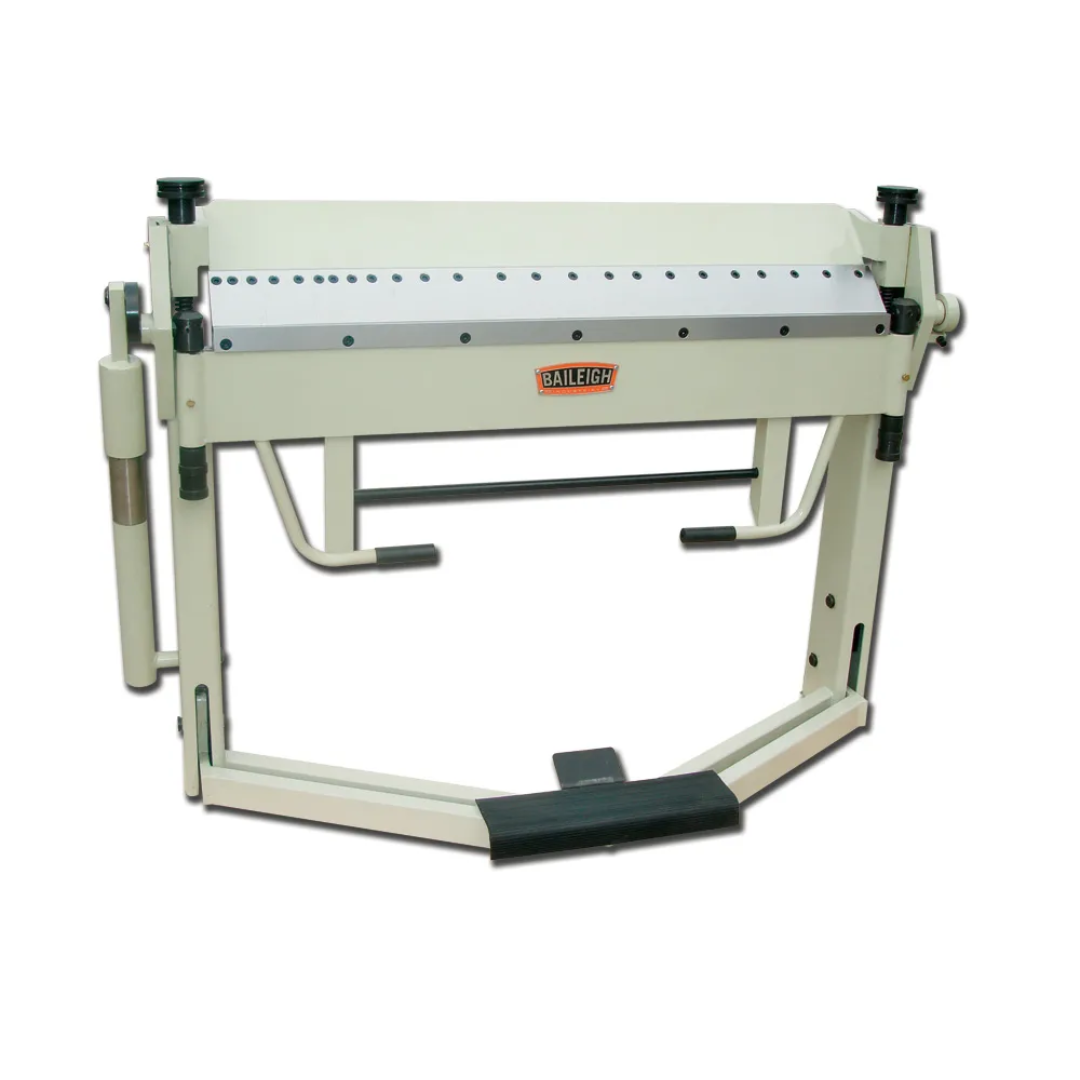

Baileigh Sheet Metal Finger Brake - (BB-4012F) 1000399 Applications
- Custom box and pan fabrication.
- HVAC ductwork and sheet metal component production.
- Electrical enclosure and cabinet manufacturing.
- Architectural sheet metal projects.
- Automotive and restoration fabrication work.
- General-purpose metal forming and bending operations.
- Prototype development and short production runs.
The foot-operated clamping system significantly improves material handling by allowing operators to precisely position workpieces before engaging the clamping bar.
Baileigh Sheet Metal Finger Brake - (BB-4012F) 1000399 Specifications
| Model Number | BB-4012F |
|---|---|
| Product Name | Baileigh Sheet Metal Finger Brake - (BB-4012F) 1000399 |
| Brake Type | Manual Box and Pan Finger Brake |
| Mild Steel Capacity | 12 Gauge |
| Bending Length | 40" |
| Maximum Bend Angle | 135° |
| Maximum Box Depth | 2.5" |
| Maximum Clamping Bar Lift | 1.85" |
| Operation | Manual |
| Clamping System | Foot-Controlled Clamp |
| Finger Tooling | Hardened Assorted Finger Set Included |
| Blade Adjustment | Manual Gap Adjustment |
| Net Weight | 810 lbs |
| Gross Weight | 810 lbs |
| UPC | 731325392265 |
| Warranty | 1 Year |
Baileigh Sheet Metal Finger Brake - (BB-4012F) 1000399 Performance & Construction
- 12-Gauge Mild Steel Capacity: Handles heavy sheet metal applications across the machine's full 40" bending width.
- 40" Working Length: Ideal for a wide variety of fabrication, repair, and production tasks.

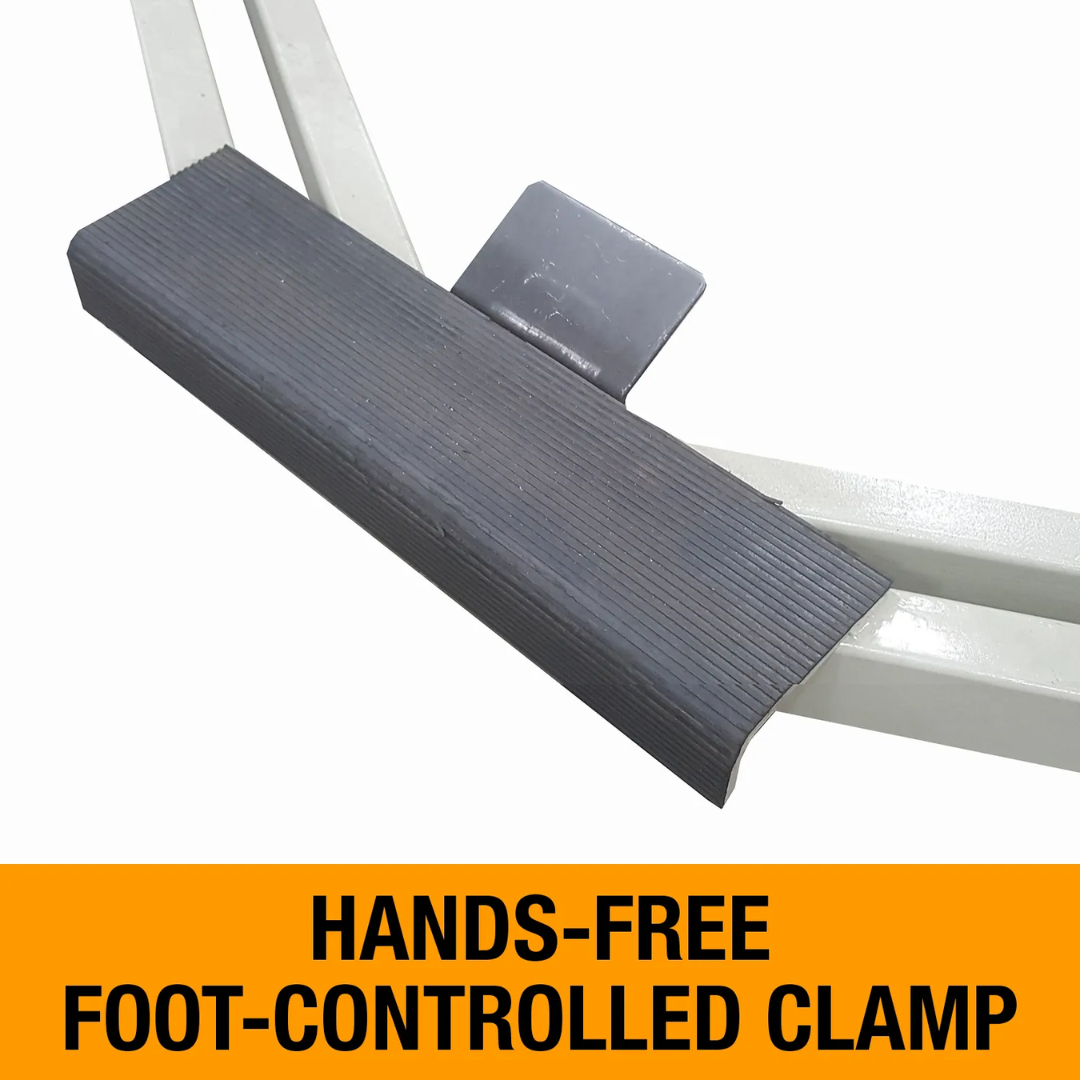

- Foot-Controlled Clamping: Keeps both hands free for precise material positioning before forming operations.

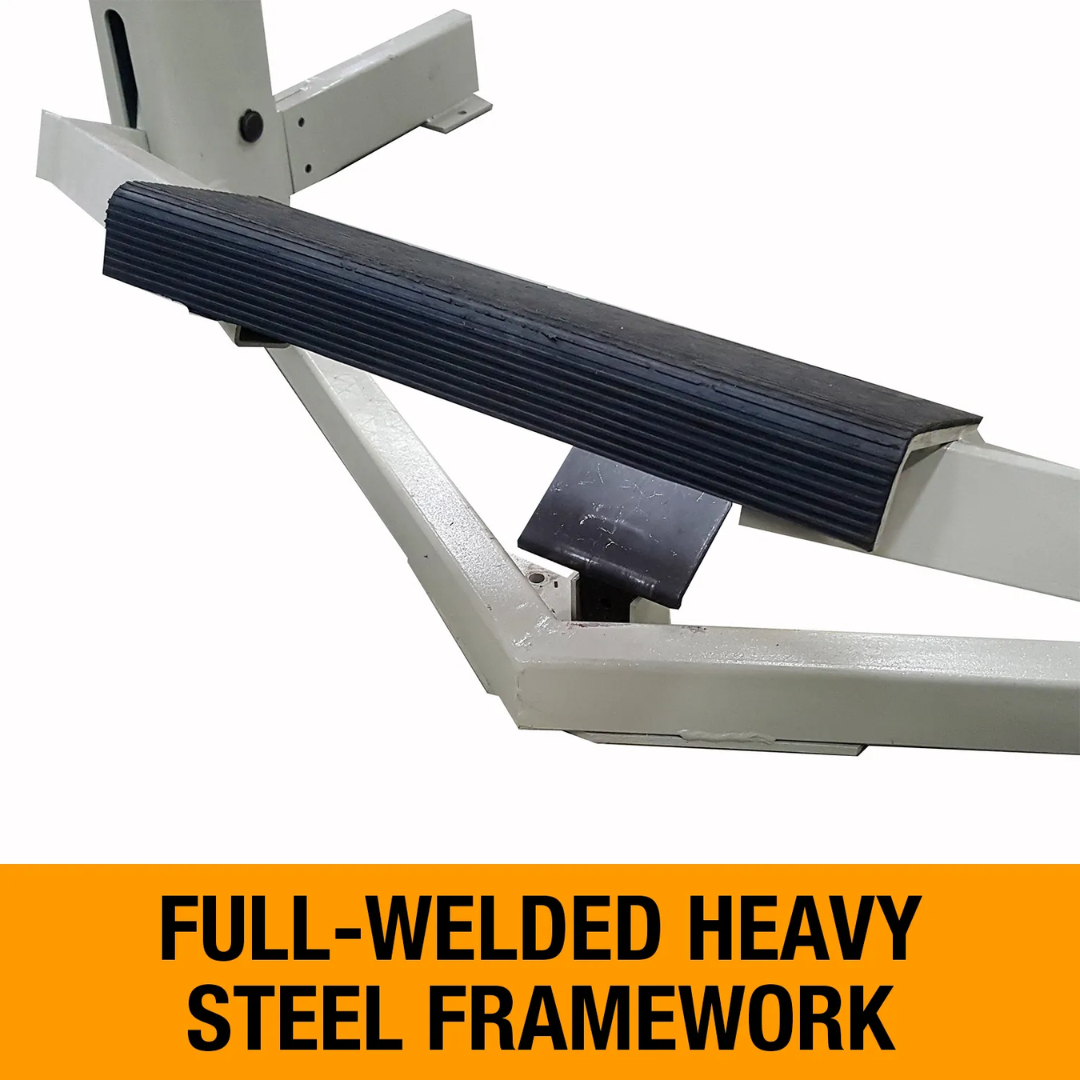

- Full-Welded Steel Framework: Provides exceptional rigidity, durability, and long-term bending accuracy.
- Box and Pan Forming Capability: Removable fingers allow fabrication of boxes, pans, channels, trays, and specialty shapes.
- Hardened Bending Die: Built for extended service life and consistent bending performance.

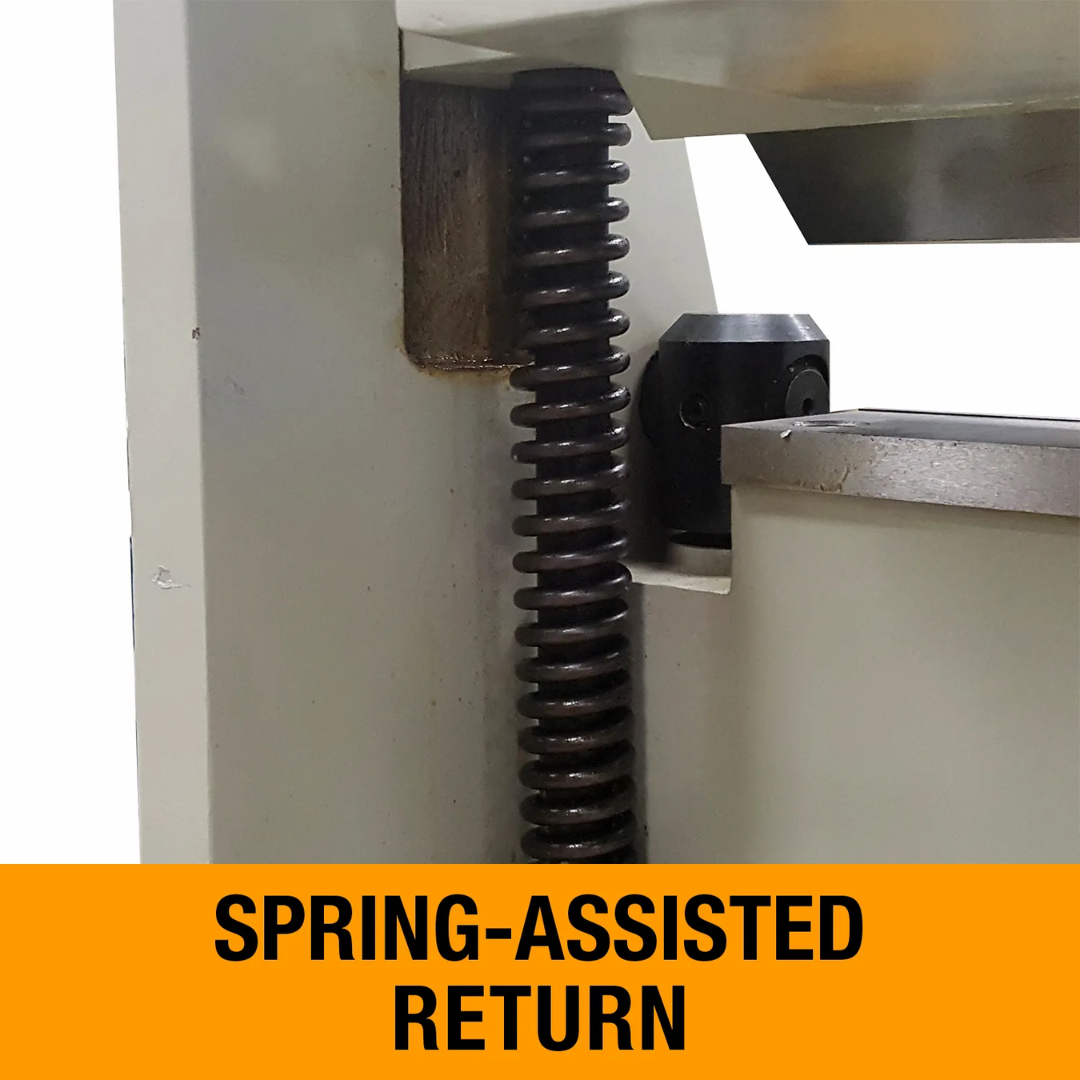

- Spring-Assisted Apron Lift: Reduces operator effort and improves handling when bending heavier materials.

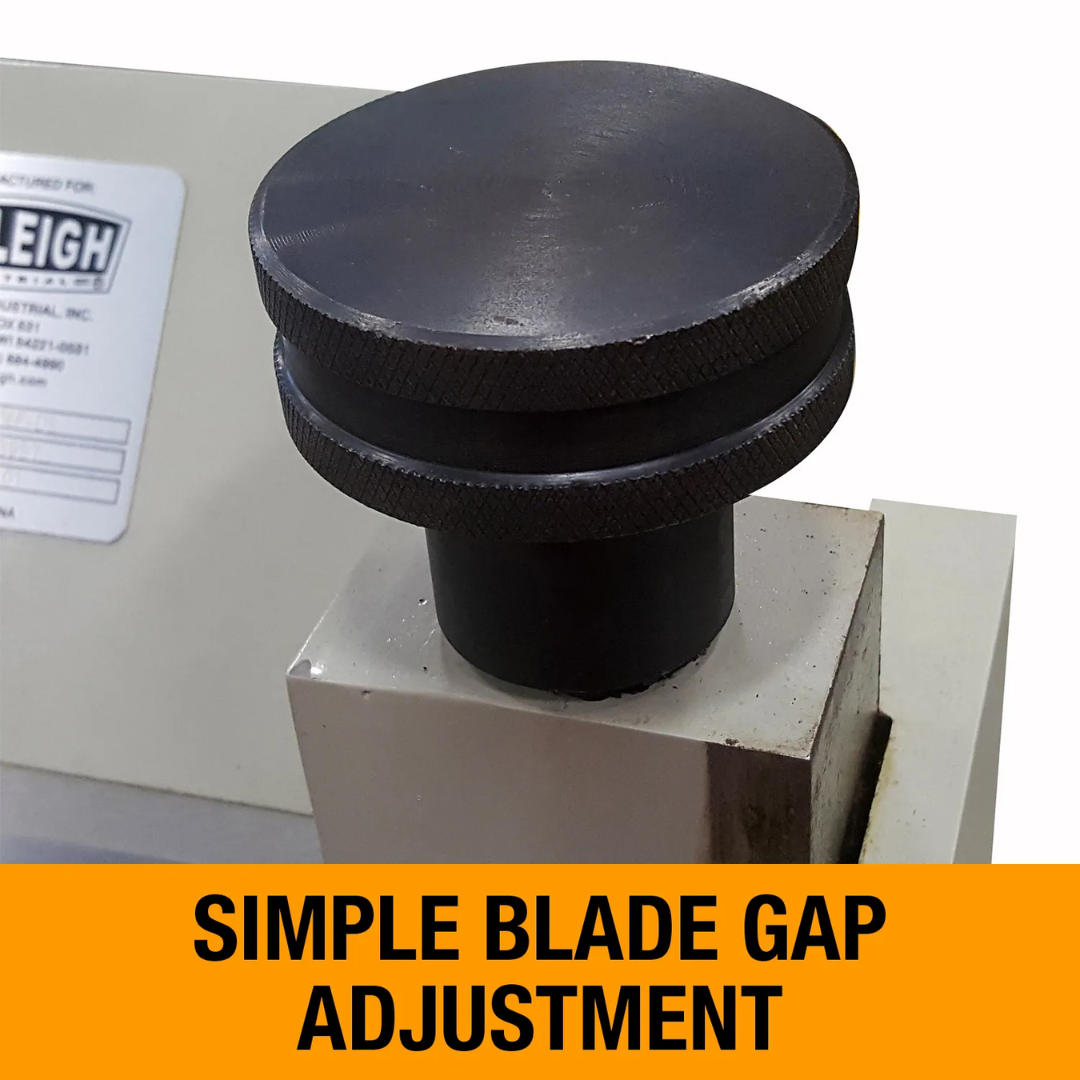

- Adjustable Blade Gap: Allows proper setup for different material thicknesses and forming requirements.
- Stop Rod System: Enables repeatable bend positioning for production work and consistent part quality.

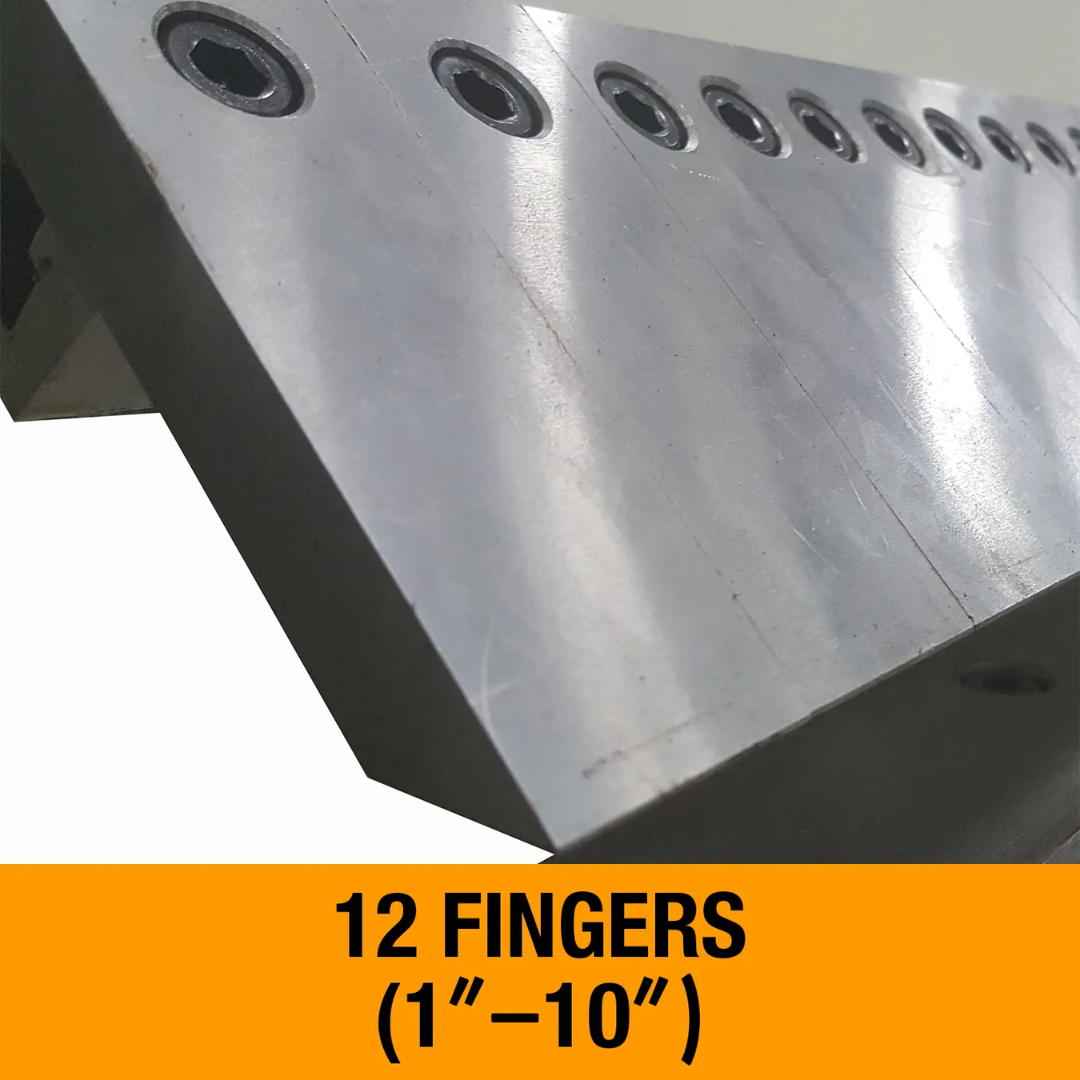

- Assorted Hardened Fingers Included: Supports a variety of box and pan configurations for increased fabrication flexibility.
- Heavy-Duty Construction: The 810 lb machine weight helps reduce flex and maintain accurate bends under load.
Why Choose the Baileigh Sheet Metal Finger Brake - (BB-4012F) 1000399
- Bends up to 12-gauge mild steel across a full 40" working width.
- Foot-operated clamping system improves efficiency and material control.
- Removable finger tooling expands fabrication capabilities.
- Spring-assisted operation reduces operator fatigue.
- Heavy welded steel construction ensures long-term durability.
- Adjustable blade gap accommodates multiple material thicknesses.
- Stop rod supports repeatable bends for production consistency.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Sheet Metal Finger Brake - (BB-4012F) 1000399 combines industrial-grade construction, precision box-and-pan forming capability, and user-friendly operation into a reliable solution for fabricators who need accurate bends, flexible tooling options, and dependable performance every day.
